Exporter实现

server.js中注册路由：

app.use('/metrics',monitorRouter)

monitor.js完成业务逻辑：

const express = require('express')
const Prometheus = require('prom-client')
const DashboardRepository = require("../repository/dashboard.repository");
const DashboardController = require('../controller/dashboard.controller')
const Util = require("../utils/commonFunction")

const labelNames = [
'id',
'taskName',
'station',
'model',
'sn',
]
const monitorRouter = express.Router()
const register = new Prometheus.Registry()
const injectSuccessRate = new Prometheus.Gauge({
    name:'inject_success_rate',
    help:'Inject success rate'
})
const injectSuccessNum = new Prometheus.Gauge({
    name:'inject_success_num',
    help:'Inject success number'
})
const injectFailedNum = new Prometheus.Gauge({
    name:'inject_failed_num',
    help:'Inject failed number'
})
const injectWarningNum = new Prometheus.Gauge({
    name:'inject_warning_num',
    help:'Inject warning number'
})
const averageInjectRate = new Prometheus.Gauge({
    name:'inject_average_rate',
    help:'Average inject rate'
})
const taskStatus = new Prometheus.Gauge({
    name:'task_status',
    help:'Task status',
    labelNames
})
const taskProgress = new Prometheus.Gauge({
    name:'task_progress',
    help:'Progress',
    labelNames
})
const taskBeginTime = new Prometheus.Gauge({
    name:'task_begin_time',
    help:'Begin Time',
    labelNames
})
const taskEndTime = new Prometheus.Gauge({
    name:'task_end_time',
    help:'End Time',
    labelNames
})
const taskDataRate = new Prometheus.Gauge({
    name:'task_data_rate',
    help:'Data Rate',
    labelNames
})
const taskFileSize = new Prometheus.Gauge({
    name:'task_file_size',
    help:'File Size',
    labelNames
})
const taskExpectDuration = new Prometheus.Gauge({
    name:'task_expect_duration',
    help:'Expect Duration',
    labelNames
})
const taskDuration = new Prometheus.Gauge({
    name:'task_duration',
    help:'Duration',
    labelNames
})

register.registerMetric(injectSuccessRate)
register.registerMetric(injectSuccessNum)
register.registerMetric(injectFailedNum)
register.registerMetric(injectWarningNum)
register.registerMetric(averageInjectRate)
register.registerMetric(taskStatus)
register.registerMetric(taskProgress)
register.registerMetric(taskBeginTime)
register.registerMetric(taskEndTime)
register.registerMetric(taskDataRate)
register.registerMetric(taskFileSize)
register.registerMetric(taskExpectDuration)
register.registerMetric(taskDuration)


monitorRouter.get('/',async(req,res)=>{
res.set('Content-Type',Prometheus.register.contentType);
const data = await DashboardController.getUploadStatics()
const {successRate,successNum,failedNum,warningNum,injectRate} = data;
injectSuccessRate.set(+successRate);
injectSuccessNum.set(+successNum);
injectFailedNum.set(+failedNum);
injectWarningNum.set(+warningNum);
averageInjectRate.set(+injectRate);

let tasks = await DashboardRepository.getAllUploadTasks();
tasks = await DashboardController.generateTaskResult(tasks);
async function processTasks() {
    for (const task of tasks) {
        let {
            id,taskName,station,model,
            sn,progress,status,beginTime,
            endTime,expectedDuration,spendTime,dataRate,fileSize
        } = task;
        await taskStatus.labels({
            id,
            taskName,
            station,
            model,
            sn,
        }).set(+status);
        await taskProgress.labels({
            id,
            taskName,
            station,
            model,
            sn,
        }).set(+progress)
        const timeBegin = new Date(beginTime);
        const timeEnd = new Date(endTime);
        await taskBeginTime.labels({
            id,station,model,sn,taskName
        }).set(timeBegin.getTime());

        await taskEndTime.labels({
            id,station,model,sn,taskName
        }).set(timeEnd.getTime());

        await taskDataRate.labels({
            id,station,model,sn,taskName
        }).set(+dataRate)

        await taskFileSize.labels({
            id,station,model,sn,taskName
        }).set(+fileSize)

        await taskExpectDuration.labels({
            id,station,model,sn,taskName
        }).set(Util.getDurationSeconds(expectedDuration))
        await taskDuration.labels({
            id,station,model,sn,taskName
        }).set(Util.getDurationSeconds(spendTime))
    }
}
await processTasks();
    register.metrics().then(data=>res.status(200).send(data))
})


module.exports = monitorRouter

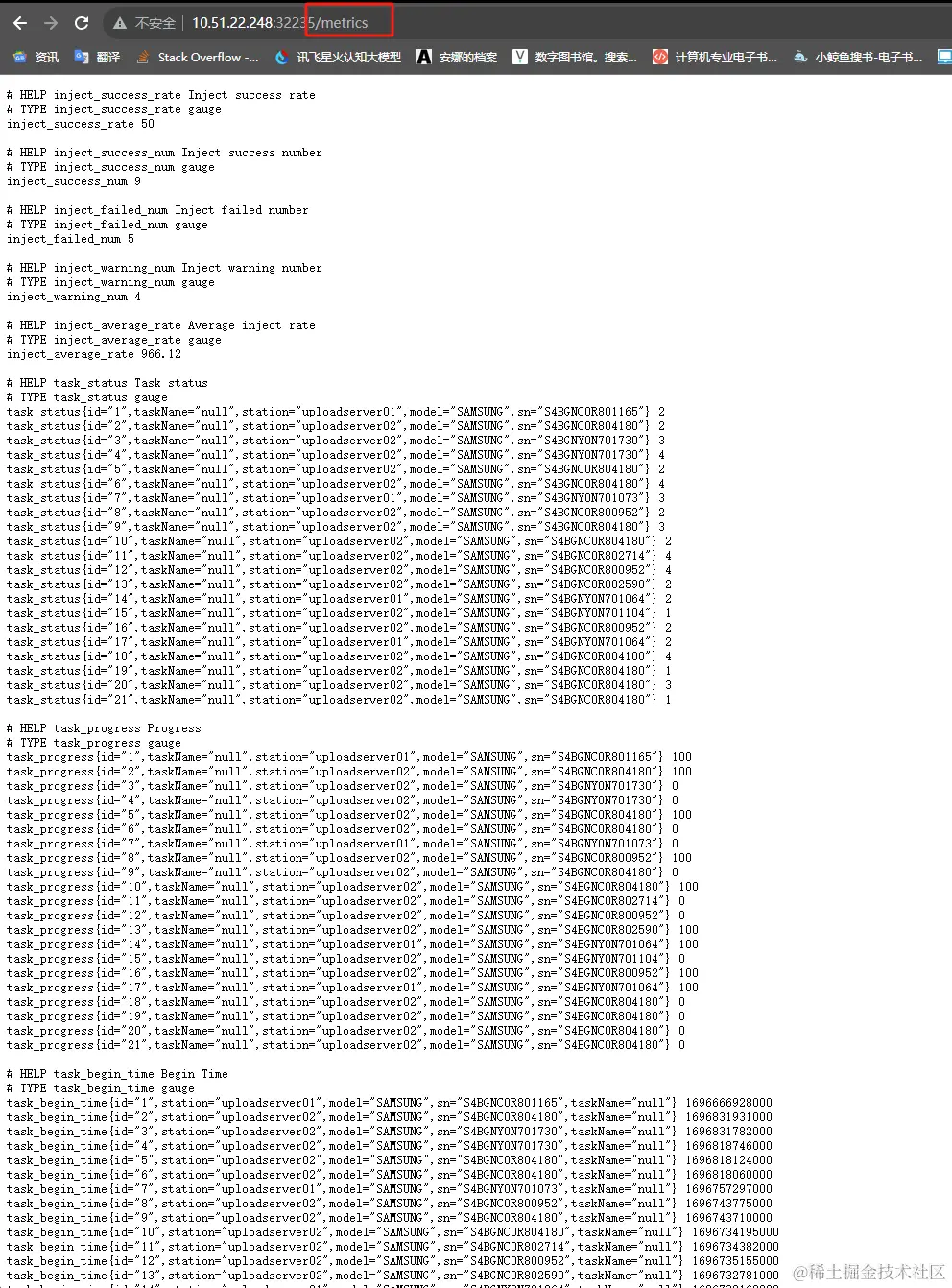

访问后端地址+"/metrics"即可访问exporter数据。注意：设置的labels尽量设置为不会发生变化的常量，Prometheus中会将(指标名+其labels)标识为一个时间序列，当labels发生变化后，则成为一个新的时间序列，在后面grafana的聚合展示中会出现问题。

部署Prometheus

prometheus的yaml文件

# my global config
global:
  scrape_interval: 15s # Set the scrape interval to every 15 seconds. Default is every 1 minute.
  evaluation_interval: 15s # Evaluate rules every 15 seconds. The default is every 1 minute.
  # scrape_timeout is set to the global default (10s).

# Alertmanager configuration
alerting:
  alertmanagers:
    - static_configs:
        - targets:
          # - alertmanager:9093

# Load rules once and periodically evaluate them according to the global 'evaluation_interval'.
rule_files:
  # - "first_rules.yml"
  # - "second_rules.yml"

# A scrape configuration containing exactly one endpoint to scrape:
# Here it's Prometheus itself.
scrape_configs:
  # The job name is added as a label `job=<job_name>` to any timeseries scraped from this config.
  - job_name: "prometheus"

    # metrics_path defaults to '/metrics'
    # scheme defaults to 'http'.

    static_configs:
      - targets: ["localhost:9090"]
  - job_name: "inject_task_monitor"
    static_configs:
      - targets: ["10.51.22.248:32235"]
