HIVE监控小红书用户活跃状态曲线

Hhhh
12 阅读4分钟

ODS层——原始数据存储

创建user_info表

CREATE TABLE user_info(
user_id int,
age_between varchar(20),
sex int,
user_level int,
reg_time date
)
-- 定义分隔符
ROW FORMAT DELIMITED
FIELDS TERMINATED BY ','

-- 装载数据
load data inpath '/user/J15546620791/User_info.csv' into table user_info;

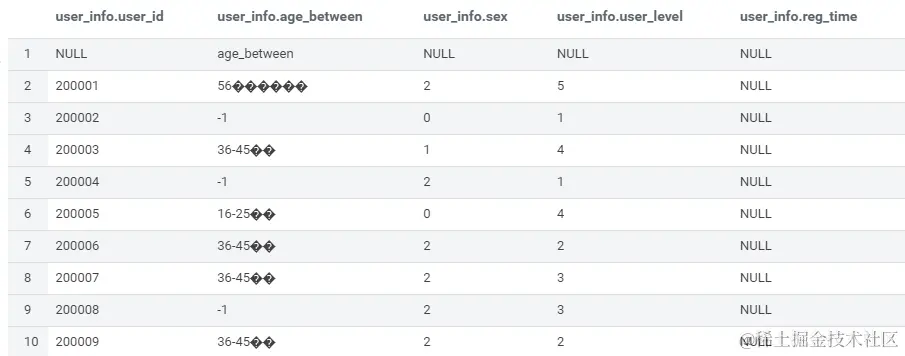

查询结果： image.png

BUG：此时的数据第一行格式不对，具体数据变成了表头， age_between列变成了乱码，regtime列变成了null。

解决办法: 重新装载数据，可此时user/J155xxxxxxxx/目录下已经没有user_info文件了，它被移动到HDFS上了，为了不重新上传浪费时间，我们直接去apps/xxx/xxx目录下去寻找此文件，然后拷贝到原文件夹下。(实操找不到那个文件目录，重新上传)

drop table user_info;

CREATE TABLE user_info(
user_id int,
age_between varchar(20),
sex int,
user_level int,
reg_time date
)
ROW FORMAT DELIMITED
FIELDS TERMINATED BY ','

 -- 去掉第一行数据,告诉第一行是列头

TBLPROPERTIES ('skip.header.line.count' = '1');

load data inpath '/user/J15546620791/User_info.csv' overwrite into table user_info;

select * from user_info limit 10;

-- 解决hive中文输出乱码的问题
alter table user_info set serdeproperties('serialization.encoding'='GBK');


-- 修改表结构，更改列名，列类型
alter table user_info change column reg_time reg_time varchar(50);


select * from user_info limit 10;

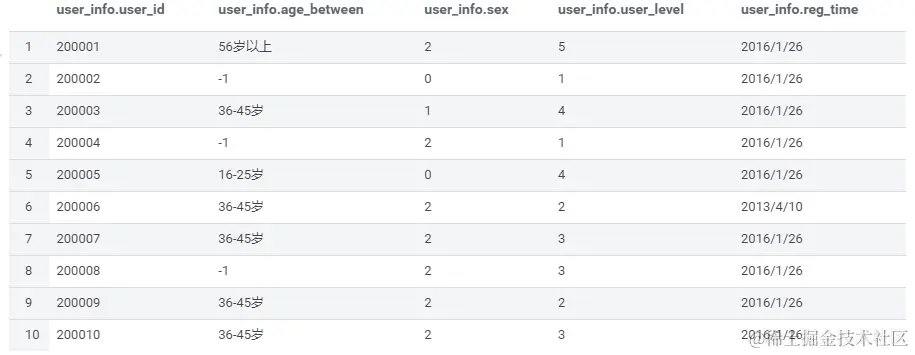

查询结果：

image.png 此时格式正确。

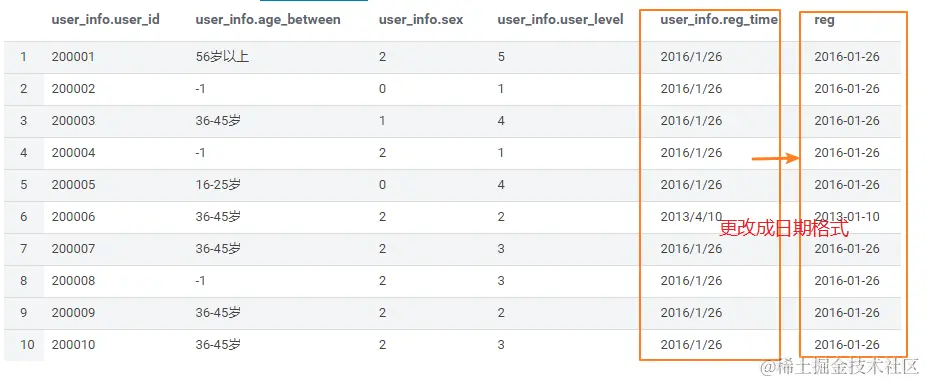

将reg_time更改成日期格式：

unix_timestamp：将字段改成时间戳

from_unixtime：改成字符串格式

to_date：转成日期格式

select *,to_date(from_unixtime(unix_timestamp(reg_time,'yyyy/mm/dd'))) as reg from user_info limit 10;


创建user_action表

create table user_action(
user_id int,
sku_id string,
action_time Timestamp,
model_id int,
type int,
cate int,
brand int
)
row format delimited fields terminated by ',';
tblproperties("skip.header.line.count"="1");
load data inpath '/user/J15546620791/user_Action_201602.csv' into table user_action;
load data inpath '/user/J15546620791/user_Action_201603.csv' into table user_action;
load data inpath '/user/J15546620791/user_Action_201604.csv' into table user_action;

DWD层——数据清洗

第一步：创建新数据库create database DWS_XHS

第二步：创建新的数据表

创建新的user_info表
create table user_info as
select user_id,
age_between,
case when sex = 1 then '女' when sex = 0 then '男' else '保密' end,
user_level,
to_date(from_unixtime(uxin_timestamp(reg_time))) as reg_time,
from ods_xhs.user_info;

创建新的user_action表
create table User_action as
select user_id, sku_id ,
action_time,
type,
cate,
brand
from ods_shop.user_action;

DWS层——轻度汇总

第一步：创建数据库create database DWS_XHS

第二步：创建新的数据表

  1. 统计各用户每天各行为次数

    create table user_date_action as
select user_id,to_date(action_time) as action_date,
sum(if(type=1,1,0)) as browes,
sum(if(type=2,1,0)) as addCart
sum(if(type=3,1,0)) as delCart,
sum(if(type=4,1,0)) as orders,
sum(if(type=5,1,0)) as addFriend,
sum(if(type=6,1,0)) as click
from DWD_XHS.user_action
group by user_id,to_date(action_time)

  2. 统计每人活跃日期

    create table user_date as
select user_id,action_date
from user_date_action
group by user_id,action_date

  3. 用户信息表直接复制

    create table user_info as
select * from DWD_XHS.user_info

APP层——用户状态变化

第一步：创建新数据库

    create database APP_XHS

第二步：统计用户状态变化，创建表

注：统计用户状态主要参考三个日期：注册日期，最后活跃日期，统计日期

    -- 要统计的历史日期和所有用户的迪卡尔积表
    create table user_cross as
    select user_id,reg_time,action_date,
        -- 用户最大活跃日期
    (select max(action_date) from DWS_XHS.user_date where user_id = users.user_id and action_date <= riqi.action_date) as max_date
    from (select action_date from dws_shop.user_date group by action_date) as riqi,
    (select user_id,reg_time from dws_shop.user_info group by user_id,reg_time) as users


    -- 统计user_date_cross中的各用户状态
    create table user_status as
    select *
    case when stats_time = reg_time then 'NewUser' -- 注册用户
         when day(max_date - reg_time <=7 or max_date is null) and day(stats_time - reg_time <= 14) then 'inaction' -- 未激活用户
         when day(max_date - reg_time >7) and day(stats_time - max_date <=7) then 'action' -- 激活用户
         when day(max_date - reg_time >7) and day(stats_time - max_date >14) and day(stats_time - max_time <=21) or (day(stats_time - reg_time >14) and day(max_date - reg_time <=7) or max_date is null)) then 'sleep' --睡眠用户
         when (day(max_action-reg_time)>7 and day(stats_date-max_action)>21 ) or (day(stats_date-reg_time)>28 and (day(max_action-reg_time)<=7 or max_action is null )) then "lose_user" -- 流失用户
         end as user_typed
    from user_date_cross


    -- 统计每天用户状态数
    select action_date,user_typed,count(*) as user_count
    from user_status
    group by action_date,user_typed

第三步：每天新统计数据 (如添加2016年5月1号数据)

    insert into user_status
    select *,
    case when stats_date = reg_time then "new_user"
    when (day(max_action-reg_time)<=7 or max_action is null) and day(stats_date-reg_time)<=14 then "inaction_user"
    when day(max_action-reg_time)>7 and day(stats_date-max_action)<=7 then "action_user"
    when (day(max_action-reg_time)>7 and day(stats_date-max_action)>7 and day(stats_date-max_action)<=21) or (day(stats_date-reg_time)>14 and (day(max_action-reg_time)<=7 or max_action is null )) then "sleep_user"
    when (day(max_action-reg_time)>7 and day(stats_date-max_action)>21 ) or (day(stats_date-reg_time)>28 and (day(max_action-reg_time)<=7 or max_action is null )) then "lose_user"
    end as user_typed
    from (
    select to_date('2016-5-1') as stats_date,user_id,reg_time,
    (select max(action_date) from dws_shop.user_date where user_id =
    user_info.user_id and action_date < to_date('2016-5-1') ) max_action
    from dws_shop.user_info ) as Sub

连接TABLEAU完成可视化展示
