three.js实现3D模型展示

由于项目需要展示3d模型,所以对three做了点研究,分享出来 希望能帮到大家

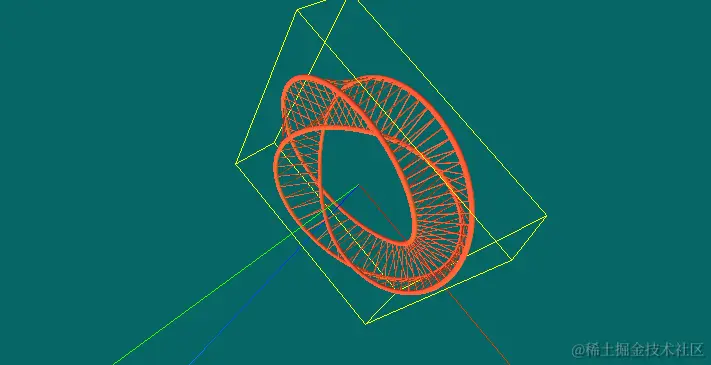

先看看效果:

three.js整体来说 不是很难 只要你静下心来研究研究 很快就会上手的

首先我们在页面上需要创建一个能够放置3D模型的画布 也可以说是初始化 Three

var WIDTH,HEIGHT;
var    renderer;
function initThree() {
    WIDTH = document.documentElement.clientWidth/2; <!--{foreach from=$recommended_goods item=rgoods}--> <!-- {/foreach} -->
    HEIGHT = document.documentElement.clientHeight/2;
    /* 渲染器 */
    renderer = new THREE.WebGLRenderer();
    renderer.setSize(WIDTH , HEIGHT);
    renderer.setClearColor(new THREE.Color(0x66666));
    renderer.gammaInput = true;
    renderer.gammaOutput = true;

    document.body.appendChild(renderer.domElement);
}

通过上面的代码不难看出 我们设置了 在body里追加了一块画布 宽高是 client的一半颜色为 0x66666 这里要注意的是  renderer = new THREE.WebGLRenderer(); 因为我们所有的设置都是以renderer为对象设置

下来 我们需要调整摄像头 即视觉角度

/* 摄像头 */
var camera;
function initCamera() {
    var VIEW_ANGLE = 45,
            ASPECT = WIDTH / HEIGHT,
            NEAR = 0.1,
            FAR = 10000;
    camera = new THREE.PerspectiveCamera(VIEW_ANGLE, ASPECT, NEAR, FAR);
    camera.position.set(20, 0, 0);
    //设置视野的中心坐标
    camera.lookAt(scene.position);
}

以上代码主要是控制视觉角度 数值可以在后期根据自己的需求去调整

加载场景:

/* 场景 */
var scene;
function initScene() {
    scene = new THREE.Scene();
}

加载灯光效果

/* 灯光 */
var light,light2,light3;
function initLight() {
    //平行光
    light = new THREE.DirectionalLight(0xFFFFFF);
    light.position.set(0, 99, 0).normalize();
    scene.add(light);
    //环境光
    light2 = new THREE.AmbientLight(0x999999);
    scene.add(light2);
    //点光源
    light3 = new THREE.PointLight(0x00FF00);
    light3.position.set(300, 0, 0);
    scene.add(light3);
}

显示模型对象:

/* 显示对象 */
var cube;
function initObject(){
    // ASCII file
    var loader = new THREE.STLLoader();

    loader.addEventListener( 'load', function ( event ) {
        var loading = document.getElementById("Loading");
        loading.parentNode.removeChild(loading);
        var geometry = event.content;
        //砖红色
        var material = new THREE.MeshPhongMaterial( { ambient: 0xff5533, color: 0xff5533, specular: 0x111111, shininess: 200 } );
        //纯黑色
//            var material = new THREE.MeshBasicMaterial( { envMap: THREE.ImageUtils.loadTexture( 'http://localhost:8080/textures/metal.jpg', new THREE.SphericalReflectionMapping() ), overdraw: true } ) ;
        //粉色 带阴影
//            var material = new THREE.MeshLambertMaterial( { color:0xff5533, side: THREE.DoubleSide } );
        //灰色
//            var material = new THREE.MeshLambertMaterial({color: 000000});    //材质设定  (颜色)


        var mesh = new THREE.Mesh( geometry, material );

        var center = THREE.GeometryUtils.center(geometry);
        var boundbox=geometry.boundingBox;
        var vector3 = boundbox.size(null);
        var vector3 = boundbox.size(null);
        console.log(vector3);
        var scale = vector3.length();
        camera.position.set(scale, 0, 0);
        camera.lookAt(scene.position);
        scene.add(camera);


        //利用一个轴对象以可视化的3轴以简单的方式。X轴是红色的。Y轴是绿色的。Z轴是蓝色的。这有助于理解在空间的所有三个轴的方向。
        var axisHelper = new THREE.AxisHelper(800);
        scene.add(axisHelper);

        //周围边框
        bboxHelper = new THREE.BoxHelper();
        bboxHelper.visible = true;
        var meshMaterial = material;
        mainModel = new THREE.Mesh(geometry, meshMaterial);
        bboxHelper.update(mainModel);
        bboxHelper.geometry.computeBoundingBox();
        scene.add(bboxHelper);

        //地板网格
//            var gridHelper = new THREE.GridHelper(500, 40); // 500 is grid size, 20 is grid step
//            gridHelper.position = new THREE.Vector3(0, 0, 0);
//            gridHelper.rotation = new THREE.Euler(0, 0, 0);
//            scene.add(gridHelper);
//            var gridHelper2 = gridHelper.clone();
//            gridHelper2.rotation = new THREE.Euler(Math.PI / 2, 0, 0);
//            scene.add(gridHelper2);
//            var gridHelper3 = gridHelper.clone();
//            gridHelper3.rotation = new THREE.Euler(Math.PI / 2, 0, Math.PI / 2);
//            scene.add(gridHelper3);
//
//            var grid = new THREE.GridHelper(300, 40, 25, [0, 0, 1], 0x000055, 0.2, true, "#FFFFFF", "left");
//            scene.add(grid);


        var x = (boundbox.max.x - boundbox.min.x).toFixed(2);
        var y = (boundbox.max.y - boundbox.min.y).toFixed(2);
        var z = (boundbox.max.z - boundbox.min.z).toFixed(2);

        console.log(x);
        console.log(y);
        console.log(z);
        console.log(boundbox);

        mesh.position.set(0,0,0);
//            mesh.position.x = scene.position.x;
//            mesh.position.y = scene.position.y ;
//            mesh.position.z = scene.position.z;
        scene.add(mesh);


        renderer.clear();
        renderer.render(scene, camera);
    } );
    loader.load( '3dfile/莫比乌斯环.STL' );
}
