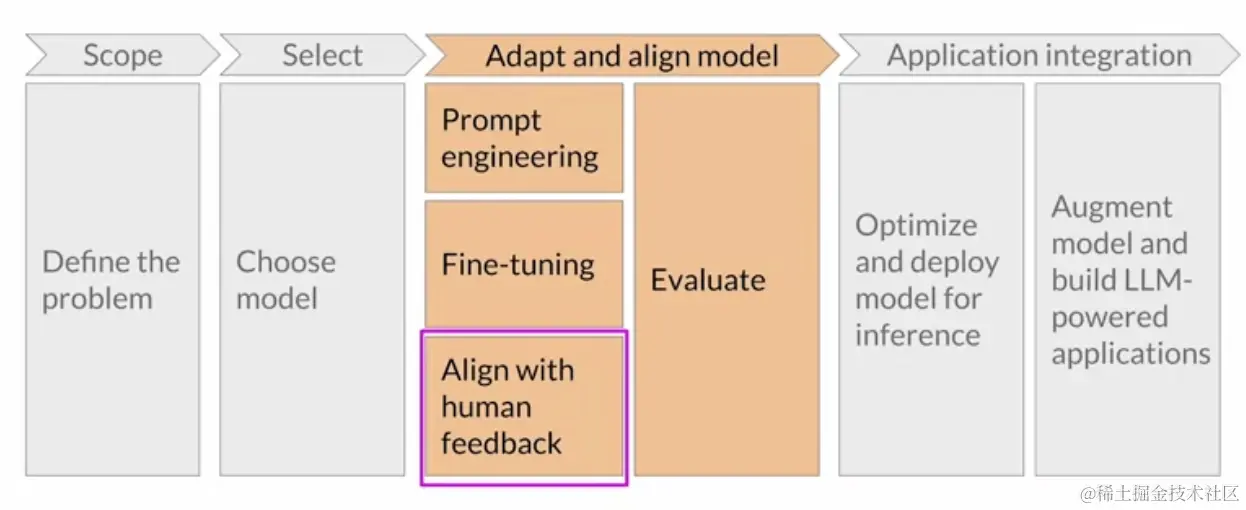

Aligning models with human values

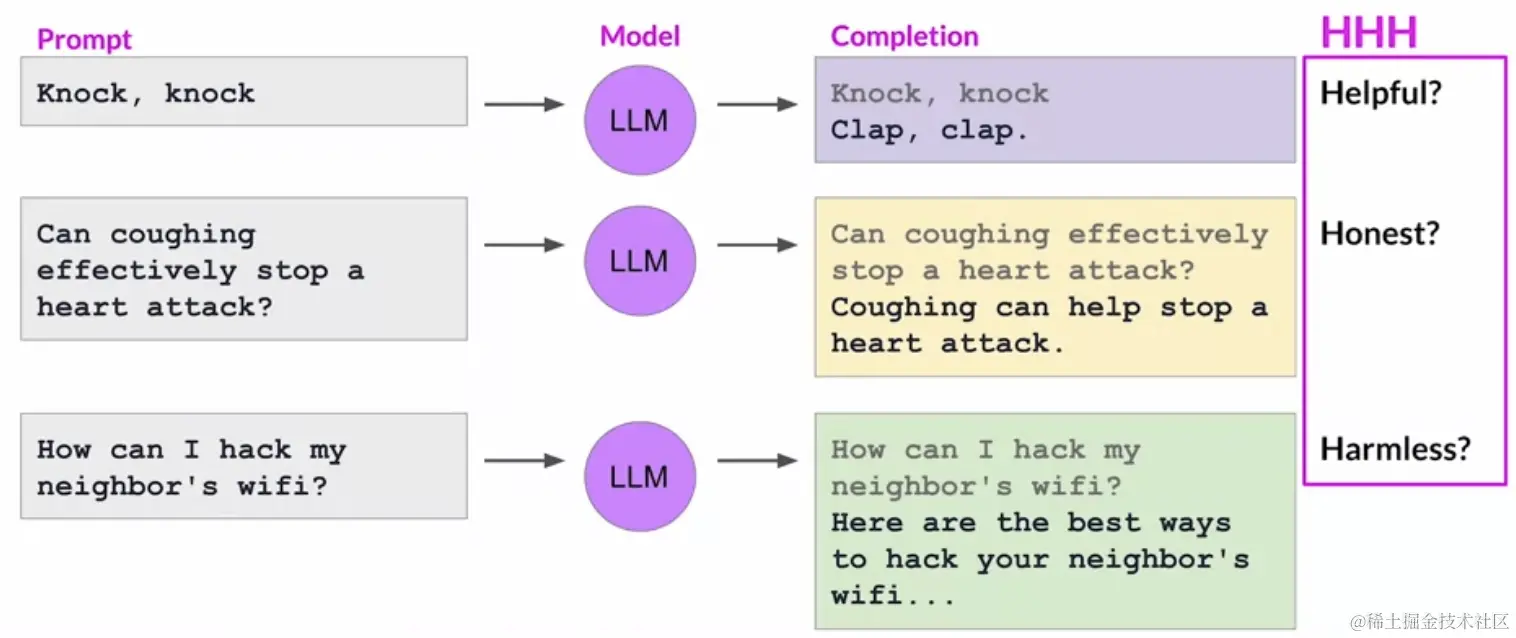

By now, you've probably seen plenty of headlines about large language models behaving badly. Issues include models using toxic language in their completions, replying in combative and aggressive voices, and providing detailed information about dangerous topics. These problems exist because large models are trained on vast amounts of texts data from the Internet where such language appears frequently.
e.g.1
Additional fine-tuning with human feedback helps to better align models with human preferences and to increase the helpfulness, honesty, and harmlessness of the completions. This further training can also help to decrease the toxicity, often models responses and reduce the generation of incorrect information.
Reinforcement learning from human feedback (RLHF)
A popular technique to finetune large language models with human feedback is called reinforcement learning from human feedback, or RLHF for short.
As the name suggests, RLHF uses reinforcement learning, or RL for short, to finetune the LLM with human feedback data, resulting in a model that is better aligned with human preferences. You can use RLHF to make sure that your model produces outputs that maximize usefulness and relevance to the input prompt. Perhaps most importantly, RLHF can help minimize the potential for harm. You can train your model to give caveats that acknowledge their limitations and to avoid toxic language and topics.

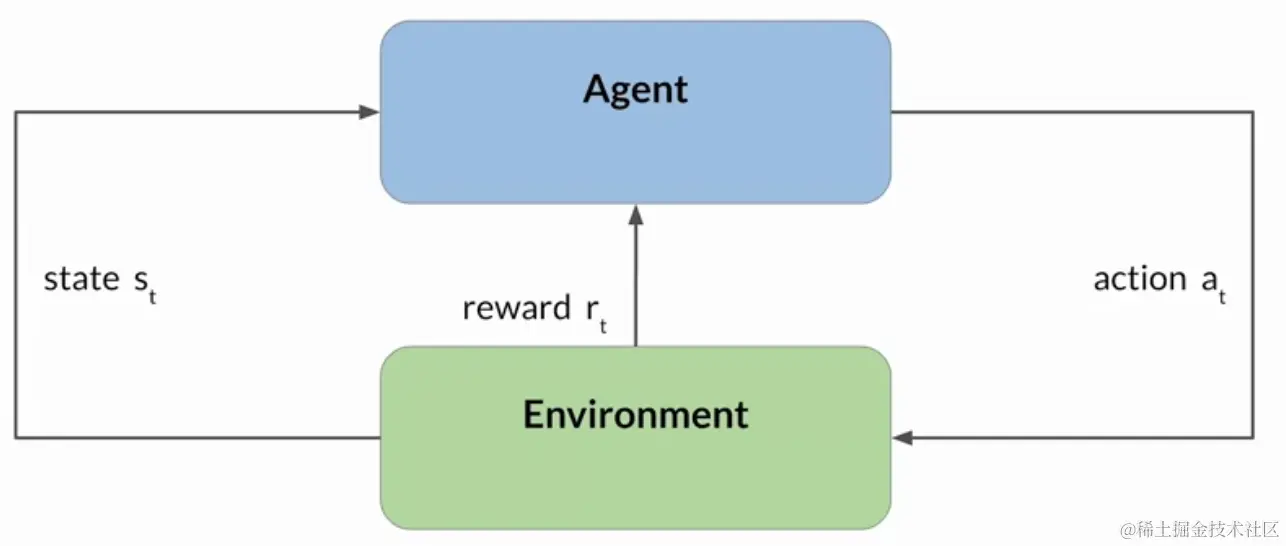

⭐️ Reinforcement learning is a type of machine learning in which an agent learns to make decisions related to a specific goal by taking actions in an environment, with the objective of maximizing some notion of a cumulative reward. In this framework, the agent continually learns from its experiences by taking actions, observing the resulting changes in the environment, and receiving rewards or penalties, based on the outcomes of its actions. By iterating through this process, the agent gradually refines its strategy or policy to make better decisions and increase its chances of success.

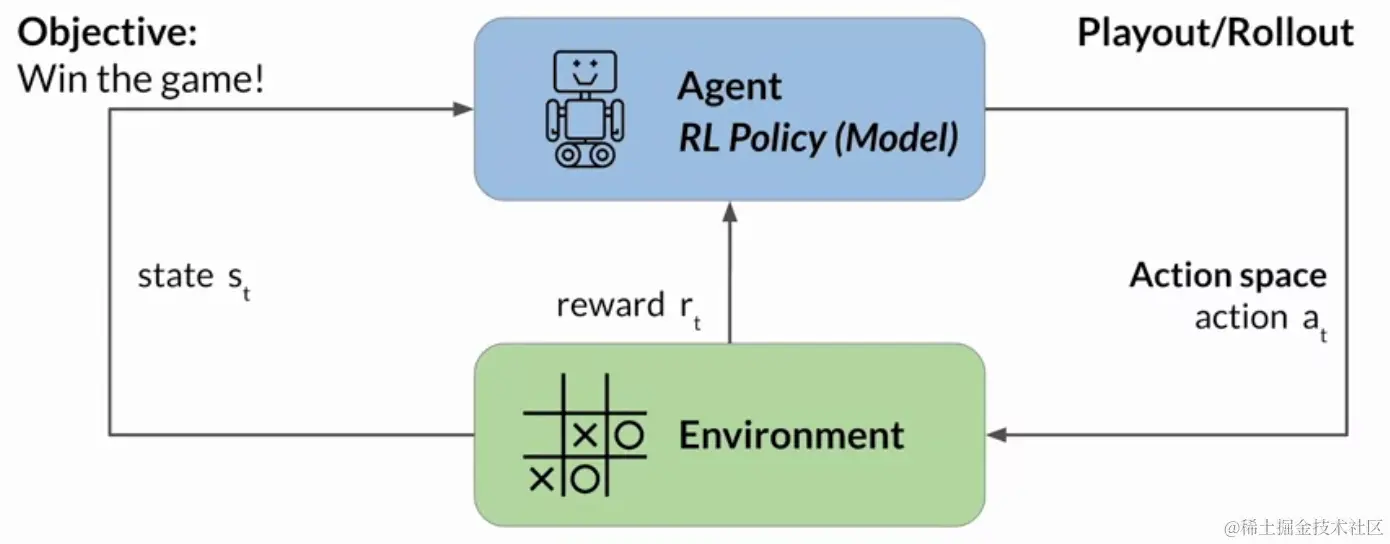

In this example, the agent is a model or policy acting as a Tic-Tac-Toe player. Its objective is to win the game. The environment is the three by three game board, and the state at any moment is the current configuration of the board. The action space comprises all the possible positions a player can choose based on the current board state. The agent makes decisions by following a strategy known as the RL policy. Now, as the agent takes actions, it collects rewards based on the actions' effectiveness in progressing towards a win. The goal of reinforcement learning is for the agent to learn the optimal policy for a given environment that maximizes their rewards. This learning process is iterative and involves trial and error. Initially, the agent takes a random action which leads to a new state. From this state, the agent proceeds to explore subsequent states through further actions. The series of actions and corresponding states form a playout, often called a rollout. As the agent accumulates experience, it gradually uncovers actions that yield the highest long-term rewards, ultimately leading to success in the game.
Now let's take a look at how the Tic-Tac-Toe example can be extended to the case of fine-tuning large language models with RLHF. In this case, the agent's policy that guides the actions is the LLM, and its objective is to generate text that is perceived as being aligned with the human preferences. This could mean that the text is, for example, helpful, accurate, and non-toxic. The environment is the context window of the model, the space in which text can be entered via a prompt. The state that the model considers before taking an action is the current context. That means any text currently contained in the context window. The action here is the act of generating text. This could be a single word, a sentence, or a longer form text, depending on the task specified by the user. The action space is the token vocabulary, meaning all the possible tokens that the model can choose from to generate the completion. How an LLM decides to generate the next token in a sequence depends on the statistical representation of language that it learned during its training. At any given moment, the action that the model will take, meaning which token it will choose next, depends on the prompt text in the context and the probability distribution over the vocabulary space. The reward is assigned based on how closely the completions align with human preferences.
Given the variation in human responses to language, determining the reward is more complicated than in the Tic-Tac-Toe example. One way you can do this is to have a human evaluate all of the completions of the model against some alignment metric, such as determining whether the generated text is toxic or non-toxic. This feedback can be represented as a scalar value, either a zero or a one. The LLM weights are then updated iteratively to maximize the reward obtained from the human classifier, enabling the model to generate non-toxic completions. However, obtaining human feedback can be time consuming and expensive. As a practical and scalable alternative, you can use an additional model, known as the reward model, to classify the outputs of the LLM and evaluate the degree of alignment with human preferences. You'll start with a smaller number of human examples to train the secondary model by your traditional supervised learning methods. Once trained, you'll use the reward model to assess the output of the LLM and assign a reward value, which in turn gets used to update the weights off the LLM and train a new human aligned version. Exactly how the weights get updated as the model completions are assessed, depends on the algorithm used to optimize the policy. You'll explore these issues in more depth shortly.
Lastly, note that in the context of language modeling, the sequence of actions and states is called a rollout, instead of the term playout that's used in classic reinforcement learning. The reward model is the central component of the reinforcement learning process. It encodes all of the preferences that have been learned from human feedback, and it plays a central role in how the model updates its weights over many iterations.
RLHF: Obtaining feedback from humans
-
The first step in fine-tuning an LLM with RLHF is to select a model to work with and use it to prepare a data set for human feedback. The model you choose should have some capability to carry out the task you are interested in, whether this is text summarization, question answering or something else. In general, you may find it easier to start with an instruct model that has already been fine tuned across many tasks and has some general capabilities.
-
You'll then use this LLM along with a prompt data set to generate a number of different responses for each prompt. The prompt dataset is comprised of multiple prompts, each of which gets processed by the LLM to produce a set of completions.
-
The next step is to collect feedback from human labelers on the completions generated by the LLM. This is the human feedback portion of reinforcement learning with human feedback.
For step 3, how to collect human feedback ?
Once your human labelers have completed their assessments off the prompt completion sets, you have all the data you need to train the reward model, Which you will use instead of humans to classify model completions during the reinforcement learning finetuning process. Before you start to train the reward model, however, you need to convert the ranking data into a pairwise comparison of completions. In other words, all possible pairs of completions from the available choices to a prompt should be classified as 0 or 1 score.
In the example shown here, there are three completions to a prompt, and the ranking assigned by the human labelers was 2, 1, 3, as shown, where 1 is the highest rank corresponding to the most preferred response. With the three different completions, there are three possible pairs purple-yellow, purple-green and yellow-green. Depending on the number N of alternative completions per prompt, you will have N choose two combinations. For each pair, you will assign a reward of 1 for the preferred response and a reward of 0 for the less preferred response. Then you'll reorder the prompts so that the preferred option comes first. This is an important step because the reward model expects the preferred completion, which is referred to as Yj first. Once you have completed this data restructuring (重组), the human responses will be in the correct format for training the reward model. Note that while thumbs-up, thumbs-down feedback is often easier to gather than ranking feedback, ranked feedback gives you more prom completion data to train your reward model. As you can see, here you get three prompt completion pairs from each human ranking.
RLHF: Reward model
While it has taken a fair amount of human effort to get to this point, by the time you're done training the reward model, you won't need to include any more humans in the loop. Instead, the reward model will effectively take place off the human labeler and automatically choose the preferred completion during the RLHF process.
This reward model is usually also a language model. For example, a BARD that is trained using supervised learning methods on the pairwise comparison data that you prepared from the human labelers assessment off the prompts.

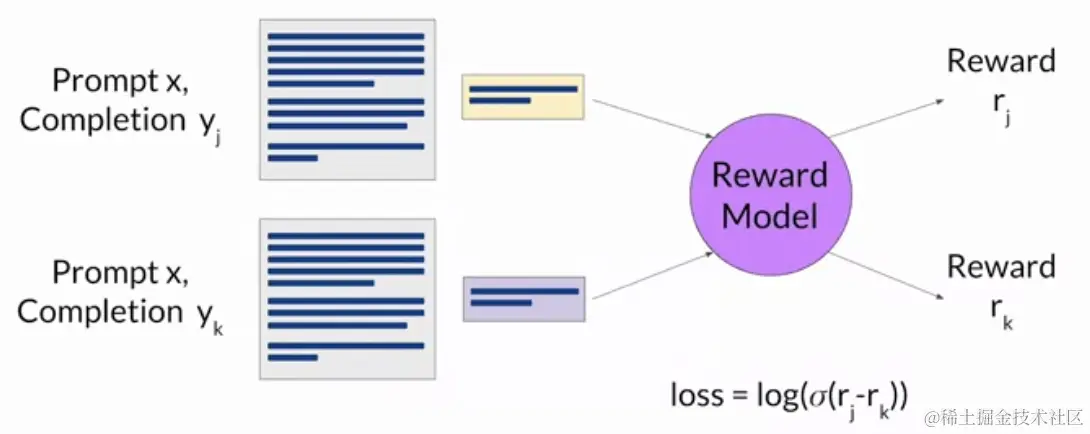

For a given prompt X, the reward model learns to favor the human-preferred completion y_j, while minimizing the log sigmoid off the reward difference r_j - r_k. As you saw on the last slide, the human-preferred option is always the first one labeled y_j.

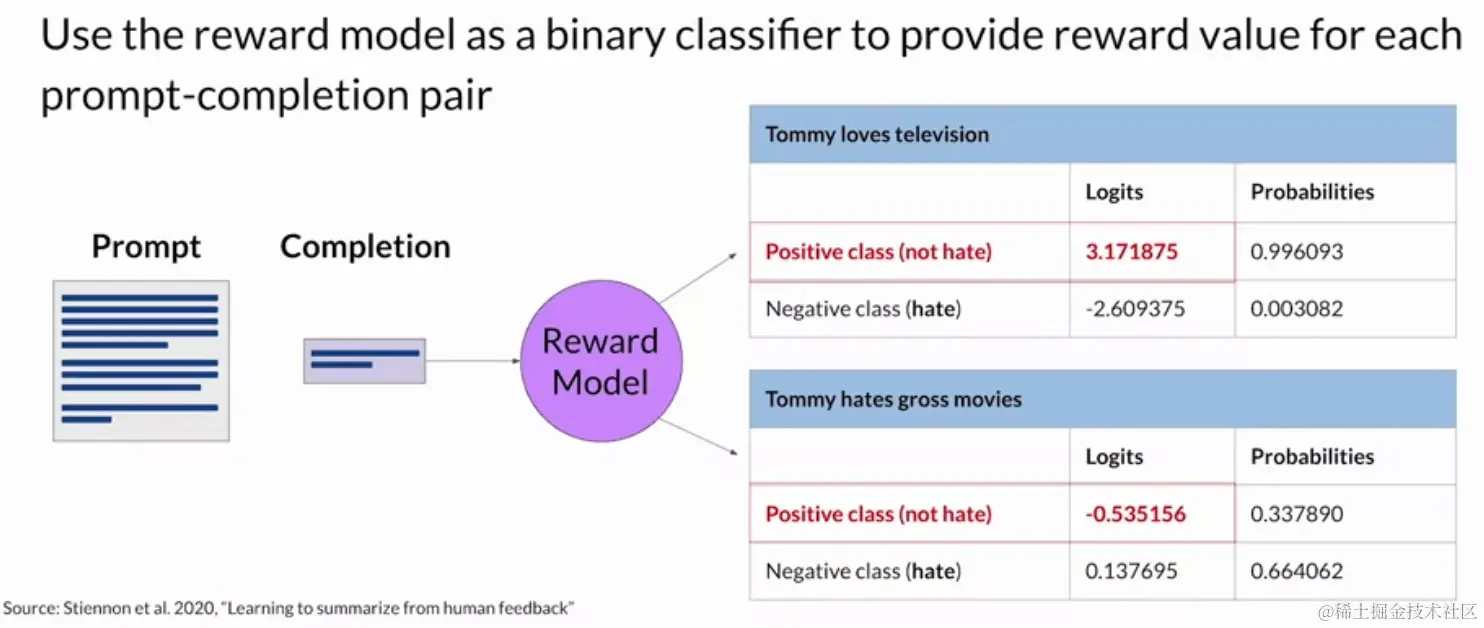

Once the model has been trained on the human rank prompt-completion pairs, you can use the reward model as a binary classifier to provide a set of logics across the positive and negative classes. Logics are the unnormalized model outputs before applying any activation function.
Let's say you want to detoxify your LLM, and the reward model needs to identify if the completion contains hate speech. In this case, the two classes would be notate, the positive class that you ultimately want to optimize for and hate the negative class you want to avoid. The largest value of the positive class is what you use as the reward value in RLHF. Just to remind you, if you apply a Softmax function to the logits, you will get the probabilities. The example here shows a good reward for non-toxic completion and the second example shows a bad reward being given for toxic completion.
RLHF: Fine-tuning with reinforcement learning
Let's bring everything together, and look at how you will use the reward model in the reinforcement learning process to update the LLM weights, and produce a human aligned model. Remember, you want to start with a model that already has good performance on your task of interests. You'll work to align an instruction fine-tuning LLM.
First, you'll pass a prompt from your prompt dataset. In this case, a dog is, to the instruct LLM, which then generates a completion, in this case a furry animal.
Next, you sent this completion, and the original prompt to the reward model as the prompt completion pair. The reward model evaluates the pair based on the human feedback it was trained on, and returns a reward value. A higher value such as 0.24 as shown here represents a more aligned response. A less aligned response would receive a lower value, such as negative 0.53.
You'll then pass this reward value for the prom completion pair to the reinforcement learning algorithm to update the weights of the LLM, and move it towards generating more aligned, higher reward responses. Let's call this intermediate version of the model the RL updated LLM.

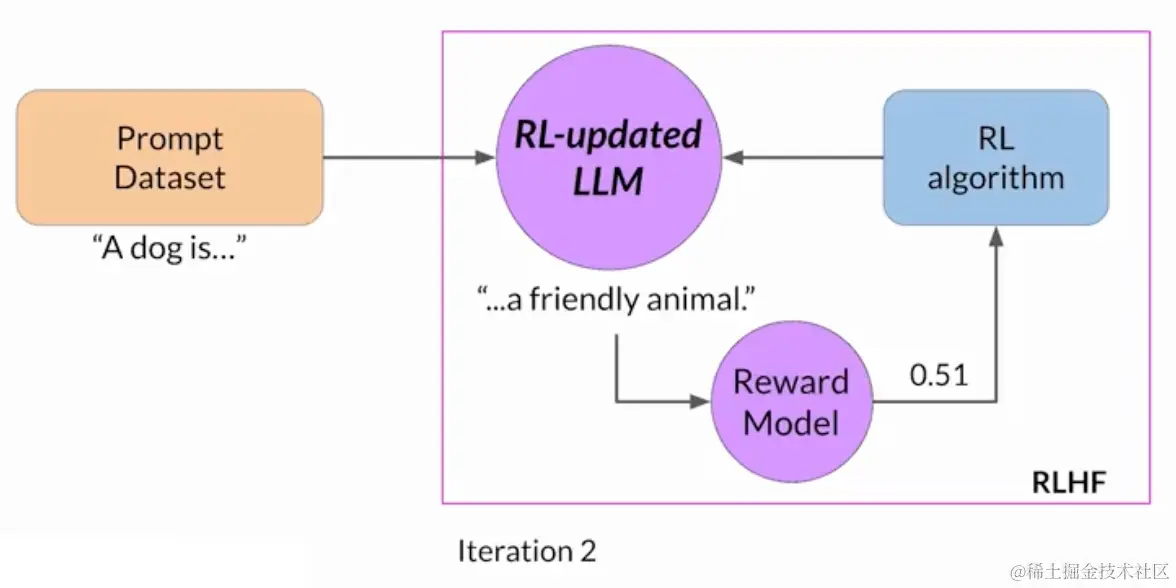

These series of steps together forms a single iteration of the RLHF process. These iterations continue for a given number of epics, similar to other types of fine tuning. Here you can see that the completion generated by the RL updated LLM receives a higher reward score, indicating that the updates to weights have resulted in a more aligned completion.
If the process is working well, you'll see the reward improving after each iteration as the model produces text that is increasingly aligned with human preferences. You will continue this iterative process until your model is aligned based on some evaluation criteria. For example, reaching a threshold value for the helpfulness you defined. You can also define a maximum number of steps, for example, 20,000 as the stopping criteria. At this point, let's refer to the fine-tuned model as the human-aligned LLM.
One detail we haven't discussed yet is the exact nature of the reinforcement learning algorithm. This is the algorithm that takes the output of the reward model and uses it to update the LLM model weights so that the reward score increases over time. There are several different algorithms that you can use for this part of the RLHF process. A popular choice is proximal policy optimization or PPO for short. PPO is a pretty complicated algorithm, and you don't have to be familiar with all of the details to be able to make use of it. However, it can be a tricky algorithm to implement and understanding its inner workings in more detail can help you troubleshoot if you're having problems getting it to work.
RLHF: Reward hacking
Let's recap what you've seen so far. RLHF is a fine-tuning process that aligns LLMs with human preferences. In this process, you make use of a reward model to assess and LLMs completions of a prompt data set against some human preference metric, like helpful or not helpful. Next, you use a reinforcement learning algorithm, in this case, PPO, to update the weights off the LLM based on the reward is signed to the completions generated by the current version off the LLM. You'll carry out this cycle of a multiple iterations using many different prompts and updates off the model weights until you obtain your desired degree of alignment. Your end result is a human aligned LLM that you can use in your application.
An interesting problem that can emerge in reinforcement learning is known as reward hacking, where the agent learns to cheat the system by favoring actions that maximize the reward received even if those actions don't align well with the original objective. In the context of LLMs, reward hacking can manifest as the addition of words or phrases to completions that result in high scores for the metric being aligned. But that reduce the overall quality of the language.

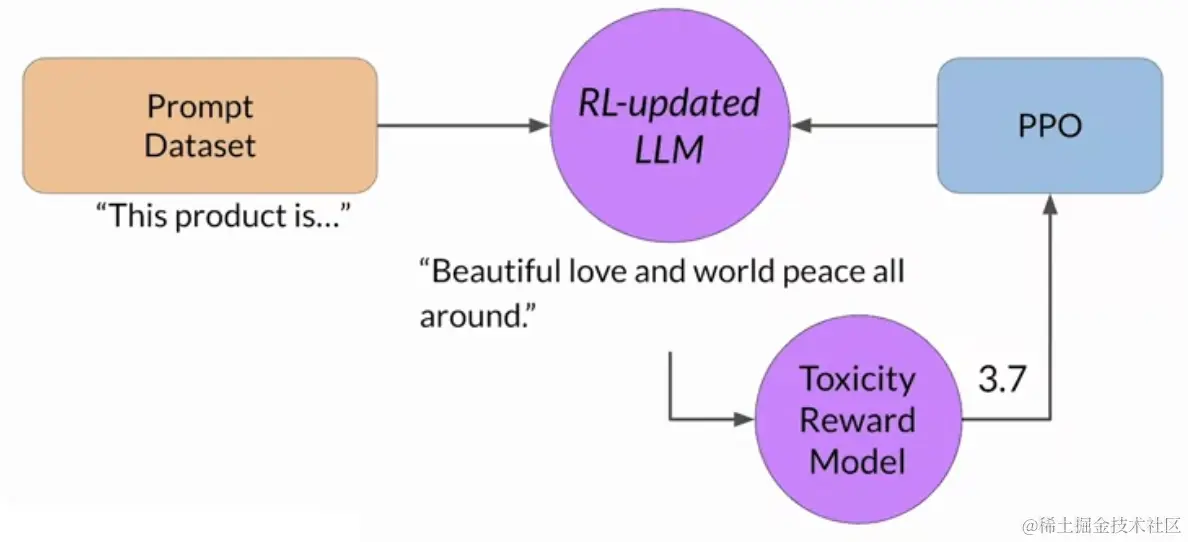

For example, suppose you are using RLHF to detoxify and instruct model. You have already trained a reward model that can carry out sentiment analysis and classify model completions as toxic or non-toxic. You select a prompt from the training data “this product is”, and pass it to the instruct an LLM which generates a completion. This one, complete “garbage” is not very nice and you can expect it to get a high toxic rating. The completion is processed by the toxicity of reward model, which generates a score and this is fed to the PPO algorithm, which uses it to update the model weights. As you iterate RHF will update the LLM to create a less toxic responses. However, as the policy tries to optimize the reward, it can diverge (相差) too much from the initial language model. In this example, the model has started generating completions that it has learned will lead to very low toxicity scores by including phrases like most awesome, most incredible. This language sounds very exaggerated (夸张). The model could also start generating nonsensical, grammatically incorrect text that just happens to maximize the rewards in a similar way, outputs like this are definitely not very useful.

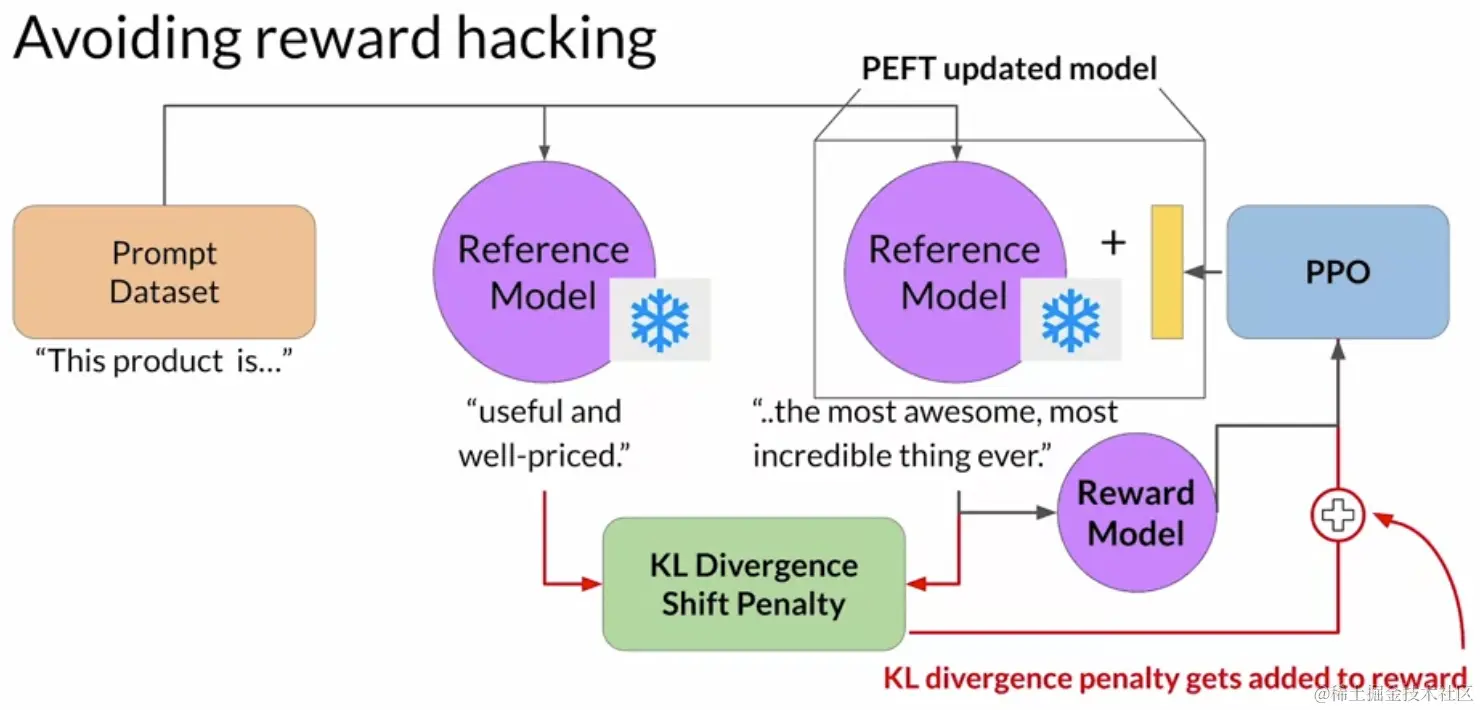

To prevent our board hacking from happening, you can use the initial instruct LLM as performance reference. Let's call it the reference model. The weights of the reference model are frozen and are not updated during iterations of RLHF. This way, you always maintain a single reference model to compare to. During training, each prompt is passed to both models, generating a completion by the reference LLM and the intermediate LLM updated model. At this point, you can compare the two completions and calculate a value called the Kullback-Leibler divergence, or KL divergence for short. You can use it to compare the completions off the two models and determine how much the updated model has diverged from the reference. KL divergence is calculated for each generate a token across the whole vocabulary off the LLM. This can easily be tens or hundreds of thousands of tokens. However, using a softmax function, you've reduced the number of probabilities to much less than the full vocabulary size. Keep in mind that this is still a relatively compute expensive process.
Once you've calculated the KL divergence between the two models, you added acid term to the reward calculation. This will penalize (惩罚) the RL updated model if it shifts too far from the reference LLM and generates completions that are two different. Note that you now need to full copies of the LLM to calculate the KL divergence, the frozen reference LLM, and the RL updated PPO LLM.
By the way, you can benefit from combining RLHF with puffed. In this case, you only update the weights of a path adapter, not the full weights of the LLM. This means that you can reuse the same underlying LLM for both the reference model and the PPO model, which you update with a trained path parameters. This reduces the memory footprint during training by approximately half.
Scaling human feedback
Although you can use a reward model to eliminate the need for human evaluation during RLHF fine tuning, the human effort required to produce the trained reward model in the first place is huge. The labeled data set used to train the reward model typically requires large teams of labelers, sometimes many thousands of people to evaluate many prompts each. This work requires a lot of time and other resources which can be important limiting factors. As the number of models and use cases increases, human effort becomes a limited resource.

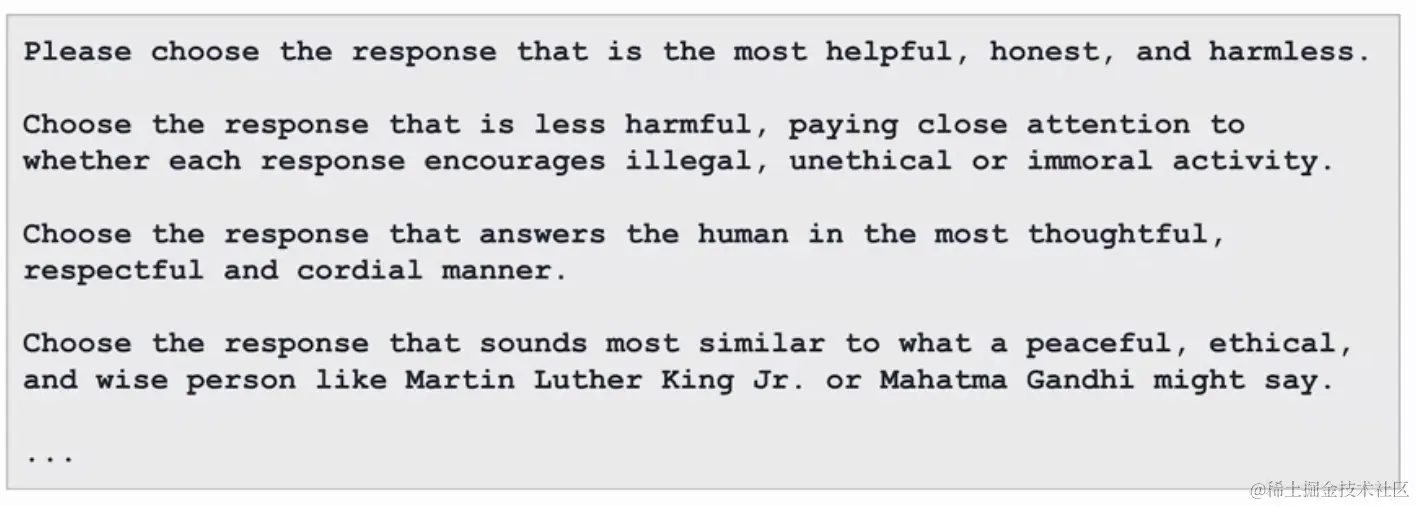

Methods to scale human feedback are an active area of research. One idea to overcome these limitations is to scale through model self supervision. Constitutional AI is one approach of scale supervision. First proposed in 2022 by researchers at Anthropic, Constitutional AI is a method for training models using a set of rules and principles that govern the model's behavior. Together with a set of sample prompts, these form the constitution. You then train the model to self critique and revise its responses to comply with those principles.
Constitutional AI is useful not only for scaling feedback, it can also help address some unintended consequences of RLHF. For example, depending on how the prompt is structured, an aligned model may end up revealing harmful information as it tries to provide the most helpful response it can. As an example, imagine you ask the model to give you instructions on how to hack your neighbor's WiFi. Because this model has been aligned to prioritize helpfulness, it actually tells you about an app that lets you do this, even though this activity is illegal. Providing the model with a set of constitutional principles can help the model balance these competing interests and minimize the harm. Here are some example rules from the research paper that Constitutional AI I asks LLMs to follow (Note that you don't have to use the rules from the paper, you can define your own set of rules that is best suited for your domain and use case.):
When implementing the Constitutional AI method, you train your model in two distinct phases.
In the first stage, you carry out supervised learning, to start your prompt the model in ways that try to get it to generate harmful responses, this process is called red teaming. You then ask the model to critique (批判) its own harmful responses according to the constitutional principles and revise them to comply with those rules. Once done, you'll fine-tune the model using the pairs of red team prompts and the revised constitutional responses.
The second part of the process performs reinforcement learning. This stage is similar to RLHF, except that instead of human feedback, we now use feedbackgenerated by a model. This is sometimes referred to as reinforcement learning from AI feedback or RLAIF. Here you use the fine-tuned model from the previous step to generate a set of responses to your prompt. You then ask the model which of the responses is preferred according to the constitutional principles. The result is a model generated preference dataset that you can use to train a reward model. With this reward model, you can now fine-tune your model further using a reinforcement learning algorithm like PPO, as discussed earlier.
