环境
protobuf
- protoc 工具
- 下载：
-
新增至环境变量：
-

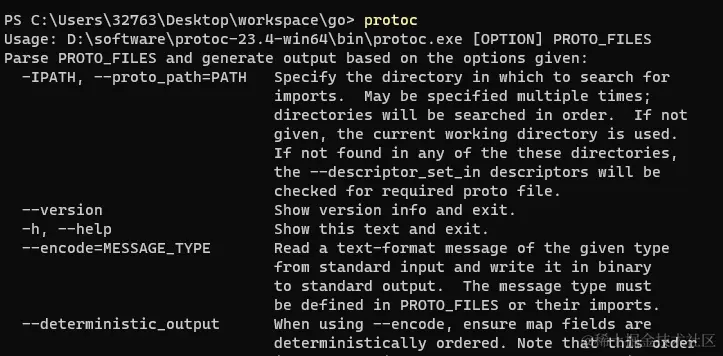

测试命令：
protoc
有反馈表示工具安装成功
- protoc 工具生成go代码
- 方式1
目录结构：
命令示例：
protoc -I=protos --go_out=. --go-grpc_out=. protos/hello.proto
命令解释：
-I 同 --proto_path，表示 proto路径 --go_out 输出路径 输入参数 protos/hello.proto，具体.proto文件

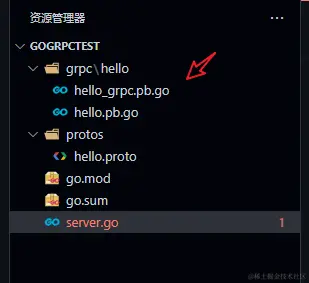

生成结果：
hello_grpc.pb.go hello.pb.go
protoc 命令解释：
Parse PROTO_FILES and generate output based on the options given:
-IPATH, --proto_path=PATH Specify the directory in which to search for
imports. May be specified multiple times;
directories will be searched in order. If not
given, the current working directory is used.
If not found in any of the these directories,
the --descriptor_set_in descriptors will be
checked for required proto file.
--version Show version info and exit.
-h, --help Show this text and exit.
--encode=MESSAGE_TYPE Read a text-format message of the given type
from standard input and write it in binary
to standard output. The message type must
be defined in PROTO_FILES or their imports.
--deterministic_output When using --encode, ensure map fields are
deterministically ordered. Note that this order
is not canonical, and changes across builds or
releases of protoc.
--decode=MESSAGE_TYPE Read a binary message of the given type from
standard input and write it in text format
to standard output. The message type must
be defined in PROTO_FILES or their imports.
--decode_raw Read an arbitrary protocol message from
standard input and write the raw tag/value
pairs in text format to standard output. No
PROTO_FILES should be given when using this
flag.
--descriptor_set_in=FILES Specifies a delimited list of FILES
each containing a FileDescriptorSet (a
protocol buffer defined in descriptor.proto).
The FileDescriptor for each of the PROTO_FILES
provided will be loaded from these
FileDescriptorSets. If a FileDescriptor
appears multiple times, the first occurrence
will be used.
-oFILE, Writes a FileDescriptorSet (a protocol buffer,
--descriptor_set_out=FILE defined in descriptor.proto) containing all of
the input files to FILE.
--include_imports When using --descriptor_set_out, also include
all dependencies of the input files in the
set, so that the set is self-contained.
--include_source_info When using --descriptor_set_out, do not strip
SourceCodeInfo from the FileDescriptorProto.
This results in vastly larger descriptors that
include information about the original
location of each decl in the source file as
well as surrounding comments.
--retain_options When using --descriptor_set_out, do not strip
any options from the FileDescriptorProto.
This results in potentially larger descriptors
that include information about options that were
only meant to be useful during compilation.
--dependency_out=FILE Write a dependency output file in the format
expected by make. This writes the transitive
set of input file paths to FILE
--error_format=FORMAT Set the format in which to print errors.
FORMAT may be 'gcc' (the default) or 'msvs'
(Microsoft Visual Studio format).
--fatal_warnings Make warnings be fatal (similar to -Werr in
gcc). This flag will make protoc return
with a non-zero exit code if any warnings
are generated.
--print_free_field_numbers Print the free field numbers of the messages
defined in the given proto files. Extension ranges
are counted as occupied fields numbers.
--enable_codegen_trace Enables tracing which parts of protoc are
responsible for what codegen output. Not supported
by all backends or on all platforms.
--plugin=EXECUTABLE Specifies a plugin executable to use.
Normally, protoc searches the PATH for
plugins, but you may specify additional
executables not in the path using this flag.
Additionally, EXECUTABLE may be of the form
NAME=PATH, in which case the given plugin name
is mapped to the given executable even if
the executable's own name differs.
--cpp_out=OUT_DIR Generate C++ header and source.
--csharp_out=OUT_DIR Generate C# source file.
--java_out=OUT_DIR Generate Java source file.
--kotlin_out=OUT_DIR Generate Kotlin file.
--objc_out=OUT_DIR Generate Objective-C header and source.
--php_out=OUT_DIR Generate PHP source file.
--pyi_out=OUT_DIR Generate python pyi stub.
--python_out=OUT_DIR Generate Python source file.
--ruby_out=OUT_DIR Generate Ruby source file.
--rust_out=OUT_DIR Generate Rust sources.
@<filename> Read options and filenames from file. If a
relative file path is specified, the file
will be searched in the working directory.
The --proto_path option will not affect how
this argument file is searched. Content of
the file will be expanded in the position of
@<filename> as in the argument list. Note
that shell expansion is not applied to the
content of the file (i.e., you cannot use
quotes, wildcards, escapes, commands, etc.).
Each line corresponds to a single argument,
even if it contains spaces.
- 参考
Protobuf生成Go代码指南 - 知乎 (zhihu.com)
proto文件生成go代码踩坑分享 - 掘金 (juejin.cn)
protoc 命令参数 - 蝈蝈俊 - 博客园 (cnblogs.com)
- 新版grpc生成服务带 UnimplementedHelloServer方法解决方法
方法1：
// HelloServer1 得有一个结构体，需要实现这个服务的全部方法,叫什么名字不重要
type HelloServer1 struct {
hello_grpc.UnimplementedHelloServiceServer // 必须加的结构体
}
方法2：
protoc -I=protos --go_out=. --go-grpc_out=require_unimplemented_servers=false:. protos/hello.proto
带有 mustEmbedUnimplemented*** 方法的 grpc_慕课猿问 (imooc.com)
mustEmbedUnimplemented*** method appear in grpc-server · Issue #3794 · grpc/grpc-go (github.com)
go 相关插件
- 插件安装
- 安装命令：
go install google.golang.org/protobuf/cmd/protoc-gen-go@latest
go install google.golang.org/grpc/cmd/protoc-gen-go-grpc@latest
- 参考：
Go Generated Code Guide | Protocol Buffers Documentation --- Go 生成代码指南 |协议缓冲区文档 (protobuf.dev)
golang gRPC：根据.protobuf文件生成go代码_grpc生成go代码_西京刀客的博客-CSDN博客
protobuf 协议
- 官方文档
Programming Guides | Protocol Buffers Documentation (protobuf.dev)
