Vue3源码之nextTick

nextTick作用

• 我们修改了数据后,想要立刻拿到更新后的视图元素,是不能拿到的,因为vue的视图更新是异步的,如果想拿到,就需要借助nextTick

<template>
    <p ref="pRef"> {{ num }}</p>
    <button @click="add">add</button>
</template>

<script>
export default {
     setup() {
          const num = ref(1);
          const pRef = ref(null);

          const add = () => {
            num.value += 1;
            console.log(pRef.value.innerText); // 输出 1
            nextTick(() => {
              console.log(pRef.value.innerText); // 输出 2
            });
          };

          return {
            add,
            num,
            pRef,
          };
        }
}
</script>

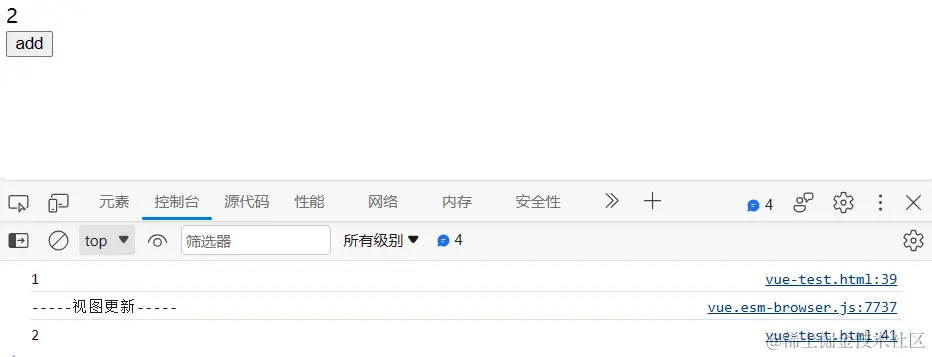

• 输出控制台(如下图)

先看看视图怎么异步更新

    const effect =  new ReactiveEffect(
      componentUpdateFn, // 首次挂载执行函数
      () => queueJob(update) // 后续更新执行函数
    )

    instance.effect = effect

    const update = () => effect.run()

    instance.update = update

queueJob代码

function queueJob(job) {
  if (
    !queue.length ||
    !queue.includes(
      job,
      isFlushing && job.allowRecurse ? flushIndex + 1 : flushIndex
    )
  ) {
     // 函数重点是把每次更新任务先加到一个队列queue里面,相同的job只会加入一次
    if (job.id == null) {
      queue.push(job);
    } else {
      queue.splice(findInsertionIndex(job.id), 0, job);
    }
    queueFlush(); // 执行
  }
}

function queueFlush() {
  if (!isFlushing && !isFlushPending) {
    isFlushPending = true; // 开关 保证只进入一次
    currentFlushPromise = resolvedPromise.then(flushJobs); // 异步执行 flushJobs
  }
}

function flushJobs(seen) {
  isFlushPending = false;
  isFlushing = true;
  {
    seen = seen || /* @__PURE__ */ new Map();
  }
  queue.sort(comparator);
  const check = (job) => checkRecursiveUpdates(seen, job);
  try {
      // 遍历queue队列
    for (flushIndex = 0; flushIndex < queue.length; flushIndex++) {
      const job = queue[flushIndex];
      if (job && job.active !== false) {
        if (check(job)) {
          continue;
        }
        callWithErrorHandling(job, null, 14); // 执行添加job
      }
    }
  } finally {
    flushIndex = 0;
    queue.length = 0;
    flushPostFlushCbs(seen);
    isFlushing = false;
    currentFlushPromise = null;
    if (queue.length || pendingPostFlushCbs.length) {
      flushJobs(seen);
    }
  }
}

视图是异步更新的,我们同样使用异步代码,在它更新后就能拿到数据了

nextTick源码

function nextTick(fn) {
  const p = currentFlushPromise || resolvedPromise;

  return fn ? p.then(this ? fn.bind(this) : fn) : p; // 就是将fn放到异步任务里执行
}

再来看看开关的demo

• 当进行num.value+=1时会先把视图更新放到异步队列
• 后面接着调用nextTick(fn)再把对应的fn放到队列

  const add = () => {
    num.value += 1;
    console.log(pRef.value.innerText); // 输出 1
    nextTick(() => {
      console.log(pRef.value.innerText); // 输出 2
    });
  };

结论

• 除了用nextTick,只要我们在视图更新后,使用异步任务(Promise.resolve(),setTimeout)都能取到更新后的视图元素
