【桌面开发】vscode+Debugger-For-NWjs+nwjs-sdk-vx.x.x-xxos调试环境搭建

294 阅读2分钟

在这里插入图片描述

安装准备

1、Debugger for NWjs 2、nwjs-sdk-v0.67.1-osx-x64下载解压(注意存放路径) 3、launch.json调试运行文件配置

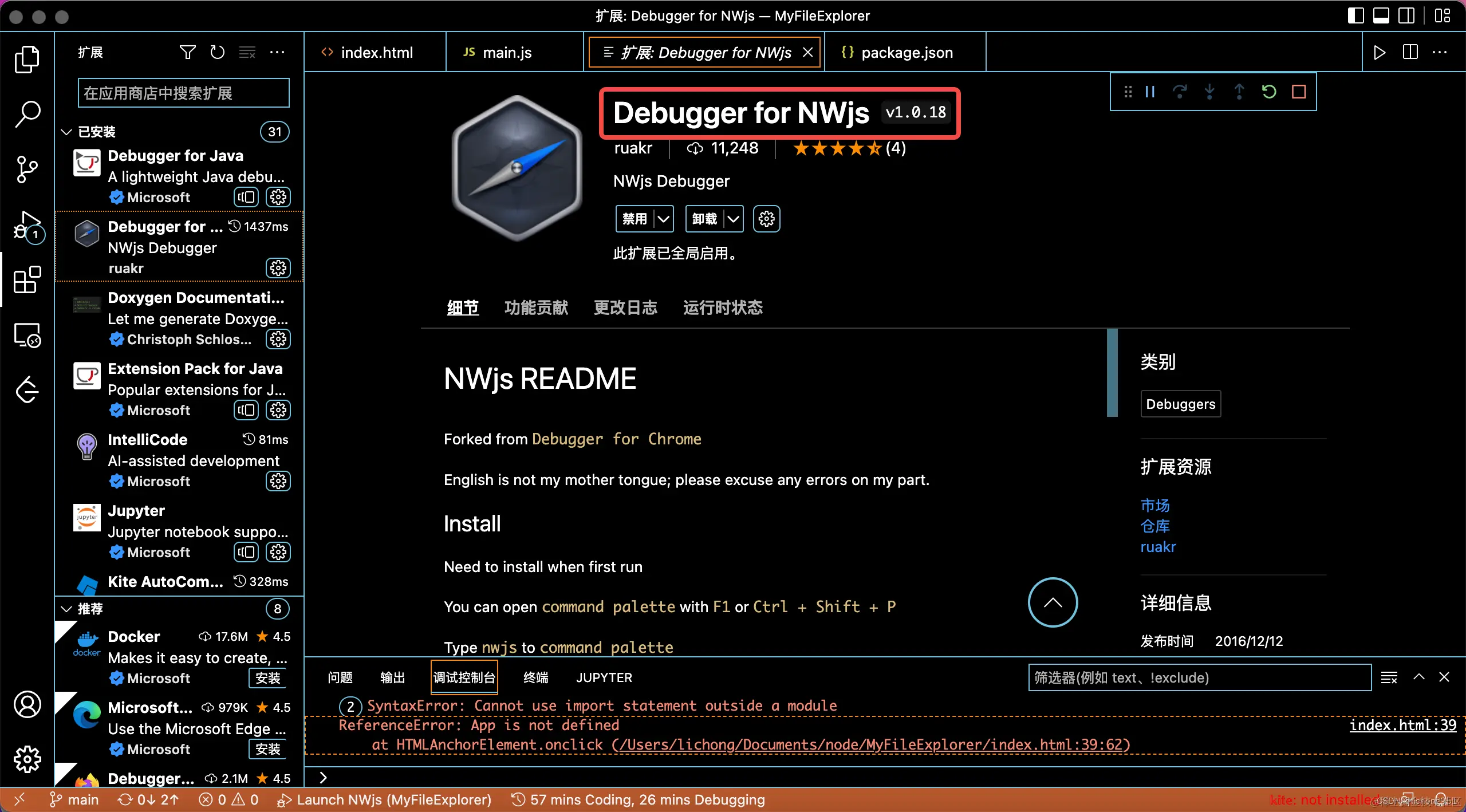

1、Debugger for NWjs

在VScode 插件里搜索后直接安装即可 使用说明:

Forked from Debugger for Chrome

English is not my mother tongue; please excuse any errors on my part.

Install Need to install when first run

You can open command palette with F1 or Ctrl + Shift + P

Type nwjs to command palette

Install command

Select version, It takes a little while to open.

Select version

It will start the installation at UserDir/.nwjs/version-names-nwjs. Wait install.

Installing

Launch NWjs

run

Shortcut is F5

Use with multiple version You can set version in launch.json. Use latest version by default

launchver

You can set version in nwjs.publish.json also.

publishver

Commands NWjs Install : Download NWjs and install NWjs Remove : Remove NWjs NWjs Publish : Generate publish directory and copy NWjs for publish NWjs Compile : Compile javascript with nwjc Issues Debugger will reload the page after attached. This work will run script twice. If you want not to that, Please set reloadAfterAttached to false in launch.json.

This extension use 9223 por.! If you want to change port, please set port field in launch.json.

2、nwjs-sdk-v0.67.1-osx-x64下载

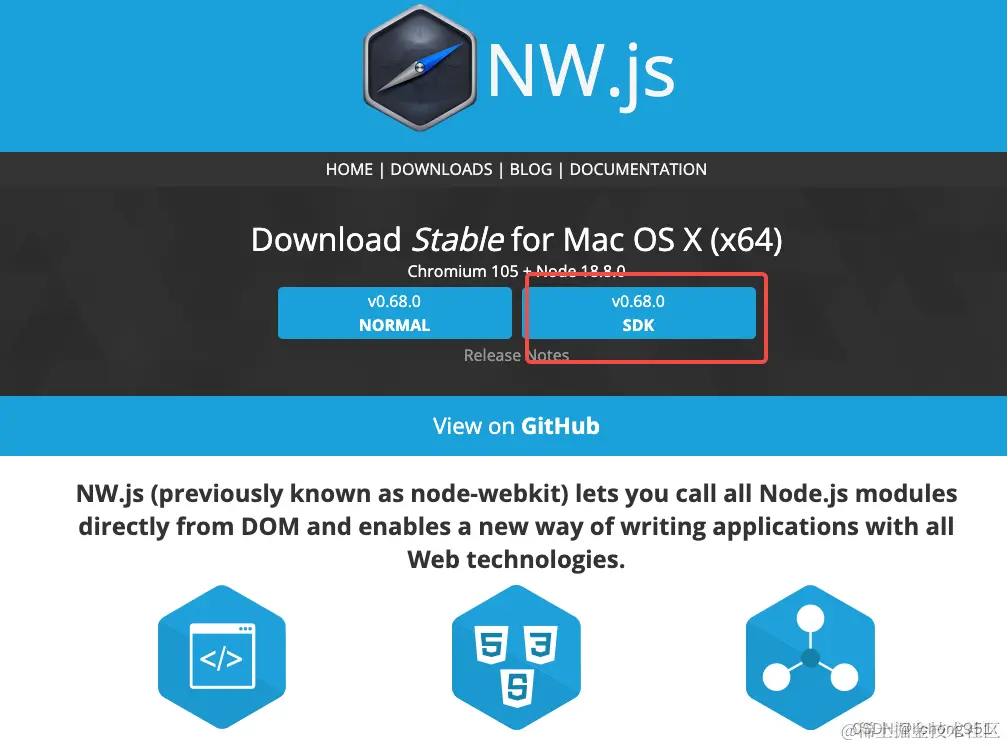

一定要是sdk那个版本 下载地址:nwjs.io/ 在这里插入图片描述 存放路径:UserDir/.nwjs/version-names-nwjs. 参考笔者的macOS路径:

/Users/lichong/.nwjs/nwjs-sdk-v0.67.1-osx-x64

win路径参考:

C:\Users\Administrator\.nwjs

存放路径要仔细核对,不然就没有调试效果

3、launch.json调试运行文件配置

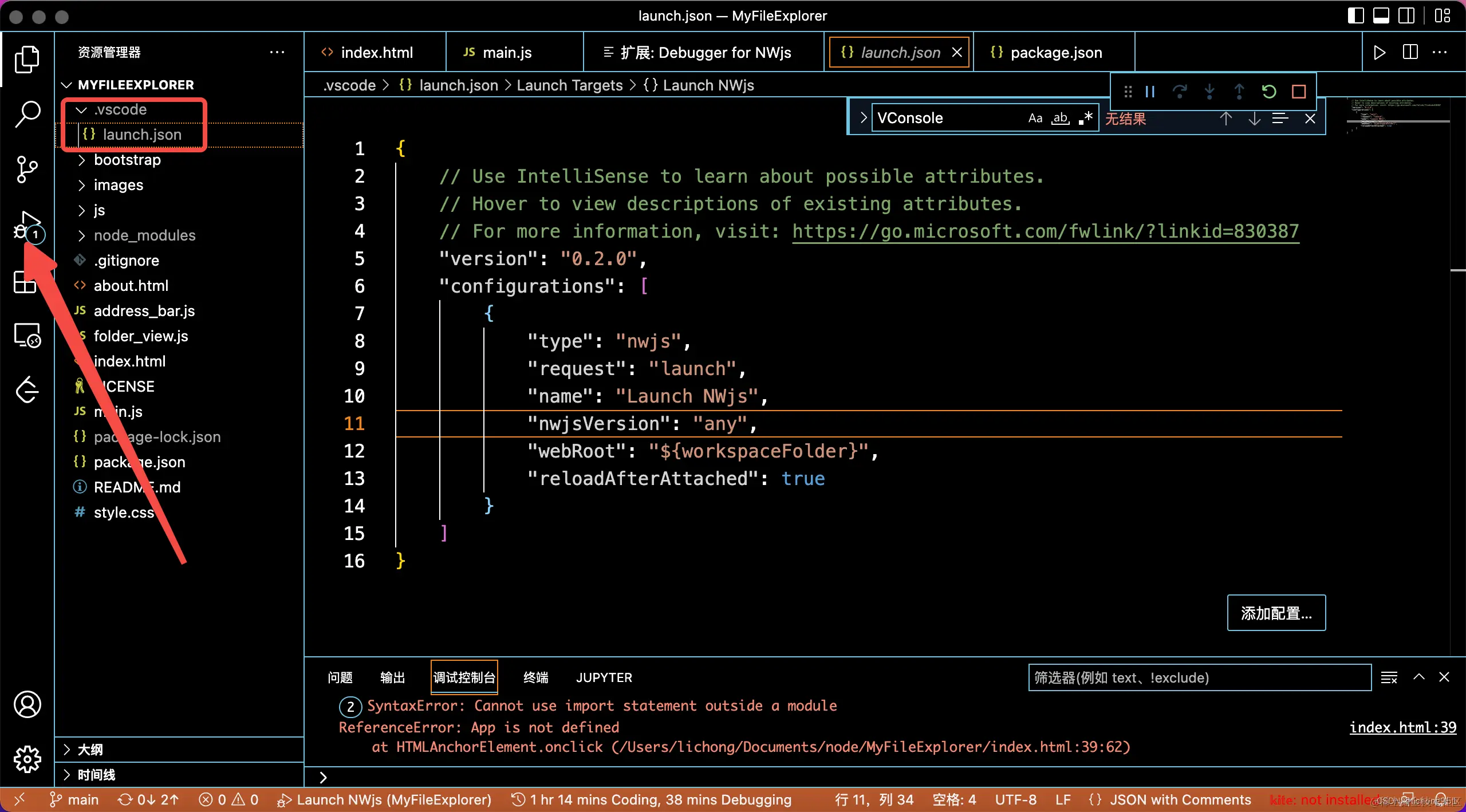

在这里插入图片描述 参考配置:

{
    // Use IntelliSense to learn about possible attributes.
    // Hover to view descriptions of existing attributes.
    // For more information, visit: https://go.microsoft.com/fwlink/?linkid=830387
    "version": "0.2.0",
    "configurations": [

        {
            "type": "nwjs",
            "request": "launch",
            "name": "Launch NWjs",
            "nwjsVersion": "any",
            "webRoot": "${workspaceFolder}",
            "reloadAfterAttached": true
        }
    ]
}

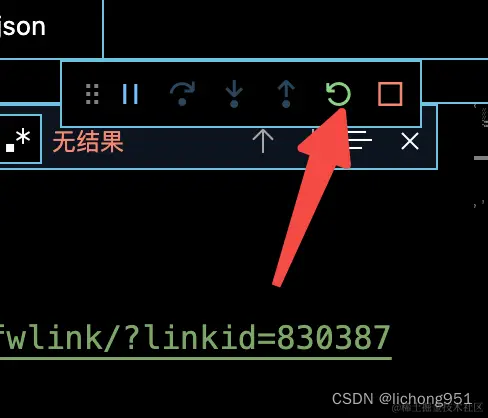

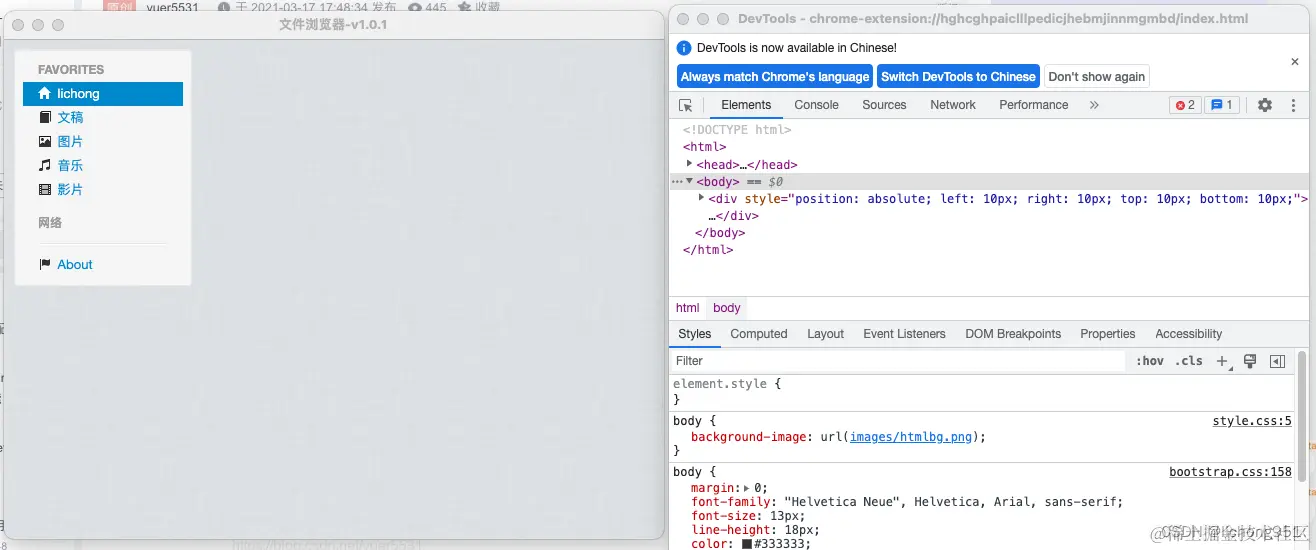

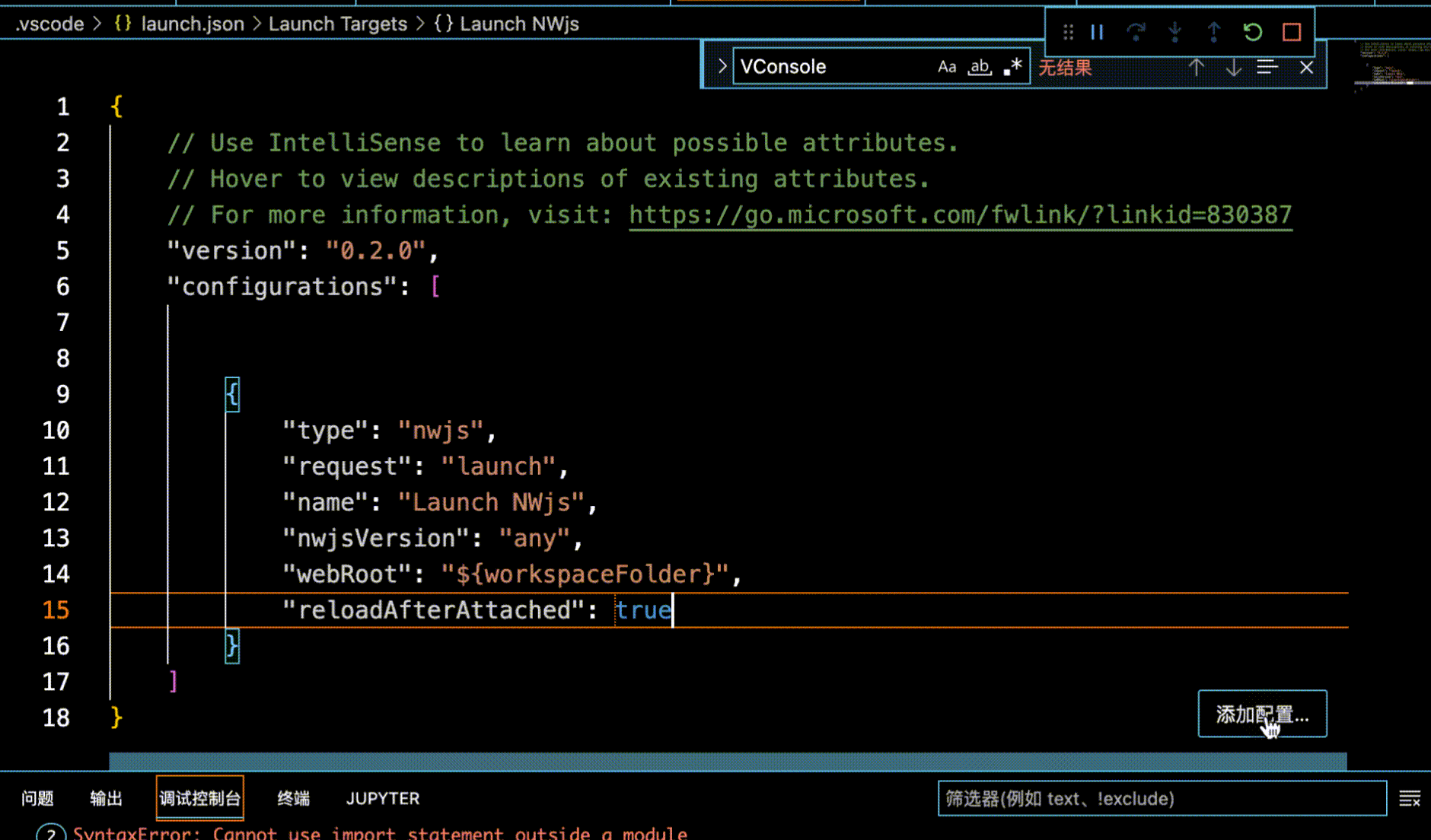

也可自动生成参考下图: 在这里插入图片描述 如此即可进行编辑后直接点击 在这里插入图片描述 即可看到运行效果 在这里插入图片描述 按F12即可看到熟悉的调试面板

过程比较曲折,资料也不多。下面留下相关参考: blog.csdn.net/holdsky/art…

blog.csdn.net/yuer5531/ar…
