架构版本
Spring Boot 3.1
Spring Authorization Server 1.1.1
spring-cloud 2022.0.3
spring-cloud-alibaba 2022.0.0.0
完整代码👉watermelon-cloud
有这样一个常见的应用场景
当选择第三方登录的时候，第三方认证、授权成功后会回调到我方服务端，那么这个时候我们一定会将第三方平台账号&我方账号做一个关联，现在市面上都是这样玩的。例如你选择微信登录完了以后是不是还是得绑定手机号，这个绑定手机号的操作也就是做了第三方平台账号&我方系统账号做的关联操作。
当然除了扩展点，以下还会讲到架构设计😉
寻找扩展点
以gitee 为例 ，gitee授权成功后的回调
http://192.168.56.1:9000/login/oauth2/code/gitee，对应的就是OAuth2LoginAuthenticationFilter处理。OAuth2LoginAuthenticationFilterpublic class OAuth2LoginAuthenticationFilter extends AbstractAuthenticationProcessingFilter { public static final String DEFAULT_FILTER_PROCESSES_URI = "/login/oauth2/code/*"; @Override public Authentication attemptAuthentication(HttpServletRequest request, HttpServletResponse response) throws AuthenticationException { //...省略 OAuth2LoginAuthenticationToken authenticationResult = (OAuth2LoginAuthenticationToken) this.getAuthenticationManager().authenticate(authenticationRequest); //...省略 } }其中
OAuth2LoginAuthenticationToken authenticationResult = (OAuth2LoginAuthenticationToken) this .getAuthenticationManager().authenticate(authenticationRequest);
跟源码继续往下，对应的就是OAuth2LoginAuthenticationProviderpublic class OAuth2LoginAuthenticationProvider implements AuthenticationProvider { private final OAuth2AuthorizationCodeAuthenticationProvider authorizationCodeAuthenticationProvider; private final OAuth2UserService<OAuth2UserRequest, OAuth2User> userService; @Override public Authentication authenticate(Authentication authentication) throws AuthenticationException { //...省略 OAuth2User oauth2User = this.userService.loadUser(new OAuth2UserRequest( loginAuthenticationToken.getClientRegistration(), accessToken, additionalParameters)); //...省略 } }this.userService.loadUser() 继续跟到实现就是
DefaultOAuth2UserServicepublic class DefaultOAuth2UserService implements OAuth2UserService<OAuth2UserRequest, >OAuth2User> { @Override public OAuth2User loadUser(OAuth2UserRequest userRequest) throws >OAuth2AuthenticationException { //...省略 //这个就是向gitee发起的请求了 RequestEntity<?> request = this.requestEntityConverter.convert(userRequest); ResponseEntity<Map<String, Object>> response = getResponse(userRequest, request); Map<String, Object> userAttributes = response.getBody(); Set<GrantedAuthority> authorities = new LinkedHashSet<>(); authorities.add(new OAuth2UserAuthority(userAttributes)); OAuth2AccessToken token = userRequest.getAccessToken(); for (String authority : token.getScopes()) { authorities.add(new SimpleGrantedAuthority("SCOPE_" + authority)); } //最后将gitee获取的用户信息 封装成一个 DefaultOAuth2User返回 return new DefaultOAuth2User(authorities, userAttributes, userNameAttributeName); } }DefaultOAuth2UserService实际上是处理第三方平台返回的用户信息。
那如何去扩展 🤔?要将信息存到我们自己系统，在返回之后去做处理就行了😁
直接继承DefaultOAuth2UserService去扩展 实现扩展 😀
第三方平台账号存储扩展
PostgrepSql 存储表
sys_third_user第三方用户信息表DROP TABLE IF EXISTS sys_third_user; CREATE TABLE sys_third_user ( create_time timestamp(6) NOT NULL DEFAULT timezone('UTC-8'::text, (now())::timestamp(0) without time zone), modified_time timestamp(6) DEFAULT timezone('UTC-8'::text, (now())::timestamp(0) without time zone), id int8 NOT NULL DEFAULT nextval('sys_third_user_id_seq'::regclass), unique_id varchar(128) NOT NULL, name varchar(64) NOT NULL, platform varchar(64) NOT NULL, avatar varchar(255) DEFAULT NULL, user_id int8 NOT NULL ) ; COMMENT ON COLUMN sys_third_user.create_time IS '创建时间'; COMMENT ON COLUMN sys_third_user.modified_time IS '修改时间'; COMMENT ON COLUMN sys_third_user.id IS 'id'; COMMENT ON COLUMN sys_third_user.unique_id IS '第三方平台唯一id'; COMMENT ON COLUMN sys_third_user.name IS '用户名称'; COMMENT ON COLUMN sys_third_user.platform IS '平台类型(WX:微信；QQ:QQ)'; COMMENT ON COLUMN sys_third_user.avatar IS '头像'; COMMENT ON COLUMN sys_third_user.user_id IS '用户id'; COMMENT ON TABLE sys_third_user IS '第三方用户表'; -- ---------------------------- -- Primary Key structure for table sys_third_user -- ---------------------------- ALTER TABLE sys_third_user ADD CONSTRAINT sys_third_user_pkey PRIMARY KEY (id);
AccountPlatform 枚举
public enum AccountPlatform {
WX,
QQ,
GITEE,
GITHUB;
}
OAuth2ThirdUserDto
定义第三方平台的用户信息实体，用构造方法的原因是因为想把此次扩展的定义为一个stater,不引入lombok，不是low 😂
public class OAuth2ThirdUserDto implements Serializable { /** * 第三方平台唯一id */ private String uniqueId; /** * 用户名称 */ private String name; /** * 平台类型(WX:微信；QQ:QQ) */ private AccountPlatform platform; /** * 头像 */ private String avatar; public OAuth2ThirdUserDto(String uniqueId, String name, AccountPlatform platform, String avatar) { this.uniqueId = uniqueId; this.name = name; this.platform = platform; this.avatar = avatar; } public String getUniqueId() { return uniqueId; } public void setUniqueId(String uniqueId) { this.uniqueId = uniqueId; } public String getName() { return name; } public void setName(String name) { this.name = name; } public AccountPlatform getPlatform() { return platform; } public void setPlatform(AccountPlatform platform) { this.platform = platform; } public String getAvatar() { return avatar; } public void setAvatar(String avatar) { this.avatar = avatar; } @Override public boolean equals(Object o) { if (this == o) return true; if (o == null || getClass() != o.getClass()) return false; OAuth2ThirdUserDto that = (OAuth2ThirdUserDto) o; return Objects.equals(uniqueId, that.uniqueId) && Objects.equals(name, that.name) && platform == that.platform && Objects.equals(avatar, that.avatar); } @Override public int hashCode() { return Objects.hash(uniqueId, name, platform, avatar); } }
OAuth2UserConvert
定义转换的接口，多个平台的情况下，采用一个策略模式
//第三方用户转换接口定义 public interface OAuth2UserConvert { default AccountPlatform platform() { return null; } /** * 第三方用户信息统一转换为 OAuth2ThirdUserDto * @param oAuth2User * @param userNameAttributeName 额外的属性 * @return */ Pair<OAuth2ThirdUserDto, LinkedHashMap<String,Object>> convert(OAuth2User oAuth2User,String userNameAttributeName); }GiteeOAuth2UserConvert
gitee的OAuth2UserConvert实现public class GiteeOAuth2UserConvert implements OAuth2UserConvert { private final static String AVATAR_URL = "avatar_url"; private final static String UNIQUE_ID = "id"; private final static String NAME = "name"; private final static String EMAIL = "email"; private final static String PLATFORM = "platform"; @Override public AccountPlatform platform() { return AccountPlatform.GITEE; } @Override public Pair<OAuth2ThirdUserDto, LinkedHashMap<String, Object>> convert(OAuth2User oAuth2User, String userNameAttributeName) { String avatarUrl = Optional.ofNullable(oAuth2User.getAttribute(AVATAR_URL)).map(Object::toString).orElse(null); String uniqueId = Optional.ofNullable(oAuth2User.getAttribute(UNIQUE_ID)).map(Object::toString).orElse(null); String name = Optional.ofNullable(oAuth2User.getAttribute(NAME)).map(Object::toString).orElse(null); String email = Optional.ofNullable(oAuth2User.getAttribute(EMAIL)).map(Object::toString).orElse(null); Object nameAttributeValue = Optional.ofNullable(userNameAttributeName).map(oAuth2User::getAttribute).orElse(null); LinkedHashMap<String, Object> userAttributesLinkedHashMap = new LinkedHashMap<>(); //根据需要取所需要字段 userAttributesLinkedHashMap.put(UNIQUE_ID, uniqueId); userAttributesLinkedHashMap.put(NAME, name); userAttributesLinkedHashMap.put(EMAIL, email); userAttributesLinkedHashMap.put(AVATAR_URL, avatarUrl); userAttributesLinkedHashMap.put(userNameAttributeName, nameAttributeValue); userAttributesLinkedHashMap.put(PLATFORM, this.platform().name()); OAuth2ThirdUserDto oAuth2ThirdUserDto = new OAuth2ThirdUserDto(uniqueId, name, AccountPlatform.GITEE, avatarUrl); return new Pair<>(oAuth2ThirdUserDto, userAttributesLinkedHashMap); } }
OAuth2UserConvertContext
OAuth2UserConvert 的context 管理
public class OAuth2UserConvertContext { private Map<AccountPlatform, OAuth2UserConvert> oAuth2UserConvertMap; /** * 加载 OAuth2UserConvert * @param oAuth2UserConvertList */ public OAuth2UserConvertContext(List<OAuth2UserConvert> oAuth2UserConvertList) { this.oAuth2UserConvertMap = oAuth2UserConvertList.stream().collect(Collectors.toMap(OAuth2UserConvert::platform, Function.identity())); } /** * 获取实例 * @param platform * @return */ public OAuth2UserConvert getInstance(AccountPlatform platform) { if (platform == null) { throw new SystemException("平台类型不能为空"); } OAuth2UserConvert oAuth2UserConvert = oAuth2UserConvertMap.get(platform); if (oAuth2UserConvert == null) { throw new SystemException("暂不支持[" + platform + "]平台类型"); } return oAuth2UserConvert; } }
Oauth2UserStorage
//第三方平台保存接口定义 public interface Oauth2UserStorage { /** * 保存 * @param auth2ThirdUserDto */ void save(OAuth2ThirdUserDto auth2ThirdUserDto); }DefaultOauth2UserStorage
定义这个接口的好处在于，其他人也可以引入这个 stater ，然后就不用再去实现spring官方的接口去做了，实现DefaultOauth2UserStorage定义的接口就可以了。public class DefaultOauth2UserStorage implements Oauth2UserStorage { @Override public void save(OAuth2ThirdUserDto auth2ThirdUserDto) { } }
ExtDefaultOAuth2UserService
用户信息保存默认实现 ，来看看吧，直接继承
DefaultOAuth2UserServicepublic class ExtDefaultOAuth2UserService extends DefaultOAuth2UserService { public final OAuth2UserConvertContext oAuth2UserConvertContext; public final Oauth2UserStorage oauth2UserStorage; public ExtDefaultOAuth2UserService(OAuth2UserConvertContext oAuth2UserConvertContext, Oauth2UserStorage oauth2UserStorage) { this.oAuth2UserConvertContext = oAuth2UserConvertContext; this.oauth2UserStorage = oauth2UserStorage; } @Override public OAuth2User loadUser(OAuth2UserRequest userRequest) throws >OAuth2AuthenticationException { OAuth2User oAuth2User = super.loadUser(userRequest); String userNameAttributeName = userRequest.getClientRegistration().getProviderDetails().getUserInfoEndpoint() .getUserNameAttributeName(); AccountPlatform platform = >this.loginPlatformConvert(userRequest.getClientRegistration().getRegistrationId()); //将 OAuth2User 根据不同的平台 转成统一的 第三方用户了 Pair<OAuth2ThirdUserDto, LinkedHashMap<String, Object>> oAuth2ThirdUserConvertPair = oAuth2UserConvertContext.getInstance(platform) .convert(oAuth2User, userNameAttributeName); LinkedHashMap<String, Object> userAttributes = oAuth2ThirdUserConvertPair.getValue(); //这个地方保存逻辑了 oauth2UserStorage.save(oAuth2ThirdUserConvertPair.getKey()); return new DefaultOAuth2User(oAuth2User.getAuthorities(), userAttributes, userNameAttributeName); } /** * registrationId 转换平台枚举 * @param registrationId * @return */ synchronized private AccountPlatform loginPlatformConvert(String registrationId) { return switch (registrationId) { case "gitee" -> AccountPlatform.GITEE; case "wechat" -> AccountPlatform.WECHAT;//todo Convert case "qq" -> AccountPlatform.QQ;//todo Convert default -> throw new OAuth2UserConvertException("暂不支持该客户端[" + registrationId + "]对应的第三方平台用户信息Convert"); }; } }
扩展的class就全部搞定了
在
watermelon-authorization模块下重写定义了watermelon-authorization-oauth2-client模块，这样的好处是可以单独作为一个 stater 给其他任何项目使用。watermelon-authorization-oauth2-client完整版本就是这样了，那这样的stater就完成了
那就在watermelon-authorization-server 中引入我们自己定义好的 watermelon-authorization-server 依赖。
watermelon-authorization-server 中使用，就需要实现Oauth2UserStorage接口就能搞定了
基于PostgrepSql 去存储 用的mybatis-plus 那就这样实现一个吧
@Primary @Service("mybatisOauth2UserStorage") @RequiredArgsConstructor public class MybatisOauth2UserStorage implements Oauth2UserStorage { private final SysThirdUserService sysThirdUserService; private final SysUserService sysUserService; @Override public void save(OAuth2ThirdUserDto auth2ThirdUserDto) { SysUseAddDto sysUseAddDto = new SysUseAddDto(); sysUseAddDto.setName(auth2ThirdUserDto.getName()); sysUseAddDto.setAvatar(auth2ThirdUserDto.getAvatar()); sysUseAddDto.setStatus(1); Long sysUserId = sysUserService.save(sysUseAddDto); SysThirdUserAddDto sysThirdUserAddDto = new SysThirdUserAddDto(); sysThirdUserAddDto.setUniqueId(auth2ThirdUserDto.getUniqueId()); sysThirdUserAddDto.setAvatar(auth2ThirdUserDto.getAvatar()); sysThirdUserAddDto.setPlatform(auth2ThirdUserDto.getPlatform()); sysThirdUserAddDto.setName(auth2ThirdUserDto.getName()); sysThirdUserAddDto.setUserId(sysUserId); sysThirdUserService.save(sysThirdUserAddDto); } }其他任何工程只要实现
Oauth2UserStorag接口实现就可以了，这也是定义stater 的目的所在-为了通用。
如果有其他平台的用户转换，可以实现OAuth2UserConvert去自行实现即可

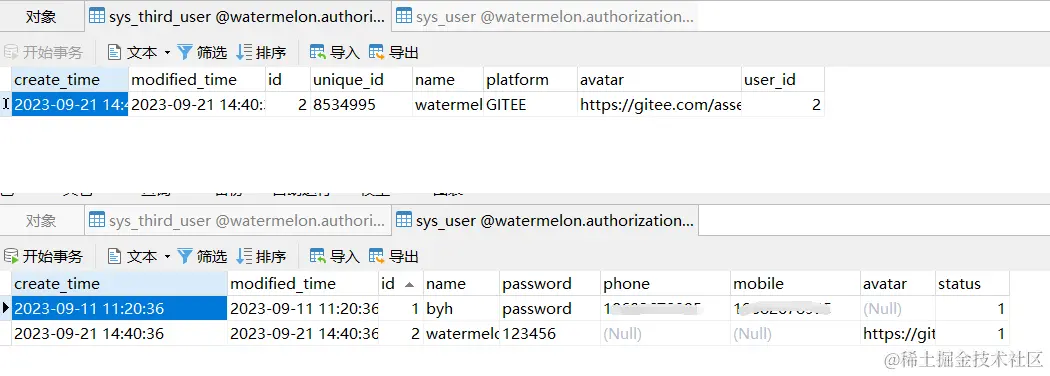

最后看看测试的最终结果
**完整的代码在：https://github.com/WatermelonPlanet/watermelon-cloud**中。
