在启动Spring容器的时候，通常需要在启动类中传入一个配置类。spring容器会根据传入的配置类，解析其对应的注解相关信息，就把整个容器按照我们的想法启动起来了。
如下代码：
package com.demo.service;
import org.springframework.stereotype.Component;
@Component("user")
public class User {
public User() {
}
public User(String name) {
}
public User(String name, String age) {
}
}
package com.demo.service;
import org.springframework.stereotype.Component;
@Component("user")
public class User {
public User() {
}
public User(String name) {
}
public User(String name, String age) {
}
}
package com.demo;
import org.springframework.context.annotation.ComponentScan;
import org.springframework.context.annotation.Configuration;
@ComponentScan("com.demo")
@Configuration
public class AppConfig {
}
public class Test {
public static void main(String[] args) {
AnnotationConfigApplicationContext applicationContext = new AnnotationConfigApplicationContext(AppConfig.class);
Object userService = applicationContext.getBean(UserService.class);
}
}
spring通过解析传入的AppConfig配置类，自动的扫描”com.demo”包下的类，然后将其交给spring容器管理。那它是怎么做到的呢。本文将会通过源码来一步步揭开它的面纱。
ConfigurationClassPostProcessor

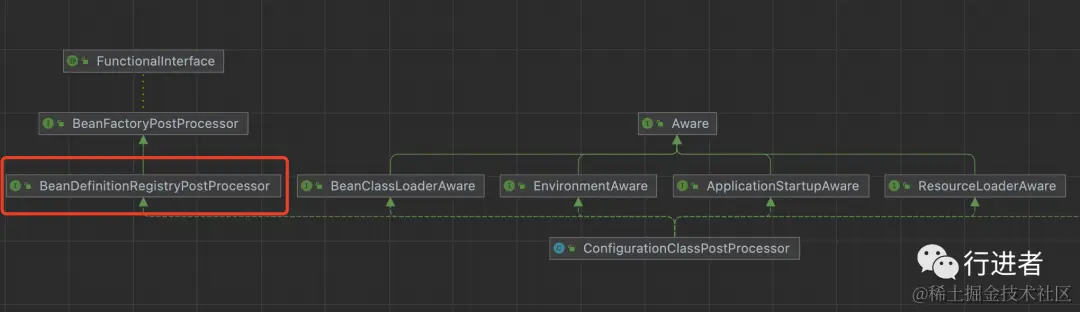

提到解析spring的配置类，那就离不开ConfigurationClassPostProcessor。这个类实现了BeanDefinitionRegistryPostProcessor接口。BeanDefinitionRegistryPostProcessor是spring中的一个扩展点，在spring容器调用refresh() 方法中执行invokeBeanFactoryPostProcessors()时被调用，允许实现者修改spring注册表中的BeanDefinition，也可以向spring注册表中注册BeanDefinition。ConfigurationClassPostProcessor则通过解析配置类向spring注册表中注册BeanDefinition。添加完BeanDefinition后，spring容器就可以根据添加的BeanDefinition创建非懒加载、非抽象的单例Bean了，从而完成了spring容器中的对象的创建。
1、解析整体流程

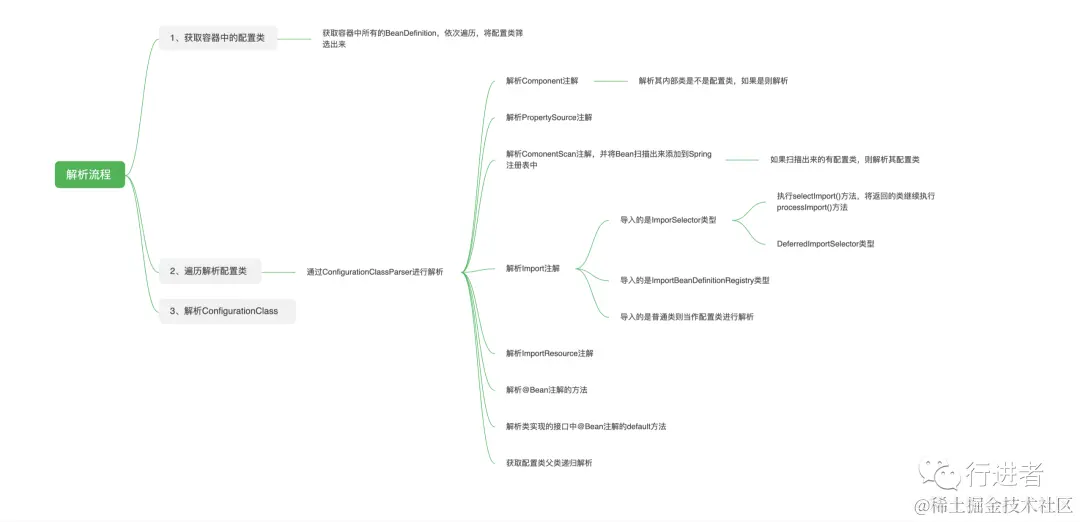

解析整体流程如下图：
2、解析配置类入口
接着我们顺着整体流程思路，跟进源码。
ConfigurationClassPostProcessor#processConfigBeanDefinitions
public void processConfigBeanDefinitions(BeanDefinitionRegistry registry) {
List<BeanDefinitionHolder> configCandidates = new ArrayList<>();
String[] candidateNames = registry.getBeanDefinitionNames();
for (String beanName : candidateNames) {
BeanDefinition beanDef = registry.getBeanDefinition(beanName);
if (beanDef.getAttribute(ConfigurationClassUtils.CONFIGURATION_CLASS_ATTRIBUTE) != null) {
if (logger.isDebugEnabled()) {
logger.debug("Bean definition has already been processed as a configuration class: " + beanDef);
}
}
// 判断配置类，如果为配置类，添加到一个集合中
else if (ConfigurationClassUtils.checkConfigurationClassCandidate(beanDef, this.metadataReaderFactory)) {
configCandidates.add(new BeanDefinitionHolder(beanDef, beanName));
}
}
// Return immediately if no @Configuration classes were found
if (configCandidates.isEmpty()) {
return;
}
// Sort by previously determined @Order value, if applicable
.......
// Detect any custom bean name generation strategy supplied through the enclosing application context
SingletonBeanRegistry sbr = null;
if (registry instanceof SingletonBeanRegistry) {
sbr = (SingletonBeanRegistry) registry;
if (!this.localBeanNameGeneratorSet) {
// 添加一个CONFIGURATION_BEAN_NAME_GENERATOR的BeanNameGenerator bean名称生成器
BeanNameGenerator generator = (BeanNameGenerator) sbr.getSingleton(
AnnotationConfigUtils.CONFIGURATION_BEAN_NAME_GENERATOR);
if (generator != null) {
this.componentScanBeanNameGenerator = generator;
this.importBeanNameGenerator = generator;
}
}
}
if (this.environment == null) {
this.environment = new StandardEnvironment();
}
// Parse each @Configuration class
ConfigurationClassParser parser = new ConfigurationClassParser(
this.metadataReaderFactory, this.problemReporter, this.environment,
this.resourceLoader, this.componentScanBeanNameGenerator, registry);
Set<BeanDefinitionHolder> candidates = new LinkedHashSet<>(configCandidates);
Set<ConfigurationClass> alreadyParsed = new HashSet<>(configCandidates.size());
// 递归解析配置类，有可能解析一个配置类，会得到其他的配置类，比如：通过扫描和@Import注解导入新的配置类
do {
StartupStep processConfig = this.applicationStartup.start("spring.context.config-classes.parse");
// 解析配置类
parser.parse(candidates);
parser.validate();
// 获取解析之后的结果
Set<ConfigurationClass> configClasses = new LinkedHashSet<>(parser.getConfigurationClasses());
configClasses.removeAll(alreadyParsed);
// Read the model and create bean definitions based on its content
if (this.reader == null) {
this.reader = new ConfigurationClassBeanDefinitionReader(
registry, this.sourceExtractor, this.resourceLoader, this.environment,
this.importBeanNameGenerator, parser.getImportRegistry());
}
//处理除了@ComponentScan注解情况扫描出来的BeanDefinition
this.reader.loadBeanDefinitions(configClasses);
alreadyParsed.addAll(configClasses);
processConfig.tag("classCount", () -> String.valueOf(configClasses.size())).end();
candidates.clear();
// 如果发现BeanDefinition增加了，则有可能增加了配置类
if (registry.getBeanDefinitionCount() > candidateNames.length) {
String[] newCandidateNames = registry.getBeanDefinitionNames();
Set<String> oldCandidateNames = new HashSet<>(Arrays.asList(candidateNames));
Set<String> alreadyParsedClasses = new HashSet<>();
for (ConfigurationClass configurationClass : alreadyParsed) {
alreadyParsedClasses.add(configurationClass.getMetadata().getClassName());
}
for (String candidateName : newCandidateNames) {
if (!oldCandidateNames.contains(candidateName)) {
BeanDefinition bd = registry.getBeanDefinition(candidateName);
// 检查多出来的BeanDefinition是不是配置类
if (ConfigurationClassUtils.checkConfigurationClassCandidate(bd, this.metadataReaderFactory) &&
!alreadyParsedClasses.contains(bd.getBeanClassName())) {
candidates.add(new BeanDefinitionHolder(bd, candidateName));
}
}
}
candidateNames = newCandidateNames;
}
}
while (!candidates.isEmpty());
// Register the ImportRegistry as a bean in order to support ImportAware @Configuration classes
if (sbr != null && !sbr.containsSingleton(IMPORT_REGISTRY_BEAN_NAME)) {
sbr.registerSingleton(IMPORT_REGISTRY_BEAN_NAME, parser.getImportRegistry());
}
if (this.metadataReaderFactory instanceof CachingMetadataReaderFactory) {
// Clear cache in externally provided MetadataReaderFactory; this is a no-op
// for a shared cache since it'll be cleared by the ApplicationContext.
((CachingMetadataReaderFactory) this.metadataReaderFactory).clearCache();
}
}
接着会执行ConfigurationClassParser的processConfigurationClass()的方法执行具体的解析配置类的逻辑。
protected void processConfigurationClass(ConfigurationClass configClass, Predicate<String> filter) throws IOException {
// 有没有@Conditional注解，如果有，则进行条件判断处理
if (this.conditionEvaluator.shouldSkip(configClass.getMetadata(), ConfigurationPhase.PARSE_CONFIGURATION)) {
return;
}
ConfigurationClass existingClass = this.configurationClasses.get(configClass);
if (existingClass != null) {
if (configClass.isImported()) {
if (existingClass.isImported()) {
existingClass.mergeImportedBy(configClass);
}
// Otherwise ignore new imported config class; existing non-imported class overrides it.
return;
}
else {
// Explicit bean definition found, probably replacing an import.
// Let's remove the old one and go with the new one.
this.configurationClasses.remove(configClass);
this.knownSuperclasses.values().removeIf(configClass::equals);
}
}
// Recursively process the configuration class and its superclass hierarchy.
// 如果配置类有父类，这里会递归处理
SourceClass sourceClass = asSourceClass(configClass, filter);
do {
sourceClass = doProcessConfigurationClass(configClass, sourceClass, filter);
}
while (sourceClass != null);
this.configurationClasses.put(configClass, configClass);
}
protected final SourceClass doProcessConfigurationClass(
ConfigurationClass configClass, SourceClass sourceClass, Predicate<String> filter)
throws IOException {
if (configClass.getMetadata().isAnnotated(Component.class.getName())) {
// Recursively process any member (nested) classes first
// 在解析一个配置类时，如果类上有@Component，则会判断其内部类是不是配置类并进行解析
processMemberClasses(configClass, sourceClass, filter);
}
//处理@PropertySource注解
// Process any @PropertySource annotations
for (AnnotationAttributes propertySource : AnnotationConfigUtils.attributesForRepeatable(
sourceClass.getMetadata(), PropertySources.class,
org.springframework.context.annotation.PropertySource.class)) {
if (this.environment instanceof ConfigurableEnvironment) {
processPropertySource(propertySource);
}
else {
logger.info("Ignoring @PropertySource annotation on [" + sourceClass.getMetadata().getClassName() +
"]. Reason: Environment must implement ConfigurableEnvironment");
}
}
// Process any @ComponentScan annotations
// 处理@ComponentScan注解
Set<AnnotationAttributes> componentScans = AnnotationConfigUtils.attributesForRepeatable(
sourceClass.getMetadata(), ComponentScans.class, ComponentScan.class);
if (!componentScans.isEmpty() &&
!this.conditionEvaluator.shouldSkip(sourceClass.getMetadata(), ConfigurationPhase.REGISTER_BEAN)) {
for (AnnotationAttributes componentScan : componentScans) {
// The config class is annotated with @ComponentScan -> perform the scan immediately
// 这里就会将扫描得得到的BeanDefinition直接注册到Spring容器中
Set<BeanDefinitionHolder> scannedBeanDefinitions =
this.componentScanParser.parse(componentScan, sourceClass.getMetadata().getClassName());
// Check the set of scanned definitions for any further config classes and parse recursively if needed
for (BeanDefinitionHolder holder : scannedBeanDefinitions) {
BeanDefinition bdCand = holder.getBeanDefinition().getOriginatingBeanDefinition();
if (bdCand == null) {
bdCand = holder.getBeanDefinition();
}
// 检查扫描出来的BeanDefinition是不是配置类
if (ConfigurationClassUtils.checkConfigurationClassCandidate(bdCand, this.metadataReaderFactory)) {
parse(bdCand.getBeanClassName(), holder.getBeanName());
}
}
}
}
// Process any @Import annotations
// 如果导入的是普通类，那么会直接把它当做配置类来解析
// 如果导入的是普通ImportSelector，那么会将返回的类再次调用processImports()
// 如果导入的是特殊ImportSelector，DeferredImportSelector，那么暂时不会处理，会在解析完所有当前这轮配置类后进行导入，将返回的类再次调用processImports()
// 如果导入的是ImportBeanDefinitionRegistrar，那么暂时不会处理，会在解析完所有当前这轮配置类后，将配置类解析成为BeanDefinition之后进行调用
processImports(configClass, sourceClass, getImports(sourceClass), filter, true);
// Process any @ImportResource annotations
AnnotationAttributes importResource =
AnnotationConfigUtils.attributesFor(sourceClass.getMetadata(), ImportResource.class);
if (importResource != null) {
String[] resources = importResource.getStringArray("locations");
Class<? extends BeanDefinitionReader> readerClass = importResource.getClass("reader");
for (String resource : resources) {
String resolvedResource = this.environment.resolveRequiredPlaceholders(resource);
configClass.addImportedResource(resolvedResource, readerClass);
}
}
// Process individual @Bean methods
// 解析配置类中的@Bean，并将其封装为BeanMethod设置到configClass中
Set<MethodMetadata> beanMethods = retrieveBeanMethodMetadata(sourceClass);
for (MethodMetadata methodMetadata : beanMethods) {
configClass.addBeanMethod(new BeanMethod(methodMetadata, configClass));
}
// Process default methods on interfaces
// 解析配置类所实现的接口中default加了@Bean的方法
processInterfaces(configClass, sourceClass);
// Process superclass, if any
if (sourceClass.getMetadata().hasSuperClass()) {
String superclass = sourceClass.getMetadata().getSuperClassName();
if (superclass != null && !superclass.startsWith("java") &&
!this.knownSuperclasses.containsKey(superclass)) {
this.knownSuperclasses.put(superclass, configClass);
// Superclass found, return its annotation metadata and recurse
return sourceClass.getSuperClass();
}
}
// No superclass -> processing is complete
return null;
}
3、解析@Component注解
加了@Component注解的类spring会解析其内部类是不是配置类，如果是配置类也会进行配置类处理，有兴趣的通许可以在源码中查看
org.springframework.context.annotation.ConfigurationClassParser#processMemberClasses
4、解析@ComponentScan注解
@ComponentScan注解交由ComponentScanAnnotationParser进行处理，根据注解元信息中的扫描路径获取到BeanDefinition，然后将其注册到spring容器中，然后再遍历扫描出来的BeanDefinition，如果为配置类，则继续递归解析。
5、解析@Import注解
private void processImports(ConfigurationClass configClass, SourceClass currentSourceClass,
Collection<SourceClass> importCandidates, Predicate<String> exclusionFilter,
boolean checkForCircularImports) {
if (importCandidates.isEmpty()) {
return;
}
if (checkForCircularImports && isChainedImportOnStack(configClass)) {
this.problemReporter.error(new CircularImportProblem(configClass, this.importStack));
}
else {
this.importStack.push(configClass);
try {
for (SourceClass candidate : importCandidates) {
// 如果import的类实现了ImportSelector接口
if (candidate.isAssignable(ImportSelector.class)) {
// Candidate class is an ImportSelector -> delegate to it to determine imports
Class<?> candidateClass = candidate.loadClass();
ImportSelector selector = ParserStrategyUtils.instantiateClass(candidateClass, ImportSelector.class,
this.environment, this.resourceLoader, this.registry);
Predicate<String> selectorFilter = selector.getExclusionFilter();
if (selectorFilter != null) {
exclusionFilter = exclusionFilter.or(selectorFilter);
}
// 如果import的是DeferredImportSelector，表示推迟导入
//
if (selector instanceof DeferredImportSelector) {
this.deferredImportSelectorHandler.handle(configClass, (DeferredImportSelector) selector);
} else {
// 如果import的是ImportSelector
String[] importClassNames = selector.selectImports(currentSourceClass.getMetadata());
// 继续递归处理selectImports()所返回的类
Collection<SourceClass> importSourceClasses = asSourceClasses(importClassNames, exclusionFilter);
processImports(configClass, currentSourceClass, importSourceClasses, exclusionFilter, false);
}
}
// 如果import的类实现了ImportBeanDefinitionRegistrar接口
else if (candidate.isAssignable(ImportBeanDefinitionRegistrar.class)) {
// Candidate class is an ImportBeanDefinitionRegistrar ->
// delegate to it to register additional bean definitions
Class<?> candidateClass = candidate.loadClass();
ImportBeanDefinitionRegistrar registrar =
ParserStrategyUtils.instantiateClass(candidateClass, ImportBeanDefinitionRegistrar.class,
this.environment, this.resourceLoader, this.registry);
configClass.addImportBeanDefinitionRegistrar(registrar, currentSourceClass.getMetadata());
}
// 如果是一般的类（没有实现ImportSelector或者ImportBeanDefinitionRegistrar接口）
//直到处理到普通类则会跳出递归逻辑
//这个时候也会把这个普通类当作一个配置类进行解析
else {
// Candidate class not an ImportSelector or ImportBeanDefinitionRegistrar ->
// process it as an @Configuration class
this.importStack.registerImport(
currentSourceClass.getMetadata(), candidate.getMetadata().getClassName());
processConfigurationClass(candidate.asConfigClass(configClass), exclusionFilter);
}
}
}
catch (BeanDefinitionStoreException ex) {
throw ex;
}
catch (Throwable ex) {
throw new BeanDefinitionStoreException(
"Failed to process import candidates for configuration class [" +
configClass.getMetadata().getClassName() + "]", ex);
}
finally {
this.importStack.pop();
}
}
}
6、解析ConfigurationClass
一个配置类经过上面的处理，除了对@ComponentScan注解会将对应bean Definition扫描出来加入到spring容器中。而其他注解都只是添加了对应的属性在ConfigurationClass中，接下来ConfigurationClassBeanDefinitionReader的loadBeanDefinitions()方法将剩余逻辑解析为bean Definition。
private void loadBeanDefinitionsForConfigurationClass(
ConfigurationClass configClass, TrackedConditionEvaluator trackedConditionEvaluator) {
if (trackedConditionEvaluator.shouldSkip(configClass)) {
String beanName = configClass.getBeanName();
if (StringUtils.hasLength(beanName) && this.registry.containsBeanDefinition(beanName)) {
this.registry.removeBeanDefinition(beanName);
}
this.importRegistry.removeImportingClass(configClass.getMetadata().getClassName());
return;
}
if (configClass.isImported()) {
// 将被导入的类生成BeanDefinition并注册到Spring容器中
// @Component的内部类，@Import所导入的类都是被导入的类
registerBeanDefinitionForImportedConfigurationClass(configClass);
}
// @Bean生成BeanDefinition并注册
for (BeanMethod beanMethod : configClass.getBeanMethods()) {
loadBeanDefinitionsForBeanMethod(beanMethod);
}
// 处理@ImportResource("spring.xml")
loadBeanDefinitionsFromImportedResources(configClass.getImportedResources());
// 处理ImportBeanDefinitionRegistrar，调用registerBeanDefinitions()方法
loadBeanDefinitionsFromRegistrars(configClass.getImportBeanDefinitionRegistrars());
}
