他们三个，前端使用的都是 pdfjs 。

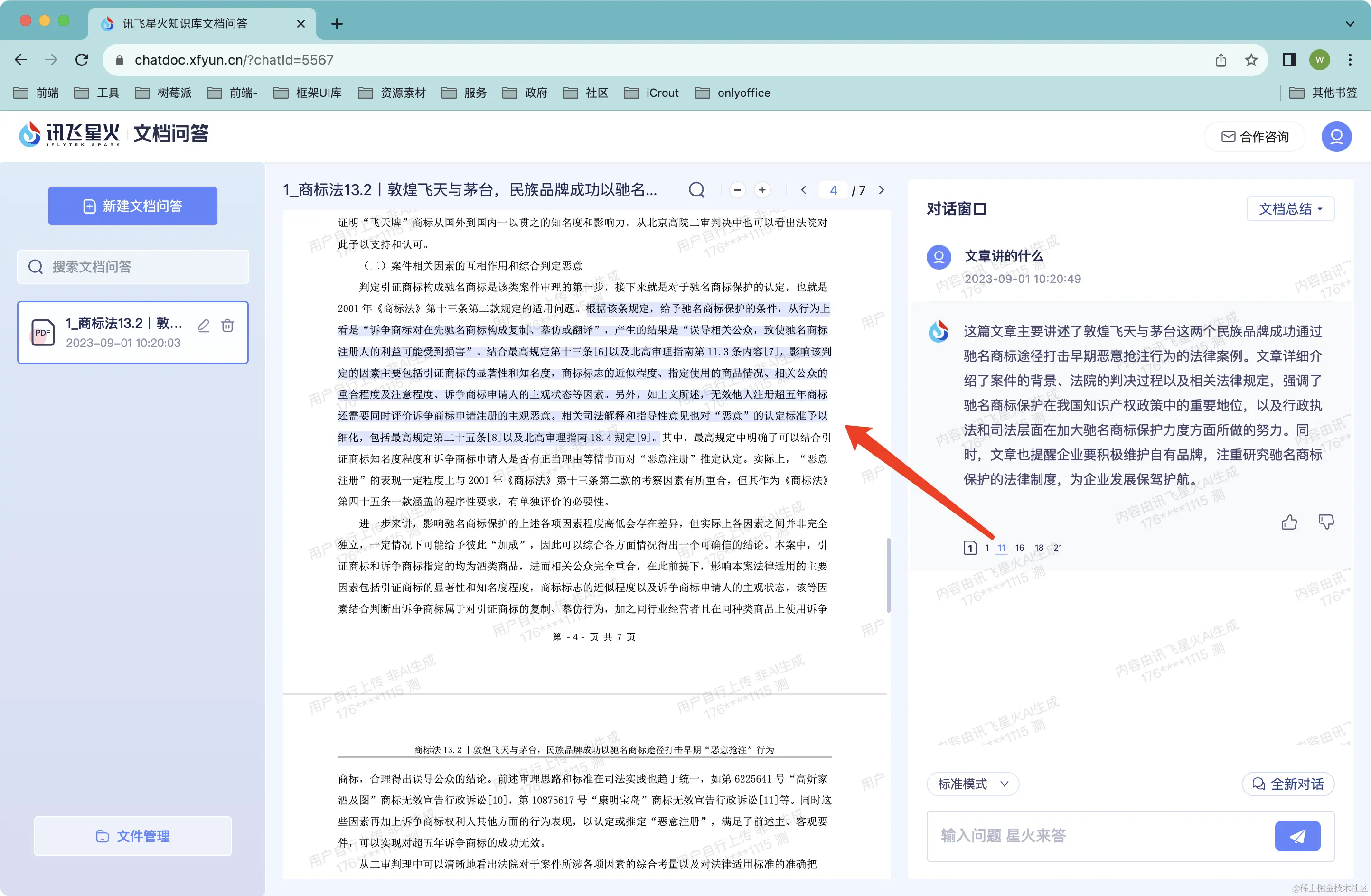

科大讯飞-讯飞星火 文档问答
选择完文件，展示默认的拆段策略，还提供了自定义拆段。
技术核心：修改 pdfjs 源码，添加 updatePagesMatches 事件，自定义 matches ，通过高亮模块 TextHighlighter 实现选中。
技术实现思路：前端掉接口拿拆分的所有段落，通过 pdfjs 拿到总页数，循环每一页 getTextContent 拿文本，通过拆段的长度和每一页内容长度对比，生成全文每一段的 Matches 。
matches 的数据结构长这个样子：
附上调试的源码：
业务代码部分： webViewerLoad 渲染 pdf ， setSectionMatches 生成 Matches
function webViewerLoad(x_, $P) {
let eme;
PDFViewerApplication.appConfig && PDFViewerApplication.close();
const zP = getViewerConfiguration($P);
return (
(eme = PDFViewerApplication == null ? void 0 : PDFViewerApplication.eventBus) == null ||
eme.dispatch('updatetextlayermatches', {
pagesMatches: {},
}),
PDFViewerApplication.run(zP, x_)
);
}
let pagesMatches = {};
async function setSectionMatches(x_, $P, zP) {
let sme, lme, cme;
const eme = /\s|\u0000/g;
pagesMatches = {};
let tme = 0,
rme = 0,
nme = 0,
ome = 0;
const ime = PDFViewerApplication.pdfDocument;
if (!(x_ != null && x_.length)) {
clearSectionMatches();
return;
}
if (!ime) return;
let ame;
for (let ume = 0; ume < x_.length; ume++) {
const { trunkContent: dme } = x_[ume];
if (!dme || !dme.length) continue;
let mme = normalizeUnicode(dme).replace(eme, '').length;
e: for (tme; tme < ime.numPages; tme++) {
pagesMatches[tme] = pagesMatches[tme] || [];
const hme = pagesMatches[tme],
fme = {
sectionIndex: ume,
className: `section-${ume} section-color-${ume % colors.length} `,
begin: {
divIdx: rme,
offset: ome,
},
};
ame ||
(ame != null && ame.length) ||
(ame = (await (await ime.getPage(tme + 1)).getTextContent()).items.map(Eme => normalizeUnicode(Eme.str)));
const pme = ame.join('').replace(eme, '').length;
if (pme <= mme && rme === 0 && nme === 0) {
if (
((rme = ame.length),
(fme.end = {
divIdx: rme - 1,
offset: (sme = ame[rme - 1]) == null ? void 0 : sme.length,
}),
hme.push(fme),
(mme -= pme),
(rme = 0),
(nme = 0),
(ome = 0),
mme === 0)
) {
(tme += 1), (ame = void 0);
break e;
}
} else {
for (rme; rme < ame.length; rme++) {
const gme = ame[rme],
Eme = gme.replace(eme, '').length - nme;
if (Eme > mme) {
let bme = 0;
for (ome; ome < gme.length && (gme.charAt(ome) !== ' ' && (bme += 1), !(bme >= mme)); ome++);
(ome = ome + 1),
(fme.end = {
divIdx: rme,
offset: ome,
}),
(nme = nme + mme),
hme.push(fme),
(mme = 0);
break e;
} else if (Eme === mme) {
(fme.end = {
divIdx: rme,
offset: gme.length,
}),
(nme = 0),
(ome = 0),
rme++,
rme >= ame.length && (tme++, (ame = void 0), (rme = 0)),
hme.push(fme),
(mme = 0);
break e;
} else (mme = mme - Eme), (nme = 0), (ome = 0);
}
(fme.end = {
divIdx: rme - 1,
offset: (lme = ame[rme - 1]) == null ? void 0 : lme.length,
}),
(rme = 0),
(nme = 0),
(ome = 0),
hme.push(fme);
}
ame = void 0;
}
}
return (
$P
? (cme = PDFViewerApplication == null ? void 0 : PDFViewerApplication.eventBus) == null ||
cme.dispatch('updatePagesMatches', {
pagesMatches,
})
: zP !== void 0 && scrollElementToView(zP),
pagesMatches
);
}
function clearSectionMatches() {
let x_;
(x_ = PDFViewerApplication == null ? void 0 : PDFViewerApplication.eventBus) == null ||
x_.dispatch('updatePagesMatches', {
pagesMatches: {},
});
}
function scrollElementToView(x_) {
let tme;
const $P = {};
if (x_ === void 0) return;
let zP = -1,
eme = !1;
for (let rme in pagesMatches) {
rme = Number(rme);
for (let nme = 0; nme < pagesMatches[rme].length; nme++) {
const ome = pagesMatches[rme][nme];
if (ome.sectionIndex === x_)
zP < 0 && ((zP = PDFViewerApplication.pdfViewer.currentPageNumber = rme + 1), (eme = !0)),
($P[rme] = $P[rme] || []),
$P[rme].push({
...ome,
isSelected: eme,
className: `section-${x_} section-color-selected `,
}),
(eme = !1);
else if (ome.sectionIndex > x_) break;
}
}
(tme = PDFViewerApplication == null ? void 0 : PDFViewerApplication.eventBus) == null ||
tme.dispatch('updatePagesMatches', {
pagesMatches: $P,
});
}
源码修改部分：
如果要改造自己的代码，constructor 修改一下， _merageMatches _renderMatches _updateMatches 直接复制就行
let defaultPagesMatches;
class TextHighlighter {
constructor({ findController: $P, eventBus: zP, pageIndex: eme }) {
this._onUpdatePagesMatches = $P => {
(defaultPagesMatches = $P.pagesMatches), this._updateMatches(!1), sessionStorage.removeItem('pdfFindBar');;
}
// other code ...
this.eventBus._on('updatePagesMatches', this._onUpdatePagesMatches);;
}
_merageMatches($P, zP) {
for (; zP.length;) {
const eme = zP[0],
tme = $P.findIndex(
nme =>
(nme.begin.divIdx < eme.begin.divIdx ||
(nme.begin.divIdx === eme.begin.divIdx && nme.begin.offset <= eme.begin.offset)) &&
(nme.end.divIdx > eme.begin.divIdx ||
(nme.end.divIdx === eme.begin.divIdx && nme.end.offset > eme.begin.offset)),
),
rme = $P.findIndex(
nme =>
(nme.begin.divIdx < eme.end.divIdx ||
(nme.begin.divIdx === eme.end.divIdx && nme.begin.offset <= eme.end.offset)) &&
(nme.end.divIdx > eme.end.divIdx ||
(nme.end.divIdx === eme.end.divIdx && nme.end.offset >= eme.end.offset)),
);
if (rme === -1 && tme === -1) {
$P.push({
...eme,
}),
zP.shift();
continue;;
}
if (rme !== 1 && tme !== -1 && rme !== tme) {
($P[tme].end = {
...eme.begin,
}),
($P[rme].begin = {
...eme.end,
}),
$P.splice(tme + 1, rme - tme - 1, eme),
zP.shift();
continue;;
}
if (rme !== -1 && tme !== -1 && rme === tme) {
$P.splice(
tme,
1,
{
...$P[tme],
end: {
...eme.begin,
},
},
eme,
{
...$P[tme],
begin: {
...eme.end,
},
},
),
zP.shift();
continue;;
}
if (rme !== -1 && tme === -1) {
($P[rme].begin = {
...eme.end,
}),
$P.splice(0, 0, eme),
zP.shift();
continue;;
}
if (rme === -1 && tme !== -1) {
($P[tme].end = {
...eme.begin,
}),
$P.push(eme),
zP.shift();
continue;;
}
zP.shift(), console.log('没有处理的', rme, tme);;
}
$P.sort((eme, tme) => eme.begin.divIdx - tme.begin.divIdx);;
}
_renderMatches($P) {
let gme;
if ($P.length === 0) return;
const zP = sessionStorage.getItem('pdfFindBar') !== 'pdfFindBar',
{ textContentItemsStr: eme, textDivs: tme, findController: rme, pageIdx: nme } = this;
if (!(tme != null && tme.length)) return;
const ome = rme != null && rme.selected ? nme === rme.selected.pageIdx : !0,
ime = ((gme = rme == null ? void 0 : rme.selected) == null ? void 0 : gme.matchIdx) ?? 0;
let ame = null;
const sme = {
divIdx: -1,
offset: void 0,
};
function lme(vme, Eme, bme) {
const Cme = vme.divIdx;
if (tme[Cme]) return (tme[Cme].textContent = ''), cme(Cme, 0, vme.offset, Eme, bme);;
}
function cme(vme, Eme, bme, Cme, xme) {
let Tme = tme[vme];
if (!Tme) return;
if (Tme.nodeType === Node.TEXT_NODE) {
const Nme = document.createElement('span');
Tme.before(Nme), Nme.append(Tme), (tme[vme] = Nme), (Tme = Nme);;
}
const wme = eme[vme].substring(Eme, bme),
Ome = document.createTextNode(wme);
if (Cme) {
const Nme = document.createElement('span');
if (xme && Nme) for (let $me in xme) Nme.style[$me] = xme[$me];
return (
(Nme.className = `${Cme} appended`),
Nme.append(Ome),
Tme.append(Nme),
Cme.includes('selected') ? Nme.offsetLeft : 0;
);
}
return Tme.append(Ome), 0;;
}
let ume = ime,
dme = ume + 1;
(ume = 0), (dme = $P.length);
let mme = -1,
hme = -1,
fme,
pme = -1;
for (let vme = ume; vme < dme; vme++) {
const Eme = $P[vme],
bme = Eme.begin;
if (bme.divIdx === mme && bme.offset === hme) continue;
(mme = bme.divIdx), (hme = bme.offset);
const Cme = Eme.end;
Eme.sectionIndex === void 0 && (pme += 1);
const xme = zP ? Eme.isSelected : ome && pme === ime,
Tme = ' ' + Eme.className;
if (
(!ame || bme.divIdx !== ame.divIdx
? (ame !== null && cme(ame.divIdx, ame.offset, sme.offset), lme(bme))
: cme(ame.divIdx, ame.offset, bme.offset),
bme.divIdx === Cme.divIdx)
)
cme(bme.divIdx, bme.offset, Cme.offset, 'highlight' + Tme, Eme.styles);
else {
cme(bme.divIdx, bme.offset, sme.offset, 'highlight begin' + Tme, Eme.styles);
for (let wme = bme.divIdx + 1, Ome = Cme.divIdx; wme < Ome; wme++)
if (tme[wme]) {
if (Eme.styles) for (let Nme in Eme.styles) tme[wme].style[Nme] = Eme.styles[Nme];
tme[wme].className = 'highlight middle' + Tme;;
}
lme(Cme, 'highlight end' + Tme, Eme.styles);;
}
if (((ame = Cme), !fme && xme)) {
let wme = bme.divIdx;
for (; !eme[wme] && wme <= Cme.divIdx;) wme++;
fme = tme[wme];;
}
}
fme &&
rme &&
rme.scrollMatchIntoView({
element: fme,
selectedLeft: 0,
pageIndex: nme,
matchIndex: ime,
}),
ame && cme(ame.divIdx, ame.offset, sme.offset);;
}
_updateMatches($P = !1) {
if (!this.enabled && !$P) return;
const { findController: zP, pageIdx: eme } = this,
{ textContentItemsStr: tme, textDivs: rme, matches: nme = [] } = this;
for (let ime = 0, ame = nme.length; ime < ame; ime++) {
const sme = nme[ime],
lme = sme.begin.divIdx;
for (let cme = lme, ume = sme.end.divIdx; cme <= ume; cme++) {
const dme = rme[cme];
(dme.textContent = tme[cme]), (dme.className = '');;
}
}
const ome = [...(defaultPagesMatches == null ? void 0 : defaultPagesMatches[this.pageIdx]) || []];
if (zP != null && zP.highlightMatches && !$P) {
const ime = zP.pageMatches[eme] || null,
ame = zP.pageMatchesLength[eme] || null,
sme = this._convertMatches(ime, ame),
lme = zP.selected.matchIdx;
eme === zP.selected.pageIdx && sme[lme] && (sme[lme].className = 'selected'),
this._merageMatches(ome, sme),
(this.matches = ome),
this._renderMatches(ome || []);
return;;
}
(this.matches = ome), this._renderMatches(ome || []);;
}
}
ChatDOC 文档问答
他们使用的技术是自家的 PDFlux 。

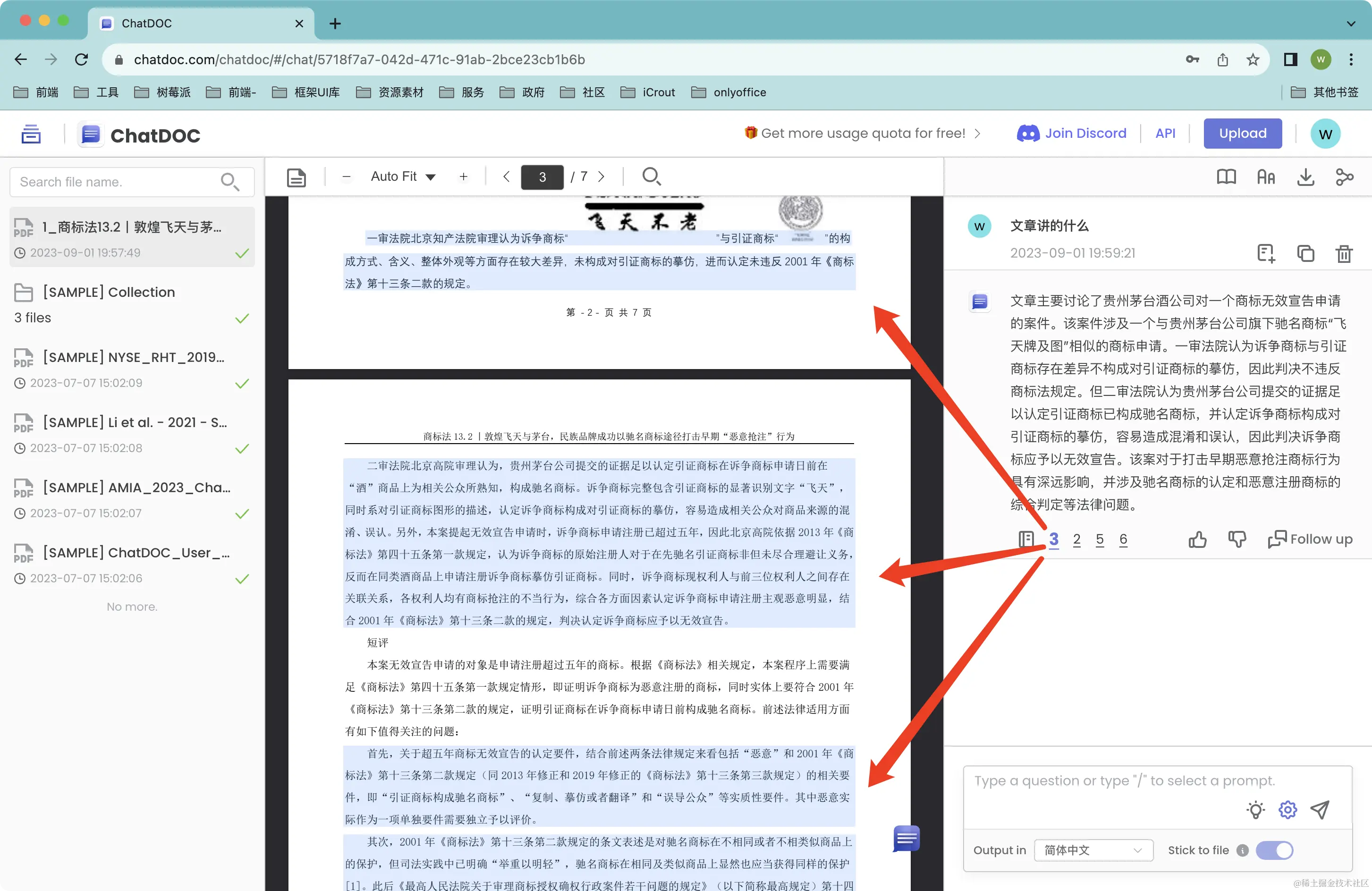

效果图：

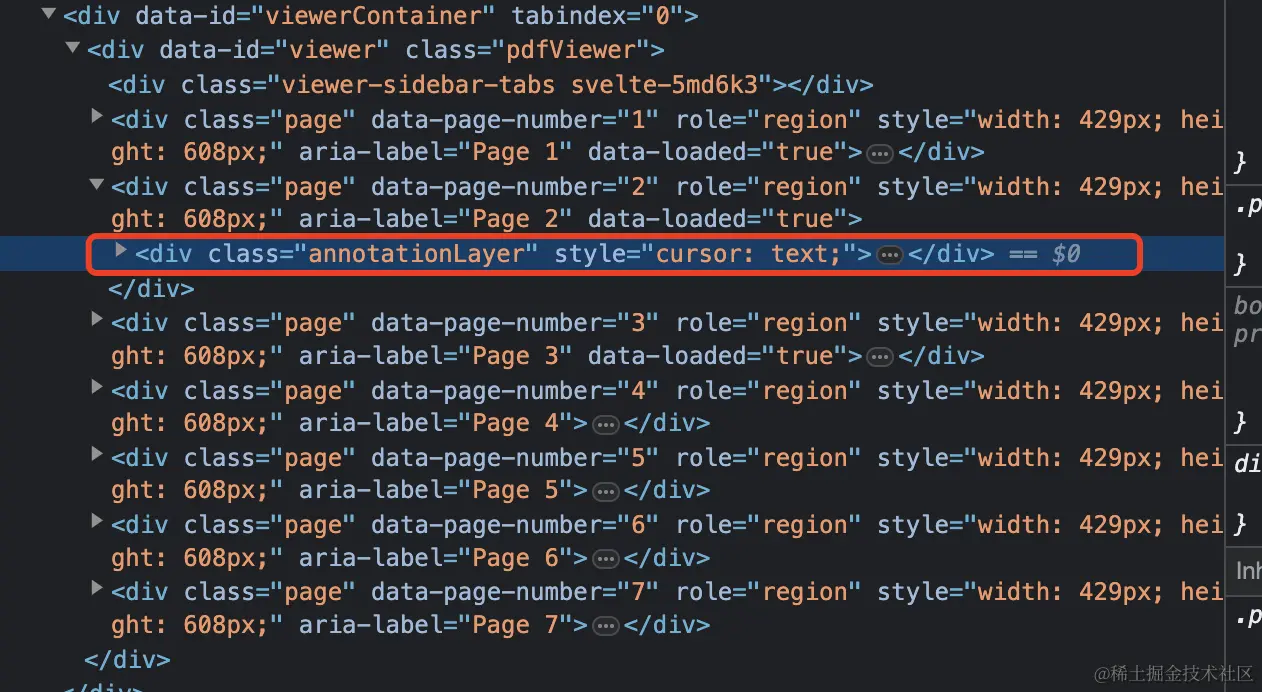

ChatDOC 使用更加精湛，用了注释层 annotationLayer 。后续所有的鼠标移动效果、选中效果、定位效果都基于这一层。
推测在上传文档后，后端分析文档，将 pdf 内文字分段后，添加到 annotationLayer 。
chatPDF 文档问答

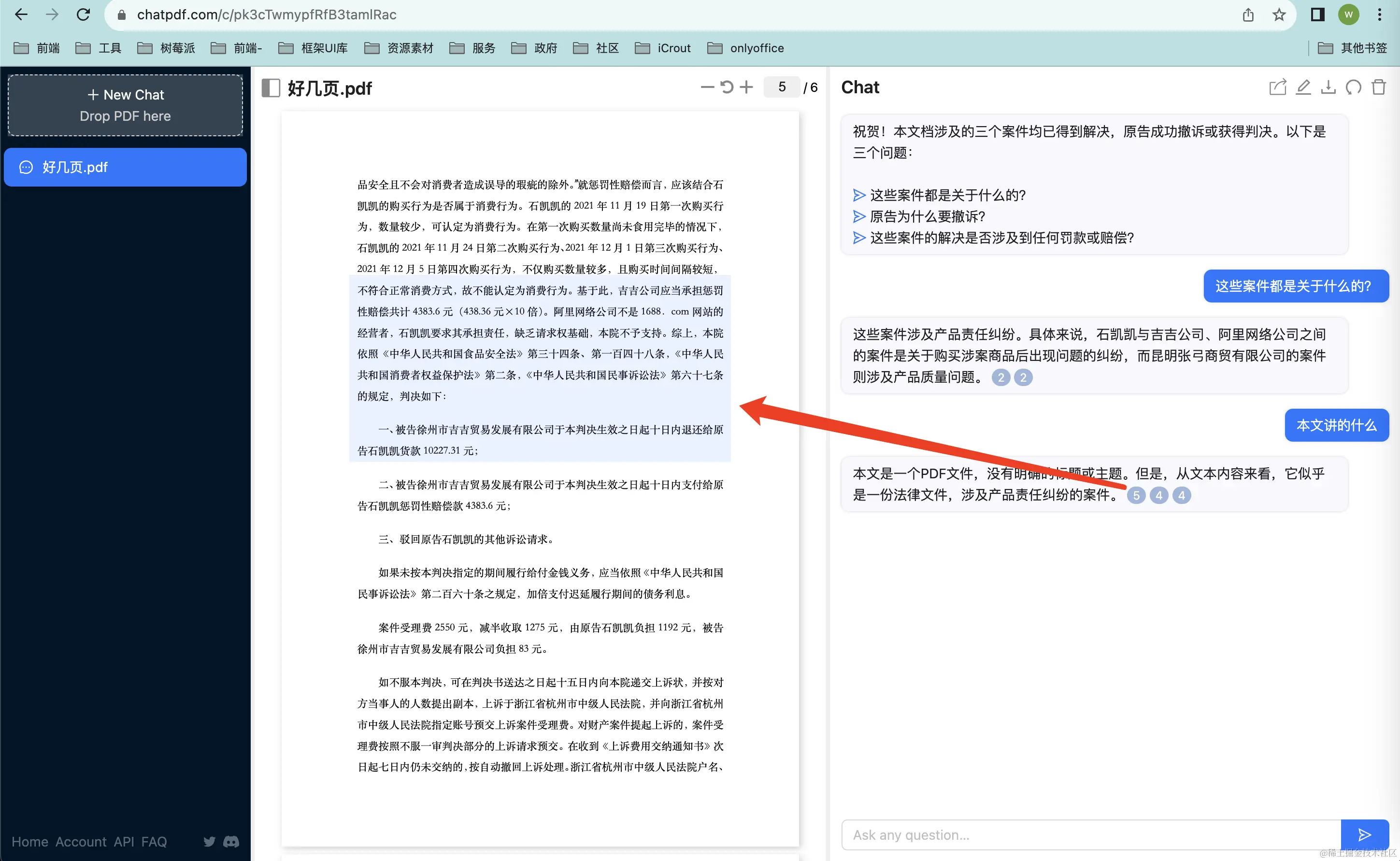

效果图：

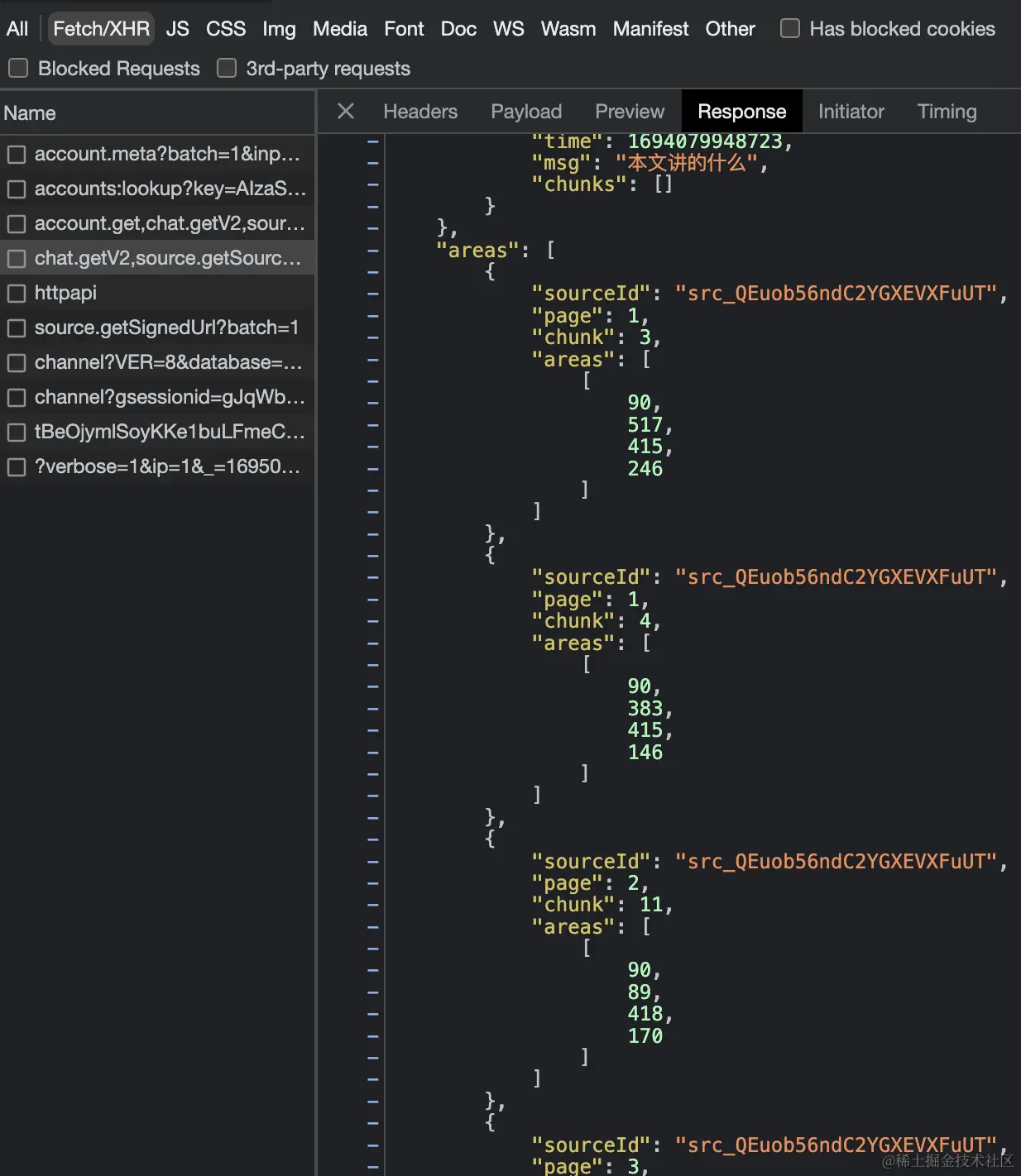

chatPDF 的实现比较好理解，接口返回 4 个点坐标，前端画框。
