1. netCDF数据解析
1.1 变量
mesh2d_edge_faces: 边邻近的两个面，索引号
mesh2d_edge_nodes: 边的两个节点，索引号
mesh2d_edge_x: 边的特征位置x坐标，例如中点
mesh2d_edge_y: 边的特征位置y坐标，例如中点
mesh2d_face_nodes: 面包含的节点，索引号
mesh2d_face_x: 面的特征位置x坐标
mesh2d_face_y: 面的特征位置y坐标
mesh2d_face_x_bnd: 面的组成顶点的x坐标（面的顶点数维度）
mesh2d_face_y_bnd: 面的组成顶点的y坐标 （面的顶点数维度）
mesh2d_node_x: 顶点x坐标
mesh2d_node_y: 节点y坐标
mesh2d_node_z: 节点z坐标
1.2 维
mesh2d_nEdges: 边的数量
Two: 点坐标维度
mesh2d-nFaces: 面数
mesh2d-nMax-face-nodes: 面最大顶点数
mesh2d-nNodes： 节点数
2. Python网格可视化
from netCDF4 import Dataset
import matplotlib.pyplot as plt
from matplotlib.patches import Polygon
from matplotlib.collections import PatchCollection
import numpy as np
from typing import List
class Node:
"""
This is a base class Node for delft3d_net.
"""
def __init__(self, loc: List[float], **kwargs):
self.__loc = loc
for key, value in kwargs.items():
self.__setattr__(key, value)
return
def get_loc(self):
return self.__loc
def set_loc(self, loc:list) -> None:
self.__loc = loc
return
def add_attr(self, **kwargs):
for key, value in kwargs.items():
self.__setattr__(key, value)
return
def __str__(self):
return f"Node locates at {self.__loc}."
class Edge:
"""
This is a base class Edge for delft3d_net
"""
def __init__(self, edge_loc: List[float], edge_nodes: List[Node], **kwargs):
"""
Parameters:
----------
edge_loc: Characteristic positions of edges, such as midpoints.
edge_nodes: Two node that makes up the edge.
**kwargs: Set attributes for the edge, eg: id=1, color='k'
Returns:
----------
"""
self.__edge_loc = edge_loc
self.__egde_nodes = edge_nodes
for key, value in kwargs.items():
self.__setattr__(key, value)
return
def get_edge_loc(self):
return self.__edge_loc
def get_edge_nodes(self):
return self.__edge_nodes
def set_edge_loc(self, edge_loc: List[float]) -> None:
self.__edge_loc = edge_loc
return
def set_edge_nodes(self, edge_nodes: List[float]) -> None:
self.__edge_nodes = edge_nodes
return
def add_attr(self, **kwargs):
for key, value in kwargs:
self.__setattr__(key, value)
return
class Face:
"""
This is a base class Face for delft3d_net.
"""
def __init__(self, face_loc: List[float], face_nodes_id: List[int], **kwargs):
self.__face_loc = face_loc
self.__face_nodes_id = face_nodes_id
for key, value in kwargs.items():
self.__setattr__(key, value)
return
def get_face_loc(self):
return self.__face_loc
def get_face_nodes_id(self):
return self.__face_nodes_id
def set_face_loc(self, face_loc):
self.__face_loc = face_loc
return
def set_face_nodes_id(self, face_nodes_id):
self.__face_nodes_id = face_nodes_id
return
def add_attr(self, **kwargs):
for key, value in kwargs:
self.__setattr__(key, value)
return
def __str__(self):
return f"Face locates at {self.__face_loc} with nodes {self.__face_nodes_id}"
class Collection:
"""
Base Collection.
"""
def __init__(self):
return
def get_item(self, id: int):
return self.items[id]
class NodeCollection(Collection):
"""
A node collection.
"""
def __init__(self, nodes_loc:List, nodes_num):
self.nodes_loc = np.column_stack(nodes_loc)
self.nodes_num = nodes_num
self.nodes = np.apply_along_axis(Node, axis=1, arr=self.nodes_loc)
return
def get_nodes(self):
return self.nodes
class EdgeCollection(Collection):
def __init__(self):
pass
class FaceCollection(Collection):
def __init__(self, nodes, faces_loc:List[float], faces_nodes_id:List[int], faces_num:int):
"""
Iinital function
Parameters
----------
nodes: NodeCollection
faces_loc: A list of faces location, format as [[x0,x1,x2], [y0, y1, y2]]
faces_nodes: A list of nodes comprised of faces, format as [[node_id1, node_id2, node_id3], [node_id3], [node_id4], [node_id5]]
faces_num: number of nodes.
"""
self.nodes = nodes
self.faces_loc = np.column_stack(faces_loc)
_, self.faceloc_dim = self.faces_loc.shape
self.faces_nodes_id = faces_nodes_id
self.faces_num = faces_num
ids = np.arange(0, self.faces_num, 1)
params = np.column_stack([self.faces_loc, self.faces_nodes_id, ids])
self.faces = np.apply_along_axis(self.create_face, axis=1, arr=params)
def create_face(self, params):
return Face(face_loc=params[0:self.faceloc_dim], face_nodes_id=params[self.faceloc_dim+1:-1], id=params[-1])
def get_node_xy(self, id):
return self.nodes.nodes_loc[id-1, 0:2]
def createPatchCollection(self, **kwargs) -> PatchCollection:
polygons = []
pol_xy = np.apply_along_axis(self.get_node_xy, axis=1, arr=self.faces_nodes_id)
for i in range(pol_xy.shape[0]):
polygons.append(Polygon(pol_xy[i, :, :]))
patchcollection = PatchCollection(polygons, **kwargs)
return patchcollection
class ncNetParser:
"""
This is a net file parser for delft3d.
"""
def __init__(self, filepath):
self.__filepath = filepath
self.__parse()
return
def __parse(self):
with Dataset(self.__filepath, 'r') as dataset:
self.mesh2d_nNodes = dataset.dimensions['mesh2d_nNodes'].size
self.mesh2d_nEdges = dataset.dimensions['mesh2d_nEdges'].size
self.mesh2d_nFaces = dataset.dimensions['mesh2d_nFaces'].size
self.mesh2d_node_x = dataset.variables['mesh2d_node_x'][:]
self.mesh2d_node_y = dataset.variables['mesh2d_node_y'][:]
self.mesh2d_node_z = dataset.variables['mesh2d_node_z'][:]
self.mesh2d_edge_x = dataset.variables['mesh2d_edge_x'][:]
self.mesh2d_edge_y = dataset.variables['mesh2d_edge_y'][:]
self.mesh2d_edge_nodes = dataset.variables['mesh2d_edge_nodes'][:]
self.mesh2d_face_x = dataset.variables['mesh2d_face_x'][:]
self.mesh2d_face_y = dataset.variables['mesh2d_face_y'][:]
self.mesh2d_face_nodes = dataset.variables['mesh2d_face_nodes'][:]
return
def createNodes(self)-> NodeCollection:
nodes = NodeCollection(nodes_loc=[self.mesh2d_node_x, self.mesh2d_node_y, self.mesh2d_node_z],
nodes_num = self.mesh2d_nNodes)
return nodes
def createFaces(self)-> FaceCollection:
nodes = self.createNodes()
faces = FaceCollection(nodes, faces_loc=[self.mesh2d_face_x, self.mesh2d_face_y],
faces_nodes_id=self.mesh2d_face_nodes, faces_num= self.mesh2d_nFaces)
return faces
if __name__ == '__main__':
filepath = "./plot_net/demo.nc"
test = ncNetParser(filepath).createFaces().createPatchCollection(linewidths=0.5, edgecolors='#323aa8', facecolors='w')
fig, ax = plt.subplots()
ax.add_collection(test)
ax.autoscale_view()
ax.set_aspect(1)
plt.show()
当前代码比较粗糙，初步实现了网格的可视化，后续嵌入可视化实际变量时进一步优化。三个节点和四个节点的网格绘制如下：

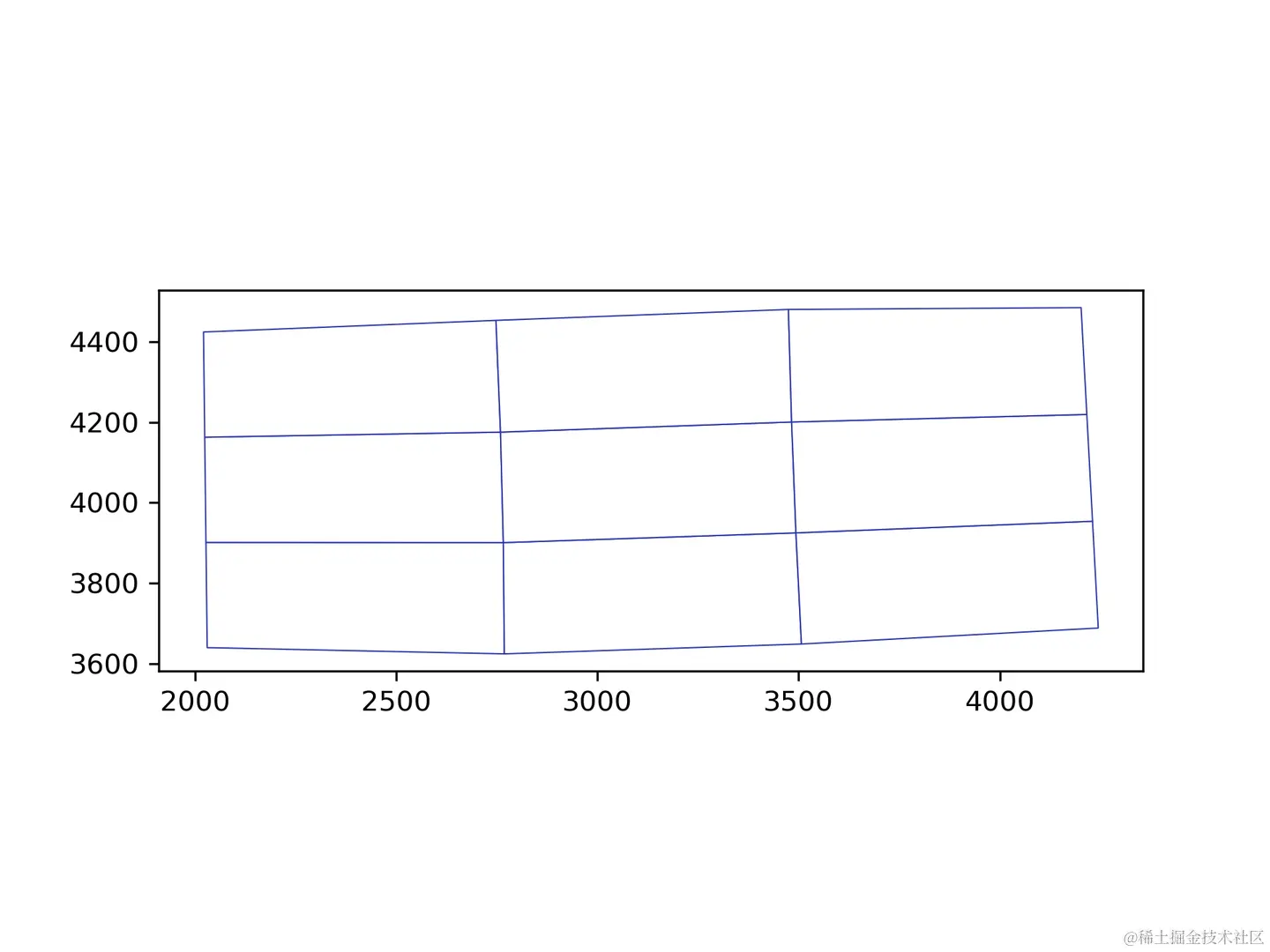

Four nodes

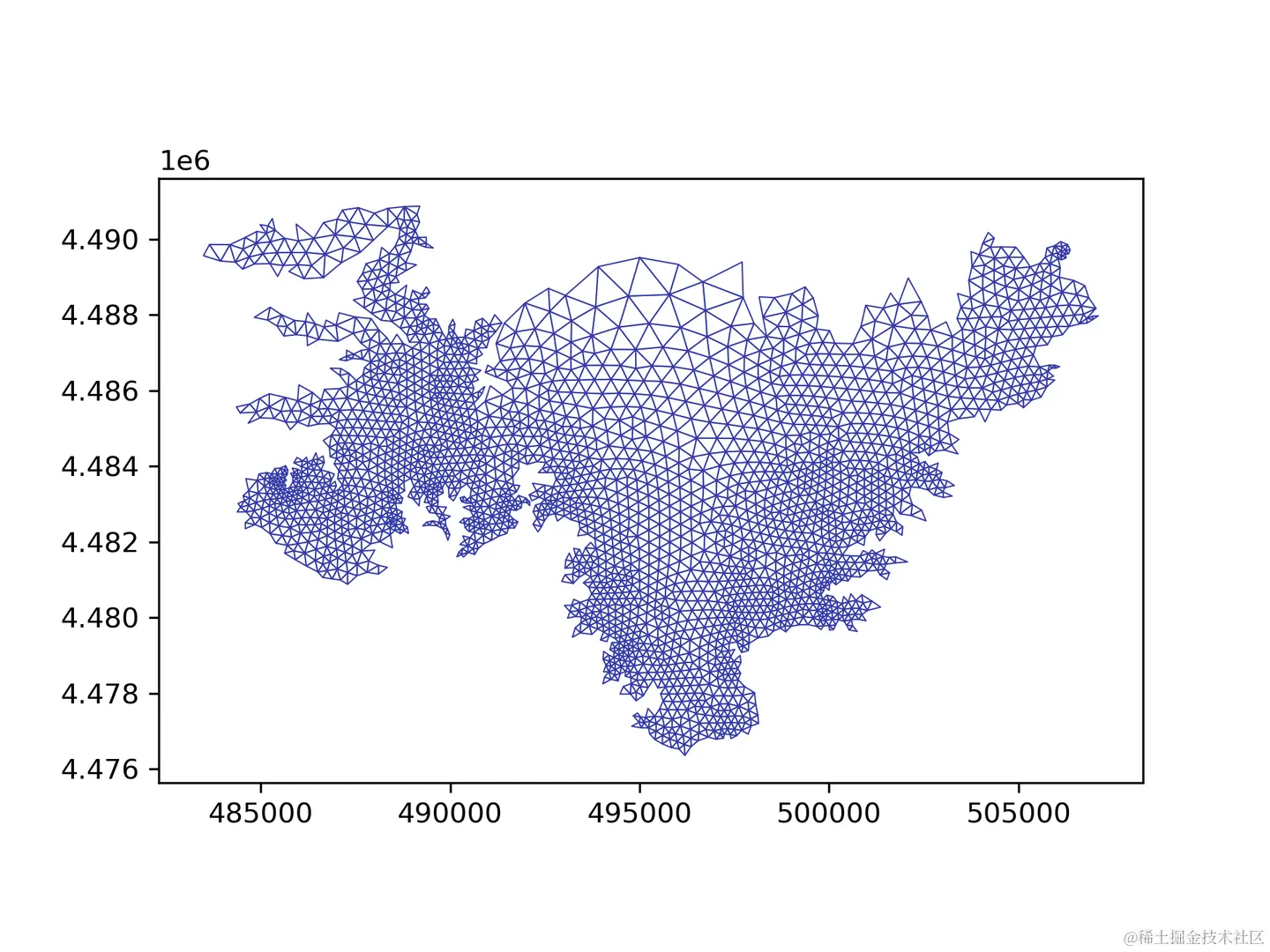

Three nodes
