IDEA创建JavaWeb项目

72 阅读1分钟

IDEA创建Web项目

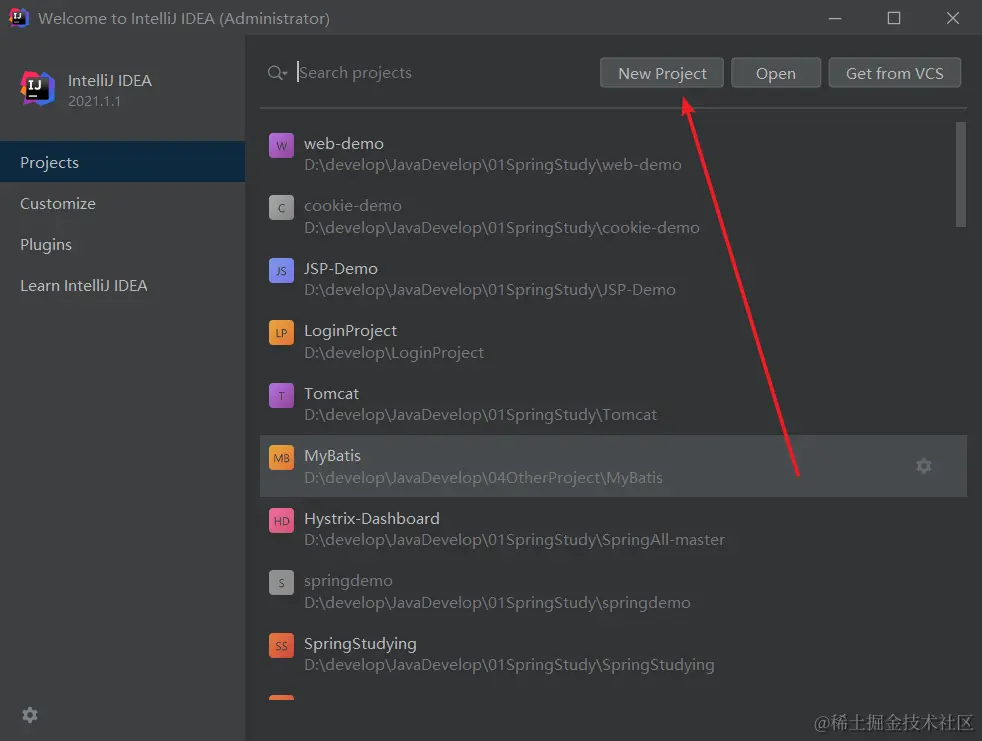

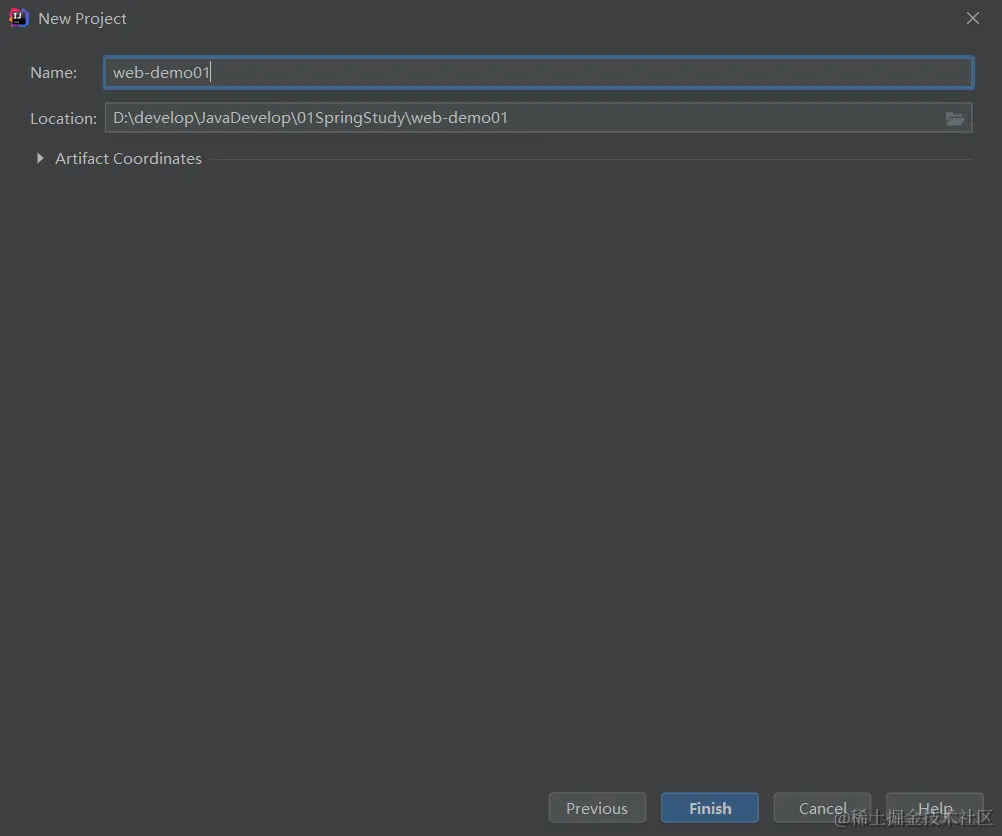

一、新建Maven项目

image-20220316150341216

image-20220316150414489

image-20220316150433096

二、添加依赖 war

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>org.example</groupId>
    <artifactId>web-demo01</artifactId>
    <version>1.0-SNAPSHOT</version>
    <packaging>war</packaging>

    <properties>
        <maven.compiler.source>11</maven.compiler.source>
        <maven.compiler.target>11</maven.compiler.target>
    </properties>

</project>

image-20220316150515466

三、添加web项目

点击Project structure

image-20220316150549586

image-20220316150703209

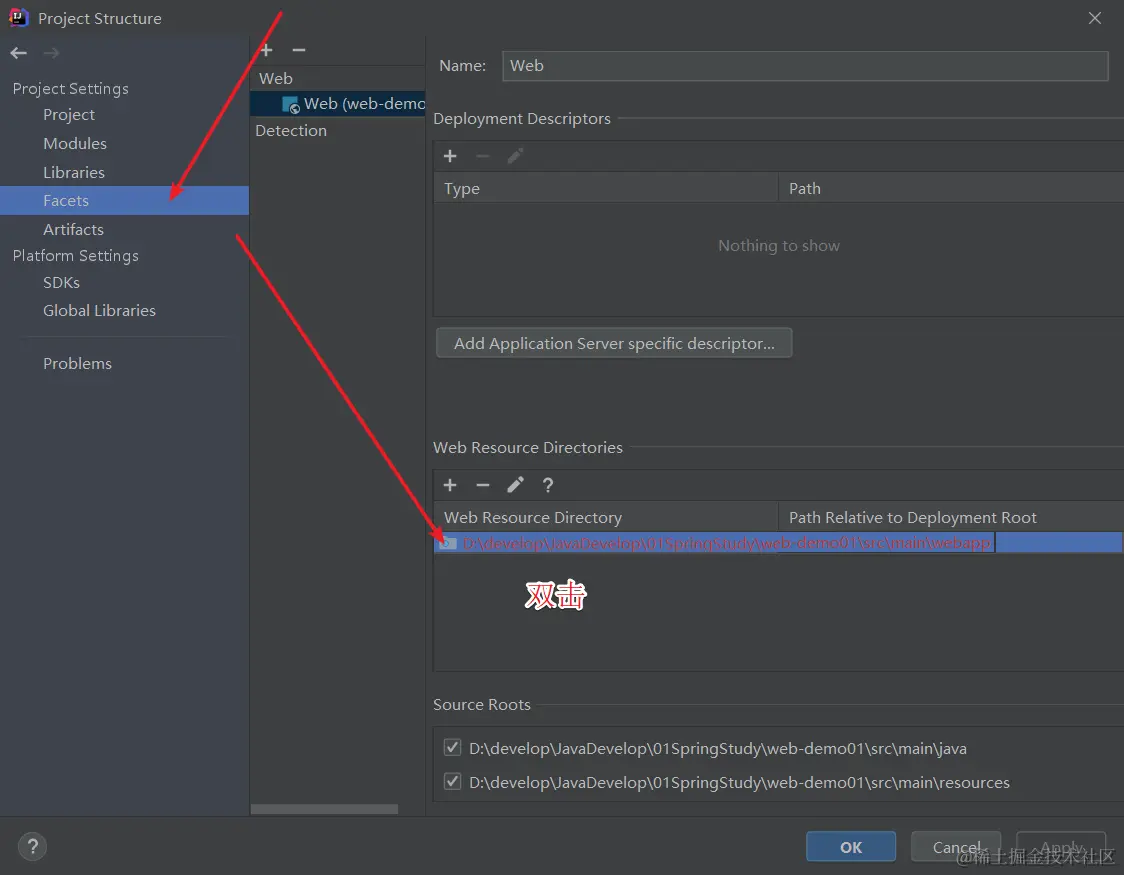

3.1、创建web目录

image-20220316150823192

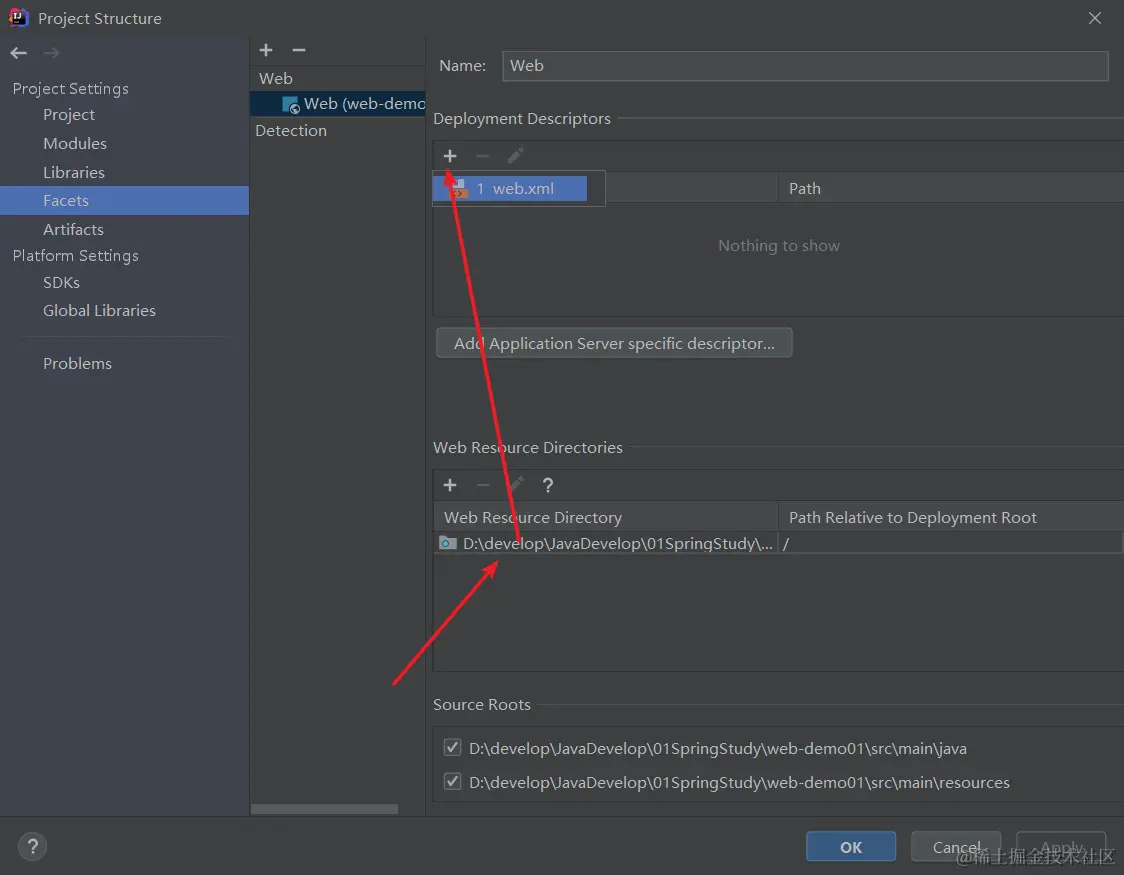

3.2、添加web.xml文件

image-20220316150903935

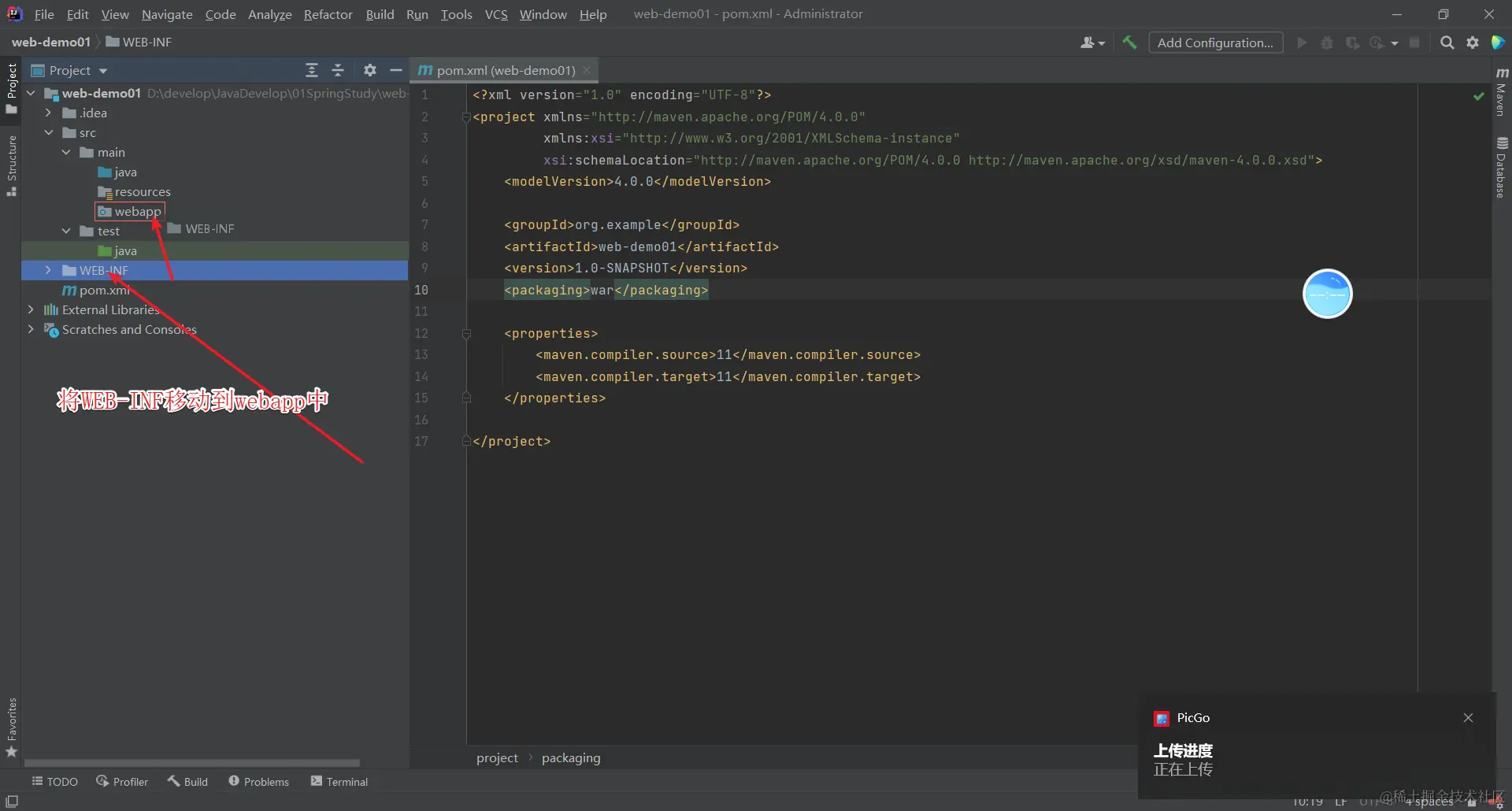

3.3、将web.xml文件放入到web目录中

image-20220316150951618

四、新建HTML文件进行测试

image-20220316151035312

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
</head>
<body>

	<h1>this is  a text</h1>

</body>
</html>

image-20220316151051138

五、配置Tomcat服务器

image-20220316151111103

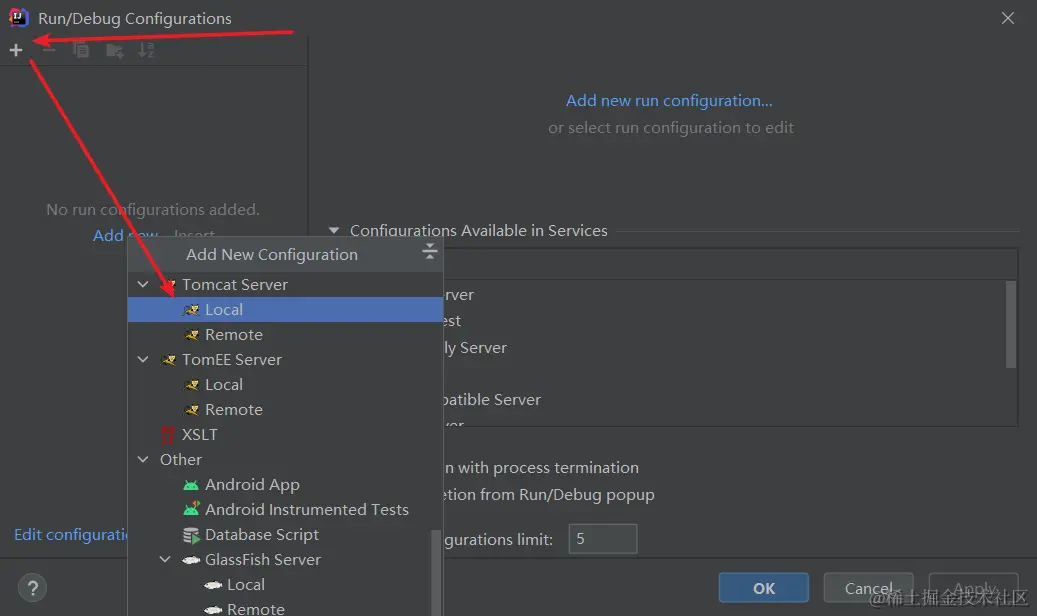

5.1、添加本地的local tomcat

image-20220316151146914

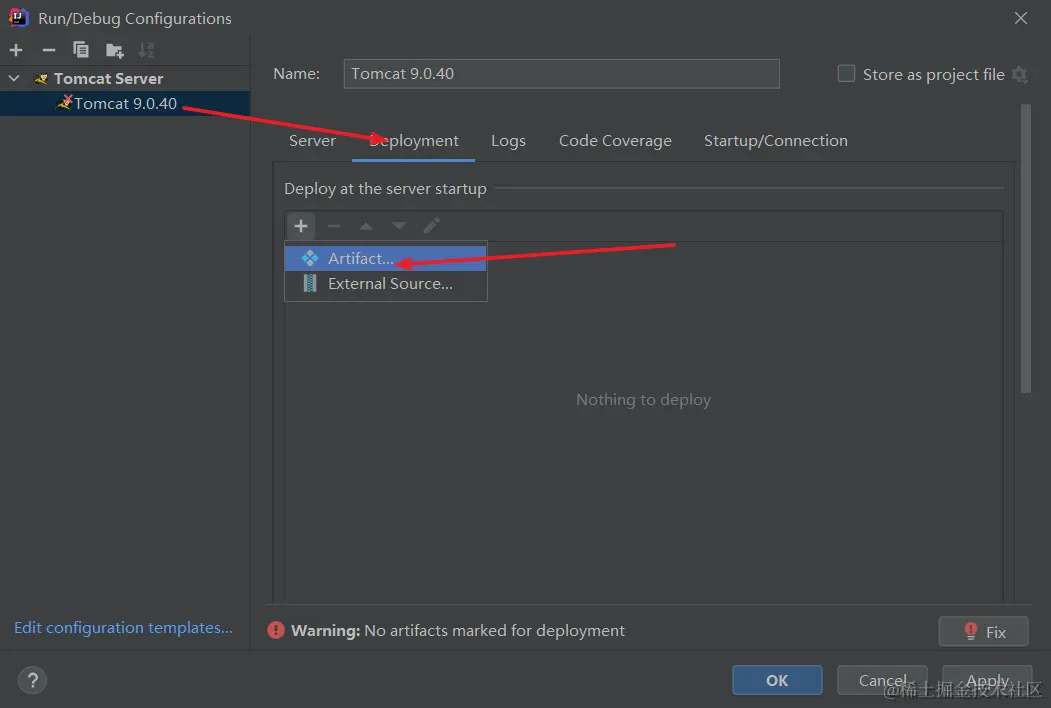

5.2、将项目添加到tomcat服务器中

image-20220316151214614

image-20220316151234120

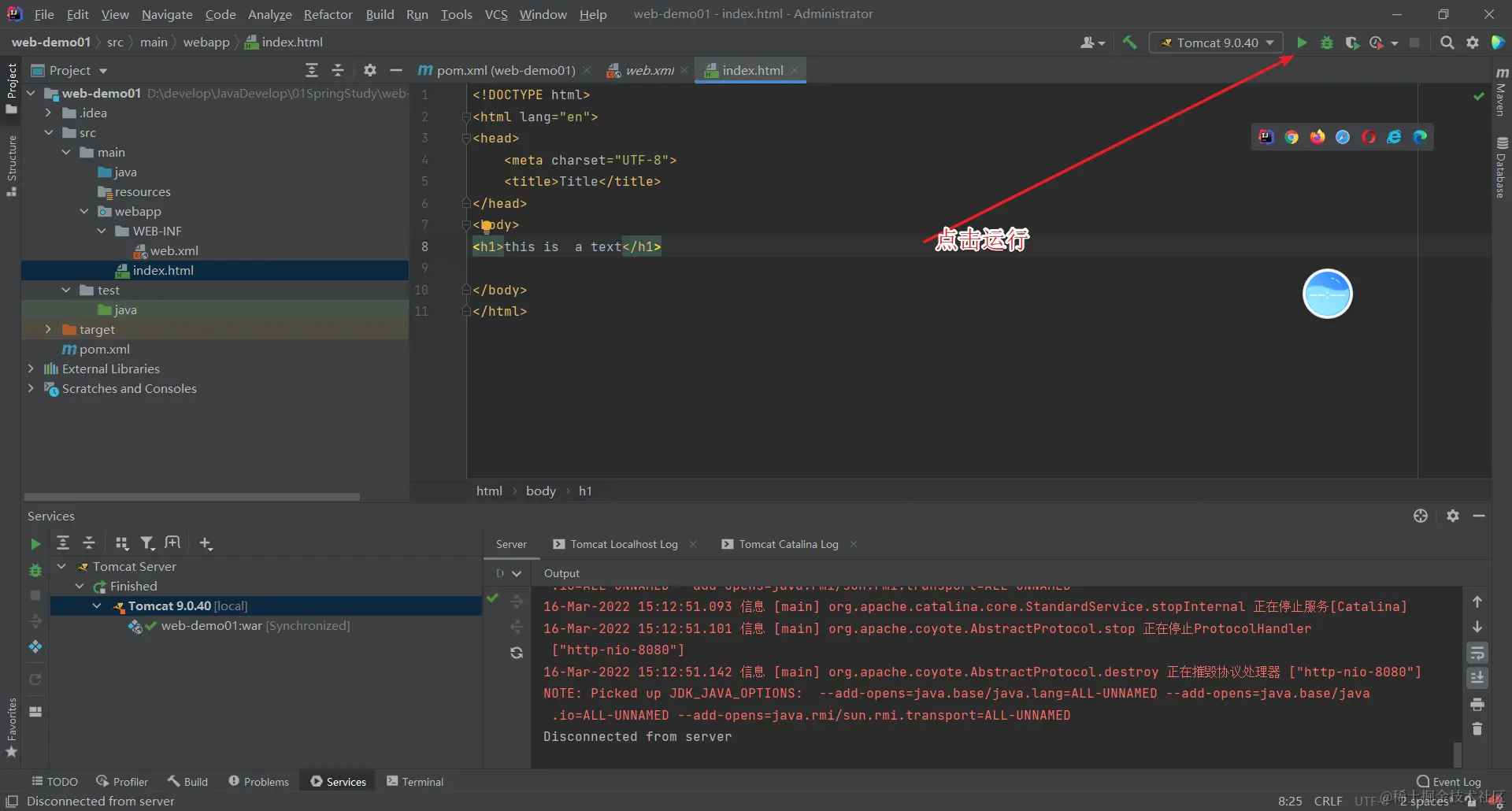

六、运行tomcat项目

image-20220316151310671

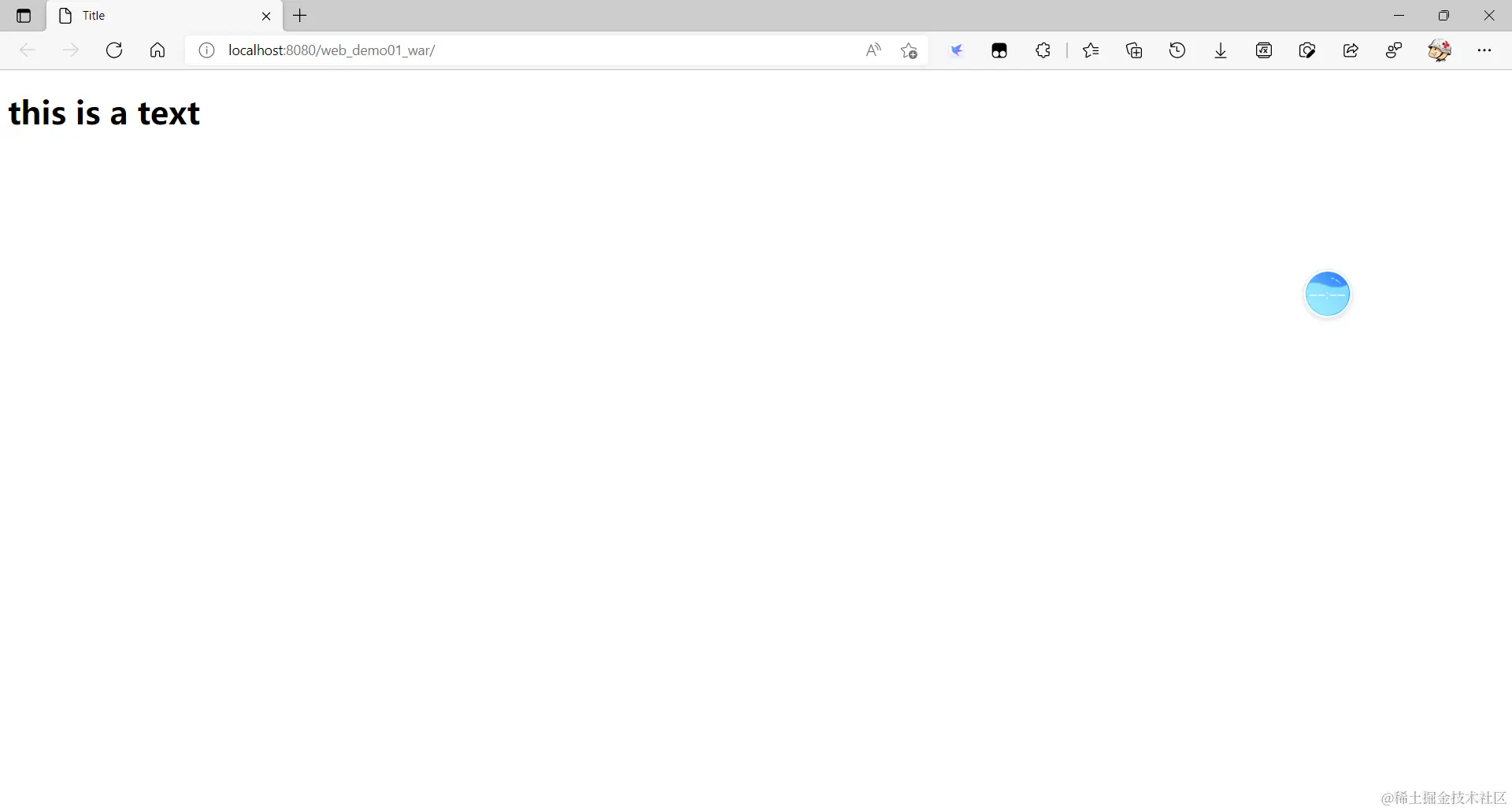

七、使用浏览器打开项目

image-20220316151325409
