iOS正向开发——错误记录

1,744 阅读1分钟

(1)dyld: Library not loaded: @rpath/libswiftCore.dylib

Xcode14.2下在项目中引入了 pod 'Purchases'后,运行项目崩溃报错:

dyld: Library not loaded: @rpath/libswiftCore.dylib

解决方式:

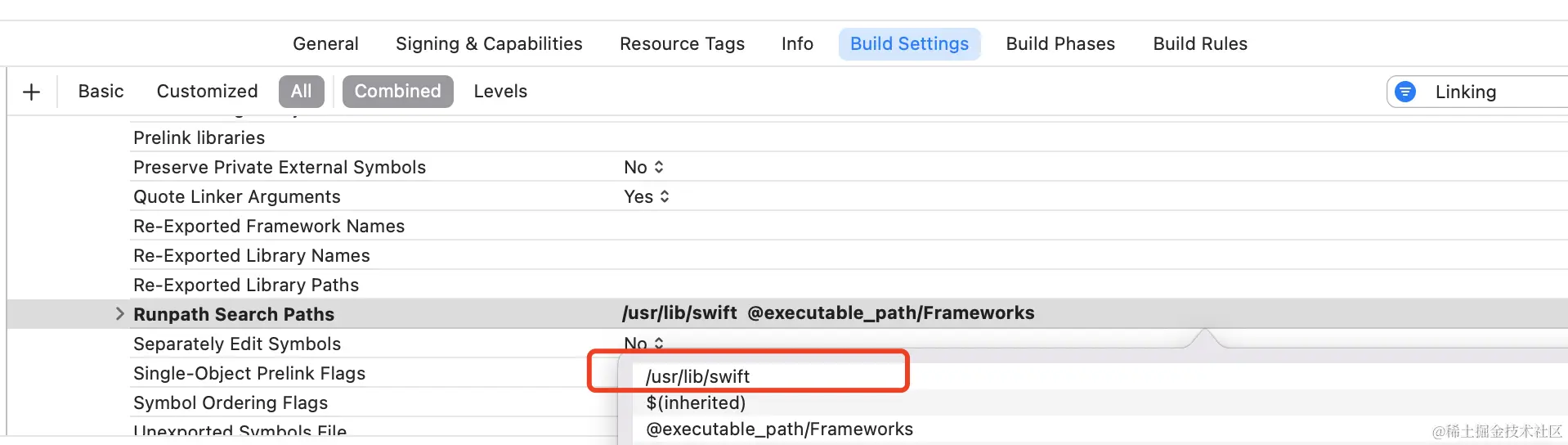

在Xcode的BuildSettings -> Linking -> runpath search paths中增加/usr/lib/swift后,在运行项目就正常了。

原文:github.com/react-nativ…

(2)使用RevenueCat做订阅时,错误信息:

[Purchases] - ERROR: 🍎‼️ Error fetching offerings - Error Domain=RCPurchasesErrorDomain Code=23 "There's a problem with your configuration. There are no products registered in the RevenueCat dashboard for your offerings. To configure products, follow the instructions in rev.cat/how-to-conf…. More information: rev.cat/why-are-off…" UserInfo={NSLocalizedDescription=There's a problem with your configuration. There are no products registered in the RevenueCat dashboard for your offerings. To configure products, follow the instructions in rev.cat/how-to-conf…. More information: rev.cat/why-are-off…, readable_error_code=CONFIGURATION_ERROR}

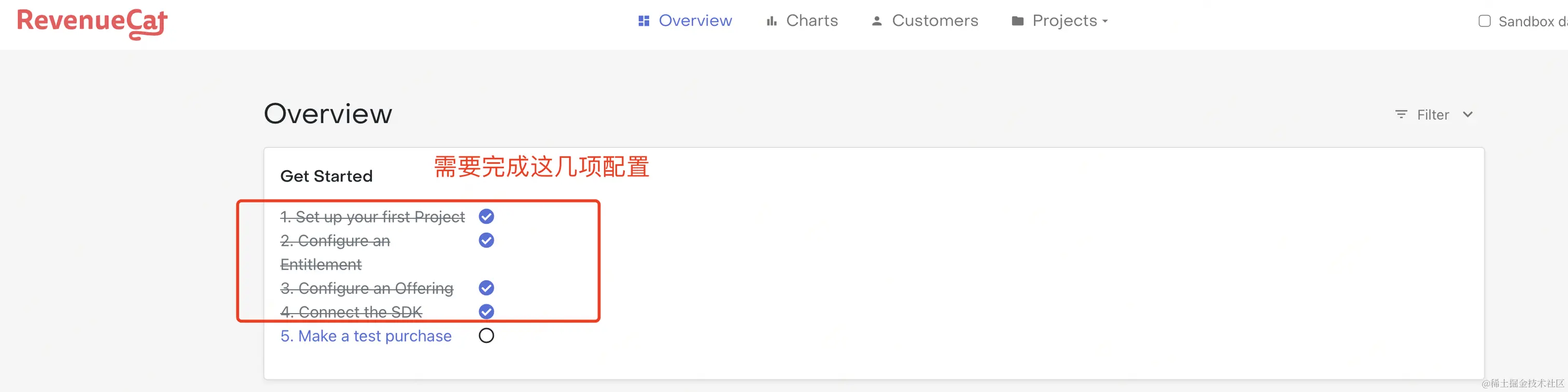

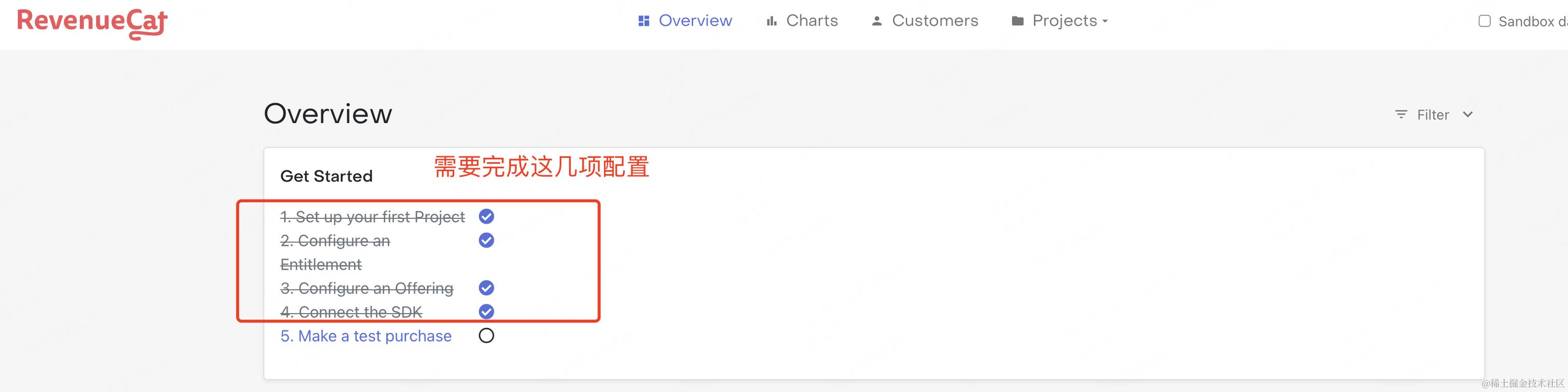

解决:在RevenueCat网站完成配置要求

(3)xcode15编译oc开发的项目,使用到一个swift库Purchases,在编译时报错:

ld: Undefined symbols: __swift_FORCE_LOAD__swiftCompatibility50,referencedfrom:__swift_FORCE_LOAD_\_swiftCompatibility50, referenced from: \_\_swift\_FORCE\_LOAD\__swiftCompatibility50_\_PurchasesCoreSwift in libPurchasesCoreSwift.a\[3\](AppleReceipt.o) \_\_swift\_FORCE\_LOAD\__swiftCompatibility51, referenced from: __swift_FORCE_LOAD__swiftCompatibility51_\_swiftCompatibility51\__PurchasesCoreSwift in libPurchasesCoreSwift.a[3](AppleReceipt.o) __swift_FORCE_LOAD__swiftCompatibility56,referencedfrom:__swift_FORCE_LOAD_\_swiftCompatibility56, referenced from: \_\_swift\_FORCE\_LOAD\__swiftCompatibility56_\_PurchasesCoreSwift in libPurchasesCoreSwift.a\[3\](AppleReceipt.o) \_\_swift\_FORCE\_LOAD\__swiftCompatibilityConcurrency, referenced from: __swift_FORCE_LOAD__swiftCompatibilityConcurrency_\_swiftCompatibilityConcurrency\__PurchasesCoreSwift in libPurchasesCoreSwift.a[3](AppleReceipt.o) __swift_FORCE_LOAD__swiftCompatibilityDynamicReplacements,referencedfrom:__swift_FORCE_LOAD_\_swiftCompatibilityDynamicReplacements, referenced from: \_\_swift\_FORCE\_LOAD\__swiftCompatibilityDynamicReplacements_$_PurchasesCoreSwift in libPurchasesCoreSwift.a[3](AppleReceipt.o)

解决:搜索"swift_FORCE_LOAD_$_swiftCompatibility50"找到类似的问题,别人给的解决方案,试了一下,有效(地址:bin.zmide.com/?p=677)

(3)使用TZImagePickerController库图片选择器,报错:

解决:在项目配置"Link Binary with Libraries"中引入PhotoUI.framework

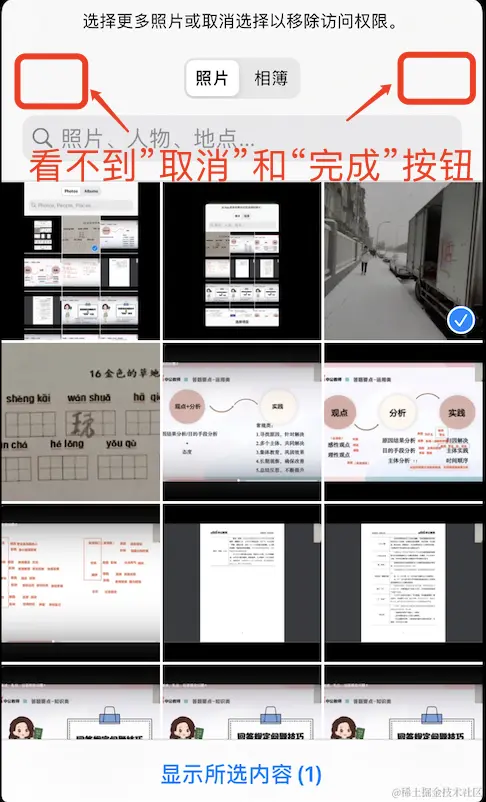

(4)在iOS14系统中使用 TZImagePickerController 弹出图片选择器,但是不显示"取消"和"完成"按钮:

解决:在TZPhotoPickerController.m中找到函数addMorePhoto,修改为:

- (void)addMorePhoto {    NSLog(@"iOS Version: %@", [[UIDevice currentDevice] systemVersion]);    if (@available(iOS 14, *)) {        @try {            PHPhotoLibrary *photoLibrary = [PHPhotoLibrary sharedPhotoLibrary];            // 设置“取消”按钮的文字颜色            UIBarButtonItem *cancelButton = [UIBarButtonItem appearanceWhenContainedInInstancesOfClasses:@[[UINavigationBar class]]];            [cancelButton setTitleTextAttributes:@{NSForegroundColorAttributeName: [UIColor blackColor]} forState:UIControlStateNormal];            // 设置“完成”按钮的文字颜色            UIBarButtonItem *doneButton = [UIBarButtonItem appearanceWhenContainedInInstancesOfClasses:@[[UINavigationBar class]]];            [doneButton setTitleTextAttributes:@{NSForegroundColorAttributeName: [UIColor systemBlueColor]} forState:UIControlStateNormal];            // 展示有限照片库选择器            [photoLibrary presentLimitedLibraryPickerFromViewController:self];
        } @catch (NSException *exception) {            // 捕获异常并处理            NSLog(@"Caught an exception: %@", exception);        } @finally {
            // 无论是否有异常都会执行的代码块        }    }
}

(5)iOS使用ffmpeg框架遇到的问题

①真机运行项目,提示错误:

dyld: Library not loaded: @rpath/libswresample.framework/libswresampleReferenced from: /private/var/containers/Bundle/Application/53D6B0EA-1CB3-41D2-BD6E-E5E48D279357/DHWaterMarkManager.app/DHWaterMarkManagerReason: image not found

解决:

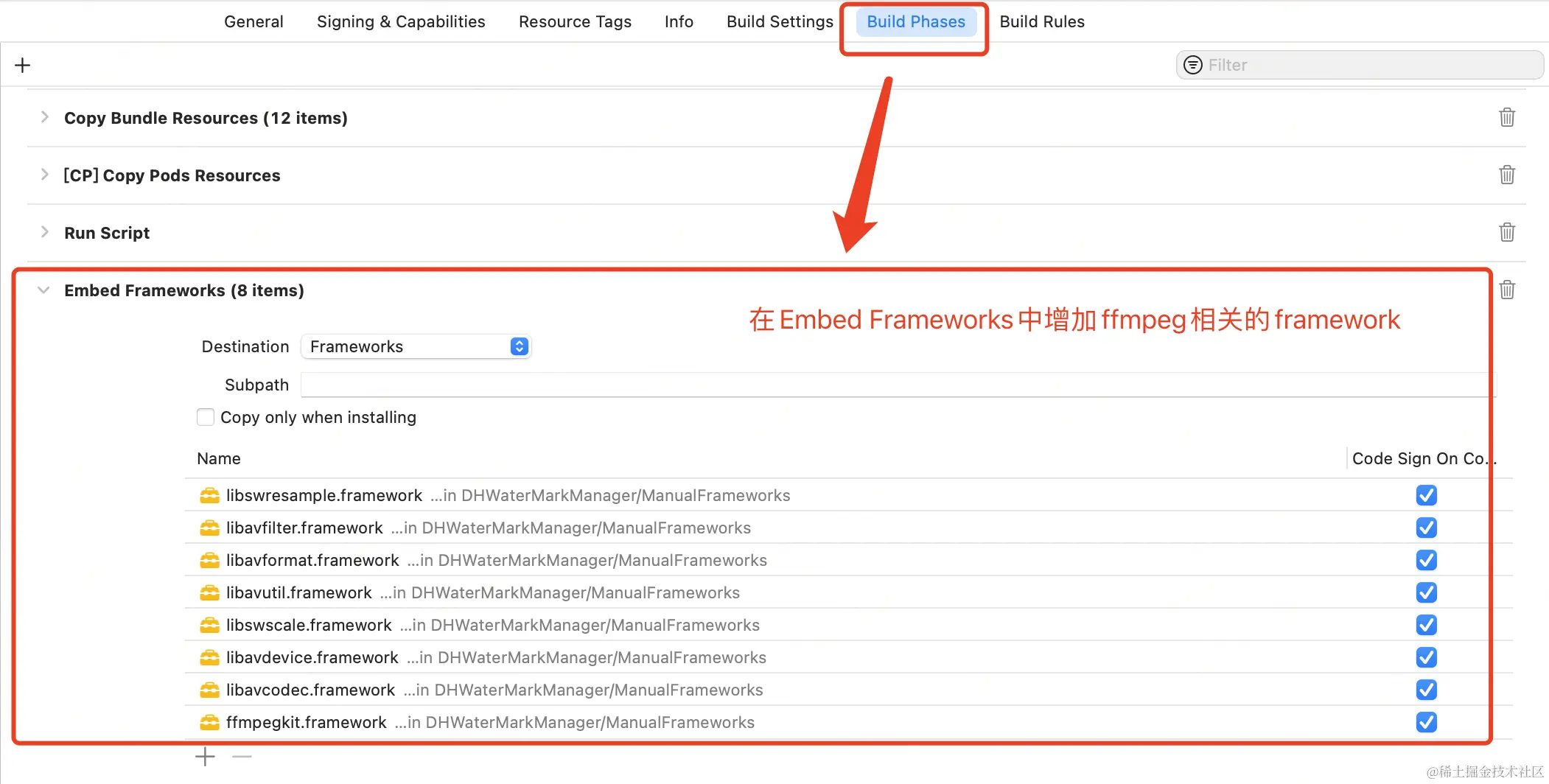

"Embed Frameworks" 是用于将动态链接库(如框架)嵌入到生成的应用程序包中的。

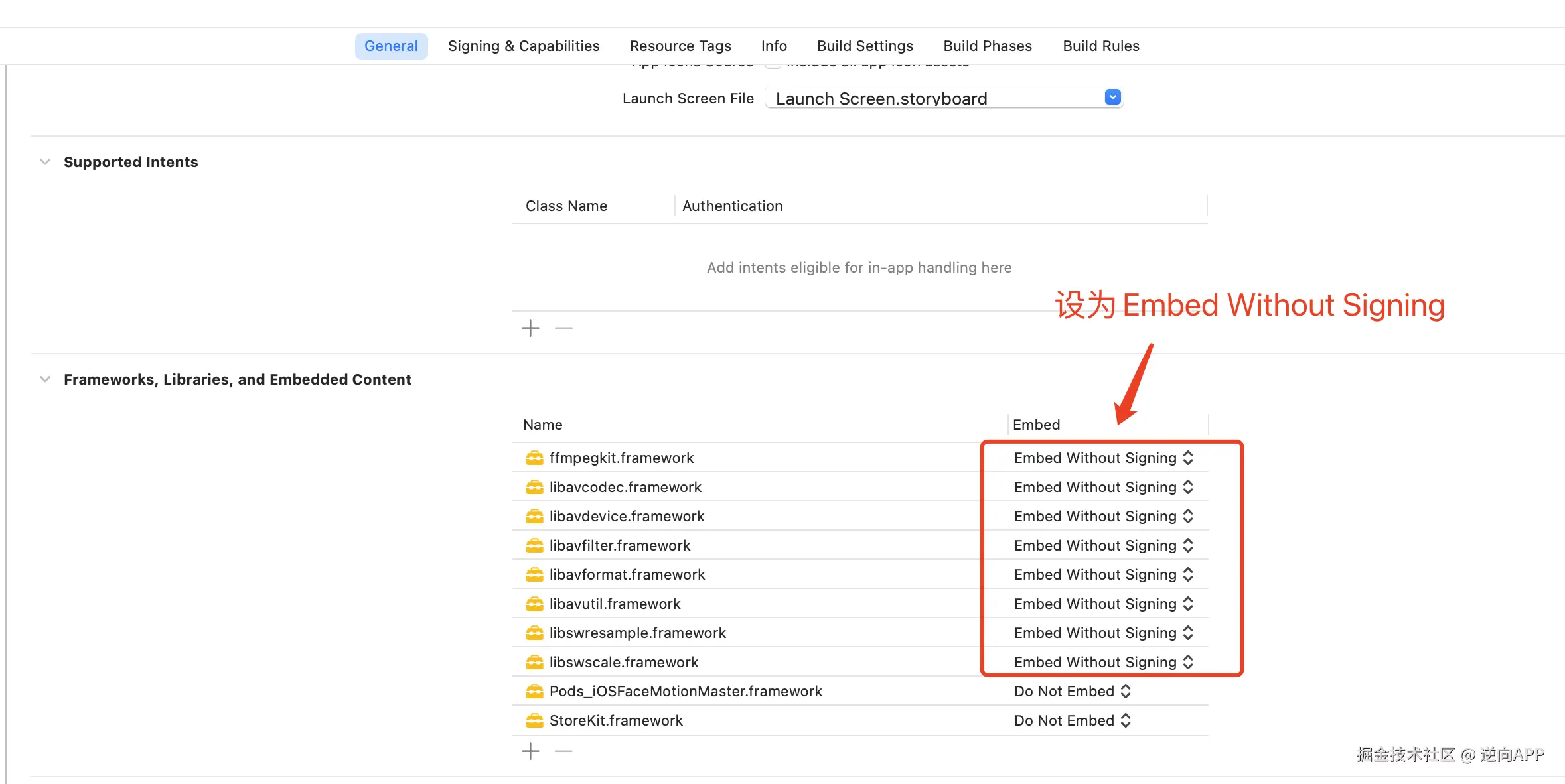

或者在General下找到对应的Framework库,设为"Embed Without Signing":

如果xcode在真机运行app提示校验签名失败:

Failed to verify code signature of /var/installd/Library/Caches/com.apple.mobile.installd.staging/temp.VyWVg5/extracted/iOSFaceMotionMaster.app/Frameworks/libswresample.framework : 0xe800801c (No code signature found.)

那么就把"Embed Without Signing"改成"Embed & Sign",编译时给 libswresample.framework签名。

详细步骤请参考:https://github.com/arthenica/ffmpeg-kit/wiki/Importing-iOS-Frameworks

(6)xcode上传app到appstore时

① 报错:

Asset validation failed
Unsupported Architectures. The executable for DHWaterMarkManager.app/Frameworks/ffmpegkit.framework contains unsupported architectures '[i386, x86_64]'.

解决:ikennd.ac/blog/2015/0…

请注意让"Build Phases"中的"Run Script"在"Embed Frameworks"之后,才能在app中已嵌入Framewoks后执行"Run Script"。

② 如果使用了该脚本,因为cocoapods中的framework继续报错如下:

Executable is /Users/wangjun1/Library/Developer/Xcode/DerivedData/iOSFaceMotionMaster-gsyimcfwvvvpxbfnfwsieaabswhj/Build/Intermediates.noindex/ArchiveIntermediates/iOSFaceMotionMaster/InstallationBuildProductsLocation/Applications/iOSFaceMotionMaster.app/Frameworks/SDWebImage.framework/SDWebImage
Extracting arm64 from SDWebImage
fatal error: lipo: input file (/Users/wangjun1/Library/Developer/Xcode/DerivedData/iOSFaceMotionMaster-gsyimcfwvvvpxbfnfwsieaabswhj/Build/Intermediates.noindex/ArchiveIntermediates/iOSFaceMotionMaster/InstallationBuildProductsLocation/Applications/iOSFaceMotionMaster.app/Frameworks/SDWebImage.framework/SDWebImage) must be a fat file when the -extract option is specified
Merging extracted architectures: arm64
fatal error: lipo: can't open input file: /Users/wangjun1/Library/Developer/Xcode/DerivedData/iOSFaceMotionMaster-gsyimcfwvvvpxbfnfwsieaabswhj/Build/Intermediates.noindex/ArchiveIntermediates/iOSFaceMotionMaster/InstallationBuildProductsLocation/Applications/iOSFaceMotionMaster.app/Frameworks/SDWebImage.framework/SDWebImage-arm64 (No such file or directory)
rm: /Users/wangjun1/Library/Developer/Xcode/DerivedData/iOSFaceMotionMaster-gsyimcfwvvvpxbfnfwsieaabswhj/Build/Intermediates.noindex/ArchiveIntermediates/iOSFaceMotionMaster/InstallationBuildProductsLocation/Applications/iOSFaceMotionMaster.app/Frameworks/SDWebImage.framework/SDWebImage-arm64: No such file or directory
Replacing original executable with thinned version

可以尝试使用我修改后的脚本忽略掉Cocoapods中的frameworks,脚本如下:

APP_PATH="${TARGET_BUILD_DIR}/${WRAPPER_NAME}"

find "$APP_PATH" -name '*.framework' -type d | while read -r FRAMEWORK
do
    FRAMEWORK_EXECUTABLE_NAME=$(defaults read "$FRAMEWORK/Info.plist" CFBundleExecutable)
    FRAMEWORK_EXECUTABLE_PATH="$FRAMEWORK/$FRAMEWORK_EXECUTABLE_NAME"
    echo "Executable is $FRAMEWORK_EXECUTABLE_PATH"

    if [ ! -f "$FRAMEWORK_EXECUTABLE_PATH" ]; then
        echo "Executable not found: $FRAMEWORK_EXECUTABLE_PATH"
        continue
    fi

    EXTRACTED_ARCHS=()

    for ARCH in $ARCHS
    do
        echo "Extracting $ARCH from $FRAMEWORK_EXECUTABLE_NAME"
        lipo -extract "$ARCH" "$FRAMEWORK_EXECUTABLE_PATH" -o "$FRAMEWORK_EXECUTABLE_PATH-$ARCH"
        if [ $? -ne 0 ]; then
            echo "Error extracting $ARCH from $FRAMEWORK_EXECUTABLE_NAME"
            continue
        fi
        EXTRACTED_ARCHS+=("$FRAMEWORK_EXECUTABLE_PATH-$ARCH")
    done

    if [ ${#EXTRACTED_ARCHS[@]} -eq 0 ]; then
        echo "No architectures extracted for $FRAMEWORK_EXECUTABLE_NAME"
        continue
    fi

    echo "Merging extracted architectures: ${ARCHS}"
    lipo -o "$FRAMEWORK_EXECUTABLE_PATH-merged" -create "${EXTRACTED_ARCHS[@]}"
    if [ $? -ne 0 ]; then
        echo "Error merging architectures for $FRAMEWORK_EXECUTABLE_NAME"
        continue
    fi

    rm "${EXTRACTED_ARCHS[@]}"

    echo "Replacing original executable with thinned version"
    rm "$FRAMEWORK_EXECUTABLE_PATH"
    mv "$FRAMEWORK_EXECUTABLE_PATH-merged" "$FRAMEWORK_EXECUTABLE_PATH"
done

(7)创建swift项目并使用swiftUI,项目使用了cocoapods后,编译报错:

error: Sandbox: rsync(15491) deny(1) file-write-create /Users/xxx/Library/Developer/Xcode/DerivedData/TestSwiftUI-cxtrbxhdgirwfcbbxqqzuddliyeg/Build/Products/Debug-iphoneos/TestSwiftUI.app/Frameworks/Alamofire.framework/.Alamofire.QtTTzq (in target 'TestSwiftUI' from project 'TestSwiftUI')

rsync: mkstemp "/Users/xxx/Library/Developer/Xcode/DerivedData/iOSFaceMotionMaster-hbdmudfpswgygwgdhroltjbtykvr/Build/Products/Debug-iphoneos/iOSFaceXXX.app/Frameworks/Alamofire.framework/.Alamofire.3Umkz1" failed: Operation not permitted (1)

解决:在Building Settings中的 ENABLE_USER_SCRIPT_SANDBOXING(也就是:User Script Sandboxing)设为NO.

(8)Xcode15运行使用了cocoapods的项目报错:

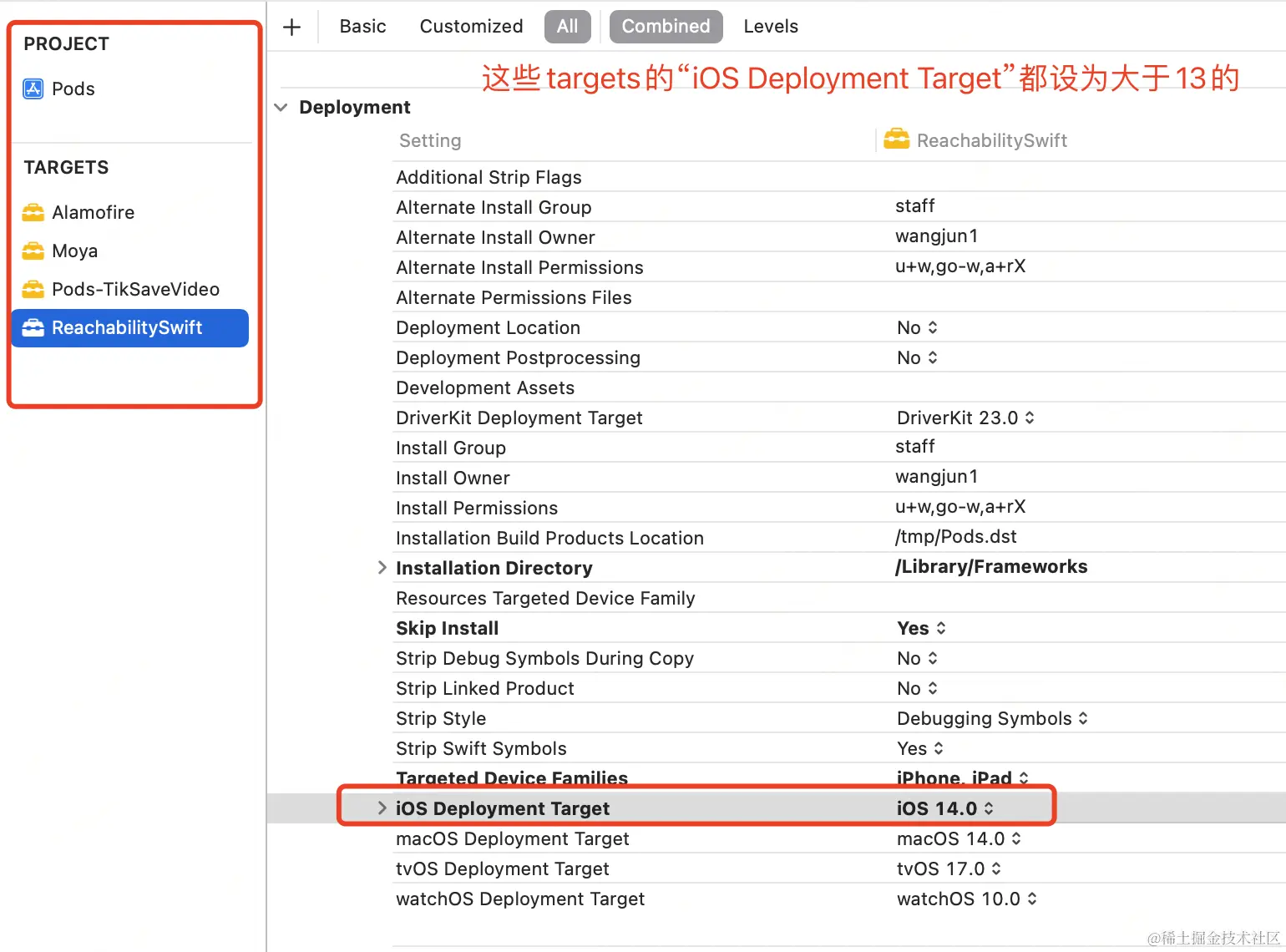

clang: error: SDK does not contain 'libarclite' at the path '/Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/lib/arc/libarclite_iphoneos.a'; try increasing the minimum deployment target

解决:

stackoverflow.com/questions/7…

(9)Xcode15.2上编译swift项目正常,但是Archive时报错:

Alamofire.framework failed: No such file or directory

找不到Alamofire.framework的路径了,但我确定已经使用Cocoapods安装了Alamofire.framework。

解决:

Workaround is to update all the generated ...-frameworks.sh files to add the -f flag to the call to readlink. In other words, replace

source="$(readlink "${source}")"

with

source="$(readlink -f "${source}")"

 This is my first time contributing to CocoaPods though, so take it with a grain of salt!

地址:github.com/CocoaPods/C…

解释:应该是CocoaPods脚本的问题,可以在项目中搜索

source="$(readlink "${source}")"

找到后替换为

source="$(readlink -f "${source}")"

就可以了。

(10)iOS开发在Xcode15中使用GoogleDataTransport,错误:A function declaration without a prototype is deprecated in all versions of C

GoogleDataTransport.framework下的很多函数报这个错误。

解决:

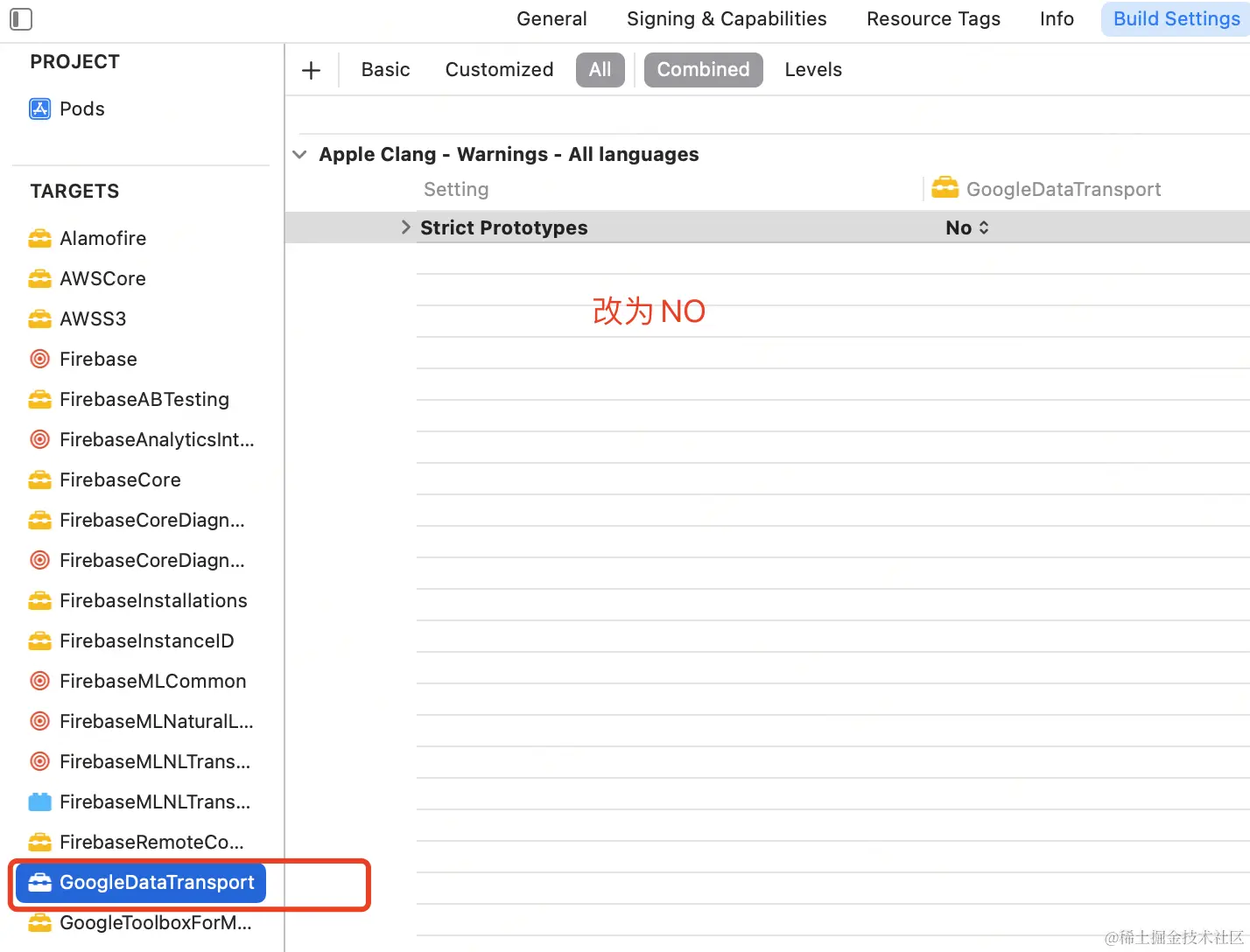

找到Pod下的GoogleDataTransport,修改Strict Prototypes 为NO

(11)在Mac M3 Pro上MacOS Sonoma系统Xcode 15.3 ,编译运行APP正常,但是Archive报错:

chown: CORP\Domain Users: illegal group nameCommand SetOwnerAndGroup failed with a nonzero exit code

解决:

具体不知道什么原因,后来关闭了mac上的vpn软件ClashX,再次Archive成功。

(12)提交App Store后,苹果提示:二进制文件无效

ITMS-91056: Invalid privacy manifest - The PrivacyInfo.xcprivacy file from the following path is invalid: “Frameworks/CropViewController.framework/TOCropViewControllerBundle.bundle/PrivacyInfo.xcprivacy”. Keys and values in your app’s privacy manifests must be valid. For more details about privacy manifest files, visit: developer.apple.com/documentati…. ITMS-91056: Invalid privacy manifest - The PrivacyInfo.xcprivacy file from the following path is invalid: “Frameworks/Reachability.framework/ReachabilitySwift.bundle/PrivacyInfo.xcprivacy”. Keys and values in your app’s privacy manifests must be valid. For more details about privacy manifest files, visit: developer.apple.com/documentati….

解决:删除指定的PrivacyInfo.xcprivacy文件。
