1、前言

我们在开发中，有时候需要对业务数据设置有效期，到了有效期需要对业务数据处理，例如下单业务，用户下了订单，超过30分钟，还未支付，需要修改订单状态。对于这种业务有多种不同的办法，比如： 1、使用定时任务，每次生成一个订单，就创建一个定时任务，到期后执行业务代码；

2、使用rabbitMq中的延迟队列；

3、对Redis的Key进行过期监听；

本文主要介绍使用springboot整合redis实现redis的key过期监听。

2、实战

引入pom依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.6.9</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>

    <groupId>com.example</groupId>
    <artifactId>springboot-demo</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>springboot-demo</name>
    <description>springboot-demo</description>

    <properties>
        <java.version>1.8</java.version>
        <lombok.version>1.18.28</lombok.version>
        <hutool-all.version>5.8.21</hutool-all.version>
        <fastjson.version>2.0.40</fastjson.version>
    </properties>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.projectlombok</groupId>
                <artifactId>lombok</artifactId>
                <version>${lombok.version}</version>
            </dependency>

            <dependency>
                <groupId>cn.hutool</groupId>
                <artifactId>hutool-all</artifactId>
                <version>${hutool-all.version}</version>
            </dependency>

            <dependency>
                <groupId>com.alibaba</groupId>
                <artifactId>fastjson</artifactId>
                <version>${fastjson.version}</version>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>

        <dependency>
            <groupId>cn.hutool</groupId>
            <artifactId>hutool-all</artifactId>
        </dependency>

        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-redis</artifactId>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

yml配置文件

spring:
  application:
    name: demo
  redis:
    host: ip
    port: 端口
    password: 密码
    lettuce:
      pool:
        max-active: 8
        max-wait: -1
        max-idle: 8
        min-idle: 0

server:
  port: 8080

redis配置类

package com.example.springbootdemo.config;

import com.fasterxml.jackson.annotation.JsonAutoDetect;
import com.fasterxml.jackson.annotation.JsonTypeInfo;
import com.fasterxml.jackson.annotation.PropertyAccessor;
import com.fasterxml.jackson.databind.ObjectMapper;
import com.fasterxml.jackson.databind.jsontype.impl.LaissezFaireSubTypeValidator;
import org.springframework.cache.annotation.CachingConfigurerSupport;
import org.springframework.cache.annotation.EnableCaching;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.data.redis.connection.RedisConnectionFactory;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.data.redis.listener.RedisMessageListenerContainer;
import org.springframework.data.redis.serializer.Jackson2JsonRedisSerializer;
import org.springframework.data.redis.serializer.StringRedisSerializer;
import org.springframework.transaction.PlatformTransactionManager;

import javax.sql.DataSource;

/**
 * <p>
 *  redis配置类
 * </p>
 *
 * @author yurenwei
 * @since 2023/9/5
 */

@Configuration
@EnableCaching
public class RedisConfig extends CachingConfigurerSupport {

    /**
     * redisTemplate相关配置
     */
    @Bean
    public RedisTemplate<String, Object> redisTemplate(RedisConnectionFactory factory) {
        RedisTemplate<String, Object> template = new RedisTemplate<>();
        // 配置连接工厂
        template.setConnectionFactory(factory);

        //使用Jackson2JsonRedisSerializer来序列化和反序列化redis的value值（默认使用JDK的序列化方式）
        Jackson2JsonRedisSerializer jackson = new Jackson2JsonRedisSerializer(Object.class);

        ObjectMapper om = new ObjectMapper();
        // 指定要序列化的域，field,get和set,以及修饰符范围，ANY是都有包括private和public
        om.setVisibility(PropertyAccessor.ALL, JsonAutoDetect.Visibility.ANY);
        om.activateDefaultTyping(LaissezFaireSubTypeValidator.instance, ObjectMapper.DefaultTyping.NON_FINAL, JsonTypeInfo.As.PROPERTY);
        jackson.setObjectMapper(om);

        // 值采用json序列化
        template.setValueSerializer(jackson);
        //使用StringRedisSerializer来序列化和反序列化redis的key值
        template.setKeySerializer(new StringRedisSerializer());

        // 设置hash key和value序列化模式
        template.setHashKeySerializer(new StringRedisSerializer());
        template.setHashValueSerializer(jackson);
        template.afterPropertiesSet();

        return template;
    }


    /**
     * 监听redis的过期事件
     */
    @Bean
    public RedisMessageListenerContainer container(RedisConnectionFactory factory) {
        RedisMessageListenerContainer container = new RedisMessageListenerContainer();
        container.setConnectionFactory(factory);
        return container;
    }

}

redis key过期监听类，继承KeyExpirationEventMessageListener

package com.example.springbootdemo.listener;

import lombok.extern.slf4j.Slf4j;
import org.springframework.data.redis.connection.Message;
import org.springframework.data.redis.listener.KeyExpirationEventMessageListener;
import org.springframework.data.redis.listener.RedisMessageListenerContainer;
import org.springframework.stereotype.Component;

/**
 * <p>
 *  redis key过期监听类
 * </p>
 *
 * @author yurenwei
 * @since 2023/9/6
 */
@Slf4j
@Component
public class RedisKeyExpirationListener extends KeyExpirationEventMessageListener {

    public RedisKeyExpirationListener(RedisMessageListenerContainer container) {
        super(container);
    }

    /**
     * 针对redis缓存数据失效事件，进行后续数据处理
     *
     * @param message
     * @param pattern
     */
    @Override
    public void onMessage(Message message, byte[] pattern) {
        log.info("过期key:{}",message.toString());
    }

}

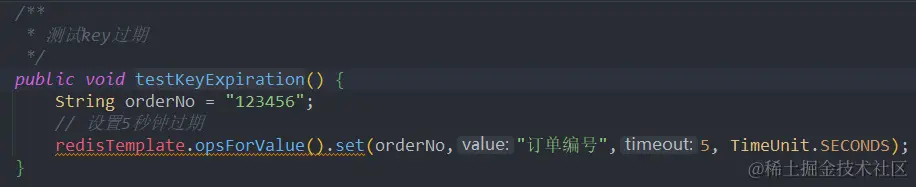

3、测试

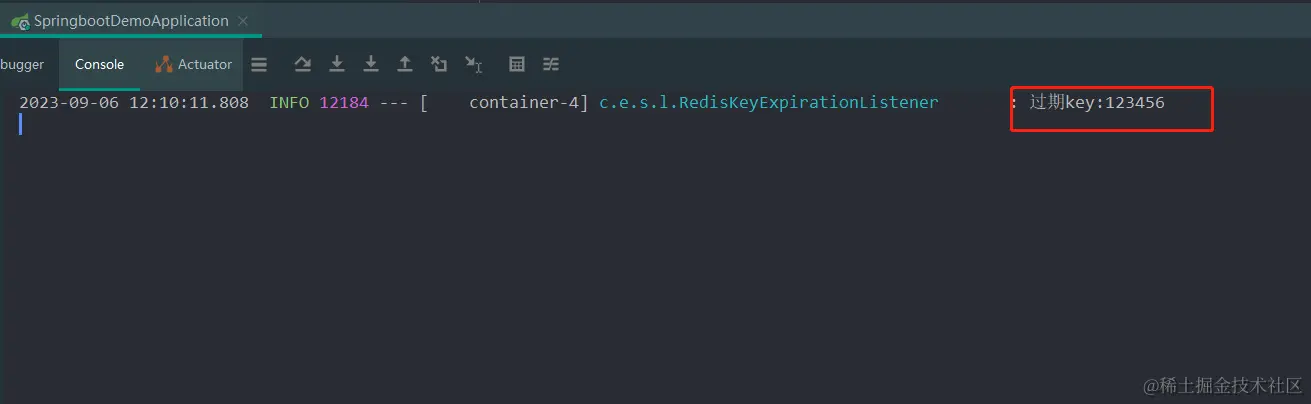

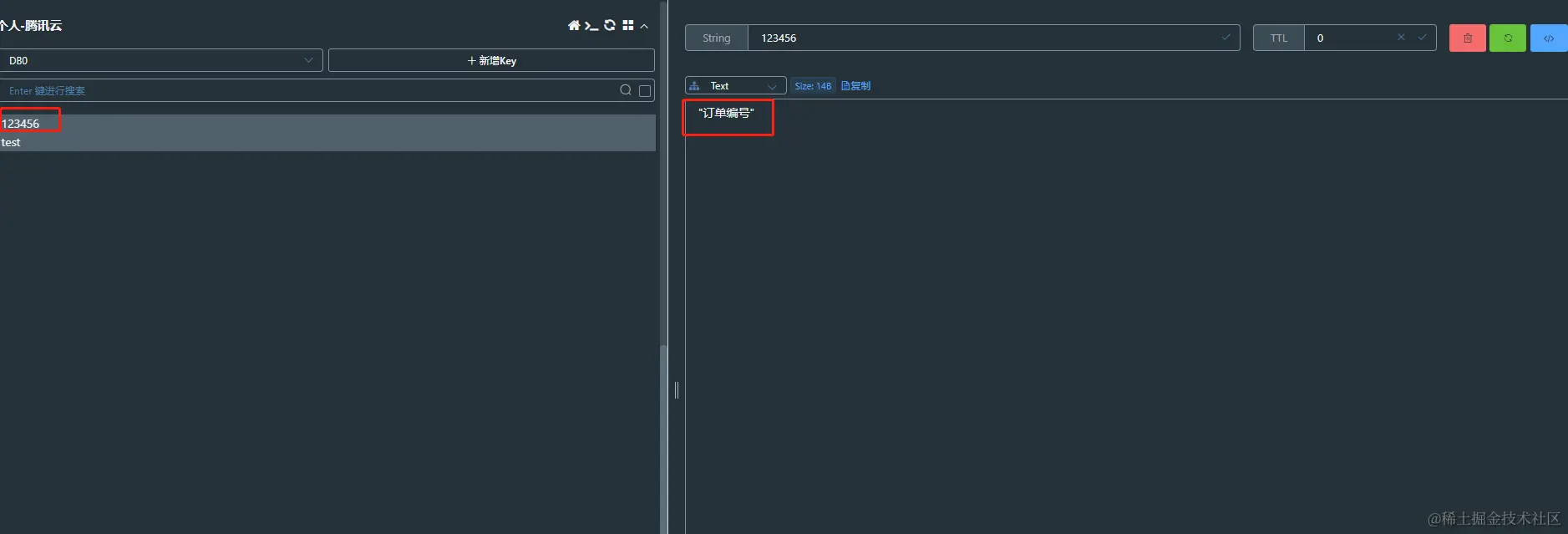

请求数据后，redis中可查看过了5秒钟，到了过期时间，控制台打印信息

至此，SpringBoot整合Redis实现key过期监听结束。
