基于uibot的自动执行脚本

前面介绍过uibot的创建和使用，接下来分享一下神武的自动挖图脚本。

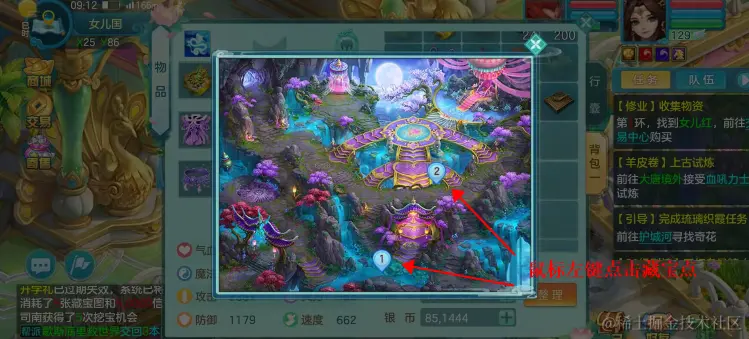

首先我们来看下神武是怎么挖图的

接下来开始编写代码

首先判断界面上是否存在

找到其中共同点是，根据上下的共同点 ，判断存在则鼠标移动到图像上进行模拟左键点击。

Function clickBaotu
    Try
        Dim bRet
        #icon("@res:6c468d50-3856-11ee-99fe-096e70e46248.png")
        bRet = Image.Exists({"wnd":[{"cls":"GLFW30","title":"神武5逍遥外传 - 清风明月","app":"htzmain"}]},{"x": 0, "y": 0, "width": 0, "height": 0},@res"6c468d50-3856-11ee-99fe-096e70e46248.png",0.9,2000,{"bContinueOnError": false, "iDelayAfter": 0, "iDelayBefore": 100, "bSetForeground": true, "sMatchType":"GrayMatch"})
        If bRet
            #icon("@res:7d1e3a60-3856-11ee-99fe-096e70e46248.png")
            Image.Click({"wnd":[{"cls":"GLFW30","title":"神武5逍遥外传 - 清风明月","app":"htzmain"}]},{"x": 0, "y": 0, "width": 0, "height": 0},@res"7d1e3a60-3856-11ee-99fe-096e70e46248.png",0.9,"left","click",10000, {"bContinueOnError": false, "iDelayAfter": 110, "iDelayBefore": 110, "bSetForeground": true, "sCursorPosition": "Center", "iCursorOffsetX": 0, "iCursorOffsetY": 0, "sKeyModifiers": [],"sSimulate": "simulate","sMatchType":"GrayMatch", "iSerialNo": 1})
            clickBaotu()
        Else
            #icon("@res:60006130-3854-11ee-99fe-096e70e46248.png")
            bRet2 = Image.Exists({"wnd":[{"cls":"GLFW30","title":"神武5逍遥外传 - 清风明月","app":"htzmain"}]},{"x": 0, "y": 0, "width": 0, "height": 0},@res"60006130-3854-11ee-99fe-096e70e46248.png",0.9,2000,{"bContinueOnError": false, "iDelayAfter": 0, "iDelayBefore": 100, "bSetForeground": true, "sMatchType":"GrayMatch"})
            If bRet2
                    #icon("@res:68fe7920-3854-11ee-99fe-096e70e46248.png")
                Image.Click({"wnd":[{"cls":"GLFW30","title":"神武5逍遥外传 - 清风明月","app":"htzmain"}]},{"x": 0, "y": 0, "width": 0, "height": 0},@res"68fe7920-3854-11ee-99fe-096e70e46248.png",0.9,"left","click",10000, {"bContinueOnError": false, "iDelayAfter": 110, "iDelayBefore": 110, "bSetForeground": true, "sCursorPosition": "Center", "iCursorOffsetX": 0, "iCursorOffsetY": 0, "sKeyModifiers": [],"sSimulate": "simulate","sMatchType":"GrayMatch", "iSerialNo": 1})
                clickBaotu()
            End If
        End If
    Catch err

    End Try
    TracePrint(err)
    #icon("@res:6cbc1d60-3854-11ee-99fe-096e70e46248.png")
    isBtPage =  Image.Exists({"wnd":[{"cls":"GLFW30","title":"神武5逍遥外传 - 清风明月","app":"htzmain"}]},{"x": 0, "y": 0, "width": 0, "height": 0},@res"6cbc1d60-3854-11ee-99fe-096e70e46248.png",0.9,2000,{"bContinueOnError": false, "iDelayAfter": 0, "iDelayBefore": 100, "bSetForeground": true, "sMatchType":"GrayMatch"})
    If isBtPage
        clickBaotu()
    Else
        clickBaotuBox()
        End If
End Function

接下来如果界面上不存在藏宝点，则模拟右键点击背包里的藏宝图 ，右击后进行上面的方法clickBaotu。

Function clickBaotuBox()
    Dim bRet
    #icon("@res:746fdb00-3854-11ee-99fe-096e70e46248.png")
    bRet = Image.Exists({"wnd":[{"cls":"GLFW30","title":"神武5逍遥外传 - 清风明月","app":"htzmain"}]},{"x": 0, "y": 0, "width": 0, "height": 0},@res"746fdb00-3854-11ee-99fe-096e70e46248.png",0.9,2000,{"bContinueOnError": false, "iDelayAfter": 0, "iDelayBefore": 100, "bSetForeground": true, "sMatchType":"GrayMatch"})
    If bRet
         #icon("@res:7885d870-3854-11ee-99fe-096e70e46248.png")
        Image.Click({"wnd":[{"cls":"GLFW30","title":"神武5逍遥外传 - 清风明月","app":"htzmain"}]},{"x": 0, "y": 0, "width": 0, "height": 0},@res"7885d870-3854-11ee-99fe-096e70e46248.png",0.9,"right","click",10000, {"bContinueOnError": false, "iDelayAfter": 110, "iDelayBefore": 110, "bSetForeground": true, "sCursorPosition": "Center", "iCursorOffsetX": 0, "iCursorOffsetY": 0, "sKeyModifiers": [],"sSimulate": "simulate","sMatchType":"GrayMatch", "iSerialNo": 1})
        clickBaotu()
    Else
         #icon("@res:7bf22860-3854-11ee-99fe-096e70e46248.png")
        isBtPage =  Image.Exists({"wnd":[{"cls":"GLFW30","title":"神武5逍遥外传 - 清风明月","app":"htzmain"}]},{"x": 0, "y": 0, "width": 0, "height": 0},@res"7bf22860-3854-11ee-99fe-096e70e46248.png",0.9,2000,{"bContinueOnError": false, "iDelayAfter": 0, "iDelayBefore": 100, "bSetForeground": true, "sMatchType":"GrayMatch"})
        If isBtPage
            #icon("@res:7e815ec0-3854-11ee-99fe-096e70e46248.png")
            isBeibao =  Image.Exists({"wnd":[{"cls":"GLFW30","title":"神武5逍遥外传 - 清风明月","app":"htzmain"}]},{"x": 0, "y": 0, "width": 0, "height": 0},@res"7e815ec0-3854-11ee-99fe-096e70e46248.png",0.9,2000,{"bContinueOnError": false, "iDelayAfter": 0, "iDelayBefore": 100, "bSetForeground": true, "sMatchType":"GrayMatch"})
            If isBeibao
                #icon("@res:81f501b0-3854-11ee-99fe-096e70e46248.png")
                Image.Click({"wnd":[{"cls":"GLFW30","title":"神武5逍遥外传 - 清风明月","app":"htzmain"}]},{"x": 0, "y": 0, "width": 0, "height": 0},@res"81f501b0-3854-11ee-99fe-096e70e46248.png",0.9,"left","click",10000, {"bContinueOnError": false, "iDelayAfter": 110, "iDelayBefore": 110, "bSetForeground": true, "sCursorPosition": "Center", "iCursorOffsetX": 0, "iCursorOffsetY": 0, "sKeyModifiers": [],"sSimulate": "simulate","sMatchType":"GrayMatch", "iSerialNo": 1})
                clickBaotuBox()
            Else
                iRet = Dialog.MsgBox("当前神武已经执行完毕，请拉起新的神武窗口，并点击确定继续，退出请点击取消","提示",5,1,0)
                If (iRet=1)
                clickBaotu()
                Else
                Exit()
                End If
            End If
        Else
            openBeiBao()
        End If
    End If
End Function

假如界面不存在藏宝点和藏宝图，则点击物品背包

Function openBeiBao
     #icon("@res:84e48080-3854-11ee-99fe-096e70e46248.png")
    Image.Click({"wnd":[{"cls":"GLFW30","title":"神武5逍遥外传 - 清风明月","app":"htzmain"}]},{"x": 0, "y": 0, "width": 0, "height": 0},@res"84e48080-3854-11ee-99fe-096e70e46248.png",0.9,"left","click",10000, {"bContinueOnError": false, "iDelayAfter": 100, "iDelayBefore": 100, "bSetForeground": true, "sCursorPosition": "Center", "iCursorOffsetX": 0, "iCursorOffsetY": 0, "sKeyModifiers": [],"sSimulate": "simulate","sMatchType":"GrayMatch", "iSerialNo": 1})
    clickBaotu()
End Function

点击物品背包后，继续执行clickBaotu

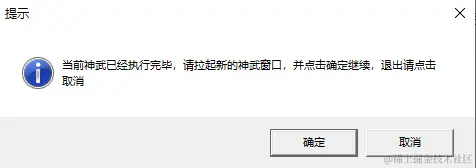

循环执行结束后，当所有藏宝图挖完后，图像识别会超时，则弹窗提示是否继续执行。

iRet = Dialog.MsgBox("当前神武已经执行完毕，请拉起新的神武窗口，并点击确定继续，退出请点击取消","提示",5,1,0)

至此脚本结束。

欢迎大家共同交流。源码在此处获取。
