OAuth2 实战

上期详细介绍了OAuth2的相关知识点，重点在OAuth2的授权模式（其中最重要的是授权码模式），这期我们就通过Demo的方式来实践下OAuth2认证协议。

SQL脚本 && Postman测试脚本：github.com/dingxinlian…

作者环境：

MacOS

Open JDK 11

Nacos 2.2.2

Maven 3.6.1

MySQL 8.0.31

Spring Boot 2.7.0

Spring Cloud 2021.0.1

Spring Cloud Alibaba 2021.0.1.0

IntelliJ IDEA Community Edition 2023.1.3

一、初始化项目

1.1 创建Maven项目

pom.xml核心内容：进行版本控制和工具类引入

<properties>
  <maven.compiler.source>11</maven.compiler.source>
  <maven.compiler.target>11</maven.compiler.target>
  <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
  <spring.boot.version>2.7.0</spring.boot.version>
  <spring.cloud.version>2021.0.1</spring.cloud.version>
  <spring.cloud.alibaba.version>2021.0.1.0</spring.cloud.alibaba.version>
  <mysql.version>8.0.31</mysql.version>
</properties>

<!--spring boot parent-->
<parent>
  <groupId>org.springframework.boot</groupId>
  <artifactId>spring-boot-starter-parent</artifactId>
  <version>2.7.0</version>
  <relativePath/>
</parent>

<dependencyManagement>
  <dependencies>
    <!--spring cloud -->
    <dependency>
      <groupId>org.springframework.cloud</groupId>
      <artifactId>spring-cloud-dependencies</artifactId>
      <version>${spring.cloud.version}</version>
      <type>pom</type>
      <scope>import</scope>
    </dependency>
    <dependency>
      <groupId>com.alibaba.cloud</groupId>
      <artifactId>spring-cloud-alibaba-dependencies</artifactId>
      <version>${spring.cloud.alibaba.version}</version>
      <type>pom</type>
      <scope>import</scope>
    </dependency>

    <!--mysql-->
    <dependency>
      <groupId>com.mysql</groupId>
      <artifactId>mysql-connector-j</artifactId>
      <version>${mysql.version}</version>
    </dependency>
  </dependencies>
</dependencyManagement>

<dependencies>
  <!--util-->
  <dependency>
    <groupId>org.projectlombok</groupId>
    <artifactId>lombok</artifactId>
  </dependency>
  <dependency>
    <groupId>org.apache.commons</groupId>
    <artifactId>commons-lang3</artifactId>
  </dependency>
</dependencies>

1.2 数据库环境搭建

OAuth2环境需要的数据库脚本可以从官方仓库中找到：github.com/spring-atti…

此处作者稍稍做了优化，添加了模拟数据，下面是数据库(oauth)脚本文件内容schema.sql

/*
 Navicat Premium Data Transfer

 Source Server         : localhost
 Source Server Type    : MySQL
 Source Server Version : 80031
 Source Host           : localhost:3306
 Source Schema         : oauth

 Target Server Type    : MySQL
 Target Server Version : 80031
 File Encoding         : 65001

 Date: 08/08/2023 10:25:03
*/

SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;

-- ----------------------------
-- Table structure for clientdetails
-- ----------------------------
DROP TABLE IF EXISTS `clientdetails`;
CREATE TABLE `clientdetails` (
  `appId` varchar(200) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci NOT NULL,
  `resourceIds` varchar(256) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci DEFAULT NULL,
  `appSecret` varchar(256) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci DEFAULT NULL,
  `scope` varchar(256) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci DEFAULT NULL,
  `grantTypes` varchar(256) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci DEFAULT NULL,
  `redirectUrl` varchar(256) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci DEFAULT NULL,
  `authorities` varchar(256) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci DEFAULT NULL,
  `access_token_validity` int DEFAULT NULL,
  `refresh_token_validity` int DEFAULT NULL,
  `additionalInformation` varchar(4096) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci DEFAULT NULL,
  `autoApproveScopes` varchar(256) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci DEFAULT NULL,
  PRIMARY KEY (`appId`) USING BTREE
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb3 ROW_FORMAT=COMPACT;

-- ----------------------------
-- Records of clientdetails
-- ----------------------------
BEGIN;
COMMIT;

-- ----------------------------
-- Table structure for oauth_access_token
-- ----------------------------
DROP TABLE IF EXISTS `oauth_access_token`;
CREATE TABLE `oauth_access_token` (
  `token_id` varchar(256) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci DEFAULT NULL,
  `token` blob,
  `authentication_id` varchar(200) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci NOT NULL,
  `user_name` varchar(256) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci DEFAULT NULL,
  `client_id` varchar(256) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci DEFAULT NULL,
  `authentication` blob,
  `refresh_token` varchar(256) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci DEFAULT NULL,
  PRIMARY KEY (`authentication_id`) USING BTREE
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb3 ROW_FORMAT=COMPACT;

-- ----------------------------
-- Records of oauth_access_token
-- ----------------------------
BEGIN;
COMMIT;

-- ----------------------------
-- Table structure for oauth_approvals
-- ----------------------------
DROP TABLE IF EXISTS `oauth_approvals`;
CREATE TABLE `oauth_approvals` (
  `userId` varchar(256) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci DEFAULT NULL,
  `clientId` varchar(256) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci DEFAULT NULL,
  `scope` varchar(256) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci DEFAULT NULL,
  `status` varchar(10) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci DEFAULT NULL,
  `expiresAt` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP,
  `lastModifiedAt` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb3 ROW_FORMAT=COMPACT;

-- ----------------------------
-- Records of oauth_approvals
-- ----------------------------
BEGIN;
COMMIT;

-- ----------------------------
-- Table structure for oauth_client_details
-- ----------------------------
DROP TABLE IF EXISTS `oauth_client_details`;
CREATE TABLE `oauth_client_details` (
  `client_id` varchar(200) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci NOT NULL,
  `resource_ids` varchar(256) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci DEFAULT NULL,
  `client_secret` varchar(256) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci DEFAULT NULL,
  `scope` varchar(256) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci DEFAULT NULL,
  `authorized_grant_types` varchar(256) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci DEFAULT NULL,
  `web_server_redirect_uri` varchar(256) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci DEFAULT NULL,
  `authorities` varchar(256) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci DEFAULT NULL,
  `access_token_validity` int DEFAULT NULL,
  `refresh_token_validity` int DEFAULT NULL,
  `additional_information` varchar(256) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci DEFAULT NULL,
  `autoapprove` varchar(256) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci DEFAULT NULL,
  PRIMARY KEY (`client_id`) USING BTREE
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb3 ROW_FORMAT=COMPACT;

-- ----------------------------
-- Records of oauth_client_details
-- ----------------------------
BEGIN;
INSERT INTO `oauth_client_details` (`client_id`, `resource_ids`, `client_secret`, `scope`, `authorized_grant_types`, `web_server_redirect_uri`, `authorities`, `access_token_validity`, `refresh_token_validity`, `additional_information`, `autoapprove`) VALUES ('18266668888', 'PHONE_NUMBER', '$2a$10$mDVS2QYmhzZa/YoGcput4.xhESQCleIoRk1eSySFiwsDUV4Z.MrOu', 'web', 'refresh_token,client_credentials', NULL, 'PHONE_NUMBER', NULL, NULL, NULL, NULL);
INSERT INTO `oauth_client_details` (`client_id`, `resource_ids`, `client_secret`, `scope`, `authorized_grant_types`, `web_server_redirect_uri`, `authorities`, `access_token_validity`, `refresh_token_validity`, `additional_information`, `autoapprove`) VALUES ('dingxinliang01', 'USER_PASSWORD', '$2a$10$94rQmlAeO5Ur4qAKAzmew.SYtbYhPap5i6P3shTzpD61TZEAuJHTq', 'web', 'refresh_token,password', NULL, 'USER_PASSWORD', NULL, NULL, NULL, NULL);
INSERT INTO `oauth_client_details` (`client_id`, `resource_ids`, `client_secret`, `scope`, `authorized_grant_types`, `web_server_redirect_uri`, `authorities`, `access_token_validity`, `refresh_token_validity`, `additional_information`, `autoapprove`) VALUES ('GITEE-codejuzi', 'THIRD_PARTY', '$2a$10$ukYD1AorKH6ZBQm5J49XsOw7AdHpOGnBQFr6ao6Nt.VF7bTiJSq5O', 'web', 'refresh_token,client_credentials', NULL, 'THIRD_PARTY', NULL, NULL, NULL, NULL);
COMMIT;

-- ----------------------------
-- Table structure for oauth_client_token
-- ----------------------------
DROP TABLE IF EXISTS `oauth_client_token`;
CREATE TABLE `oauth_client_token` (
  `token_id` varchar(256) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci DEFAULT NULL,
  `token` blob,
  `authentication_id` varchar(200) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci NOT NULL,
  `user_name` varchar(256) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci DEFAULT NULL,
  `client_id` varchar(256) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci DEFAULT NULL,
  PRIMARY KEY (`authentication_id`) USING BTREE
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb3 ROW_FORMAT=COMPACT;

-- ----------------------------
-- Records of oauth_client_token
-- ----------------------------
BEGIN;
COMMIT;

-- ----------------------------
-- Table structure for oauth_code
-- ----------------------------
DROP TABLE IF EXISTS `oauth_code`;
CREATE TABLE `oauth_code` (
  `code` varchar(256) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci DEFAULT NULL,
  `authentication` blob
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb3 ROW_FORMAT=COMPACT;

-- ----------------------------
-- Records of oauth_code
-- ----------------------------
BEGIN;
COMMIT;

-- ----------------------------
-- Table structure for oauth_refresh_token
-- ----------------------------
DROP TABLE IF EXISTS `oauth_refresh_token`;
CREATE TABLE `oauth_refresh_token` (
  `token_id` varchar(256) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci DEFAULT NULL,
  `token` blob,
  `authentication` blob
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb3 ROW_FORMAT=COMPACT;

-- ----------------------------
-- Records of oauth_refresh_token
-- ----------------------------
BEGIN;
COMMIT;

-- ----------------------------
-- Table structure for user
-- ----------------------------
DROP TABLE IF EXISTS `user`;

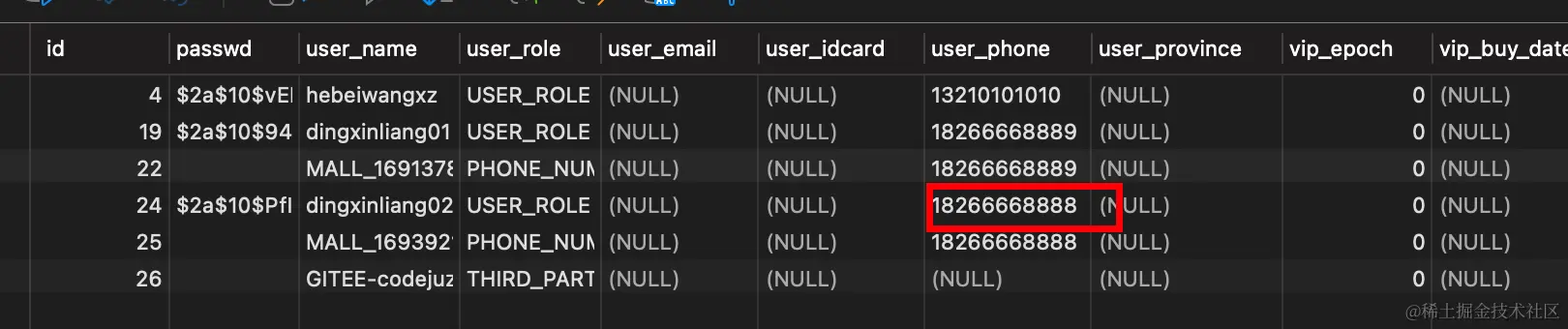

CREATE TABLE `user` (
  `id` int NOT NULL AUTO_INCREMENT,
  `passwd` varchar(265) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci NOT NULL,
  `user_name` varchar(256) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci NOT NULL,
  `user_role` varchar(255) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci NOT NULL,
  `user_email` varchar(255) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci DEFAULT NULL,
  `user_idcard` varchar(255) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci DEFAULT NULL,
  `user_phone` varchar(15) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci DEFAULT NULL,
  `user_province` varchar(255) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci DEFAULT NULL,
  `vip_epoch` int NOT NULL,
  `vip_buy_date` datetime DEFAULT NULL,
  `vip_end_date` datetime DEFAULT NULL,
  `vip_status` int NOT NULL,
  `user_real_name` varchar(255) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE=InnoDB AUTO_INCREMENT=24 DEFAULT CHARSET=utf8mb3 ROW_FORMAT=COMPACT;

-- ----------------------------
-- Records of user
-- ----------------------------
BEGIN;
INSERT INTO `user` (`id`, `passwd`, `user_name`, `user_role`, `user_email`, `user_idcard`, `user_phone`, `user_province`, `vip_epoch`, `vip_buy_date`, `vip_end_date`, `vip_status`, `user_real_name`) VALUES (19, '$2a$10$94rQmlAeO5Ur4qAKAzmew.SYtbYhPap5i6P3shTzpD61TZEAuJHTq', 'dingxinliang01', 'USER_ROLE', NULL, NULL, '18266668888', NULL, 0, NULL, NULL, 0, NULL);
INSERT INTO `user` (`id`, `passwd`, `user_name`, `user_role`, `user_email`, `user_idcard`, `user_phone`, `user_province`, `vip_epoch`, `vip_buy_date`, `vip_end_date`, `vip_status`, `user_real_name`) VALUES (22, '', 'MALL_16913784274218888', 'PHONE_NUMBER', NULL, NULL, '18266668888', NULL, 0, NULL, NULL, 0, NULL);
INSERT INTO `user` (`id`, `passwd`, `user_name`, `user_role`, `user_email`, `user_idcard`, `user_phone`, `user_province`, `vip_epoch`, `vip_buy_date`, `vip_end_date`, `vip_status`, `user_real_name`) VALUES (23, '', 'GITEE-codejuzi', 'THIRD_PARTY', NULL, NULL, '18266668888', NULL, 0, NULL, NULL, 0, NULL);
COMMIT;

SET FOREIGN_KEY_CHECKS = 1;

上述数据库中，除user表之外，其余的表都是OAuth2的必备表，user表是可以根据实际业务去自定义的

1.3 Nacos环境准备

此处我们选择Nacos集群环境，具体的Nacos集群搭建过程可以查看官网教程（最权威、最新的），如果你是MacOS（M系列芯片）用户，集群搭建有些许不同，具体的可以查看我的博客文章：www.codejuzi.icu/#/docs/envc…

二、OAuth2模块

2.1 搭建环境

创建OAuth2模块，pom.xml核心内容：

<properties>
  <maven.compiler.source>11</maven.compiler.source>
  <maven.compiler.target>11</maven.compiler.target>
  <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
  <spring.cloud.oauth2.version>2.2.5.RELEASE</spring.cloud.oauth2.version>
</properties>

<dependencies>

  <dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-web</artifactId>
  </dependency>
  <dependency>
    <groupId>com.alibaba.cloud</groupId>
    <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
  </dependency>

  <!-- spring security + oauth2 -->
  <dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-security</artifactId>
  </dependency>
  <dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-oauth2</artifactId>
    <version>${spring.cloud.oauth2.version}</version>
  </dependency>

  <!-- jpa + mysql -->
  <dependency>
    <groupId>com.mysql</groupId>
    <artifactId>mysql-connector-j</artifactId>
  </dependency>
  <dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-data-jpa</artifactId>
  </dependency>

</dependencies>

PS：不一定非要使用JPA，只是OAuth2模块的SQL查询使用JPA会比较方便

配置文件application.yml内容

server:
  port: 8500

spring:
  application:
    name: oauth2-service
  cloud:
    nacos:
      discovery:
        server-addr: 192.168.0.100:8837,192.168.0.100:8848,192.168.0.100:8859
  datasource:
    driver-class-name: com.mysql.cj.jdbc.Driver
    url: jdbc:mysql://localhost:3306/oauth?useUnicode=true&characterEncoding=utf-8&useSSL=false&serverTimezone=UTC
    username: root
    password: 12345678

PS：具体的数据库配置信息和Nacos地址信息以实际环境为准

2.2 创建实体类

前面说过，user表是我们自定义的，OAuth2并不知道有这张表的存在，因此我们需要去创建对应的实体类去操作这张表，其余的表格都是有OAuth2内部操作，不需要我们操心。

User.java

package com.juzi.oauth2.pojo;

import lombok.Data;

import javax.persistence.*;

@Data
@Entity
@Table(name = "user")
public class User {

    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Integer id;

    @Column(name = "user_name")
    private String userName;

    @Column(name = "passwd")
    private String passwd;

    @Column(name = "user_role")
    private String userRole;

}

PS：此处为了操作方便，就只操作上述的几个字段，其余字段可以自行扩展哦~

2.3 OAuth2 + SpringSecurity 配置

SpringSecurity认证流程链：

因为我们的用户数据存储在数据库中，需要让SpringSecurity知道去数据库中查询用户信息，然后才能认证授权。因此我们需要去实现接口org.springframework.security.core.userdetails.UserDetailsService，实现其中的loadUserByUsername()方法，从方法名也可以看出，是根据用户名去查询用户。

那么此时我们还需要知道用什么去查询，JDBC？MyBatis？我们刚刚引入的JPA这个时候就派上用场了，我们只需要定义一个接口，继承org.springframework.data.jpa.repository.JpaRepository接口，指定实体类和主键类型，定义查询方法就可以了。

UserRepository.java

package com.juzi.oauth2.repo;

import com.juzi.oauth2.pojo.User;
import org.springframework.data.jpa.repository.JpaRepository;
import org.springframework.stereotype.Repository;


@Repository
public interface UserRepository extends JpaRepository<User, Integer> {

    /**
     * 根据用户名查询用户
     *
     * @param userName 用户名
     * @return 用户信息
     */
    User queryByUserName(String userName);
}

至此，我们定义了从数据库查询用户信息的入口，接下来就应该实现UserDetailService接口，让SpringSecurity从数据库查询用户信息，进行认证授权了。

UserDetailServiceImpl.java

package com.juzi.oauth2.service;

import com.juzi.oauth2.pojo.User;
import com.juzi.oauth2.repo.UserRepository;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.core.authority.AuthorityUtils;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.core.userdetails.UsernameNotFoundException;
import org.springframework.stereotype.Service;

@Service
public class UserDetailServiceImpl implements UserDetailsService {

    @Autowired
    private UserRepository userRepository;

    @Override
    public UserDetails loadUserByUsername(String username) throws UsernameNotFoundException {
        User user = userRepository.queryByUserName(username);
        if (user == null) {
            throw new UsernameNotFoundException("User Not Found");
        }

        return new org.springframework.security.core.userdetails.User(
                user.getUserName(),
                user.getPasswd(),
                AuthorityUtils.createAuthorityList(user.getPasswd()));
    }
}

但是实现了接口就能够让SpringSecurity从数据库查询用户了吗？还不行，我们还需要将我们实现的类注册到SpringSecurity中，也就是配置。此处呢，我们需要编写配置类，继承org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter配置类，重写其中的配置方法。

PS：尽管WebSecurityConfigurerAdapter在Spring Security 5.7.1及更新版本或者Spring Boot 2.7.0及更新版本已经被弃用了，但是依然有很多项目使用它。当然，你也可以使用官方推荐的基于组件的（component-based）的安全配置去实现配置类，难度也不是很大，就是换了中写法而已啦。

WebSecurityConfig.java

package com.juzi.oauth2.config;

import com.juzi.oauth2.service.UserDetailServiceImpl;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.builders.WebSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
import org.springframework.security.crypto.password.PasswordEncoder;


@Configuration
@EnableWebSecurity
public class WebSecurityConfig extends WebSecurityConfigurerAdapter {


    @Autowired
    private UserDetailServiceImpl userDetailService;

    /**
     * 加密存储方式
     */
    @Bean
    public PasswordEncoder passwordEncoder() {
        return new BCryptPasswordEncoder();
    }

    @Override
    protected void configure(AuthenticationManagerBuilder auth) throws Exception {
        auth.userDetailsService(userDetailService)
                .passwordEncoder(passwordEncoder());
    }

    @Bean
    @Override
    protected AuthenticationManager authenticationManager() throws Exception {
        return super.authenticationManager();
    }

    @Override
    public void configure(WebSecurity web) {
        web.ignoring().antMatchers("/swagger-*");
    }

    @Override
    protected void configure(HttpSecurity http) throws Exception {
        http.authorizeHttpRequests().anyRequest().authenticated()
                .and().httpBasic()
                .and().cors()
                .and().csrf().disable();
    }
}

首先需要明确一点，用户密码是绝对不可以以明文的形式存储数据库的，此处我们采用BCryptPasswordEncoder的形式去加密存储，只需要注册一个PasswordEncoder Bean即可。

protected void configure(AuthenticationManagerBuilder auth) throws Exception {
  auth.userDetailsService(userDetailService)
    .passwordEncoder(passwordEncoder());
}

上述代码就是在将我们实现的从数据库查询用户信息的类注册到SpringSecurity中，使得SpringSecurity调用我们实现的loadUserByUserName方法查询，同时还指定了密码的加密方式。

public void configure(WebSecurity web) {
  web.ignoring().antMatchers("/swagger-*");
}

protected void configure(HttpSecurity http) throws Exception {
  http.authorizeHttpRequests().anyRequest().authenticated()
    .and().httpBasic()
    .and().cors()
    .and().csrf().disable();
}

上述代码实在配置认证授权需要忽略的路径，以及配置http的简要内容，比如禁用csrf、开启跨域等等。

@Bean
@Override
protected AuthenticationManager authenticationManager() throws Exception {
  return super.authenticationManager();
}

上述代码是在注册AuthenticationManager类，至于作用嘛，我们先按下不表，等到进行OAuth2配置时自然就知道了。

至此为止，我们已经配置完了SpringSecurity，接下来就要配置OAuth2了。准备好了吗？发车了！

配置OAuth2需要我们去继承org.springframework.security.oauth2.config.annotation.web.configuration.AuthorizationServerConfigurerAdapter类，复写其中的configure方法。

Oauth2Config.java

package com.juzi.oauth2.config;

import com.juzi.oauth2.service.UserDetailServiceImpl;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Primary;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.oauth2.config.annotation.configurers.ClientDetailsServiceConfigurer;
import org.springframework.security.oauth2.config.annotation.web.configuration.AuthorizationServerConfigurerAdapter;
import org.springframework.security.oauth2.config.annotation.web.configuration.EnableAuthorizationServer;
import org.springframework.security.oauth2.config.annotation.web.configurers.AuthorizationServerEndpointsConfigurer;
import org.springframework.security.oauth2.config.annotation.web.configurers.AuthorizationServerSecurityConfigurer;
import org.springframework.security.oauth2.provider.ClientDetailsService;
import org.springframework.security.oauth2.provider.client.JdbcClientDetailsService;
import org.springframework.security.oauth2.provider.token.DefaultTokenServices;
import org.springframework.security.oauth2.provider.token.TokenStore;
import org.springframework.security.oauth2.provider.token.store.JdbcTokenStore;

import javax.sql.DataSource;

@Configuration
@EnableAuthorizationServer
public class Oauth2Config extends AuthorizationServerConfigurerAdapter {

    @Autowired
    public DataSource dataSource;

    @Autowired
    private UserDetailServiceImpl userDetailService;

    @Autowired
    private AuthenticationManager authenticationManager;

    /**
     * token配置
     */
    @Bean
    @Primary
    public DefaultTokenServices defaultTokenServices() {
        DefaultTokenServices defaultTokenServices = new DefaultTokenServices();
        // token 过期时间为 30day
        defaultTokenServices.setAccessTokenValiditySeconds(30 * 24 * 60 * 60);
        defaultTokenServices.setTokenStore(tokenStore());
        return defaultTokenServices;
    }

    @Override
    public void configure(ClientDetailsServiceConfigurer clients) throws Exception {
        clients.withClientDetails(clientDetails());
    }

    @Override
    public void configure(AuthorizationServerSecurityConfigurer security) {
        // 自定义安全配置：放行token检测的接口，
        security
                // 允许表单认证
                .allowFormAuthenticationForClients()
                // 允许客户端认证
                .checkTokenAccess("permitAll()");
    }

    @Override
    public void configure(AuthorizationServerEndpointsConfigurer endpoints) {
        endpoints.userDetailsService(userDetailService)
                .tokenServices(defaultTokenServices())
                .authenticationManager(authenticationManager);
    }

    /**
     * 存储token位置为mysql
     */
    @Bean
    public TokenStore tokenStore() {
        return new JdbcTokenStore(dataSource);
    }

    /**
     * 存储client_details, client_secret的位置
     */
    @Bean
    public ClientDetailsService clientDetails() {
        return new JdbcClientDetailsService(dataSource);
    }


}

PS：我们这里采取默认的数据源，当然可以自定义数据源，比如Druid数据源。

/**
  * 存储token位置为mysql
  */
@Bean
public TokenStore tokenStore() {
  return new JdbcTokenStore(dataSource);
}

/**
  * 存储client_details, client_secret的位置
  */
@Bean
public ClientDetailsService clientDetails() {
  return new JdbcClientDetailsService(dataSource);
}

因为我们的数据都存放在数据库中，因此需要指定token和client相关信息的存放位置为Jdbc，在本项目中也就是MySQL。

@Bean
@Primary
public DefaultTokenServices defaultTokenServices() {
    DefaultTokenServices defaultTokenServices = new DefaultTokenServices();
    // token 过期时间为 30day
    defaultTokenServices.setAccessTokenValiditySeconds(30 * 24 * 60 * 60);
    defaultTokenServices.setTokenStore(tokenStore());
    return defaultTokenServices;
}

上述代码是在配置默认的token管理器，注册了我们在上面提到的token存储位置的bean，设置了token过期时间等。

@Override
public void configure(ClientDetailsServiceConfigurer clients) throws Exception {
  clients.withClientDetails(clientDetails());
}

上述代码是在配置OAuth2中的Client Details的存储位置，这次设置为MySQL。

@Override
public void configure(AuthorizationServerSecurityConfigurer security) {
  // 自定义安全配置：放行token检测的接口，
  security
    // 允许表单认证
    .allowFormAuthenticationForClients()
    // 允许客户端认证
    .checkTokenAccess("permitAll()");
}

上述代码是在进行安全配置，比如允许表单认证、允许客户端认证等。

@Override
public void configure(AuthorizationServerEndpointsConfigurer endpoints) {
  endpoints.userDetailsService(userDetailService)
    .tokenServices(defaultTokenServices())
    .authenticationManager(authenticationManager);
}

因为OAuth2模块也是要从数据库读取用户信息和存取token的，因此需要在上述的终端配置endpoints中注册相关的bean，除此之外，还需要注册我们刚刚声明的认证管理器类AuthenticationManager，用于OAuth2认证。

至此OAuth2的配置也就结束了，接下来就是编写启动类，测试启动了（仅仅启动，并不做任何的请求，因为还有模块没写呢~）。

Oauth2Application.java

package com.juzi.oauth2;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
import org.springframework.security.oauth2.config.annotation.web.configuration.EnableResourceServer;

@EnableDiscoveryClient
@SpringBootApplication
@EnableResourceServer
public class Oauth2Application {
    public static void main(String[] args) {
        SpringApplication.run(Oauth2Application.class, args);
    }
}

需要标注服务发现、资源服务器等注解。

三、通用模块

这一模块主要为了网关模块和用户模块做准备，定义通用返回类、返回工具类等公共类；这一模块不需要引入任何依赖，因此只需要默认的pom.xml文件即可。

通用返回类CommonResponse.java

package com.juzi.common.resp;

import lombok.Builder;
import lombok.Data;

@Data
@Builder
public class CommonResponse {

    private Integer code;

    private String msg;

    private Object content;
}

返回值枚举类RespCodeEnum.java

package com.juzi.common.resp;

public enum RespCodeEnum {
    SUCCESS(200, "success"),
    BAD_REQUEST(400, "bad request"),
    UNAUTHORIZED(401, "unauthorized"),
    FORBIDDEN(403, "forbidden"),
    ;

    private final Integer code;

    private final String msg;

    RespCodeEnum(Integer code, String msg) {
        this.code = code;
        this.msg = msg;
    }

    public Integer getCode() {
        return code;
    }

    public String getMsg() {
        return msg;
    }
}

返回工具类RespUtils.java

package com.juzi.common.resp;


public class RespUtils {

    public static CommonResponse success(Object content) {
        return CommonResponse.builder()
                .code(RespCodeEnum.SUCCESS.getCode())
                .msg(RespCodeEnum.SUCCESS.getMsg())
                .content(content)
                .build();
    }

    public static CommonResponse fail(Integer code, Object content, String msg) {
        return CommonResponse.builder()
                .code(code)
                .msg(msg)
                .content(content)
                .build();

    }

}

四、用户模块

4.1 搭建环境

pom.xml核心内容：

<properties>
  <maven.compiler.source>11</maven.compiler.source>
  <maven.compiler.target>11</maven.compiler.target>
  <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
</properties>

<dependencies>
  <dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-web</artifactId>
  </dependency>
  <dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-configuration-processor</artifactId>
    <optional>true</optional>
  </dependency>

  <!--nacos-->
  <dependency>
    <groupId>com.alibaba.cloud</groupId>
    <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
  </dependency>

  <!--http client-->
  <dependency>
    <groupId>org.apache.httpcomponents</groupId>
    <artifactId>httpclient</artifactId>
  </dependency>
  <dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-loadbalancer</artifactId>
  </dependency>

  <!--mysql + redis-->
  <dependency>
    <groupId>com.mysql</groupId>
    <artifactId>mysql-connector-j</artifactId>
  </dependency>
  <dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-data-jpa</artifactId>
  </dependency>
  <dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-data-redis</artifactId>
  </dependency>

  <!--util-->
  <dependency>
    <groupId>cn.hutool</groupId>
    <artifactId>hutool-all</artifactId>
    <version>5.8.21</version>
  </dependency>

  <!--common-->
  <dependency>
    <groupId>com.juzi</groupId>
    <artifactId>common</artifactId>
    <version>0.0.1</version>
  </dependency>
</dependencies>

application.yml

server:
  port: 9001

spring:
  application:
    name: user-service
  cloud:
    nacos:
      discovery:
        server-addr: 192.168.0.100:8837,192.168.0.100:8848,192.168.0.100:8859
  datasource:
    driver-class-name: com.mysql.cj.jdbc.Driver
    url: jdbc:mysql://localhost:3306/oauth?useUnicode=true&characterEncoding=utf-8&useSSL=false&serverTimezone=UTC
    username: root
    password: 12345678
  redis:
    host: localhost
    port: 6379
    timeout: 10s
    lettuce:
      pool:
        max-active: 50
        max-idle: 50
        max-wait: -1ms
        min-idle: 0

PS：Mysql、Nacos、Redis的具体配置还需要根据实际情形来调整哦~

4.2 业务需求

1）注册部分

账号密码注册
电话验证码注册
第三方平台注册

2）登录部分

账号密码登录

3）用户信息部分

绑定电话

4.3 创建实体类和对应操作数据库Repo

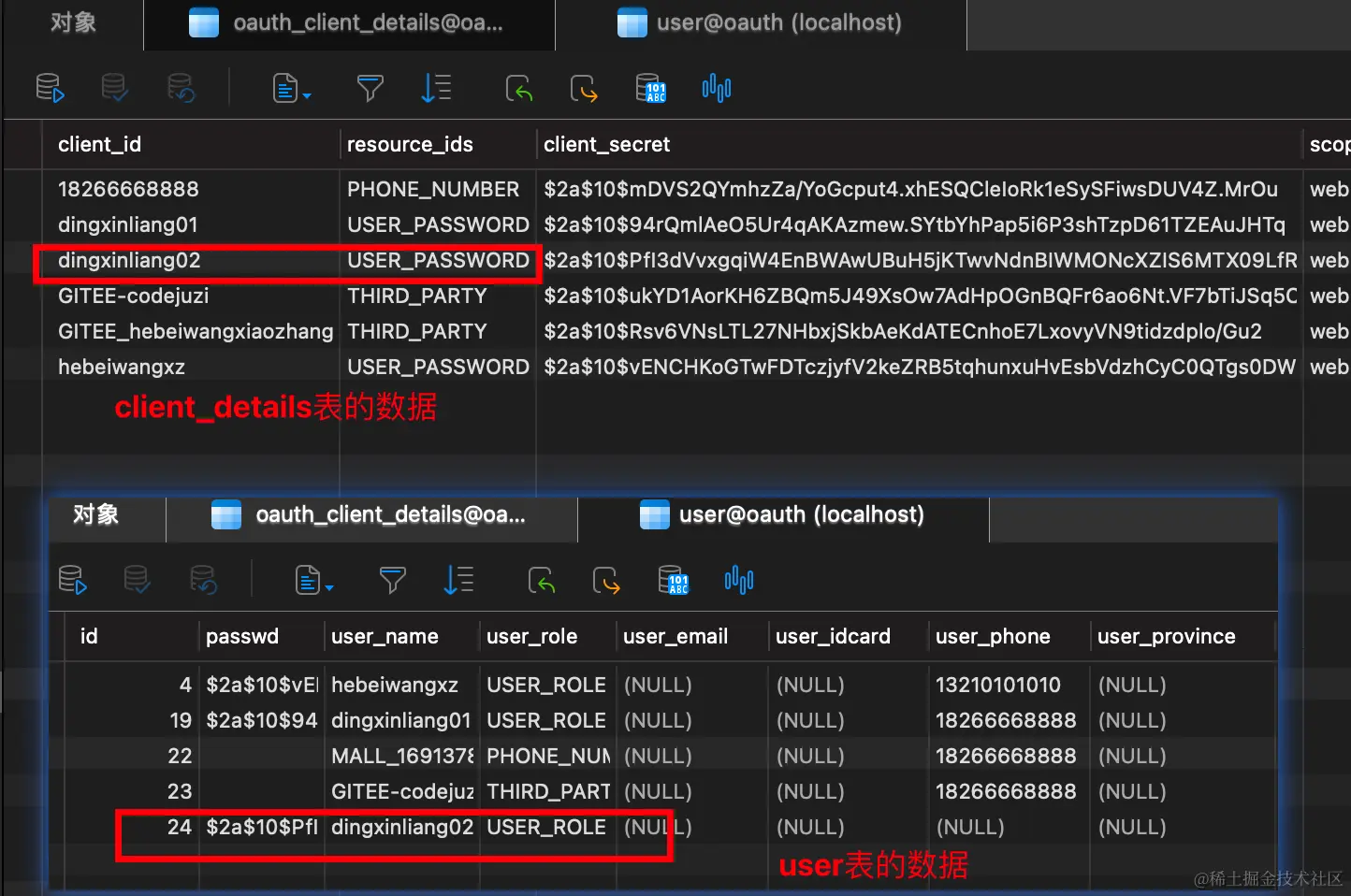

用户模块我们需要操作两张表，分别是user和oauth_client_details，因此我们需要创建两个实体类。

User.java

package com.juzi.user.pojo.po;

import lombok.AllArgsConstructor;
import lombok.Builder;
import lombok.Data;
import lombok.NoArgsConstructor;

import javax.persistence.*;
import java.util.Date;

@Data
@Builder
@NoArgsConstructor
@AllArgsConstructor
@Entity
@Table(name = "user")
public class User {
    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Integer id;

    @Column(name = "passwd")
    private String passwd;

    @Column(name = "user_name")
    private String userName;

    @Column(name = "user_email")
    private String userEmail;

    @Column(name = "user_idcard")
    private String userIdCard;

    @Column(name = "user_role")
    private String userRole;

    @Column(name = "user_phone")
    private String userPhone;

    @Column(name = "user_province")
    private String userProvince;

    @Column(name = "vip_status")
    private int vipStatus;

    @Column(name = "vip_epoch")
    private int vipEpoch;

    @Column(name = "vip_buy_date")
    private Date vipBuyDate;

    @Column(name = "vip_end_date")
    private Date vipEndDate;
}

OAuth2Client.java

package com.juzi.user.pojo.po;

import lombok.AllArgsConstructor;
import lombok.Builder;
import lombok.Data;
import lombok.NoArgsConstructor;

import javax.persistence.Column;
import javax.persistence.Entity;
import javax.persistence.Id;
import javax.persistence.Table;

@Data
@Builder
@NoArgsConstructor
@AllArgsConstructor
@Entity
@Table(name = "oauth_client_details")
public class OAuth2Client {
    @Id
    @Column(name = "client_id")
    private String clientId;

    @Column(name = "resource_ids")
    private String resourceIds;

    @Column(name = "client_secret")
    private String clientSecret;

    @Column(name = "scope")
    private String scope;

    @Column(name = "authorized_grant_types")
    private String authorizedGrantTypes;

    @Column(name = "web_server_redirect_uri")
    private String redirectUrl;

    @Column(name = "authorities")
    private String authorities;

    @Column(name = "access_token_validity")
    private Integer accessTokenValidity;

    @Column(name = "refresh_token_validity")
    private Integer refreshTokenValidity;

    @Column(name = "additional_information")
    private String additionalInfo;

    @Column(name = "autoapprove")
    private String autoApprove;
}

创建完实体类，就应该创建对应的JPA Repo类了

UserRepository.java

package com.juzi.user.repo;

import com.juzi.user.pojo.po.User;
import org.springframework.data.jpa.repository.JpaRepository;
import org.springframework.stereotype.Repository;


@Repository
public interface UserRepository extends JpaRepository<User, Integer> {
}

OAuth2ClientRepository.java

package com.juzi.user.repo;

import com.juzi.user.pojo.po.OAuth2Client;
import org.springframework.data.jpa.repository.JpaRepository;
import org.springframework.stereotype.Repository;


@Repository
public interface OAuth2ClientRepository extends JpaRepository<OAuth2Client, Integer> {
}

PS：不要忘记标注注解@Repository

除此之外，我们还需要创建两个枚举类，分别是注册类别(RegisterType)、权限授予类别(AuthGrantType)

RegisterType.java

package com.juzi.user.pojo.enums;

public enum RegisterType {
    USER_PASSWORD,
    PHONE_NUMBER,
    THIRD_PARTY
}

按照我们本项目的处理，注册类别分别是账号密码、手机验证码、第三方平台

AuthGrantType.java

package com.juzi.user.pojo.enums;

public enum AuthGrantType {
    implicit,
    client_credentials,
    authorization_code,
    refresh_token,
    password
}

4.4 创建配置类和工具类

首先就是Redis的配置类RedisConfig.java，主要是配置Redis中的key和value的序列化方式

package com.juzi.user.config;

import com.fasterxml.jackson.annotation.JsonAutoDetect;
import com.fasterxml.jackson.annotation.JsonTypeInfo;
import com.fasterxml.jackson.annotation.PropertyAccessor;
import com.fasterxml.jackson.databind.ObjectMapper;
import com.fasterxml.jackson.databind.jsontype.impl.LaissezFaireSubTypeValidator;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.data.redis.connection.RedisConnectionFactory;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.data.redis.serializer.Jackson2JsonRedisSerializer;
import org.springframework.data.redis.serializer.StringRedisSerializer;

@Configuration
public class RedisConfig {

  @Bean(name = "redisTemplate")
  public RedisTemplate<String, Object> redisTemplate(RedisConnectionFactory redisConnectionFactory) {
    RedisTemplate<String, Object> redisTemplate = new RedisTemplate<>();
    redisTemplate.setConnectionFactory(redisConnectionFactory);

    // 设置key的序列化方式
    StringRedisSerializer stringRedisSerializer = new StringRedisSerializer();
    redisTemplate.setKeySerializer(stringRedisSerializer);
    redisTemplate.setHashKeySerializer(stringRedisSerializer);

    // 设置value的序列化方式
    Jackson2JsonRedisSerializer<?> redisValueSerializer = new Jackson2JsonRedisSerializer<>(Object.class);
    ObjectMapper objectMapper = new ObjectMapper();
    objectMapper.setVisibility(PropertyAccessor.ALL, JsonAutoDetect.Visibility.ANY);
    objectMapper.activateDefaultTyping(LaissezFaireSubTypeValidator.instance,
                                       ObjectMapper.DefaultTyping.NON_FINAL, JsonTypeInfo.As.PROPERTY);
    redisValueSerializer.setObjectMapper(objectMapper);

    redisTemplate.setValueSerializer(redisValueSerializer);
    redisTemplate.setHashValueSerializer(redisValueSerializer);
    redisTemplate.afterPropertiesSet();

    return redisTemplate;
  }
}

因为我们要使用RestTemplate来发送HTTP请求，因此还需要配置RestTemplate，在此之前，我们先配置HttpClient，目的就是替换掉RedisTemplate底层使用的URL Connection（JDK），适用于复杂场景。

HttpClientConfig.java

package com.juzi.user.config;

import lombok.extern.slf4j.Slf4j;
import org.apache.commons.lang3.StringUtils;
import org.apache.http.HeaderElement;
import org.apache.http.client.config.RequestConfig;
import org.apache.http.config.Registry;
import org.apache.http.config.RegistryBuilder;
import org.apache.http.conn.ConnectionKeepAliveStrategy;
import org.apache.http.conn.socket.ConnectionSocketFactory;
import org.apache.http.conn.socket.PlainConnectionSocketFactory;
import org.apache.http.conn.ssl.SSLConnectionSocketFactory;
import org.apache.http.conn.ssl.TrustSelfSignedStrategy;
import org.apache.http.impl.client.CloseableHttpClient;
import org.apache.http.impl.client.HttpClients;
import org.apache.http.impl.conn.PoolingHttpClientConnectionManager;
import org.apache.http.message.BasicHeaderElementIterator;
import org.apache.http.protocol.HTTP;
import org.apache.http.ssl.SSLContextBuilder;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.scheduling.annotation.Scheduled;

import java.security.KeyManagementException;
import java.security.KeyStoreException;
import java.security.NoSuchAlgorithmException;
import java.util.Objects;
import java.util.concurrent.TimeUnit;

@Slf4j
@Configuration
public class HttpClientConfig {

  /**
    * 连接超时时间（ms）
    */
  private static final int CONNECTION_TIMEOUT = 30000;

  /**
    * 请求超时时间（ms）
    */
  private static final int REQUEST_TIMEOUT = 30000;

  /**
    * socket 超时时间（ms）
    */
  private static final int SOCKET_TIMEOUT = 60000;

  /**
    * 最大连接数
    */
  private static final int MAX_CONNECTIONS = 50;

  /**
    * 默认 keep-alive 时间（ms）
    */
  private static final int DEFAULT_KEEP_ALIVE_TIME = 20000;

  /**
    * 清理空闲线程的任务定时时间（ms）
    */
  private static final int CLOSE_IDLE_CONN_TIME = 30000;


  @Bean
  public CloseableHttpClient httpClient() {
    RequestConfig config = RequestConfig.custom()
      .setConnectTimeout(CONNECTION_TIMEOUT)
      .setConnectionRequestTimeout(REQUEST_TIMEOUT)
      .setSocketTimeout(SOCKET_TIMEOUT)
      .build();

    return HttpClients.custom()
      .setDefaultRequestConfig(config)
      // pooling 线程池设置
      .setConnectionManager(poolingHttpClientConnectionManager())
      // keep-alive 设置
      .setKeepAliveStrategy(connectionKeepAliveStrategy())
      .build();
  }

  /**
    * 进行 http、 https 的注册， 设置最大连接数
    */
  @Bean
  public PoolingHttpClientConnectionManager poolingHttpClientConnectionManager() {
    SSLContextBuilder sslContextBuilder = new SSLContextBuilder();
    try {
      // 内部通信不需要 key-store(trust-store)
      sslContextBuilder.loadTrustMaterial(null, new TrustSelfSignedStrategy());
    } catch (NoSuchAlgorithmException | KeyStoreException e) {
      log.error("loadTrustMaterial error: ", e);
    }
    SSLConnectionSocketFactory sslConnectionSocketFactory = null;

    try {
      sslConnectionSocketFactory = new SSLConnectionSocketFactory(sslContextBuilder.build());
    } catch (NoSuchAlgorithmException | KeyManagementException e) {
      log.error("SSLConnectionSocketFactory create error: ", e);
    }

    @SuppressWarnings("DataFlowIssue") Registry<ConnectionSocketFactory> socketFactoryRegistry = RegistryBuilder
      .<ConnectionSocketFactory>create()
      .register("http", new PlainConnectionSocketFactory())
      .register("https", sslConnectionSocketFactory)
      .build();

    PoolingHttpClientConnectionManager poolingHttpClientConnectionManager
      = new PoolingHttpClientConnectionManager(socketFactoryRegistry);
    poolingHttpClientConnectionManager.setMaxTotal(MAX_CONNECTIONS);
    return poolingHttpClientConnectionManager;
  }

  @Bean
  public ConnectionKeepAliveStrategy connectionKeepAliveStrategy() {
    return (response, context) -> {
      BasicHeaderElementIterator iterator = new BasicHeaderElementIterator(response.headerIterator(HTTP.CONN_KEEP_ALIVE));
      while (iterator.hasNext()) {
        HeaderElement headerElement = iterator.nextElement();
        String name = headerElement.getName();
        String value = headerElement.getValue();
        if (StringUtils.isNotEmpty(value) && "timeout".equalsIgnoreCase(name)) {
          return Long.parseLong(value) * 1000;
        }
      }
      return DEFAULT_KEEP_ALIVE_TIME;
    };
  }

  /**
    * 定时清理空闲线程（10s）
    */
  @Bean
  public Runnable idleConnCleaner(final PoolingHttpClientConnectionManager connectionManager) {
    return new Runnable() {
      @Override
      @Scheduled(fixedDelay = 10000L)
      public void run() {
        try {
          if (!Objects.isNull(connectionManager)) {
            connectionManager.closeExpiredConnections();
            connectionManager.closeIdleConnections(CLOSE_IDLE_CONN_TIME, TimeUnit.MILLISECONDS);
          } else {
            log.warn("PoolingHttpClientConnectionManager is not initialized");
          }
        } catch (Exception e) {
          log.error("idleConnCleaner error: ", e);
        }
      }
    };
  }
}

至此，我们可以开始进行RestTemplate的配置了，RestTemplateConfig.java

package com.juzi.user.config;

import org.apache.http.impl.client.CloseableHttpClient;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.cloud.client.loadbalancer.LoadBalanced;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.http.client.HttpComponentsClientHttpRequestFactory;
import org.springframework.http.converter.HttpMessageConverter;
import org.springframework.http.converter.StringHttpMessageConverter;
import org.springframework.web.client.RestTemplate;

import java.nio.charset.StandardCharsets;

@Configuration
public class RestTemplateConfig {

  /**
    * 替换RestTemplate底层使用的URL Connection（JDK），适用复杂场景
    */
  @Autowired
  private CloseableHttpClient httpClient;

  @Bean
  public HttpComponentsClientHttpRequestFactory clientHttpRequestFactory() {
    HttpComponentsClientHttpRequestFactory httpRequestFactory = new HttpComponentsClientHttpRequestFactory();
    httpRequestFactory.setHttpClient(httpClient);
    return httpRequestFactory;
  }

  @Bean(name = "innerRestTemplate")
  @LoadBalanced
  public RestTemplate innerRestTemplate() {
    RestTemplate restTemplate = new RestTemplate(clientHttpRequestFactory());
    for (HttpMessageConverter<?> messageConverter : restTemplate.getMessageConverters()) {
      if (messageConverter instanceof StringHttpMessageConverter) {
        // 一般接收 UTF-8 的消息
        ((StringHttpMessageConverter) messageConverter).setDefaultCharset(StandardCharsets.UTF_8);
      }
    }
    return restTemplate;
  }

  @Bean(name = "outerRestTemplate")
  public RestTemplate outerRestTemplate() {
    RestTemplate restTemplate = new RestTemplate(clientHttpRequestFactory());
    for (HttpMessageConverter<?> messageConverter : restTemplate.getMessageConverters()) {
      if (messageConverter instanceof StringHttpMessageConverter) {
        // 一般接收 UTF-8 的消息
        ((StringHttpMessageConverter) messageConverter).setDefaultCharset(StandardCharsets.UTF_8);
      }
    }
    return restTemplate;
  }

}

声明两个RestTemplate的原因是因为我们需要有两部分请求，一部分请求第三方平台的接口，这是外部接口，是不需要进行负载均衡的；而还有一部分请求是请求内部OAuth2接口，这是内部接口，是需要进行负载均衡的(@LoadBalanced)

PS：负载均衡的配置会在网关模块中进行

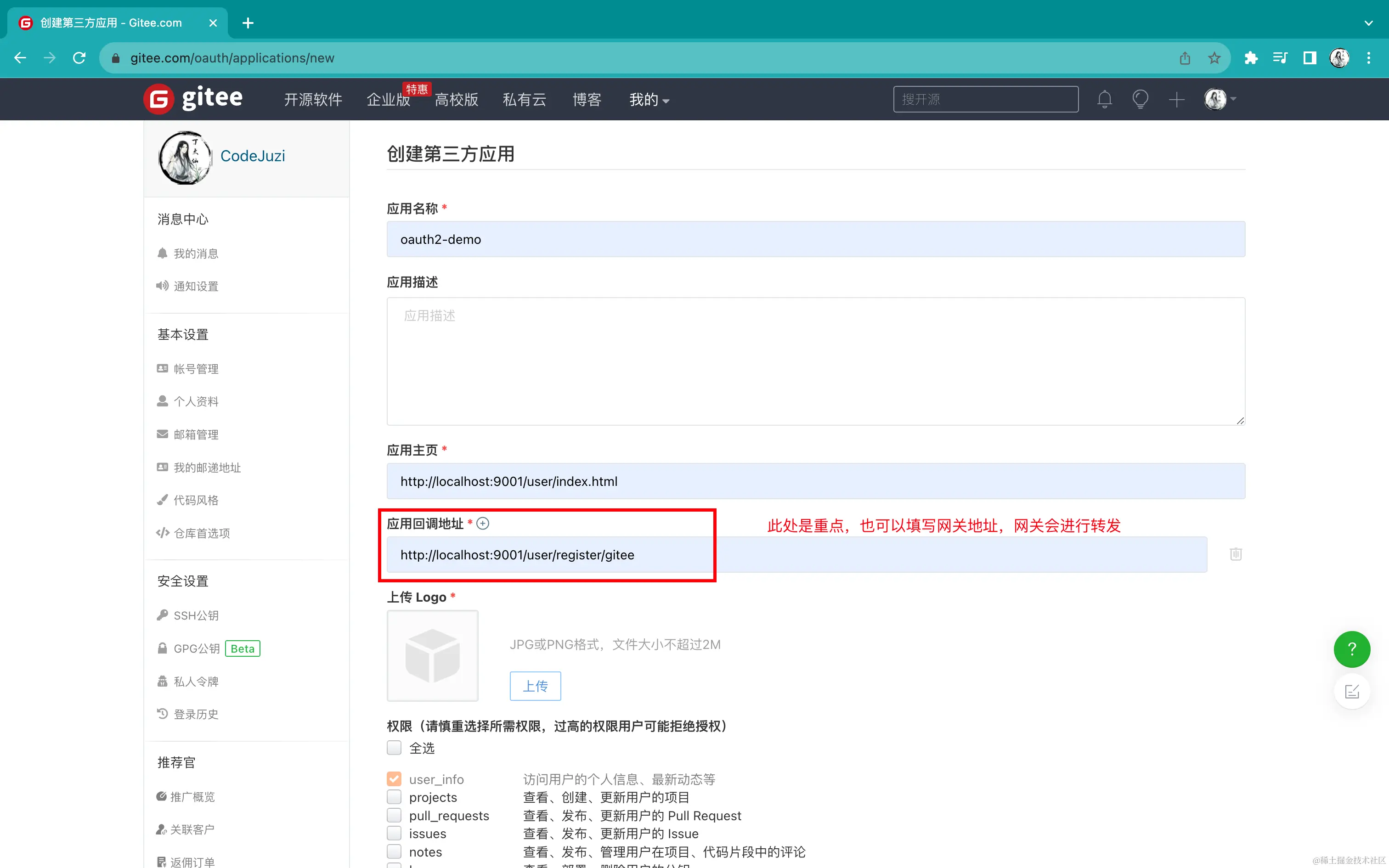

本项目中，我们还需要进行第三方平台（此处选择的是GITEE）的注册登录，因为还需要创建对应的配置类，并且以配置的形式注入。

package com.juzi.user.config;

import lombok.Data;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.stereotype.Component;

@Data
@Component
@ConfigurationProperties(prefix = "third-party.gitee")
public class GiteeConfig {
    private String clientId;
    private String clientSecret;
    private String callBack;
    private String tokenUrl;
    private String userUrl;
    private String state;
}

具体的在application.yml中的配置，等到测试的时候再去申请对应的值即可。

至此，配置类完结，接下来就是操作Redis的工具类的编写，仅仅为了操作Redis的方便，RedisCommonProcessor.java

package com.juzi.user.utils;

import org.apache.commons.lang3.StringUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.stereotype.Component;

import java.util.concurrent.TimeUnit;

@Component
public class RedisCommonProcessor {

  @Autowired
  private RedisTemplate<String, Object> redisTemplate;

  public Object get(String key) {
    validateKey(key);
    return redisTemplate.opsForValue().get(key);
  }

  public void set(String key, Object value) {
    validateKey(key);
    redisTemplate.opsForValue().set(key, value);
  }

  public void set(String key, Object value, long time, TimeUnit timeUnit) {
    validateKey(key);
    if (time > 0) {
      redisTemplate.opsForValue().set(key, value, time, timeUnit);
    } else {
      set(key, value);
    }
  }

  public void setExpiredSeconds(String key, Object value, long seconds) {
    set(key, value, seconds, TimeUnit.SECONDS);
  }

  public void setExpiredMinutes(String key, Object value, long minutes) {
    set(key, value, minutes, TimeUnit.MINUTES);
  }

  public void setExpiredHours(String key, Object value, long hours) {
    set(key, value, hours, TimeUnit.HOURS);
  }

  public void setExpiredDays(String key, Object value, long days) {
    set(key, value, days, TimeUnit.DAYS);
  }

  public void remove(String key) {
    validateKey(key);
    redisTemplate.delete(key);
  }

  private void validateKey(String key) {
    if (StringUtils.isEmpty(key)) {
      throw new IllegalArgumentException("Key should not be null or empty.");
    }
  }
}

4.5 用户服务类，实现具体的业务逻辑

4.5.1 登录注册部分

首先创建接口(UserRegisterLoginService)及其实现类(UserRegisterLoginServiceImpl)

package com.juzi.user.service;

public interface UserRegisterLoginService {
}

// =========================

package com.juzi.user.service.impl;

import com.juzi.user.service.UserRegisterLoginService;
import lombok.extern.slf4j.Slf4j;
import org.springframework.stereotype.Service;

@Slf4j
@Service
public class UserRegisterLoginServiceImpl implements UserRegisterLoginService {
}

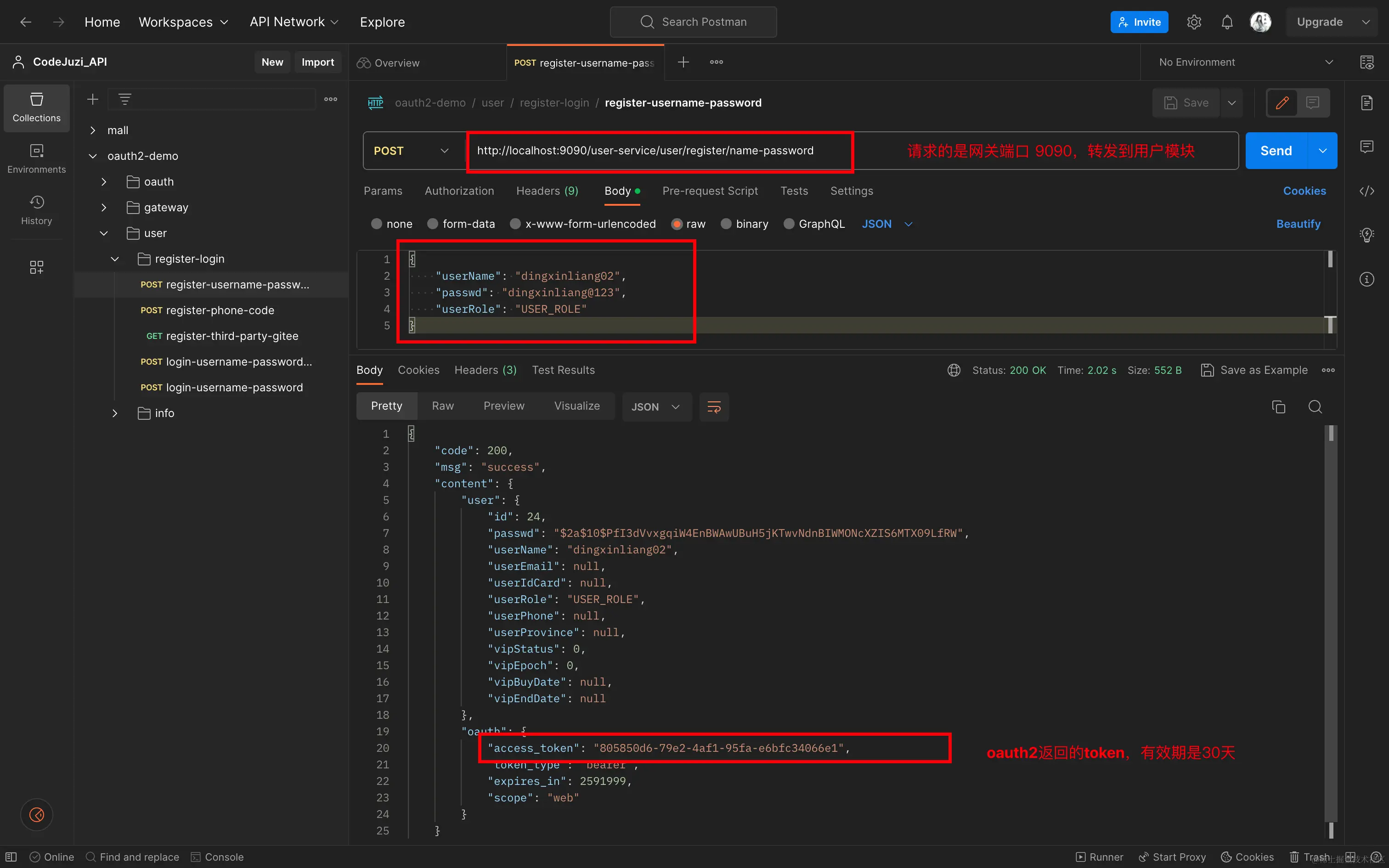

1）账号密码注册

实现账号密码注册业务流程：

判断用户是否存在（依据userName或者clientId是否存在）
如果存在，返回错误信息（用户已经存在）
如果不存在，就是新用户注册
1. 先进行密码的加密（BCryptPasswordEncoder）
2. 构建OAuth2Client信息
3. 保存 user， oauth2 信息到数据库中，需要内部开启事务，因为需要保证最后返回数据时能够查询到最新的消息，因此事务只能在保存到数据库这个方法中开启和关闭
4. 在Redis中保存用户信息
5. 返回 user、token信息

首先我们需要在Repo类中添加查询方法，根据userName和clientId来查询用户信息

在UserRepository中加入

User findByUserName(String username);

在OAuth2ClientRepository中加入

OAuth2Client findByClientId(String clientId);

然后思考，UserRegisterLoginServiceImpl类中需要操作Repo和Redis，同时还需要向OAuth2服务申请token，因此需要注入这些类

@Autowired
private UserRepository userRepository;

@Autowired
private OAuth2ClientRepository oAuth2ClientRepository;

@Autowired
private RedisCommonProcessor redisCommonProcessor;

@Autowired
private RestTemplate innerRestTemplate;

在UserRegisterLoginService中定义接口：

CommonResponse namePasswordRegister(User user);

在UserRegisterLoginServiceImpl中进行实现：

@Resource(name = "transactionManager")
private JpaTransactionManager transactionManager;

@Override
public CommonResponse namePasswordRegister(User user) {
  if (!(userRepository.findByUserName(user.getUserName()) == null
        && oAuth2ClientRepository.findByClientId(user.getUserName()) == null)) {
    return RespUtils.fail(RespCodeEnum.BAD_REQUEST.getCode(), null, "User Already Exists! Please Login!");
  }
  // 新用户注册
  BCryptPasswordEncoder bCryptPasswordEncoder = new BCryptPasswordEncoder();
  String originPwd = user.getPasswd();
  user.setPasswd(bCryptPasswordEncoder.encode(originPwd));

  OAuth2Client oAuth2Client = OAuth2Client.builder()
    .clientId(user.getUserName())
    .clientSecret(user.getPasswd())
    .resourceIds(RegisterType.USER_PASSWORD.name())
    .authorizedGrantTypes(AuthGrantType.refresh_token.name().concat(",")
                          .concat(AuthGrantType.password.name()))
    .scope("web")
    .authorities(RegisterType.USER_PASSWORD.name())
    .build();

  // 保存 user， oauth2 信息，内部开启事务
  Integer uid = this.saveUserAndOAuth2Client(user, oAuth2Client);

  String personId = String.valueOf(uid + 10000000);
  redisCommonProcessor.setExpiredDays(personId, user, 30);
  // 返回 user、token信息
  return RespUtils.success(
    formatUserAndToken(user,
                       generateOAuthToken(AuthGrantType.password, user.getUserName(), originPwd, user.getUserName(), originPwd))
  );
}

@SuppressWarnings("rawtypes")
private Map<String, Object> formatUserAndToken(User user, Map map) {
  return new HashMap<>() {{
    put("user", user);
    put("oauth", map);
  }};
}

@SuppressWarnings("rawtypes")
private Map generateOAuthToken(AuthGrantType authGrantType, String username,
                               String password, String clientId, String clientSecret) {
  HttpHeaders headers = new HttpHeaders();
  headers.setContentType(MediaType.APPLICATION_FORM_URLENCODED);
  MultiValueMap<String, String> params = new LinkedMultiValueMap<>();
  params.add("grant_type", authGrantType.name());
  params.add("client_id", clientId);
  params.add("client_secret", clientSecret);
  if (authGrantType.equals(AuthGrantType.password)) {
    params.add("username", username);
    params.add("password", password);
  }
  HttpEntity<MultiValueMap<String, String>> requestEntity = new HttpEntity<>(params, headers);
  return innerRestTemplate.postForObject("http://oauth2-service/oauth/token", requestEntity, Map.class);
}

private Integer saveUserAndOAuth2Client(User user, OAuth2Client oAuth2Client) {
  DefaultTransactionDefinition dtx = new DefaultTransactionDefinition();
  dtx.setPropagationBehavior(TransactionDefinition.PROPAGATION_REQUIRED);
  dtx.setTimeout(30);

  // 开启事务
  TransactionStatus status = transactionManager.getTransaction(dtx);

  try {
    user = userRepository.save(user);
    oAuth2ClientRepository.save(oAuth2Client);
    transactionManager.commit(status);
  } catch (Exception e) {
    if (!status.isCompleted()) {
      // 回滚事务
      transactionManager.rollback(status);
    }
    log.error("DB Save Error", e);
  }
  return user.getId();
  // 结束事务
}

📢：注意需要在保存数据库信息的方法内部开启事务，才能够保证在返回信息是查询到最新的信息。

PS：此处使用了Map进行了简单结果处理，也可以定义VO类进行结果的封装；除此之外，具体的OAuth2Client信息的封装（尤其是ClientId、ClientSecret）、uid的生成可以自定义，只要统一一套规范即可。

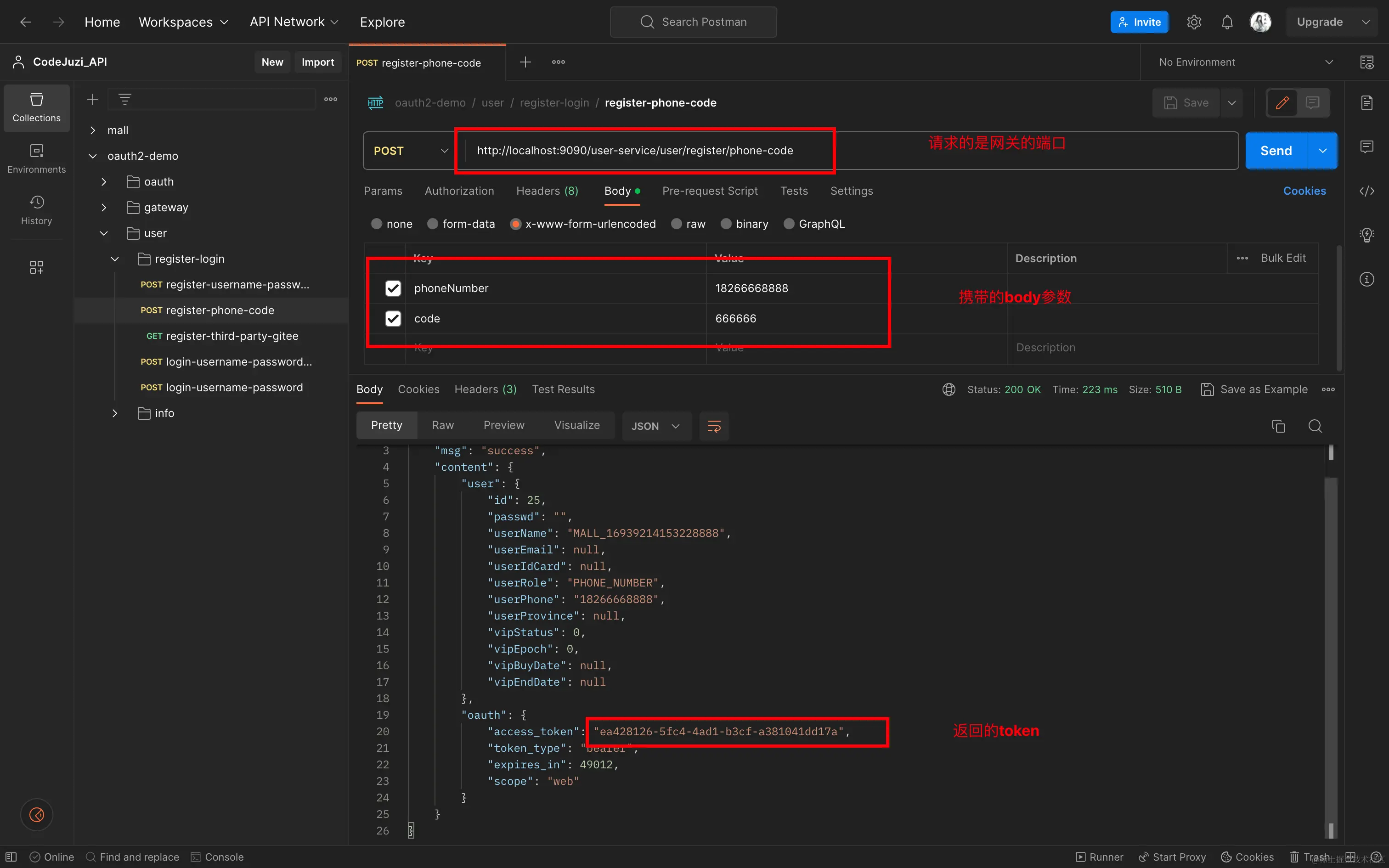

2）手机验证码注册

PS：这部分需要短信模块先进行验证码的生成、保存、发送，具体的sms-service模块可以看：github.com/dingxinlian…，因为这部分需要买云厂商的服务，我们就mock数据了，直接往Redis里存入一对键值对（手机号-验证码）

实现手机验证码注册的业务逻辑：

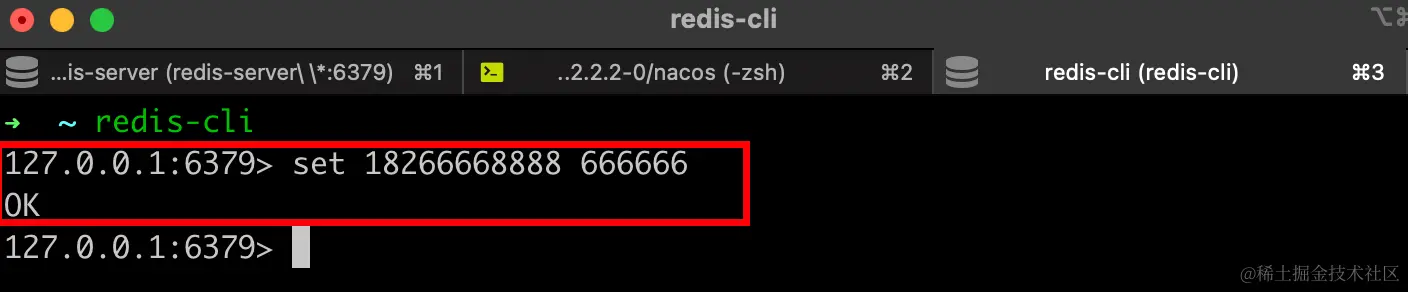

发送验证码，存储验证码（这步此处略过）
从Redis中查询验证码，与用户传入的验证码比对
若不一致，返回错误信息
若一致：
1. 以验证码为用户的密码进行加密，主要是作为ClientSecret存储
2. 根据手机号查找用户，若用户存在则更新ClientSecret即可
3. 若不存在：
  1. 封装User和OAuth2Client信息
  2. 保存 user， oauth2 信息到数据库中
  3. 保存用户信息到Redis中
4. 返回user、token信息

首先添加Repo方法：根据手机号查询用户、根据ClientId更新用户ClientSecret信息

在UserRepository中添加

User findByUserPhone(String phoneNumber);

在OAuth2ClientRepository中添加

/**
  * 根据clientId修改client secret
  *
  * @param secret   new client secret
  * @param clientId client id
  */
@Modifying
@Transactional
@Query(
  value = "update oauth_client_details set client_secret = ?1 where client_id = ?2",
  nativeQuery = true)
void updateSecretByClientId(String secret, String clientId);

然后在UserRegisterLoginService类中定义接口：

CommonResponse phoneCodeRegister(String phoneNumber, String code);

在UserRegisterLoginServiceImpl类中实现：

@Override
public CommonResponse phoneCodeRegister(String phoneNumber, String code) {
  String cacheCode = String.valueOf(redisCommonProcessor.get(phoneNumber));
  if (StringUtils.isEmpty(cacheCode)) {
    return RespUtils.fail(RespCodeEnum.BAD_REQUEST.getCode(), null, "Phone Code is Expired!");
  }
  if (!cacheCode.equals(code)) {
    return RespUtils.fail(RespCodeEnum.BAD_REQUEST.getCode(), null, "Phone Code is Wrong!");
  }
  BCryptPasswordEncoder bCryptPasswordEncoder = new BCryptPasswordEncoder();
  // 验证码加密作为 client_secret，符合 oauth2
  String encodePwd = bCryptPasswordEncoder.encode(code);
  User user = userRepository.findByUserPhone(phoneNumber);
  if (Objects.isNull(user)) {
    // 新用户注册
    String username = getSystemDefineUserName(phoneNumber);
    user = User.builder()
      .userName(username)
      // 可不存
      .passwd("")
      .userPhone(phoneNumber)
      .userRole(RegisterType.PHONE_NUMBER.name())
      .build();
    OAuth2Client oAuth2Client = OAuth2Client.builder()
      .clientId(phoneNumber)
      .clientSecret(encodePwd)
      .resourceIds(RegisterType.PHONE_NUMBER.name())
      .authorizedGrantTypes(AuthGrantType.refresh_token.name().concat(",")
                            .concat(AuthGrantType.client_credentials.name()))
      .scope("web")
      .authorities(RegisterType.PHONE_NUMBER.name())
      .build();
    Integer uid = saveUserAndOAuth2Client(user, oAuth2Client);
    String personId = String.valueOf(uid + 10000000);
    redisCommonProcessor.setExpiredDays(personId, user, 30);
  } else {
    // secret 过期，更新
    oAuth2ClientRepository.updateSecretByClientId(encodePwd, phoneNumber);
  }
  return RespUtils.success(
    formatUserAndToken(user,
                       generateOAuthToken(AuthGrantType.client_credentials, null, null, phoneNumber, code))
  );
}

private String getSystemDefineUserName(String phoneNumber) {
  //前缀 MALL_ + 当前时间戳 + 手机号后4位
  return "MALL_" + System.currentTimeMillis() + phoneNumber.substring(phoneNumber.length() - 4);
}

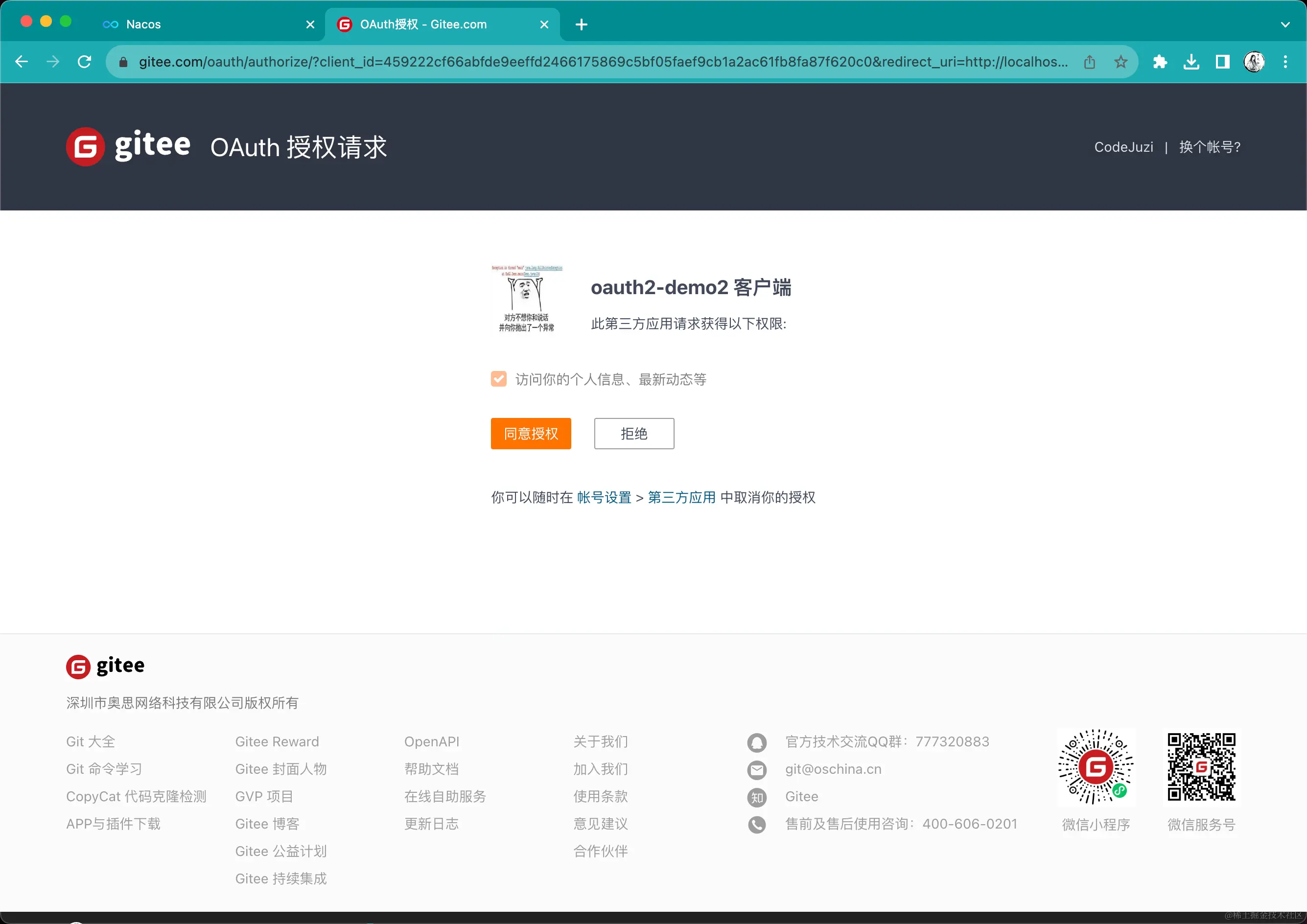

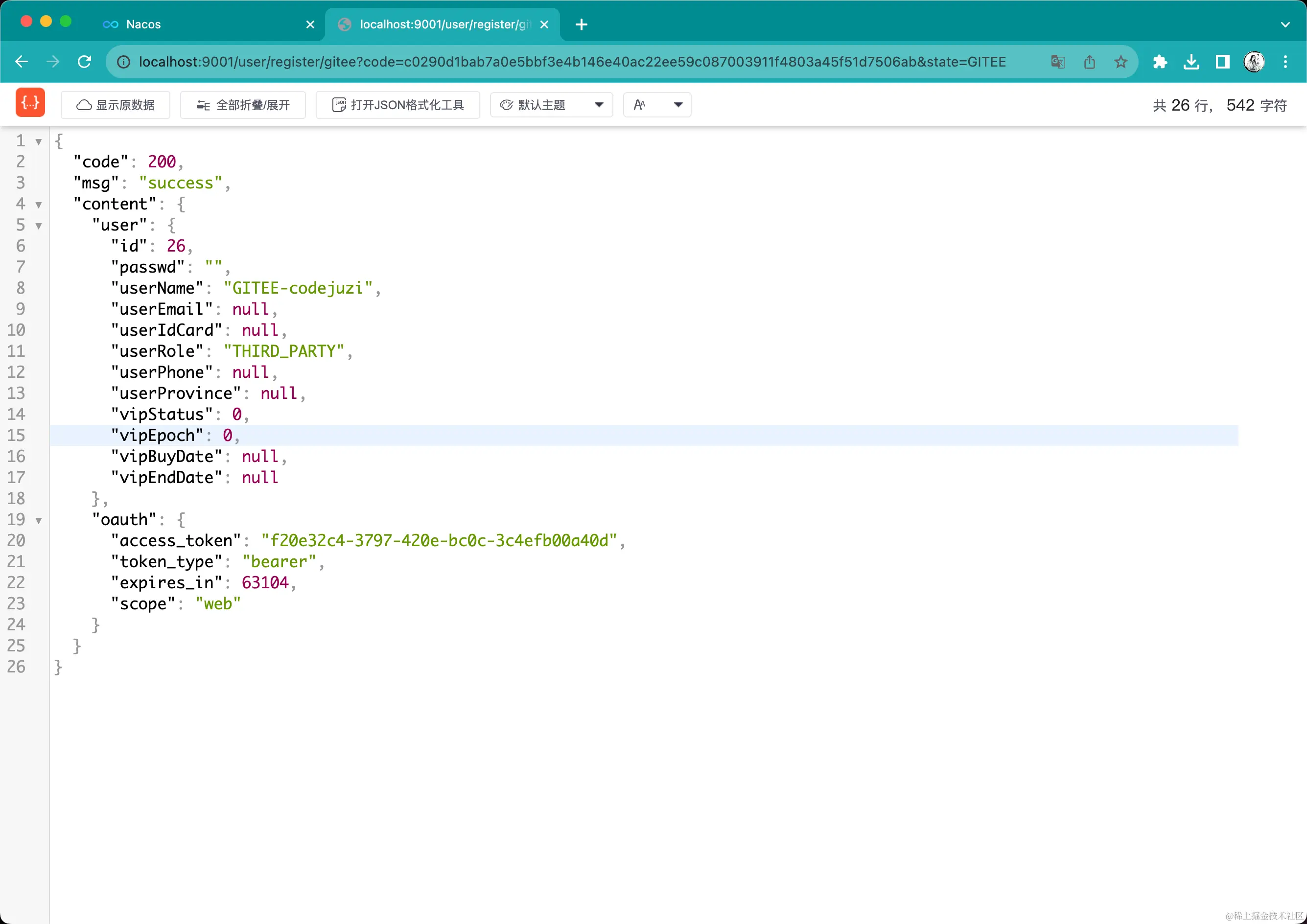

3）第三方平台注册

第三方平台（Gitee）注册业务逻辑：

组装tokenUrl，向第三方平台请求token
拿着token向第三方平台请求用户信息
封装User和OAuth2Client信息
保存 user， oauth2 信息到数据库中
保存用户信息到Redis中
返回user、token信息

在UserRegisterLoginService类中添加接口：

CommonResponse thirdPlatformGiteeRegister(HttpServletRequest request);

在ServiceImpl中实现接口：

@Autowired
private GiteeConfig giteeConfig;

@Autowired
private RestTemplate outerRestTemplate;

@Override
public CommonResponse thirdPlatformGiteeRegister(HttpServletRequest request) {
  String code = request.getParameter("code");
  String state = request.getParameter("state");
  if (!giteeConfig.getState().equals(state)) {
    return RespUtils.fail(RespCodeEnum.BAD_REQUEST.getCode(), null, "Invalid State!");
  }
  // https://gitee.com/oauth/token?grant_type=authorization_code&client_id=%s&client_secret=%s&redirect_uri=%s&code=%s
  String tokenUrl = String.format(giteeConfig.getTokenUrl(),
                                  giteeConfig.getClientId(), giteeConfig.getClientSecret(),
                                  giteeConfig.getCallBack(), code);

  JSONObject tokenRes = outerRestTemplate.postForObject(tokenUrl, null, JSONObject.class);
  assert tokenRes != null;
  String token = String.valueOf(tokenRes.get("access_token"));

  // https://gitee.com/api/v5/user?access_token=%s
  String userUrl = String.format(giteeConfig.getUserUrl(), token);
  JSONObject giteeUserInfo = outerRestTemplate.getForObject(userUrl, JSONObject.class);
  assert giteeUserInfo != null;

  String username = giteeConfig.getState().concat("-").concat(String.valueOf(giteeUserInfo.get("login")));
  BCryptPasswordEncoder bCryptPasswordEncoder = new BCryptPasswordEncoder();
  String encodePwd = bCryptPasswordEncoder.encode(username);

  User user = userRepository.findByUserName(username);
  if (Objects.isNull(user)) {
    user = User.builder()
      .userName(username)
      .passwd("")
      .userRole(RegisterType.THIRD_PARTY.name())
      .build();
    OAuth2Client oAuth2Client = OAuth2Client.builder()
      .clientId(username)
      .clientSecret(encodePwd)
      .resourceIds(RegisterType.THIRD_PARTY.name())
      .authorizedGrantTypes(AuthGrantType.refresh_token.name().concat(",")
                            .concat(AuthGrantType.client_credentials.name()))
      .scope("web")
      .authorities(RegisterType.THIRD_PARTY.name())
      .build();
    Integer uid = saveUserAndOAuth2Client(user, oAuth2Client);
    String personId = String.valueOf(uid + 10000000);
    redisCommonProcessor.setExpiredDays(personId, user, 30);
  }
  return RespUtils.success(
    formatUserAndToken(user,
                       generateOAuthToken(AuthGrantType.client_credentials, null, null, username, username))
  );
}

第三方平台（Gitee）clientId, clientSecret等参数的申请和配置

1）前往Gitee个人主页设置页面（gitee.com/profile/acc…）

2）点击侧边栏的「数据管理 => 第三方应用」选项

3）点击右上角创建应用

4）点击创建应用后会得到一组clientId和clientSecret

5）将得到的clientId和clientSecret复制下来，修改用户模块下的application.yml文件，添加如下内容
third-party:
gitee:
 clientId: please replace it with your own
 clientSecret: please replace it with your own
 call-back: http://localhost:9001/user/register/gitee
 token-url: https://gitee.com/oauth/token?grant_type=authorization_code&client_id=%s&client_secret=%s&redirect_uri=%s&code=%s
 user-url: https://gitee.com/api/v5/user?access_token=%s
 state: GITEE
上述内容中clientId、clientSecret、call-back请换成实际场景下的真实值。

至此申请完毕！

4）账号密码登录

账号密码登录业务逻辑：

根据userName查询用户
若不存在，返回错误信息
若存在，刷新缓存用户的过期时间
返回user、token信息

在UserRegisterLoginService类中定义接口：

CommonResponse login(String username, String password);

在UserRegisterLoginServiceImpl类中实现接口：

@Override
public CommonResponse login(String username, String password) {
  User user = userRepository.findByUserName(username);
  if (Objects.isNull(user)) {
    return RespUtils.fail(RespCodeEnum.BAD_REQUEST.getCode(), null, "User Not Exists!");
  }

  Map<String, Object> content = formatUserAndToken(user,              generateOAuthToken(AuthGrantType.password, username, password, username, password));

  // 刷新缓存用户信息过期时间
  String personId = String.valueOf(user.getId() + 10000000);
  redisCommonProcessor.setExpiredDays(personId, user, 30);

  return RespUtils.success(content);
}

4.5.2 用户信息部分

首先创建接口(UserInfoService)及其实现类(UserInfoServiceImpl)

package com.juzi.user.service;

public interface UserInfoService {
}

// =========================

package com.juzi.user.service.impl;

import com.juzi.user.service.UserInfoService;
import lombok.extern.slf4j.Slf4j;
import org.springframework.stereotype.Service;

@Slf4j
@Service
public class UserInfoServiceImpl implements UserInfoService {
}

1）查看手机绑定状态

查看手机绑定状态业务逻辑：

先从缓存查询用户信息，若能查找到，判断用户是否绑定手机
否则从数据库查询用户信息，判断用户是否绑定手机

在UserInfoService类中添加接口：

CommonResponse checkPhoneBindStatus(String personId);

在UserInfoServiceImpl中实现接口：

@Autowired
private UserRepository userRepository;

@Autowired
private RedisCommonProcessor redisCommonProcessor;

@Override
public CommonResponse checkPhoneBindStatus(String personId) {
  User user = (User) redisCommonProcessor.get(personId);
  boolean isBind;
  if (user != null) {
    isBind = user.getUserPhone() != null;
    return RespUtils.success(isBind);
  }
  // 查询db
  Integer userId = Integer.parseInt(personId) - 10000000;
  Optional<User> userOptional = userRepository.findById(userId);
  if (userOptional.isPresent()) {
    isBind = userOptional.get().getUserPhone() != null;
    redisCommonProcessor.setExpiredDays(personId, userOptional.get(), 30);
    return RespUtils.success(isBind);
  }

  return RespUtils.fail(RespCodeEnum.BAD_REQUEST.getCode(), null, "Invalid User");
}

2）用户绑定手机

用户绑定手机业务逻辑：

发送验证码，存储验证码（这步此处略过）
从Redis中查询验证码，与用户传入的验证码比对
若不一致，返回错误信息
若一致：
1. 根据用户id查询用户信息
2. 判断用户是否存在
3. 若不存在：返回错误信息
4. 若存在：
  1. 根据id修改用户手机号
  2. 返回成功信息

在User Repo类中添加修改手机号的方法：

@Modifying
@Transactional
@Query(
  value = "update user set user_phone = ?1 where id = ?2",
  nativeQuery = true)
void updateUserPhoneById(String phoneNumber, Integer id);

在UserInfoService中定义接口：

CommonResponse bindPhone(String personId, String phoneNumber, String code);

在UserInfoServiceImpl中实现接口：

@Override
public CommonResponse bindPhone(String personId, String phoneNumber, String code) {
  String cacheCode = String.valueOf(redisCommonProcessor.get(phoneNumber));
  if (StringUtils.isEmpty(cacheCode)) {
    return RespUtils.fail(RespCodeEnum.BAD_REQUEST.getCode(), null, "Phone Code is Expired!");
  }
  if (!cacheCode.equals(code)) {
    return RespUtils.fail(RespCodeEnum.BAD_REQUEST.getCode(), null, "Phone Code is Wrong!");
  }
  Integer userId = Integer.parseInt(personId) - 10000000;
  Optional<User> userOptional = userRepository.findById(userId);
  if (userOptional.isPresent()) {
    userRepository.updateUserPhoneById(phoneNumber, userId);
    // 删除缓存
    redisCommonProcessor.remove(personId);
    return RespUtils.success(Boolean.TRUE);
  }
  return RespUtils.fail(RespCodeEnum.BAD_REQUEST.getCode(), null, "Invalid User");
}

4.6 用户HTTP接口层

UserRegisterLoginController.java

package com.juzi.user.controller;

import com.juzi.common.resp.CommonResponse;
import com.juzi.user.pojo.po.User;
import com.juzi.user.service.UserRegisterLoginService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;

import javax.servlet.http.HttpServletRequest;

@RestController
@RequestMapping("/user")
public class UserRegisterLoginController {

  @Autowired
  private UserRegisterLoginService userRegisterLoginService;

  // region register
  @PostMapping("/register/name-password")
  public CommonResponse namePasswordRegister(@RequestBody User user) {
    return userRegisterLoginService.namePasswordRegister(user);
  }

  @PostMapping("/register/phone-code")
  public CommonResponse phoneCodeRegister(@RequestParam String phoneNumber, @RequestParam String code) {
    return userRegisterLoginService.phoneCodeRegister(phoneNumber, code);
  }

  /**
     * 此接口提供给 gitee 平台使用，用于第三方登录
     */
  @RequestMapping("/register/gitee")
  public CommonResponse thirdPlatformGiteeRegister(HttpServletRequest request) {
    return userRegisterLoginService.thirdPlatformGiteeRegister(request);
  }

  // endregion

  // region login

  @PostMapping("/login")
  public CommonResponse login(@RequestParam String username,
                              @RequestParam String password) {
    return userRegisterLoginService.login(username, password);
  }


  // endregion
}

UserInfoController.java

package com.juzi.user.controller;

import com.juzi.common.resp.CommonResponse;
import com.juzi.user.service.UserInfoService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;

@RestController
@RequestMapping("/user/info")
public class UserInfoController {

  @Autowired
  private UserInfoService userInfoService;

  @PostMapping("check-phone-bind-status")
  public CommonResponse checkPhoneBindStatus(@RequestHeader(value = "personId") String personId) {
    return userInfoService.checkPhoneBindStatus(personId);
  }

  @PostMapping("bind-phone")
  public CommonResponse bindPhone(@RequestHeader(value = "personId") String personId,
                                  @RequestParam(value = "phoneNumber") String phoneNumber,
                                  @RequestParam(value = "code") String code) {
    return userInfoService.bindPhone(personId, phoneNumber, code);
  }
}

DemoController.java，该接口用于测试gateway网关的拦截

package com.juzi.user.controller;

import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController
public class DemoController {
  @GetMapping
  public String test() {
    return "Hello!";
  }
}

4.7 用户模块启动类

package com.juzi.user;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;

@SpringBootApplication
@EnableDiscoveryClient
public class UserApplication {
  public static void main(String[] args) {
    SpringApplication.run(UserApplication.class, args);
  }
}

五、网关模块

5.1 搭建环境

创建Gateway模块，pom.xml核心内容：

 <properties>
   <maven.compiler.source>11</maven.compiler.source>
   <maven.compiler.target>11</maven.compiler.target>
   <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
   <netty.resolver.classifier.version>4.1.80.Final</netty.resolver.classifier.version>
 </properties>

   <dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-gateway</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-loadbalancer</artifactId>
        </dependency>
        <!--nacos 注册中心-->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
        </dependency>

        <!--open feign-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-openfeign</artifactId>
        </dependency>
        <dependency>
            <groupId>io.netty</groupId>
            <artifactId>netty-resolver-dns-native-macos</artifactId>
            <version>${netty.resolver.classifier.version}</version>
            <classifier>osx-aarch_64</classifier>
            <scope>runtime</scope>
        </dependency>
   </dependencies>

PS：上述依赖中io.netty.netty-resolver-dns-native-macos依赖需要根据实际环境添加

除了使用open-feign外，还可以使用Dubbo等RPC框架

application.yml

server:
  port: 9090

spring:
  application:
    name: gateway-service
  main:
    allow-bean-definition-overriding: true
  cloud:
    nacos:
      discovery:
        server-addr: 192.168.0.100:8837,192.168.0.100:8848,192.168.0.100:8859
    gateway:
      discovery:
        locator:
          enabled: true
      routes:
        - id: user_service_route
          uri: lb://user-service
          predicates:
            - Path=/**
          filters:
            - StripPrefix=1
        - id: oauth2_service_route
          uri: lb://oauth2-service
          predicates:
            - Path=/**
          filters:
            - StripPrefix=1

5.2 环境配置

网关层是需要调用远程接口，此处我们使用OpenFeign，接下来需要配置Feign，主要是完成对消息的解析

FeignConfig.java

package com.juzi.gateway.feign.config;

import feign.codec.Decoder;
import org.springframework.beans.factory.ObjectFactory;
import org.springframework.boot.autoconfigure.http.HttpMessageConverters;
import org.springframework.cloud.openfeign.support.ResponseEntityDecoder;
import org.springframework.cloud.openfeign.support.SpringDecoder;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.http.MediaType;
import org.springframework.http.converter.json.MappingJackson2HttpMessageConverter;

import java.util.ArrayList;
import java.util.List;

@Configuration
public class FeignConfig {

  @Bean
  public Decoder feignDecoder() {

    // 完成msg的解析，converter
    ObjectFactory<HttpMessageConverters> objectFactory = () -> {
      MappingJackson2HttpMessageConverter converter = new MappingJackson2HttpMessageConverter();
      List<MediaType> mediaTypes = new ArrayList<>();
      mediaTypes.add(MediaType.valueOf(MediaType.TEXT_HTML_VALUE + ";charset=utf-8"));
      converter.setSupportedMediaTypes(mediaTypes);
      return new HttpMessageConverters(converter);
    };

    return new ResponseEntityDecoder(new SpringDecoder(objectFactory));
  }
}

5.3 远程接口定义

网关层面需要调用OAuth2的校验token接口：

OAuth2ServerClient

package com.juzi.gateway.feign.api;

import org.springframework.cloud.openfeign.FeignClient;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestParam;

import java.util.Map;

@FeignClient(name = "oauth2-service")
public interface OAuth2ServerClient {

  /**
    * oauth2 校验token 接口
    *
    * @param token token
    * @return resp
    */
  @GetMapping("/oauth/check_token")
  Map<String, Object> checkToken(@RequestParam(value = "token") String token);
}

注意FeignClient注解中定义的name属性要和OAuth2模块的名称一致，最终是依靠注册中心Nacos来实现RPC的。

5.4 网关层过滤器

AuthFilter.java

package com.juzi.gateway.feign.filter;

import com.juzi.gateway.feign.api.OAuth2ServerClient;
import lombok.SneakyThrows;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.cloud.gateway.filter.GatewayFilterChain;
import org.springframework.cloud.gateway.filter.GlobalFilter;
import org.springframework.context.annotation.Lazy;
import org.springframework.core.Ordered;
import org.springframework.http.HttpStatus;
import org.springframework.http.server.reactive.ServerHttpRequest;
import org.springframework.http.server.reactive.ServerHttpResponse;
import org.springframework.stereotype.Component;
import org.springframework.util.AntPathMatcher;
import org.springframework.web.server.ServerWebExchange;
import reactor.core.publisher.Mono;

import java.util.Map;
import java.util.Set;
import java.util.concurrent.CompletableFuture;
import java.util.concurrent.ConcurrentSkipListSet;

@Component
public class AuthFilter implements GlobalFilter, Ordered {

  private static final AntPathMatcher ANT_PATH_MATCHER = new AntPathMatcher();
  private static final Set<String> WHITE_ACCESS_URLS = new ConcurrentSkipListSet<>() {{
    add("/**/oauth/**");
    add("/**/user/register/**");
    add("/**/user/login/**");
  }};

  /**
    * 懒加载，否则和Gateway启动过程会产生死锁
    */
  @Lazy
  @Autowired
  private OAuth2ServerClient oAuth2ServerClient;

  @SneakyThrows
  @Override
  public Mono<Void> filter(ServerWebExchange exchange, GatewayFilterChain chain) {
    ServerHttpRequest request = exchange.getRequest();
    ServerHttpResponse response = exchange.getResponse();

    String reqUrl = request.getURI().getPath();
    if (checkAccessUrl(reqUrl)) {
      return chain.filter(exchange);
    }

    // 获取token
    String token = request.getHeaders().getFirst("Authorization");
    CompletableFuture<Map<String, Object>> authCheckFuture
      = CompletableFuture.supplyAsync(() -> oAuth2ServerClient.checkToken(token));

    Map<String, Object> authCheckResult = authCheckFuture.get();
    boolean active = (boolean) authCheckResult.get("active");
    if (!active) {
      response.setStatusCode(HttpStatus.UNAUTHORIZED);
      return response.setComplete();
    }

    // 转发到微服务，并携带一些header，比如链路id
    ServerHttpRequest httpRequest = request.mutate().headers(httpHeaders -> {
      httpHeaders.set("personId", request.getHeaders().getFirst("personId"));
      //            httpHeaders.set("tracingId", request.getHeaders().getFirst("tracingId"));
    }).build();
    exchange.mutate().request(httpRequest);

    return chain.filter(exchange);
  }

  @Override
  public int getOrder() {
    return 0;
  }

  private boolean checkAccessUrl(String reqUrl) {
    return WHITE_ACCESS_URLS.stream().anyMatch(url -> ANT_PATH_MATCHER.match(url, reqUrl));
  }
}

定义路径白名单，直接放行的路径；同时需要对需要校验的路径进行OAuth2的token检验。

📢：Feign接口是需要进行懒加载，否则和Gateway启动过程会产生死锁。

5.5 启动类

GatewayApplication.java

package com.juzi.gateway;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
import org.springframework.cloud.openfeign.EnableFeignClients;

@SpringBootApplication
@EnableDiscoveryClient
@EnableFeignClients
public class GatewayApplication {
  public static void main(String[] args) {
    SpringApplication.run(GatewayApplication.class, args);
  }
}

注意：需要标注@EnableFeignClients注解，开启Feign的客户端调用。

六、Postman测试

6.1 预先启动环境

需要先启动Nacos集群（至少一个节点存活）、Redis、MySQL

6.2 启动项目

Gateway
OAuth2
User

6.3 Postman接口测试

接口一：用户账号密码注册

注册接口：

校验token接口，拿着上一步返回的access_token：

数据库信息：

接口二：手机号验证码注册

首先需要在Redis中存入事先的手机号和验证码，此处我存入的手机号是18266668888，验证码是666666

注册接口：

校验token：……

数据库信息：……

接口三：第三方平台注册

首先我们需要在浏览器地址栏输入以下网址：

https://gitee.com/oauth/authorize/?client_id=%s&redirect_uri=http://localhost:9001/user/register/gitee&response_type=code&state=GITEE

其中的client_id为之前申请的client_id，替换即可，redirect_uri需要根据实际的情形调整

请求之后会跳转到以下页面：

在点击同意授权之后，就会请求redirect_uri，并返回如下信息：

token校验：……

数据库数据：

接口四：用户账号密码登录

登录接口：
