阿里云DTS同步binlog实战
公号阅读 首先在阿里云DTS订阅中配置你要订阅的库表，其次创建消费者组，最后就是写代码消费binlog即可。
一、创建的配置信息

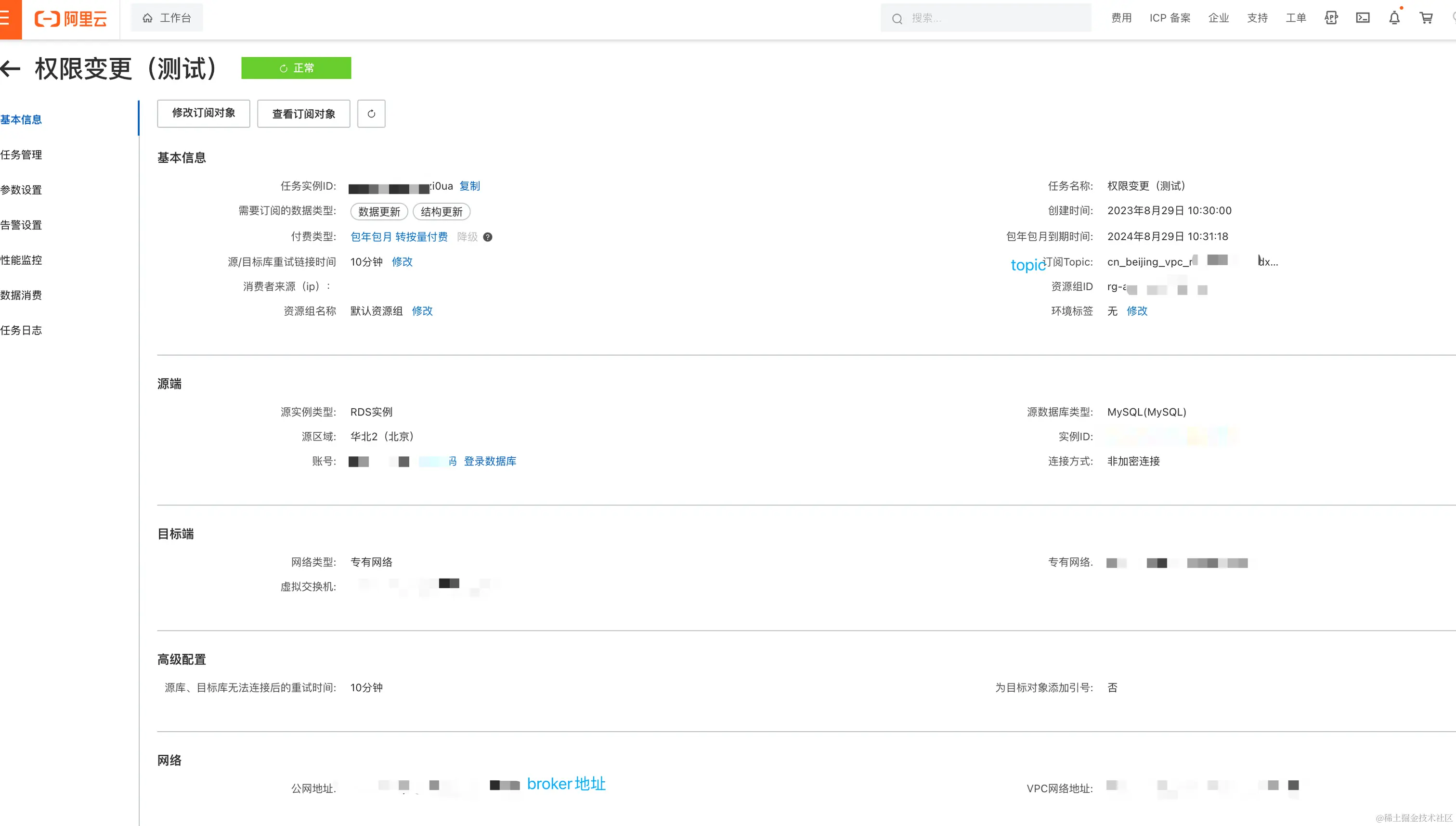

从这里得到topic以及broker信息。

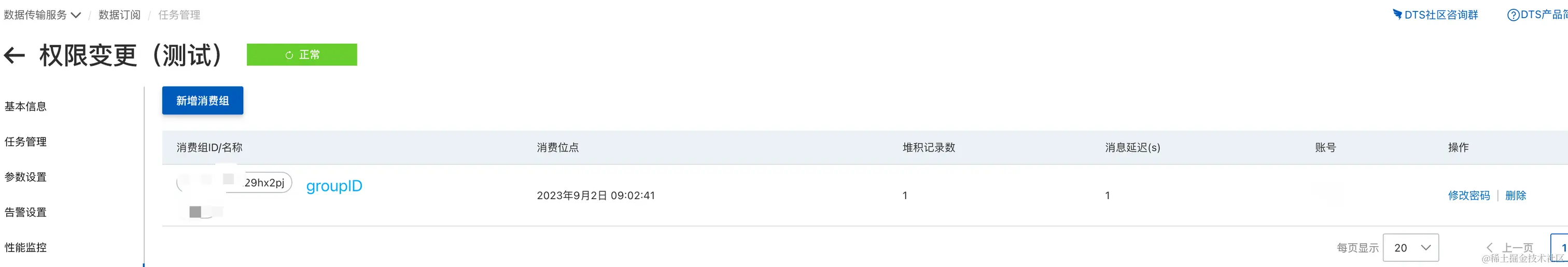

从这里得到消费者组ID。
二、写代码消费
- 创建消费类
import com.aliyun.dts.subscribe.clients.ConsumerContext;
import com.aliyun.dts.subscribe.clients.DTSConsumer;
import com.aliyun.dts.subscribe.clients.DefaultDTSConsumer;
import com.aliyun.dts.subscribe.clients.common.RecordListener;
import com.aliyun.dts.subscribe.clients.record.OperationType;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.stereotype.Component;
import javax.annotation.Resource;
import java.util.Collections;
import java.util.Map;
@Component
public class DTSConsumerSubscribe {
// 自己实现binlog解析组件
@Resource
MysqlRecordConsumeListener mysqlRecordConsumeListener;
private static final Logger log = LoggerFactory.getLogger(DTSConsumerSubscribe.class);
private final DTSConsumer dtsConsumer; // DTS消费实例
public DTSConsumerSubscribe() {
// kafka broker url
String brokerUrl = "xxxxxxx";
// topic to consume, partition is 0
String topic = "xxxxxx";
String sid = "dtsretu8xoa29hx2pj"; // 消费者组ID
String userName = "xxx"; // 消费者组名称
String password = "xxx"; // 消费者组密码
// initial checkpoint for first seek(a timestamp to set, eg 1566180200 if you want (Mon Aug 19 10:03:21 CST 2019))
String initCheckpoint = "1693567696";
// when use subscribe mode, group config is required. kafka consumer group is enabled
ConsumerContext.ConsumerSubscribeMode subscribeMode = ConsumerContext.ConsumerSubscribeMode.ASSIGN;
this.dtsConsumer = initDTSClient(brokerUrl, topic, sid, userName, password, initCheckpoint, subscribeMode);
}
public DTSConsumerSubscribe(String brokerUrl, String topic, String sid, String userName, String password,
String checkpoint, ConsumerContext.ConsumerSubscribeMode subscribeMode) {
this.dtsConsumer = initDTSClient(brokerUrl, topic, sid, userName, password, checkpoint, subscribeMode);
}
// 初始化DTS客户端
private DTSConsumer initDTSClient(String brokerUrl, String topic, String sid, String userName, String password,
String initCheckpoint, ConsumerContext.ConsumerSubscribeMode subscribeMode) {
ConsumerContext consumerContext = new ConsumerContext(brokerUrl, topic, sid, userName, password, initCheckpoint, subscribeMode);
consumerContext.setForceUseCheckpoint(false);
DTSConsumer dtsConsumer = new DefaultDTSConsumer(consumerContext);
dtsConsumer.addRecordListeners(buildRecordListener());
return dtsConsumer;
}
// 构建binlog监听器
public Map<String, RecordListener> buildRecordListener() {
// user can impl their own listener
RecordListener mysqlRecordPrintListener = record -> {
OperationType operationType = record.getOperationType();
if(operationType.equals(OperationType.INSERT)
|| operationType.equals(OperationType.UPDATE)
|| operationType.equals(OperationType.DELETE)
|| operationType.equals(OperationType.DDL)) {
// consume record
mysqlRecordConsumeListener.consume(record);
record.commit(""); // 提交消费位点
}
};
return Collections.singletonMap("mysqlRecordPrinter", mysqlRecordPrintListener);
}
// 开启消费
public void start() {
System.out.println("Start DTS subscription client...");
dtsConsumer.start();
}
// 关闭消费
public void stop() {
System.out.println("Stop DTS subscription client");
dtsConsumer.close();
}
- 创建自己的解析器
@Component
public class MysqlRecordConsumeListener implements RecordListener {
private static final Logger log = LoggerFactory.getLogger(MysqlRecordConsumeListener.class);
public void consume(DefaultUserRecord record) {
OperationType operationType = record.getOperationType();
RecordSchema recordSchema = record.getSchema();
StringBuilder stringBuilder = new StringBuilder();
stringBuilder.append("\n").append("RecordID [").append(record.getId()).append("]\n").append("RecordTimestamp [").append(record.getSourceTimestamp()).append("] \n").append("Source [").append(recordSchema.getDatabaseInfo()).append("]\n").append("RecordType [").append(record.getOperationType()).append("]\n");
if (operationType.equals(OperationType.INSERT) || operationType.equals(OperationType.UPDATE) || operationType.equals(OperationType.DELETE) || operationType.equals(OperationType.DDL)) {
stringBuilder.append("Schema info [").append(recordSchema.toString()).append("]\n").append("Before image {").append(record.getBeforeImage()).append("}\n").append("After image {").append(record.getAfterImage()).append("}\n");
parseRecord(operationType, record);
}
log.info(stringBuilder.toString());
}
public void parseRecord(OperationType operationType, DefaultUserRecord record) {
log.info("解析binlog record:{}", record);
if (OperationType.INSERT.equals(operationType)) { // 新增只有After 对于After，取出自增字段id查询即可
log.info("=====INSERT getValues=====");
} else if (OperationType.UPDATE.equals(operationType)) { // 修改有Before和After 取出自增字段id查询即可
log.info("=====UPDATE getValues=====");
} else if (OperationType.DELETE.equals(operationType)) { // 删除只有Before 取出自增字段id查询即可
log.info("=====DELETE getValues=====");
}
}}
拿到binlog之后就可以轻松关联相关表做些操作了。 大家可以看下UPDATE的binlog的打印日志：
Before image {[Field [id] [4]
Field [user_id] [1002316]
Field [user_name] [ascacac]
Field [goods_id] [1054]
Field [course_id] [null]
Field [course_name] [null]
Field [current_status] [null]
]}
After image {[Field [id] [4]
Field [user_id] [1002316]
Field [user_name] [jamlee]
Field [goods_id] [1054]
Field [course_id] [null]
Field [course_name] [null]
Field [current_status] [null]
]}
- 写task跑起来
@Component
public class UserRightDtsSubscribe implements ApplicationRunner, DisposableBean {
@Resource
DTSConsumerSubscribe dtsConsumerSubscribe;
@Override
public void destroy() throws Exception {
log.info("关闭用户订单数据同步...");
dtsConsumerSubscribe.stop();
}
@Override
public void run(ApplicationArguments args) throws Exception {
log.info("启动用户订单数据同步...");
dtsConsumerSubscribe.start();
}
}
三、总结
阿里云DTS这种订阅消费binlog方式非常方便，尤其在做增量数据同步或者修改等操作的时候。当然也可以通过别的方式同步binlog，比如canal等。但是binlog这种同步方式有缺点吗或者会导致哪些问题呢？
