compose multiplaform web

103 阅读2分钟

compose 写网页体验

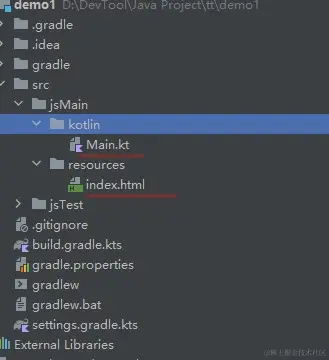

  1. 新建项目 安装compose multiplaform插件

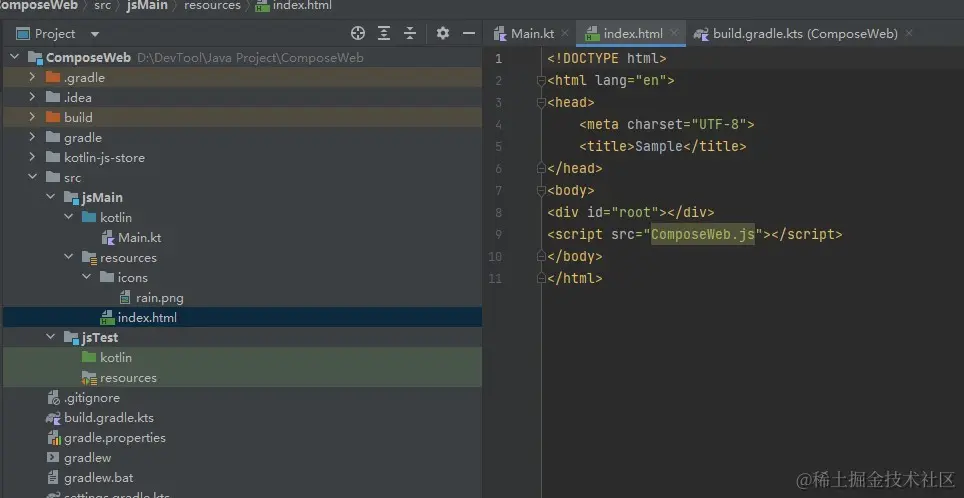

  1. main书写compose页面代码映射到index上



  1. mian中编写一个可执行的main方法,变量值参照compose mutableStateOf,标签书写仿照网页,没找到CSS书写,目前能想到的是用style提取到公共方法去调用达到同一管理的目的
fun main() {
    var count: Int by mutableStateOf(0)
    var str: String by mutableStateOf("Hello, World!")
    renderComposable(rootElementId = "root") {
        Div({
            style {
                padding(25.px)
            }
        }) {
            Button(attrs = {
                onClick { count -= 1 }
            }) {
                Text("-")
            }

            Span({ style { padding(15.px) } }) {
                Text("$count")
            }

            Button(attrs = {
                onClick { count += 1 }
            }) {
                Text("+")
            }
            TextInput(value = str) {
                onInput {
                    str = it.value
                }
            }
            Table(
                attrs = {
                    style {
                        border(
                            width = CSSUnitValueTyped(1f, CSSUnit.px),
                            color = Color("#333333"),
                            style = LineStyle.Solid
                        )
                    }

                }
            ) {
                Thead(attrs = {
                    TableBackground()
                }) {
                    Tr {
                        Th(attrs = {
                            colspan(2)
                        }) {
                            Text("The table header")
                        }
                    }
                }
                Tbody {
                    Tr {
                        Td(attrs = {
                            TableBorder()
                        }, content = { Text("The table body") })
                        Td(attrs = {
                            TableBorder()
                        }, content = { Text("with two columns") })
                    }
                }
            }
            P {
                A(href = "https://developer.mozilla.org/zh-CN/docs/Web/HTML/Element/table") {
                    Text("Web/HTML")
                }
                Br { }
                Text(
                    "  You can use <abbr>CSS</abbr> (Cascading Style Sheets) to style your(HyperText Markup Language).\n" +
                            "  Using style sheets, you can keep your <abbr>CSS</abbr> presentation layer and <abbr>HTML</abbr> content layer\n" +
                            "  separate. This is called "separation of concerns.""
                )
                Br { }
                I(attrs = {
                    style {
                        color(Color.yellowgreen)
                    }
                }) {
                    Text(
                        "  You can use <abbr>CSS</abbr> (Cascading Style Sheets) to style your(HyperText Markup Language).\n" +
                                "  Using style sheets, you can keep your <abbr>CSS</abbr> presentation layer and <abbr>HTML</abbr> content layer\n" +
                                "  separate. This is called "separation of concerns.""
                    )
                }
                Hr { }
                Ul {
                    Li {
                        A(href = "https://example.com") {
                            Text("Website")
                        }
                    }
                    Li {
                        A(href = "mailto:m.bluth@example.com") {
                            Text("Email")
                        }
                    }
                    Li {
                        A(href = "tel:+123456789") {
                            Text("Phone")
                        }
                    }
                }
                Br { }
                Address {
                    A(href = "mailto:jim@rock.com") {
                        Text("\uD83D\uDCE7 jim@rock.com")
                    }
                    Br { }
                    A(href = "tel:+13115552368") {
                        Text("\uD83D\uDCDE (311) 555-2368")
                    }
                }
                Br { }
//                HTMLMap(attrs = {
//                    title("primary")
//                }) {
//                    Area(attrs = {
//                        attr("shape", "circle")
//                        attr("coords", "200,250,25")
//                        attr("href", "another.htm")
//                        style {
//                            backgroundColor(Color("#585858"))
//                        }
//                    }) {
//                    }
//                    Area(attrs = {
//                        attr("shape", "default")
//                        "no href"
//                    }) {
//                    }
//                }
                Img(src = "/icons/rain.png")
                Img(src = "icons/rain.png")
                Article(attrs = {
                    classes("forecast")
                    style {
                        margin(CSSUnitValueTyped(0f, CSSUnit.px))
                        padding(CSSUnitValueTyped(0.3f, CSSUnit.rem))
                        backgroundColor(Color("#eeeeee"))
                    }
                }) {
                    H1 {
                        Text("Weather forecast for Seattle")
                    }
                    Article(attrs = {
                        classes("day-forecast")
                        style {
                            margin(CSSUnitValueTyped(0.2f, CSSUnit.rem))
                            fontSize(CSSUnitValueTyped(1f, CSSUnit.rem))
                            background("right/contain content-box border-box no-repeat url('icons/rain.png') white")
                        }
                    }) {
                        H2 {
                            Text("03 March 2018")
                        }
                        P {
                            Text("Rain.")
                        }
                    }
                }
            }
        }
    }
}


private fun AttrsScope<HTMLTableCellElement>.TableBorder() {
    style {
        border(width = CSSUnitValueTyped(1f, CSSUnit.px), color = Color("#333333"), style = LineStyle.Solid)
    }
}

private fun AttrsScope<HTMLTableSectionElement>.TableBackground() {
    style {
        backgroundColor(Color("#333333"))
        color(Color("#ffffff"))
    }
}

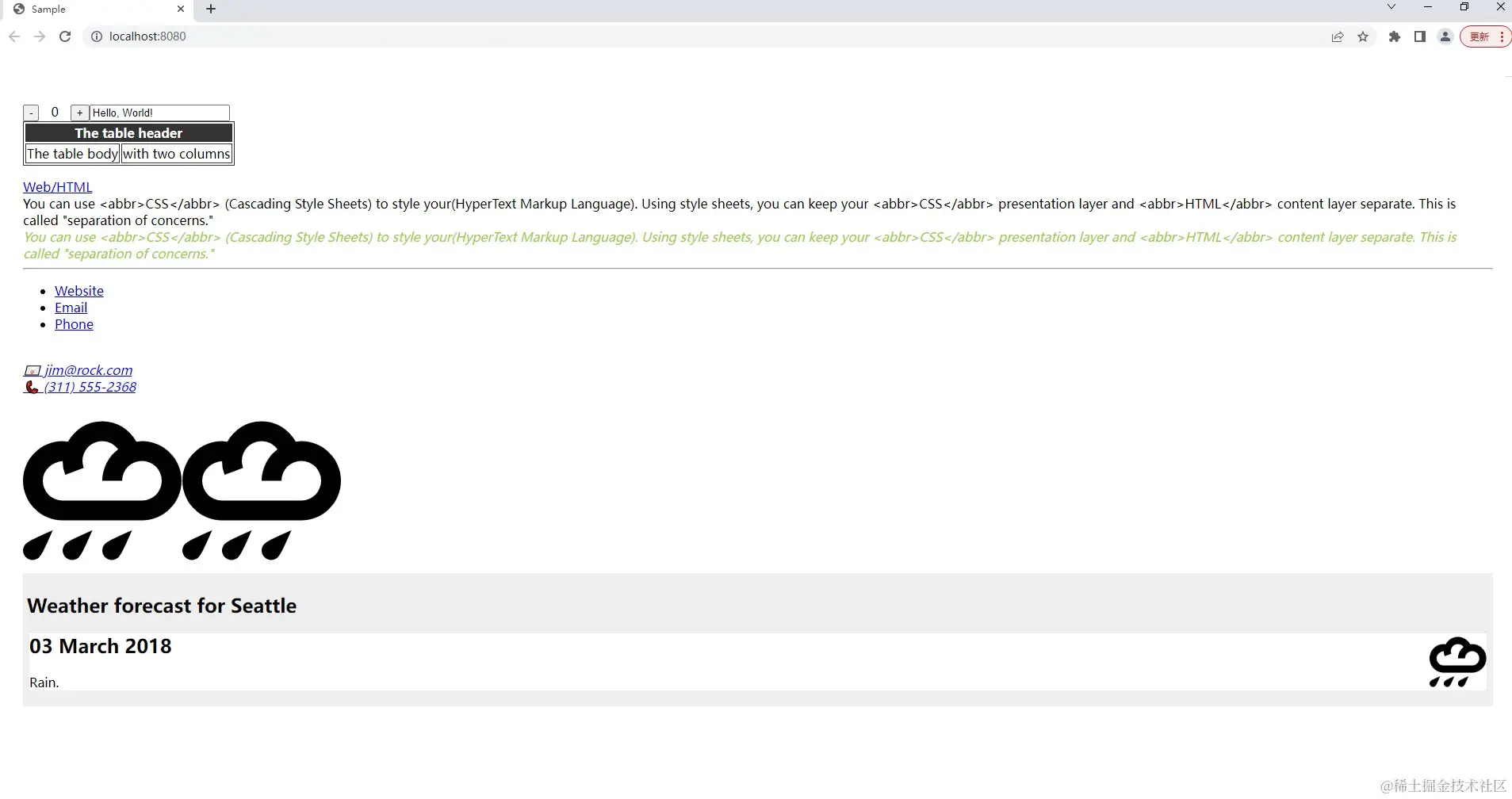

  1. 输出结果


  1. 官网地址Compose Multiplatform UI Framework | JetBrains | JetBrains: Developer Tools for Professionals and Teams
