Quill Usage in Vue2-based project

Background

A product requirement is for a function that lets the PM add customizable text on the H5 page, which gets rendered in the app.

Step1: Choose a rich text editor package

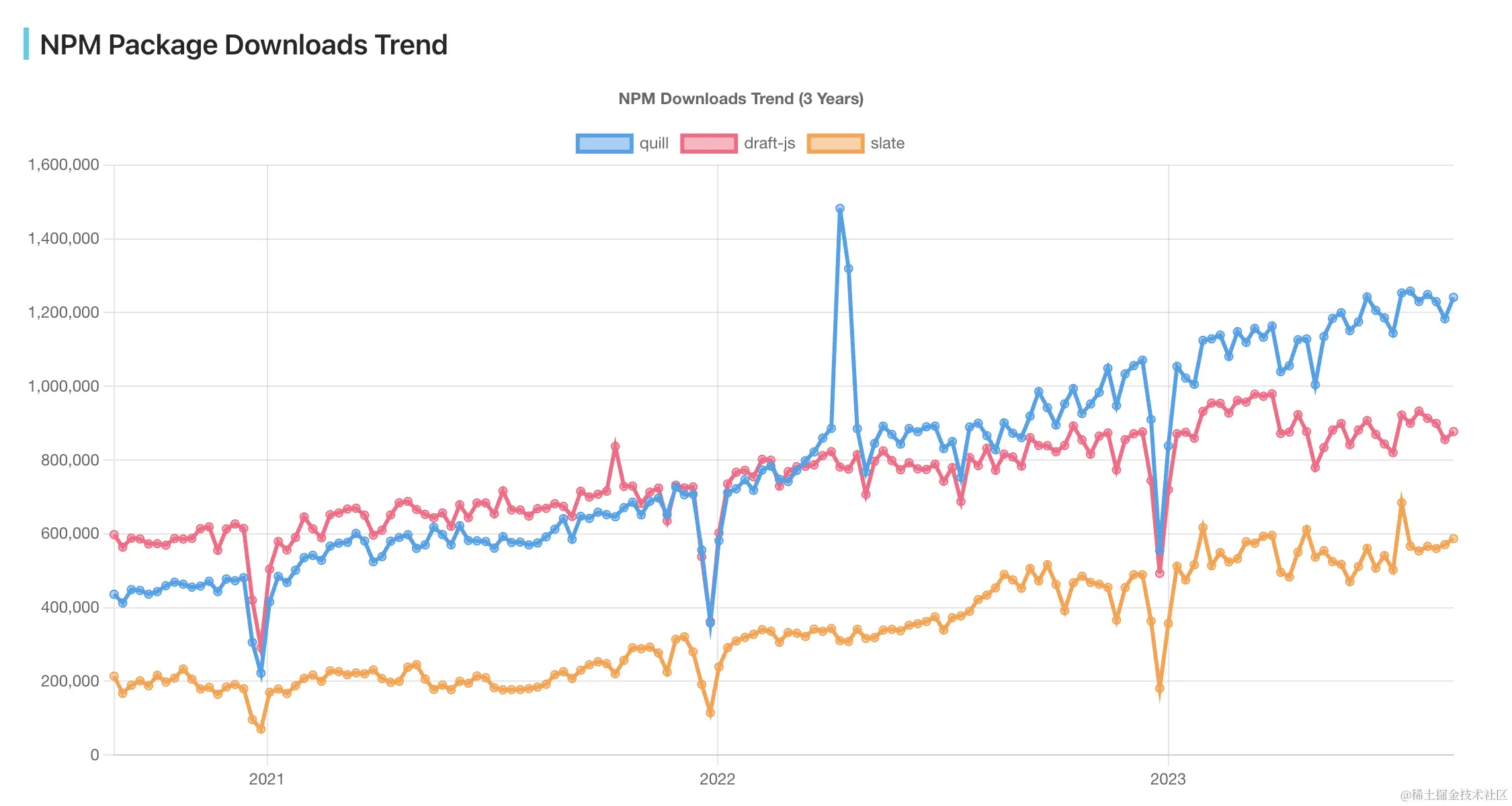

I found these popular rich text editor package below, and compared them.

package	star	size	license	tips	home
Quill	36.8k	2.29 MB	BSD-3-Clause license		quilljs.com/
Slate.js	27.8k	1.94 MB	MIT license	Based on React	www.slatejs.org/examples/ri…
Draft.js	22.5k	1.4 MB	MIT, Unknown licenses found	Based on React	draftjs.org/
StackEdit	20.6k	2.71 MB	Apache-2.0	Online Markdown editor	stackedit.io/
GrapesJS	18.5k	5.93 MB	BSD-3-Clause license		grapesjs.com/

  Quill has had rapid development over the past year. It provides all the required functions, is framework-agnostic so it can be used anywhere, and our project is Vue-based. This makes Quill the best choice for us.

Quill usage

npm install quill@1.3.6

Our database stores text as String values like

"<p><strong>test1</strong></p>"

However, Quill uses its own Delta format, which can only be used within the Quill package. This raises two issues:

1. How can we format the Delta into a String to store in the database?
2. If we store the String format, how do we render it back in Quill?

Using innerHTML can address the first issue of formatting the Delta into a String.

`querySelector('.ql-editor').innerHTML`

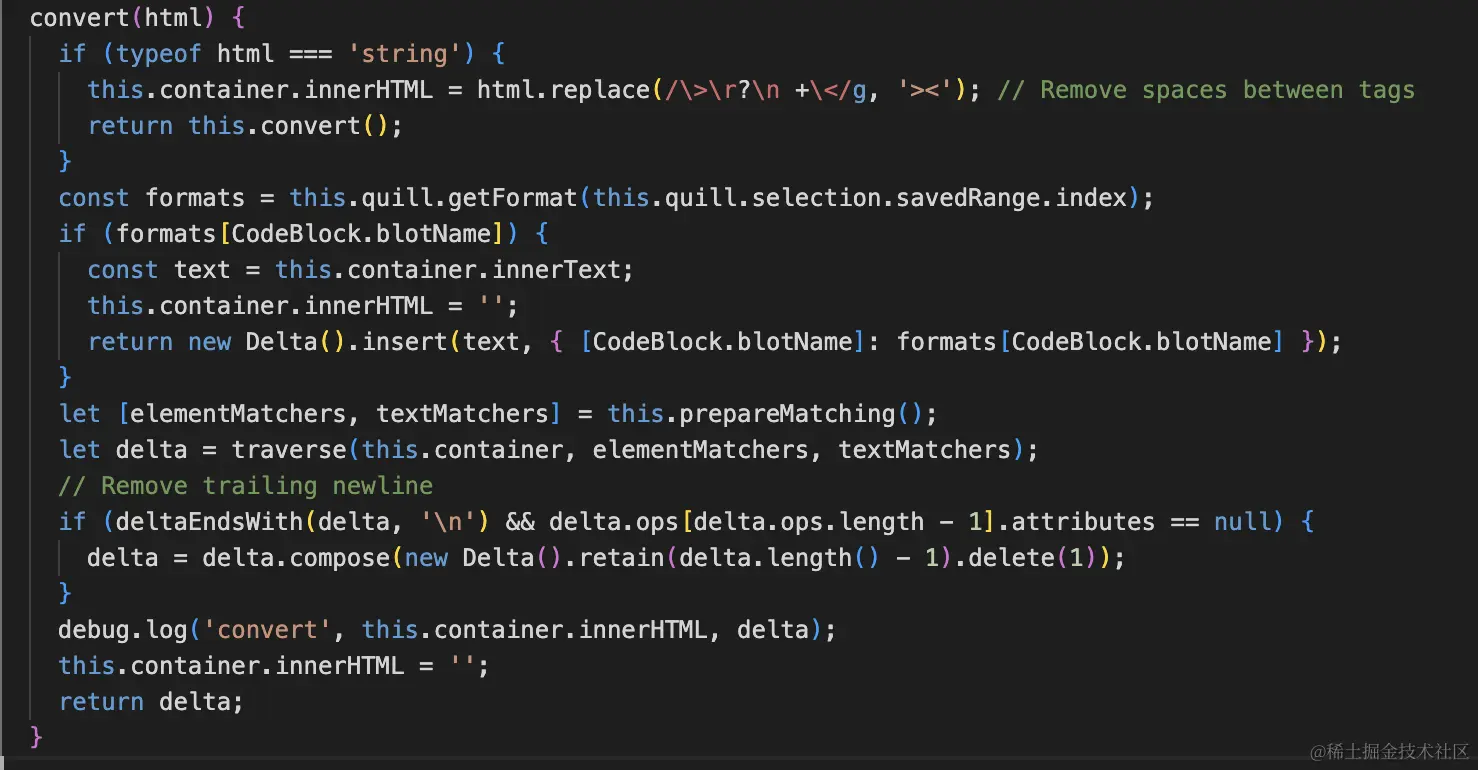

Regarding the second issue, the Quill source code has a convert method that can transform a String into the Delta format. This allows using quill.clipboard.convert to render the stored String back into Quill. However, this method is not documented in the Quill API reference.

Quill Component for Vue2

Based on the research described above, we can create a reusable component as follows.

<template>
  <div>
    <div ref="quillEditor"></div>
  </div>
</template>

<script>
import Quill from "quill";
import "quill/dist/quill.snow.css";
export default {
  name: "quill",
  props: {
    value: String,
  },
  data() {
    return {
      quill: null,
    };
  },
  mounted() {
    this.init();
  },
  methods: {
    init() {
      const options = {
        theme: "snow",
        modules: {
          toolbar: [
            ["bold", "italic", "underline", "strike"],
            [{ align: [] }],
            ["link"],
          ],
        },
        placeholder: "Insert text here ...",
      };
      const dom = this.$refs.quillEditor;
      this.quill = new Quill(dom, options);
      const contents = this.string2Delta(this.value);
      this.quill.setContents(contents);

      this.quill.on("text-change", () => {
        const childNode = dom.querySelector(".ql-editor").innerHTML;
        this.$emit("input", childNode);
      });
    },
    string2Delta(val) {
      return this.quill.clipboard.convert(
        `<div class='ql-editor' style="white-space: normal;">${val}<p><br></p></div>`
      );
    },
  },
};
</script>

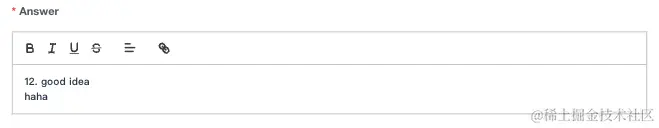

Usage of this component

<Quill :value="<p><strong>test1</strong></p>" @input="(val) => {}"/>

Reference

1. quilljs.com/docs/downlo…
2. npm-compare.com/quill,draft…
