3.css布局

21 阅读1分钟

一、浮动float

文档流

1、正常的文档流  元素依次排列的,就是一个简单的队列

2、如果子元素浮动float,子元素会脱离文档流,漂浮到空中

1、父元素与子元素的关系

父元素不需要设置高度,其获取子元素的高度

<style>
.parent{
  width: 200px;
  background-color: red;
  /* 父元素不需要设高度,获取子元素的高度,
  子元素会将其撑开 ,父元素就是一个容器(相当于气球)*/
}
.child{
  width: 100px;
  height: 100px;
  background-color: yellow;
}
</style>
<div class="parent">
    <div class="child"></div>
</div>

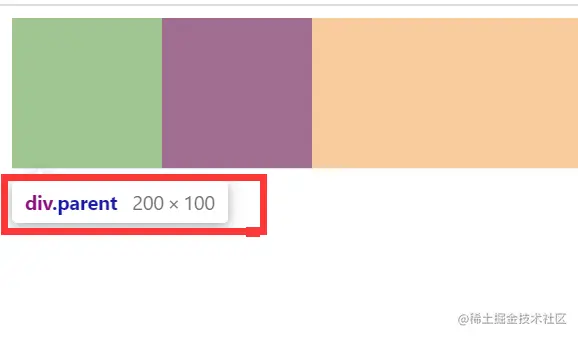

2、子元素浮动

子元素浮动float,父元素高度坍塌

原因: 如果子元素浮动float,子元素会脱离文档流,漂浮到空中。由于父元素的高度是通过获取子元素的高度得到,子元素脱离后其就不能获取高度了。

<style>
        .parent{
            width: 200px;
            background-color: red;
            /* 父元素不需要设高,获取子元素的高度,
            子元素会将其撑开 ,父元素就是一个容器(相当于气球)*/
        }
        .child{
            width: 100px;
            height: 100px;
            background-color: yellow;
            /* 子元素浮动float,父元素高度坍塌 */
            float: left;

        }
    </style>

3、子元素浮动float造成的问题

浮动造成的问题

1、让父元素高度坍塌

2、对后面的元素造成影响

<style>
        /* 浮动造成的问题
            1、让父元素高度坍塌
            2、对后面的元素造成影响 */
        .parent{
            width: 200px;
            background-color: red;
        }
        .child{
            width: 100px;
            height: 100px;
            background-color: yellow;
            float: left;
        }
        .test{
            width: 200px;
            height: 200px;
            background-color: green;

        }
    </style>
<div class="parent">
  <div class="child"></div>
</div>
<div class="test"></div>

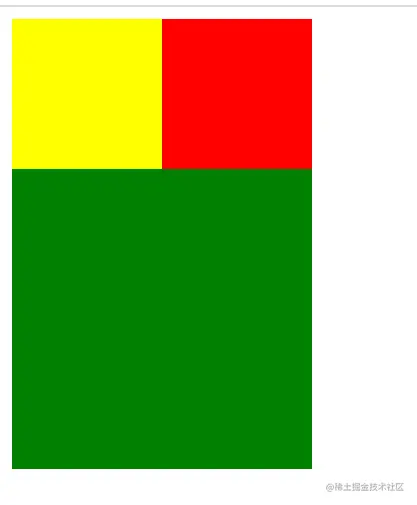

子元素浮动前:

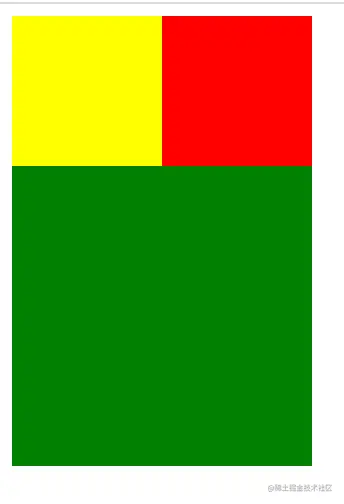

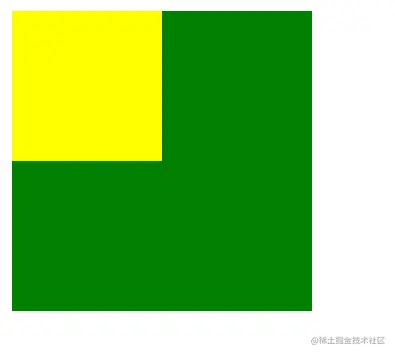

子元素浮动后:

4、子元素浮动问题解决

解决方案:建立隔离带

在父元素增加overflow: hidden;

<style>
        /* 解决方案:建立隔离带
            在父元素增加overflow: hidden; */
        .parent{
            width: 200px;
            background-color: red;
            overflow: hidden;
        }
        .child{
            width: 100px;
            height: 100px;
            background-color: yellow;
            float: left;
        }
        .test{
            width: 200px;
            height: 200px;
            background-color: green;

        }
    </style>

5、overflow

解决溢出隐藏

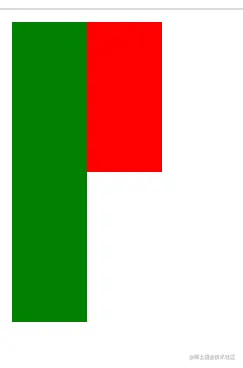

问题:

<style>
        .parent{
            width: 100px;
            height: 100px;
            background-color: red;
        }
        .child{
            width: 50px;
            height: 200px;
            background-color: green;
        }
    </style>
<div class="parent">
        <div class="child"></div>
    </div>

解决:

<style>
        .parent{
            width: 100px;
            height: 100px;
            background-color: red;
            /* 解决溢出隐藏 */
            overflow: hidden;
        }
        .child{
            width: 50px;
            height: 200px;
            background-color: green;
        }
    </style>
