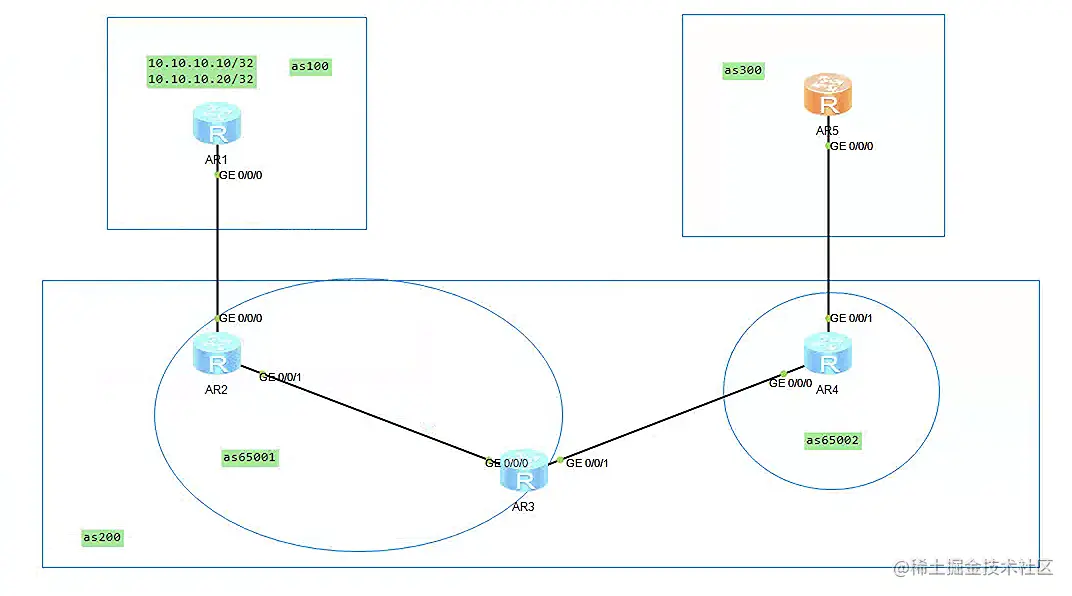

BGP联盟、Community属性案例

联盟

//AR1
#
interface LoopBack0
 ip address 1.1.1.1 255.255.255.255
#
interface LoopBack1
 ip address 10.10.10.10 255.255.255.255
#
interface LoopBack2
 ip address 10.10.10.20 255.255.255.255
#
bgp 100
 peer 12.1.1.2 as-number 200
 #
 ipv4-family unicast
  undo synchronization
  network 10.10.10.10 255.255.255.255
  network 10.10.10.20 255.255.255.255
  peer 12.1.1.2 enable
#

//AR2
#
interface GigabitEthernet0/0/0
 ip address 12.1.1.2 255.255.255.0
#
interface GigabitEthernet0/0/1
 ip address 23.1.1.2 255.255.255.0
 ospf enable 1 area 0.0.0.0
#
interface NULL0
#
interface LoopBack0
 ip address 2.2.2.2 255.255.255.255
 ospf enable 1 area 0.0.0.0
#
bgp 65001
 confederation id 200
 peer 3.3.3.3 as-number 65001
 peer 3.3.3.3 connect-interface LoopBack0
 peer 12.1.1.1 as-number 100
 #
 ipv4-family unicast
  undo synchronization
  peer 3.3.3.3 enable
  peer 3.3.3.3 next-hop-local
  peer 12.1.1.1 enable
#
ospf 1
 area 0.0.0.0
#

//AR3
#
interface GigabitEthernet0/0/0
 ip address 23.1.1.3 255.255.255.0
 ospf enable 1 area 0.0.0.0
#
interface GigabitEthernet0/0/1
 ip address 34.1.1.3 255.255.255.0
 ospf enable 1 area 0.0.0.0
#
interface NULL0
#
interface LoopBack0
 ip address 3.3.3.3 255.255.255.255
 ospf enable 1 area 0.0.0.0
#
bgp 65001
 confederation id 200
 confederation peer-as 65002
 peer 2.2.2.2 as-number 65001
 peer 2.2.2.2 connect-interface LoopBack0
 peer 4.4.4.4 as-number 65002
 peer 4.4.4.4 ebgp-max-hop 255
 peer 4.4.4.4 connect-interface LoopBack0
 #
 ipv4-family unicast
  undo synchronization
  peer 2.2.2.2 enable
  peer 4.4.4.4 enable
#
ospf 1
 area 0.0.0.0
#

//AR4
#
interface GigabitEthernet0/0/0
 ip address 34.1.1.4 255.255.255.0
 ospf enable 1 area 0.0.0.0
#
interface GigabitEthernet0/0/1
 ip address 45.1.1.4 255.255.255.0
#
interface NULL0
#
interface LoopBack0
 ip address 4.4.4.4 255.255.255.255
 ospf enable 1 area 0.0.0.0
#
bgp 65002
 confederation id 200
 confederation peer-as 65001
 peer 3.3.3.3 as-number 65001
 peer 3.3.3.3 ebgp-max-hop 255
 peer 3.3.3.3 connect-interface LoopBack0
 peer 45.1.1.5 as-number 300
 #
 ipv4-family unicast
  undo synchronization
  peer 3.3.3.3 enable
  peer 3.3.3.3 next-hop-local
  peer 45.1.1.5 enable
#
ospf 1
 area 0.0.0.0
#

//AR5
#
interface GigabitEthernet0/0/0
 ip address 45.1.1.5 255.255.255.0
#
interface GigabitEthernet0/0/1
#
interface NULL0
#
interface LoopBack1
 ip address 50.50.50.50 255.255.255.255
#
bgp 300
 peer 45.1.1.4 as-number 200
 #
 ipv4-family unicast
  undo synchronization
  network 50.50.50.50 255.255.255.255
  peer 45.1.1.4 enable
#

Community属性

如果现在要AR3不接收到10.10.10.10/32这条路由

//AR1
#
acl number 2000
 rule 5 permit source 10.10.10.10 0
#
bgp 100
 peer 12.1.1.2 as-number 200
 #
 ipv4-family unicast
  undo synchronization
  network 10.10.10.10 255.255.255.255
  network 10.10.10.20 255.255.255.255
  peer 12.1.1.2 enable
  peer 12.1.1.2 route-policy 1 export
  peer 12.1.1.2 advertise-community//因为是可选过渡，所以传递路由的时候带上Community属性，就必须加这条命令
#
route-policy 1 permit node 1
 if-match acl 2000
 apply community no-advertise
#

//AR2
bgp 65001
 confederation id 200
 peer 3.3.3.3 as-number 65001
 peer 3.3.3.3 connect-interface LoopBack0
 peer 12.1.1.1 as-number 100
 #
 ipv4-family unicast
  undo synchronization
  peer 3.3.3.3 enable
  peer 3.3.3.3 next-hop-local
  peer 3.3.3.3 advertise-community//AR2也要加上这条让Community属性生效
  peer 12.1.1.1 enable
#

如果现在要AR5不接收到10.10.10.10/32这条路由

在AR1改成apply community no-export，并且AR3上执行peer 4.4.4.4 advertise-community

如果现在要AR4和AR5不接收到10.10.10.10/32这条路由

在AR1改成apply community no-export-subconfed

如果要将AR3接收到的10.10.10.10/32的origin改成incomplete

现在AR1自定义Community属性

//AR1
bgp 100
 peer 12.1.1.2 as-number 200
 #
 ipv4-family unicast
  undo synchronization
  network 10.10.10.10 255.255.255.255
  network 10.10.10.20 255.255.255.255
  peer 12.1.1.2 enable
  peer 12.1.1.2 route-policy 1 export
  peer 12.1.1.2 advertise-community
#
route-policy 1 permit node 1
 if-match acl 2000
 apply community 100:100
#
route-policy 1 permit node 2
#

然后AR2会接收到Community属性100:100

然后在AR2上对该Community属性做操作

#
route-policy 1 permit node 1
 if-match community-filter 1
 apply origin incomplete
#
route-policy 1 permit node 2
#
ip community-filter 1 permit 100:100
#

此时AR3上就会将origin改成incomplete

可以在network时候使用route-policy

//AR1
#
bgp 100
 peer 12.1.1.2 as-number 200
 #
 ipv4-family unicast
  undo synchronization
  network 10.10.10.10 255.255.255.255 route-policy 1
  network 10.10.10.20 255.255.255.255
  peer 12.1.1.2 enable
  peer 12.1.1.2 advertise-community
#
route-policy 1 permit node 1
 apply community 100:100
#
route-policy 1 permit node 2
#

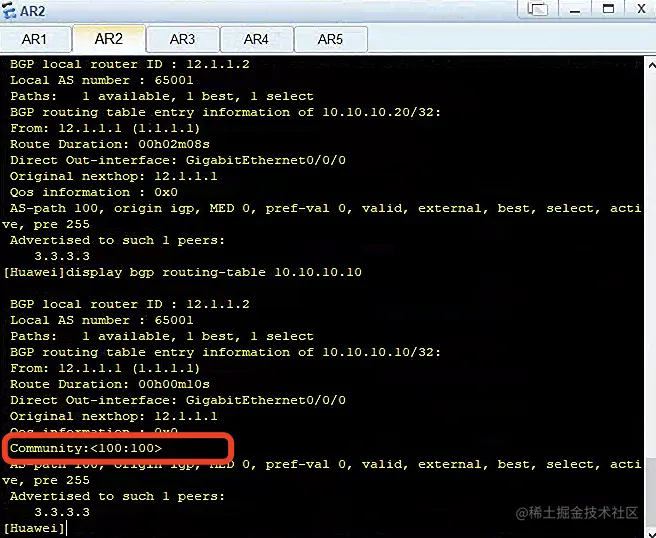

此时AR2上接收到，如图：
