Vuepress 2.X + Element-Plus 的基本使用

478 阅读3分钟

1. 前言

在为公司写一个前端门户网站,但是,写道引用vue组件时卡壳了。所以在网上查询资料,发现这篇文章还算不错,所以记录在此,以备以后使用...

2. Vuepress 项目初始化

2.1 准备工作

新建一个Vuepress2.X项目文件夹,命名为VuepressTest,并下载依赖:

npm install -D vuepress@nextnpm install

复制代码

2.2 配置

package.json中添加scripts

{  "scripts": {    "dev": "vuepress dev docs",    "build": "vuepress build docs"  }}

复制代码

2.3 示例

VuepressTest项目中新建doc/README.md,并写下如下内容:

---home: trueheroImage: https://artice-code-1258339218.cos.ap-beijing.myqcloud.com/vuepress/element-index.pngheroText: Elementfeatures:- title: 一致性 Consistency  details: 与现实生活一致:与现实生活的流程、逻辑保持一致,遵循用户习惯的语言和概念- title: 反馈 Feedback  details: 通过界面样式和交互动效让用户可以清晰的感知自己的操作- title: 效率 Efficiency  details: 界面简单直白,让用户快速识别而非回忆,减少用户记忆负担。footer: by饿了么---

复制代码

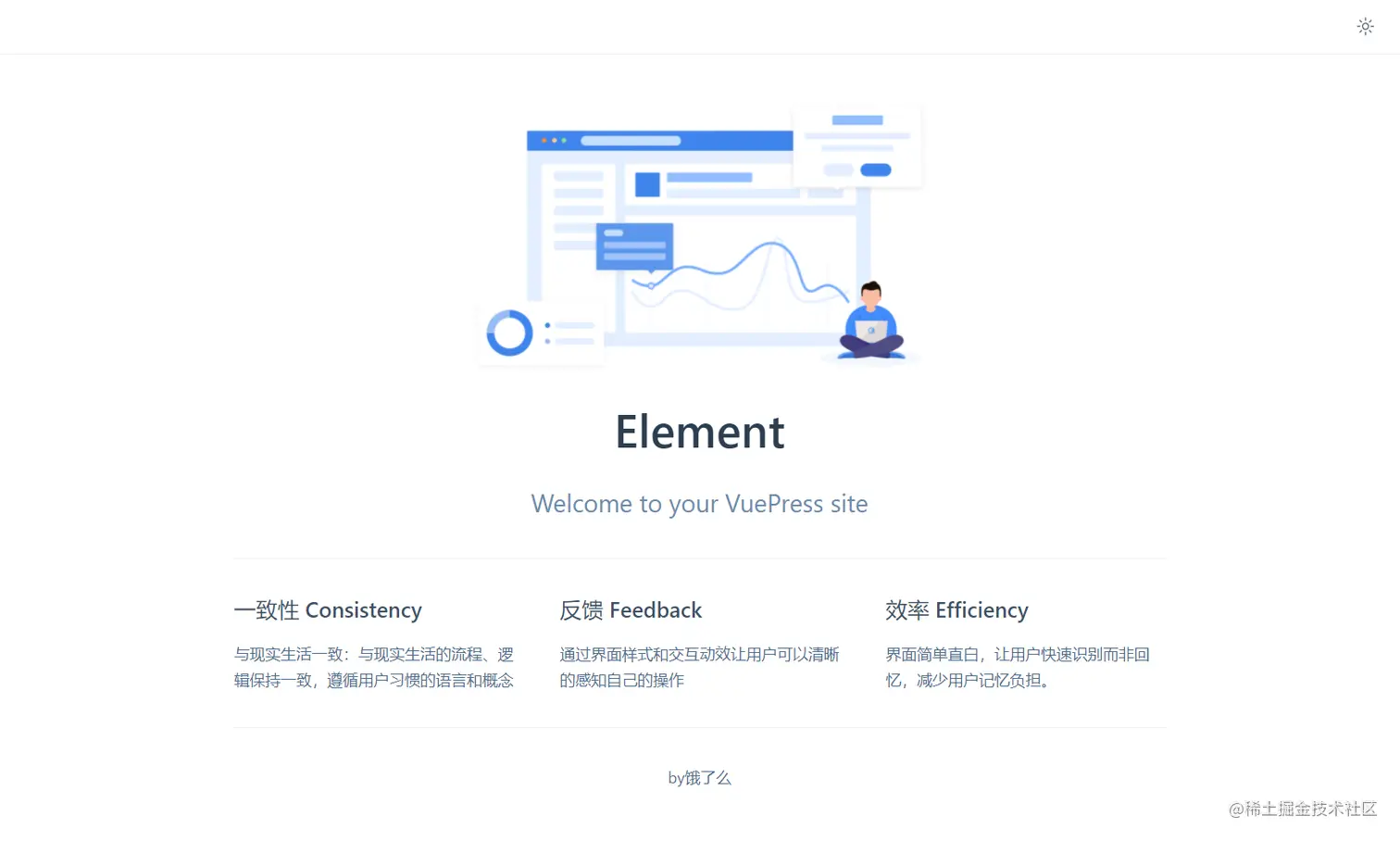

运行npm run dev之后,效果如下所示:

3. 使用 Element-Plus

3.1 安装

npm install element-plus --save

复制代码

3.2 配置

.vuepress中新建文件clientAppEnhance.ts,引入element-plus

import { defineClientAppEnhance } from '@vuepress/client'import ElementPlus from 'element-plus'import 'element-plus/dist/index.css'
export default defineClientAppEnhance(({ app, router, siteData }) => {    app.use(ElementPlus)})

复制代码

3.3 示例

VuepressTest项目中新建doc/README.md,并写下如下内容:

---home: true---<el-button type="primary" :icon="Edit">我是Element-Plus</el-button>

复制代码

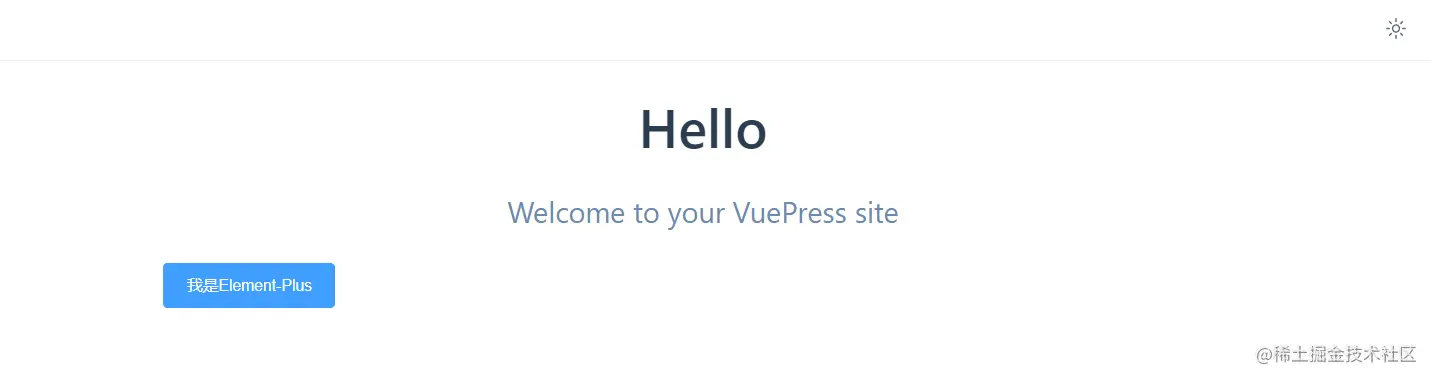

效果如下所示:

3.4 Webpack 下出现.mjs 相关报错

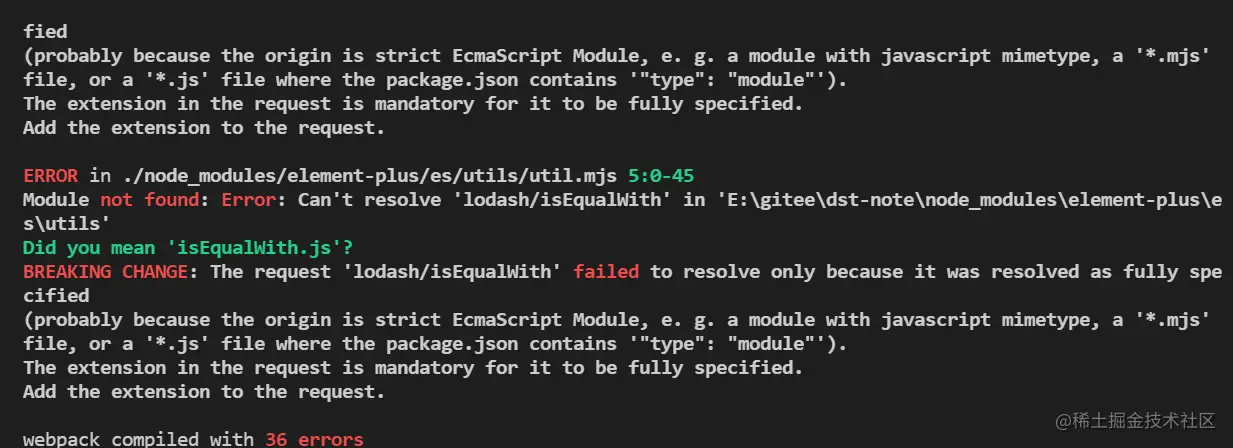

当前打包使用Vite,项目正常启动,如果是Webpack打包,运行npm run dev,可能会出现与Element-Plus相关的报错信息,如下所示:

(probably because the origin is strict EcmaScript Module, e. g. a module with javascript mimetype, a '*. mjs' file, or a '*.js' file where the package. json contains '"type": "module"'). The extension in the request is mandatory for it to be fully specified. Add the extension to the request.

复制代码

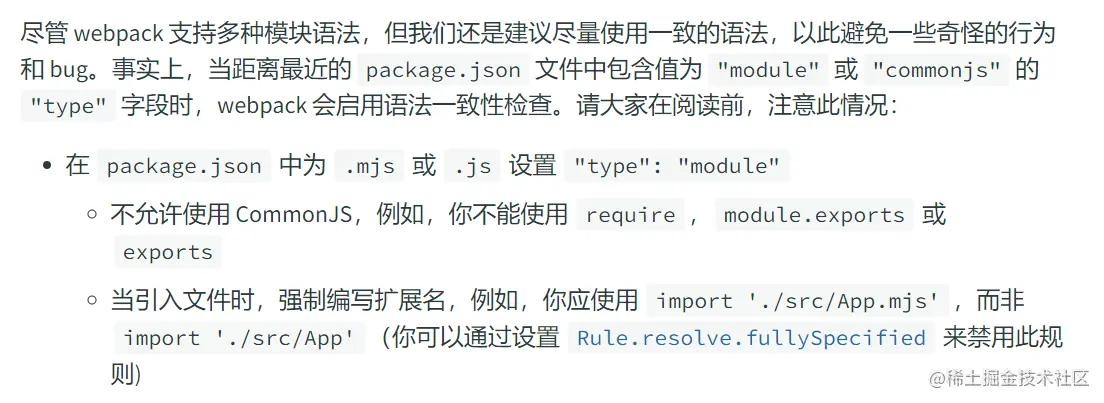

我们可以看下Webpack官方文档官方文档中对这方面的解释,如下所示:

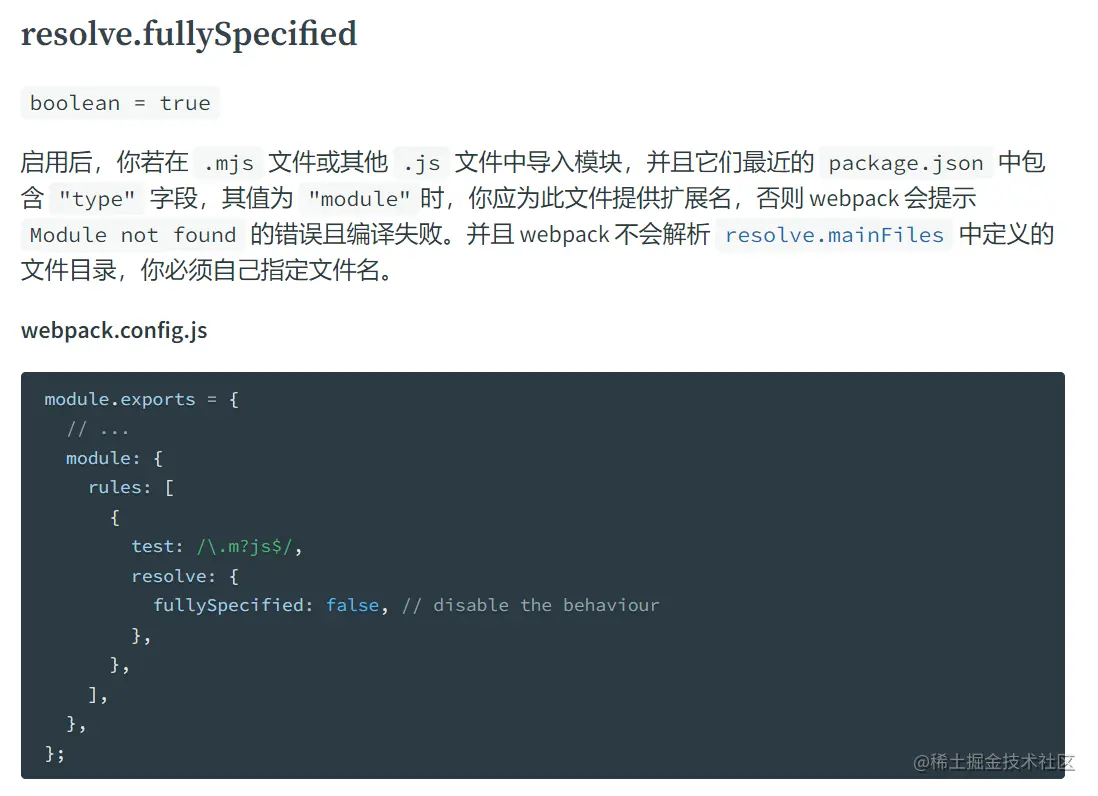

如果要去掉这个限制,只需要设置Rule.resolve.fullySpecifiedfalse即可,具体看如下所示:

所以,我们需要在config.ts中进行设置,这样就没有问题了,如下所示:

import { defineUserConfig } from 'vuepress'import type { DefaultThemeOptions } from 'vuepress'export default defineUserConfig<DefaultThemeOptions>({  bundlerConfig: {    // 可以看Vuepress 2.X官方文档相关chainWebpack的信息,如果报错,需依赖webpack-chain    chainWebpack: (config, isServer, isBuild) => {      config.module        .rule()        .test(/.m?jsx?$/)        .resolve.set('fullySpecified', false)    }
  }})

复制代码

3.5 Element-Plus 组件显示图标

可以发现,在上面的按钮示例中,图标设置:icon="Edit"并没有生效,原因是 Element-Plus 的图标需自己引入。

首先,需安装依赖,如下所示:

npm install @element-plus/icons-vue

复制代码

然后在clientAppEnhance.ts中引入icon-vue,如下所示:

import * as ElIcons from '@element-plus/icons-vue'
export default defineClientAppEnhance(({ app, router, siteData }) => {         ......        Object.keys(ElIcons).forEach(key => {        app.component(key, ElIcons[key])    })    })

复制代码

这样就可以让Element-Plus组件显示图标了,效果如下所示:

4. Markdown 中使用 Vue

如果要对自己封装的组件进行说明,最想要的效果,当然是类似Element-plus文档那样,能够有组件示例,然后有个切换查看源码的功能,所以就很想知道能不能在.MD文件中使用Vue,其实Vuepress已经提供了该功能,直接使用在.MD中编写代码即可。

这种方式只适合简单的代码示例,复杂逻辑的最好还是以组件方式在.MD文件中引入。

4.1 自定义组件

首先需在.vuepress中新建components文件夹,然后新建Test.vue文件,内容如下所示:

<template>    <h1>在README.md中引入Test.vue组件文件</h1></template><script lang="ts">import { defineComponent } from 'vue'export default defineComponent({    setup() {},})</script><style lang="less" scoped>
</style>

复制代码

4.2 自动注册 Vue 组件

  1. 使用 Vuepress 的插件@vuepress/plugin-register-components,用于根据组件文件或目录自动注册 Vue 组件。

npm i -D @vuepress/plugin-register-components@next

复制代码

  1. config.ts中设置,如下所示:

import { path } from '@vuepress/utils'
export default defineUserConfig<DefaultThemeOptions>({      ......      plugins: [    [      '@vuepress/register-components',      {        componentsDir: path.resolve(__dirname, './components'),      },    ],  ],})

复制代码

4.3 基本使用

  1. 这样就可以在.MD文件中,引入自定义组件,但需注意该组件必须在components文件下才生效,当前在VuepressTest项目中新建doc/README.md中引入Test.vue组件,如下所示:

---home: true---<Test></Test>

复制代码

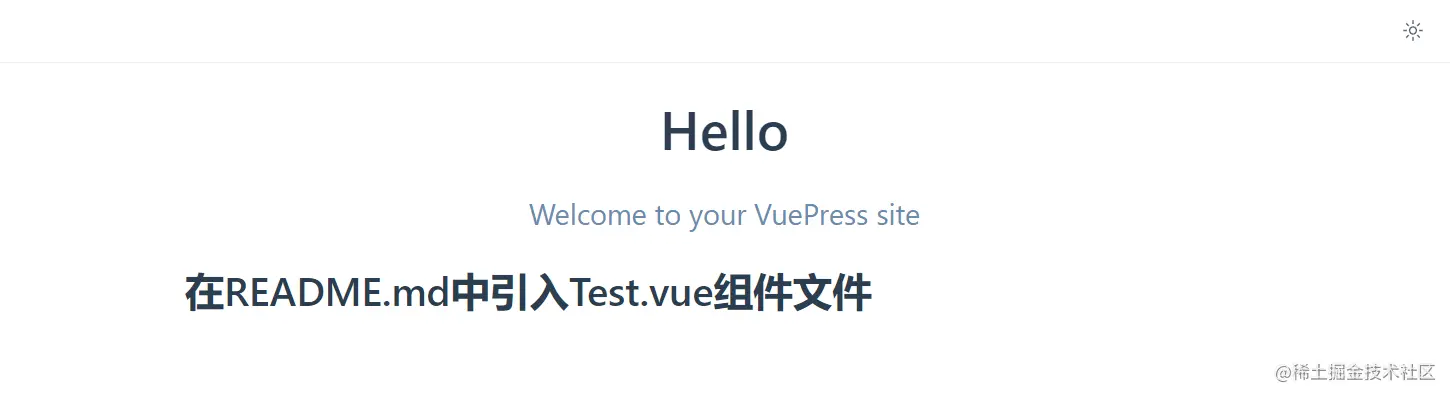

  1. 效果如下所示:

原文链接:【xie.infoq.cn/article/af3…
