前言

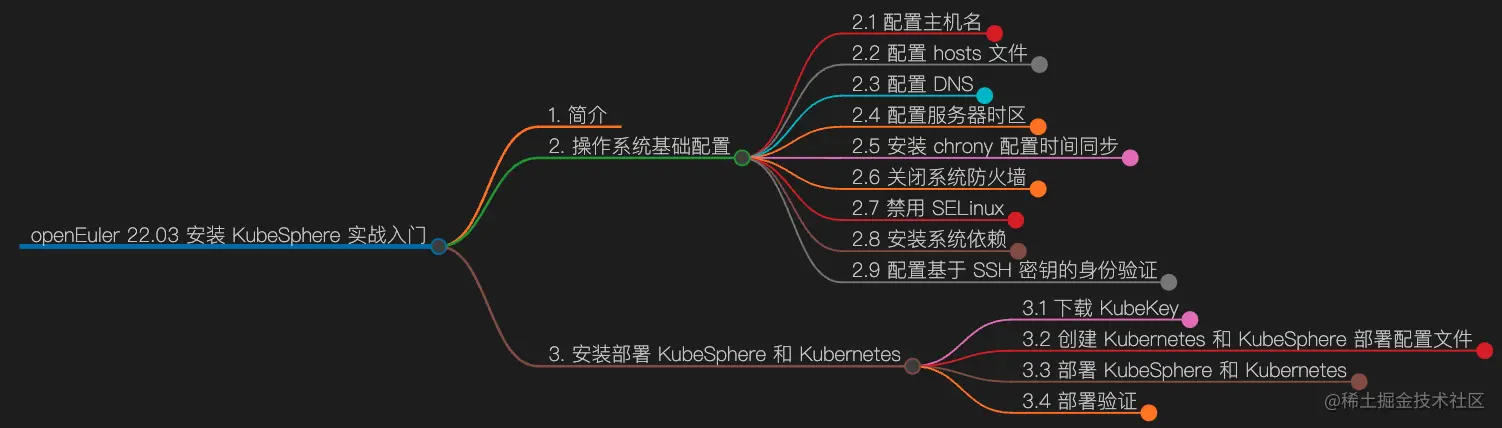

导图
知识量
- 阅读时长：15 分
- 行：866
- 单词：5600+
- 字符：40600+
- 图片：9 张
知识点
- 定级：入门级
- KubeKey 安装部署 KubeSphere 和 Kubernetes
- openEuler 操作系统的基本配置
实战服务器配置(架构1:1复刻小规模生产环境，配置略有不同)
| 主机名 | IP | CPU | 内存 | 系统盘 | 数据盘 | 用途 |
|---|---|---|---|---|---|---|
| ks-master-0 | 192.168.9.91 | 2 | 4 | 50 | 100 | KubeSphere/k8s-master |
| ks-master-1 | 192.168.9.92 | 2 | 4 | 50 | 100 | KubeSphere/k8s-master |
| ks-master-2 | 192.168.9.93 | 2 | 4 | 50 | 100 | KubeSphere/k8s-master |
| ks-worker-0 | 192.168.9.95 | 2 | 4 | 50 | 100 | k8s-worker/CI |
| ks-worker-1 | 192.168.9.96 | 2 | 4 | 50 | 100 | k8s-worker |
| ks-worker-2 | 192.168.9.97 | 2 | 4 | 50 | 100 | k8s-worker |
| storage-0 | 192.168.9.81 | 2 | 4 | 50 | 100+ | ElasticSearch/GlusterFS/Ceph/Longhorn/NFS/ |
| storage-1 | 192.168.9.82 | 2 | 4 | 50 | 100+ | ElasticSearch/GlusterFS/Ceph/Longhorn |
| storage-2 | 192.168.9.83 | 2 | 4 | 50 | 100+ | ElasticSearch/GlusterFS/Ceph/Longhorn |
| registry | 192.168.9.80 | 2 | 4 | 50 | 200 | Sonatype Nexus 3 |
| 合计 | 10 | 20 | 40 | 500 | 1100+ |
实战环境涉及软件版本信息
- 操作系统：openEuler 22.03 LTS SP2 x86_64
- KubeSphere：v3.3.2
- Kubernetes：v1.26.0
- Containerd：1.6.4
- KubeKey: v3.0.7
1. 本文简介
基于 KubeSphere 玩转 K8s 第二季系列文档，基于开源国产化操作系统 openEuler 全新打造，也算是在推进国产化浪潮、CentOS搞事情不能用等综合原因下的一种新的尝试。
本文属于本系列的开篇之作，介绍了如何在 openEuler 22.03 LTS SP2 X86 架构服务器上部署 KubeSphere 和 Kubernetes 集群。我们将使用 KubeSphere 开发的 KubeKey 工具实现自动化部署，模拟真实的小规模生产环境在 6 台服务器上实现高可用模式部署 Kubernetes 集群和 KubeSphere。
我们将提供详细的部署说明，以便读者轻松地完成并掌握实战部署 KubeSphere 和 Kubernetes 集群。
2. 操作系统基础配置
本系列实战文档，为了贴近生产，选用了 3 Master 和 3 Worker 的部署架构，后面为了实战模拟集群新增节点，因此，初始化部署时，仅使用 3 Master 和 1 Worker。在实际使用中，请根据实际情况修改。
请注意，以下操作无特殊说明时需在所有 openEuler 服务器上执行。本文只选取 Master-0 节点作为演示，并假定其余服务器都已按照相同的方式进行配置和设置。
2.1 配置主机名
hostnamectl hostname ks-master-0
注意： worker 节点的主机名前缀是 ks-worker-
2.2 配置 hosts 文件
编辑 /etc/hosts 文件，将规划的服务器 IP 和主机名添加到文件中。
192.168.9.91 ks-master-0
192.168.9.92 ks-master-1
192.168.9.93 ks-master-2
192.168.9.95 ks-worker-0
2.3 配置 DNS
echo "nameserver 114.114.114.114" > /etc/resolv.conf
2.4 配置服务器时区
配置服务器时区为 Asia/Shanghai。
timedatectl set-timezone Asia/Shanghai
验证服务器时区，正确配置如下。
[root@ks-master-0 kubekey]# timedatectl
Local time: Wed 2023-07-12 03:56:15 CST
Universal time: Tue 2023-07-11 19:56:15 UTC
RTC time: Wed 2023-07-12 10:57:47
Time zone: Asia/Shanghai (CST, +0800)
System clock synchronized: no
NTP service: active
RTC in local TZ: no
小技巧： 多个机器执行同一条命令的时候，可以用终端工具的多开功能，这样能提高效率。当然啊，也可以按我们第一季介绍的 Ansible 工具(这一季为了照顾纯运维小白，取消了，改手撸了)。
2.5 配置时间同步
安装 chrony 作为时间同步软件。
yum install chrony
修改配置文件 /etc/chrony.conf，修改 ntp 服务器配置。
vi /etc/chrony.conf
# 删除所有的 pool 配置
pool pool.ntp.org iburst
# 增加国内的 ntp 服务器，或是指定其他常用的时间服务器
pool cn.pool.ntp.org iburst
# 上面的手工操作，也可以使用 sed 自动替换
sed -i 's/^pool pool.*/pool cn.pool.ntp.org iburst/g' /etc/chrony.conf
重启并设置 chrony 服务开机自启动。
systemctl restart chronyd && systemctl enable chronyd
验证 chrony 同步状态。
# 执行查看命令
chronyc sourcestats -v
# 正常的输出结果如下
[root@ks-master-0 ~]# chronyc sourcestats -v
.- Number of sample points in measurement set.
/ .- Number of residual runs with same sign.
| / .- Length of measurement set (time).
| | / .- Est. clock freq error (ppm).
| | | / .- Est. error in freq.
| | | | / .- Est. offset.
| | | | | | On the -.
| | | | | | samples. \
| | | | | | |
Name/IP Address NP NR Span Frequency Freq Skew Offset Std Dev
==============================================================================
tick.ntp.infomaniak.ch 3 3 5 -8.929 122508 +2982us 436us
time.cloudflare.com 3 3 5 -3149.851 1402454 +7224us 4862us
a.chl.la 3 3 5 +269.081 221427 -5739us 1266us
2.6 关闭系统防火墙
systemctl stop firewalld && systemctl disable firewalld
2.7 禁用 SELinux
openEuler 22.03 SP2 最小化安装的系统默认启用了 SELinux，为了减少麻烦，我们所有的节点都禁用 SELinux。
# 使用 sed 修改配置文件，实现彻底的禁用
sed -i 's/^SELINUX=enforcing/SELINUX=disabled/' /etc/selinux/config
# 使用命令，实现临时禁用，这一步其实不做也行，KubeKey 会自动配置
setenforce 0
2.8 安装系统依赖
在所有节点上，以 root 用户登陆系统，执行下面的命令为 Kubernetes 安装系统基本依赖包。
# 安装 Kubernetes 系统依赖包
yum install curl socat conntrack ebtables ipset ipvsadm
# 安装其他必备包，openEuler 也是奇葩了，默认居然都不安装tar，不装的话后面会报错
yum install tar
2.9 配置基于 SSH 密钥的身份验证
KubeKey 支持在自动化部署 KubeSphere 和 Kubernetes 服务时，利用密码和密钥作为远程服务器的连接验证方式。本文会演示同时使用密码和密钥的配置方式，因此，需要为部署用户 root 配置免密码 SSH身份验证。
注意： 本小节为可选配置项，如果你使用纯密码的方式作为服务器远程连接认证方式，可以忽略本节内容。
本文将 master-0 节点作为部署节点，下面的操作仅需要在 master-0 节点操作。
以 root 用户登陆系统，然后使用 ssh-keygen 命令生成一个新的 SSH 密钥对，命令完成后，SSH 公钥和私钥将存储在 /root/.ssh 目录中。
ssh-keygen -t ed25519
命令执行效果如下：
[root@ks-master-0 ~]# ssh-keygen -t ed25519
Generating public/private ed25519 key pair.
Enter file in which to save the key (/root/.ssh/id_ed25519):
Created directory '/root/.ssh'.
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /root/.ssh/id_ed25519
Your public key has been saved in /root/.ssh/id_ed25519.pub
The key fingerprint is:
SHA256:RWMB252KcK7k6nZiwSJ2j1VjiwGqOHTrBHJpzmPxa0k root@ks-master-0
The key's randomart image is:
+--[ED25519 256]--+
| ..=. |
| . = o . |
| ... . o o o |
|.+=. . B o . |
|==o+. * S . |
|=.*+E= o |
|.+++++o |
| oBo. |
| =oo |
+----[SHA256]-----+
接下来，输入以下命令将 SSH 公钥从 master-0 节点发送到其他节点。命令执行时输入 yes，以接受服务器的 SSH 指纹，然后在出现提示时输入 root 用户的密码。
ssh-copy-id root@ks-master-0
ssh-copy-id root@ks-master-1
ssh-copy-id root@ks-master-2
ssh-copy-id root@ks-worker-0
下面是密钥复制时，正确的输出结果。
[root@ks-master-0 ~]# ssh-copy-id root@ks-master-0
/usr/bin/ssh-copy-id: INFO: Source of key(s) to be installed: "/root/.ssh/id_ed25519.pub"
The authenticity of host 'ks-master-0 (192.168.9.91)' can't be established.
ED25519 key fingerprint is SHA256:xri+nP+7NfGgMG7kSl+ZNVWJvvvJmHyWN6ZHdh0x3jI.
This key is not known by any other names
Are you sure you want to continue connecting (yes/no/[fingerprint])? yes
/usr/bin/ssh-copy-id: INFO: attempting to log in with the new key(s), to filter out any that are already installed
/usr/bin/ssh-copy-id: INFO: 1 key(s) remain to be installed -- if you are prompted now it is to install the new keys
Authorized users only. All activities may be monitored and reported.
root@ks-master-0's password:
Number of key(s) added: 1
Now try logging into the machine, with: "ssh 'root@ks-master-0'"
and check to make sure that only the key(s) you wanted were added.
添加并上传 SSH 公钥后，您现在可以执行下面的命令验证，通过 root 用户连接到所有服务器，无需密码验证。
[root@ks-master-0 ~]# ssh root@ks-master-0
# 登陆输出结果 略
3. 安装部署 KubeSphere 和 Kubernetes
3.1 下载 KubeKey
本文将 master-0 节点作为部署节点，把 KubeKey (下文简称kk) 最新版(v3.0.7)二进制文件下载到该服务器。具体 kk 版本号可以在kk发行页面查看。
- 下载最新版的 KubeKey
cd ~
mkdir kubekey
cd kubekey/
# 选择中文区下载(访问 GitHub 受限时使用)
export KKZONE=cn
curl -sfL https://get-kk.kubesphere.io | sh -
# 也可以使用下面的命令指定具体版本
curl -sfL https://get-kk.kubesphere.io | VERSION=v3.0.7 sh -
# 正确的执行效果如下
[root@ks-master-0 ~]# cd ~
[root@ks-master-0 ~]# mkdir kubekey
[root@ks-master-0 ~]# cd kubekey/
[root@ks-master-0 kubekey]# export KKZONE=cn
[root@ks-master-0 kubekey]# curl -sfL https://get-kk.kubesphere.io | sh -
Downloading kubekey v3.0.7 from https://kubernetes.pek3b.qingstor.com/kubekey/releases/download/v3.0.7/kubekey-v3.0.7-linux-amd64.tar.gz ...
Kubekey v3.0.7 Download Complete!
[root@ks-master-0 kubekey]# ll
total 111988
-rwxr-xr-x. 1 root root 78901793 Jan 18 09:59 kk
-rw-r--r--. 1 root root 35769576 Jul 11 23:45 kubekey-v3.0.7-linux-amd64.tar.gz
- 查看 KubeKey 支持的 Kubernetes 版本列表
./kk version --show-supported-k8s
# 输出如下
[root@ks-master-0 kubekey]# ./kk version --show-supported-k8s
v1.19.0
v1.19.8
v1.19.9
v1.19.15
v1.20.4
v1.20.6
v1.20.10
v1.21.0
v1.21.1
v1.21.2
v1.21.3
v1.21.4
v1.21.5
v1.21.6
v1.21.7
v1.21.8
v1.21.9
v1.21.10
v1.21.11
v1.21.12
v1.21.13
v1.21.14
v1.22.0
v1.22.1
v1.22.2
v1.22.3
v1.22.4
v1.22.5
v1.22.6
v1.22.7
v1.22.8
v1.22.9
v1.22.10
v1.22.11
v1.22.12
v1.22.13
v1.22.14
v1.22.15
v1.22.16
v1.22.17
v1.23.0
v1.23.1
v1.23.2
v1.23.3
v1.23.4
v1.23.5
v1.23.6
v1.23.7
v1.23.8
v1.23.9
v1.23.10
v1.23.11
v1.23.12
v1.23.13
v1.23.14
v1.23.15
v1.24.0
v1.24.1
v1.24.2
v1.24.3
v1.24.4
v1.24.5
v1.24.6
v1.24.7
v1.24.8
v1.24.9
v1.25.0
v1.25.1
v1.25.2
v1.25.3
v1.25.4
v1.25.5
v1.26.0
3.2 创建 Kubernetes 和 KubeSphere 部署配置文件
创建集群配置文件，本示例中，选择 KubeSphere v3.3.2 和 Kubernetes v1.26.0，同时，指定配置文件名称为 kubesphere-v3.3.2.yaml，如果不指定，默认的文件名为 config-sample.yaml。
./kk create config -f kubesphere-v3.3.2.yaml --with-kubernetes v1.26.0 --with-kubesphere v3.3.2
命令执行成功后，在当前目录会生成文件名为 kubesphere-v3.3.2.yaml 的配置文件。
[root@ks-master-0 kubekey]# ./kk create config -f kubesphere-v3.3.2.yaml --with-kubernetes v1.26.0 --with-kubesphere v3.3.2
Generate KubeKey config file successfully
[root@ks-master-0 kubekey]# ll
total 111996
-rwxr-xr-x. 1 root root 78901793 Jan 18 09:59 kk
-rw-r--r--. 1 root root 35769576 Jul 11 23:45 kubekey-v3.0.7-linux-amd64.tar.gz
-rw-r--r--. 1 root root 4680 Jul 11 23:47 kubesphere-v3.3.2.yaml
注意： 生成的默认配置文件内容较多，这里就不做过多展示了，大家可以自己查看。
本节示例采用 3 个节点作为 control-plane 节点，启用规划中的 1个 worker 节点。
编辑配置文件 kubesphere-v3.3.2.yaml，修改 hosts 和 roleGroups 等信息，修改说明如下。
- hosts：指定节点的 IP、ssh 用户、ssh 密码、ss h密钥，示例演示了同时使用密码和密钥的配置方法
- roleGroups：指定 ks-master-0、ks-master-1、ks-master-2 作为 etcd、control-plane、worker节点
- internalLoadbalancer： 启用内置的 HAProxy 负载均衡器
- domain：自定义了一个 opsman.top
- containerManager：使用了containerd
修改后的示例如下：
apiVersion: kubekey.kubesphere.io/v1alpha2
kind: Cluster
metadata:
name: sample
spec:
hosts:
- {name: ks-master-0, address: 192.168.9.91, internalAddress: 192.168.9.91, user: root, password: "P@88w0rd"}
- {name: ks-master-1, address: 192.168.9.92, internalAddress: 192.168.9.92, user: root, privateKeyPath: "~/.ssh/id_ed25519"}
- {name: ks-master-2, address: 192.168.9.93, internalAddress: 192.168.9.93, user: root, privateKeyPath: "~/.ssh/id_ed25519"}
- {name: ks-worker-0, address: 192.168.9.95, internalAddress: 192.168.9.95, user: root, privateKeyPath: "~/.ssh/id_ed25519"}
roleGroups:
etcd:
- ks-master-0
- ks-master-1
- ks-master-2
control-plane:
- ks-master-0
- ks-master-1
- ks-master-2
worker:
- ks-worker-0
controlPlaneEndpoint:
## Internal loadbalancer for apiservers
internalLoadbalancer: haproxy
domain: lb.opsman.top
address: ""
port: 6443
kubernetes:
version: v1.26.0
clusterName: opsman.top
autoRenewCerts: true
containerManager: containerd
etcd:
type: kubekey
network:
plugin: calico
kubePodsCIDR: 10.233.64.0/18
kubeServiceCIDR: 10.233.0.0/18
## multus support. https://github.com/k8snetworkplumbingwg/multus-cni
multusCNI:
enabled: false
registry:
privateRegistry: ""
namespaceOverride: ""
registryMirrors: []
insecureRegistries: []
addons: []
3.3 部署 KubeSphere 和 Kubernetes
接下来我们执行下面的命令，使用上面生成的配置文件部署 KubeSphere 和 Kubernetes。
./kk create cluster -f kubesphere-v3.3.2.yaml
上面的命令执行后，首先 kk 会检查部署 Kubernetes 的依赖及其他详细要求。检查合格后，系统将提示您确认安装。输入 yes 并按 ENTER 继续部署。
[root@ks-master-0 kubekey]# ./kk create cluster -f kubesphere-v3.3.2.yaml
_ __ _ _ __
| | / / | | | | / /
| |/ / _ _| |__ ___| |/ / ___ _ _
| | | | | '_ \ / _ \ \ / _ \ | | |
| |\ \ |_| | |_) | __/ |\ \ __/ |_| |
_| _/__,_|_.__/ ____| _/___|__, |
__/ |
|___/
23:55:58 CST [GreetingsModule] Greetings
23:55:59 CST message: [ks-worker-0]
Greetings, KubeKey!
23:56:00 CST message: [ks-master-1]
Greetings, KubeKey!
23:56:01 CST message: [ks-master-0]
Greetings, KubeKey!
23:56:01 CST message: [ks-master-2]
Greetings, KubeKey!
23:56:01 CST success: [ks-worker-0]
23:56:01 CST success: [ks-master-1]
23:56:01 CST success: [ks-master-0]
23:56:01 CST success: [ks-master-2]
23:56:01 CST [NodePreCheckModule] A pre-check on nodes
23:56:10 CST success: [ks-master-0]
23:56:10 CST success: [ks-master-2]
23:56:10 CST success: [ks-master-1]
23:56:10 CST success: [ks-worker-0]
23:56:10 CST [ConfirmModule] Display confirmation form
+-------------+------+------+---------+----------+-------+-------+---------+-----------+--------+--------+------------+------------+-------------+------------------+--------------+
| name | sudo | curl | openssl | ebtables | socat | ipset | ipvsadm | conntrack | chrony | docker | containerd | nfs client | ceph client | glusterfs client | time |
+-------------+------+------+---------+----------+-------+-------+---------+-----------+--------+--------+------------+------------+-------------+------------------+--------------+
| ks-master-0 | y | y | y | y | y | y | y | y | y | | | | | | CST 23:56:10 |
| ks-master-1 | y | y | y | y | y | y | y | y | y | | | | | | CST 23:55:57 |
| ks-master-2 | y | y | y | y | y | y | y | y | y | | | | | | CST 23:56:35 |
| ks-worker-0 | y | y | y | y | y | y | y | y | y | | | | | | CST 23:56:53 |
+-------------+------+------+---------+----------+-------+-------+---------+-----------+--------+--------+------------+------------+-------------+------------------+--------------+
This is a simple check of your environment.
Before installation, ensure that your machines meet all requirements specified at
https://github.com/kubesphere/kubekey#requirements-and-recommendations
Continue this installation? [yes/no]:
注意： 检查结果中我们可以看到 nfs client、ceph client、glusterfs client 3 个与存储有关的 client 显示没有安装，这个我们后期会在对接存储的实战中单独安装。
安装过程日志输出比较多，为了节省篇幅这里就不展示了。
部署完成需要大约10-30分钟左右，具体看网速和机器配置。
部署完成后，您应该会在终端上看到类似于下面的输出。提示部署完成的同时，输出中还会显示用户登陆 KubeSphere 的默认管理员用户和密码。
clusterconfiguration.installer.kubesphere.io/ks-installer created
00:18:48 CST skipped: [ks-master-2]
00:18:48 CST skipped: [ks-master-1]
00:18:48 CST success: [ks-master-0]
#####################################################
### Welcome to KubeSphere! ###
#####################################################
Console: http://192.168.9.91:30880
Account: admin
Password: P@88w0rd
NOTES：
1. After you log into the console, please check the
monitoring status of service components in
"Cluster Management". If any service is not
ready, please wait patiently until all components
are up and running.
2. Please change the default password after login.
#####################################################
https://kubesphere.io 2023-07-12 00:32:07
#####################################################
00:31:30 CST skipped: [ks-master-2]
00:31:30 CST skipped: [ks-master-1]
00:31:30 CST success: [ks-master-0]
00:31:30 CST Pipeline[CreateClusterPipeline] execute successfully
Installation is complete.
Please check the result using the command:
kubectl logs -n kubesphere-system $(kubectl get pod -n kubesphere-system -l 'app in (ks-install, ks-installer)' -o jsonpath='{.items[0].metadata.name}') -f
3.4 部署验证
- 验证 KubeSphere 管理控制台

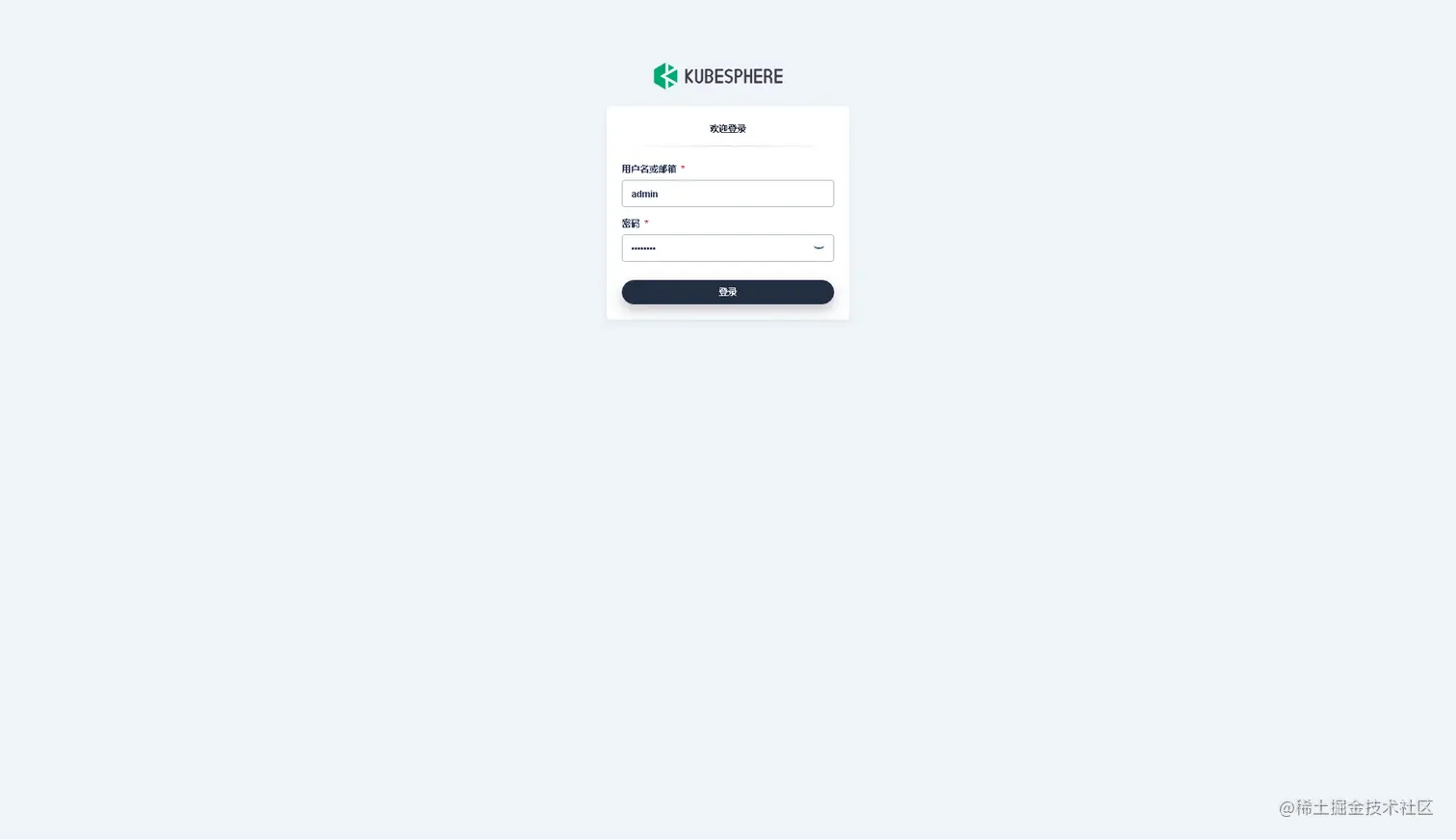

我们打开浏览器访问 master-0 节点的 IP 地址和端口 30880，可以看到 KubeSphere 管理控制台的登录页面。
输入默认用户 admin 和默认密码 P@88w0rd，然后点击「登录」。

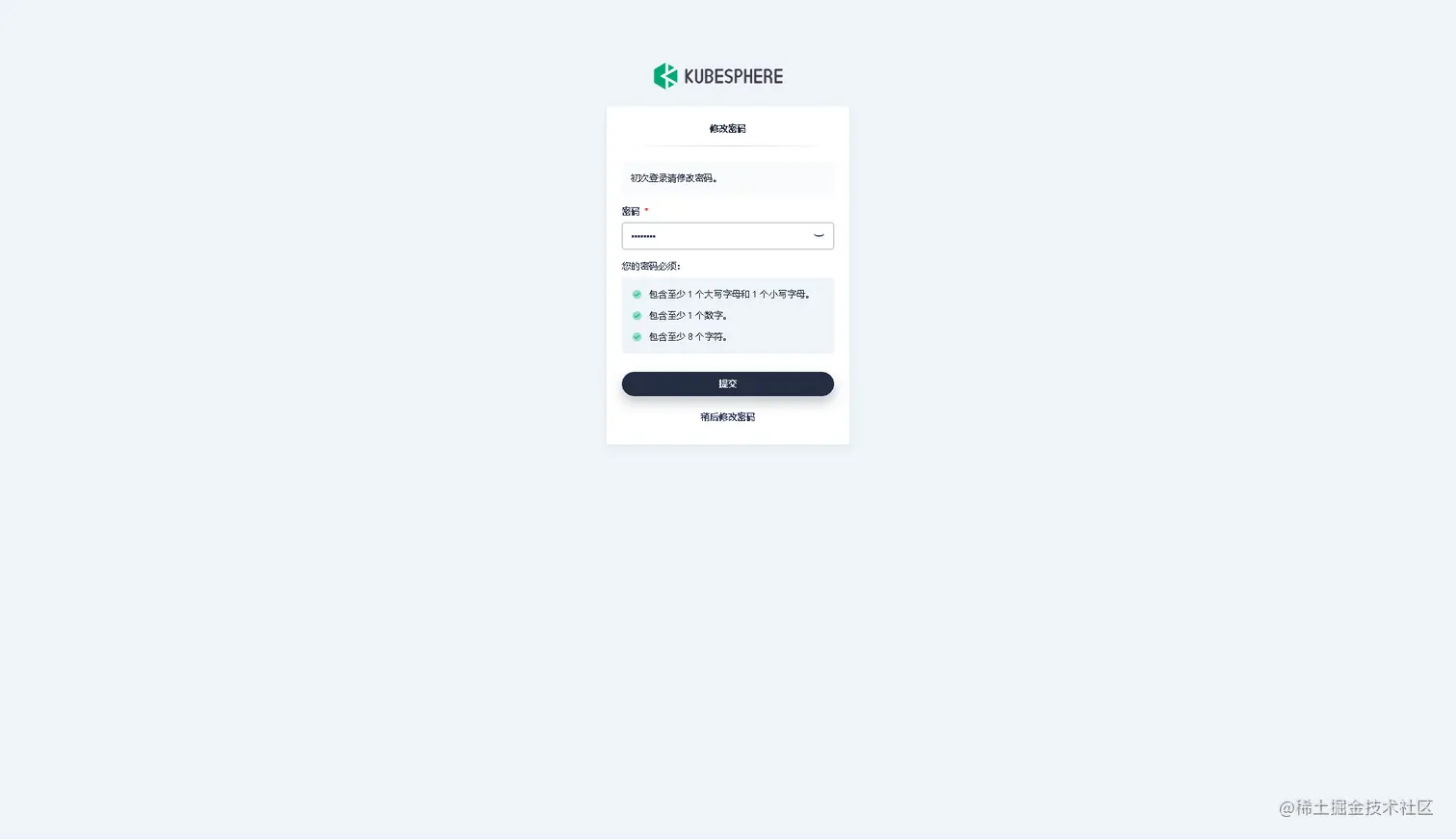

登录后，系统会要求您更改 KubeSphere 默认用户 admin 的默认密码，输入新的密码并点击「提交」。

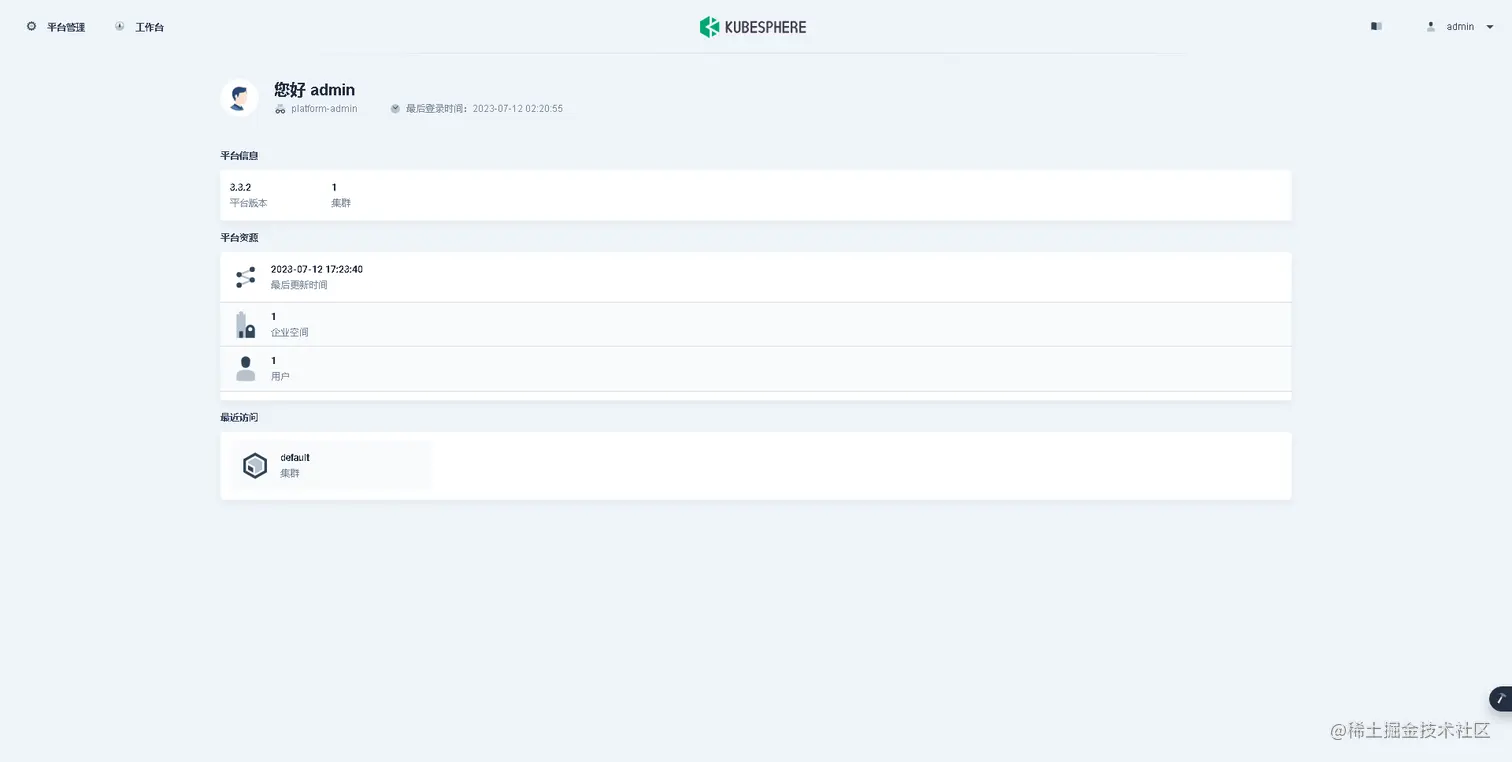

提交完成后，系统会跳转到 KubeSphere admin 用户工作台页面，该页面显示了当前 KubeSphere 版本为 v3.3.2，可用的 Kubernetes 集群数量为 1。

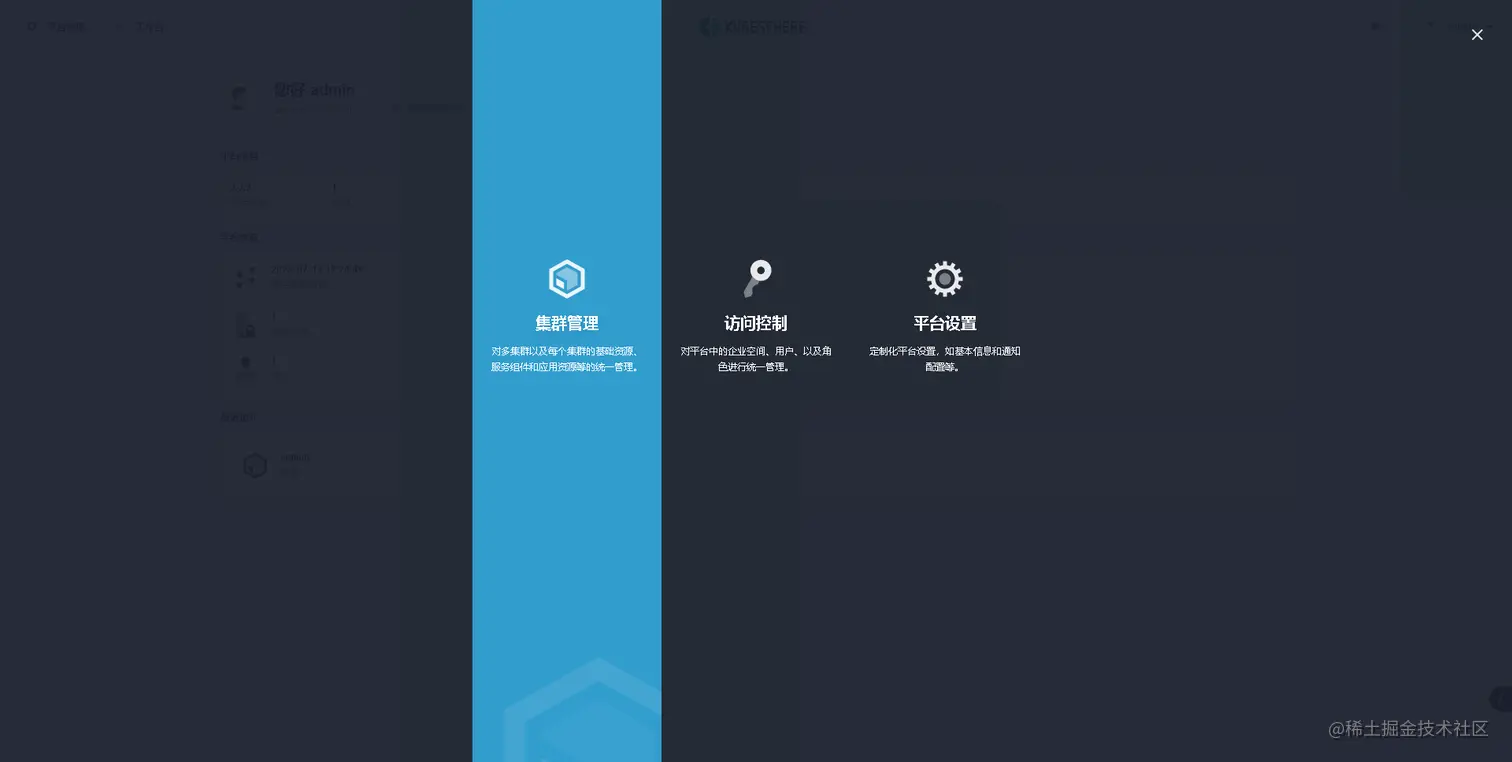

接下来，单击左上角的「平台管理」菜单，选择「集群管理」。

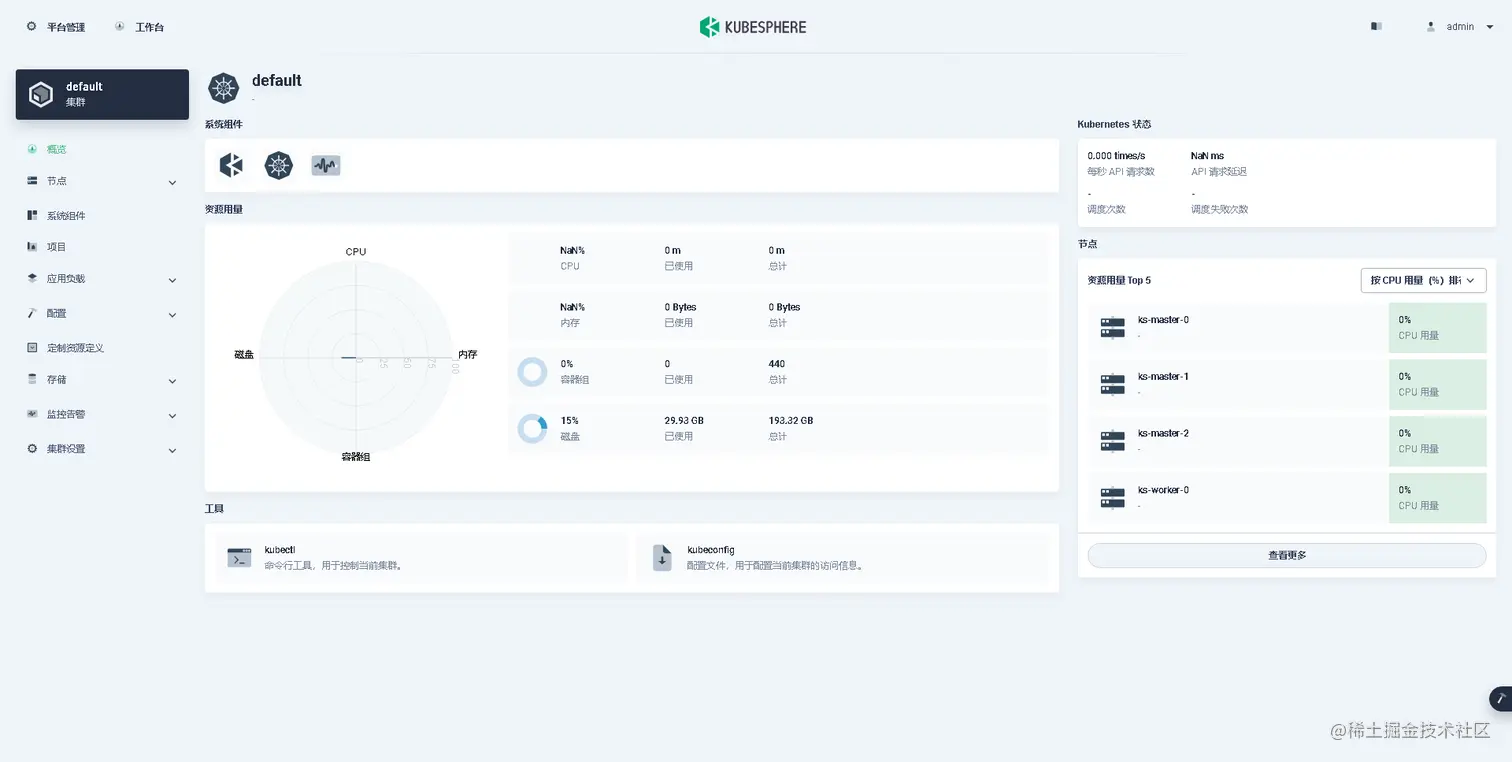

进入集群管理界面，在该页面可以查看集群的基本信息，包括集群资源用量、Kubernetes 状态、节点资源用量 Top、系统组件、工具箱等内容。

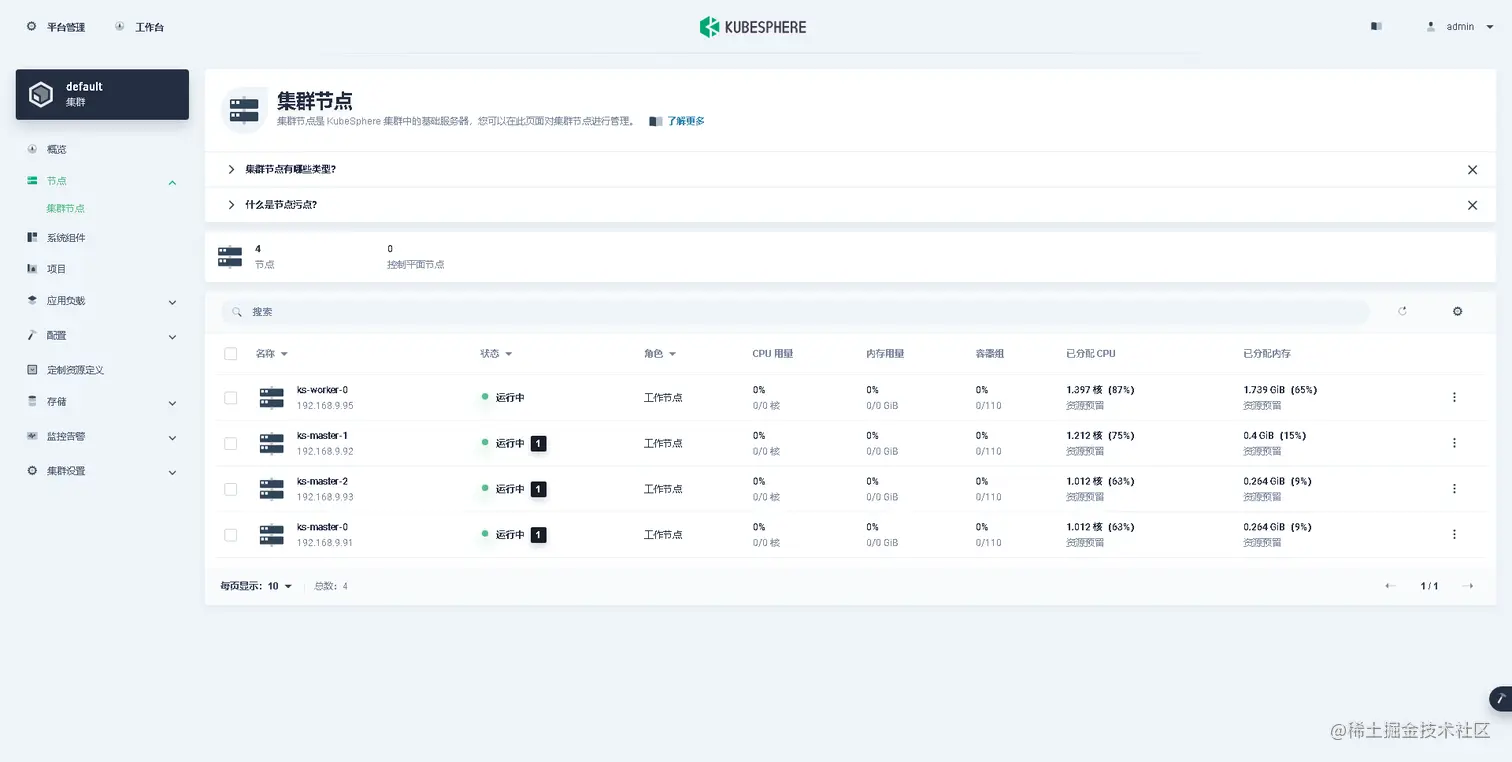

单击左侧「节点」菜单，点击「集群节点」可以查看 Kubernetes 集群可用节点的详细信息。
单击左侧「系统组件」菜单，可以查看已安装组件的详细信息。目前集群采用的最小化安装，仅包含 KubeSphere、Kubernetes、监控三个类别的组件。
说明：细心的读者可能会发现，上面的几张图表里CPU、内存等监控数据都为空，这个问题在 KubeSphere 3.3.2 版本中才开始出现，后面我们会给出解决办法，暂时先忽略。
- 命令行验证集群信息
- 查看集群节点信息
在 master-0 节点运行 kubectl 命令获取 Kubernetes 集群上的可用节点列表。
kubectl get nodes -o wide
在输出结果中可以看到，当前的 Kubernetes 集群有三个可用节点、节点的内部 IP、节点角色、节点的 Kubernetes 版本号、容器运行时及版本号、操作系统类型及内核版本等信息。
[root@ks-master-0 kubekey]# kubectl get nodes -o wide
NAME STATUS ROLES AGE VERSION INTERNAL-IP EXTERNAL-IP OS-IMAGE KERNEL-VERSION CONTAINER-RUNTIME
ks-master-0 Ready control-plane 25m v1.26.0 192.168.9.91 <none> openEuler 22.03 (LTS-SP2) 5.10.0-153.12.0.92.oe2203sp2.x86_64 containerd://1.6.4
ks-master-1 Ready control-plane 25m v1.26.0 192.168.9.92 <none> openEuler 22.03 (LTS-SP2) 5.10.0-153.12.0.92.oe2203sp2.x86_64 containerd://1.6.4
ks-master-2 Ready control-plane 25m v1.26.0 192.168.9.93 <none> openEuler 22.03 (LTS-SP2) 5.10.0-153.12.0.92.oe2203sp2.x86_64 containerd://1.6.4
ks-worker-0 Ready worker 25m v1.26.0 192.168.9.95 <none> openEuler 22.03 (LTS-SP2) 5.10.0-153.12.0.92.oe2203sp2.x86_64 containerd://1.6.4
- 查看 Pod 列表
输入以下命令获取在 Kubernetes 集群上运行的 Pod 列表，按默认顺序排序。
kubectl get pods -o wide -A
在输出结果中可以看到， Kubernetes 集群上有多个可用的命名空间 kube-system、kubesphere-control-system、kubesphere-monitoring-system 和 kubesphere-system，所有 pod 都在运行。
[root@ks-master-0 kubekey]# kubectl get pods -o wide -A
NAMESPACE NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
kube-system calico-kube-controllers-7f576895dd-gqgx7 1/1 Running 0 152m 10.233.115.1 ks-worker-0 <none> <none>
kube-system calico-node-69fjx 1/1 Running 0 152m 192.168.9.91 ks-master-0 <none> <none>
kube-system calico-node-9dfp6 1/1 Running 0 152m 192.168.9.95 ks-worker-0 <none> <none>
kube-system calico-node-hcnwb 1/1 Running 0 152m 192.168.9.93 ks-master-2 <none> <none>
kube-system calico-node-scncc 1/1 Running 0 152m 192.168.9.92 ks-master-1 <none> <none>
kube-system coredns-d9d84b5bf-pgs75 1/1 Running 0 154m 10.233.103.1 ks-master-1 <none> <none>
kube-system coredns-d9d84b5bf-vt8gk 1/1 Running 0 154m 10.233.103.2 ks-master-1 <none> <none>
kube-system haproxy-ks-worker-0 1/1 Running 0 153m 192.168.9.95 ks-worker-0 <none> <none>
kube-system kube-apiserver-ks-master-0 1/1 Running 0 154m 192.168.9.91 ks-master-0 <none> <none>
kube-system kube-apiserver-ks-master-1 1/1 Running 0 153m 192.168.9.92 ks-master-1 <none> <none>
kube-system kube-apiserver-ks-master-2 1/1 Running 0 153m 192.168.9.93 ks-master-2 <none> <none>
kube-system kube-controller-manager-ks-master-0 1/1 Running 0 154m 192.168.9.91 ks-master-0 <none> <none>
kube-system kube-controller-manager-ks-master-1 1/1 Running 0 153m 192.168.9.92 ks-master-1 <none> <none>
kube-system kube-controller-manager-ks-master-2 1/1 Running 0 153m 192.168.9.93 ks-master-2 <none> <none>
kube-system kube-proxy-28wwm 1/1 Running 0 152m 192.168.9.93 ks-master-2 <none> <none>
kube-system kube-proxy-4x5jt 1/1 Running 0 152m 192.168.9.92 ks-master-1 <none> <none>
kube-system kube-proxy-lvdvd 1/1 Running 0 152m 192.168.9.91 ks-master-0 <none> <none>
kube-system kube-proxy-zsj2m 1/1 Running 0 152m 192.168.9.95 ks-worker-0 <none> <none>
kube-system kube-scheduler-ks-master-0 1/1 Running 0 154m 192.168.9.91 ks-master-0 <none> <none>
kube-system kube-scheduler-ks-master-1 1/1 Running 0 153m 192.168.9.92 ks-master-1 <none> <none>
kube-system kube-scheduler-ks-master-2 1/1 Running 0 152m 192.168.9.93 ks-master-2 <none> <none>
kube-system nodelocaldns-428h9 1/1 Running 0 154m 192.168.9.91 ks-master-0 <none> <none>
kube-system nodelocaldns-dgf49 1/1 Running 0 153m 192.168.9.95 ks-worker-0 <none> <none>
kube-system nodelocaldns-gcmqw 1/1 Running 0 153m 192.168.9.92 ks-master-1 <none> <none>
kube-system nodelocaldns-p65sd 1/1 Running 0 153m 192.168.9.93 ks-master-2 <none> <none>
kube-system openebs-localpv-provisioner-5c7fdd7bd9-m4p7d 1/1 Running 0 151m 10.233.115.2 ks-worker-0 <none> <none>
kube-system snapshot-controller-0 1/1 Running 0 149m 10.233.115.4 ks-worker-0 <none> <none>
kubesphere-controls-system default-http-backend-767cdb5fdc-69ttd 1/1 Running 0 146m 10.233.115.5 ks-worker-0 <none> <none>
kubesphere-controls-system kubectl-admin-5656cd6dfc-2cxmp 1/1 Running 0 139m 10.233.115.15 ks-worker-0 <none> <none>
kubesphere-monitoring-system kube-state-metrics-5b8c487d5-v7pwg 3/3 Running 0 142m 10.233.115.8 ks-worker-0 <none> <none>
kubesphere-monitoring-system node-exporter-5wxf4 2/2 Running 0 142m 192.168.9.93 ks-master-2 <none> <none>
kubesphere-monitoring-system node-exporter-ccxbp 2/2 Running 0 142m 192.168.9.91 ks-master-0 <none> <none>
kubesphere-monitoring-system node-exporter-dnkbx 2/2 Running 0 142m 192.168.9.92 ks-master-1 <none> <none>
kubesphere-monitoring-system node-exporter-qjqd8 2/2 Running 0 142m 192.168.9.95 ks-worker-0 <none> <none>
kubesphere-monitoring-system prometheus-k8s-0 2/2 Running 0 142m 10.233.115.11 ks-worker-0 <none> <none>
kubesphere-monitoring-system prometheus-k8s-1 2/2 Running 0 142m 10.233.115.12 ks-worker-0 <none> <none>
kubesphere-monitoring-system prometheus-operator-6fb9967754-vlbrw 2/2 Running 0 142m 10.233.115.7 ks-worker-0 <none> <none>
kubesphere-system ks-apiserver-579fb669c7-5m6ds 1/1 Running 0 146m 10.233.115.14 ks-worker-0 <none> <none>
kubesphere-system ks-console-b5855d9f5-fwkxq 1/1 Running 0 146m 10.233.115.6 ks-worker-0 <none> <none>
kubesphere-system ks-controller-manager-b677bdb48-85fbt 1/1 Running 0 146m 10.233.115.13 ks-worker-0 <none> <none>
kubesphere-system ks-installer-5b5cc7f6c5-ghmj5 1/1 Running 0 151m 10.233.115.3 ks-worker-0 <none> <none>
输入以下命令获取在 Kubernetes 集群上运行的 Pod 列表，按工作负载在 NODE 上的分布排序。
kubectl get pods -o wide -A | sort -k 8
在输出结果中可以看到， Worker 节点上的负载是最多的，kube-system 命名空间之外的负载都放在了 Worker上。
[root@ks-master-0 kubekey]# kubectl get pods -o wide -A | sort -k 8
NAMESPACE NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
kubesphere-monitoring-system node-exporter-ccxbp 2/2 Running 0 147m 192.168.9.91 ks-master-0 <none> <none>
kube-system calico-node-69fjx 1/1 Running 0 156m 192.168.9.91 ks-master-0 <none> <none>
kube-system kube-apiserver-ks-master-0 1/1 Running 0 159m 192.168.9.91 ks-master-0 <none> <none>
kube-system kube-controller-manager-ks-master-0 1/1 Running 0 159m 192.168.9.91 ks-master-0 <none> <none>
kube-system kube-proxy-lvdvd 1/1 Running 0 157m 192.168.9.91 ks-master-0 <none> <none>
kube-system kube-scheduler-ks-master-0 1/1 Running 0 159m 192.168.9.91 ks-master-0 <none> <none>
kube-system nodelocaldns-428h9 1/1 Running 0 158m 192.168.9.91 ks-master-0 <none> <none>
kubesphere-monitoring-system node-exporter-dnkbx 2/2 Running 0 147m 192.168.9.92 ks-master-1 <none> <none>
kube-system calico-node-scncc 1/1 Running 0 156m 192.168.9.92 ks-master-1 <none> <none>
kube-system coredns-d9d84b5bf-pgs75 1/1 Running 0 158m 10.233.103.1 ks-master-1 <none> <none>
kube-system coredns-d9d84b5bf-vt8gk 1/1 Running 0 158m 10.233.103.2 ks-master-1 <none> <none>
kube-system kube-apiserver-ks-master-1 1/1 Running 0 157m 192.168.9.92 ks-master-1 <none> <none>
kube-system kube-controller-manager-ks-master-1 1/1 Running 0 157m 192.168.9.92 ks-master-1 <none> <none>
kube-system kube-proxy-4x5jt 1/1 Running 0 157m 192.168.9.92 ks-master-1 <none> <none>
kube-system kube-scheduler-ks-master-1 1/1 Running 0 157m 192.168.9.92 ks-master-1 <none> <none>
kube-system nodelocaldns-gcmqw 1/1 Running 0 157m 192.168.9.92 ks-master-1 <none> <none>
kubesphere-monitoring-system node-exporter-5wxf4 2/2 Running 0 147m 192.168.9.93 ks-master-2 <none> <none>
kube-system calico-node-hcnwb 1/1 Running 0 156m 192.168.9.93 ks-master-2 <none> <none>
kube-system kube-apiserver-ks-master-2 1/1 Running 0 157m 192.168.9.93 ks-master-2 <none> <none>
kube-system kube-controller-manager-ks-master-2 1/1 Running 0 157m 192.168.9.93 ks-master-2 <none> <none>
kube-system kube-proxy-28wwm 1/1 Running 0 157m 192.168.9.93 ks-master-2 <none> <none>
kube-system kube-scheduler-ks-master-2 1/1 Running 0 156m 192.168.9.93 ks-master-2 <none> <none>
kube-system nodelocaldns-p65sd 1/1 Running 0 157m 192.168.9.93 ks-master-2 <none> <none>
kubesphere-controls-system default-http-backend-767cdb5fdc-69ttd 1/1 Running 0 150m 10.233.115.5 ks-worker-0 <none> <none>
kubesphere-monitoring-system kube-state-metrics-5b8c487d5-v7pwg 3/3 Running 0 147m 10.233.115.8 ks-worker-0 <none> <none>
kubesphere-monitoring-system node-exporter-qjqd8 2/2 Running 0 147m 192.168.9.95 ks-worker-0 <none> <none>
kubesphere-monitoring-system prometheus-operator-6fb9967754-vlbrw 2/2 Running 0 147m 10.233.115.7 ks-worker-0 <none> <none>
kubesphere-system ks-console-b5855d9f5-fwkxq 1/1 Running 0 150m 10.233.115.6 ks-worker-0 <none> <none>
kubesphere-system ks-installer-5b5cc7f6c5-ghmj5 1/1 Running 0 156m 10.233.115.3 ks-worker-0 <none> <none>
kube-system calico-kube-controllers-7f576895dd-gqgx7 1/1 Running 0 156m 10.233.115.1 ks-worker-0 <none> <none>
kube-system calico-node-9dfp6 1/1 Running 0 156m 192.168.9.95 ks-worker-0 <none> <none>
kube-system haproxy-ks-worker-0 1/1 Running 0 157m 192.168.9.95 ks-worker-0 <none> <none>
kube-system kube-proxy-zsj2m 1/1 Running 0 157m 192.168.9.95 ks-worker-0 <none> <none>
kube-system nodelocaldns-dgf49 1/1 Running 0 157m 192.168.9.95 ks-worker-0 <none> <none>
kube-system openebs-localpv-provisioner-5c7fdd7bd9-m4p7d 1/1 Running 0 156m 10.233.115.2 ks-worker-0 <none> <none>
kube-system snapshot-controller-0 1/1 Running 0 153m 10.233.115.4 ks-worker-0 <none> <none>
kubesphere-controls-system kubectl-admin-5656cd6dfc-2cxmp 1/1 Running 0 143m 10.233.115.15 ks-worker-0 <none> <none>
kubesphere-monitoring-system prometheus-k8s-0 2/2 Running 0 146m 10.233.115.11 ks-worker-0 <none> <none>
kubesphere-monitoring-system prometheus-k8s-1 2/2 Running 0 146m 10.233.115.12 ks-worker-0 <none> <none>
kubesphere-system ks-apiserver-579fb669c7-5m6ds 1/1 Running 0 150m 10.233.115.14 ks-worker-0 <none> <none>
kubesphere-system ks-controller-manager-b677bdb48-85fbt 1/1 Running 0 150m 10.233.115.13 ks-worker-0 <none> <none>
注意：实战环境为了模拟生产新增节点，所以初始只加入了一个 Worker 节点，所以负载较高，实际使用中建议直接将所有 Worker 一起加入集群。
- 查看 Image 列表
输入以下命令获取在 Kubernetes 集群节点上已经下载的 Image 列表。
crictl images ls
在 Master 和 Worker 节点分别执行，输出结果如下：
# Master 节点
[root@ks-master-0 kubekey]# crictl images ls
IMAGE TAG IMAGE ID SIZE
registry.cn-beijing.aliyuncs.com/kubesphereio/cni v3.23.2 a87d3f6f1b8fd 111MB
registry.cn-beijing.aliyuncs.com/kubesphereio/coredns 1.9.3 5185b96f0becf 14.8MB
registry.cn-beijing.aliyuncs.com/kubesphereio/k8s-dns-node-cache 1.15.12 5340ba194ec91 42.1MB
registry.cn-beijing.aliyuncs.com/kubesphereio/kube-apiserver v1.26.0 a31e1d84401e6 35.3MB
registry.cn-beijing.aliyuncs.com/kubesphereio/kube-controller-manager v1.26.0 5d7c5dfd3ba18 32.2MB
registry.cn-beijing.aliyuncs.com/kubesphereio/kube-controllers v3.23.2 ec95788d0f725 56.4MB
registry.cn-beijing.aliyuncs.com/kubesphereio/kube-proxy v1.26.0 556768f31eb1d 21.5MB
registry.cn-beijing.aliyuncs.com/kubesphereio/kube-rbac-proxy v0.11.0 29589495df8d9 19.2MB
registry.cn-beijing.aliyuncs.com/kubesphereio/kube-scheduler v1.26.0 dafd8ad70b156 17.5MB
registry.cn-beijing.aliyuncs.com/kubesphereio/node-exporter v1.3.1 1dbe0e9319764 10.3MB
registry.cn-beijing.aliyuncs.com/kubesphereio/node v3.23.2 a3447b26d32c7 77.8MB
registry.cn-beijing.aliyuncs.com/kubesphereio/pause 3.8 4873874c08efc 310kB
registry.cn-beijing.aliyuncs.com/kubesphereio/pause 3.9 e6f1816883972 321kB
registry.cn-beijing.aliyuncs.com/kubesphereio/pod2daemon-flexvol v3.23.2 b21e2d7408a79 8.67MB
# Worker 节点
[root@ks-worker-0 ~]# crictl images ls
IMAGE TAG IMAGE ID SIZE
registry.cn-beijing.aliyuncs.com/kubesphereio/cni v3.23.2 a87d3f6f1b8fd 111MB
registry.cn-beijing.aliyuncs.com/kubesphereio/coredns 1.9.3 5185b96f0becf 14.8MB
registry.cn-beijing.aliyuncs.com/kubesphereio/defaultbackend-amd64 1.4 846921f0fe0e5 1.82MB
registry.cn-beijing.aliyuncs.com/kubesphereio/haproxy 2.3 0ea9253dad7c0 38.5MB
registry.cn-beijing.aliyuncs.com/kubesphereio/k8s-dns-node-cache 1.15.12 5340ba194ec91 42.1MB
registry.cn-beijing.aliyuncs.com/kubesphereio/ks-apiserver v3.3.2 37a47a554cae2 68.3MB
registry.cn-beijing.aliyuncs.com/kubesphereio/ks-console v3.3.2 684e2ec7ee7c1 38.7MB
registry.cn-beijing.aliyuncs.com/kubesphereio/ks-controller-manager v3.3.2 ce4308712bea2 63MB
registry.cn-beijing.aliyuncs.com/kubesphereio/ks-installer v3.3.2 d4c00015d9614 154MB
registry.cn-beijing.aliyuncs.com/kubesphereio/kube-controllers v3.23.2 ec95788d0f725 56.4MB
registry.cn-beijing.aliyuncs.com/kubesphereio/kube-proxy v1.26.0 556768f31eb1d 21.5MB
registry.cn-beijing.aliyuncs.com/kubesphereio/kube-rbac-proxy v0.11.0 29589495df8d9 19.2MB
registry.cn-beijing.aliyuncs.com/kubesphereio/kube-state-metrics v2.5.0 b781b8478c274 11.9MB
registry.cn-beijing.aliyuncs.com/kubesphereio/kubectl v1.22.0 30c7baa8e18c0 26.6MB
registry.cn-beijing.aliyuncs.com/kubesphereio/linux-utils 3.3.0 e88cfb3a763b9 26.9MB
registry.cn-beijing.aliyuncs.com/kubesphereio/node-exporter v1.3.1 1dbe0e9319764 10.3MB
registry.cn-beijing.aliyuncs.com/kubesphereio/node v3.23.2 a3447b26d32c7 77.8MB
registry.cn-beijing.aliyuncs.com/kubesphereio/pause 3.8 4873874c08efc 310kB
registry.cn-beijing.aliyuncs.com/kubesphereio/pod2daemon-flexvol v3.23.2 b21e2d7408a79 8.67MB
registry.cn-beijing.aliyuncs.com/kubesphereio/prometheus-config-reloader v0.55.1 7c63de88523a9 4.84MB
registry.cn-beijing.aliyuncs.com/kubesphereio/prometheus-operator v0.55.1 b30c215b787f5 14.3MB
registry.cn-beijing.aliyuncs.com/kubesphereio/prometheus v2.34.0 e3cf894a63f55 78.1MB
registry.cn-beijing.aliyuncs.com/kubesphereio/provisioner-localpv 3.3.0 739e82fed8b2c 28.8MB
registry.cn-beijing.aliyuncs.com/kubesphereio/snapshot-controller v4.0.0 f1d8a00ae690f 19MB
注意： Worker 节点的 Image 较多，因为该节点运行了除 K8S 核心服务之外的其他服务。
至此，我们已经部署了具有三个 Master 节点和一个 Worker 节点的最小化的 Kubernetes 集群和 KubeSphere。我们还通过 KubeSphere 管理控制台和命令行界面查看了集群的状态。
结束语
本文主要实战演示了在 openEuler 22.03 LTS SP2 服务器上利用 KubeKey 自动化部署 KubeSphere 和 Kubernetes 高可用集群的详细过程。
部署完成后，我们还利用 KubeSphere 管理控制台和 kubectl 命令行，查看并验证了 KubeSphere 和 Kubernetes 集群的状态。
下一期，我们会实战演示，如何将新的节点加入已有集群，请持续关注。
基于 KubeSphere 玩转 K8S 第二季系列文档，是运维有术推出的基于 KubeSphere 玩转 K8S 第二季实战训练营的实战文档。
想获取更多的KubeSphere、Kubernetes、云原生运维实战技能，请持续关注我，也可以直接加入我的知识星球。
如果你喜欢本文，请分享给你的小伙伴！
本系列文档内容涵盖 (但不限于) 以下技术领域：
- KubeSphere
- Kubernetes
- Ansible
- 自动化运维
- CNCF 技术栈
Get 文档/代码
- 知识星球-运维有术
版权声明
- 所有内容均属于原创，整理不易，感谢收藏，转载请标明出处。
About Me
- 昵称：无名运维侠
- 职业：自由职业者
- 微信：运维有术(公号菜单/与我联系)
- 服务的领域：云计算 / 云原生技术运维，自动化运维，大数据
- 技能标签：OpenStack、Kubernetes、KubeSphere、Ansible、Python、Go、DevOps、CNCF
