引言
作为一个云原生的开发者，我们常常会与k8s集群打交道，与集群打交道的第一步，那肯定就是kubeconfig了。不知道从何时起，我们对kubeconfig的理解停留在了非常浅薄的程度，仅限于知道如何使用kubeconfig来连接k8s集群，但是，了解到这个程度真的够么？？？
今天我就抽空梳理了有关kubeconfig相关的知识点以及一些常用的方法，旨在帮助大家深入了解kubeconfig。
简介
首先我们需要明确的是，用于配置集群访问的文件称为 kubeconfig 文件，并不是说有某一个文件的文件名叫kubeconfig。默认情况下，kubectl 在 $HOME/.kube 目录下查找名为 config 的文件。 此外，还可以通过设置 KUBECONFIG 环境变量或者设置 --kubeconfig参数来指定其他 kubeconfig 文件。
- 如果
KUBECONFIG环境变量不存在，kubectl将使用默认的 kubeconfig 文件：$HOME/.kube/config。 - --kubeconfig的用法：
kubectl --kubeconfig /custom/path/kube.config get pods -n default
kubeconfig组成

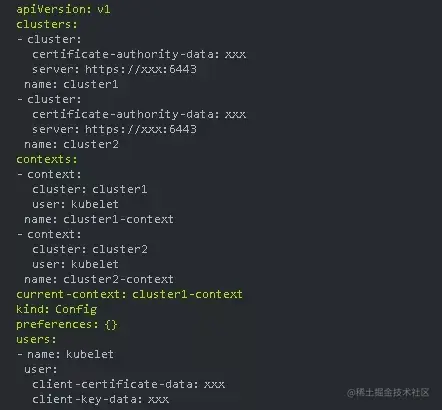

我们一起来看一下kubeconfig的组成：
除了apiVersion，kind等常见字段，我们重点看以下3个字段：
clusters
// Clusters is a map of referencable names to cluster configs
Clusters map[string]*Cluster `json:"clusters"`
// Cluster contains information about how to communicate with a kubernetes cluster
type Cluster struct {
// LocationOfOrigin indicates where this object came from. It is used for round tripping config post-merge, but never serialized.
// +k8s:conversion-gen=false
LocationOfOrigin string
// Server is the address of the kubernetes cluster (https://hostname:port).
Server string `json:"server"`
// TLSServerName is used to check server certificate. If TLSServerName is empty, the hostname used to contact the server is used.
// +optional
TLSServerName string `json:"tls-server-name,omitempty"`
// InsecureSkipTLSVerify skips the validity check for the server's certificate. This will make your HTTPS connections insecure.
// +optional
InsecureSkipTLSVerify bool `json:"insecure-skip-tls-verify,omitempty"`
// CertificateAuthority is the path to a cert file for the certificate authority.
// +optional
CertificateAuthority string `json:"certificate-authority,omitempty"`
// CertificateAuthorityData contains PEM-encoded certificate authority certificates. Overrides CertificateAuthority
// +optional
CertificateAuthorityData []byte `json:"certificate-authority-data,omitempty"`
// ProxyURL is the URL to the proxy to be used for all requests made by this
// client. URLs with "http", "https", and "socks5" schemes are supported. If
// this configuration is not provided or the empty string, the client
// attempts to construct a proxy configuration from http_proxy and
// https_proxy environment variables. If these environment variables are not
// set, the client does not attempt to proxy requests.
//
// socks5 proxying does not currently support spdy streaming endpoints (exec,
// attach, port forward).
// +optional
ProxyURL string `json:"proxy-url,omitempty"`
// Extensions holds additional information. This is useful for extenders so that reads and writes don't clobber unknown fields
// +optional
Extensions map[string]runtime.Object `json:"extensions,omitempty"`
}
clusters是map类型，键是集群的名称，是集群的唯一标识，值是一个名为Cluster的结构体。虽然Clusters这个结构体中包含的字段很多，但是常用的就是以下4个字段：
- server（必填）：kube-apiserver的地址，通常是如下格式：https://hostname:port，如果忽略了port，则默认port是443.
- insecure-skip-tls-verify（可选）：默认是false，当设置为true时，将跳过证书认证。
- certificate-authority（可选）：填写的是ca证书的存放路径。
- certificate-authority-data（可选）：填写的是ca证书的内容。
Clusters 中的certificate-authority表示的是服务端的ca证书，用于验证服务端证书apiserver.crt的正确性。
users
// AuthInfos is a map of referencable names to user configs
AuthInfos map[string]*AuthInfo `json:"users"`
// AuthInfo contains information that describes identity information. This is use to tell the kubernetes cluster who you are.
type AuthInfo struct {
// LocationOfOrigin indicates where this object came from. It is used for round tripping config post-merge, but never serialized.
// +k8s:conversion-gen=false
LocationOfOrigin string
// ClientCertificate is the path to a client cert file for TLS.
// +optional
ClientCertificate string `json:"client-certificate,omitempty"`
// ClientCertificateData contains PEM-encoded data from a client cert file for TLS. Overrides ClientCertificate
// +optional
ClientCertificateData []byte `json:"client-certificate-data,omitempty"`
// ClientKey is the path to a client key file for TLS.
// +optional
ClientKey string `json:"client-key,omitempty"`
// ClientKeyData contains PEM-encoded data from a client key file for TLS. Overrides ClientKey
// +optional
ClientKeyData []byte `json:"client-key-data,omitempty" datapolicy:"security-key"`
// Token is the bearer token for authentication to the kubernetes cluster.
// +optional
Token string `json:"token,omitempty" datapolicy:"token"`
// TokenFile is a pointer to a file that contains a bearer token (as described above). If both Token and TokenFile are present, Token takes precedence.
// +optional
TokenFile string `json:"tokenFile,omitempty"`
// Impersonate is the username to act-as.
// +optional
Impersonate string `json:"act-as,omitempty"`
// ImpersonateUID is the uid to impersonate.
// +optional
ImpersonateUID string `json:"act-as-uid,omitempty"`
// ImpersonateGroups is the groups to impersonate.
// +optional
ImpersonateGroups []string `json:"act-as-groups,omitempty"`
// ImpersonateUserExtra contains additional information for impersonated user.
// +optional
ImpersonateUserExtra map[string][]string `json:"act-as-user-extra,omitempty"`
// Username is the username for basic authentication to the kubernetes cluster.
// +optional
Username string `json:"username,omitempty"`
// Password is the password for basic authentication to the kubernetes cluster.
// +optional
Password string `json:"password,omitempty" datapolicy:"password"`
// AuthProvider specifies a custom authentication plugin for the kubernetes cluster.
// +optional
AuthProvider *AuthProviderConfig `json:"auth-provider,omitempty"`
// Exec specifies a custom exec-based authentication plugin for the kubernetes cluster.
// +optional
Exec *ExecConfig `json:"exec,omitempty"`
// Extensions holds additional information. This is useful for extenders so that reads and writes don't clobber unknown fields
// +optional
Extensions map[string]runtime.Object `json:"extensions,omitempty"`
}
users字段同样是一个map类型，键是user的名称，值是名为AuthInfo的结构体。users中主要是包含了用户的证书和密钥，用于校验用户的身份。
context
集群参数和用户参数可以同时设置多对，而context的作用就是集群参数和用户参数关联起来，current-context的参数则是指定该kubeconfig默认使用的cluster和user。
// Contexts is a map of referencable names to context configs
Contexts map[string]*Context `json:"contexts"`
// CurrentContext is the name of the context that you would like to use by default
CurrentContext string `json:"current-context"`
kubeconfig生成
本节介绍如何使用kubectl的方式生成kubeconfig。
场景：假设要给用户jack生成一个kubeconfig，只具有jack命名空间下的所有pod的get，list和watch的权限。
- 生成证书
证书的生成参考：kubernetes.io/zh-cn/docs/…
- 创建Role和RoleBinding
kind: Role
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
namespace: jack
name: test-role
rules:
- apiGroups: [""]
resources: ["pods"]
verbs: ["*"]
---
kind: RoleBinding
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
name: test-jack
namespace: jack
subjects:
- kind: User
name: jack
apiGroup: ""
roleRef:
kind: Role
name: test-role
apiGroup: ""
- 生成kubeconfig
# set-cluster 设置集群参数
kubectl config set-cluster kubernetes \
--certificate-authority=/etc/kubernetes/pki/ca.pem \
--embed-certs=true \
--server=https://xx:6443 \
--kubeconfig=jack.conf
# set-credentials 设置证书参数
kubectl config set-credentials jack \
--client-certificate=/etc/kubernetes/pki/jack.pem \
--embed-certs=true \
--client-key=/etc/kubernetes/pki/jack-key.pem \
--kubeconfig=jack.conf
# set-context 设置上下文参数
kubectl config set-context jack@kubernetes \
--cluster=kubernetes \
--user=jack \
--kubeconfig=jack.conf
# set default context 设置默认的上下文
kubectl config use-context jack@kubernetes --kubeconfig=jack.conf
