栈帧

什么是栈帧？

每一次函数的调用,都会在调用栈(call stack)上维护一个独立的栈帧(stack frame).每个独立的栈帧一般包括:

函数的返回地址和参数
临时变量: 包括函数的非静态局部变量以及编译器自动生成的其他临时变量
函数调用的上下文

栈是从高地址向低地址延伸,一个函数的栈帧用 bp 和 sp 这两个寄存器来划定范围。bp 指向当前的栈帧的底部,，sp 始终指向栈帧的顶部

不同语言的调用过程的栈帧是不同的，但是可以过栈数据的变化分析。

接下来分析 C++ 和 Go 的栈帧变化。

C++ 栈帧

平台 linux，结构 x86_64，gcc 未开编译优化。源码定义 sum 函数，输入 8 个 long 参数，返回 1 个 long。

1: long sum(long a, long b, long c, long d, long e, long f, long g, long h) {
2:     long i = a + b + c + d + e + f + g;
3:     return h;
4: }
5:
6: int main() {
7:     int a = 10;
8:     long c = sum(1, 2, 3, 4, 5, 6, 7, 8);
9:     return c;
10:}

编译后 gdb 调试：

> g++ -g x86_64.cc -o x86_64
> gdb x86_64

打断点，单步调试记录主要寄存器变化:

行数	rdi	rsi	rdx	rcx	r8	r9	rbp	rsp	rax	rip
7	0x1	0x7fffffffdf08	0x7fffffffdf18	0x7ffff7fbc718	0x0	0x7ffff7fe21b0	0x7fffffffde10	0x7fffffffde00	0x555555555179	0x555555555181
8	0x1	0x7fffffffdf08	0x7fffffffdf18	0x7ffff7fbc718	0x0	0x7ffff7fe21b0	0x7fffffffde10	0x7fffffffde00	0x555555555179	0x555555555188
2	0x1	0x2	0x3	0x4	0x5	0x6	0x7fffffffdde0	0x7fffffffdde0	0x555555555179	0x555555555141
3	0x1	0x2	0x15	0x4	0x5	0x6	0x7fffffffdde0	0x7fffffffdde0	0x1c	0x555555555173
4	0x1	0x2	0x15	0x4	0x5	0x6	0x7fffffffdde0	0x7fffffffdde0	0x8	0x555555555177
9	0x1	0x2	0x15	0x4	0x5	0x6	0x7fffffffde10	0x7fffffffde00	0x8	0x5555555551b9
10	0x1	0x2	0x15	0x4	0x5	0x6	0x7fffffffde10	0x7fffffffde00	0x8	0x5555555551bd

全局代码段数据

(gdb) x/60i 0x555555555120
0x555555555120 <frame_dummy>:        jmp    0x5555555550a0 <register_tm_clones>
   0x555555555125 <_Z3sumllllllll>:     push   %rbp
   0x555555555126 <_Z3sumllllllll+1>:   mov    %rsp,%rbp
   0x555555555129 <_Z3sumllllllll+4>:   mov    %rdi,-0x18(%rbp)
   0x55555555512d <_Z3sumllllllll+8>:   mov    %rsi,-0x20(%rbp)
   0x555555555131 <_Z3sumllllllll+12>:  mov    %rdx,-0x28(%rbp)
   0x555555555135 <_Z3sumllllllll+16>:  mov    %rcx,-0x30(%rbp)
   0x555555555139 <_Z3sumllllllll+20>:  mov    %r8,-0x38(%rbp)
   0x55555555513d <_Z3sumllllllll+24>:  mov    %r9,-0x40(%rbp)
   0x555555555141 <_Z3sumllllllll+28>:  mov    -0x18(%rbp),%rdx
   0x555555555145 <_Z3sumllllllll+32>:  mov    -0x20(%rbp),%rax
   0x555555555149 <_Z3sumllllllll+36>:  add    %rax,%rdx
   0x55555555514c <_Z3sumllllllll+39>:  mov    -0x28(%rbp),%rax
   0x555555555150 <_Z3sumllllllll+43>:  add    %rax,%rdx
   0x555555555153 <_Z3sumllllllll+46>:  mov    -0x30(%rbp),%rax
   0x555555555157 <_Z3sumllllllll+50>:  add    %rax,%rdx
   0x55555555515a <_Z3sumllllllll+53>:  mov    -0x38(%rbp),%rax
   0x55555555515e <_Z3sumllllllll+57>:  add    %rax,%rdx
   0x555555555161 <_Z3sumllllllll+60>:  mov    -0x40(%rbp),%rax
   0x555555555165 <_Z3sumllllllll+64>:  add    %rax,%rdx
   0x555555555168 <_Z3sumllllllll+67>:  mov    0x10(%rbp),%rax
   0x55555555516c <_Z3sumllllllll+71>:  add    %rdx,%rax
   0x55555555516f <_Z3sumllllllll+74>:  mov    %rax,-0x8(%rbp)
   0x555555555173 <_Z3sumllllllll+78>:  mov    0x18(%rbp),%rax
   0x555555555177 <_Z3sumllllllll+82>:  pop    %rbp
   0x555555555178 <_Z3sumllllllll+83>:  ret
   0x555555555179 <main()>:     push   %rbp
   0x55555555517a <main()+1>:   mov    %rsp,%rbp
   0x55555555517d <main()+4>:   sub    $0x10,%rsp
   0x555555555181 <main()+8>:   movl   $0xa,-0x4(%rbp)
   0x555555555188 <main()+15>:  push   $0x8
   0x55555555518a <main()+17>:  push   $0x7
   0x55555555518c <main()+19>:  mov    $0x6,%r9d
   0x555555555192 <main()+25>:  mov    $0x5,%r8d
   0x555555555198 <main()+31>:  mov    $0x4,%ecx
   0x55555555519d <main()+36>:  mov    $0x3,%edx
   0x5555555551a2 <main()+41>:  mov    $0x2,%esi
   0x5555555551a7 <main()+46>:  mov    $0x1,%edi
   0x5555555551ac <main()+51>:  call   0x555555555125 <_Z3sumllllllll>
   0x5555555551b1 <main()+56>:  add    $0x10,%rsp
   0x5555555551b5 <main()+60>:  mov    %rax,-0x10(%rbp)
   0x5555555551b9 <main()+64>:  mov    -0x10(%rbp),%rax
   0x5555555551bd <main()+68>:  leave
   0x5555555551be <main()+69>:  ret

堆栈变化图：

从 C 语言的栈帧中可知，当调用另一个函数时，会将函数返回的下一条指令地址压栈，然后在新函数中会储存原函数的堆栈参数，另起新栈使用。新函数处理数据后，会根据不同版本的调用约定执行堆栈的清理。

go 栈帧

平台 linux，go 1.17，关闭内联优化。

源代码如下，定义 11 个入参的 test 函数，增加 1 后返回 11 个参数。

1: package main
2:
3: func test(a, b, c, d, e, f, g, h, i, j, k int) (
4:     int, int, int, int, int, int, int, int, int, int, int,
5: ) {
6:    return a + 1, b + 1, c + 1, d + 1, e + 1, f + 1, g + 1, h + 1, i + 1, j + 1, k + 1
7: }
8:
9: func main() {
10:     a := 1
11:    _, _, _, _, _, _, _, _, _, _, _ = test(a, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11)
12:}

编译后 gdb 调试：

> go build -gcflags=all="-N -l" call_convention.go
> gdb call_convention

打断点，单步调试记录执行到指定源代码行数时，主要寄存器变化:

行数	rax	rbx	rcx	rdi	rsi	r8	r9	r10	r11	rbp	rsp	rip
10	0x459b80	0x0	0x0	0x1	0x1	0xc000180000	0x0	0x7fffffffde10	0x0	0xc00003c770	0xc00003c700	0x459b94
11	0x459b80	0x0	0x0	0x1	0x1	0xc000180000	0x0	0x7fffffffffffffff	0x0	0xc00003c770	0xc00003c700	0x459b9d
3	0x1	0x2	0x3	0x4	0x5	0x6	0x7	0x8	0x9	0xc00003c770	0xc00003c6f8	0x4599e0
6	0x1	0x2	0x3	0x4	0x5	0x6	0x7	0x8	0x9	0xc00003c6f0	0xc00003c6a8	0x459a95
12	0x2	0x3	0x4	0x5	0x6	0x7	0x8	0x9	0xa	0xc00003c770	0xc00003c700	0x459be5

全局代码段数据

   0x4599e0 <main.test>:        sub    $0x50,%rsp
   0x4599e4 <main.test+4>:      mov    %rbp,0x48(%rsp)
   0x4599e9 <main.test+9>:      lea    0x48(%rsp),%rbp
   0x4599ee <main.test+14>:     mov    %rax,0x78(%rsp)
   0x4599f3 <main.test+19>:     mov    %rbx,0x80(%rsp)
   0x4599fb <main.test+27>:     mov    %rcx,0x88(%rsp)
   0x459a03 <main.test+35>:     mov    %rdi,0x90(%rsp)
   0x459a0b <main.test+43>:     mov    %rsi,0x98(%rsp)
   0x459a13 <main.test+51>:     mov    %r8,0xa0(%rsp)
   0x459a1b <main.test+59>:     mov    %r9,0xa8(%rsp)
   0x459a23 <main.test+67>:     mov    %r10,0xb0(%rsp)
   0x459a2b <main.test+75>:     mov    %r11,0xb8(%rsp)
   0x459a33 <main.test+83>:     movq   $0x0,0x40(%rsp)
   0x459a3c <main.test+92>:     movq   $0x0,0x38(%rsp)
   0x459a45 <main.test+101>:    movq   $0x0,0x30(%rsp)
   0x459a4e <main.test+110>:    movq   $0x0,0x28(%rsp)
   0x459a57 <main.test+119>:    movq   $0x0,0x20(%rsp)
   0x459a60 <main.test+128>:    movq   $0x0,0x18(%rsp)
   0x459a69 <main.test+137>:    movq   $0x0,0x10(%rsp)
   0x459a72 <main.test+146>:    movq   $0x0,0x8(%rsp)
   0x459a7b <main.test+155>:    movq   $0x0,(%rsp)
   0x459a83 <main.test+163>:    movq   $0x0,0x68(%rsp)
   0x459a8c <main.test+172>:    movq   $0x0,0x70(%rsp)
   0x459a95 <main.test+181>:    mov    0x78(%rsp),%rdx
   0x459a9a <main.test+186>:    inc    %rdx
   0x459a9d <main.test+189>:    mov    %rdx,0x40(%rsp)
   0x459aa2 <main.test+194>:    mov    0x80(%rsp),%rdx
   0x459aaa <main.test+202>:    inc    %rdx
   0x459aad <main.test+205>:    mov    %rdx,0x38(%rsp)
   0x459ab2 <main.test+210>:    mov    0x88(%rsp),%rdx
   0x459aba <main.test+218>:    inc    %rdx
   0x459abd <main.test+221>:    mov    %rdx,0x30(%rsp)
   0x459ac2 <main.test+226>:    mov    0x90(%rsp),%rdx
   0x459aca <main.test+234>:    inc    %rdx
   0x459acd <main.test+237>:    mov    %rdx,0x28(%rsp)
   0x459ad2 <main.test+242>:    mov    0x98(%rsp),%rdx
   0x459ada <main.test+250>:    inc    %rdx
   0x459add <main.test+253>:    mov    %rdx,0x20(%rsp)
   0x459ae2 <main.test+258>:    mov    0xa0(%rsp),%rdx
   0x459aea <main.test+266>:    inc    %rdx
   0x459aed <main.test+269>:    mov    %rdx,0x18(%rsp)
   0x459af2 <main.test+274>:    mov    0xa8(%rsp),%rdx
   0x459afa <main.test+282>:    inc    %rdx
   0x459afd <main.test+285>:    mov    %rdx,0x10(%rsp)
   0x459b02 <main.test+290>:    mov    0xb0(%rsp),%rdx
   0x459b0a <main.test+298>:    inc    %rdx
   0x459b0d <main.test+301>:    mov    %rdx,0x8(%rsp)
   0x459b12 <main.test+306>:    mov    0xb8(%rsp),%rdx
   0x459b1a <main.test+314>:    inc    %rdx
   0x459b1d <main.test+317>:    mov    %rdx,(%rsp)
   0x459b21 <main.test+321>:    mov    0x58(%rsp),%rdx
   0x459b26 <main.test+326>:    inc    %rdx
   0x459b29 <main.test+329>:    mov    %rdx,0x68(%rsp)
   0x459b2e <main.test+334>:    mov    0x60(%rsp),%rdx
   0x459b33 <main.test+339>:    inc    %rdx
   0x459b36 <main.test+342>:    mov    %rdx,0x70(%rsp)
   0x459b3b <main.test+347>:    mov    0x40(%rsp),%rax
   0x459b40 <main.test+352>:    mov    0x38(%rsp),%rbx
   0x459b45 <main.test+357>:    mov    0x30(%rsp),%rcx
   0x459b4a <main.test+362>:    mov    0x28(%rsp),%rdi
   0x459b4f <main.test+367>:    mov    0x20(%rsp),%rsi
   0x459b54 <main.test+372>:    mov    0x18(%rsp),%r8
   0x459b59 <main.test+377>:    mov    0x10(%rsp),%r9
   0x459b5e <main.test+382>:    mov    0x8(%rsp),%r10
   0x459b63 <main.test+387>:    mov    (%rsp),%r11
   0x459b67 <main.test+391>:    mov    0x48(%rsp),%rbp
   0x459b6c <main.test+396>:    add    $0x50,%rsp
   0x459b70 <main.test+400>:    ret

   0x459b80 <main.main>:        cmp    0x10(%r14),%rsp
   0x459b84 <main.main+4>:      jbe    0x459bef <main.main+111>
   0x459b86 <main.main+6>:      sub    $0x78,%rsp
   0x459b8a <main.main+10>:     mov    %rbp,0x70(%rsp)
   0x459b8f <main.main+15>:     lea    0x70(%rsp),%rbp
=> 0x459b94 <main.main+20>:     movq   $0x1,0x68(%rsp)
   0x459b9d <main.main+29>:     movq   $0xa,(%rsp)
   0x459ba5 <main.main+37>:     movq   $0xb,0x8(%rsp)
   0x459bae <main.main+46>:     mov    $0x1,%eax
   0x459bb3 <main.main+51>:     mov    $0x2,%ebx
   0x459bb8 <main.main+56>:     mov    $0x3,%ecx
   0x459bbd <main.main+61>:     mov    $0x4,%edi
   0x459bc2 <main.main+66>:     mov    $0x5,%esi
   0x459bc7 <main.main+71>:     mov    $0x6,%r8d
   0x459bcd <main.main+77>:     mov    $0x7,%r9d
   0x459bd3 <main.main+83>:     mov    $0x8,%r10d
   0x459bd9 <main.main+89>:     mov    $0x9,%r11d
   0x459bdf <main.main+95>:     nop
   0x459be0 <main.main+96>:     call   0x4599e0 <main.test>
   0x459be5 <main.main+101>:    mov    0x70(%rsp),%rbp
   0x459bea <main.main+106>:    add    $0x78,%rsp
   0x459bee <main.main+110>:    ret
   0x459bef <main.main+111>:    call   0x456820 <runtime.morestack_noctxt>
   0x459bf4 <main.main+116>:    jmp    0x459b80 <main.main>

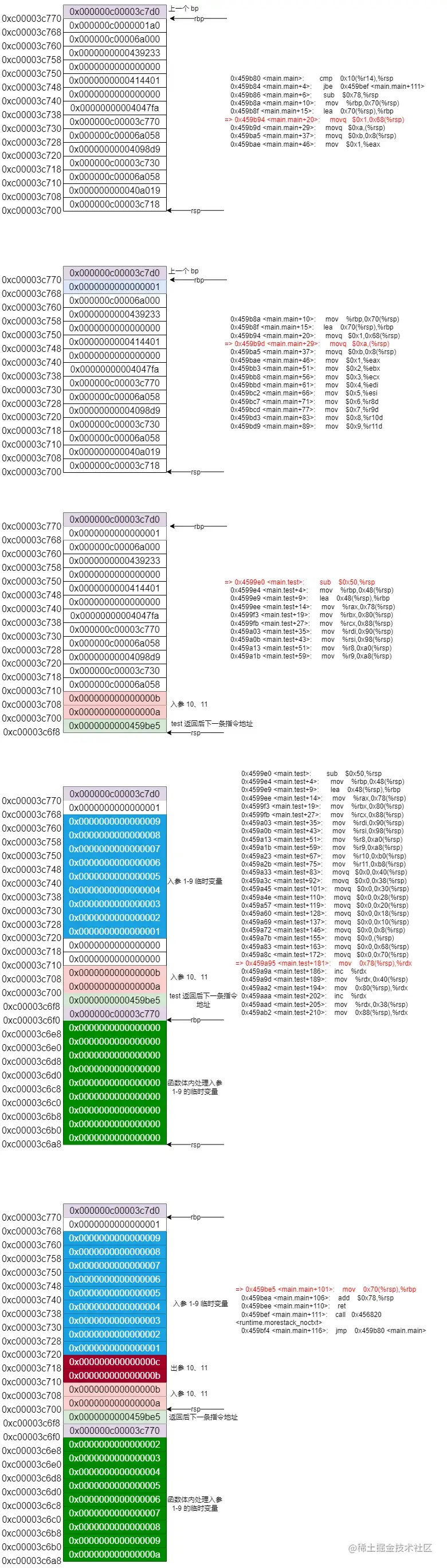

堆栈变化示意图：

由上可知，go 和 C++ 相似，调用新函数时也会将函数返回的下一条指令地址压栈（没有 pop、push 指令，使用 mov 指令）。
