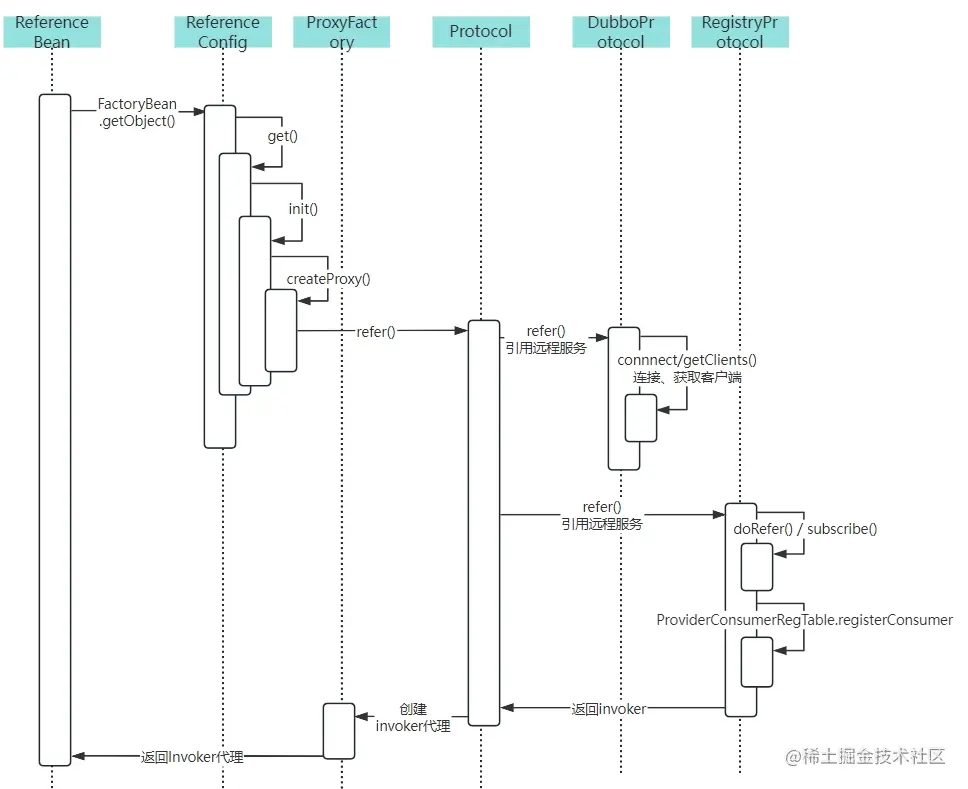

一、Dubbo服务引用流程简述

ReferenceBean实现了FactoryBean接口，当对任意服务interface进行自动注入或者getBean获取时，就会触发getObject()函数的服务引用过程。

• 本地引入走injvm协议，到服务暴露的缓存中取exporter。
• 直连远程引入服务，不需要启动注册中心，由consumer直接配置写死provider地址，然后直连即可。
• 注册中心引入远程服务，consumer通过注册中心得知provider的相关信息，然后进行服务的引入。

获取注册中心实例，向注册中心注册自身，并订阅providers，configurators,routers节点，触发DubboInvoker生成，cluster将多个服务调用者进行封装，返回一个invoker。

通过Dubbo配置构建一个map, 然后利用map来构建URL，再通过URL上的协议利用SPI机制调用对应的protocol.refer得到对应的invoker。然后再构建代理，封装invoker返回服务引用，之后consumer调用这个代理类。

二、 Dubbo服务引用懒汉式流程

1. ReferenceBean实现了FactoryBean接口，InitializingBean接口。有两种方式引用：饿汉式、懒汉式。

• 懒汉式：只用当这个服务被注入到其他类中时启动引入流程，也就是说用到了才会开始服务引用。利用FactoryBean的getObject()获取。
• 饿汉式：实现了InitializingBean的afterPropertiesSet()方法，通过调用该方法引入服务。
• 默认使用懒汉式。如果需要使用饿汉式，可通过配置dubbo:reference的Init属性开启。

public class ReferenceBean<T> extends ReferenceConfig<T> implements FactoryBean, ApplicationContextAware, InitializingBean, DisposableBean {
    //懒汉式引用服务提供者
    public Object getObject() {
        return this.get();
    }

    //饿汉式引用服务提供者
    public void afterPropertiesSet() throws Exception {
        this.prepareDubboConfigBeans();
        if (this.init == null) {
            this.init = false;
        }

        if (this.shouldInit()) {
            this.getObject();
        }

    }
}

2. ReferenceConfig初始化provider.

public class ReferenceConfig<T> extends ReferenceConfigBase<T> {

    //通过SPI机制找到Protocol实现类。（1）如果有注册中心，找到RegistryProtocol。（2）找到协议Protocol实现类。
    private static final Protocol REF_PROTOCOL = (Protocol)ExtensionLoader.getExtensionLoader(Protocol.class).getAdaptiveExtension();

    public synchronized T get() {
        if (this.ref == null) {
                //初始化服务提供者
                this.init();
            }
            return this.ref;
    }

    public synchronized void init() {
        if (!this.initialized) {
            Map<String, String> map = new HashMap();
            map.put("side", "consumer");
            ...
            ...
            //上面操作都是往map中放值，map中存的是服务提供者的信息，比如：注册中心地址，调用服务提供者接口名，调用方法名，version等。
            //创建代理对象
            this.ref = this.createProxy(map);
            ...
        }
    }

    /**
     * 创建代理
     */
    private T createProxy(Map<String, String> map) {
        URL u;
        if (this.shouldJvmRefer(map)) {
            URL url = (new URL("injvm", "127.0.0.1", 0, this.interfaceClass.getName())).addParameters(map);
            this.invoker = REF_PROTOCOL.refer(this.interfaceClass, url);
            if (logger.isInfoEnabled()) {
                logger.info("Using injvm service " + this.interfaceClass.getName());
            }
        } else {
            //省略代码
            ...
            ...

            if (this.urls.size() == 1) {
                //this.urls: 注册中心的地址
                //this.interfaceClass: provider接口
                //REF_PROTOCOL：通过SPI机制获取实现类。
                //从注册中心找到provider
                this.invoker = REF_PROTOCOL.refer(this.interfaceClass, (URL)this.urls.get(0));
            } else {
                List<Invoker<?>> invokers = new ArrayList();
                URL registryURL = null;
                Iterator var16 = this.urls.iterator();

                while(var16.hasNext()) {
                    monitorUrl = (URL)var16.next();
                    invokers.add(REF_PROTOCOL.refer(this.interfaceClass, monitorUrl));
                    if (UrlUtils.isRegistry(monitorUrl)) {
                        registryURL = monitorUrl;
                    }
                }

                String cluster;
                if (registryURL != null) {
                    cluster = registryURL.getParameter("cluster", "zone-aware");
                    this.invoker = Cluster.getCluster(cluster, false).join(new StaticDirectory(registryURL, invokers));
                } else {
                    cluster = CollectionUtils.isNotEmpty(invokers) ? (((Invoker)invokers.get(0)).getUrl() != null ? ((Invoker)invokers.get(0)).getUrl().getParameter("cluster", "zone-aware") : "failover") : "failover";
                    this.invoker = Cluster.getCluster(cluster).join(new StaticDirectory(invokers));
                }
            }
        }

        if (logger.isInfoEnabled()) {
            logger.info("Refer dubbo service " + this.interfaceClass.getName() + " from url " + this.invoker.getUrl());
        }

        String metadata = (String)map.get("metadata-type");
        WritableMetadataService metadataService = WritableMetadataService.getExtension(metadata == null ? "local" : metadata);
        if (metadataService != null) {
            u = new URL("consumer", (String)map.remove("register.ip"), 0, (String)map.get("interface"), map);
            metadataService.publishServiceDefinition(u);
        }

        return PROXY_FACTORY.getProxy(this.invoker, ProtocolUtils.isGeneric(this.generic));
    }
}

3. RegistryProtocol从注册中心订阅服务。

public class RegistryProtocol implements Protocol {

    public <T> Invoker<T> refer(Class<T> type, URL url) throws RpcException {
        url = this.getRegistryUrl(url);
        //获取注册中心
        Registry registry = this.registryFactory.getRegistry(url);
        //省略代码
        ...
        ...
        return this.doRefer(cluster, registry, type, url);
    }

    private <T> Invoker<T> doRefer(Cluster cluster, Registry registry, Class<T> type, URL url) {
        RegistryDirectory<T> directory = new RegistryDirectory(type, url);
        directory.setRegistry(registry);
        directory.setProtocol(this.protocol);
        URL subscribeUrl = new URL("consumer", (String)parameters.remove("register.ip"), 0, type.getName(), parameters);
        //省略代码
        ...
        ...
        //订阅服务
        directory.subscribe(toSubscribeUrl(subscribeUrl));
        //省略代码
        ...
    }
}

4. DubboProtocol获取Netty客户端。

public abstract class AbstractProtocol implements Protocol {
    //获取服务引用
    public <T> Invoker<T> refer(Class<T> type, URL url) throws RpcException {
        return new AsyncToSyncInvoker(this.protocolBindingRefer(type, url));
    }
}

public class DubboProtocol extends AbstractProtocol {
    //获取服务引用
    public <T> Invoker<T> protocolBindingRefer(Class<T> serviceType, URL url) throws RpcException {
        //getClients获取Netty客户端
        DubboInvoker<T> invoker = new DubboInvoker(serviceType, url, this.getClients(url), this.invokers);

        this.invokers.add(invoker);
        return invoker;
    }

    //获取客户端
    private ExchangeClient[] getClients(URL url) {
        boolean useShareConnect = false;
        int connections = url.getParameter("connections", 0);
        List<ReferenceCountExchangeClient> shareClients = null;
        if (connections == 0) {
            useShareConnect = true;
            String shareConnectionsStr = url.getParameter("shareconnections", (String)null);
            connections = Integer.parseInt(StringUtils.isBlank(shareConnectionsStr) ? ConfigUtils.getProperty("shareconnections", "1") : shareConnectionsStr);
            //获取共享客户端
            shareClients = this.getSharedClient(url, connections);
        }
        //连接有多个，创建多个客户端
        ExchangeClient[] clients = new ExchangeClient[connections];

        for(int i = 0; i < clients.length; ++i) {
            if (useShareConnect) {
                //获取共享客户端
                clients[i] = (ExchangeClient)shareClients.get(i);
            } else {
                clients[i] = this.initClient(url);
            }
        }

        return clients;
    }

    //获取共享客户端
    private List<ReferenceCountExchangeClient> getSharedClient(URL url, int connectNum) {
        String key = url.getAddress();
        //先从缓存中获取
        List<ReferenceCountExchangeClient> clients = (List)this.referenceClientMap.get(key);
        //双重检查锁定
        if (this.checkClientCanUse(clients)) {
            this.batchClientRefIncr(clients);
            return clients;
        } else {
            //使用锁
            this.locks.putIfAbsent(key, new Object());
            synchronized(this.locks.get(key)) {
                clients = (List)this.referenceClientMap.get(key);
                //双重检查锁定
                if (this.checkClientCanUse(clients)) {
                    this.batchClientRefIncr(clients);
                    return clients;
                } else {
                    if (CollectionUtils.isEmpty(clients)) {
                        clients = this.buildReferenceCountExchangeClientList(url, connectNum);
                        this.referenceClientMap.put(key, clients);
                    }

                    this.locks.remove(key);
                    return clients;
                }
            }
        }
    }

    private ReferenceCountExchangeClient buildReferenceCountExchangeClient(URL url) {
        //初始化客户端
        ExchangeClient exchangeClient = this.initClient(url);
        return new ReferenceCountExchangeClient(exchangeClient);
    }

    private ExchangeClient initClient(URL url) {
        String str = url.getParameter("client", url.getParameter("server", "netty"));
        url = url.addParameter("codec", "dubbo");
        url = url.addParameterIfAbsent("heartbeat", String.valueOf(60000));
        //用Exchanger进行connect
        client = Exchangers.connect(url, this.requestHandler);
        return (ExchangeClient)client;
    }
}

5. Exchanger连接Netty客户端。

public class Exchangers {
    public static ExchangeClient connect(URL url, ExchangeHandler handler) throws RemotingException {
        url = url.addParameterIfAbsent("codec", "exchange");
        return getExchanger(url).connect(url, handler);
    }
}


public class HeaderExchanger implements Exchanger {


    public ExchangeClient connect(URL url, ExchangeHandler handler) throws RemotingException {
        return new HeaderExchangeClient(Transporters.connect(url, new ChannelHandler[]{new DecodeHandler(new HeaderExchangeHandler(handler))}), true);
    }
}

public class Transporters {
    public static Client connect(URL url, ChannelHandler... handlers) throws RemotingException {

        return getTransporter().connect(url, (ChannelHandler)handler);
    }
}

@SPI("netty")
public interface Transporter {
    @Adaptive({"server", "transporter"})
    RemotingServer bind(URL url, ChannelHandler handler) throws RemotingException;

    @Adaptive({"client", "transporter"})
    Client connect(URL url, ChannelHandler handler) throws RemotingException;
}

6. 连接Netty客户端之后，拿到invoker。

public class DubboProtocol extends AbstractProtocol {
    public <T> Invoker<T> protocolBindingRefer(Class<T> serviceType, URL url) throws RpcException {
        //连接客户端，封装成invoker
        DubboInvoker<T> invoker = new DubboInvoker(serviceType, url, this.getClients(url), this.invokers);
        //拿到invoker
        this.invokers.add(invoker);
        return invoker;
    }
}

7. 获取到Invoker之后，将消费者信息注册到ProviderConsumerRegTable中。

public class RegistryProtocol implements Protocol {
    private <T> Invoker<T> doRefer(Cluster cluster, Registry registry, Class<T> type, URL url) {

        //省略代码
        ...
        ...
        //订阅服务
        directory.subscribe(toSubscribeUrl(subscribeUrl));
        Invoker<T> invoker = cluster.join(directory);
        //获取监听器
        List<RegistryProtocolListener> listeners = this.findRegistryProtocolListeners(url);
        RegistryInvokerWrapper<T> registryInvokerWrapper = new RegistryInvokerWrapper(directory, cluster, invoker);
        Iterator var11 = listeners.iterator();

        while(var11.hasNext()) {
            RegistryProtocolListener listener = (RegistryProtocolListener)var11.next();
            listener.onRefer(this, registryInvokerWrapper);
        }

        return registryInvokerWrapper;
    }
}
