1. Glide的使用

导包

implementation 'com.github.bumptech.glide:glide:4.15.1'

具体使用

Glide.with(this).load(url).into(imageView)

2.源码阅读

2.1 Glide.with(...)相关源码

包含多个重载方法

// Glide.java
@NonNull
public static RequestManager with(@NonNull Context context) {
  return getRetriever(context).get(context);
}

@NonNull
@Deprecated
public static RequestManager with(@NonNull Activity activity) {
  return getRetriever(activity).get(activity);
}

@NonNull
public static RequestManager with(@NonNull FragmentActivity activity) {
  return getRetriever(activity).get(activity);
}

@NonNull
public static RequestManager with(@NonNull Fragment fragment) {
  return getRetriever(fragment.getContext()).get(fragment);
}

@SuppressWarnings("deprecation")
@Deprecated
@NonNull
public static RequestManager with(@NonNull android.app.Fragment fragment) {
  return getRetriever(fragment.getActivity()).get(fragment);
}

@NonNull
public static RequestManager with(@NonNull View view) {
  return getRetriever(view.getContext()).get(view);
}

最终调用的均为

// Glide.java
@NonNull
private static RequestManagerRetriever getRetriever(@Nullable Context context) {
  ...
  return Glide.get(context).getRequestManagerRetriever();
}

Glide.get(context)实现Glide相关的初始化

// Glide.java
/** DCL实例化Glide */
public static Glide get(@NonNull Context context) {
  if (glide == null) {
    GeneratedAppGlideModule annotationGeneratedModule =
        getAnnotationGeneratedGlideModules(context.getApplicationContext());
    synchronized (Glide.class) {
      if (glide == null) {
        checkAndInitializeGlide(context, annotationGeneratedModule);
      }
    }
  }

  return glide;
}

@GuardedBy("Glide.class")
@VisibleForTesting
static void checkAndInitializeGlide(
    @NonNull Context context, @Nullable GeneratedAppGlideModule generatedAppGlideModule) {
  ...
    initializeGlide(context, generatedAppGlideModule);
  ...
}

@GuardedBy("Glide.class")
private static void initializeGlide(
    @NonNull Context context, @Nullable GeneratedAppGlideModule generatedAppGlideModule) {
  initializeGlide(context, new GlideBuilder(), generatedAppGlideModule);
}

@GuardedBy("Glide.class")
@SuppressWarnings("deprecation")
private static void initializeGlide(
    @NonNull Context context,
    @NonNull GlideBuilder builder,
    @Nullable GeneratedAppGlideModule annotationGeneratedModule) {
  Context applicationContext = context.getApplicationContext();
  List<GlideModule> manifestModules = Collections.emptyList();
  if (annotationGeneratedModule == null || annotationGeneratedModule.isManifestParsingEnabled()) {
    manifestModules = new ManifestParser(applicationContext).parse();
  }

  if (annotationGeneratedModule != null
      && !annotationGeneratedModule.getExcludedModuleClasses().isEmpty()) {
    Set<Class<?>> excludedModuleClasses = annotationGeneratedModule.getExcludedModuleClasses();
    Iterator<GlideModule> iterator = manifestModules.iterator();
    while (iterator.hasNext()) {
      GlideModule current = iterator.next();
      if (!excludedModuleClasses.contains(current.getClass())) {
        continue;
      }
      if (Log.isLoggable(TAG, Log.DEBUG)) {
        Log.d(TAG, "AppGlideModule excludes manifest GlideModule: " + current);
      }
      iterator.remove();
    }
  }

  if (Log.isLoggable(TAG, Log.DEBUG)) {
    for (GlideModule glideModule : manifestModules) {
      Log.d(TAG, "Discovered GlideModule from manifest: " + glideModule.getClass());
    }
  }

  RequestManagerRetriever.RequestManagerFactory factory =
      annotationGeneratedModule != null
          ? annotationGeneratedModule.getRequestManagerFactory()
          : null;
  builder.setRequestManagerFactory(factory);
  for (GlideModule module : manifestModules) {
    module.applyOptions(applicationContext, builder);
  }
  if (annotationGeneratedModule != null) {
    annotationGeneratedModule.applyOptions(applicationContext, builder);
  }
  // 使用Builder模式构建Glide对象
  Glide glide = builder.build(applicationContext, manifestModules, annotationGeneratedModule);
  applicationContext.registerComponentCallbacks(glide);
  Glide.glide = glide;
}

// GlideBuilder.java
@NonNull
Glide build(
    @NonNull Context context,
    List<GlideModule> manifestModules,
    AppGlideModule annotationGeneratedGlideModule) {
  // 创建请求图片线程池sourceExecutor
  if (sourceExecutor == null) {
    sourceExecutor = GlideExecutor.newSourceExecutor();
  }

  // 创建硬盘缓存线程池diskCacheExecutor
  if (diskCacheExecutor == null) {
    diskCacheExecutor = GlideExecutor.newDiskCacheExecutor();
  }

  // 创建动画线程池animationExecutor
  if (animationExecutor == null) {
    animationExecutor = GlideExecutor.newAnimationExecutor();
  }

  if (memorySizeCalculator == null) {
    memorySizeCalculator = new MemorySizeCalculator.Builder(context).build();
  }

  if (connectivityMonitorFactory == null) {
    connectivityMonitorFactory = new DefaultConnectivityMonitorFactory();
  }

  if (bitmapPool == null) {
    // 依据设备的屏幕密度和尺寸生成建议位图池大小
    int size = memorySizeCalculator.getBitmapPoolSize();
    if (size > 0) {
      bitmapPool = new LruBitmapPool(size);
    } else {
      bitmapPool = new BitmapPoolAdapter();
    }
  }

  // 创建对象数组缓存池LruArrayPool，默认4M
  if (arrayPool == null) {
    arrayPool = new LruArrayPool(memorySizeCalculator.getArrayPoolSizeInBytes());
  }

  // 创建LruResourceCache，内存缓存
  if (memoryCache == null) {
    memoryCache = new LruResourceCache(memorySizeCalculator.getMemoryCacheSize());
  }

  if (diskCacheFactory == null) {
    diskCacheFactory = new InternalCacheDiskCacheFactory(context);
  }

  // 创建任务和资源管理引擎（线程池，内存缓存和硬盘缓存对象）
  if (engine == null) {
    engine =
        new Engine(
            memoryCache,
            diskCacheFactory,
            diskCacheExecutor,
            sourceExecutor,
            GlideExecutor.newUnlimitedSourceExecutor(),
            animationExecutor,
            isActiveResourceRetentionAllowed);
  }

  if (defaultRequestListeners == null) {
    defaultRequestListeners = Collections.emptyList();
  } else {
    defaultRequestListeners = Collections.unmodifiableList(defaultRequestListeners);
  }

  GlideExperiments experiments = glideExperimentsBuilder.build();
  RequestManagerRetriever requestManagerRetriever =
      new RequestManagerRetriever(requestManagerFactory, experiments);

  return new Glide(
      context,
      engine,
      memoryCache,
      bitmapPool,
      arrayPool,
      requestManagerRetriever,
      connectivityMonitorFactory,
      logLevel,
      defaultRequestOptionsFactory,
      defaultTransitionOptions,
      defaultRequestListeners,
      manifestModules,
      annotationGeneratedGlideModule,
      experiments);
}

主要完成了一系列的初始化，包含各式各样的配置信息（包括缓存，请求线程池，大小，图片格式等等）以及glide对象
最后是调用了requestManagerRetriever.get(...)

// Glide.java
@NonNull
public RequestManagerRetriever getRequestManagerRetriever() {
  return requestManagerRetriever;
}

// RequestManagerRetriever.java
@NonNull
public RequestManager get(@NonNull Context context) {
  if (context == null) {
    throw new IllegalArgumentException("You cannot start a load on a null Context");
  } else if (Util.isOnMainThread() && !(context instanceof Application)) {
    // 如果当前线程是主线程且context不是Application走相应的get重载方法
    if (context instanceof FragmentActivity) {
      return get((FragmentActivity) context);
    } else if (context instanceof Activity) {
      return get((Activity) context);
    } else if (context instanceof ContextWrapper
        && ((ContextWrapper) context).getBaseContext().getApplicationContext() != null) {
      return get(((ContextWrapper) context).getBaseContext());
    }
  }

  // 否则直接将请求与ApplicationLifecycle关联
  return getApplicationManager(context);
}

@NonNull
public RequestManager get(@NonNull FragmentActivity activity) {
  if (Util.isOnBackgroundThread()) {
    return get(activity.getApplicationContext());
  }
  assertNotDestroyed(activity);
  frameWaiter.registerSelf(activity);
  boolean isActivityVisible = isActivityVisible(activity);
  Glide glide = Glide.get(activity.getApplicationContext());
  return lifecycleRequestManagerRetriever.getOrCreate(
      activity,
      glide,
      activity.getLifecycle(),
      activity.getSupportFragmentManager(),
      isActivityVisible);
}

@NonNull
public RequestManager get(@NonNull Fragment fragment) {
  Preconditions.checkNotNull(
      fragment.getContext(),
      "You cannot start a load on a fragment before it is attached or after it is destroyed");
  if (Util.isOnBackgroundThread()) {
    return get(fragment.getContext().getApplicationContext());
  }
  if (fragment.getActivity() != null) {
    frameWaiter.registerSelf(fragment.getActivity());
  }
  FragmentManager fm = fragment.getChildFragmentManager();
  Context context = fragment.getContext();
  Glide glide = Glide.get(context.getApplicationContext());
  return lifecycleRequestManagerRetriever.getOrCreate(
      context, glide, fragment.getLifecycle(), fm, fragment.isVisible());
}

@Deprecated
@SuppressWarnings("deprecation")
@NonNull
public RequestManager get(@NonNull Activity activity) {
  if (Util.isOnBackgroundThread()) {
    return get(activity.getApplicationContext());
  } else if (activity instanceof FragmentActivity) {
    return get((FragmentActivity) activity);
  } else {
    assertNotDestroyed(activity);
    frameWaiter.registerSelf(activity);
    android.app.FragmentManager fm = activity.getFragmentManager();
    return fragmentGet(activity, fm, /* parentHint= */ null, isActivityVisible(activity));
  }
}

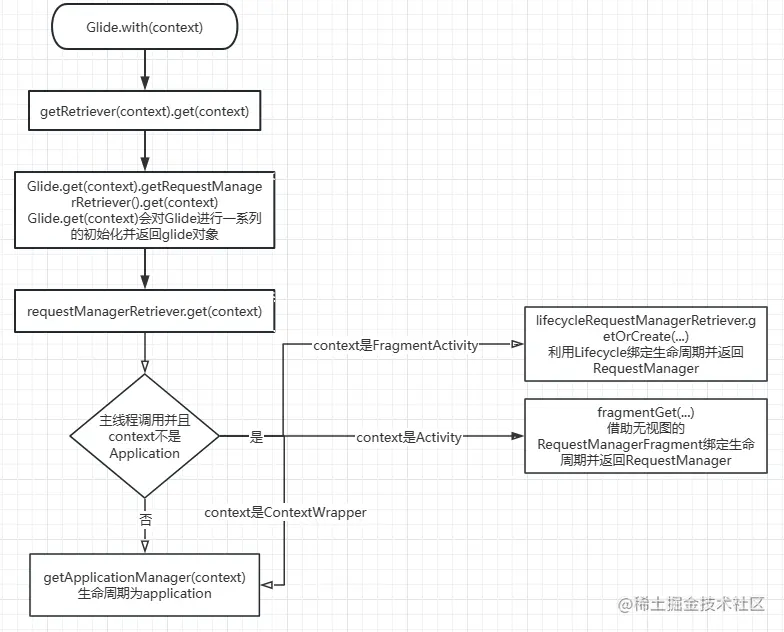

1. 如果with方法在子线程运行或者context是Application，则会走到getApplicationManager(context)，这里会创建一个全局的Glide，不会随着控件生命周期销毁
2. 如果是主线程：
- 2.1：context是FragmentActivity/Fragment，利用Lifecycle来将生命周期与RequestManager绑定
- 2.2：context是Activity，添加一个无视图的RequestManagerFragment来将生命周期与RequestManager绑定
注意：之前版本的Glide与Activity生命周期绑定是通过添加一个无视图的RequestManagerFragment来同步，新版本增加了LifecycleRequestManagerRetriever类借助Lifecycle来管理FragmentActivity/Fragment生命周期，之前的Activity(非FragmentActivity)由于并没有集成Lifecycle，还是借助RequestManagerFragment，主要目的是将图片获取与页面生命周期相关联，只有在视图展示阶段进行图片下载

2.2 requestManager.load(url)相关源码

// RequestManager.java
@NonNull
@CheckResult
@Override
public RequestBuilder<Drawable> load(@Nullable String string) {
  return asDrawable().load(string);
}

@NonNull
@CheckResult
public RequestBuilder<Drawable> asDrawable() {
  return as(Drawable.class);
}

@NonNull
@CheckResult
public <ResourceType> RequestBuilder<ResourceType> as(
    @NonNull Class<ResourceType> resourceClass) {
  return new RequestBuilder<>(glide, this, resourceClass, context);
}

// RequestBuilder.java
@NonNull
@Override
@CheckResult
public RequestBuilder<TranscodeType> load(@Nullable String string) {
  return loadGeneric(string);
}

@NonNull
private RequestBuilder<TranscodeType> loadGeneric(@Nullable Object model) {
  if (isAutoCloneEnabled()) {
    return clone().loadGeneric(model);
  }
  this.model = model;
  isModelSet = true;
  // 最终返回this,即RequestBuilder对象
  return selfOrThrowIfLocked();
}

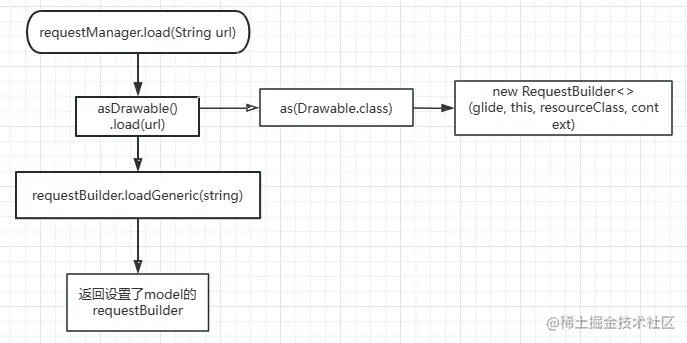

流程很简单就是构造一个RequestBuilder并设置请求的mode（url），并记录url已设置的状态

3. requestBuiler.into(iv)相关源码

3.1 requestBuiler.into(...)

// RequestBuiler.java
@NonNull
public ViewTarget<ImageView, TranscodeType> into(@NonNull ImageView view) {
  Util.assertMainThread();
  Preconditions.checkNotNull(view);

  BaseRequestOptions<?> requestOptions = this;
  if (!requestOptions.isTransformationSet()
      && requestOptions.isTransformationAllowed()
      && view.getScaleType() != null) {
    switch (view.getScaleType()) {
      case CENTER_CROP:
        requestOptions = requestOptions.clone().optionalCenterCrop();
        break;
      case CENTER_INSIDE:
        requestOptions = requestOptions.clone().optionalCenterInside();
        break;
      case FIT_CENTER:
      case FIT_START:
      case FIT_END:
        requestOptions = requestOptions.clone().optionalFitCenter();
        break;
      case FIT_XY:
        requestOptions = requestOptions.clone().optionalCenterInside();
        break;
      case CENTER:
      case MATRIX:
      default:
        // Do nothing.
    }
  }

  return into(
      // 位置1（下面分析）
      glideContext.buildImageViewTarget(view, transcodeClass),
      /* targetListener= */ null,
      requestOptions,
      Executors.mainThreadExecutor());
}

private <Y extends Target<TranscodeType>> Y into(
    @NonNull Y target,
    @Nullable RequestListener<TranscodeType> targetListener,
    BaseRequestOptions<?> options,
    Executor callbackExecutor) {
  Preconditions.checkNotNull(target);
  if (!isModelSet) {
    throw new IllegalArgumentException("You must call #load() before calling #into()");
  }

  // 位置2（下面分析）
  // 建立图片网络请求
  Request request = buildRequest(target, targetListener, options, callbackExecutor);

  Request previous = target.getRequest();
  if (request.isEquivalentTo(previous)
      && !isSkipMemoryCacheWithCompletePreviousRequest(options, previous)) {
      previous.begin();
    }
    return target;
  }

  requestManager.clear(target);
  target.setRequest(request);
  // 位置3（下面分析）
  // 追踪请求
  requestManager.track(target, request);

  return target;
}

看下上面位置1处的glideContext.buildImageViewTarget(view, transcodeClass)

3.2 glideContext.buildImageViewTarget(...)

// GlideContext.java
@NonNull
public <X> ViewTarget<ImageView, X> buildImageViewTarget(
    @NonNull ImageView imageView, @NonNull Class<X> transcodeClass) {
  return imageViewTargetFactory.buildTarget(imageView, transcodeClass);
}

// ImageViewTargetFactory.java
public class ImageViewTargetFactory {
  @NonNull
  @SuppressWarnings("unchecked")
  public <Z> ViewTarget<ImageView, Z> buildTarget(
      @NonNull ImageView view, @NonNull Class<Z> clazz) {
    // 返回展示Bitmap/Drawable资源的目标对象
    if (Bitmap.class.equals(clazz)) {
      return (ViewTarget<ImageView, Z>) new BitmapImageViewTarget(view);
    } else if (Drawable.class.isAssignableFrom(clazz)) {
      return (ViewTarget<ImageView, Z>) new DrawableImageViewTarget(view);
    } else {
      throw new IllegalArgumentException(
          "Unhandled class: " + clazz + ", try .as*(Class).transcode(ResourceTranscoder)");
    }
  }
}

Glide内部维护了两种target，一种BitmapImageViewTarget，一种DrawableImageViewTarget
接着看下上面 3.1 的位置2 buildRequest(target, targetListener, options, callbackExecutor)

3.3 requestBuilder.buildRequest(...)

// RequestBuilder.java
private Request buildRequest(
    Target<TranscodeType> target,
    @Nullable RequestListener<TranscodeType> targetListener,
    BaseRequestOptions<?> requestOptions,
    Executor callbackExecutor) {
  return buildRequestRecursive(
      /* requestLock= */ new Object(),
      target,
      targetListener,
      /* parentCoordinator= */ null,
      transitionOptions,
      requestOptions.getPriority(),
      requestOptions.getOverrideWidth(),
      requestOptions.getOverrideHeight(),
      requestOptions,
      callbackExecutor);
}


private Request buildRequestRecursive(
    Object requestLock,
    Target<TranscodeType> target,
    @Nullable RequestListener<TranscodeType> targetListener,
    @Nullable RequestCoordinator parentCoordinator,
    TransitionOptions<?, ? super TranscodeType> transitionOptions,
    Priority priority,
    int overrideWidth,
    int overrideHeight,
    BaseRequestOptions<?> requestOptions,
    Executor callbackExecutor) {
  ErrorRequestCoordinator errorRequestCoordinator = null;
  if (errorBuilder != null) {
    // 创建图片请求错误时处理对象ErrorRequestCoordinator
    errorRequestCoordinator = new ErrorRequestCoordinator(requestLock, parentCoordinator);
    parentCoordinator = errorRequestCoordinator;
  }

  // 递归建立缩略图请求
  Request mainRequest =
      buildThumbnailRequestRecursive(
          requestLock,
          target,
          targetListener,
          parentCoordinator,
          transitionOptions,
          priority,
          overrideWidth,
          overrideHeight,
          requestOptions,
          callbackExecutor);

  if (errorRequestCoordinator == null) {
    return mainRequest;
  }

  int errorOverrideWidth = errorBuilder.getOverrideWidth();
  int errorOverrideHeight = errorBuilder.getOverrideHeight();
  if (Util.isValidDimensions(overrideWidth, overrideHeight) && !errorBuilder.isValidOverride()) {
    errorOverrideWidth = requestOptions.getOverrideWidth();
    errorOverrideHeight = requestOptions.getOverrideHeight();
  }

  // 图片请求错误时展示的图片请求(使用了error()的api)
  Request errorRequest =
      errorBuilder.buildRequestRecursive(
          requestLock,
          target,
          targetListener,
          errorRequestCoordinator,
          errorBuilder.transitionOptions,
          errorBuilder.getPriority(),
          errorOverrideWidth,
          errorOverrideHeight,
          errorBuilder,
          callbackExecutor);
  errorRequestCoordinator.setRequests(mainRequest, errorRequest);
  return errorRequestCoordinator;
}


private Request buildThumbnailRequestRecursive(
    Object requestLock,
    Target<TranscodeType> target,
    RequestListener<TranscodeType> targetListener,
    @Nullable RequestCoordinator parentCoordinator,
    TransitionOptions<?, ? super TranscodeType> transitionOptions,
    Priority priority,
    int overrideWidth,
    int overrideHeight,
    BaseRequestOptions<?> requestOptions,
    Executor callbackExecutor) {
  if (thumbnailBuilder != null) {
    if (isThumbnailBuilt) {
      throw new IllegalStateException(
          "You cannot use a request as both the main request and a "
              + "thumbnail, consider using clone() on the request(s) passed to thumbnail()");
    }

    TransitionOptions<?, ? super TranscodeType> thumbTransitionOptions =
        thumbnailBuilder.transitionOptions;
    if (thumbnailBuilder.isDefaultTransitionOptionsSet) {
      thumbTransitionOptions = transitionOptions;
    }

    Priority thumbPriority =
        thumbnailBuilder.isPrioritySet()
            ? thumbnailBuilder.getPriority()
            : getThumbnailPriority(priority);

    int thumbOverrideWidth = thumbnailBuilder.getOverrideWidth();
    int thumbOverrideHeight = thumbnailBuilder.getOverrideHeight();
    if (Util.isValidDimensions(overrideWidth, overrideHeight)
        && !thumbnailBuilder.isValidOverride()) {
      thumbOverrideWidth = requestOptions.getOverrideWidth();
      thumbOverrideHeight = requestOptions.getOverrideHeight();
    }

    ThumbnailRequestCoordinator coordinator =
        new ThumbnailRequestCoordinator(requestLock, parentCoordinator);
    // 完整图片请求
    Request fullRequest =
        obtainRequest(
            requestLock,
            target,
            targetListener,
            requestOptions,
            coordinator,
            transitionOptions,
            priority,
            overrideWidth,
            overrideHeight,
            callbackExecutor);
    isThumbnailBuilt = true;
    // 递归生成缩略图请求
    Request thumbRequest =
        thumbnailBuilder.buildRequestRecursive(
            requestLock,
            target,
            targetListener,
            coordinator,
            thumbTransitionOptions,
            thumbPriority,
            thumbOverrideWidth,
            thumbOverrideHeight,
            thumbnailBuilder,
            callbackExecutor);
    isThumbnailBuilt = false;
    // 能够同时加载缩略图和正常的图的请求
    coordinator.setRequests(fullRequest, thumbRequest);
    return coordinator;
  } else if (thumbSizeMultiplier != null) {
    // 当设置了缩略的比例thumbSizeMultiplier(0 ~ 1)时，无需递归建立缩略图请求
    ThumbnailRequestCoordinator coordinator =
        new ThumbnailRequestCoordinator(requestLock, parentCoordinator);
    Request fullRequest =
        obtainRequest(
            requestLock,
            target,
            targetListener,
            requestOptions,
            coordinator,
            transitionOptions,
            priority,
            overrideWidth,
            overrideHeight,
            callbackExecutor);
    BaseRequestOptions<?> thumbnailOptions =
        requestOptions.clone().sizeMultiplier(thumbSizeMultiplier);

    Request thumbnailRequest =
        obtainRequest(
            requestLock,
            target,
            targetListener,
            thumbnailOptions,
            coordinator,
            transitionOptions,
            getThumbnailPriority(priority),
            overrideWidth,
            overrideHeight,
            callbackExecutor);

    coordinator.setRequests(fullRequest, thumbnailRequest);
    return coordinator;
  } else {
    // 没有缩略图需求时，直接获取一个正常图请求
    return obtainRequest(
        requestLock,
        target,
        targetListener,
        requestOptions,
        parentCoordinator,
        transitionOptions,
        priority,
        overrideWidth,
        overrideHeight,
        callbackExecutor);
  }
}


private Request obtainRequest(
    Object requestLock,
    Target<TranscodeType> target,
    RequestListener<TranscodeType> targetListener,
    BaseRequestOptions<?> requestOptions,
    RequestCoordinator requestCoordinator,
    TransitionOptions<?, ? super TranscodeType> transitionOptions,
    Priority priority,
    int overrideWidth,
    int overrideHeight,
    Executor callbackExecutor) {
  // 最终承载请求的是SingleRequest
  return SingleRequest.obtain(
      context,
      glideContext,
      requestLock,
      model,
      transcodeClass,
      requestOptions,
      overrideWidth,
      overrideHeight,
      priority,
      target,
      targetListener,
      requestListeners,
      requestCoordinator,
      glideContext.getEngine(),
      transitionOptions.getTransitionFactory(),
      callbackExecutor);
}

看下这个SingleRequest.obtain(...)，其实就是创建了一个SingleRequest对象，

// SingleRequest.java
public static <R> SingleRequest<R> obtain(
    Context context,
    GlideContext glideContext,
    Object requestLock,
    Object model,
    Class<R> transcodeClass,
    BaseRequestOptions<?> requestOptions,
    int overrideWidth,
    int overrideHeight,
    Priority priority,
    Target<R> target,
    RequestListener<R> targetListener,
    @Nullable List<RequestListener<R>> requestListeners,
    RequestCoordinator requestCoordinator,
    Engine engine,
    TransitionFactory<? super R> animationFactory,
    Executor callbackExecutor) {
  return new SingleRequest<>(
      context,
      glideContext,
      requestLock,
      model,
      transcodeClass,
      requestOptions,
      overrideWidth,
      overrideHeight,
      priority,
      target,
      targetListener,
      requestListeners,
      requestCoordinator,
      engine,
      animationFactory,
      callbackExecutor);
}

由此可见上面3.1的位置2最终返回的是一个SingleRequest，接着分析下3.1的位置3 requestManager.track(target, request);

3.4 requestManager.track(target, request)

// RequestManager.java
synchronized void track(@NonNull Target<?> target, @NonNull Request request) {
  // 加入一个target目标集合(Set)
  targetTracker.track(target);
  requestTracker.runRequest(request);
}

看下requestTracker.runRequest(request)

// RequestTracker.java
public void runRequest(@NonNull Request request) {
  requests.add(request);
  if (!isPaused) {
    // 非暂停状态开始请求
    request.begin();
  } else {
    // 否则清空请求，添加到请求意图队列
    request.clear();
    if (Log.isLoggable(TAG, Log.VERBOSE)) {
      Log.v(TAG, "Paused, delaying request");
    }
    pendingRequests.add(request);
  }
}

真正开始执行请求的方法是request.begin()即上面返回的SingleRequest.begin()

3.5 SingleRequest.begin()

// SingleRequest.java
@Override
public void begin() {
  synchronized (requestLock) {
    assertNotCallingCallbacks();
    stateVerifier.throwIfRecycled();
    startTime = LogTime.getLogTime();
    if (model == null) {
      if (Util.isValidDimensions(overrideWidth, overrideHeight)) {
        width = overrideWidth;
        height = overrideHeight;
      }
      int logLevel = getFallbackDrawable() == null ? Log.WARN : Log.DEBUG;
      onLoadFailed(new GlideException("Received null model"), logLevel);
      return;
    }

    if (status == Status.RUNNING) {
      throw new IllegalArgumentException("Cannot restart a running request");
    }

    if (status == Status.COMPLETE) {
      onResourceReady(
          resource, DataSource.MEMORY_CACHE, /* isLoadedFromAlternateCacheKey= */ false);
      return;
    }

    experimentalNotifyRequestStarted(model);

    cookie = GlideTrace.beginSectionAsync(TAG);
    status = Status.WAITING_FOR_SIZE;
    if (Util.isValidDimensions(overrideWidth, overrideHeight)) {
      // 当使用override() API为图片指定了一个固定的宽高时直接执行onSizeReady
      // 最终的核心处理位于onSizeReady
      onSizeReady(overrideWidth, overrideHeight);
    } else {
      // 根据imageView的宽高算出图片的宽高，最终也会走到onSizeReady
      target.getSize(this);
    }

    if ((status == Status.RUNNING || status == Status.WAITING_FOR_SIZE)
        && canNotifyStatusChanged()) {
      // 预先加载设置的缩略图
      target.onLoadStarted(getPlaceholderDrawable());
    }
    if (IS_VERBOSE_LOGGABLE) {
      logV("finished run method in " + LogTime.getElapsedMillis(startTime));
    }
  }
}


@Override
public void onSizeReady(int width, int height) {
  stateVerifier.throwIfRecycled();
  synchronized (requestLock) {
    if (IS_VERBOSE_LOGGABLE) {
      logV("Got onSizeReady in " + LogTime.getElapsedMillis(startTime));
    }
    if (status != Status.WAITING_FOR_SIZE) {
      return;
    }
    status = Status.RUNNING;

    float sizeMultiplier = requestOptions.getSizeMultiplier();
    this.width = maybeApplySizeMultiplier(width, sizeMultiplier);
    this.height = maybeApplySizeMultiplier(height, sizeMultiplier);

    if (IS_VERBOSE_LOGGABLE) {
      logV("finished setup for calling load in " + LogTime.getElapsedMillis(startTime));
    }
    // 根据给定的配置进行加载，engine是一个负责加载、管理活跃和缓存资源的引擎类
    loadStatus =
        engine.load(
            glideContext,
            model,
            requestOptions.getSignature(),
            this.width,
            this.height,
            requestOptions.getResourceClass(),
            transcodeClass,
            priority,
            requestOptions.getDiskCacheStrategy(),
            requestOptions.getTransformations(),
            requestOptions.isTransformationRequired(),
            requestOptions.isScaleOnlyOrNoTransform(),
            requestOptions.getOptions(),
            requestOptions.isMemoryCacheable(),
            requestOptions.getUseUnlimitedSourceGeneratorsPool(),
            requestOptions.getUseAnimationPool(),
            requestOptions.getOnlyRetrieveFromCache(),
            this,
            callbackExecutor);
    if (status != Status.RUNNING) {
      loadStatus = null;
    }
    if (IS_VERBOSE_LOGGABLE) {
      logV("finished onSizeReady in " + LogTime.getElapsedMillis(startTime));
    }
  }
}

接着看下负责加载、管理活跃和缓存资源的引擎类engine.load(...)

3.6 engine.load(...)

// Engine.java
public <R> LoadStatus load(
    GlideContext glideContext,
    Object model,
    Key signature,
    int width,
    int height,
    Class<?> resourceClass,
    Class<R> transcodeClass,
    Priority priority,
    DiskCacheStrategy diskCacheStrategy,
    Map<Class<?>, Transformation<?>> transformations,
    boolean isTransformationRequired,
    boolean isScaleOnlyOrNoTransform,
    Options options,
    boolean isMemoryCacheable,
    boolean useUnlimitedSourceExecutorPool,
    boolean useAnimationPool,
    boolean onlyRetrieveFromCache,
    ResourceCallback cb,
    Executor callbackExecutor) {
  long startTime = VERBOSE_IS_LOGGABLE ? LogTime.getLogTime() : 0;

  EngineKey key =
      keyFactory.buildKey(
          model,
          signature,
          width,
          height,
          transformations,
          resourceClass,
          transcodeClass,
          options);

  EngineResource<?> memoryResource;
  synchronized (this) {
    // 先从内存读取
    memoryResource = loadFromMemory(key, isMemoryCacheable, startTime);

    if (memoryResource == null) {
      // 不存在
      return waitForExistingOrStartNewJob(
          glideContext,
          model,
          signature,
          width,
          height,
          resourceClass,
          transcodeClass,
          priority,
          diskCacheStrategy,
          transformations,
          isTransformationRequired,
          isScaleOnlyOrNoTransform,
          options,
          isMemoryCacheable,
          useUnlimitedSourceExecutorPool,
          useAnimationPool,
          onlyRetrieveFromCache,
          cb,
          callbackExecutor,
          key,
          startTime);
    }
  }

  // 回调相关
  cb.onResourceReady(
      memoryResource, DataSource.MEMORY_CACHE, /* isLoadedFromAlternateCacheKey= */ false);
  return null;
}


@Nullable
private EngineResource<?> loadFromMemory(
    EngineKey key, boolean isMemoryCacheable, long startTime) {
  if (!isMemoryCacheable) {
    return null;
  }
  // 从弱引用中查找
  EngineResource<?> active = loadFromActiveResources(key);
  if (active != null) {
    if (VERBOSE_IS_LOGGABLE) {
      logWithTimeAndKey("Loaded resource from active resources", startTime, key);
    }
    return active;
  }
  // 没有就从缓存中获取
  EngineResource<?> cached = loadFromCache(key);
  if (cached != null) {
    if (VERBOSE_IS_LOGGABLE) {
      logWithTimeAndKey("Loaded resource from cache", startTime, key);
    }
    return cached;
  }

  return null;
}

可见显示从ActiveResources弱引用中获取，没有再从缓存MemoryCache中获取，都获取不到的话会执行waitForExistingOrStartNewJob(...)

3.7 `engine.waitForExistingOrStartNewJob(...)`

// Engine.java
private <R> LoadStatus waitForExistingOrStartNewJob(
    GlideContext glideContext,
    Object model,
    Key signature,
    int width,
    int height,
    Class<?> resourceClass,
    Class<R> transcodeClass,
    Priority priority,
    DiskCacheStrategy diskCacheStrategy,
    Map<Class<?>, Transformation<?>> transformations,
    boolean isTransformationRequired,
    boolean isScaleOnlyOrNoTransform,
    Options options,
    boolean isMemoryCacheable,
    boolean useUnlimitedSourceExecutorPool,
    boolean useAnimationPool,
    boolean onlyRetrieveFromCache,
    ResourceCallback cb,
    Executor callbackExecutor,
    EngineKey key,
    long startTime) {

  EngineJob<?> current = jobs.get(key, onlyRetrieveFromCache);
  if (current != null) {
    current.addCallback(cb, callbackExecutor);
    if (VERBOSE_IS_LOGGABLE) {
      logWithTimeAndKey("Added to existing load", startTime, key);
    }
    return new LoadStatus(cb, current);
  }

  EngineJob<R> engineJob =
      engineJobFactory.build(
          key,
          isMemoryCacheable,
          useUnlimitedSourceExecutorPool,
          useAnimationPool,
          onlyRetrieveFromCache);

  DecodeJob<R> decodeJob =
      decodeJobFactory.build(
          glideContext,
          model,
          key,
          signature,
          width,
          height,
          resourceClass,
          transcodeClass,
          priority,
          diskCacheStrategy,
          transformations,
          isTransformationRequired,
          isScaleOnlyOrNoTransform,
          onlyRetrieveFromCache,
          options,
          engineJob);

  jobs.put(key, engineJob);

  engineJob.addCallback(cb, callbackExecutor);
  engineJob.start(decodeJob);

  if (VERBOSE_IS_LOGGABLE) {
    logWithTimeAndKey("Started new load", startTime, key);
  }
  return new LoadStatus(cb, engineJob);
}


public synchronized void start(DecodeJob<R> decodeJob) {
  this.decodeJob = decodeJob;
  GlideExecutor executor =
      decodeJob.willDecodeFromCache() ? diskCacheExecutor : getActiveSourceExecutor();
  executor.execute(decodeJob);
}

最终Engine(引擎)类内部会执行到自身的start方法，它会根据不同的配置采用不同的线程池使用diskCacheExecutor/sourceUnlimitedExecutor/animationExecutor/sourceExecutor来执行最终的解码任务decodeJob，直接看decodeJob.run()

3.8 decodeJob.run()

// DecodeJob.java
@Override
public void run() {
...
    runWrapped();
...
}


private void runWrapped() {
  switch (runReason) {
    case INITIALIZE:
      stage = getNextStage(Stage.INITIALIZE);
      currentGenerator = getNextGenerator();
      // 内部会调用startNext()
      runGenerators();
      break;
    case SWITCH_TO_SOURCE_SERVICE:
      runGenerators();
      break;
    case DECODE_DATA:
      // 将获取的数据解码成对应的资源
      decodeFromRetrievedData();
      break;
    default:
      throw new IllegalStateException("Unrecognized run reason: " + runReason);
  }
}


private DataFetcherGenerator getNextGenerator() {
  // 完整情况下，会异步依次生成这里的ResourceCacheGenerator、DataCacheGenerator和SourceGenerator对象，
  // 并在之后执行其中的startNext()
  switch (stage) {
    case RESOURCE_CACHE:
      return new ResourceCacheGenerator(decodeHelper, this);
    case DATA_CACHE:
      return new DataCacheGenerator(decodeHelper, this);
    case SOURCE:
      return new SourceGenerator(decodeHelper, this);
    case FINISHED:
      return null;
    default:
      throw new IllegalStateException("Unrecognized stage: " + stage);
  }
}


private void runGenerators() {
  currentThread = Thread.currentThread();
  startFetchTime = LogTime.getLogTime();
  boolean isStarted = false;
  while (!isCancelled
      && currentGenerator != null
      && !(isStarted = currentGenerator.startNext())) {
    stage = getNextStage(stage);
    currentGenerator = getNextGenerator();
    if (stage == Stage.SOURCE) {
      reschedule(RunReason.SWITCH_TO_SOURCE_SERVICE);
      return;
    }
  }
  if ((stage == Stage.FINISHED || isCancelled) && !isStarted) {
    notifyFailed();
  }
}


private Stage getNextStage(Stage current) {
  switch (current) {
    case INITIALIZE:
      return diskCacheStrategy.decodeCachedResource()
          ? Stage.RESOURCE_CACHE
          : getNextStage(Stage.RESOURCE_CACHE);
    case RESOURCE_CACHE: // 对应ResourceCacheGenerator执行器
      return diskCacheStrategy.decodeCachedData()
          ? Stage.DATA_CACHE
          : getNextStage(Stage.DATA_CACHE);
    case DATA_CACHE:  // 对应DataCacheGenerator执行器
      return onlyRetrieveFromCache ? Stage.FINISHED : Stage.SOURCE;
    case SOURCE: // 对应SourceGenerator执行器
    case FINISHED:
      return Stage.FINISHED;
    default:
      throw new IllegalArgumentException("Unrecognized stage: " + current);
  }
}

ResourceCacheGenerator：缓存中获取数据，这个数据是被修改过的降采样缓存
DataCacheGenerator：也是缓存中获取数据，这个数据是没有被修改的网路请求元数据
SourceGenerator：这个执行器执行的任务才真正是用于网络请求数据
通过getNextGenerator()返回的DataFetcherGenerator对象都会去执行runGenerators(),执行顺序为： ResourceCacheGenerator -> DataCacheGenerator -> SourceGenerator

3.9 SourceGenerator.startNext()

// SourceGenerator.java
@Override
public boolean startNext() {
  // dataToCache数据不为空的话缓存到硬盘
  if (dataToCache != null) {
    Object data = dataToCache;
    dataToCache = null;
    try {
      boolean isDataInCache = cacheData(data);
      if (!isDataInCache) {
        return true;
      }
      if (Log.isLoggable(TAG, Log.DEBUG)) {
        Log.d(TAG, "Failed to properly rewind or write data to cache", e);
      }
    }
  }

  if (sourceCacheGenerator != null && sourceCacheGenerator.startNext()) {
    return true;
  }
  sourceCacheGenerator = null;

  loadData = null;
  boolean started = false;
  while (!started && hasNextModelLoader()) {
    loadData = helper.getLoadData().get(loadDataListIndex++);
    if (loadData != null
        && (helper.getDiskCacheStrategy().isDataCacheable(loadData.fetcher.getDataSource())
            || helper.hasLoadPath(loadData.fetcher.getDataClass()))) {
      started = true;
      // 加载
      startNextLoad(loadData);
    }
  }
  return started;
}


List<LoadData<?>> getLoadData() {
  if (!isLoadDataSet) {
    isLoadDataSet = true;
    loadData.clear();
    List<ModelLoader<Object, ?>> modelLoaders = glideContext.getRegistry().getModelLoaders(model);
    for (int i = 0, size = modelLoaders.size(); i < size; i++) {
      ModelLoader<Object, ?> modelLoader = modelLoaders.get(i);
      // 这里最终是通过HttpGlideUrlLoader的buildLoadData获取到实际的loadData对象
      LoadData<?> current = modelLoader.buildLoadData(model, width, height, options);
      if (current != null) {
        loadData.add(current);
      }
    }
  }
  return loadData;
}


private void startNextLoad(final LoadData<?> toStart) {
  loadData.fetcher.loadData(
      helper.getPriority(),
      new DataCallback<Object>() {
        @Override
        public void onDataReady(@Nullable Object data) {
          if (isCurrentRequest(toStart)) {
             // 位置1
             // 请求成功会执行的
            onDataReadyInternal(toStart, data);
          }
        }

        @Override
        public void onLoadFailed(@NonNull Exception e) {
          if (isCurrentRequest(toStart)) {
            onLoadFailedInternal(toStart, e);
          }
        }
      });
}

3.10 HttpGlideUrlLoader.buildLoadData(...)

// HttpGlideUrlLoader.java
@Override
public LoadData<InputStream> buildLoadData(
    @NonNull GlideUrl model, int width, int height, @NonNull Options options) {
  GlideUrl url = model;
  if (modelCache != null) {
    url = modelCache.get(model, 0, 0);
    if (url == null) {
      modelCache.put(model, 0, 0, model);
      url = model;
    }
  }
  int timeout = options.get(TIMEOUT);
  // HttpUrlFetcher是正真负责网络请求图片数据的类
  return new LoadData<>(url, new HttpUrlFetcher(url, timeout));
}

从上面3.9中的startNextLoad(loadData)方法看，最终会执行HttpUrlFetcher.loadData()

3.11 HttpUrlFetcher.loadData()

// HttpUrlFetcher.java
@Override
public void loadData(
    @NonNull Priority priority, @NonNull DataCallback<? super InputStream> callback) {
  long startTime = LogTime.getLogTime();
  try {
    // loadDataWithRedirects内部是使用的HttpURLConnection进行的网络请求
    InputStream result = loadDataWithRedirects(glideUrl.toURL(), 0, null, glideUrl.getHeaders());
    // 请求成功后会回调onDataReady
    callback.onDataReady(result);
  } catch (IOException e) {
    if (Log.isLoggable(TAG, Log.DEBUG)) {
      Log.d(TAG, "Failed to load data for url", e);
    }
    callback.onLoadFailed(e);
  } finally {
    if (Log.isLoggable(TAG, Log.VERBOSE)) {
      Log.v(TAG, "Finished http url fetcher fetch in " + LogTime.getElapsedMillis(startTime));
    }
  }
}


private InputStream loadDataWithRedirects(
    URL url, int redirects, URL lastUrl, Map<String, String> headers) throws HttpException {
  ...

  urlConnection = buildAndConfigureConnection(url, headers);

  try {
    urlConnection.connect();
    stream = urlConnection.getInputStream();
  } catch (IOException e) {
    throw new HttpException(
        "Failed to connect or obtain data", getHttpStatusCodeOrInvalid(urlConnection), e);
  }

  if (isCancelled) {
    return null;
  }

  final int statusCode = getHttpStatusCodeOrInvalid(urlConnection);
  if (isHttpOk(statusCode)) {
    return getStreamForSuccessfulRequest(urlConnection);
  } else if (isHttpRedirect(statusCode)) {
    String redirectUrlString = urlConnection.getHeaderField(REDIRECT_HEADER_FIELD);
    if (TextUtils.isEmpty(redirectUrlString)) {
      throw new HttpException("Received empty or null redirect url", statusCode);
    }
    URL redirectUrl;
    try {
      redirectUrl = new URL(url, redirectUrlString);
    } catch (MalformedURLException e) {
      throw new HttpException("Bad redirect url: " + redirectUrlString, statusCode, e);
    }
    cleanup();
    return loadDataWithRedirects(redirectUrl, redirects + 1, url, headers);
  } else if (statusCode == INVALID_STATUS_CODE) {
    throw new HttpException(statusCode);
  } else {
    try {
      throw new HttpException(urlConnection.getResponseMessage(), statusCode);
    } catch (IOException e) {
      throw new HttpException("Failed to get a response message", statusCode, e);
    }
  }
}


private HttpURLConnection buildAndConfigureConnection(URL url, Map<String, String> headers)
    throws HttpException {
  HttpURLConnection urlConnection;
  try {
    urlConnection = connectionFactory.build(url);
  } catch (IOException e) {
    throw new HttpException("URL.openConnection threw", /* statusCode= */ 0, e);
  }
  for (Map.Entry<String, String> headerEntry : headers.entrySet()) {
    urlConnection.addRequestProperty(headerEntry.getKey(), headerEntry.getValue());
  }
  urlConnection.setConnectTimeout(timeout);
  urlConnection.setReadTimeout(timeout);
  urlConnection.setUseCaches(false);
  urlConnection.setDoInput(true);
  urlConnection.setInstanceFollowRedirects(false);
  return urlConnection;
}

在HttpUrlFetcher.loadData()方法的loadDataWithRedirects()里面，Glide通过原生的HttpURLConnection进行请求后，并调用getStreamForSuccessfulRequest()方法获取到了最终的图片流.
获取到流之后会执行到3.9中位置1处的的onDataReadyInternal(toStart, data)

3.12 SourceGenerator.onDataReadyInternal(toStart, data)

// SourceGenerator.java
@Synthetic
void onDataReadyInternal(LoadData<?> loadData, Object data) {
  DiskCacheStrategy diskCacheStrategy = helper.getDiskCacheStrategy();
  if (data != null && diskCacheStrategy.isDataCacheable(loadData.fetcher.getDataSource())) {
    dataToCache = data;
    cb.reschedule();
  } else {
    cb.onDataFetcherReady(
        loadData.sourceKey,
        data,
        loadData.fetcher,
        loadData.fetcher.getDataSource(),
        originalKey);
  }
}

接着会用DecodeJob.onDataFetcherReady(...)

// DecodeJob.java
@Override
public void onDataFetcherReady(
    Key sourceKey, Object data, DataFetcher<?> fetcher, DataSource dataSource, Key attemptedKey) {
  this.currentSourceKey = sourceKey;
  this.currentData = data;
  this.currentFetcher = fetcher;
  this.currentDataSource = dataSource;
  this.currentAttemptingKey = attemptedKey;
  this.isLoadingFromAlternateCacheKey = sourceKey != decodeHelper.getCacheKeys().get(0);

  if (Thread.currentThread() != currentThread) {
    reschedule(RunReason.DECODE_DATA);
  } else {
    GlideTrace.beginSection("DecodeJob.decodeFromRetrievedData");
    try {
      // 数据解码
      decodeFromRetrievedData();
    } finally {
      GlideTrace.endSection();
    }
  }
}

3.13 DecodeJob.decodeFromRetrievedData()

// DecodeJob.java
private void decodeFromRetrievedData() {
  ...
  Resource<R> resource = null;
  try {
    // 将数据解码成Resource
    resource = decodeFromData(currentFetcher, currentData, currentDataSource);
  } catch (GlideException e) {
    e.setLoggingDetails(currentAttemptingKey, currentDataSource);
    throwables.add(e);
  }
  if (resource != null) {
    notifyEncodeAndRelease(resource, currentDataSource, isLoadingFromAlternateCacheKey);
  } else {
    runGenerators();
  }
}


private void notifyEncodeAndRelease(
    Resource<R> resource, DataSource dataSource, boolean isLoadedFromAlternateCacheKey) {
  GlideTrace.beginSection("DecodeJob.notifyEncodeAndRelease");
  try {
    if (resource instanceof Initializable) {
      ((Initializable) resource).initialize();
    }

    Resource<R> result = resource;
    LockedResource<R> lockedResource = null;
    if (deferredEncodeManager.hasResourceToEncode()) {
      lockedResource = LockedResource.obtain(resource);
      result = lockedResource;
    }

    notifyComplete(result, dataSource, isLoadedFromAlternateCacheKey);

    stage = Stage.ENCODE;
    try {
      if (deferredEncodeManager.hasResourceToEncode()) {
        deferredEncodeManager.encode(diskCacheProvider, options);
      }
    } finally {
      if (lockedResource != null) {
        lockedResource.unlock();
      }
    }
    onEncodeComplete();
  } finally {
    GlideTrace.endSection();
  }
}


private void notifyComplete(
    Resource<R> resource, DataSource dataSource, boolean isLoadedFromAlternateCacheKey) {
  setNotifiedOrThrow();
  callback.onResourceReady(resource, dataSource, isLoadedFromAlternateCacheKey);
}

使用decodeFromData(...)将请求数据解码成Resource,最终执行notifyEncodeAndRelease() -> notifyComplete() -> notifyComplete() -> callback.onResourceReady()

3.14 EngineJob.onResourceReady(...)

// EngineJob.java
public void onResourceReady(
    Resource<R> resource, DataSource dataSource, boolean isLoadedFromAlternateCacheKey) {
  synchronized (this) {
    this.resource = resource;
    this.dataSource = dataSource;
    this.isLoadedFromAlternateCacheKey = isLoadedFromAlternateCacheKey;
  }
  notifyCallbacksOfResult();
}


@Synthetic
void notifyCallbacksOfResult() {
  ResourceCallbacksAndExecutors copy;
  Key localKey;
  EngineResource<?> localResource;
  synchronized (this) {
    stateVerifier.throwIfRecycled();
    if (isCancelled) {
      resource.recycle();
      release();
      return;
    } else if (cbs.isEmpty()) {
      throw new IllegalStateException("Received a resource without any callbacks to notify");
    } else if (hasResource) {
      throw new IllegalStateException("Already have resource");
    }
    engineResource = engineResourceFactory.build(resource, isCacheable, key, resourceListener);
    hasResource = true;
    copy = cbs.copy();
    incrementPendingCallbacks(copy.size() + 1);

    localKey = key;
    localResource = engineResource;
  }

  engineJobListener.onEngineJobComplete(this, localKey, localResource);

  for (final ResourceCallbackAndExecutor entry : copy) {
    // 关键方法
    entry.executor.execute(new CallResourceReady(entry.cb));
  }
  decrementPendingCallbacks();
}

最终会执行CallResourceReady.run()

// EngineJob.java
private class CallResourceReady implements Runnable {
 ...

  @Override
  public void run() {
    synchronized (cb.getLock()) {
      synchronized (EngineJob.this) {
        if (cbs.contains(cb)) {
          engineResource.acquire();
          callCallbackOnResourceReady(cb);
          removeCallback(cb);
        }
        decrementPendingCallbacks();
      }
    }
  }
}


@Synthetic
@GuardedBy("this")
void callCallbackOnResourceReady(ResourceCallback cb) {
  try {
    cb.onResourceReady(engineResource, dataSource, isLoadedFromAlternateCacheKey);
  } catch (Throwable t) {
    throw new CallbackException(t);
  }
}

最终执行到SingleRequest.onResourceReady(...)

3.15 SingleRequest.onResourceReady(...)

// SingleRequest.java
@Override
public void onResourceReady(
    Resource<?> resource, DataSource dataSource, boolean isLoadedFromAlternateCacheKey) {
  stateVerifier.throwIfRecycled();
  Resource<?> toRelease = null;
  try {
    synchronized (requestLock) {
      loadStatus = null;
      if (resource == null) {
       ...
        onLoadFailed(exception);
        return;
      }

      Object received = resource.get();
      if (received == null || !transcodeClass.isAssignableFrom(received.getClass())) {
        toRelease = resource;
        this.resource = null;
        ...
        onLoadFailed(exception);
        return;
      }

      if (!canSetResource()) {
        toRelease = resource;
        this.resource = null;
        status = Status.COMPLETE;
        GlideTrace.endSectionAsync(TAG, cookie);
        return;
      }

      onResourceReady(
          (Resource<R>) resource, (R) received, dataSource, isLoadedFromAlternateCacheKey);
    }
  } finally {
    if (toRelease != null) {
      engine.release(toRelease);
    }
  }
}


@GuardedBy("requestLock")
private void onResourceReady(
    Resource<R> resource, R result, DataSource dataSource, boolean isAlternateCacheKey) {
  boolean isFirstResource = isFirstReadyResource();
  status = Status.COMPLETE;
  this.resource = resource;
 ...

  notifyRequestCoordinatorLoadSucceeded();

  isCallingCallbacks = true;
  try {
    boolean anyListenerHandledUpdatingTarget = false;
    if (requestListeners != null) {
      for (RequestListener<R> listener : requestListeners) {
        anyListenerHandledUpdatingTarget |=
            listener.onResourceReady(result, model, target, dataSource, isFirstResource);
      }
    }
    anyListenerHandledUpdatingTarget |=
        targetListener != null
            && targetListener.onResourceReady(result, model, target, dataSource, isFirstResource);

    if (!anyListenerHandledUpdatingTarget) {
      Transition<? super R> animation = animationFactory.build(dataSource, isFirstResource);
      // 关键方法
      target.onResourceReady(result, animation);
    }
  } finally {
    isCallingCallbacks = false;
  }

  GlideTrace.endSectionAsync(TAG, cookie);
}

SingleRequest.onResourceReady() -> onResourceReady()重载方法 -> target.onResourceReady(result, animation)，这里的target其实就是我们在into方法中建立的那个BitmapImageViewTarget，看到BitmapImageViewTarget类，我们并没有发现onResourceReady(...)，是直接从其父类ImageViewTarget继承过来的，直接看ImageViewTarget.onResourceReady(...)

3.16 ImageViewTarget.onResourceReady(...)

// ImageViewTarget.java
@Override
public void onResourceReady(@NonNull Z resource, @Nullable Transition<? super Z> transition) {
  if (transition == null || !transition.transition(resource, this)) {
    setResourceInternal(resource);
  } else {
    maybeUpdateAnimatable(resource);
  }
}

private void setResourceInternal(@Nullable Z resource) {
  setResource(resource);
  maybeUpdateAnimatable(resource);
}

protected abstract void setResource(@Nullable Z resource);

最终调用了setResource(resource)这个抽象方法，具体实现还是回到其子类BitmapImageViewTarget/DrawableImageViewTarget

// BitmapImageViewTarget.java
@Override
protected void setResource(Bitmap resource) {
  view.setImageBitmap(resource);
}

最终将resouce设置到对应的ImageView上

3.17 三级缓存的使用

如果存在内存缓存，则去activeResources（弱引用的对象）中取解码后的数据
如果activeResources中没有对应的缓存，则去cache缓存中获取，如找到则直接返回cache数据，并将缓存数据写入activeResources中，删除cache中的缓存数据，
如果还没有，则在调用网络请求前，去磁盘中获取，磁盘中获取的数据是图片原数据，需要经过解码处理才能被控件使用，磁盘如果还没有，才会去网络中请求数据。

3.18 流程图


Glide源码解析

1. Glide的使用

2.源码阅读

2.1 Glide.with(...)相关源码

2.2 requestManager.load(url)相关源码

3. requestBuiler.into(iv)相关源码

3.1 requestBuiler.into(...)

3.2 glideContext.buildImageViewTarget(...)

3.3 requestBuilder.buildRequest(...)

3.4 requestManager.track(target, request)

3.5 SingleRequest.begin()

3.6 engine.load(...)

3.7 engine.waitForExistingOrStartNewJob(...)

3.8 decodeJob.run()

3.9 SourceGenerator.startNext()

3.10 HttpGlideUrlLoader.buildLoadData(...)

3.11 HttpUrlFetcher.loadData()

3.12 SourceGenerator.onDataReadyInternal(toStart, data)

3.13 DecodeJob.decodeFromRetrievedData()

3.14 EngineJob.onResourceReady(...)

3.15 SingleRequest.onResourceReady(...)

3.16 ImageViewTarget.onResourceReady(...)

3.17 三级缓存的使用

3.18 流程图

3.7 `engine.waitForExistingOrStartNewJob(...)`
