初始化值
const ref = useRef(null);
const canvasRef =useRef(null);
const circle1Radius = 75; //半径
const circle2Radius = 60;//半径
const [circle1Center,setcircle1Center] =useState<any>( { x: 243, y: 75 }) // 圆1的圆心坐标
const [circle2Center,setcircle2Center] =useState<any>( { x: 730, y: 75 }) // 圆2的圆心坐标
//获取cavas
var canvas = document.getElementById('targetcanvas');
useEffect(() => {
const element = document.getElementById('divpie');
if (element) {
const width = element.offsetWidth;
console.log('获取2个圆的父元素的宽度:', width);
//计算2个 圆的x值的中心点。 每个圆是占父元素的50%。以左下角定点为0点位置 x=0 ，y=0 。 那么每个圆的中心点 。 y值是大圆的半径高度值。 此demo为75
let leftpie = width/4
let rightpie=width/2+width/4
setcircle1Center(
{ x: leftpie, y: 75 }
)
setcircle2Center({
x: rightpie, y: 75
})
console.log('Width:', width,'leftpie',leftpie,'rightpie',rightpie);
}
}, [])
//如果画切线
声明canvas
var ctx = canvas.getContext("2d");
// 获取父元素的宽度
// 设置canvas宽度和高度与其兄弟元素相同
const parentWidth = canvas.parentNode.offsetWidth;
console.log('parentWidth',parentWidth)
// const parentHeight = canvas.parentNode.offsetHeight-24;
const parentHeight =150;
canvas.width = parentWidth;
canvas.height = parentHeight;
// 划线函数
const drawLine=(ctx, pointStart, pointEnd) =>{
console.log(ctx, pointStart, pointEnd)
ctx.beginPath();
ctx.moveTo(pointStart.x, pointStart.y);
ctx.lineTo(pointEnd.x, pointEnd.y);
ctx.stroke();
}
//计算坐标点
const calcQieDian=(c1, r1, c2, r2)=> {
//圆心之间的距离
let d = Math.sqrt(Math.pow(c1.x - c2.x, 2) + Math.pow(c1.y - c2.y, 2));
//外公切线与连心线夹角的角度
let theta = Math.acos((r1 - r2) / d);
let vc1c2 = { x: c2.x - c1.x, y: -c2.y + c1.y }; //屏幕坐标系与笛卡尔坐标系是y轴是反着的
let radC1C2 = Math.acos(vc1c2.x / Math.sqrt(Math.pow(vc1c2.x, 2) + Math.pow(vc1c2.y, 2)));
if (c2.y <= c1.y) {
//大圆上的切点
let p1 = { x: c1.x + Math.cos(theta + radC1C2) * r1, y: c1.y - Math.sin(theta + radC1C2) * r1 };
let p2 = { x: c1.x + Math.cos(theta - radC1C2) * r1, y: c1.y + Math.sin(theta - radC1C2) * r1 };
//小圆上的切点
let p3 = { x: c2.x + Math.cos(theta + radC1C2) * r2, y: c2.y - Math.sin(theta + radC1C2) * r2 };
let p4 = { x: c2.x + Math.cos(theta - radC1C2) * r2, y: c2.y + Math.sin(theta - radC1C2) * r2 };
return { p1: p1, p2: p2, p3: p3, p4: p4 };
} else {
radC1C2 = Math.PI - radC1C2;
//大圆上的切点
let p1 = { x: c1.x + Math.cos(Math.PI - theta - radC1C2) * r1, y: c1.y + Math.sin(Math.PI - theta - radC1C2) * r1 };
let p2 = { x: c1.x + Math.cos(Math.PI - (theta - radC1C2)) * r1, y: c1.y - Math.sin(Math.PI - (theta - radC1C2)) * r1 };
//小圆上的切点
let p3 = { x: c2.x + Math.cos(Math.PI - theta - radC1C2) * r2, y: c2.y + Math.sin(Math.PI - theta - radC1C2) * r2 };
let p4 = { x: c2.x + Math.cos(Math.PI - (theta - radC1C2)) * r2, y: c2.y - Math.sin(Math.PI - (theta - radC1C2)) * r2 };
return { p1: p1, p2: p2, p3: p3, p4: p4 };
}
}
// 调用
// 2条线的4个值。
{ x1，y1}，左侧圆中心点
r1，左侧圆半径
{ x2，y2}，右侧圆中心点
r2，右侧圆半径
const fourdian= calcQieDian(
circle1Center,
circle1Radius,
circle2Center,
circle2Radius
)
ctx.lineWidth = 2 // 线宽
ctx.stroke() // 线路
ctx.strokeStyle = 'blue'; //颜色
//划线
drawLine(ctx, fourdian.p1,fourdian.p3);
drawLine(ctx, fourdian.p2, fourdian.p4);
以上是切线的 大概逻辑
如果是算一部分数据 到右侧是值
以本图为例
左侧蓝色区域的图 到右侧图的线。 为红线部分
import React, { useState, useEffect, useContext, useRef } from "react";
import ECOption from "_s/libs/echarts-config.d.ts";
import echarts from "_s/libs/echarts-config.ts";
import ReactEChartsCore from "echarts-for-react/lib/core";
const { Option } = Select
const OverduePie = () => {
const ref = useRef(null);
const canvasRef = useRef(null);
const circle1Radius = 75; //大圆半径
const circle2Radius = 60; //小圆半径
const [delayOverdue, setDelayOverdue] = useState<any>([]) // 大饼图
const [dueOverdue, setDueOverdue] = useState<any>([]) // 小饼图
const [circle1Center, setcircle1Center] = useState<any>({ x: 243, y: 75 }) // 圆1的圆心坐标
const [circle2Center, setcircle2Center] = useState<any>({ x: 730, y: 75 }) // 圆2的圆心坐标
var canvas = document.getElementById('targetcanvas'); //获取canvas
useEffect(() => {
//初始化时候获取元素宽度。 并且将父级元素的宽高设置给大小圆的坐标点。 找到中心点
const element = document.getElementById('divpie');
if (element) {
const width = element.offsetWidth;
console.log('Width:', width);
let leftpie = width / 4
let rightpie = width / 2 + width / 4
setcircle1Center(
{ x: leftpie, y: 75 }
)
setcircle2Center({
x: rightpie, y: 75
})
console.log('Width:', width, 'leftpie', leftpie, 'rightpie', rightpie);
}
}, [])
// 接口返回数据的时候处理图表和canvas
const { loading: loadMARKET, run: runMARKET } = useRequest(GET_SERVICE_STAGING_OVERDUE_MARKET, {
manual: true,
onSuccess: (list: { error_code: number; data: any; msg: any }) => {
if (list.error_code != 0) {
return
}
setDelayOverdue(list.data.delayOverdue)
setDueOverdue(list.data.dueOverdue)
console.log('图表返回', list)
//这部分是旋转角度。 让图表以中心展示蓝色区域
const pieChart = calculatePieChartAngles(list.data.dueOverdue);
console.log('pieChart=', pieChart)
let chpre = parseInt((parseInt(pieChart[0].angle) / 2).toString())
console.log('chpre', chpre)
let roratedeg = parseInt(parseInt(chpre / 26))
console.log('角度问题===', parseInt(pieChart[0].angle), chpre, roratedeg);
//这部分是旋转角度。 让图表以中心展示蓝色区域
//这部分是获取左侧大图的2部分数据各占饼图的多少。算角度和坐标点
const pievalueAll = pieChart[0].value + pieChart[1].value
const leftvalue = pieChart[0].value
const rightvalue = pieChart[1].value
console.log('总值', pievalueAll)
const firstPartRatio = leftvalue / pievalueAll; // 第一个部分的占比
const secondPartRatio = rightvalue / pievalueAll; // 第二个部分的占比
const arr1Angle = firstPartRatio * 360; // arr1所占的角度
const arr2Angle = secondPartRatio * 360; // arr2所占的角度
//大图最大的部分就是切线顶点部分。所以测算如果是90 那就直接设置为上下2个定点。
let arr1half: any = ''
if (arr1Angle / 2 > 90) {
arr1half = 90
} else {
arr1half = arr1Angle / 2
}
let arr2half = 360 - arr1half
const arr1Rad = (arr1half * Math.PI) / 180; // arr1所占的角度转换为弧度表示
const arr2Rad = (arr2half * Math.PI) / 180;// arr2所占的角度转换为弧度表示
console.log('arr1Angle', arr1Angle, arr1Rad,)
console.log('arr2Angle', arr2Angle, arr2Rad)
const leftpiex = circle1Center.x + Math.cos(arr1Rad) * circle1Radius;
const leftpiey = circle1Center.y + Math.sin(arr1Rad) * circle1Radius;
setleftpiex(circle1Center.x + Math.cos(arr2Rad) * circle1Radius)
setleftpiey(circle1Center.y + Math.sin(arr2Rad) * circle1Radius)
console.log('leftpiex,leftpiey', leftpiex, leftpiey)
const rightpiex = circle1Center.x + Math.cos(arr2Rad) * circle1Radius;
const rightpiey = circle1Center.y + Math.sin(arr2Rad) * circle1Radius;
setleftpiex(circle1Center.x + Math.cos(arr2Rad) * circle1Radius)
setleftpiey(circle1Center.y + Math.sin(arr2Rad) * circle1Radius)
//这部分是获取左侧大图的2部分数据各占饼图的多少。算角度和坐标点
setStartAngle(chpre)
setRorate(roratedeg)
var ctx = canvas.getContext("2d");
// 获取父元素的宽度
// 设置canvas宽度和高度与其兄弟元素相同
const parentWidth = canvas.parentNode.offsetWidth;
console.log('parentWidth', parentWidth)
// const parentHeight = canvas.parentNode.offsetHeight-24;
const parentHeight = 150;
canvas.width = parentWidth;
canvas.height = parentHeight;
console.log(circle2Center, leftpiex, leftpiey)
ctx.beginPath();
ctx.moveTo(circle2Center.x, 135); // 将画笔移动到饼图2的边点
ctx.lineTo(leftpiex, leftpiey); // 画线到饼图2上与饼图1 arr2圆周相对应的点
ctx.strokeStyle = 'red'; // 设置线条颜色
ctx.lineWidth = 2; // 设置线条宽度
ctx.stroke();
ctx.beginPath();
ctx.moveTo(circle2Center.x, 15); // 将画笔移动到饼图2的边点
ctx.lineTo(rightpiex, rightpiey); // 画线到饼图2上与饼图1 arr2圆周相对应的点
ctx.strokeStyle = 'red'; // 设置线条颜色
ctx.lineWidth = 2; // 设置线条宽度
ctx.stroke();
},
})
// 图旋转函数
const calculatePieChartAngles = (data) => {
const total = data.reduce((acc, item) => acc + item.value, 0);
console.log('total', total)
return data.map((item, index) => {
const itemPercentage = item.value / total;
const itemAngle = itemPercentage * 360;
return { ...item, angle: itemAngle, key: index };
});
}
//大图和小图的charts设置
const option1: ECOption = {
tooltip: {
trigger: 'item'
},
legend: false,
series: [
{
name: '大图',
type: 'pie',
radius: '75',
startAngle: startAngle,
data: dueOverdue,
emphasis: {
itemStyle: {
shadowBlur: 10,
shadowOffsetX: 0,
shadowColor: 'rgba(0, 0, 0, 0.5)'
}
}
}
]
};
const option2: ECOption = {
tooltip: {
trigger: 'item'
},
legend: false,
series: [
{
name: '小图',
type: 'pie',
radius: '60',
data: delayOverdue,
emphasis: {
itemStyle: {
shadowBlur: 10,
shadowOffsetX: 0,
shadowColor: 'rgba(0, 0, 0, 0.5)'
}
}
}
]
};
}
export default OverduePie;
// 页面部分
<Spin spinning={loadMARKET}>
<div className="desktop_overduePie_con" ref={refpie} >
<div style={{ display: 'flex', zIndex: 10 }} id="divpie">
<div className="pieCharts" style={{ width: '50%', position: 'relative', }}>
<ReactEChartsCore
echarts={echarts}
option={option1}
theme={"theme_name"}
style={{ width: "100%", height: "150px" }}
/>
</div>
<div className="pieCharts" style={{ width: '50%', }}>
<ReactEChartsCore
echarts={echarts}
option={option2}
theme={"theme_name"}
style={{ width: "100%", height: "150px" }}
/>
</div>
</div>
<canvas ref={canvasRef} id="targetcanvas" style={{ position: 'absolute', top: 0, left: 0, zIndex: 2 }} />;
</div>
<div style={{ display: 'flex', backgroundColor: '#ff00ff' }}>
<div className="title" style={{ textAlign: 'center', width: '50%' }}>
大图部分
</div>
<div className="title"> </div>
</div>
</Spin>
参考

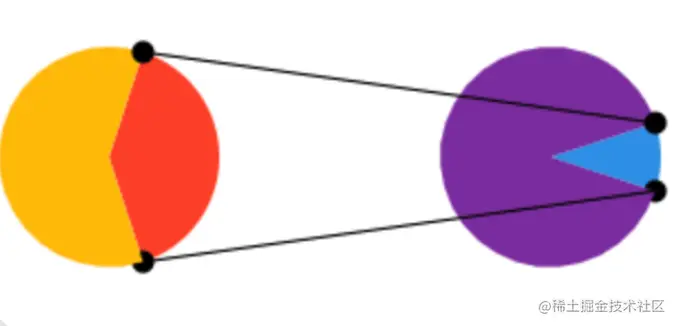

以下是使用HTML和Canvas绘制你所描述场景的代码示例：
```html
<!DOCTYPE html>
<html>
<head>
<style>
canvas {
border: 1px solid black;
}
</style>
</head>
<body>
<canvas id="myCanvas" width="400" height="200"></canvas>
<script>
var canvas = document.getElementById("myCanvas");
var ctx = canvas.getContext("2d");
// 绘制a圆
var aCenterX = 100;
var aCenterY = canvas.height / 2;
var aRadius = 50;
var aStartAngle = 0;
var aEndAngle = Math.PI * 2 / 3;
ctx.beginPath();
ctx.moveTo(aCenterX, aCenterY);
ctx.arc(aCenterX, aCenterY, aRadius, aStartAngle, aEndAngle, false); // 蓝色扇形
ctx.fillStyle = "blue";
ctx.fill();
ctx.beginPath();
ctx.arc(aCenterX, aCenterY, aRadius, aEndAngle, Math.PI * 2, false); // 红色扇形
ctx.fillStyle = "red";
ctx.fill();
// 绘制b圆
var bCenterX = aCenterX + 200;
var bCenterY = canvas.height / 2;
var bRadius = 50;
var bStartAngle = Math.PI * 2 / 3;
var bEndAngle = Math.PI * 2;
ctx.beginPath();
ctx.moveTo(bCenterX, bCenterY);
ctx.arc(bCenterX, bCenterY, bRadius, bStartAngle, bEndAngle, false); // 蓝色扇形
ctx.fillStyle = "blue";
ctx.fill();
ctx.beginPath();
ctx.arc(bCenterX, bCenterY, bRadius, 0, bStartAngle, false); // 红色扇形
ctx.fillStyle = "red";
ctx.fill();
// 连接线
ctx.beginPath();
ctx.moveTo(aCenterX + Math.cos(aEndAngle) * aRadius, aCenterY + Math.sin(aEndAngle) * aRadius);
ctx.lineTo(bCenterX + Math.cos(bStartAngle) * bRadius, bCenterY + Math.sin(bStartAngle) * bRadius);
ctx.strokeStyle = "red";
ctx.stroke();
ctx.beginPath();
ctx.moveTo(aCenterX + Math.cos(aStartAngle) * aRadius, aCenterY + Math.sin(aStartAngle) * aRadius);
ctx.lineTo(bCenterX + Math.cos(bEndAngle) * bRadius, bCenterY + Math.sin(bEndAngle) * bRadius);
ctx.strokeStyle = "red";
ctx.stroke();
</script>
</body>
</html>
这段代码将在Canvas上绘制出你所描述的两个圆和连接线的图案，圆的半径为50px，且满足要求的颜色和连接线。
参考2
<!--
@author: yangwenjun
@Created by yangwenjun on 2023/07/19 21:04:48
@file: canvas.html
@description:
==================
Usage:
==================
-->
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>canvas</title>
<style>
body {
margin: 0;
}
canvas {
border: 1px solid black;
width: 50%;
height: 50%;
}
</style>
</head>
<body onload="draw()">
<canvas id="target"></canvas>
<script>
/**
* 获取切点
* @param c1 大圆
* @param c2 小圆
* @param r1 大圆半径
* @param r2 小圆半径
*/
function calcQieDian(c1, c2, r1, r2) {
//圆心之间的距离
let d = Math.sqrt(Math.pow(c1.x - c2.x, 2) + Math.pow(c1.y - c2.y, 2));
//外公切线与连心线夹角的角度
let theta = Math.acos((r1 - r2) / d);
let vc1c2 = { x: c2.x - c1.x, y: -c2.y + c1.y }; //屏幕坐标系与笛卡尔坐标系是y轴是反着的
let radC1C2 = Math.acos(vc1c2.x / Math.sqrt(Math.pow(vc1c2.x, 2) + Math.pow(vc1c2.y, 2)));
if (c2.y <= c1.y) {
//大圆上的切点
let p1 = { x: c1.x + Math.cos(theta + radC1C2) * r1, y: c1.y - Math.sin(theta + radC1C2) * r1 };
let p2 = { x: c1.x + Math.cos(theta - radC1C2) * r1, y: c1.y + Math.sin(theta - radC1C2) * r1 };
//小圆上的切点
let p3 = { x: c2.x + Math.cos(theta + radC1C2) * r2, y: c2.y - Math.sin(theta + radC1C2) * r2 };
let p4 = { x: c2.x + Math.cos(theta - radC1C2) * r2, y: c2.y + Math.sin(theta - radC1C2) * r2 };
return { p1: p1, p2: p2, p3: p3, p4: p4 };
} else {
radC1C2 = Math.PI - radC1C2;
//大圆上的切点
let p1 = { x: c1.x + Math.cos(Math.PI - theta - radC1C2) * r1, y: c1.y + Math.sin(Math.PI - theta - radC1C2) * r1 };
let p2 = { x: c1.x + Math.cos(Math.PI - (theta - radC1C2)) * r1, y: c1.y - Math.sin(Math.PI - (theta - radC1C2)) * r1 };
//小圆上的切点
let p3 = { x: c2.x + Math.cos(Math.PI - theta - radC1C2) * r2, y: c2.y + Math.sin(Math.PI - theta - radC1C2) * r2 };
let p4 = { x: c2.x + Math.cos(Math.PI - (theta - radC1C2)) * r2, y: c2.y - Math.sin(Math.PI - (theta - radC1C2)) * r2 };
return { p1: p1, p2: p2, p3: p3, p4: p4 };
}
}
function drawLine(ctx, pointStart, pointEnd) {
ctx.beginPath();
ctx.moveTo(pointStart.x, pointStart.y);
ctx.lineTo(pointEnd.x, pointEnd.y);
ctx.stroke();
}
function draw() {
var canvas = document.getElementById('target');
canvas.width = window.innerWidth
canvas.height = window.innerHeight > 600 ? window.innerHeight : 600
if (canvas.getContext) {
var ctx = canvas.getContext("2d");
//
const pointA = { x: 600, y: 200, r: 100 }
const pointB = { x: 200, y: 260, r: 150 }
/* arc(x, y, 半经, 开始孤度, 结束孤度, 方向）*/
ctx.beginPath()
ctx.arc(
pointA.x, pointA.y, // 圆心位置
pointA.r, // 半径
0, // 起始角度
Math.PI * 4 / 2 // 结束角度 Math.PI 180deg
)
ctx.moveTo(pointA.x, pointA.y,) // 圆A 圆心
ctx.arc(
pointA.x, pointA.y, // 圆心位置
1, // 半径
0, // 起始角度
Math.PI * 4 / 2 // 结束角度 Math.PI 180deg
)
ctx.moveTo(350, 260)
ctx.arc(
pointB.x, pointB.y, // 圆心位置
pointB.r, // 半径
0, // 起始角度
Math.PI * 4 / 2 // 结束角度 Math.PI 180deg
)
ctx.moveTo(pointB.x, pointB.y,) // 圆B 圆心
ctx.arc(
pointB.x, pointB.y, // 圆心位置
1, // 半径
0, // 起始角度
Math.PI * 4 / 2 // 结束角度 Math.PI 180deg
)
ctx.lineWidth = 5 // 线宽
ctx.stroke() // 线路
let p = calcQieDian(
{ x: pointA.x, y: pointA.y },
{ x: pointB.x, y: pointB.y },
pointA.r, pointB.r
);
drawLine(ctx, p.p1, p.p3);
drawLine(ctx, p.p2, p.p4);
}
}
</script>
</body>
</html>
```js
参考3 是其他大佬的笔记
https://www.jianshu.com/p/f29f658c432c
https://blog.csdn.net/L25000/article/details/105627815?ydreferer=aHR0cHM6Ly9jbi5iaW5nLmNvbS8%3D
** 手动画图**
解析：
- 思路搜两个饼图，数据两条，找到最小的角度，初始角度为0，逆时针转最小角度一半，找到 饼图交界处的点，创建数组推入点，根据点画线。
- 更改角度之后，因为转回去了一半，所以显示还是按照一半一半的来
<!DOCTYPE html>
<html>
<head>
<title>Two Non-Overlapping Pie Charts</title>
</head>
<body>
<canvas id="pieChartCanvas" width="400" height="400"></canvas>
<script>
// Get the canvas element and its context
var canvas = document.getElementById("pieChartCanvas");
var ctx = canvas.getContext("2d");
const circlePoints = []
function drawLine(ctx, pointStart, pointEnd) {
ctx.beginPath();
ctx.moveTo(pointStart.x, pointStart.y);
ctx.lineTo(pointEnd.x, pointEnd.y);
ctx.stroke();
}
// Define data for the two pie charts
var data1 = [
{ label: "Slice 1", value: 20, color: "#FF5733" },
{ label: "Slice 2", value: 80, color: "#FFC300" }
];
var data2 = [
{ label: "Slice 1", value: 10, color: "#36A2EB" },
{ label: "Slice 2", value: 90, color: "#8E44AD" }
];
// Function to draw a pie chart with given data, center, radius, and rotation
function drawPieChart(data, centerX, centerY, radius, rotation) {
var total = data.reduce((sum, slice) => sum + slice.value, 0);
var minSlice = data.reduce(function (prev, current) {
return (prev.value < current.value) ? prev : current;
});
var minSliceAngle = (minSlice.value / 100) * Math.PI * 2;
var startAngle = rotation - minSliceAngle / 2;
for (var i = 0; i < data.length; i++) {
var sliceAngle = (data[i].value / total) * 2 * Math.PI;
// Calculate intersection point with the circle at the segment boundary
var angle = startAngle + sliceAngle;
var x = centerX + radius * Math.cos(angle);
var y = centerY + radius * Math.sin(angle);
circlePoints.push({ x: x, y: y })
// Draw the slice
ctx.beginPath();
ctx.moveTo(centerX, centerY);
ctx.arc(centerX, centerY, radius, startAngle, startAngle + sliceAngle);
ctx.closePath();
ctx.fillStyle = data[i].color;
ctx.fill();
// Draw a point at the segment boundary
ctx.beginPath();
ctx.arc(x, y, 5, 0, 2 * Math.PI);
ctx.fillStyle = "#000";
ctx.fill();
// Update the starting angle for the next slice
startAngle += sliceAngle;
}
}
// Draw the two pie charts
// drawPieChart(data1, canvas.width / 4, canvas.height / 2, 100, -Math.PI / 4);
// drawPieChart(data2, canvas.width * 3 / 4, canvas.height / 2, 100, -Math.PI / 4 - Math.PI / 2);
drawPieChart(data1, canvas.width / 4, canvas.height / 2, 50, 0);
drawPieChart(data2, canvas.width * 3 / 4, canvas.height / 2, 50, 0);
//
drawLine(ctx, circlePoints[0], circlePoints[2],)
drawLine(ctx, circlePoints[1], circlePoints[3],)
</script>
</body>
</html>
