工业大数据之维修事实指标需求分析（22）

@[toc]

1：维修事实指标需求分析

• 目标：掌握DWB层维修事实指标表的构建需求分析

• 路径

  • step1：目标需求
  • step2：数据来源

• 实施

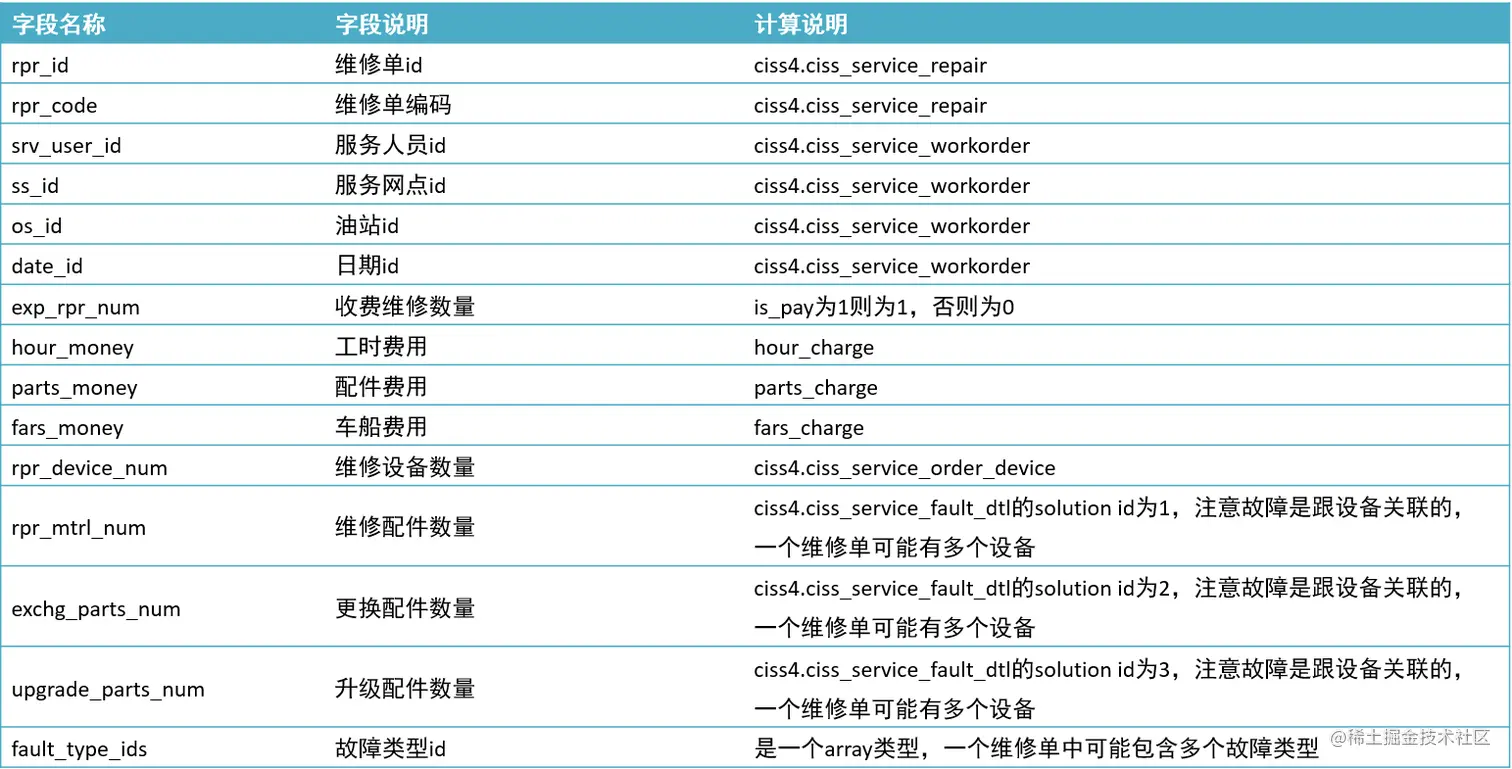

  • 目标需求：基于维修信息数据统计维修设备个数、维修、更换、升级配件数量、工时费用、配件费用等指标



  • 数据来源

    • ciss_service_repair：维修信息表

      select
          id,--维修单id
          code,--维修单号
          service_id,--服务单id
          is_pay,--是否收费 1-收费，0-免费
          hour_charge,--工时费用
          parts_charge,--配件费用
          fares_charge --车船费用
      from ciss_service_repair;


    • ciss_service_order：服务单信息表

      select
        id,            --服务单id
        workorder_id,  --工单id
        type           --工单类型,1-安装，2-维修，3-巡检
      from ciss_service_order;


    • ciss_service_workorder：工单详情事实表

      select
          id,--工单id
          service_userid,--工程师id
          service_station_id,--服务站点id
          oil_station_id,--油站id
          create_time --创建时间
      from ciss_service_workorder;


    • ciss_service_order_device：服务单设备信息表

      select
          id,               --设备id
          service_order_id  --服务单id
      from ciss_service_order_device;


    • ciss_service_fault_dtl：设备故障信息表

      select
          serviceorder_device_id,--服务单设备id
          solution_id,--解决方案id,1-维修，2-更换，3-升级
          fault_type_id --故障分类id
      from ciss_service_fault_dtl;


• 小结

  • 掌握DWB层维修事实指标表的需求分析

2：维修事实指标构建

• 目标：实现DWB层维修事实指标表的构建

• 实施

  • 建表

    drop table if exists one_make_dwb.fact_srv_repair;
    create table if not exists one_make_dwb.fact_srv_repair(
        rpr_id string comment '维修单id'
        , rpr_code string comment '维修单编码'
        , srv_user_id string comment '服务人员用户id'
        , ss_id string comment '服务网点id'
        , os_id string comment '油站id'
        , date_id string comment '日期id'
        , exp_rpr_num string comment '收费维修数量'
        , hour_money int comment '工时费用'
        , parts_money int comment '配件费用'
        , fars_money int comment '车船费用'
        , rpr_device_num int comment '维修设备数量'
        , rpr_mtrl_num int comment '维修配件数量'
        , exchg_parts_num int comment '更换配件数量'
        , upgrade_parts_num int comment '升级配件数量'
        , fault_type_ids string comment '故障类型id集合'
    ) comment '维修单事实表'
    partitioned by (dt string)
    stored as orc
    location '/data/dw/dwb/one_make/fact_srv_repair';


  • 抽取

    insert overwrite table one_make_dwb.fact_srv_repair partition(dt = '20210101')
    select
        repair.id rpr_id                                              --维修单id
    	, repair.code rpr_code                                        --维修单号
    	, swo.service_userid srv_user_id                              --工程师id
    	, swo.service_station_id ss_id                                --服务网点id
    	, swo.oil_station_id os_id                                    --油站id
    	, swo.create_time date_id                                     --创建时间
    	, case when repair.is_pay = 1 then 1 else 0 end exp_rpr_num   --收费维修数量
    	, repair.hour_charge hour_money                               --工时费用
    	, repair.parts_charge parts_money                             --配件费用
    	, repair.fares_charge fars_money                              --车船费用
    	, rpr_device_num                                              --维修设备数量
    	, rpr_mtrl_num                                                --维修配件数量
    	, exchg_parts_num                                             --更换配件数量
    	, upgrade_parts_num                                           --升级配件数量
    	, fault_type_ids                                              --故障类型id集合
    	--维修信息表
    from one_make_dwd.ciss_service_repair repair
    	--服务单信息表
        left join one_make_dwd.ciss_service_order sorder on repair.service_id = sorder.id
    	--工单信息表
        left join one_make_dwd.ciss_service_workorder swo on sorder.workorder_id = swo.id
    	--获取维修设备数量
        left join (
    		select
    			rep.id, count(rep.id) rpr_device_num
    		from one_make_dwd.ciss_service_repair rep
    		left join one_make_dwd.ciss_service_order sod on rep.service_id = sod.id
    		left join one_make_dwd.ciss_service_order_device dev on sod.id = dev.service_order_id
    		group by rep.id
        ) repairdvc on repair.id = repairdvc.id
    	--获取维修、更换、升级配件数量
        left join (
    		select
    			rep.id,
        	   sum(case when sfd.solution_id = 1 then 1 else 0 end) rpr_mtrl_num,
        	   sum(case when sfd.solution_id = 2 then 1 else 0 end) exchg_parts_num,
        	   sum(case when sfd.solution_id = 3 then 1 else 0 end) upgrade_parts_num
    		from one_make_dwd.ciss_service_repair rep
        	left join one_make_dwd.ciss_service_order sod on rep.service_id = sod.id
        	left join one_make_dwd.ciss_service_order_device dev on sod.id = dev.service_order_id
        	left join one_make_dwd.ciss_service_fault_dtl sfd on dev.id = sfd.serviceorder_device_id
    		group by dev.id,rep.id
        ) dvcnum on repair.id = dvcnum.id
    	--获取故障类型ID
        left join (
    		select
    			rep.id, concat_ws(',', collect_set(sfd.fault_type_id)) fault_type_ids
    		from one_make_dwd.ciss_service_repair rep
        	left join one_make_dwd.ciss_service_order sod on rep.service_id = sod.id
        	left join one_make_dwd.ciss_service_order_device dev on sod.id = dev.service_order_id
        	left join one_make_dwd.ciss_service_fault_dtl sfd on dev.id = sfd.serviceorder_device_id
    		where sfd.fault_type_id is not null
    		group by rep.id
        ) faulttype on repair.id = faulttype.id
    where repair.dt = '20210101'
    ;


• 小结

  • 实现DWB层维修事实指标表的构建
