学习[threejs] threejs 实现随机曲线

安装噪声函数 simplex-noise

import { createNoise3D } from "simplex-noise";
// 创建噪声
const noise = createNoise3D(Math.random);

使用噪声函数创建噪声位置

// 噪音
computeCurl(x: number, y: number, z: number) {
    var eps = 0.0001;

    var curl = new THREE.Vector3();

    //Find rate of change in YZ plane
    var n1 = noise(x, y + eps, z);
    var n2 = noise(x, y - eps, z);
    //Average to find approximate derivative
    var a = (n1 - n2) / (2 * eps);
    var n1 = noise(x, y, z + eps);
    var n2 = noise(x, y, z - eps);
    //Average to find approximate derivative
    var b = (n1 - n2) / (2 * eps);
    curl.x = a - b;

    //Find rate of change in XZ plane
    n1 = noise(x, y, z + eps);
    n2 = noise(x, y, z - eps);
    a = (n1 - n2) / (2 * eps);
    n1 = noise(x + eps, y, z);
    n2 = noise(x - eps, y, z);
    b = (n1 - n2) / (2 * eps);
    curl.y = a - b;

    //Find rate of change in XY plane
    n1 = noise(x + eps, y, z);
    n2 = noise(x - eps, y, z);
    a = (n1 - n2) / (2 * eps);
    n1 = noise(x, y + eps, z);
    n2 = noise(x, y - eps, z);
    b = (n1 - n2) / (2 * eps);
    curl.z = a - b;

    return curl;
}

创建管道曲线所需要的1000个随机点坐标

// 创建曲线路径
getCurve(start: THREE.Vector3) {
    const scale = 3;
    const points = [];
    points.push(start);
    const currentPoint = start.clone();
    for (let i = 0; i < 1000; i++) {
        const v = this.computeCurl(
            currentPoint.x / scale,
            currentPoint.y / scale,
            currentPoint.z / scale
        );
        // 添加缩放向量
        currentPoint.addScaledVector(v, 0.001);
        points.push(currentPoint.clone());
    }
    return points;
}

创建管道图形

getBox(point: THREE.Vector3) {
    const path = new THREE.CatmullRomCurve3(
        this.getCurve(point)
    );
    const geometry2 = new THREE.TubeGeometry(
        path,
        1000,
        0.005
    );
    const material = new THREE.ShaderMaterial({
        fragmentShader: fs,
        vertexShader: vs,
    });
    const mesh = new THREE.Mesh(geometry2, material);
    return mesh;
}

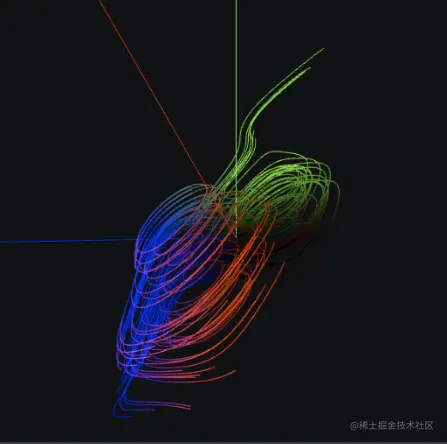

创建多组管道

getBoxList() {
    for (let i = 0; i < 100; i++) {
        // this.getBox();
        this.experience.scene.add(
            this.getBox(
                new THREE.Vector3(
                    Math.random() - 0.5,
                    Math.random() - 0.5,
                    Math.random() - 0.5
                )
            )
        );
    }
}
