使用JavaScript实现组件封装（轮播图） | 青训营

组件封装（组件是指Web页面上抽出来一个个包含模版(HTML)、功能(JS)和样式(CSS)的单元。好的组件具备封装性、正确性、扩展性、复用性）

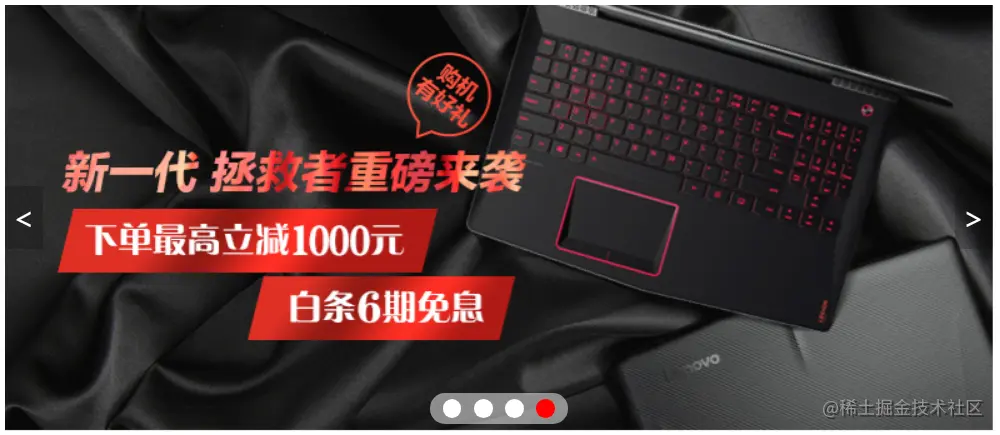

• 轮播图html结构；

<div id="my-slider" class="slider-list">
  <ul>
    <li class="slider-list__item--selected">
      <img src="https://p5.ssl.qhimg.com/t0119c74624763dd070.png"/>
    </li>
    <li class="slider-list__item">
      <img src="https://p4.ssl.qhimg.com/t01adbe3351db853eb3.jpg"/>
    </li>
    <li class="slider-list__item">
      <img src="https://p2.ssl.qhimg.com/t01645cd5ba0c3b60cb.jpg"/>
    </li>
    <li class="slider-list__item">
      <img src="https://p4.ssl.qhimg.com/t01331ac159b58f5478.jpg"/>
    </li>
  </ul>
  <a class="slide-list__next"></a>
  <a class="slide-list__previous"></a>
  <div class="slide-list__control">
    <span class="slide-list__control-buttons--selected"></span>
    <span class="slide-list__control-buttons"></span>
    <span class="slide-list__control-buttons"></span>
    <span class="slide-list__control-buttons"></span>
  </div>
</div>

• 使用CSS绝对定位将图片重叠在同一个位置；轮播图切换的状态使用修饰符(modifier)；轮播图的切换动画使用CSS transition。

//使用CSS绝对定位将图片重叠在同一个位置；
#my-slider{
  position: relative;
  width: 790px;
  height: 340px;
}

.slider-list ul{
  list-style-type:none;
  position: relative;
  width: 100%;
  height: 100%;
  padding: 0;
  margin: 0;
}

//轮播图切换的状态使用修饰符(modifier)；
.slider-list__item,
.slider-list__item--selected{
  position: absolute;
  transition: opacity 1s;
  opacity: 0;
  text-align: center;
}
//轮播图的切换动画使用CSS transition。
.slider-list__item--selected{
  transition: opacity 1s;
  opacity: 1;
}

.slide-list__control{
  position: relative;
  display: table;
  background-color: rgba(255, 255, 255, 0.5);
  padding: 5px;
  border-radius: 12px;
  bottom: 30px;
  margin: auto;
}

.slide-list__next,
.slide-list__previous{
  display: inline-block;
  position: absolute;
  top: 50%;
  margin-top: -25px;
  width: 30px;
  height:50px;
  text-align: center;
  font-size: 24px;
  line-height: 50px;
  overflow: hidden;
  border: none;
  background: transparent;
  color: white;
  background: rgba(0,0,0,0.2);
  cursor: pointer;
  opacity: 0;
  transition: opacity .5s;
}

.slide-list__previous {
  left: 0;
}

.slide-list__next {
  right: 0;
}

#my-slider:hover .slide-list__previous {
  opacity: 1;
}


#my-slider:hover .slide-list__next {
  opacity: 1;
}
//通过伪元素选择器添加内容
.slide-list__previous:after {
  content: '<';
}

.slide-list__next:after {
  content: '>';
}
//初始化控制组件样式及定位布局
.slide-list__control-buttons,
.slide-list__control-buttons--selected{
  display: inline-block;
  width: 15px;
  height: 15px;
  border-radius: 50%;
  margin: 0 5px;
  background-color: white;
  cursor: pointer;
}

.slide-list__control-buttons--selected {
  background-color: red;
}

• 开发轮播图API： +getSelectedltem()、+getSelectedltemIndex()、+slide To()、+slideNext()、+slidePrevious()

//首先，代码定义了一个名为Slider的类。
//构造函数接受两个参数：id和cycle（默认值为3000）。id参数用于指定轮播图容器的元素id，cycle参数用于指定轮播图的切换时间间隔。
class Slider{
  constructor(id, cycle = 3000){
    this.container = document.getElementById(id);
//  轮播图图片条目
    this.items = this.container.querySelectorAll('.slider-list__item, .slider-list__item--selected');
    this.cycle = cycle;
// 轮播图按钮控件
    const controller = this.container.querySelector('.slide-list__control');
// 如果获取按钮控件索引idx，并轮播到图片位置
// 先获取元素，再if判断执行相应逻辑，这样控制台便不会因为界面可能渲染不及时（eg，script在dom解析前执行）而在控制台报错
    if(controller){
      const buttons = controller.querySelectorAll('.slide-list__control-buttons, .slide-list__control-buttons--selected');
      controller.addEventListener('mouseover', evt=>{
        const idx = Array.from(buttons).indexOf(evt.target);
        if(idx >= 0){
          this.slideTo(idx);
          this.stop();
        }
      });

      controller.addEventListener('mouseout', evt=>{
        this.start();
      });
      //渲染UI界面
      this.container.addEventListener('slide', evt => {
        const idx = evt.detail.index
        const selected = controller.querySelector('.slide-list__control-buttons--selected');
        if(selected) selected.className = 'slide-list__control-buttons';
        buttons[idx].className = 'slide-list__control-buttons--selected';
      })
    }

    const previous = this.container.querySelector('.slide-list__previous');
    if(previous){
      previous.addEventListener('click', evt => {
        this.stop();
        this.slidePrevious();
        this.start();
        evt.preventDefault();
      });
    }

    const next = this.container.querySelector('.slide-list__next');
    if(next){
      next.addEventListener('click', evt => {
        this.stop();
        this.slideNext();
        this.start();
        evt.preventDefault();
      });
    }
  }
  getSelectedItem(){
    let selected = this.container.querySelector('.slider-list__item--selected');
    return selected
  }
  getSelectedItemIndex(){
    return Array.from(this.items).indexOf(this.getSelectedItem());
  }
  slideTo(idx){
    let selected = this.getSelectedItem();
    if(selected){
      selected.className = 'slider-list__item';
    }
    let item = this.items[idx];
    if(item){
      item.className = 'slider-list__item--selected';
    }

    const detail = {index: idx}
    const event = new CustomEvent('slide', {bubbles:true, detail})
    this.container.dispatchEvent(event)
  }
  slideNext(){
    let currentIdx = this.getSelectedItemIndex();
    let nextIdx = (currentIdx + 1) % this.items.length;
    this.slideTo(nextIdx);
  }
  slidePrevious(){
    let currentIdx = this.getSelectedItemIndex();
    let previousIdx = (this.items.length + currentIdx - 1) % this.items.length;
    this.slideTo(previousIdx);
  }
  start(){
    this.stop();
    this._timer = setInterval(()=>this.slideNext(), this.cycle);
  }
  stop(){
    clearInterval(this._timer);
  }
}

const slider = new Slider('my-slider');
slider.start();

• 构造函数中，通过id获取轮播图容器元素，并将其赋值给this.container属性。然后，通过查询选择器获取轮播图的图片条目元素，并将其赋值给this.items属性。接下来，获取轮播图的按钮控件元素，并赋值给变量controller。
• 如果存在控制按钮，则添加鼠标悬停和鼠标移出事件监听器。鼠标悬停事件监听器会在鼠标悬停在按钮上时执行相应的逻辑，包括获取按钮索引并切换到对应的图片位置，并停止轮播。鼠标移出事件监听器会在鼠标移出按钮时执行相应的逻辑，即重新开始轮播。
• 此外，还添加了一个slide事件监听器，用于在轮播图切换时更新按钮的选中状态。该监听器会在轮播图容器上触发slide事件，并通过事件的detail属性传递当前切换到的图片索引。在监听器中，会通过查询选择器找到当前选中的按钮元素，并将其类名改为'slide-list__control-buttons--selected'，以显示选中状态。
• 接下来，代码获取轮播图容器中的上一个按钮元素和下一个按钮元素，并分别添加点击事件监听器。点击上一个按钮会停止轮播、切换到上一张图片并重新开始轮播。点击下一个按钮会停止轮播、切换到下一张图片并重新开始轮播。
• 类中还定义了几个辅助方法即API。getSelectedItem方法用于获取当前选中的图片条目元素。getSelectedItemIndex方法用于获取当前选中的图片条目元素在所有图片条目元素中的索引。
• slideTo方法用于切换到指定索引的图片条目。该方法会将当前选中的图片条目的类名改为'slider-list__item'，将指定索引的图片条目的类名改为'slider-list__item--selected'。然后，通过创建一个自定义事件slide，并将当前索引作为detail属性的值传递给事件。最后，通过调用dispatchEvent方法将自定义事件触发在轮播图容器上。
• slideNext方法用于切换到下一张图片。首先，获取当前选中图片的索引，然后计算下一张图片的索引（通过将当前索引加1并取余数），最后调用slideTo方法切换到下一张图片。
• slidePrevious方法用于切换到上一张图片。与slideNext方法类似，不同之处在于计算上一张图片的索引时需要加上图片条目的总数，并将结果取余数。
• start方法用于开始轮播。首先，调用stop方法停止当前的轮播。然后，使用setInterval方法设置定时器，定时调用slideNext方法切换到下一张图片，并将cycle参数作为切换的时间间隔。
• stop方法用于停止轮播，即清除定时器。

• 图片与状态组件相联系（但不能让组件的状态与图片的状态相耦合在一起），需实现解耦，类构造函数中使用自定义事件（控制流）进行解耦。

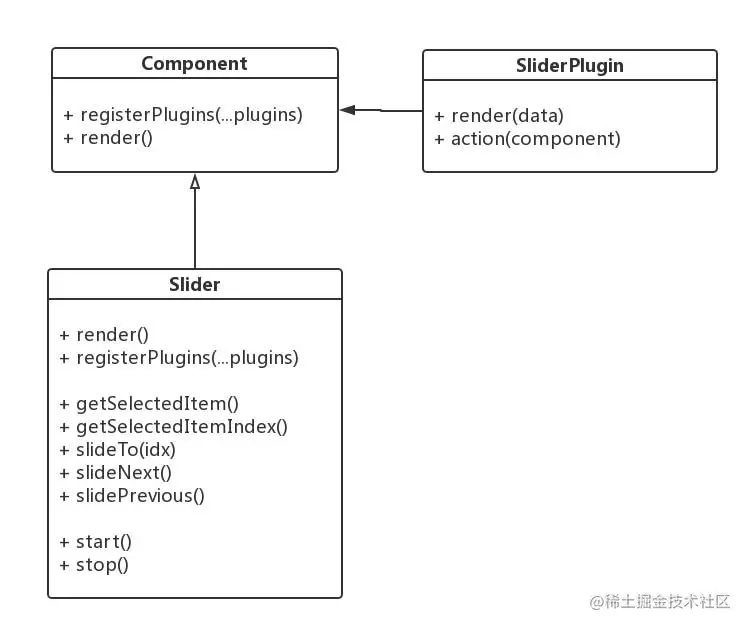

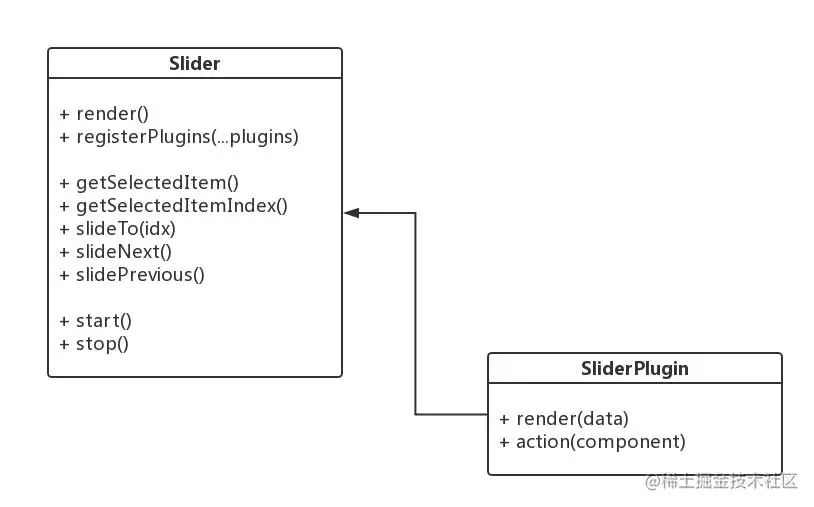

• 插件化：将控制元素抽取成插件；插件与组件之间通过依赖注入方式建立联系；

class Slider{
  constructor(id, cycle = 3000){
    this.container = document.getElementById(id);
//  轮播图图片条目
    this.items = this.container.querySelectorAll('.slider-list__item, .slider-list__item--selected');
    this.cycle = cycle;
// 轮播图按钮控件
    const controller = this.container.querySelector('.slide-list__control');
// 如果获取按钮控件索引idx，并轮播到图片位置
// 先获取元素，再if判断执行相应逻辑，这样控制台便不会因为界面可能渲染不及时（eg，script在dom解析前执行）而在控制台报错
    if(controller){
      const buttons = controller.querySelectorAll('.slide-list__control-buttons, .slide-list__control-buttons--selected');
      controller.addEventListener('mouseover', evt=>{
        const idx = Array.from(buttons).indexOf(evt.target);
        if(idx >= 0){
          this.slideTo(idx);
          this.stop();
        }
      });

      controller.addEventListener('mouseout', evt=>{
        this.start();
      });
      //渲染UI界面,控制流
      this.container.addEventListener('slide', evt => {
        const idx = evt.detail.index
        const selected = controller.querySelector('.slide-list__control-buttons--selected');
        if(selected) selected.className = 'slide-list__control-buttons';
        buttons[idx].className = 'slide-list__control-buttons--selected';
      })
    }

    const previous = this.container.querySelector('.slide-list__previous');
    if(previous){
      previous.addEventListener('click', evt => {
        this.stop();
        this.slidePrevious();
        this.start();
        evt.preventDefault();//阻止事件向上传递
      });
    }

    const next = this.container.querySelector('.slide-list__next');
    if(next){
      next.addEventListener('click', evt => {
        this.stop();
        this.slideNext();
        this.start();
        evt.preventDefault();
      });
    }
  }
  getSelectedItem(){
    let selected = this.container.querySelector('.slider-list__item--selected');
    return selected
  }
  getSelectedItemIndex(){
    return Array.from(this.items).indexOf(this.getSelectedItem());
  }
  slideTo(idx){
    let selected = this.getSelectedItem();
    if(selected){
      selected.className = 'slider-list__item';
    }
    let item = this.items[idx];
    if(item){
      item.className = 'slider-list__item--selected';
    }

    const detail = {index: idx}
//     自定义slide事件
    const event = new CustomEvent('slide', {bubbles:true, detail})
    this.container.dispatchEvent(event)
  }
  slideNext(){
    let currentIdx = this.getSelectedItemIndex();
    let nextIdx = (currentIdx + 1) % this.items.length;
    this.slideTo(nextIdx);
  }
  slidePrevious(){
    let currentIdx = this.getSelectedItemIndex();
    let previousIdx = (this.items.length + currentIdx - 1) % this.items.length;
    this.slideTo(previousIdx);
  }
  start(){
    this.stop();
//     使用setInterval方法设置定时器，
    //定时调用slideNext方法切换到下一张图片，并将cycle参数作为切换的时间间隔。
    this._timer = setInterval(()=>this.slideNext(), this.cycle);
  }
  stop(){
    clearInterval(this._timer);
  }
}

const slider = new Slider('my-slider');
slider.start();

• 模板化： 图片列表模板化，插件中模板化控制组件并通过action实现初始化。

class Slider{
  constructor(id, opts = {images:[], cycle: 3000}){
    this.container = document.getElementById(id);
    this.options = opts;
    this.container.innerHTML = this.render();
    this.items = this.container.querySelectorAll('.slider-list__item, .slider-list__item--selected');
    this.cycle = opts.cycle || 3000;
    this.slideTo(0);
  }
//   模板化
  render(){
    const images = this.options.images;
    const content = images.map(image => `
      <li class="slider-list__item">
        <img src="${image}"/>
      </li>
    `.trim());

    return `<ul>${content.join('')}</ul>`;
  }
  registerPlugins(...plugins){
    plugins.forEach(plugin => {
      const pluginContainer = document.createElement('div');
      pluginContainer.className = '.slider-list__plugin';
//       控件模板化
      pluginContainer.innerHTML = plugin.render(this.options.images);
      this.container.appendChild(pluginContainer);

      plugin.action(this);
    });
  }
  getSelectedItem(){
    const selected = this.container.querySelector('.slider-list__item--selected');
    return selected
  }
  getSelectedItemIndex(){
    return Array.from(this.items).indexOf(this.getSelectedItem());
  }
  slideTo(idx){
    const selected = this.getSelectedItem();
    if(selected){
      selected.className = 'slider-list__item';
    }
    let item = this.items[idx];
    if(item){
      item.className = 'slider-list__item--selected';
    }

    const detail = {index: idx}
    const event = new CustomEvent('slide', {bubbles:true, detail})
    this.container.dispatchEvent(event)
  }
  slideNext(){
    const currentIdx = this.getSelectedItemIndex();
    const nextIdx = (currentIdx + 1) % this.items.length;
    this.slideTo(nextIdx);
  }
  slidePrevious(){
    const currentIdx = this.getSelectedItemIndex();
    const previousIdx = (this.items.length + currentIdx - 1) % this.items.length;
    this.slideTo(previousIdx);
  }
  addEventListener(type, handler){
    this.container.addEventListener(type, handler);
  }
  start(){
    this.stop();
    this._timer = setInterval(()=>this.slideNext(), this.cycle);
  }
  stop(){
    clearInterval(this._timer);
  }
}

const pluginController = {
  render(images){
    return `
      <div class="slide-list__control">
        ${images.map((image, i) => `
            <span class="slide-list__control-buttons${i===0?'--selected':''}"></span>
         `).join('')}
      </div>
    `.trim();
  },
//   实现其初始化
  action(slider){
    const controller = slider.container.querySelector('.slide-list__control');

    if(controller){
      const buttons = controller.querySelectorAll('.slide-list__control-buttons, .slide-list__control-buttons--selected');
      controller.addEventListener('mouseover', evt => {
        const idx = Array.from(buttons).indexOf(evt.target);
        if(idx >= 0){
          slider.slideTo(idx);
          slider.stop();
        }
      });

      controller.addEventListener('mouseout', evt => {
        slider.start();
      });

      slider.addEventListener('slide', evt => {
        const idx = evt.detail.index
        const selected = controller.querySelector('.slide-list__control-buttons--selected');
        if(selected) selected.className = 'slide-list__control-buttons';
        buttons[idx].className = 'slide-list__control-buttons--selected';
      });
    }
  }
};

const pluginPrevious = {
  render(){
    return `<a class="slide-list__previous"></a>`;
  },
  action(slider){
    const previous = slider.container.querySelector('.slide-list__previous');
    if(previous){
      previous.addEventListener('click', evt => {
        slider.stop();
        slider.slidePrevious();
        slider.start();
        evt.preventDefault();
      });
    }
  }
};

const pluginNext = {
  render(){
    return `<a class="slide-list__next"></a>`;
  },
  action(slider){
    const previous = slider.container.querySelector('.slide-list__next');
    if(previous){
      previous.addEventListener('click', evt => {
        slider.stop();
        slider.slideNext();
        slider.start();
        evt.preventDefault();
      });
    }
  }
};

const slider = new Slider('my-slider', {images: ['https://p5.ssl.qhimg.com/t0119c74624763dd070.png',
     'https://p4.ssl.qhimg.com/t01adbe3351db853eb3.jpg',
     'https://p2.ssl.qhimg.com/t01645cd5ba0c3b60cb.jpg',
     'https://p4.ssl.qhimg.com/t01331ac159b58f5478.jpg'], cycle:3000});

slider.registerPlugins(pluginController, pluginPrevious, pluginNext);
slider.start();

• 组件框架：component的子类：slider、sliderPlugin。组件是由组件及其控制插件组成的，缺点是没考虑嵌套，子组件可以作为父组件的插件来使用，可以将子组件和父组件绑定到一起，这样的话，就能将子组件当作父级插件进行使用。另外一个缺点是，没有将CSS文件进行模板化。

// 父组件
class Component{
  constructor(id, opts = {name, data:[]}){
    this.container = document.getElementById(id);
    this.options = opts;
    this.container.innerHTML = this.render(opts.data);
  }
//   插件
  registerPlugins(...plugins){
    plugins.forEach(plugin => {
      const pluginContainer = document.createElement('div');
      pluginContainer.className = `.${name}__plugin`;
//       子组件（控制组件）
      pluginContainer.innerHTML = plugin.render(this.options.data);
      this.container.appendChild(pluginContainer);

      plugin.action(this);
    });
  }
  // 子组件
  render(data) {
    /* abstract */
    return ''
  }
}

class Slider extends Component{
  constructor(id, opts = {name: 'slider-list', data:[], cycle: 3000}){
    super(id, opts);
    this.items = this.container.querySelectorAll('.slider-list__item, .slider-list__item--selected');
    this.cycle = opts.cycle || 3000;
    this.slideTo(0);
  }
  render(data){
    const content = data.map(image => `
      <li class="slider-list__item">
        <img src="${image}"/>
      </li>
    `.trim());

    return `<ul>${content.join('')}</ul>`;
  }
  getSelectedItem(){
    const selected = this.container.querySelector('.slider-list__item--selected');
    return selected
  }
  getSelectedItemIndex(){
    return Array.from(this.items).indexOf(this.getSelectedItem());
  }
  slideTo(idx){
    const selected = this.getSelectedItem();
    if(selected){
      selected.className = 'slider-list__item';
    }
    const item = this.items[idx];
    if(item){
      item.className = 'slider-list__item--selected';
    }

    const detail = {index: idx}
    const event = new CustomEvent('slide', {bubbles:true, detail})
    this.container.dispatchEvent(event)
  }
  slideNext(){
    const currentIdx = this.getSelectedItemIndex();
    const nextIdx = (currentIdx + 1) % this.items.length;
    this.slideTo(nextIdx);
  }
  slidePrevious(){
    const currentIdx = this.getSelectedItemIndex();
    const previousIdx = (this.items.length + currentIdx - 1) % this.items.length;
    this.slideTo(previousIdx);
  }
  addEventListener(type, handler){
    this.container.addEventListener(type, handler);
  }
  start(){
    this.stop();
    this._timer = setInterval(()=>this.slideNext(), this.cycle);
  }
  stop(){
    clearInterval(this._timer);
  }
}

const pluginController = {
  render(images){
    return `
      <div class="slide-list__control">
        ${images.map((image, i) => `
            <span class="slide-list__control-buttons${i===0?'--selected':''}"></span>
         `).join('')}
      </div>
    `.trim();
  },
  action(slider){
    let controller = slider.container.querySelector('.slide-list__control');

    if(controller){
      let buttons = controller.querySelectorAll('.slide-list__control-buttons, .slide-list__control-buttons--selected');
      controller.addEventListener('mouseover', evt=>{
        var idx = Array.from(buttons).indexOf(evt.target);
        if(idx >= 0){
          slider.slideTo(idx);
          slider.stop();
        }
      });

      controller.addEventListener('mouseout', evt=>{
        slider.start();
      });

      slider.addEventListener('slide', evt => {
        const idx = evt.detail.index;
        let selected = controller.querySelector('.slide-list__control-buttons--selected');
        if(selected) selected.className = 'slide-list__control-buttons';
        buttons[idx].className = 'slide-list__control-buttons--selected';
      });
    }
  }
};

const pluginPrevious = {
  render(){
    return `<a class="slide-list__previous"></a>`;
  },
  action(slider){
    let previous = slider.container.querySelector('.slide-list__previous');
    if(previous){
      previous.addEventListener('click', evt => {
        slider.stop();
        slider.slidePrevious();
        slider.start();
        evt.preventDefault();
      });
    }
  }
};

const pluginNext = {
  render(){
    return `<a class="slide-list__next"></a>`;
  },
  action(slider){
    let previous = slider.container.querySelector('.slide-list__next');
    if(previous){
      previous.addEventListener('click', evt => {
        slider.stop();
        slider.slideNext();
        slider.start();
        evt.preventDefault();
      });
    }
  }
};

const slider = new Slider('my-slider', {name: 'slide-list', data: ['https://p5.ssl.qhimg.com/t0119c74624763dd070.png',
     'https://p4.ssl.qhimg.com/t01adbe3351db853eb3.jpg',
     'https://p2.ssl.qhimg.com/t01645cd5ba0c3b60cb.jpg',
     'https://p4.ssl.qhimg.com/t01331ac159b58f5478.jpg'], cycle:3000});

slider.registerPlugins(pluginController, pluginPrevious, pluginNext);
slider.start();

• 组件设计总结：
  • 组件设计的原则:封装性、正确性、扩展性、复用性
  • 实现组件的步骤:结构设计、展现效果、行为设计
  • 三次重构：插件化、模板化、抽象化(组件框架)
    • 并不影响HTML、CSS、JS各司其责的原则，各自做自己应当做的事情。
