先检查静态文件下面的
kube-controller-manager.yaml kube-scheduler.yaml 文件 里面的是--address=127.0.0.1改成 --address=0.0.0.0
[root@k8s-master my]# ls /etc/kubernetes/manifests/
etcd.yaml kube-apiserver.yaml kube-controller-manager.yaml kube-scheduler.yaml
保存自动更新静态Pod
**但是改完并没有自动发现 **
ServiceMonitor是通过Service来监控的因此添加Service
[root@k8s-master kube-prometheus]# kubectl get svc -n kube-system
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
kube-dns ClusterIP 10.96.0.10 <none> 53/UDP,53/TCP,9153/TCP 307d
kubelet ClusterIP None <none> 10250/TCP,10255/TCP,4194/TCP 5d21h
具体可以参照官网的这个图
找到kubernetesControlPlane-serviceMonitorKubeScheduler.yaml 这个文件
apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
labels:
app.kubernetes.io/name: kube-scheduler
app.kubernetes.io/part-of: kube-prometheus
name: kube-scheduler
namespace: monitoring
spec:
endpoints:
- bearerTokenFile: /var/run/secrets/kubernetes.io/serviceaccount/token
interval: 30s
port: https-metrics
scheme: https
tlsConfig:
insecureSkipVerify: true
jobLabel: app.kubernetes.io/name
namespaceSelector:
matchNames:
- kube-system
selector:
matchLabels:
app.kubernetes.io/name: kube-scheduler
---
#按照上面的新增Service label和selector.matchLabels保持一致
apiVersion: v1
kind: Service
metadata:
namespace: kube-system
name: kube-scheduler
labels:
app.kubernetes.io/name: kube-scheduler
spec:
ports:
- name: https-metrics
port: 10259
selector:
component: kube-scheduler
kubernetesControlPlane-serviceMonitorKubeControllerManager.yaml 同理也是
apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
labels:
app.kubernetes.io/name: kube-controller-manager
app.kubernetes.io/part-of: kube-prometheus
name: kube-controller-manager
namespace: monitoring
spec:
endpoints:
- bearerTokenFile: /var/run/secrets/kubernetes.io/serviceaccount/token
interval: 30s
metricRelabelings:
- action: drop
regex: kubelet_(pod_worker_latency_microseconds|pod_start_latency_microseconds|cgroup_manager_latency_microseconds|pod_worker_start_latency_microseconds|pleg_relist_latency_microseconds|pleg_relist_interval_microseconds|runtime_operations|runtime_operations_latency_microseconds|runtime_operations_errors|eviction_stats_age_microseconds|device_plugin_registration_count|device_plugin_alloc_latency_microseconds|network_plugin_operations_latency_microseconds)
sourceLabels:
- __name__
- action: drop
regex: scheduler_(e2e_scheduling_latency_microseconds|scheduling_algorithm_predicate_evaluation|scheduling_algorithm_priority_evaluation|scheduling_algorithm_preemption_evaluation|scheduling_algorithm_latency_microseconds|binding_latency_microseconds|scheduling_latency_seconds)
sourceLabels:
- __name__
- action: drop
regex: apiserver_(request_count|request_latencies|request_latencies_summary|dropped_requests|storage_data_key_generation_latencies_microseconds|storage_transformation_failures_total|storage_transformation_latencies_microseconds|proxy_tunnel_sync_latency_secs|longrunning_gauge|registered_watchers)
sourceLabels:
- __name__
- action: drop
regex: kubelet_docker_(operations|operations_latency_microseconds|operations_errors|operations_timeout)
sourceLabels:
- __name__
- action: drop
regex: reflector_(items_per_list|items_per_watch|list_duration_seconds|lists_total|short_watches_total|watch_duration_seconds|watches_total)
sourceLabels:
- __name__
- action: drop
regex: etcd_(helper_cache_hit_count|helper_cache_miss_count|helper_cache_entry_count|object_counts|request_cache_get_latencies_summary|request_cache_add_latencies_summary|request_latencies_summary)
sourceLabels:
- __name__
- action: drop
regex: transformation_(transformation_latencies_microseconds|failures_total)
sourceLabels:
- __name__
- action: drop
regex: (admission_quota_controller_adds|admission_quota_controller_depth|admission_quota_controller_longest_running_processor_microseconds|admission_quota_controller_queue_latency|admission_quota_controller_unfinished_work_seconds|admission_quota_controller_work_duration|APIServiceOpenAPIAggregationControllerQueue1_adds|APIServiceOpenAPIAggregationControllerQueue1_depth|APIServiceOpenAPIAggregationControllerQueue1_longest_running_processor_microseconds|APIServiceOpenAPIAggregationControllerQueue1_queue_latency|APIServiceOpenAPIAggregationControllerQueue1_retries|APIServiceOpenAPIAggregationControllerQueue1_unfinished_work_seconds|APIServiceOpenAPIAggregationControllerQueue1_work_duration|APIServiceRegistrationController_adds|APIServiceRegistrationController_depth|APIServiceRegistrationController_longest_running_processor_microseconds|APIServiceRegistrationController_queue_latency|APIServiceRegistrationController_retries|APIServiceRegistrationController_unfinished_work_seconds|APIServiceRegistrationController_work_duration|autoregister_adds|autoregister_depth|autoregister_longest_running_processor_microseconds|autoregister_queue_latency|autoregister_retries|autoregister_unfinished_work_seconds|autoregister_work_duration|AvailableConditionController_adds|AvailableConditionController_depth|AvailableConditionController_longest_running_processor_microseconds|AvailableConditionController_queue_latency|AvailableConditionController_retries|AvailableConditionController_unfinished_work_seconds|AvailableConditionController_work_duration|crd_autoregistration_controller_adds|crd_autoregistration_controller_depth|crd_autoregistration_controller_longest_running_processor_microseconds|crd_autoregistration_controller_queue_latency|crd_autoregistration_controller_retries|crd_autoregistration_controller_unfinished_work_seconds|crd_autoregistration_controller_work_duration|crdEstablishing_adds|crdEstablishing_depth|crdEstablishing_longest_running_processor_microseconds|crdEstablishing_queue_latency|crdEstablishing_retries|crdEstablishing_unfinished_work_seconds|crdEstablishing_work_duration|crd_finalizer_adds|crd_finalizer_depth|crd_finalizer_longest_running_processor_microseconds|crd_finalizer_queue_latency|crd_finalizer_retries|crd_finalizer_unfinished_work_seconds|crd_finalizer_work_duration|crd_naming_condition_controller_adds|crd_naming_condition_controller_depth|crd_naming_condition_controller_longest_running_processor_microseconds|crd_naming_condition_controller_queue_latency|crd_naming_condition_controller_retries|crd_naming_condition_controller_unfinished_work_seconds|crd_naming_condition_controller_work_duration|crd_openapi_controller_adds|crd_openapi_controller_depth|crd_openapi_controller_longest_running_processor_microseconds|crd_openapi_controller_queue_latency|crd_openapi_controller_retries|crd_openapi_controller_unfinished_work_seconds|crd_openapi_controller_work_duration|DiscoveryController_adds|DiscoveryController_depth|DiscoveryController_longest_running_processor_microseconds|DiscoveryController_queue_latency|DiscoveryController_retries|DiscoveryController_unfinished_work_seconds|DiscoveryController_work_duration|kubeproxy_sync_proxy_rules_latency_microseconds|non_structural_schema_condition_controller_adds|non_structural_schema_condition_controller_depth|non_structural_schema_condition_controller_longest_running_processor_microseconds|non_structural_schema_condition_controller_queue_latency|non_structural_schema_condition_controller_retries|non_structural_schema_condition_controller_unfinished_work_seconds|non_structural_schema_condition_controller_work_duration|rest_client_request_latency_seconds|storage_operation_errors_total|storage_operation_status_count)
sourceLabels:
- __name__
- action: drop
regex: etcd_(debugging|disk|request|server).*
sourceLabels:
- __name__
port: https-metrics
scheme: https
tlsConfig:
insecureSkipVerify: true
jobLabel: app.kubernetes.io/name
namespaceSelector:
matchNames:
- kube-system
selector:
matchLabels:
app.kubernetes.io/name: kube-controller-manager
---
apiVersion: v1
kind: Service
metadata:
namespace: kube-system
name: kube-controller-manager
labels:
app.kubernetes.io/name: kube-controller-manager
spec:
ports:
- name: https-metrics
port: 10257
selector:
component: kube-controller-manager
[root@k8s-master my]# kubectl get service -n kube-system
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
kube-controller-manager ClusterIP 10.101.196.23 <none> 10257/TCP 11m
kube-dns ClusterIP 10.96.0.10 <none> 53/UDP,53/TCP,9153/TCP 307d
kube-scheduler ClusterIP 10.109.181.251 <none> 10259/TCP 38m
kubelet ClusterIP None <none> 10250/TCP,10255/TCP,4194/TCP 5d21h

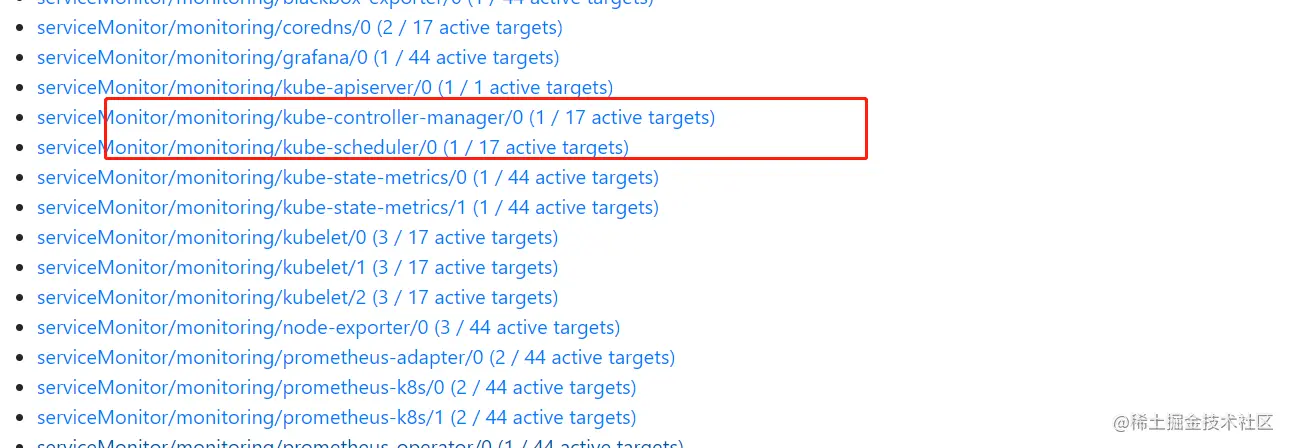

成功！！！！
