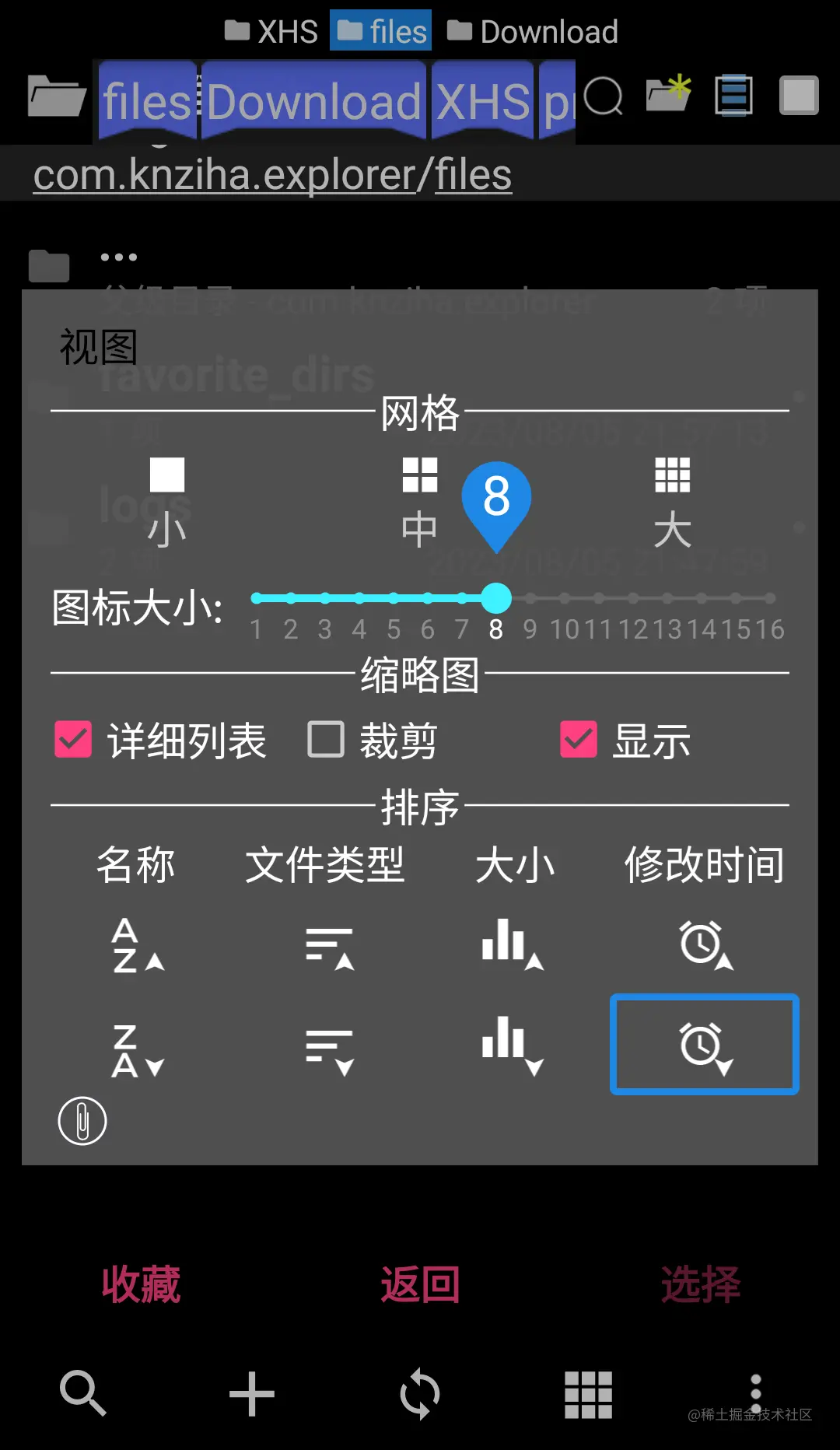

扩展后的横向 NumberPicker 控件分享

NumberKicker 从 SDK 复制，暴露private方法以供扩展

package com.knziha.filepicker.widget;
public class HorizontalNumberPicker extends NumberKicker{
   public int mSetValue;
    public HorizontalNumberPicker(Context context) {
        super(context);
    }
    public HorizontalNumberPicker(Context context, AttributeSet attrs) {
        super(context, attrs);
    }
    public HorizontalNumberPicker(Context context, AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);
    }
    @Override
    protected
    void onDraw(Canvas canvas) {
        if (!mHasSelectorWheel) {
            super.onDraw(canvas);
            return;
        }
        final boolean showSelectorWheel = mHideWheelUntilFocused ? hasFocus() : true;
        float x, y;
        x = mCurrentScrollOffset;
        y = mInputText.getBaseline() + mInputText.getTop();
        // draw the virtual buttons pressed state if needed
        if (showSelectorWheel && mVirtualButtonPressedDrawable != null
                && mScrollState == OnScrollListener.SCROLL_STATE_IDLE) {
            if (mDecrementVirtualButtonPressed) {
                mVirtualButtonPressedDrawable.setState(PRESSED_STATE_SET);
                mVirtualButtonPressedDrawable.setBounds(0, 0, getRight(), mTopSelectionDividerTop);
                mVirtualButtonPressedDrawable.draw(canvas);
            }
            if (mIncrementVirtualButtonPressed) {
                mVirtualButtonPressedDrawable.setState(PRESSED_STATE_SET);
                mVirtualButtonPressedDrawable.setBounds(0, mBottomSelectionDividerBottom, getRight(),
                        getBottom());
                mVirtualButtonPressedDrawable.draw(canvas);
            }
        }
        // draw the selector wheel
        int[] selectorIndices = mSelectorIndices;
        for (int i = 0; i < selectorIndices.length; i++) {
            int selectorIndex = selectorIndices[i];
            String scrollSelectorValue = mSelectorIndexToStringCache.get(selectorIndex);
            // Do not draw the middle item if input is visible since the input
            // is shown only if the wheel is static and it covers the middle
            // item. Otherwise, if the user starts editing the text via the
            // IME he may see a dimmed version of the old value intermixed
            // with the new one.
            if ((showSelectorWheel && i != SELECTOR_MIDDLE_ITEM_INDEX) ||
                (i == SELECTOR_MIDDLE_ITEM_INDEX && mInputText.getVisibility() != VISIBLE)) {
            if (i == SELECTOR_MIDDLE_ITEM_INDEX && mSetValueStr!=null)
            {
               scrollSelectorValue = mSetValueStr;
            }
            canvas.drawText(scrollSelectorValue, x, y, mSelectorWheelPaint);
            }
            x += mSelectorElementHeight;
        }
        // draw the selection dividers
        if (showSelectorWheel && mSelectionDivider != null) {
            // draw the top divider
            int topOfTopDivider = mTopSelectionDividerTop;
            int bottomOfTopDivider = topOfTopDivider + mSelectionDividerHeight;
            //mSelectionDivider.setBounds(0, topOfTopDivider, getRight(), bottomOfTopDivider);
            mSelectionDivider.setBounds(topOfTopDivider, 0, bottomOfTopDivider, getHeight());
            mSelectionDivider.draw(canvas);
            // draw the bottom divider
            int bottomOfBottomDivider = mBottomSelectionDividerBottom;
            int topOfBottomDivider = bottomOfBottomDivider - mSelectionDividerHeight;
            //mSelectionDivider.setBounds(0, topOfBottomDivider, getRight(), bottomOfBottomDivider);
            mSelectionDivider.setBounds(topOfBottomDivider, 0, bottomOfBottomDivider, getHeight());
            mSelectionDivider.draw(canvas);
        }
    }
    protected void initializeSelectorWheel() {
        initializeSelectorWheelIndices();
        int[] selectorIndices = mSelectorIndices;
        int totalTextHeight = selectorIndices.length * mTextSize;
        float totalTextGapHeight = (getRight() - getLeft()) - totalTextHeight;
        float textGapCount = selectorIndices.length;
        mSelectorTextGapHeight = (int) (totalTextGapHeight / textGapCount + 0.5f);
        mSelectorElementHeight = mTextSize + mSelectorTextGapHeight;
        // Ensure that the middle item is positioned the same as the text in
        // mInputText
        int editTextTextPosition = getWidth()/2;//mInputText.getBaseline() + mInputText.getTop();
        mInitialScrollOffset = editTextTextPosition
                - (mSelectorElementHeight * SELECTOR_MIDDLE_ITEM_INDEX);
        mCurrentScrollOffset = mInitialScrollOffset;
        updateInputTextView();
    }

    @Override
    protected void onLayout(boolean changed, int left, int top, int right, int bottom) {
        if (!mHasSelectorWheel) {
            super.onLayout(changed, left, top, right, bottom);
            return;
        }
        final int msrdWdth = getMeasuredWidth();
        final int msrdHght = getMeasuredHeight();
        // Input text centered horizontally.
        final int inptTxtMsrdWdth = mInputText.getMeasuredWidth();
        final int inptTxtMsrdHght = mInputText.getMeasuredHeight();
        final int inptTxtLeft = (msrdWdth - inptTxtMsrdWdth) / 2;
        final int inptTxtTop = (msrdHght - inptTxtMsrdHght) / 2;
        final int inptTxtRight = inptTxtLeft + inptTxtMsrdWdth;
        final int inptTxtBottom = inptTxtTop + inptTxtMsrdHght;
        mInputText.layout(inptTxtLeft, inptTxtTop, inptTxtRight, inptTxtBottom);
        if (changed) {
            // need to do all this when we know our size
            initializeSelectorWheel();
            initializeFadingEdges();
            mTopSelectionDividerTop = (getWidth() - mSelectionDividersDistance) / 2
                    - mSelectionDividerHeight;
            mBottomSelectionDividerBottom = mTopSelectionDividerTop + 2 * mSelectionDividerHeight
                    + mSelectionDividersDistance;
        }
    }
    @Override
    public boolean onInterceptTouchEvent(MotionEvent event) {
        if (!mHasSelectorWheel || !isEnabled()) {
            return false;
        }
        final int action = event.getActionMasked();
      if (action == MotionEvent.ACTION_DOWN) {
         removeAllCallbacks();
         hideSoftInput();
         mLastDownOrMoveEventY = mLastDownEventY = event.getX();
         mLastDownEventTime = event.getEventTime();
         mIgnoreMoveEvents = false;
         mPerformClickOnTap = false;
         // Handle pressed state before any state change.
         if (mLastDownEventY < mTopSelectionDividerTop) {
            if (mScrollState == OnScrollListener.SCROLL_STATE_IDLE) {
               mPressedStateHelper.buttonPressDelayed(
                     PressedStateHelper.BUTTON_DECREMENT);
            }
         } else if (mLastDownEventY > mBottomSelectionDividerBottom) {
            if (mScrollState == OnScrollListener.SCROLL_STATE_IDLE) {
               mPressedStateHelper.buttonPressDelayed(
                     PressedStateHelper.BUTTON_INCREMENT);
            }
         }
         // Make sure we support flinging inside scrollables.
         getParent().requestDisallowInterceptTouchEvent(true);
         if (!mFlingScroller.isFinished()) {
            mFlingScroller.forceFinished(true);
            mAdjustScroller.forceFinished(true);
            onScrollStateChange(OnScrollListener.SCROLL_STATE_IDLE);
            //CMNF.Log("ast... 1");
         } else if (!mAdjustScroller.isFinished()) {
            mFlingScroller.forceFinished(true);
            mAdjustScroller.forceFinished(true);
            //CMNF.Log("ast... 2");
         } else if (mLastDownEventY < mTopSelectionDividerTop) {
            postChangeCurrentByOneFromLongPress(
                  false, ViewConfiguration.getLongPressTimeout());
            //CMNF.Log("ast... 3");
         } else if (mLastDownEventY > mBottomSelectionDividerBottom) {
            postChangeCurrentByOneFromLongPress(
                  true, ViewConfiguration.getLongPressTimeout());
            //CMNF.Log("ast... 4");
         } else {
            mPerformClickOnTap = true;
            postBeginSoftInputOnLongPressCommand();
            //CMNF.Log("ast... 5!!!");
         }
         return true;
      }
        return false;
    }

    @Override
    public boolean onTouchEvent(MotionEvent event) {
        if (!isEnabled() || !mHasSelectorWheel) {
            return false;
        }
        if (mVelocityTracker == null) {
            mVelocityTracker = VelocityTracker.obtain();
        }
        mVelocityTracker.addMovement(event);
        int action = event.getActionMasked();
        switch (action) {
            case MotionEvent.ACTION_MOVE: {
                if (mIgnoreMoveEvents) {
                    break;
                }
                float currentMoveY = event.getX();
                if (mScrollState != OnScrollListener.SCROLL_STATE_TOUCH_SCROLL) {
                    int deltaDownY = (int) Math.abs(currentMoveY - mLastDownEventY);
                    if (deltaDownY > mTouchSlop) {
                        removeAllCallbacks();
                        onScrollStateChange(OnScrollListener.SCROLL_STATE_TOUCH_SCROLL);
                    }
                } else {
                    int deltaMoveY = (int) ((currentMoveY - mLastDownOrMoveEventY));
                    scrollBy(0, deltaMoveY);
                    invalidate();
                }
                mLastDownOrMoveEventY = currentMoveY;
            } break;
            case MotionEvent.ACTION_UP: {
                removeBeginSoftInputCommand();
                removeChangeCurrentByOneFromLongPress();
                mPressedStateHelper.cancel();
                VelocityTracker velocityTracker = mVelocityTracker;
                velocityTracker.computeCurrentVelocity(1000, mMaximumFlingVelocity);
                int initialVelocity = (int) velocityTracker.getXVelocity();
                if (Math.abs(initialVelocity) > mMinimumFlingVelocity) {
                    fling(initialVelocity);
                    onScrollStateChange(OnScrollListener.SCROLL_STATE_FLING);
                } else {
                    int eventY = (int) event.getX();
                    int deltaMoveY = (int) Math.abs(eventY - mLastDownEventY);
                    long deltaTime = event.getEventTime() - mLastDownEventTime;
                    if (deltaMoveY <= mTouchSlop && deltaTime < ViewConfiguration.getTapTimeout()) {
                        if (mPerformClickOnTap) {
                            mPerformClickOnTap = false;
                            performClick();
                        } else {
                            int selectorIndexOffset = (eventY / mSelectorElementHeight)
                                    - SELECTOR_MIDDLE_ITEM_INDEX;
                            if (selectorIndexOffset > 0) {
                                changeValueByOne(true);
                                mPressedStateHelper.buttonTapped(
                                        PressedStateHelper.BUTTON_INCREMENT);
                            } else if (selectorIndexOffset < 0) {
                                changeValueByOne(false);
                                mPressedStateHelper.buttonTapped(
                                        PressedStateHelper.BUTTON_DECREMENT);
                            }
                        }
                    } else {
                        ensureScrollWheelAdjusted();
                    }
                    onScrollStateChange(OnScrollListener.SCROLL_STATE_IDLE);
                }
                mVelocityTracker.recycle();
                mVelocityTracker = null;
            } break;
        }
        return true;
    }
    @Override
    protected synchronized void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
        super.onMeasure(heightMeasureSpec, widthMeasureSpec);
        setMeasuredDimension(getMeasuredHeight(), getMeasuredWidth());// 宽高值互换
    }
    @Override
    protected void onSizeChanged(int w, int h, int oldw, int oldh) {
        super.onSizeChanged(h, w, oldw, oldh);// 宽高值互换
    }

   public int getScrollState() {
      return mScrollState;
   }

   public void SafeSetValue(int value) {
      //CMN.Log("SafeSetValue", value, mInputText.getText());
      if (mSetValue!=value) {
         mSetValue = value;
         OnValueChangeListener l = mOnValueChangeListener;
         mOnValueChangeListener = null;
         setValue(mStepValue>1?mMinValue+(value - mMinValue)/mStepValue:value);
         if (mStepValue>1) {
            mSetValueStr = String.valueOf(value);
            mInputText.setText(mSetValueStr);
         }
         mOnValueChangeListener = l;
      }
   }

   public void setStepMuliplier(int i) {
      mStepValue = i;
   }
}

<declare-styleable name="NumberKicker">
    <attr name="solidColor" format="color|reference" />
    <attr name="selectionDivider" format="reference" />
    <attr name="selectionDividerHeight" format="dimension" />
    <attr name="selectionDividersDistance" format="dimension" />
    <attr name="internalMinHeight" format="dimension" />
    <attr name="internalMaxHeight" format="dimension" />
    <attr name="internalMinWidth" format="dimension" />
    <attr name="internalMaxWidth" format="dimension" />
    <attr name="internalLayout" format="reference" />
    <attr name="virtualButtonPressedDrawable" format="reference"/>
    <attr name="hideWheelUntilFocused" format="boolean"/>
</declare-styleable>
<attr name="numberPickerStyle" format="reference" />

<com.knziha.filepicker.widget.HorizontalNumberPicker
   android:id="@+id/numberpicker"
   android:layout_width="wrap_content"
   android:layout_height="match_parent"
   android:layout_gravity="end"
   android:layout_marginRight="5dp"
   style="@style/NumberKicker_l"
   />

<style name="NumberKicker">
    <item name="internalLayout">@layout/number_picker_material</item>
    <item name="android:orientation">vertical</item>
    <item name="android:fadingEdge">vertical</item>
    <item name="android:fadingEdgeLength">50dip</item>
    <item name="solidColor">#00000000</item>
    <item name="selectionDivider">@drawable/number_picker_divider_material</item>
    <item name="selectionDividerHeight">2dp</item>
    <item name="selectionDividersDistance">48dp</item>
    <item name="internalMinWidth">64dp</item>
    <item name="internalMaxHeight">180dp</item>
</style>
<style name="NumberKicker_l" parent="NumberKicker">
    <item name="internalLayout">@layout/number_picker_material_l</item>
    <item name="solidColor">#fff</item>
    <item name="selectionDivider">@drawable/number_picker_divider_material_l</item>
</style>

number_picker_material.xml

<?xml version="1.0" encoding="utf-8"?>
<!-- Copyright (C) 2015 The Android Open Source Project
     Licensed under the Apache License, Version 2.0 (the "License");
     you may not use this file except in compliance with the License.
     You may obtain a copy of the License at
          http://www.apache.org/licenses/LICENSE-2.0
     Unless required by applicable law or agreed to in writing, software
     distributed under the License is distributed on an "AS IS" BASIS,
     WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
     See the License for the specific language governing permissions and
     limitations under the License.
-->
<view xmlns:android="http://schemas.android.com/apk/res/android"
      class="android.widget.NumberPicker$CustomEditText"
      android:id="@+id/numberpicker_input"
      android:layout_width="fill_parent"
      android:layout_height="wrap_content"
      android:gravity="center"
      android:singleLine="true"
      android:background="#00ffffff"
      android:textColor="#fff"
      />

***_l.xml

<view xmlns:android="http://schemas.android.com/apk/res/android"
      class="android.widget.NumberPicker$CustomEditText"
      android:id="@+id/numberpicker_input"
      android:layout_width="fill_parent"
      android:layout_height="wrap_content"
      android:gravity="center"
      android:singleLine="true"
      android:background="#00ffffff"
      android:textColor="#000"
      />

number_picker_divider_material.xml

<?xml version="1.0" encoding="utf-8"?>
<!-- Copyright (C) 2015 The Android Open Source Project
     Licensed under the Apache License, Version 2.0 (the "License");
     you may not use this file except in compliance with the License.
     You may obtain a copy of the License at
          http://www.apache.org/licenses/LICENSE-2.0
     Unless required by applicable law or agreed to in writing, software
     distributed under the License is distributed on an "AS IS" BASIS,
     WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
     See the License for the specific language governing permissions and
     limitations under the License.
-->
<shape xmlns:android="http://schemas.android.com/apk/res/android"
       android:shape="rectangle">
    <solid android:color="@android:color/white" />
</shape>

***_l.xml

<shape xmlns:android="http://schemas.android.com/apk/res/android"
       android:shape="rectangle">
    <solid android:color="@android:color/black" />
</shape>

BubbleSeekbar 配置分享

mSeekBar = new BubbleSeekBar(dlg.getContext());
         Resources mResource = dlg.getContext().getResources();
         mSeekBar.getConfigBuilder()
               .min(1)
               .max(16)
               .progress(6)
               .sectionCount(15)
               .trackColor(mResource.getColor(R.color.darker_gray))
               .secondTrackColor(mResource.getColor(R.color.blueish))
               .thumbColor(mResource.getColor(R.color.blueish))
               .showSectionText()
//             .sectionTextPosition(BubbleSeekBar.TextPosition.SIDES)
               .sectionTextColor(mResource.getColor(R.color.colorPrimary))
               .sectionTextSize(9)
               .showThumbText()
               .thumbTextColor(Color.WHITE)
               .thumbTextSize(18)
               .bubbleColor(mResource.getColor(R.color.blueish_tab))
               .bubbleTextSize(18)
               .showSectionMark()
               .seekBySection()
               .seekStepSection()
               .touchToSeek()
               .autoAdjustSectionMark()
               .sectionTextPosition(BubbleSeekBar.TextPosition.BELOW_SECTION_MARK)
               .build();

扩展后的 BubbleSeekbar

优化对话框中滑动，数值提示窗口的定位

将 getLocationOnWindow 替换为 getLocationOnScreen

优化连续操作性能

老生常谈，post runnable 之前记得要 removeCallbacks ！

差点写不下……

public class BubbleSeekBar extends View {

    static final int NONE = -1;

   @IntDef({NONE, SIDES, BOTTOM_SIDES, BELOW_SECTION_MARK})
    @Retention(RetentionPolicy.SOURCE)
    public @interface TextPosition {
        int SIDES = 0, BOTTOM_SIDES = 1, BELOW_SECTION_MARK = 2;
    }

    private float mMin; // min
    private float mMax; // max
    private float mProgress; // real time value
    private boolean isFloatType; // support for float type output
    private int mTrackSize; // height of right-track(on the right of thumb)
    private int mSecondTrackSize; // height of left-track(on the left of thumb)
    private int mThumbRadius; // radius of thumb
    private int mThumbRadiusOnDragging; // radius of thumb when be dragging
    private int mTrackColor; // color of right-track
    private int mSecondTrackColor; // color of left-track
    private int mThumbColor; // color of thumb
    private int mSectionCount; // shares of whole progress(max - min)
    private boolean isShowSectionMark; // show demarcation points or not
    private boolean isAutoAdjustSectionMark; // auto scroll to the nearest section_mark or not
    private boolean isShowSectionText; // show section-text or not
    private int mSectionTextSize; // text size of section-text
    private int mSectionTextColor; // text color of section-text
    @TextPosition
    private int mSectionTextPosition = NONE; // text position of section-text relative to track
    private int mSectionTextInterval; // the interval of two section-text
    private boolean isShowThumbText; // show real time progress-text under thumb or not
    private int mThumbTextSize; // text size of progress-text
    private int mThumbTextColor; // text color of progress-text
    private boolean isShowProgressInFloat; // show bubble-progress in float or not
    private boolean isTouchToSeek; // touch anywhere on track to quickly seek
    private boolean isSeekStepSection; // seek one step by one section, the progress is discrete
    private boolean isSeekBySection; // seek by section, the progress may not be linear
    private long mAnimDuration; // duration of animation
    private boolean isAlwaysShowBubble; // bubble shows all time
    private long mAlwaysShowBubbleDelay; // the delay duration before bubble shows all the time
    private boolean isHideBubble; // hide bubble
    private boolean isRtl; // right to left

    private int mBubbleColor;// color of bubble
    private int mBubbleTextSize; // text size of bubble-progress
    private int mBubbleTextColor; // text color of bubble-progress

    private float mDelta; // max - min
    private float mSectionValue; // (mDelta / mSectionCount)
    private float mThumbCenterX; // X coordinate of thumb's center
    private float mTrackLength; // pixel length of whole track
    private float mSectionOffset; // pixel length of one section
    private boolean isThumbOnDragging; // is thumb on dragging or not
    private int mTextSpace; // space between text and track
    private boolean triggerBubbleShowing;
    private SparseArray<String> mSectionTextArray = new SparseArray<>();
    private float mPreThumbCenterX;
    private boolean triggerSeekBySection;

    private OnProgressChangedListener mProgressListener; // progress changing listener
    private float mLeft; // space between left of track and left of the view
    private float mRight; // space between right of track and left of the view
    private Paint mPaint;
    private Rect mRectText;

    private WindowManager mWindowManager;
    private BubbleView mBubbleView;
    private int mBubbleRadius;
    private float mBubbleCenterRawSolidX;
    private float mBubbleCenterRawSolidY;
    private float mBubbleCenterRawX;
    private WindowManager.LayoutParams mLayoutParams;
    private int[] mPoint = new int[2];
    private boolean isTouchToSeekAnimEnd = true;
    private float mPreSecValue; // previous SectionValue
    private BubbleConfigBuilder mConfigBuilder; // config attributes

   private boolean hidingBubble;
   private ViewPropertyAnimator hideBubbleAnima;
   private Runnable hideBubbleRunner = new Runnable() {
      @Override
      public void run() {
         hideBubbleAnima = mBubbleView.animate()
               .alpha(isAlwaysShowBubble ? 1f : 0f)
               .setDuration(mAnimDuration / 2)
               .setListener(animatorListener);
         hideBubbleAnima.start();
      }
      AnimatorListenerAdapter animatorListener = new AnimatorListenerAdapter() {
         @Override
         public void onAnimationEnd(Animator animation) {
            if (!isAlwaysShowBubble) {
               hideBubble();
            }
            hideBubbleAnima = null;
            hidingBubble = false;
            invalidate();
         }
         @Override
         public void onAnimationCancel(Animator animation) {
            if (!isAlwaysShowBubble) {
               hideBubble();
            }
            hideBubbleAnima = null;
            hidingBubble = false;
            invalidate();
         }
      };
   };


    public BubbleSeekBar(Context context) {
        this(context, null);
    }

    public BubbleSeekBar(Context context, AttributeSet attrs) {
        this(context, attrs, 0);
    }

    public BubbleSeekBar(Context context, AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);

        TypedArray a = context.obtainStyledAttributes(attrs, R.styleable.BubbleSeekBar, defStyleAttr, 0);
        mMin = a.getFloat(R.styleable.BubbleSeekBar_bsb_min, 0.0f);
        mMax = a.getFloat(R.styleable.BubbleSeekBar_bsb_max, 100.0f);
        mProgress = a.getFloat(R.styleable.BubbleSeekBar_bsb_progress, mMin);
        isFloatType = a.getBoolean(R.styleable.BubbleSeekBar_bsb_is_float_type, false);
        mTrackSize = a.getDimensionPixelSize(R.styleable.BubbleSeekBar_bsb_track_size, dp2px(2));
        mSecondTrackSize = a.getDimensionPixelSize(R.styleable.BubbleSeekBar_bsb_second_track_size,
                mTrackSize + dp2px(2));
        mThumbRadius = a.getDimensionPixelSize(R.styleable.BubbleSeekBar_bsb_thumb_radius,
                mSecondTrackSize + dp2px(2));
        mThumbRadiusOnDragging = a.getDimensionPixelSize(R.styleable.BubbleSeekBar_bsb_thumb_radius_on_dragging,
                mSecondTrackSize * 2);
        mSectionCount = a.getInteger(R.styleable.BubbleSeekBar_bsb_section_count, 10);
        mTrackColor = a.getColor(R.styleable.BubbleSeekBar_bsb_track_color,
                ContextCompat.getColor(context, R.color.colorPrimary));
        mSecondTrackColor = a.getColor(R.styleable.BubbleSeekBar_bsb_second_track_color,
                ContextCompat.getColor(context, R.color.colorAccent));
        mThumbColor = a.getColor(R.styleable.BubbleSeekBar_bsb_thumb_color, mSecondTrackColor);
        isShowSectionText = a.getBoolean(R.styleable.BubbleSeekBar_bsb_show_section_text, false);
        mSectionTextSize = a.getDimensionPixelSize(R.styleable.BubbleSeekBar_bsb_section_text_size, sp2px(14));
        mSectionTextColor = a.getColor(R.styleable.BubbleSeekBar_bsb_section_text_color, mTrackColor);
        isSeekStepSection = a.getBoolean(R.styleable.BubbleSeekBar_bsb_seek_step_section, false);
        isSeekBySection = a.getBoolean(R.styleable.BubbleSeekBar_bsb_seek_by_section, false);
        int pos = a.getInteger(R.styleable.BubbleSeekBar_bsb_section_text_position, NONE);
        if (pos == 0) {
            mSectionTextPosition = SIDES;
        } else if (pos == 1) {
            mSectionTextPosition = BOTTOM_SIDES;
        } else if (pos == 2) {
            mSectionTextPosition = BELOW_SECTION_MARK;
        } else {
            mSectionTextPosition = NONE;
        }
        mSectionTextInterval = a.getInteger(R.styleable.BubbleSeekBar_bsb_section_text_interval, 1);
        isShowThumbText = a.getBoolean(R.styleable.BubbleSeekBar_bsb_show_thumb_text, false);
        mThumbTextSize = a.getDimensionPixelSize(R.styleable.BubbleSeekBar_bsb_thumb_text_size, sp2px(14));
        mThumbTextColor = a.getColor(R.styleable.BubbleSeekBar_bsb_thumb_text_color, mSecondTrackColor);
        mBubbleColor = a.getColor(R.styleable.BubbleSeekBar_bsb_bubble_color, mSecondTrackColor);
        mBubbleTextSize = a.getDimensionPixelSize(R.styleable.BubbleSeekBar_bsb_bubble_text_size, sp2px(14));
        mBubbleTextColor = a.getColor(R.styleable.BubbleSeekBar_bsb_bubble_text_color, Color.WHITE);
        isShowSectionMark = a.getBoolean(R.styleable.BubbleSeekBar_bsb_show_section_mark, false);
        isAutoAdjustSectionMark = a.getBoolean(R.styleable.BubbleSeekBar_bsb_auto_adjust_section_mark, false);
        isShowProgressInFloat = a.getBoolean(R.styleable.BubbleSeekBar_bsb_show_progress_in_float, false);
        int duration = a.getInteger(R.styleable.BubbleSeekBar_bsb_anim_duration, -1);
        mAnimDuration = duration < 0 ? 200 : duration;
        isTouchToSeek = a.getBoolean(R.styleable.BubbleSeekBar_bsb_touch_to_seek, false);
        isAlwaysShowBubble = a.getBoolean(R.styleable.BubbleSeekBar_bsb_always_show_bubble, false);
        duration = a.getInteger(R.styleable.BubbleSeekBar_bsb_always_show_bubble_delay, 0);
        mAlwaysShowBubbleDelay = duration < 0 ? 0 : duration;
        isHideBubble = a.getBoolean(R.styleable.BubbleSeekBar_bsb_hide_bubble, false);
        isRtl = a.getBoolean(R.styleable.BubbleSeekBar_bsb_rtl, false);
        setEnabled(a.getBoolean(R.styleable.BubbleSeekBar_android_enabled, isEnabled()));
        a.recycle();

        mPaint = new Paint();
        mPaint.setAntiAlias(true);
        mPaint.setStrokeCap(Paint.Cap.ROUND);
        mPaint.setTextAlign(Paint.Align.CENTER);

        mRectText = new Rect();
        mTextSpace = dp2px(2);

        initConfigByPriority();

        if (isHideBubble)
            return;

        mWindowManager = (WindowManager) context.getSystemService(Context.WINDOW_SERVICE);

        // init BubbleView
        mBubbleView = new BubbleView(context);
        mBubbleView.setProgressText(isShowProgressInFloat ?
                String.valueOf(getProgressFloat()) : String.valueOf(getProgress()));

        mLayoutParams = new WindowManager.LayoutParams();
        mLayoutParams.gravity = Gravity.START | Gravity.TOP;
        mLayoutParams.width = ViewGroup.LayoutParams.WRAP_CONTENT;
        mLayoutParams.height = ViewGroup.LayoutParams.WRAP_CONTENT;
        mLayoutParams.format = PixelFormat.TRANSLUCENT;
        mLayoutParams.flags = WindowManager.LayoutParams.FLAG_NOT_TOUCH_MODAL
                | WindowManager.LayoutParams.FLAG_NOT_FOCUSABLE
                | WindowManager.LayoutParams.FLAG_SHOW_WHEN_LOCKED;
        // MIUI禁止了开发者使用TYPE_TOAST，Android 7.1.1 对TYPE_TOAST的使用更严格
        if (BubbleUtils.isMIUI() || Build.VERSION.SDK_INT >= Build.VERSION_CODES.N_MR1) {
            mLayoutParams.type = WindowManager.LayoutParams.TYPE_APPLICATION;
        } else {
            mLayoutParams.type = WindowManager.LayoutParams.TYPE_TOAST;
        }

        calculateRadiusOfBubble();
    }

    private void initConfigByPriority() {
        if (mMin == mMax) {
            mMin = 0.0f;
            mMax = 100.0f;
        }
        if (mMin > mMax) {
            float tmp = mMax;
            mMax = mMin;
            mMin = tmp;
        }
        if (mProgress < mMin) {
            mProgress = mMin;
        }
        if (mProgress > mMax) {
            mProgress = mMax;
        }
        if (mSecondTrackSize < mTrackSize) {
            mSecondTrackSize = mTrackSize + dp2px(2);
        }
        if (mThumbRadius <= mSecondTrackSize) {
            mThumbRadius = mSecondTrackSize + dp2px(2);
        }
        if (mThumbRadiusOnDragging <= mSecondTrackSize) {
            mThumbRadiusOnDragging = mSecondTrackSize * 2;
        }
        if (mSectionCount <= 0) {
            mSectionCount = 10;
        }
        mDelta = mMax - mMin;
        mSectionValue = mDelta / mSectionCount;

        if (mSectionValue < 1) {
            isFloatType = true;
        }
        if (isFloatType) {
            isShowProgressInFloat = true;
        }
        if (mSectionTextPosition != NONE) {
            isShowSectionText = true;
        }
        if (isShowSectionText) {
            if (mSectionTextPosition == NONE) {
                mSectionTextPosition = SIDES;
            }
            if (mSectionTextPosition == BELOW_SECTION_MARK) {
                isShowSectionMark = true;
            }
        }
        if (mSectionTextInterval < 1) {
            mSectionTextInterval = 1;
        }

        initSectionTextArray();

        if (isSeekStepSection) {
            isSeekBySection = false;
            isAutoAdjustSectionMark = false;
        }
        if (isAutoAdjustSectionMark && !isShowSectionMark) {
            isAutoAdjustSectionMark = false;
        }
        if (isSeekBySection) {
            mPreSecValue = mMin;
            if (mProgress != mMin) {
                mPreSecValue = mSectionValue;
            }
            isShowSectionMark = true;
            isAutoAdjustSectionMark = true;
        }
        if (isHideBubble) {
            isAlwaysShowBubble = false;
        }
        if (isAlwaysShowBubble) {
            setProgress(mProgress);
        }

        mThumbTextSize = isFloatType || isSeekBySection || (isShowSectionText && mSectionTextPosition ==
                BELOW_SECTION_MARK) ? mSectionTextSize : mThumbTextSize;
    }

    /**
     * Calculate radius of bubble according to the Min and the Max
     */
    private void calculateRadiusOfBubble() {
        mPaint.setTextSize(mBubbleTextSize);

        // 计算滑到两端气泡里文字需要显示的宽度，比较取最大值为气泡的半径
        String text;
        if (isShowProgressInFloat) {
            text = float2String(isRtl ? mMax : mMin);
        } else {
            if (isRtl) {
                text = isFloatType ? float2String(mMax) : String.valueOf((int) mMax);
            } else {
                text = isFloatType ? float2String(mMin) : String.valueOf((int) mMin);
            }
        }
        mPaint.getTextBounds(text, 0, text.length(), mRectText);
        int w1 = (mRectText.width() + mTextSpace * 2) >> 1;

        if (isShowProgressInFloat) {
            text = float2String(isRtl ? mMin : mMax);
        } else {
            if (isRtl) {
                text = isFloatType ? float2String(mMin) : String.valueOf((int) mMin);
            } else {
                text = isFloatType ? float2String(mMax) : String.valueOf((int) mMax);
            }
        }
        mPaint.getTextBounds(text, 0, text.length(), mRectText);
        int w2 = (mRectText.width() + mTextSpace * 2) >> 1;

        mBubbleRadius = dp2px(14); // default 14dp
        int max = Math.max(mBubbleRadius, Math.max(w1, w2));
        mBubbleRadius = max + mTextSpace;
    }

    private void initSectionTextArray() {
        boolean ifBelowSection = mSectionTextPosition == BELOW_SECTION_MARK;
        boolean ifInterval = mSectionTextInterval > 1 && mSectionCount % 2 == 0;
        float sectionValue;
        for (int i = 0; i <= mSectionCount; i++) {
            sectionValue = isRtl ? mMax - mSectionValue * i : mMin + mSectionValue * i;

            if (ifBelowSection) {
                if (ifInterval) {
                    if (i % mSectionTextInterval == 0) {
                        sectionValue = isRtl ? mMax - mSectionValue * i : mMin + mSectionValue * i;
                    } else {
                        continue;
                    }
                }
            } else {
                if (i != 0 && i != mSectionCount) {
                    continue;
                }
            }

            mSectionTextArray.put(i, isFloatType ? float2String(sectionValue) : (int) sectionValue + "");
        }
    }

    @Override
    protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
        super.onMeasure(widthMeasureSpec, heightMeasureSpec);

        int height = mThumbRadiusOnDragging * 2; // 默认高度为拖动时thumb圆的直径
        if (isShowThumbText) {
            mPaint.setTextSize(mThumbTextSize);
            mPaint.getTextBounds("j", 0, 1, mRectText); // j is the highest of all letters and numbers
            height += mRectText.height(); // 如果显示实时进度，则原来基础上加上进度文字高度和间隔
        }
        if (isShowSectionText && mSectionTextPosition >= BOTTOM_SIDES) { // 如果Section值在track之下显示，比较取较大值
            mPaint.setTextSize(mSectionTextSize);
            mPaint.getTextBounds("j", 0, 1, mRectText);
            height = Math.max(height, mThumbRadiusOnDragging * 2 + mRectText.height());
        }
        height += mTextSpace * 2;
        setMeasuredDimension(resolveSize(dp2px(180), widthMeasureSpec), height);

        mLeft = getPaddingLeft() + mThumbRadiusOnDragging;
        mRight = getMeasuredWidth() - getPaddingRight() - mThumbRadiusOnDragging;

        if (isShowSectionText) {
            mPaint.setTextSize(mSectionTextSize);

            if (mSectionTextPosition == SIDES) {
                String text = mSectionTextArray.get(0);
                mPaint.getTextBounds(text, 0, text.length(), mRectText);
                mLeft += (mRectText.width() + mTextSpace);

                text = mSectionTextArray.get(mSectionCount);
                mPaint.getTextBounds(text, 0, text.length(), mRectText);
                mRight -= (mRectText.width() + mTextSpace);
            } else if (mSectionTextPosition >= BOTTOM_SIDES) {
                String text = mSectionTextArray.get(0);
                mPaint.getTextBounds(text, 0, text.length(), mRectText);
                float max = Math.max(mThumbRadiusOnDragging, mRectText.width() / 2f);
                mLeft = getPaddingLeft() + max + mTextSpace;

                text = mSectionTextArray.get(mSectionCount);
                mPaint.getTextBounds(text, 0, text.length(), mRectText);
                max = Math.max(mThumbRadiusOnDragging, mRectText.width() / 2f);
                mRight = getMeasuredWidth() - getPaddingRight() - max - mTextSpace;
            }
        } else if (isShowThumbText && mSectionTextPosition == NONE) {
            mPaint.setTextSize(mThumbTextSize);

            String text = mSectionTextArray.get(0);
            mPaint.getTextBounds(text, 0, text.length(), mRectText);
            float max = Math.max(mThumbRadiusOnDragging, mRectText.width() / 2f);
            mLeft = getPaddingLeft() + max + mTextSpace;

            text = mSectionTextArray.get(mSectionCount);
            mPaint.getTextBounds(text, 0, text.length(), mRectText);
            max = Math.max(mThumbRadiusOnDragging, mRectText.width() / 2f);
            mRight = getMeasuredWidth() - getPaddingRight() - max - mTextSpace;
        }

        mTrackLength = mRight - mLeft;
        mSectionOffset = mTrackLength * 1f / mSectionCount;

        if (!isHideBubble) {
            mBubbleView.measure(widthMeasureSpec, heightMeasureSpec);
        }
    }

    @Override
    protected void onLayout(boolean changed, int left, int top, int right, int bottom) {
        super.onLayout(changed, left, top, right, bottom);

        if (!isHideBubble) {
            locatePositionInWindow();
        }
    }

    /**
     * In fact there two parts of the BubbleSeeBar, they are the BubbleView and the SeekBar.
     * <p>
     * The BubbleView is added to Window by the WindowManager, so the only connection between
     * BubbleView and SeekBar is their origin raw coordinates on the screen.
     * <p>
     * It's easy to compute the coordinates(mBubbleCenterRawSolidX, mBubbleCenterRawSolidY) of point
     * when the Progress equals the Min. Then compute the pixel length increment when the Progress is
     * changing, the result is mBubbleCenterRawX. At last the WindowManager calls updateViewLayout()
     * to update the LayoutParameter.x of the BubbleView.
     * <p>
     * 气泡BubbleView实际是通过WindowManager动态添加的一个视图，因此与SeekBar唯一的位置联系就是它们在屏幕上的
     * 绝对坐标。
     * 先计算进度mProgress为mMin时BubbleView的中心坐标（mBubbleCenterRawSolidX，mBubbleCenterRawSolidY），
     * 然后根据进度来增量计算横坐标mBubbleCenterRawX，再动态设置LayoutParameter.x，就实现了气泡跟随滑动移动。
     */
    private void locatePositionInWindow() {
        getLocationOnScreen(mPoint);

        ViewParent parent = getParent();
        if (parent instanceof View && ((View) parent).getMeasuredWidth() > 0) {
            mPoint[0] %= ((View) parent).getMeasuredWidth();
        }

        if (isRtl) {
            mBubbleCenterRawSolidX = mPoint[0] + mRight - mBubbleView.getMeasuredWidth() / 2f;
        } else {
            mBubbleCenterRawSolidX = mPoint[0] + mLeft - mBubbleView.getMeasuredWidth() / 2f;
        }
        mBubbleCenterRawX = calculateCenterRawXofBubbleView();
        mBubbleCenterRawSolidY = mPoint[1] - mBubbleView.getMeasuredHeight();
        mBubbleCenterRawSolidY -= dp2px(24);
        if (BubbleUtils.isMIUI()) {
            mBubbleCenterRawSolidY -= dp2px(4);
        }

        Context context = getContext();
        if (context instanceof Activity) {
            Window window = ((Activity) context).getWindow();
            if (window != null) {
                int flags = window.getAttributes().flags;
                if ((flags & WindowManager.LayoutParams.FLAG_FULLSCREEN) != 0) {
                    Resources res = Resources.getSystem();
                    int id = res.getIdentifier("status_bar_height", "dimen", "android");
                    mBubbleCenterRawSolidY += res.getDimensionPixelSize(id);
                }
            }
        }
    }

    @Override
    protected void onDraw(Canvas canvas) {
      canvas.save();
      canvas.translate(0, GlobalOptions.density*8); // 15

      super.onDraw(canvas);
        float xLeft = getPaddingLeft();
        float xRight = getMeasuredWidth() - getPaddingRight();
        float yTop = getPaddingTop() + mThumbRadiusOnDragging;

        // draw sectionText SIDES or BOTTOM_SIDES
        if (isShowSectionText) {
            mPaint.setColor(mSectionTextColor);
            mPaint.setTextSize(mSectionTextSize);
            mPaint.getTextBounds("0123456789", 0, "0123456789".length(), mRectText); // compute solid height

            if (mSectionTextPosition == SIDES) {
                float y_ = yTop + mRectText.height() / 2f;

                String text = mSectionTextArray.get(0);
                mPaint.getTextBounds(text, 0, text.length(), mRectText);
                canvas.drawText(text, xLeft + mRectText.width() / 2f, y_, mPaint);
                xLeft += mRectText.width() + mTextSpace;

                text = mSectionTextArray.get(mSectionCount);
                mPaint.getTextBounds(text, 0, text.length(), mRectText);
                canvas.drawText(text, xRight - (mRectText.width() + 0.5f) / 2f, y_, mPaint);
                xRight -= (mRectText.width() + mTextSpace);

            } else if (mSectionTextPosition >= BOTTOM_SIDES) {
                float y_ = yTop + mThumbRadiusOnDragging + mTextSpace;

                String text = mSectionTextArray.get(0);
                mPaint.getTextBounds(text, 0, text.length(), mRectText);
                y_ += mRectText.height();
                xLeft = mLeft;
                if (mSectionTextPosition == BOTTOM_SIDES) {
                    canvas.drawText(text, xLeft, y_, mPaint);
                }

                text = mSectionTextArray.get(mSectionCount);
                mPaint.getTextBounds(text, 0, text.length(), mRectText);
                xRight = mRight;
                if (mSectionTextPosition == BOTTOM_SIDES) {
                    canvas.drawText(text, xRight, y_, mPaint);
                }
            }
        } else if (isShowThumbText && mSectionTextPosition == NONE) {
            xLeft = mLeft;
            xRight = mRight;
        }

        if ((!isShowSectionText && !isShowThumbText) || mSectionTextPosition == SIDES) {
            xLeft += mThumbRadiusOnDragging;
            xRight -= mThumbRadiusOnDragging;
        }

        boolean isShowTextBelowSectionMark = isShowSectionText && mSectionTextPosition ==
                BELOW_SECTION_MARK;

        // draw sectionMark & sectionText BELOW_SECTION_MARK
        if (isShowTextBelowSectionMark || isShowSectionMark) {
            mPaint.setTextSize(mSectionTextSize);
            mPaint.getTextBounds("0123456789", 0, "0123456789".length(), mRectText); // compute solid height

            float x_;
            float y_ = yTop + mRectText.height() + mThumbRadiusOnDragging + mTextSpace;
            float r = (mThumbRadiusOnDragging - dp2px(2)) / 2f;
            float junction; // where secondTrack meets firstTrack
            if (isRtl) {
                junction = mRight - mTrackLength / mDelta * Math.abs(mProgress - mMin);
            } else {
                junction = mLeft + mTrackLength / mDelta * Math.abs(mProgress - mMin);
            }

            for (int i = 0; i <= mSectionCount; i++) {
                x_ = xLeft + i * mSectionOffset;
                if (isRtl) {
                    mPaint.setColor(x_ <= junction ? mTrackColor : mSecondTrackColor);
                } else {
                    mPaint.setColor(x_ <= junction ? mSecondTrackColor : mTrackColor);
                }
                // sectionMark
                canvas.drawCircle(x_, yTop, r, mPaint);

                // sectionText belows section
                if (isShowTextBelowSectionMark) {
                    mPaint.setColor(mSectionTextColor);
                    if (mSectionTextArray.get(i, null) != null) {
                        canvas.drawText(mSectionTextArray.get(i), x_, y_, mPaint);
                    }
                }
            }
        }

        if (!isThumbOnDragging || isAlwaysShowBubble) {
            if (isRtl) {
                mThumbCenterX = xRight - mTrackLength / mDelta * (mProgress - mMin);
            } else {
                mThumbCenterX = xLeft + mTrackLength / mDelta * (mProgress - mMin);
            }
        }

        // draw thumbText
        if (isShowThumbText /*&& !isThumbOnDragging && isTouchToSeekAnimEnd*/) {
            mPaint.setColor(mThumbTextColor);
            mPaint.setTextSize(mThumbTextSize);
            mPaint.getTextBounds("0123456789", 0, "0123456789".length(), mRectText); // compute solid height
            float y_ = yTop + mRectText.height() + mThumbRadiusOnDragging + mTextSpace;

            if (isFloatType || (isShowProgressInFloat && mSectionTextPosition == BOTTOM_SIDES &&
                    mProgress != mMin && mProgress != mMax)) {
                canvas.drawText(String.valueOf(getProgressFloat()), mThumbCenterX, y_, mPaint);
            } else {
                canvas.drawText(String.valueOf(getProgress()), mThumbCenterX, y_, mPaint);
            }
        }

        // draw track
        mPaint.setColor(mSecondTrackColor);
        mPaint.setStrokeWidth(mSecondTrackSize);
        if (isRtl) {
            canvas.drawLine(xRight, yTop, mThumbCenterX, yTop, mPaint);
        } else {
            canvas.drawLine(xLeft, yTop, mThumbCenterX, yTop, mPaint);
        }

        // draw second track
        mPaint.setColor(mTrackColor);
        mPaint.setStrokeWidth(mTrackSize);
        if (isRtl) {
            canvas.drawLine(mThumbCenterX, yTop, xLeft, yTop, mPaint);
        } else {
            canvas.drawLine(mThumbCenterX, yTop, xRight, yTop, mPaint);
        }

        // draw thumb
        mPaint.setColor(mThumbColor);
        canvas.drawCircle(mThumbCenterX, yTop, isThumbOnDragging ? mThumbRadiusOnDragging : mThumbRadius, mPaint);


      canvas.restore();
    }

    @Override
    protected void onSizeChanged(int w, int h, int oldw, int oldh) {
        super.onSizeChanged(w, h, oldw, oldh);

        post(new Runnable() {
            @Override
            public void run() {
                requestLayout();
            }
        });
    }

    @Override
    protected void onVisibilityChanged(@NonNull View changedView, int visibility) {
        if (isHideBubble || !isAlwaysShowBubble)
            return;

        if (visibility != VISIBLE) {
            hideBubble();
        } else {
            if (triggerBubbleShowing) {
                showBubble();
            }
        }
        super.onVisibilityChanged(changedView, visibility);
    }

    @Override
    protected void onDetachedFromWindow() {
        hideBubble();
        super.onDetachedFromWindow();
    }

    @Override
    public boolean performClick() {
        return super.performClick();
    }

    float dx;

    @Override
    public boolean onTouchEvent(MotionEvent event) {
        switch (event.getActionMasked()) {
            case MotionEvent.ACTION_DOWN:
                performClick();
                getParent().requestDisallowInterceptTouchEvent(true);

                isThumbOnDragging = isThumbTouched(event);
                if (isThumbOnDragging) {
                    if (isSeekBySection && !triggerSeekBySection) {
                        triggerSeekBySection = true;
                    }
                    if (isAlwaysShowBubble && !triggerBubbleShowing) {
                        triggerBubbleShowing = true;
                    }
                    if (!isHideBubble) {
                        showBubble();
                    }
                    invalidate();
                } else if (isTouchToSeek && isTrackTouched(event)) {
                    isThumbOnDragging = true;
                    if (isSeekBySection && !triggerSeekBySection) {
                        triggerSeekBySection = true;
                    }
                    if (isAlwaysShowBubble) {
                        hideBubble();
                        triggerBubbleShowing = true;
                    }

                    if (isSeekStepSection) {
                        mThumbCenterX = mPreThumbCenterX = calThumbCxWhenSeekStepSection(event.getX());
                    } else {
                        mThumbCenterX = event.getX();
                        if (mThumbCenterX < mLeft) {
                            mThumbCenterX = mLeft;
                        }
                        if (mThumbCenterX > mRight) {
                            mThumbCenterX = mRight;
                        }
                    }

                    mProgress = calculateProgress();

                    if (!isHideBubble) {
                        mBubbleCenterRawX = calculateCenterRawXofBubbleView();
                        showBubble();
                    }

                    invalidate();
                }

                dx = mThumbCenterX - event.getX();

                break;
            case MotionEvent.ACTION_MOVE:
                if (isThumbOnDragging) {
                    boolean flag = true;

                    if (isSeekStepSection) {
                        float x = calThumbCxWhenSeekStepSection(event.getX());
                        if (x != mPreThumbCenterX) {
                            mThumbCenterX = mPreThumbCenterX = x;
                        } else {
                            flag = false;
                        }
                    } else {
                        mThumbCenterX = event.getX() + dx;
                        if (mThumbCenterX < mLeft) {
                            mThumbCenterX = mLeft;
                        }
                        if (mThumbCenterX > mRight) {
                            mThumbCenterX = mRight;
                        }
                    }

                    if (flag) {
                        mProgress = calculateProgress();

                        if (!isHideBubble && mBubbleView.getParent() != null) {
                            mBubbleCenterRawX = calculateCenterRawXofBubbleView();
                            mLayoutParams.x = (int) (mBubbleCenterRawX + 0.5f);
                            mWindowManager.updateViewLayout(mBubbleView, mLayoutParams);
                            mBubbleView.setProgressText(isShowProgressInFloat ?
                                    String.valueOf(getProgressFloat()) : String.valueOf(getProgress()));
                        } else {
                            processProgress();
                        }

                        invalidate();

                        if (mProgressListener != null) {
                            mProgressListener.onProgressChanged(this, getProgress(), getProgressFloat(), true);
                        }
                    }
                }

                break;
            case MotionEvent.ACTION_UP:
            case MotionEvent.ACTION_CANCEL:
                getParent().requestDisallowInterceptTouchEvent(false);

                if (isAutoAdjustSectionMark) {
                    if (isTouchToSeek) {
                        postDelayed(new Runnable() {
                            @Override
                            public void run() {
                                isTouchToSeekAnimEnd = false;
                                autoAdjustSection();
                            }
                        }, mAnimDuration);
                    } else {
                        autoAdjustSection();
                    }
                }

            else if (isThumbOnDragging || isTouchToSeek) {
                    if (isHideBubble) {
                        animate().setDuration(mAnimDuration)
                                .setStartDelay(!isThumbOnDragging && isTouchToSeek ? 300 : 0)
                                .setListener(new AnimatorListenerAdapter() {
                                    @Override
                                    public void onAnimationEnd(Animator animation) {
                                        isThumbOnDragging = false;
                                        invalidate();
                                    }
                                    @Override
                                    public void onAnimationCancel(Animator animation) {
                                        isThumbOnDragging = false;
                                        invalidate();
                                    }
                                }).start();
                    } else {
                  hidingBubble = true;
                        removeCallbacks(hideBubbleRunner);
                        postDelayed(hideBubbleRunner, mAnimDuration*2);
                  isThumbOnDragging = false;
                    }
                }

                if (mProgressListener != null) {
                    mProgressListener.onProgressChanged(this, getProgress(), getProgressFloat(), true);
                    mProgressListener.getProgressOnActionUp(this, getProgress(), getProgressFloat());
                }

                break;
        }

        return isThumbOnDragging || isTouchToSeek || super.onTouchEvent(event);
    }

    /**
     * Detect effective touch of thumb
     */
    private boolean isThumbTouched(MotionEvent event) {
        if (!isEnabled())
            return false;

        float distance = mTrackLength / mDelta * (mProgress - mMin);
        float x = isRtl ? mRight - distance : mLeft + distance;
        float y = getMeasuredHeight() / 2f;
        return (event.getX() - x) * (event.getX() - x) + (event.getY() - y) * (event.getY() - y)
                <= (mLeft + dp2px(8)) * (mLeft + dp2px(8));
    }

    /**
     * Detect effective touch of track
     */
    private boolean isTrackTouched(MotionEvent event) {
        return isEnabled() && event.getX() >= getPaddingLeft() && event.getX() <= getMeasuredWidth() - getPaddingRight()
                && event.getY() >= getPaddingTop() && event.getY() <= getMeasuredHeight() - getPaddingBottom();
    }

    /**
     * If the thumb is being dragged, calculate the thumbCenterX when the seek_step_section is true.
     */
    private float calThumbCxWhenSeekStepSection(float touchedX) {
        if (touchedX <= mLeft) return mLeft;
        if (touchedX >= mRight) return mRight;

        int i;
        float x = 0;
        for (i = 0; i <= mSectionCount; i++) {
            x = i * mSectionOffset + mLeft;
            if (x <= touchedX && touchedX - x <= mSectionOffset) {
                break;
            }
        }

        if (touchedX - x <= mSectionOffset / 2f) {
            return x;
        } else {
            return (i + 1) * mSectionOffset + mLeft;
        }
    }

    /**
     * Auto scroll to the nearest section mark
     */
    private void autoAdjustSection() {
        int i;
        float x = 0;
        for (i = 0; i <= mSectionCount; i++) {
            x = i * mSectionOffset + mLeft;
            if (x <= mThumbCenterX && mThumbCenterX - x <= mSectionOffset) {
                break;
            }
        }

        BigDecimal bigDecimal = BigDecimal.valueOf(mThumbCenterX);
        float x_ = bigDecimal.setScale(1, BigDecimal.ROUND_HALF_UP).floatValue();
        boolean onSection = x_ == x; // 就在section处，不作valueAnim，优化性能

        AnimatorSet animatorSet = new AnimatorSet();

        ValueAnimator valueAnim = null;
        if (!onSection) {
            if (mThumbCenterX - x <= mSectionOffset / 2f) {
                valueAnim = ValueAnimator.ofFloat(mThumbCenterX, x);
            } else {
                valueAnim = ValueAnimator.ofFloat(mThumbCenterX, (i + 1) * mSectionOffset + mLeft);
            }
            valueAnim.setInterpolator(new LinearInterpolator());
            valueAnim.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
                @Override
                public void onAnimationUpdate(ValueAnimator animation) {
                    mThumbCenterX = (float) animation.getAnimatedValue();
                    mProgress = calculateProgress();

                    if (!isHideBubble && mBubbleView.getParent() != null) {
                        mBubbleCenterRawX = calculateCenterRawXofBubbleView();
                        mLayoutParams.x = (int) (mBubbleCenterRawX + 0.5f);
                        mWindowManager.updateViewLayout(mBubbleView, mLayoutParams);
                        mBubbleView.setProgressText(isShowProgressInFloat ?
                                String.valueOf(getProgressFloat()) : String.valueOf(getProgress()));
                    } else {
                        processProgress();
                    }

                    invalidate();

                    if (mProgressListener != null) {
                        mProgressListener.onProgressChanged(BubbleSeekBar.this, getProgress(),
                                getProgressFloat(), true);
                    }
                }
            });
        }

        if (isHideBubble) {
            if (!onSection) {
                animatorSet.setDuration(mAnimDuration).playTogether(valueAnim);
            }
        } else {
            ObjectAnimator alphaAnim = ObjectAnimator.ofFloat(mBubbleView, View.ALPHA, isAlwaysShowBubble ? 1 : 0);
            if (onSection) {
                animatorSet.setDuration(mAnimDuration).play(alphaAnim);
            } else {
                animatorSet.setDuration(mAnimDuration).playTogether(valueAnim, alphaAnim);
            }
        }
        animatorSet.addListener(new AnimatorListenerAdapter() {
            @Override
            public void onAnimationEnd(Animator animation) {
                if (!isHideBubble && !isAlwaysShowBubble) {
                    hideBubble();
                }

                mProgress = calculateProgress();
                isThumbOnDragging = false;
                isTouchToSeekAnimEnd = true;
                invalidate();

                if (mProgressListener != null) {
                    mProgressListener.getProgressOnFinally(BubbleSeekBar.this, getProgress(),
                            getProgressFloat(), true);
                }
            }

            @Override
            public void onAnimationCancel(Animator animation) {
                if (!isHideBubble && !isAlwaysShowBubble) {
                    hideBubble();
                }

                mProgress = calculateProgress();
                isThumbOnDragging = false;
                isTouchToSeekAnimEnd = true;
                invalidate();
            }
        });
        animatorSet.start();
    }

    /**
     * Showing the Bubble depends the way that the WindowManager adds a Toast type view to the Window.
     * <p>
     * 显示气泡
     * 原理是利用WindowManager动态添加一个与Toast相同类型的BubbleView，消失时再移除
     */
    private void showBubble() {
        if (mBubbleView == null) {
            return;
        }
      boolean b1 = mBubbleView.getParent() != null, b2 = hidingBubble;
      if (b2) {
         removeCallbacks(hideBubbleRunner);
         if(hideBubbleAnima!=null){
            hideBubbleAnima.setListener(null);
            hideBubbleAnima.cancel();
         }
         hidingBubble = false;
      }
      if (b1 && !b2) {
         return;
        }

        mLayoutParams.x = (int) (mBubbleCenterRawX + 0.5f);
        mLayoutParams.y = (int) (mBubbleCenterRawSolidY + 0.5f);

        mBubbleView.setVisibility(VISIBLE);
      if(isTouchToSeek) {
         mBubbleView.setAlpha(1);
         if(!b1) mWindowManager.addView(mBubbleView, mLayoutParams);
      } else{
         mBubbleView.setAlpha(0);
         mBubbleView.animate().alpha(1f).setDuration(isTouchToSeek ? 0 : mAnimDuration)
            .setListener(b1?null:new AnimatorListenerAdapter() {
               @Override
               public void onAnimationStart(Animator animation) {
                  mWindowManager.addView(mBubbleView, mLayoutParams);
               }
            }).start();
      }
        mBubbleView.setProgressText(isShowProgressInFloat ?
                String.valueOf(getProgressFloat()) : String.valueOf(getProgress()));
    }

    /**
     * The WindowManager removes the BubbleView from the Window.
     */
    private void hideBubble() {
        if (mBubbleView == null)
            return;
        mBubbleView.setVisibility(GONE); // 防闪烁
        if (mBubbleView.getParent() != null) {
            mWindowManager.removeViewImmediate(mBubbleView);
        }
    }

    private boolean isBubbleVisible() {
      return mBubbleView != null && mBubbleView.getParent() != null;
    }

    private String float2String(float value) {
        return String.valueOf(formatFloat(value));
    }

    private float formatFloat(float value) {
        BigDecimal bigDecimal = BigDecimal.valueOf(value);
        return bigDecimal.setScale(1, BigDecimal.ROUND_HALF_UP).floatValue();
    }

    private float calculateCenterRawXofBubbleView() {
        if (isRtl) {
            return mBubbleCenterRawSolidX - mTrackLength * (mProgress - mMin) / mDelta;
        } else {
            return mBubbleCenterRawSolidX + mTrackLength * (mProgress - mMin) / mDelta;
        }
    }

    private float calculateProgress() {
        if (isRtl) {
            return (mRight - mThumbCenterX) * mDelta / mTrackLength + mMin;
        } else {
            return (mThumbCenterX - mLeft) * mDelta / mTrackLength + mMin;
        }
    }

    /////// Api begins /////////////////////////////////////////////////////////////////////////////

    /**
     * When BubbleSeekBar's parent view is scrollable, must listener to it's scrolling and call this
     * method to correct the offsets.
     */
    public void correctOffsetWhenContainerOnScrolling() {
        if (isHideBubble)
            return;

        locatePositionInWindow();

        if (mBubbleView.getParent() != null) {
            if (isAlwaysShowBubble) {
                mLayoutParams.y = (int) (mBubbleCenterRawSolidY + 0.5f);
                mWindowManager.updateViewLayout(mBubbleView, mLayoutParams);
            } else {
                postInvalidate();
            }
        }
    }

    public float getMin() {
        return mMin;
    }

    public float getMax() {
        return mMax;
    }

    public void setProgress(float progress) {
        mProgress = progress;

        if (mProgressListener != null) {
            mProgressListener.onProgressChanged(this, getProgress(), getProgressFloat(), false);
            mProgressListener.getProgressOnFinally(this, getProgress(), getProgressFloat(), false);
        }
        if (!isHideBubble) {
            mBubbleCenterRawX = calculateCenterRawXofBubbleView();
        }
        if (isAlwaysShowBubble) {
            hideBubble();

            postDelayed(new Runnable() {
                @Override
                public void run() {
                    showBubble();
                    triggerBubbleShowing = true;
                }
            }, mAlwaysShowBubbleDelay);
        }
        if (isSeekBySection) {
            triggerSeekBySection = false;
        }

        postInvalidate();
    }

    public int getProgress() {
        return Math.round(processProgress());
    }

    public float getProgressFloat() {
        return formatFloat(processProgress());
    }

    private float processProgress() {
        final float progress = mProgress;

        if (isSeekBySection && triggerSeekBySection) {
            float half = mSectionValue / 2;

            if (isTouchToSeek) {
                if (progress == mMin || progress == mMax) {
                    return progress;
                }

                float secValue;
                for (int i = 0; i <= mSectionCount; i++) {
                    secValue = i * mSectionValue;
                    if (secValue < progress && secValue + mSectionValue >= progress) {
                        if (secValue + half > progress) {
                            return secValue;
                        } else {
                            return secValue + mSectionValue;
                        }
                    }
                }
            }

            if (progress >= mPreSecValue) { // increasing
                if (progress >= mPreSecValue + half) {
                    mPreSecValue += mSectionValue;
                    return mPreSecValue;
                } else {
                    return mPreSecValue;
                }
            } else { // reducing
                if (progress >= mPreSecValue - half) {
                    return mPreSecValue;
                } else {
                    mPreSecValue -= mSectionValue;
                    return mPreSecValue;
                }
            }
        }

        return progress;
    }

    public OnProgressChangedListener getOnProgressChangedListener() {
        return mProgressListener;
    }

    public void setOnProgressChangedListener(OnProgressChangedListener onProgressChangedListener) {
        mProgressListener = onProgressChangedListener;
    }

    public void setTrackColor(@ColorInt int trackColor) {
        if (mTrackColor != trackColor) {
            mTrackColor = trackColor;
            invalidate();
        }
    }

    public void setSecondTrackColor(@ColorInt int secondTrackColor) {
        if (mSecondTrackColor != secondTrackColor) {
            mSecondTrackColor = secondTrackColor;
            invalidate();
        }
    }

    public void setThumbColor(@ColorInt int thumbColor) {
        if (mThumbColor != thumbColor) {
            mThumbColor = thumbColor;
            invalidate();
        }
    }

    public void setBubbleColor(@ColorInt int bubbleColor) {
        if (mBubbleColor != bubbleColor) {
            mBubbleColor = bubbleColor;
            if (mBubbleView != null) {
                mBubbleView.invalidate();
            }
        }
    }

    public void setCustomSectionTextArray(@NonNull CustomSectionTextArray customSectionTextArray) {
        mSectionTextArray = customSectionTextArray.onCustomize(mSectionCount, mSectionTextArray);
        for (int i = 0; i <= mSectionCount; i++) {
            if (mSectionTextArray.get(i) == null) {
                mSectionTextArray.put(i, "");
            }
        }

        isShowThumbText = false;
        requestLayout();
        invalidate();
    }
    /////// Api ends ///////////////////////////////////////////////////////////////////////////////

    void config(BubbleConfigBuilder builder) {
        mMin = builder.min;
        mMax = builder.max;
        mProgress = builder.progress;
        isFloatType = builder.floatType;
        mTrackSize = builder.trackSize;
        mSecondTrackSize = builder.secondTrackSize;
        mThumbRadius = builder.thumbRadius;
        mThumbRadiusOnDragging = builder.thumbRadiusOnDragging;
        mTrackColor = builder.trackColor;
        mSecondTrackColor = builder.secondTrackColor;
        mThumbColor = builder.thumbColor;
        mSectionCount = builder.sectionCount;
        isShowSectionMark = builder.showSectionMark;
        isAutoAdjustSectionMark = builder.autoAdjustSectionMark;
        isShowSectionText = builder.showSectionText;
        mSectionTextSize = builder.sectionTextSize;
        mSectionTextColor = builder.sectionTextColor;
        mSectionTextPosition = builder.sectionTextPosition;
        mSectionTextInterval = builder.sectionTextInterval;
        isShowThumbText = builder.showThumbText;
        mThumbTextSize = builder.thumbTextSize;
        mThumbTextColor = builder.thumbTextColor;
        isShowProgressInFloat = builder.showProgressInFloat;
        mAnimDuration = builder.animDuration;
        isTouchToSeek = builder.touchToSeek;
        isSeekStepSection = builder.seekStepSection;
        isSeekBySection = builder.seekBySection;
        mBubbleColor = builder.bubbleColor;
        mBubbleTextSize = builder.bubbleTextSize;
        mBubbleTextColor = builder.bubbleTextColor;
        isAlwaysShowBubble = builder.alwaysShowBubble;
        mAlwaysShowBubbleDelay = builder.alwaysShowBubbleDelay;
        isHideBubble = builder.hideBubble;
        isRtl = builder.rtl;

        initConfigByPriority();
        calculateRadiusOfBubble();

        if (mProgressListener != null) {
            mProgressListener.onProgressChanged(this, getProgress(), getProgressFloat(), false);
            mProgressListener.getProgressOnFinally(this, getProgress(), getProgressFloat(), false);
        }

        mConfigBuilder = null;

        requestLayout();
    }

    public BubbleConfigBuilder getConfigBuilder() {
        if (mConfigBuilder == null) {
            mConfigBuilder = new BubbleConfigBuilder(this);
        }

        mConfigBuilder.min = mMin;
        mConfigBuilder.max = mMax;
        mConfigBuilder.progress = mProgress;
        mConfigBuilder.floatType = isFloatType;
        mConfigBuilder.trackSize = mTrackSize;
        mConfigBuilder.secondTrackSize = mSecondTrackSize;
        mConfigBuilder.thumbRadius = mThumbRadius;
        mConfigBuilder.thumbRadiusOnDragging = mThumbRadiusOnDragging;
        mConfigBuilder.trackColor = mTrackColor;
        mConfigBuilder.secondTrackColor = mSecondTrackColor;
        mConfigBuilder.thumbColor = mThumbColor;
        mConfigBuilder.sectionCount = mSectionCount;
        mConfigBuilder.showSectionMark = isShowSectionMark;
        mConfigBuilder.autoAdjustSectionMark = isAutoAdjustSectionMark;
        mConfigBuilder.showSectionText = isShowSectionText;
        mConfigBuilder.sectionTextSize = mSectionTextSize;
        mConfigBuilder.sectionTextColor = mSectionTextColor;
        mConfigBuilder.sectionTextPosition = mSectionTextPosition;
        mConfigBuilder.sectionTextInterval = mSectionTextInterval;
        mConfigBuilder.showThumbText = isShowThumbText;
        mConfigBuilder.thumbTextSize = mThumbTextSize;
        mConfigBuilder.thumbTextColor = mThumbTextColor;
        mConfigBuilder.showProgressInFloat = isShowProgressInFloat;
        mConfigBuilder.animDuration = mAnimDuration;
        mConfigBuilder.touchToSeek = isTouchToSeek;
        mConfigBuilder.seekStepSection = isSeekStepSection;
        mConfigBuilder.seekBySection = isSeekBySection;
        mConfigBuilder.bubbleColor = mBubbleColor;
        mConfigBuilder.bubbleTextSize = mBubbleTextSize;
        mConfigBuilder.bubbleTextColor = mBubbleTextColor;
        mConfigBuilder.alwaysShowBubble = isAlwaysShowBubble;
        mConfigBuilder.alwaysShowBubbleDelay = mAlwaysShowBubbleDelay;
        mConfigBuilder.hideBubble = isHideBubble;
        mConfigBuilder.rtl = isRtl;

        return mConfigBuilder;
    }

    @Override
    protected Parcelable onSaveInstanceState() {
        Bundle bundle = new Bundle();
        bundle.putParcelable("save_instance", super.onSaveInstanceState());
        bundle.putFloat("progress", mProgress);

        return bundle;
    }

    @Override
    protected void onRestoreInstanceState(Parcelable state) {
        if (state instanceof Bundle) {
            Bundle bundle = (Bundle) state;
            mProgress = bundle.getFloat("progress");
            super.onRestoreInstanceState(bundle.getParcelable("save_instance"));

            if (mBubbleView != null) {
                mBubbleView.setProgressText(isShowProgressInFloat ?
                        String.valueOf(getProgressFloat()) : String.valueOf(getProgress()));
            }
            setProgress(mProgress);

            return;
        }

        super.onRestoreInstanceState(state);
    }

    /**
     * Listen to progress onChanged, onActionUp, onFinally
     */
    public interface OnProgressChangedListener {

        void onProgressChanged(BubbleSeekBar bubbleSeekBar, int progress, float progressFloat, boolean fromUser);

        void getProgressOnActionUp(BubbleSeekBar bubbleSeekBar, int progress, float progressFloat);

        void getProgressOnFinally(BubbleSeekBar bubbleSeekBar, int progress, float progressFloat, boolean fromUser);
    }

    /**
     * Listener adapter
     * <br/>
     * usage like {@link AnimatorListenerAdapter}
     */
    public static abstract class OnProgressChangedListenerAdapter implements OnProgressChangedListener {

        @Override
        public void onProgressChanged(BubbleSeekBar bubbleSeekBar, int progress, float progressFloat, boolean fromUser) {
        }

        @Override
        public void getProgressOnActionUp(BubbleSeekBar bubbleSeekBar, int progress, float progressFloat) {
        }

        @Override
        public void getProgressOnFinally(BubbleSeekBar bubbleSeekBar, int progress, float progressFloat, boolean fromUser) {
        }
    }

    /**
     * Customize the section texts under the track according to your demands by
     * call {@link #setCustomSectionTextArray(CustomSectionTextArray)}.
     */
    public interface CustomSectionTextArray {
        /**
         * <p>
         * Customization goes here.
         * </p>
         * For example:
         * <pre> public SparseArray<String> onCustomize(int sectionCount, @NonNull SparseArray<String> array) {
         *     array.clear();
         *
         *     array.put(0, "worst");
         *     array.put(4, "bad");
         *     array.put(6, "ok");
         *     array.put(8, "good");
         *     array.put(9, "great");
         *     array.put(10, "excellent");
         * }</pre>
         *
         * @param sectionCount The section count of the {@code BubbleSeekBar}.
         * @param array        The section texts array which had been initialized already. Customize
         *                     the section text by changing one element's value of the SparseArray.
         *                     The index key ∈[0, sectionCount].
         * @return The customized section texts array. Can not be {@code null}.
         */
        @NonNull
        SparseArray<String> onCustomize(int sectionCount, @NonNull SparseArray<String> array);
    }

    /***********************************************************************************************
     **************************************  custom bubble view  ***********************************
     **********************************************************************************************/
    private class BubbleView extends View {

        private Paint mBubblePaint;
        private Path mBubblePath;
        private RectF mBubbleRectF;
        private Rect mRect;
        private String mProgressText = "";

        BubbleView(Context context) {
            this(context, null);
        }

        BubbleView(Context context, AttributeSet attrs) {
            this(context, attrs, 0);
        }

        BubbleView(Context context, AttributeSet attrs, int defStyleAttr) {
            super(context, attrs, defStyleAttr);

            mBubblePaint = new Paint();
            mBubblePaint.setAntiAlias(true);
            mBubblePaint.setTextAlign(Paint.Align.CENTER);

            mBubblePath = new Path();
            mBubbleRectF = new RectF();
            mRect = new Rect();
        }

        @Override
        protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
            super.onMeasure(widthMeasureSpec, heightMeasureSpec);

            setMeasuredDimension(3 * mBubbleRadius, 3 * mBubbleRadius);

            mBubbleRectF.set(getMeasuredWidth() / 2f - mBubbleRadius, 0,
                    getMeasuredWidth() / 2f + mBubbleRadius, 2 * mBubbleRadius);
        }

        @Override
        protected void onDraw(Canvas canvas) {
            super.onDraw(canvas);

            mBubblePath.reset();
            float x0 = getMeasuredWidth() / 2f;
            float y0 = getMeasuredHeight() - mBubbleRadius / 3f;
            mBubblePath.moveTo(x0, y0);
            float x1 = (float) (getMeasuredWidth() / 2f - Math.sqrt(3) / 2f * mBubbleRadius);
            float y1 = 3 / 2f * mBubbleRadius;
            mBubblePath.quadTo(
                    x1 - dp2px(2), y1 - dp2px(2),
                    x1, y1
            );
            mBubblePath.arcTo(mBubbleRectF, 150, 240);

            float x2 = (float) (getMeasuredWidth() / 2f + Math.sqrt(3) / 2f * mBubbleRadius);
            mBubblePath.quadTo(
                    x2 + dp2px(2), y1 - dp2px(2),
                    x0, y0
            );
            mBubblePath.close();

            mBubblePaint.setColor(mBubbleColor);
            canvas.drawPath(mBubblePath, mBubblePaint);

            mBubblePaint.setTextSize(mBubbleTextSize);
            mBubblePaint.setColor(mBubbleTextColor);
            mBubblePaint.getTextBounds(mProgressText, 0, mProgressText.length(), mRect);
            Paint.FontMetrics fm = mBubblePaint.getFontMetrics();
            float baseline = mBubbleRadius + (fm.descent - fm.ascent) / 2f - fm.descent;
            canvas.drawText(mProgressText, getMeasuredWidth() / 2f, baseline, mBubblePaint);
        }

        void setProgressText(String progressText) {
            if (progressText != null && !mProgressText.equals(progressText)) {
                mProgressText = progressText;
                invalidate();
            }
        }
    }

   public void setValueContext(float min, float max, int progress, int sectorSz) {
      this.mMin = min;
      this.mMax = max;
      mSectionCount = sectorSz;
      mDelta = mMax - mMin;
      mSectionValue = mDelta / mSectionCount;
      initSectionTextArray();
//    setProgress(progress);
      mProgress = progress;
      postInvalidate();
      //invalidate();
   }

}

比较两种横向滑动的数值选择widget：扩展 NumberPicker 与 SeekBar

扩展后的 横向 NumberPicker 控件分享
