【林大大哟年度推荐功能】
已在多项目中使用，最小改动实现完全通用！
注意：源码地址我放在下面链接中噢~：
1、要点及功能描述
通过js监听mouse事件来实现矩形框的绘制，再通过区分点击的是边角还是其他位置来实现矩形框的缩放和拖动，并且在拖动和缩放时，都做了边界限制，当缩放或拖动 到边界时，就不能继续拉缩放拖动了。当然在相关开发时，还是需要你对一些常规的offsetLeft,offsetX等的dom属性了解哟~

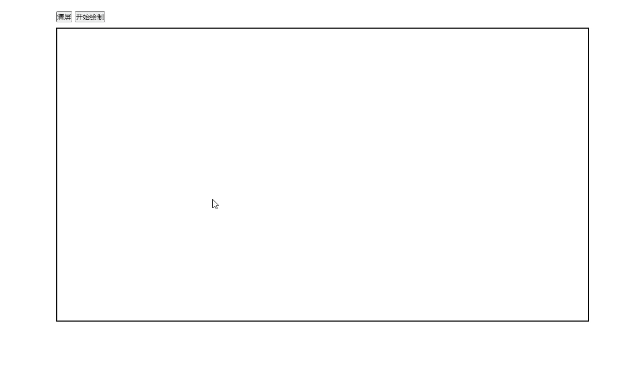

2、效果图展示
编辑
3、原理讲解
3.1、变量详解
const dom = document.getElementById('out-box')
const rect = document.getElementById('rect')
const origin = dom.getBoundingClientRect()
const parentBorder = Number(getComputedStyle(dom, null).borderWidth.split('px')[0]) // 父元素边框 如果你明确知道边框宽度，就不需要这行，直接赋值就行
const childBorder = Number(getComputedStyle(rect, null).borderWidth.split('px')[0]) // 子元素边框 如果你明确知道边框宽度，就不需要这行，直接赋值就行
dom：外层盒子，鼠标下手开始绘制的地方
rect： 矩形框，其实矩形框并不是凭空绘制出来的，只是先将其宽高置为0，并且定位到负无限处，所以在页面上看不到，在绘制时，通过控制矩形框的定位及宽高来进行展示，这也是我进行绘制/拖动/缩放的核心思想
.rect{
position: absolute;
box-shadow: 0 0 0 1999px rgba(0, 0, 0, .4);
left: -9999px;
top: 0;
width: 0;
height: 0;
border: 1px solid #fa9120;
cursor: move;
}
origin： 其实就是外层盒子的相对于页面的属性，这个很重要哟，一定要是外层dom的getBoundingClientRect
八个小圆点: 矩形外部八个可缩放的圆点（点击矩形框和点击圆点通过下面方式来区分）
if (e.target !== rect && e.target.className.indexOf('dot') === -1) return // 类名中包含被放行的dot除外
.rect > span{
position: absolute;
width: 4px;
height: 4px;
border: 1px solid;
border-color: inherit;
background-color: #fff;
}
parentBorder和childBorder就是你外层盒子和矩形盒子的边框，其实可要可不要，但是主要为了好看（你可以直接赋值就行，这跟影响不大）
3.2、绘制方法讲解
startMouse：这里left和top，就是在onmousedown开始下笔时，就确定了当前矩形框的定位，用本身下笔时的clientX，clientY去减去外层盒子的偏移，就能得到矩形在外层盒子的定位（类似于offsetLeft,offsetTop，但是这里不能用offsetLeft,offsetTop,不过你也可以自己去试试）
const left = e.clientX - origin.x
const top = e.clientY - origin.y
rect.style.left = left + 'px'
rect.style.top = top + 'px'
3.3、判断当前是拖动还是缩放讲解
mousedownHandle：当点击矩形框边角时，你肯定是想要缩放矩形框，当点击其他位置时，你肯定想要拖动矩形框。
在矩形框内部点击，就可以使用offset相关属性，你所点击的位置，就是offsetX,offsetY,这俩属性是相对于当前dom内部的点击位置的，而offsetWidth,offsetHeight是当前dom的宽高，differenec是模糊距离，有时候你得设置一个点击的范围，只要点击点在那个范围内，就是缩放，反之亦然。
当点击的对象不是矩形框时，则代表当前的要对矩形框进行缩放，否则则是要对矩形框进行拖拽
let startX = e.offsetX
let startY = e.offsetY
let width = e.target.offsetWidth
let height = e.target.offsetHeight
if (e.target !== rect) {
flag = 1 // 点击的是边角 缩放
const parent = e.target.offsetParent.getBoundingClientRect()
const child = e.target.getBoundingClientRect()
startX = child.x - parent.x
startY = child.y - parent.y
width = e.target.offsetParent.offsetWidth
height = e.target.offsetParent.offsetHeight
}
const difference = 12 // 点击四边角12 px范围为拉伸，其他为拖动,这个值可以根据你需要的来调整
当然，最好的方式就是有八个缩放点，除了这八个缩放点，其余位置都是被拖拽的地方，下面方法就是判断是哪个拉伸点的（这个也蛮好理解，不信你打开你的截图软件，是不是有8个能被缩放的小方块），除去这八个点以外，其他都是返回[-1, -1],以来标识拖动
let left = 0 // 0 => left, 1 => middle, 2 => right, -1 => 点击的位置不能被拖动
let top = 0 // 0 => top, 1 => middle, 2 => bottom, -1 => 点击的位置不能被拖动
if (startX < difference) { // 点击的位置为矩形左侧
left = 0
} else if (startX > width / 2 - difference && startX < width / 2 + difference) { // 点击的位置为矩形中间 width/2 - 6px ~ width/2 + 6px
left = 1
} else if (startX < width && startX > width - difference){ // 点击的位置为矩形右侧 width - 6px ~ width
left = 2
} else {
left = -1
}
if (startY < difference) { // 点击的位置为矩形上侧
top = 0
} else if (startY > height / 2 - difference && startY < height / 2 + difference) { // 点击的位置为矩形中间 height/2 - 6px ~ height/2 + 6px
top = 1
} else if (startY < height && startY > height - difference){ // 点击的位置为矩形下侧 height - 6px ~ height
top = 2
} else {
top = -1
}
if (left === -1 || top === -1 || (left === 1 && top === 1)) {
return [-1, -1]
}
return [left, top] // 只会有八个位置能被准确返回，其余都是返回[-1, -1]
3.4、实现拖动和缩放的方法详解
拖动还是缩放？
当mousedownHandle返回的是[-1, -1]时，那就说明是拖动，拖动的话，只需要改变矩形框的left，top定位即可。
if (e.target !== rect && e.target.className.indexOf('dot') === -1) return // 类名中包含被放行的dot除外
当mousedownHandle返回的不是[-1, -1]时，例如[2, 2],那就说明是向右下角缩放，目前八个方向已经全部实现了噢~
const editMouse = () => {
rect.onmousedown = e => {
if (e.target !== rect && e.target.className.indexOf('dot') === -1) return // 类名中包含被放行的dot除外
const flag = mousedownHandle(e)
let left = e.clientX
let top = e.clientY
const width = rect.offsetWidth
const height = rect.offsetHeight
const [dragX, dragY] = flag
// 拖动
if (dragX === -1 && dragY === -1) {
left -= rect.offsetLeft // 要保持之前矩形框的坐标值
top -= rect.offsetTop
}
const child = e.target.getBoundingClientRect()
document.onmousemove = e => {
// 取消浏览器因回流导致的默认事件及冒泡事件
e.preventDefault()
if (e.stopPropagation) {
e.stopPropagation()
} else {
e.cancelable = true
}
const finallPoint = {
left: 0,
top: 0,
width: 0,
height: 0
}
if (dragX === -1 && dragY === -1) {
rect.style.cursor = 'move'
const rightArea = dom.offsetWidth - rect.offsetWidth - (childBorder * 2) // 右边界
const bottomArea = dom.offsetHeight - rect.offsetHeight - (childBorder * 2) // 下边界
const leftArea = 0 // 左边界
const topArea = 0 // 上边界
finallPoint.left = e.clientX - left > rightArea ? rightArea : (e.clientX - left< leftArea ? leftArea : e.clientX - left)
finallPoint.top = e.clientY - top > bottomArea ? bottomArea : (e.clientY - top < topArea ? topArea : e.clientY - top)
rect.style.left = finallPoint.left + 'px'
rect.style.top = finallPoint.top + 'px'
} else if (dragX === 0 && dragY === 0) { // 左上角拉伸
finallPoint.left = e.clientX > origin.x ? ((e.clientX > (left + width)) ? left + width - origin.x : e.clientX - origin.x) : 0
finallPoint.top = e.clientY > origin.y ? ((e.clientY > (top + height)) ? top + height - origin.y : e.clientY - origin.y) : 0
finallPoint.width = e.clientX > origin.x ? ((e.clientX > (left + width)) ? 0 : width + (left - e.clientX)) : width + (left - origin.x)
finallPoint.height = e.clientY > origin.y ? ((e.clientY > (top + height)) ? 0 : height + (top - e.clientY)) : height + (top - origin.y)
rect.style.left = finallPoint.left + 'px'
rect.style.top = finallPoint.top + 'px'
rect.style.width = finallPoint.width + 'px'
rect.style.height = finallPoint.height + 'px'
} else if (dragX === 1 && dragY === 0) { // 中上拉伸
finallPoint.top = e.clientY > origin.y ? ((e.clientY > (top + height)) ? top + height - origin.y : e.clientY - origin.y) : 0
finallPoint.height = e.clientY > origin.y ? ((e.clientY > (top + height)) ? 0 : height + (top - e.clientY)) : height + (top - origin.y)
rect.style.top = finallPoint.top + 'px'
rect.style.height = finallPoint.height + 'px'
} else if (dragX === 2 && dragY === 0) { // 右上角拉伸
finallPoint.top = e.clientY > origin.y ? ((e.clientY > (top + height)) ? top + height - origin.y : e.clientY - origin.y) : 0
finallPoint.width = (e.clientX - left + width > dom.offsetWidth - rect.offsetLeft - (parentBorder * 2) ? dom.offsetWidth - rect.offsetLeft - (parentBorder * 2) : e.clientX - left + width)
finallPoint.height = e.clientY > origin.y ? ((e.clientY > (top + height)) ? 0 : height + (top - e.clientY)) : height + (top - origin.y)
rect.style.top = finallPoint.top + 'px'
rect.style.width = finallPoint.width + 'px'
rect.style.height = finallPoint.height + 'px'
} else if (dragX === 2 && dragY === 1) { // 右中拉伸
finallPoint.width = (e.clientX - left + width > dom.offsetWidth - rect.offsetLeft - (parentBorder * 2) ? dom.offsetWidth - rect.offsetLeft - (parentBorder * 2) : e.clientX - left + width)
rect.style.width = finallPoint.width + 'px'
}else if (dragX === 2 && dragY === 2) { // 右下角拉伸
finallPoint.width = (e.clientX - left + width > dom.offsetWidth - rect.offsetLeft - (parentBorder * 2) ? dom.offsetWidth - rect.offsetLeft - (parentBorder * 2) : e.clientX - left + width)
finallPoint.height = (e.clientY- top + height > dom.offsetHeight - rect.offsetTop - (parentBorder * 2) ? dom.offsetHeight - rect.offsetTop - (parentBorder * 2) : e.clientY- top + height)
rect.style.width = finallPoint.width + 'px'
rect.style.height = finallPoint.height + 'px'
} else if (dragX === 1 && dragY === 2) { // 中下拉伸
finallPoint.height = (e.clientY- top + height > dom.offsetHeight - rect.offsetTop - (parentBorder * 2) ? dom.offsetHeight - rect.offsetTop - (parentBorder * 2) : e.clientY- top + height)
rect.style.height = finallPoint.height + 'px'
} else if (dragX === 0 && dragY === 2) { // 左下角拉伸
finallPoint.left = e.clientX > origin.x ? ((e.clientX > (left + width)) ? left + width - origin.x : e.clientX - origin.x) : 0
finallPoint.width = e.clientX > origin.x ? ((e.clientX > (left + width)) ? 0 : width + (left - e.clientX)) : width + (left - origin.x)
finallPoint.height = (e.clientY- top + height > dom.offsetHeight - rect.offsetTop - (parentBorder * 2) ? dom.offsetHeight - rect.offsetTop - (parentBorder * 2) : e.clientY- top + height)
rect.style.left = finallPoint.left + 'px'
rect.style.width = finallPoint.width + 'px'
rect.style.height = finallPoint.height + 'px'
} else if (dragX === 0 && dragY === 1) { // 左中拉伸
finallPoint.left = e.clientX > origin.x ? ((e.clientX > (left + width)) ? left + width - origin.x : e.clientX - origin.x) : 0
finallPoint.width = e.clientX > origin.x ? ((e.clientX > (left + width)) ? 0 : width + (left - e.clientX)) : width + (left - origin.x)
rect.style.left = finallPoint.left + 'px'
rect.style.width = finallPoint.width + 'px'
}
}
document.onmouseup = e => {
document.onmousemove = null
document.onmouseup = null
rect.style.cursor = 'move'
}
}
}
4、源码展示
可直接运行展示噢当然想要实时看最新源码在本篇博客最上面的链接点击进入噢
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>drawRectangle(原生实现)</title>
<style>
*{
margin: 0;
padding: 0;
}
.container{
width: 1000px;
height: 600px;
margin: 10% auto;
}
.control{
margin-bottom: 10px;
display: flex;
}
.control > button {
margin-right: 10px;
}
#out-box{
width: 100%;
height: 550px;
border: 2px solid #000;
position: relative;
overflow: hidden;
}
.rect{
position: absolute;
box-shadow: 0 0 0 1999px rgba(0, 0, 0, .4);
left: -9999px;
top: 0;
width: 0;
height: 0;
border: 1px solid #fa9120;
cursor: move;
}
.rect>span{
position: absolute;
width: 4px;
height: 4px;
border: 1px solid;
border-color: inherit;
background-color: #fff;
}
.rect .left-top{
left: -3px;
top: -3px;
cursor: nwse-resize;
}
.rect .middle-top{
left: 50%;
top: -3px;
transform: translateX(-50%);
cursor: n-resize;
}
.rect .right-top{
right: -3px;
top: -3px;
cursor: nesw-resize;
}
.rect .right-middle{
right: -3px;
top: 50%;
transform: translateY(-50%);
cursor: e-resize;
}
.rect .right-bottom{
right: -3px;
bottom: -3px;
cursor: nwse-resize;
}
.rect .middle-bottom{
left: 50%;
bottom: -3px;
transform: translateX(-50%);
cursor: s-resize;
}
.rect .left-bottom{
left: -3px;
bottom: -3px;
cursor: nesw-resize;
}
.rect .left-middle{
left: -3px;
top: 50%;
transform: translateY(-50%);
cursor: w-resize;
}
</style>
</head>
<body>
<div class="container">
<div class="control">
<button id="clear">清屏</button>
<button id="start-paint">开始绘制</button>
<div>
<input type="radio" id="color-1" name="color-choose" value="orange">
<label for="color-1">黄框</label>
<input type="radio" id="color-2" name="color-choose" value="#02A7F0">
<label for="color-2">蓝框</label>
</div>
</div>
<div id="out-box">
<div id="rect" class="rect">
<span class="left-top dot"></span>
<span class="middle-top dot"></span>
<span class="right-top dot"></span>
<span class="right-middle dot"></span>
<span class="right-bottom dot"></span>
<span class="middle-bottom dot"></span>
<span class="left-bottom dot"></span>
<span class="left-middle dot"></span>
</div>
</div>
</div>
<script>
const dom = document.getElementById('out-box')
const rect = document.getElementById('rect')
const origin = dom.getBoundingClientRect()
const parentBorder = Number(getComputedStyle(dom, null).borderWidth.split('px')[0]) // 父元素边框 如果你明确知道边框宽度，就不需要这行，直接赋值就行
const childBorder = Number(getComputedStyle(rect, null).borderWidth.split('px')[0]) // 子元素边框 如果你明确知道边框宽度，就不需要这行，直接赋值就行
/**
* 开始绘制
*/
const startMouse = () => {
dom.style.cursor = 'crosshair'
dom.onmousedown = e => {
if (e.target !== dom) return
const left = e.offsetX
const top = e.offsetY
rect.style.left = left + 'px'
rect.style.top = top + 'px'
rect.style.borderColor = getCurrentColor() // 绘制时使用选择的框的颜色
const childs = rect.children
for (let i = 0; i < childs.length; i++) {
childs[i].style.borderColor = getCurrentColor() // 绘制时使用选择的框的颜色
}
dom.onmousemove = e => {
// 宽高边界限制
const widthArea = e.clientX - origin.x > dom.offsetWidth - (parentBorder * 2) ? dom.offsetWidth - (parentBorder * 2) : e.clientX - origin.x
const heightArea = e.clientY - origin.y > dom.offsetHeight - (parentBorder * 2) ? dom.offsetHeight - (parentBorder * 2) : e.clientY - origin.y
rect.style.width = widthArea - left + 'px'
rect.style.height = heightArea - top + 'px'
}
dom.onmouseup = e => {
dom.onmousedown = null
dom.onmousemove = null
dom.onmouseup = null
dom.style.cursor = ''
editMouse()
}
}
}
const editMouse = () => {
rect.onmousedown = e => {
if (e.target !== rect && e.target.className.indexOf('dot') === -1) return // 类名中包含被放行的dot除外
const flag = mousedownHandle(e)
let left = e.clientX
let top = e.clientY
const width = rect.offsetWidth
const height = rect.offsetHeight
const [dragX, dragY] = flag
// 拖动
if (dragX === -1 && dragY === -1) {
left -= rect.offsetLeft // 要保持之前矩形框的坐标值
top -= rect.offsetTop
}
const child = e.target.getBoundingClientRect()
document.onmousemove = e => {
// 取消浏览器因回流导致的默认事件及冒泡事件
e.preventDefault()
if (e.stopPropagation) {
e.stopPropagation()
} else {
e.cancelable = true
}
const finallPoint = {
left: 0,
top: 0,
width: 0,
height: 0
}
if (dragX === -1 && dragY === -1) {
rect.style.cursor = 'move'
const rightArea = dom.offsetWidth - rect.offsetWidth - (childBorder * 2) // 右边界
const bottomArea = dom.offsetHeight - rect.offsetHeight - (childBorder * 2) // 下边界
const leftArea = 0 // 左边界
const topArea = 0 // 上边界
finallPoint.left = e.clientX - left > rightArea ? rightArea : (e.clientX - left< leftArea ? leftArea : e.clientX - left)
finallPoint.top = e.clientY - top > bottomArea ? bottomArea : (e.clientY - top < topArea ? topArea : e.clientY - top)
rect.style.left = finallPoint.left + 'px'
rect.style.top = finallPoint.top + 'px'
} else if (dragX === 0 && dragY === 0) { // 左上角拉伸
finallPoint.left = e.clientX > origin.x ? ((e.clientX > (left + width)) ? left + width - origin.x : e.clientX - origin.x) : 0
finallPoint.top = e.clientY > origin.y ? ((e.clientY > (top + height)) ? top + height - origin.y : e.clientY - origin.y) : 0
finallPoint.width = e.clientX > origin.x ? ((e.clientX > (left + width)) ? 0 : width + (left - e.clientX)) : width + (left - origin.x)
finallPoint.height = e.clientY > origin.y ? ((e.clientY > (top + height)) ? 0 : height + (top - e.clientY)) : height + (top - origin.y)
rect.style.left = finallPoint.left + 'px'
rect.style.top = finallPoint.top + 'px'
rect.style.width = finallPoint.width + 'px'
rect.style.height = finallPoint.height + 'px'
} else if (dragX === 1 && dragY === 0) { // 中上拉伸
finallPoint.top = e.clientY > origin.y ? ((e.clientY > (top + height)) ? top + height - origin.y : e.clientY - origin.y) : 0
finallPoint.height = e.clientY > origin.y ? ((e.clientY > (top + height)) ? 0 : height + (top - e.clientY)) : height + (top - origin.y)
rect.style.top = finallPoint.top + 'px'
rect.style.height = finallPoint.height + 'px'
} else if (dragX === 2 && dragY === 0) { // 右上角拉伸
finallPoint.top = e.clientY > origin.y ? ((e.clientY > (top + height)) ? top + height - origin.y : e.clientY - origin.y) : 0
finallPoint.width = (e.clientX - left + width > dom.offsetWidth - rect.offsetLeft - (parentBorder * 2) ? dom.offsetWidth - rect.offsetLeft - (parentBorder * 2) : e.clientX - left + width)
finallPoint.height = e.clientY > origin.y ? ((e.clientY > (top + height)) ? 0 : height + (top - e.clientY)) : height + (top - origin.y)
rect.style.top = finallPoint.top + 'px'
rect.style.width = finallPoint.width + 'px'
rect.style.height = finallPoint.height + 'px'
} else if (dragX === 2 && dragY === 1) { // 右中拉伸
finallPoint.width = (e.clientX - left + width > dom.offsetWidth - rect.offsetLeft - (parentBorder * 2) ? dom.offsetWidth - rect.offsetLeft - (parentBorder * 2) : e.clientX - left + width)
rect.style.width = finallPoint.width + 'px'
}else if (dragX === 2 && dragY === 2) { // 右下角拉伸
finallPoint.width = (e.clientX - left + width > dom.offsetWidth - rect.offsetLeft - (parentBorder * 2) ? dom.offsetWidth - rect.offsetLeft - (parentBorder * 2) : e.clientX - left + width)
finallPoint.height = (e.clientY- top + height > dom.offsetHeight - rect.offsetTop - (parentBorder * 2) ? dom.offsetHeight - rect.offsetTop - (parentBorder * 2) : e.clientY- top + height)
rect.style.width = finallPoint.width + 'px'
rect.style.height = finallPoint.height + 'px'
} else if (dragX === 1 && dragY === 2) { // 中下拉伸
finallPoint.height = (e.clientY- top + height > dom.offsetHeight - rect.offsetTop - (parentBorder * 2) ? dom.offsetHeight - rect.offsetTop - (parentBorder * 2) : e.clientY- top + height)
rect.style.height = finallPoint.height + 'px'
} else if (dragX === 0 && dragY === 2) { // 左下角拉伸
finallPoint.left = e.clientX > origin.x ? ((e.clientX > (left + width)) ? left + width - origin.x : e.clientX - origin.x) : 0
finallPoint.width = e.clientX > origin.x ? ((e.clientX > (left + width)) ? 0 : width + (left - e.clientX)) : width + (left - origin.x)
finallPoint.height = (e.clientY- top + height > dom.offsetHeight - rect.offsetTop - (parentBorder * 2) ? dom.offsetHeight - rect.offsetTop - (parentBorder * 2) : e.clientY- top + height)
rect.style.left = finallPoint.left + 'px'
rect.style.width = finallPoint.width + 'px'
rect.style.height = finallPoint.height + 'px'
} else if (dragX === 0 && dragY === 1) { // 左中拉伸
finallPoint.left = e.clientX > origin.x ? ((e.clientX > (left + width)) ? left + width - origin.x : e.clientX - origin.x) : 0
finallPoint.width = e.clientX > origin.x ? ((e.clientX > (left + width)) ? 0 : width + (left - e.clientX)) : width + (left - origin.x)
rect.style.left = finallPoint.left + 'px'
rect.style.width = finallPoint.width + 'px'
}
}
document.onmouseup = e => {
document.onmousemove = null
document.onmouseup = null
rect.style.cursor = 'move'
}
}
}
/**
* mousedown逻辑处理
*/
const mousedownHandle = (e) => {
let flag = 0 // 点击的是除边角以外的其他部分 拖动
let startX = e.offsetX
let startY = e.offsetY
let width = e.target.offsetWidth
let height = e.target.offsetHeight
if (e.target !== rect) {
flag = 1 // 点击的是边角 缩放
const parent = e.target.offsetParent.getBoundingClientRect()
const child = e.target.getBoundingClientRect()
startX = child.x - parent.x
startY = child.y - parent.y
width = e.target.offsetParent.offsetWidth
height = e.target.offsetParent.offsetHeight
}
const difference = 12 // 点击四边角12 px范围为拉伸，其他为拖动,这个值可以根据你需要的来调整
let left = 0 // 0 => left, 1 => middle, 2 => right, -1 => 点击的位置不能被拖动
let top = 0 // 0 => top, 1 => middle, 2 => bottom, -1 => 点击的位置不能被拖动
if (startX < difference) { // 点击的位置为矩形左侧
left = 0
} else if (startX > width / 2 - difference && startX < width / 2 + difference) { // 点击的位置为矩形中间 width/2 - 6px ~ width/2 + 6px
left = 1
} else if (startX < width && startX > width - difference){ // 点击的位置为矩形右侧 width - 6px ~ width
left = 2
} else {
left = -1
}
if (startY < difference) { // 点击的位置为矩形上侧
top = 0
} else if (startY > height / 2 - difference && startY < height / 2 + difference) { // 点击的位置为矩形中间 height/2 - 6px ~ height/2 + 6px
top = 1
} else if (startY < height && startY > height - difference){ // 点击的位置为矩形下侧 height - 6px ~ height
top = 2
} else {
top = -1
}
if (left === -1 || top === -1 || (left === 1 && top === 1)) {
return [-1, -1]
}
return [left, top] // 只会有八个位置能被准确返回，其余都是返回[-1, -1]
}
const clear = document.querySelector('#clear') // 清屏
const startPaint = document.querySelector('#start-paint') // 开始绘制
const radioList = document.getElementsByName('color-choose')
radioList[0].checked = "checked"
const getCurrentColor = () => {
for (let i = 0; i < radioList.length; i++) {
if (radioList[i].checked) {
return radioList[i].value
}
}
}
clear.onclick = e => {
rect.style.left = '-9999px'
rect.style.top = 0
rect.style.width = 0
rect.style.height = 0
}
startPaint.onclick = e => {
startMouse()
}
</script>
</body>
</html>
5、问题答疑？
1、在onmousedown里为啥要加上 if (e.target !== dom) return 这行代码呢？
dom.onmousedown = e => {
if (e.target !== dom) return
}
因为我在多次写的时候发现呀，很多时候矩形框的下面就会有类似截图软件下的涂鸦功能，当你点击涂鸦按钮时，其实这个时候你也是点击dom的（可理解为事件穿透），但是我们写逻辑的时候不想要涂鸦按钮和dom一起绑定住想区分开，所以这个时候判断onmousedown的对象和dom是否一致，不一致的话，就不执行后续操作。
2、在onmousemove里为啥要加 e.preventDefault() ... 这段代码呢？
document.onmousemove = e => {
e.preventDefault()
if (e.stopPropagation) {
e.stopPropagation()
} else {
e.cancelable = true
}
}
注意哦，只在绑定对象为document才加这一段代码，其他的不加~
加上这段代码是因为在mousemove来回移动到当前矩形框时，会出现浏览器的黑色拒绝符号并会卡顿，导致操作不流畅，所以加上这段代码可以取消浏览器因回流导致的默认事件及冒泡事件
3、 矩形框周围的黑色半透明蒙层是如何实现的？
box-shadow: 0 0 0 1999px rgba(0, 0, 0, .4);
是通过这行样式实现的喔，其中1999px基本满足大部分屏幕的要求，当然也可以根据你的需求来设置哦，但是一定要切记，外层盒子要设置overflow，不然矩形框的阴影将会溢出去
overflow: hidden;
4、绘制矩形框时的边界范围限制？
其实可以看到，绘制时，矩形框的left和top都是已经确定好的，只是在mousemove时候改变宽高，但是宽高不能超过外层盒子的范围呀，所以就是在你mousemove时，将计算出来的宽高与父级offsetWidth，offsetHeight进行比较（记住为了更好看，我这里是将边框宽度也一起计算进来的喔，如果你不想计算的话，影响也不大~）（内部变量找不到的可以到上面源码里查看全部喔~）
// 宽高边界限制
const widthArea = e.clientX - origin.x > dom.offsetWidth - (parentBorder * 2) ? dom.offsetWidth - (parentBorder * 2) : e.clientX - origin.x
const heightArea = e.clientY - origin.y > dom.offsetHeight - (parentBorder * 2) ? dom.offsetHeight - (parentBorder * 2) : e.clientY - origin.y
rect.style.width = widthArea - left + 'px'
rect.style.height = heightArea - top + 'px'
5、拖动矩形框时的边界范围限制？
这里给出了上下左右四个边界范围限制，当移动left，top超过这个范围时，都将给予处理，使矩形框不会超过外层盒子的边界范围（内部变量找不到的可以到上面源码里查看全部喔~）
const rightArea = dom.offsetWidth - rect.offsetWidth - (childBorder * 2) // 右边界
const bottomArea = dom.offsetHeight - rect.offsetHeight - (childBorder * 2) // 下边界
const leftArea = 0 // 左边界
const topArea = 0 // 上边界
finallPoint.left = e.clientX - left > rightArea ? rightArea : (e.clientX - left< leftArea ? leftArea : e.clientX - left)
finallPoint.top = e.clientY - top > bottomArea ? bottomArea : (e.clientY - top < topArea ? topArea : e.clientY - top)
rect.style.left = finallPoint.left + 'px'
rect.style.top = finallPoint.top + 'px'
6、缩放矩形框时的边界范围限制？
缩放的时候，其实矩形框的left，top，width和height都可能需要改变，不过具体要看你缩放的是哪个边角，下面我代码里是缩放的右下角，所以只需要改变矩形框宽高即可。当宽高的长度等于或超过外层盒子的offsetWidth，offsetHeight减去矩形框的offsetLeft，offsetTop时，就说明已经到范围边界了，这个长度不能再被增加了。（内部变量找不到的可以到上面源码里查看全部喔~）
下述是往右下角方向拉伸噢~
finallPoint.width = (e.clientX - left + width > dom.offsetWidth - rect.offsetLeft - (parentBorder * 2) ? dom.offsetWidth - rect.offsetLeft - (parentBorder * 2) : e.clientX - left + width)
finallPoint.height = (e.clientY- top + height > dom.offsetHeight - rect.offsetTop - (parentBorder * 2) ? dom.offsetHeight - rect.offsetTop - (parentBorder * 2) : e.clientY- top + height)
rect.style.width = finallPoint.width + 'px'
rect.style.height = finallPoint.height + 'px'
---喜欢的请点赞收藏吧，欢迎评论---
