基于xdocreport+freemarker导出复杂word文档

基于xdocreport导出复杂word文档

引入 maven 依赖

<dependency>
    <groupId>fr.opensagres.xdocreport</groupId>
    <artifactId>fr.opensagres.xdocreport.core</artifactId>
    <version>2.0.2</version>
</dependency>
<dependency>
    <groupId>fr.opensagres.xdocreport</groupId>
    <artifactId>fr.opensagres.xdocreport.document</artifactId>
    <version>2.0.2</version>
</dependency>
<dependency>
    <groupId>fr.opensagres.xdocreport</groupId>
    <artifactId>fr.opensagres.xdocreport.template</artifactId>
    <version>2.0.2</version>
</dependency>
<dependency>
    <groupId>fr.opensagres.xdocreport</groupId>
    <artifactId>fr.opensagres.xdocreport.document.docx</artifactId>
    <version>2.0.2</version>
</dependency>
<dependency>
    <groupId>fr.opensagres.xdocreport</groupId>
    <artifactId>fr.opensagres.xdocreport.template.freemarker</artifactId>
    <version>2.0.2</version>
</dependency>
<dependency>
    <groupId>org.freemarker</groupId>
    <artifactId>freemarker</artifactId>
    <version>2.3.30</version>
</dependency>

controller 层

@ApiOperation(value = "导出（下载）", notes = "导出（下载）")
@GetMapping("exportReport")
    public void exportReport(@RequestParam("unitOrgNum") String unitOrgNum, HttpServletResponse response) {
    logger.error("导出报告,入参：{}", unitOrgNum);
    OutputStream out = null;
    try {
        TResult<AnalysisReportDto> r = xxxService.getAnalysisReport(unitOrgNum);
        PrettyHandleUtils.handle2Result().throwBizMessage(r);
        //获取Word模板，模板存放路径在项目的resources目录下
        InputStream ins = this.getClass().getResourceAsStream("/templates/AnalysisReportTemplate.docx");
        //注册xdocreport实例并加载FreeMarker模板引擎
        IXDocReport report = XDocReportRegistry.getRegistry().loadReport(ins, TemplateEngineKind.Freemarker);
        //创建xdocreport上下文对象
        IContext context = report.createContext();
        generateMsWordData(report, context, r.getTarget());
        response.setCharacterEncoding("UTF-8");
        response.setContentType("application/msword");
        response.setHeader("Content-Disposition", " attachment; filename=".concat(String.valueOf(URLEncoder.encode(unitOrgNum + ".docx", "UTF-8"))));
        out = response.getOutputStream();
        report.process(context, out);
        out.flush();
    } catch (Exception e) {
        logger.error("unitOrgNum:{}---导出报告:{}", unitOrgNum, e.getMessage(), e);
        throw BizException.newInstance(Constants.ERROR.RESPONSE_ERROR,e.getMessage());
    } finally {
        try {
        if (out != null) {
        out.close();
        }
        } catch (IOException e) {
        e.printStackTrace();
        }
    }
}

 private void generateMsWordData(IXDocReport report, IContext context, AnalysisReportDto target) throws XDocReportException {
    context.put("legalName", target.getLegalName());
    context.put("unitOrgNum", target.getUnitOrgNum());
    context.put("baseSituation", target.getBaseSituation());
    context.put("tender3", target.getAchievement().getTender3());
    context.put("punishItems", target.getPerformanceScore().getSpecialAnalysis().getPunishItems());

    //创建字段元数据
    FieldsMetadata fm = report.createFieldsMetadata();
    fm.load("baseSituation", LegalBaseSituationDto.class, false);
    fm.load("tender3", TenderSituationNearDto.class, false);
    fm.load("punishItems", SpecialPunishItemDto.class, true);

    report.setFieldsMetadata(fm);
}

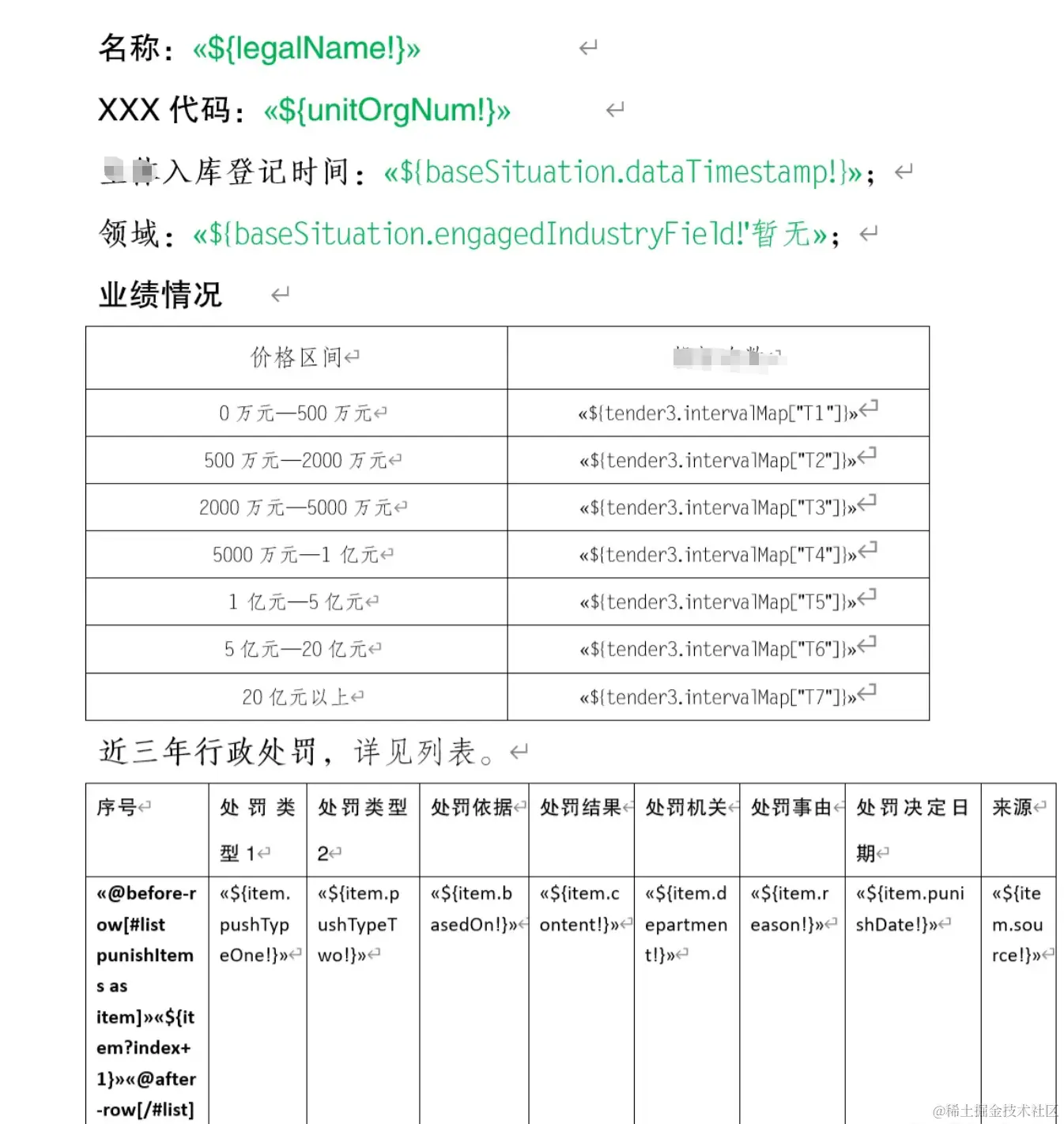

freemarker 模板

其中，«@before-row[#list punishItems as item]»«${item?index+1}»«@after-row[/#list]»,分别是 «@before-row[#list punishItems as item]» 和 «${item?index+1}»«@after-row[/#list]»

操作步骤

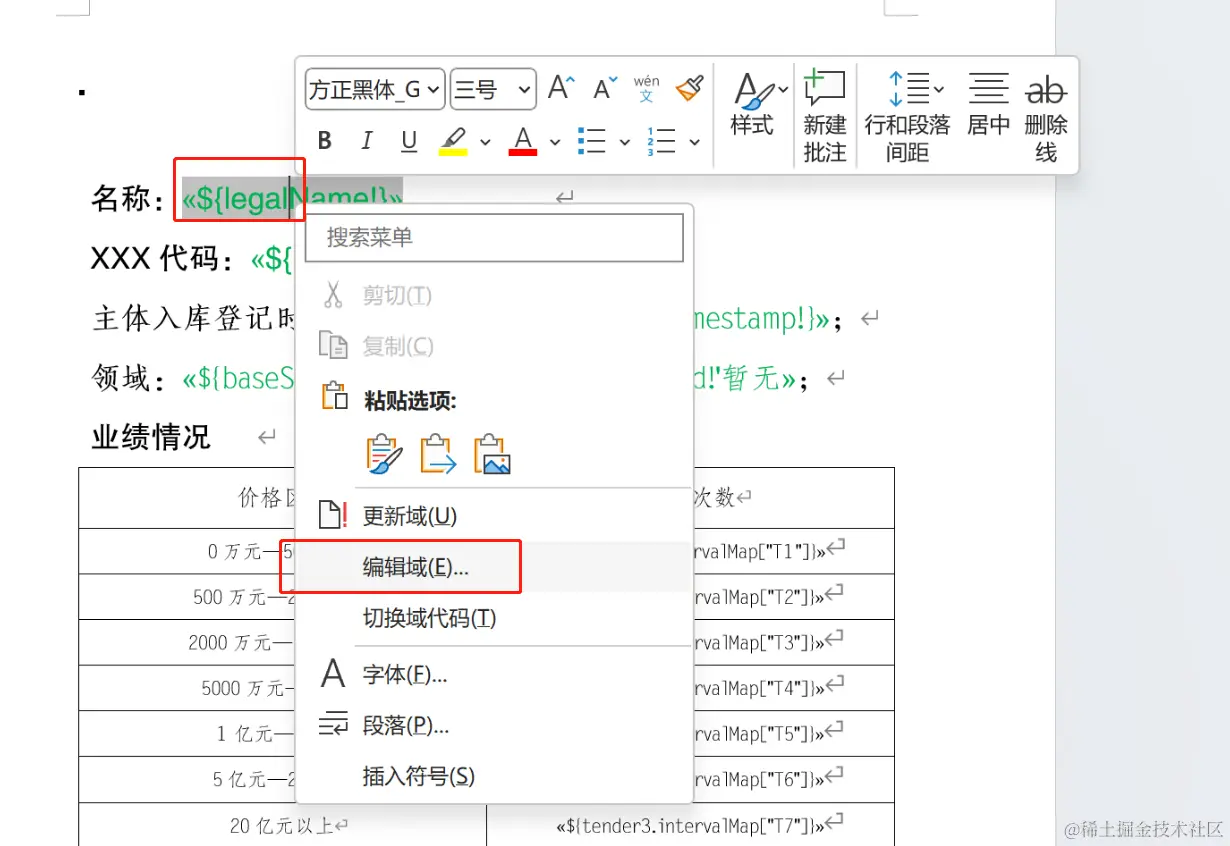

1.在Word模板中选中要替换的文本，然后键盘使用 Ctrl + F9 组合键将其设置为域，此时文本会被"{}"包围，接着鼠标右键选择【编辑域(E)...】：

«${tender3.intervalMap["T1"]}»为map对象使用 «${baseSituation.dataTimestamp!}»指定默认值为空，通过!(感叹号)号实现 也可指定默认值为其他的，如«${baseSituation.engagedIndustryField!'暂无»

2.在弹出的对话框中，类别选择“邮件合并”，域名选择 "MergeField"，域属性中的域名填入模版表达式${legalName!}，点击【确定】按钮；

常见语法

1、${....}

用于变量展示，也可以用作对象属性或者map值的展示，用法如下：
对象属性：${object.XXX}
map：${object["XXX"]}

2、list

数组、列表的循环展示，一般写法

[#list list as item]
${item.a}
[/#list]

参考文档

https://blog.csdn.net/lzh_java_demo/article/details/121122932
https://blog.csdn.net/plxddyxnmd/article/details/109129838
