基于浏览器的截图且可编辑组件

使用到 tui-image-editor 和 html2canvas

安装方法

npm install --save tui-image-editor

npm i --save html2canvas

配上官网链接

tui-image-editor: nhn.github.io/tui.image-e…

html2canvas: html2canvas.hertzen.com/

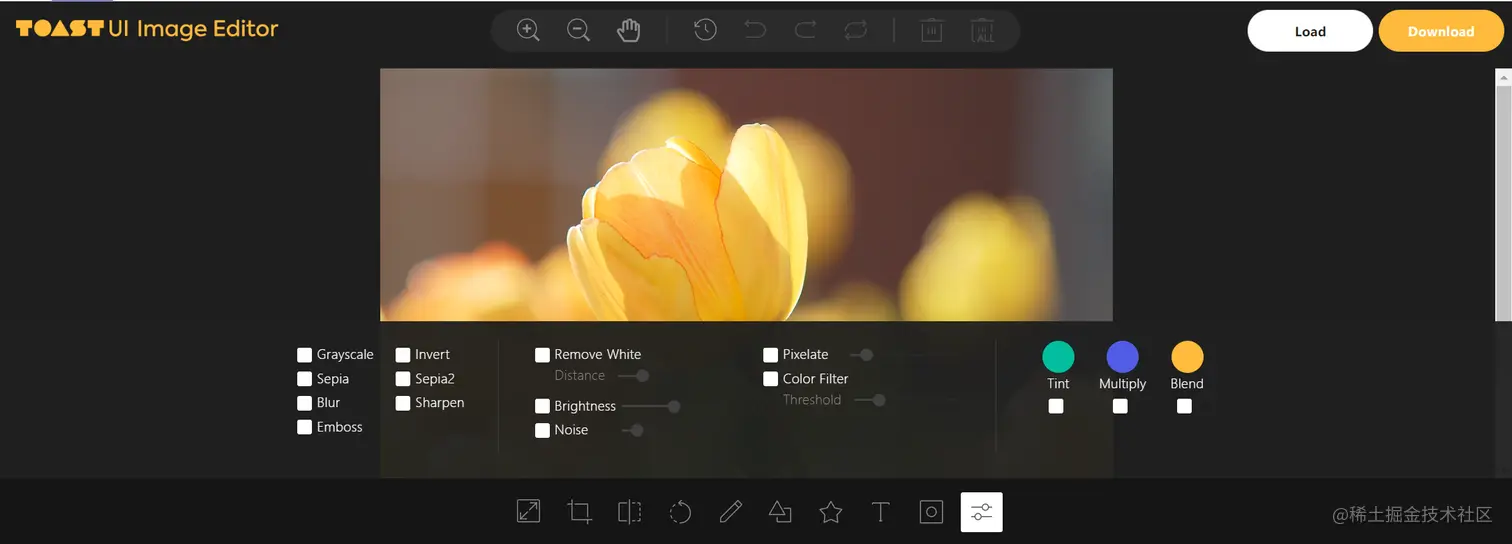

tui-image-editor用于截图之后的编辑操作，有裁切、翻转、旋转、绘画、形状、文本、图标、覆盖、滤镜

html2canvas用于web浏览器截图

实践

使用vue3 + vite + element-plus，安装过程略过。。。 完整代码在文末

页面部分 使用element-plus的弹窗，截图之后弹窗内编辑图片

<template>
    <div>
        <slot :screenshot="clickGeneratePicture">
            <el-button class="screenshotBtn button" @click="clickGeneratePicture">
            一键截图
            </el-button>
        </slot>

        <el-dialog
        draggable
        v-model="dialogVisible"
        title="截图"
        :width="width"
        :before-close="handleClose"
        @opened="opened"
        :append-to-body="true"
        align-center
        >
            <!-- 用于存放截图 -->
            <div ref="editor"></div>
            <template #footer>
            <div class="dialog-footer">
            <el-button @click="save">保存</el-button>
            </div>
            </template>
        </el-dialog>
    </div>
</template>

css部分

.tui-image-editor-container {
    width: 1500px;
    height: 800px !important;
}

导入所需的包

import "tui-image-editor/dist/tui-image-editor.css";
import "tui-color-picker/dist/tui-color-picker.css";
import html2canvas from "html2canvas";
import ImageEditor from "tui-image-editor";

截图方法，使用 html2canvas

const clickGeneratePicture = () => {
    html2canvas(props.imageWrapper, {
        logging: false,
        allowTaint: true,
        scale: window.devicePixelRatio,
        // width: shareContent.clientWidth,
        // height: shareContent.clientHeight,
        scrollY: 0,
        scrollX: 0,
        useCORS: true,
        backgroundColor: null,
        }).then(async function (canvas) {
        imgUrl.value = canvas.toDataURL("image/png");
        dialogVisible.value = true;
    });
};

修改 tui-image-editor 英文转中文

// 转中文
const locale_zh = {
    // override default English locale to your custom
    Crop: "裁剪",
    Load: "替换图片",
    DeleteAll: "全部删除",
    Delete: "删除",
    Undo: "撤销",
    Redo: "反撤销",
    Reset: "重置",
    Flip: "镜像",
    Rotate: "旋转",
    Draw: "画",
    Shape: "形状标注",
    Icon: "图标标注",
    Text: "文字标注",
    Mask: "遮罩",
    Filter: "滤镜",
    Bold: "加粗",
    Italic: "斜体",
    Underline: "下划线",
    Left: "左对齐",
    Center: "居中",
    Right: "右对齐",
    Color: "颜色",
    "Text size": "字体大小",
    Custom: "自定义",
    Square: "正方形",
    Apply: "应用",
    Cancel: "取消",
    "Flip X": "X 轴",
    "Flip Y": "Y 轴",
    Range: "区间",
    Stroke: "描边",
    Fill: "填充",
    Circle: "圆",
    Triangle: "三角",
    Rectangle: "矩形",
    Free: "曲线",
    Straight: "直线",
    Arrow: "箭头",
    "Arrow-2": "箭头2",
    "Arrow-3": "箭头3",
    "Star-1": "星星1",
    "Star-2": "星星2",
    Polygon: "多边形",
    Location: "定位",
    Heart: "心形",
    Bubble: "气泡",
    "Custom icon": "自定义图标",
    "Load Mask Image": "加载蒙层图片",
    Grayscale: "灰度",
    Blur: "模糊",
    Sharpen: "锐化",
    Emboss: "浮雕",
    "Remove White": "除去白色",
    Distance: "距离",
    Brightness: "亮度",
    Noise: "噪音",
    "Color Filter": "彩色滤镜",
    Sepia: "棕色",
    Sepia2: "棕色2",
    Invert: "负片",
    Pixelate: "像素化",
    Threshold: "阈值",
    Tint: "色调",
    Multiply: "正片叠底",
    Blend: "混合色",
    Double: "双击",
    Download: "预览图片",

    // etc...
};

自定义tui-image-editor样式

const customTheme = {
    // image 坐上角度图片
    "common.bi.image": "", // 在这里换上你喜欢的logo图片
    "common.bisize.width": "0px",
    "common.bisize.height": "0px",
    "common.backgroundImage": "none",
    "common.backgroundColor": "#f3f4f6",
    "common.border": "1px solid #444",

    // header
    "header.backgroundImage": "none",
    "header.backgroundColor": "#f3f4f6",
    "header.border": "0px",
    "header.margin": "0px auto",

    // load button
    "loadButton.backgroundColor": "#fff",
    "loadButton.border": "1px solid #ddd",
    "loadButton.color": "#222",
    "loadButton.fontFamily": "NotoSans, sans-serif",
    "loadButton.fontSize": "12px",
    "loadButton.width": "150px",
    "loadButton.display": "none", // 可以直接隐藏掉

    // download button
    "downloadButton.backgroundColor": "#fdba3b",
    "downloadButton.border": "1px solid #fdba3b",
    "downloadButton.color": "#fff",
    "downloadButton.fontFamily": "NotoSans, sans-serif",
    "downloadButton.fontSize": "12px",
    // "downloadButton.display": "none", // 可以直接隐藏掉

    // icons default
    "menu.normalIcon.color": "#8a8a8a",
    "menu.activeIcon.color": "#555555",
    "menu.disabledIcon.color": "#434343",
    "menu.hoverIcon.color": "#e9e9e9",
    "submenu.normalIcon.color": "#8a8a8a",
    "submenu.activeIcon.color": "#e9e9e9",

    "menu.iconSize.width": "24px",
    "menu.iconSize.height": "24px",
    "submenu.iconSize.width": "32px",
    "submenu.iconSize.height": "32px",

    // submenu primary color
    "submenu.backgroundColor": "#1e1e1e",
    "submenu.partition.color": "#858585",

    // submenu labels
    "submenu.normalLabel.color": "#858585",
    "submenu.normalLabel.fontWeight": "lighter",
    "submenu.activeLabel.color": "#fff",
    "submenu.activeLabel.fontWeight": "lighter",

    // checkbox style
    "checkbox.border": "1px solid #ccc",
    "checkbox.backgroundColor": "#fff",

    // rango style
    "range.pointer.color": "#fff",
    "range.bar.color": "#666",
    "range.subbar.color": "#d1d1d1",

    "range.disabledPointer.color": "#414141",
    "range.disabledBar.color": "#282828",
    "range.disabledSubbar.color": "#414141",

    "range.value.color": "#fff",
    "range.value.fontWeight": "lighter",
    "range.value.fontSize": "11px",
    "range.value.border": "1px solid #353535",
    "range.value.backgroundColor": "#151515",
    "range.title.color": "#fff",
    "range.title.fontWeight": "lighter",

    // colorpicker style
    "colorpicker.button.border": "1px solid #1e1e1e",
    "colorpicker.title.color": "#fff",
};

tui-image-editor 实例化

const options = {
    usageStatistics: false,
    includeUI: {
        loadImage: {
            path: imgUrl.value,
            name: "imgName",
        },
        //操作菜单栏
        menu: [
            "crop", // 裁切
            "flip", // 翻转
            "rotate", // 旋转
            "draw", // 添加绘画
            "shape", // 添加形状
            "text", // 添加文本
            "icon", // 图标
            // "mask", // 添加覆盖,
            // 'filter' // 滤镜
        ],
        menuBarPosition: "top", //操作栏位置
        locale: locale_zh, // 中文
        theme: customTheme, //主题样式
        },
        cssMaxWidth: props.imgWidth, // 图片宽度
        cssMaxHeight: props.imgHeight, // 图片高度
        selectionStyle: {
            cornerSize: 20,
            rotatingPointOffset: 70,
        },
};
// 实例化编辑器
imageEditor.value = new ImageEditor(editor.value, options);

使用 tui-image-editor 回调保存编辑后的图片

const base64 = imageEditor.value.toDataURL();

附上完整代码

<!--
    截图组件 用于dom的截图 并提供编辑操作
-->
<template>
    <div>
        <slot :screenshot="clickGeneratePicture">
            <el-button class="screenshotBtn button" @click="clickGeneratePicture">
            一键截图
            </el-button>
        </slot>

        <el-dialog
            draggable
            v-model="dialogVisible"
            title="截图"
            :width="width"
            :before-close="handleClose"
            @opened="opened"
            :append-to-body="true"
            align-center
        >
            <!-- 用于存放截图 -->
            <div ref="editor"></div>
            <template #footer>
                <div class="dialog-footer">
                    <el-button @click="save">保存</el-button>
                </div>
            </template>
        </el-dialog>
    </div>
</template>

<script setup>
import "tui-image-editor/dist/tui-image-editor.css";
import "tui-color-picker/dist/tui-color-picker.css";
import html2canvas from "html2canvas";
import ImageEditor from "tui-image-editor";
import { computed, ref } from "vue";

const props = defineProps({
    /**
    * 需要截图的dom的ref
    */
    imageWrapper: {
        required: true,
    },
    /**
    * dialog的宽度
    */
    width: {
        type: Number,
        default: 1500,
        required: false,
    },
    /**
    * 截图宽度
    */
    imgWidth: {
        type: Number,
        required: false,
        default: 1600,
    },
    /**
    * 截图高度
    */
    imgHeight: {
        type: Number,
        required: false,
        default: 700,
    },
    /**
    * 截图宽度
    */
    containerWidth: {
        type: Number,
        required: false,
        default: 1500,
    },
    /**
    * 截图高度
    */
    containerHeight: {
        type: Number,
        required: false,
        default: 800,
    },
});

const emit = defineEmits(["save"]);

const customTheme = {
    // image 坐上角度图片
    "common.bi.image": "", // 在这里换上你喜欢的logo图片
    "common.bisize.width": "0px",
    "common.bisize.height": "0px",
    "common.backgroundImage": "none",
    "common.backgroundColor": "#f3f4f6",
    "common.border": "1px solid #444",

    // header
    "header.backgroundImage": "none",
    "header.backgroundColor": "#f3f4f6",
    "header.border": "0px",
    "header.margin": "0px auto",

    // load button
    "loadButton.backgroundColor": "#fff",
    "loadButton.border": "1px solid #ddd",
    "loadButton.color": "#222",
    "loadButton.fontFamily": "NotoSans, sans-serif",
    "loadButton.fontSize": "12px",
    "loadButton.width": "150px",
    "loadButton.display": "none", // 可以直接隐藏掉

    // download button
    "downloadButton.backgroundColor": "#fdba3b",
    "downloadButton.border": "1px solid #fdba3b",
    "downloadButton.color": "#fff",
    "downloadButton.fontFamily": "NotoSans, sans-serif",
    "downloadButton.fontSize": "12px",
    // "downloadButton.display": "none", // 可以直接隐藏掉

    // icons default
    "menu.normalIcon.color": "#8a8a8a",
    "menu.activeIcon.color": "#555555",
    "menu.disabledIcon.color": "#434343",
    "menu.hoverIcon.color": "#e9e9e9",
    "submenu.normalIcon.color": "#8a8a8a",
    "submenu.activeIcon.color": "#e9e9e9",

    "menu.iconSize.width": "24px",
    "menu.iconSize.height": "24px",
    "submenu.iconSize.width": "32px",
    "submenu.iconSize.height": "32px",

    // submenu primary color
    "submenu.backgroundColor": "#1e1e1e",
    "submenu.partition.color": "#858585",

    // submenu labels
    "submenu.normalLabel.color": "#858585",
    "submenu.normalLabel.fontWeight": "lighter",
    "submenu.activeLabel.color": "#fff",
    "submenu.activeLabel.fontWeight": "lighter",

    // checkbox style
    "checkbox.border": "1px solid #ccc",
    "checkbox.backgroundColor": "#fff",

    // rango style
    "range.pointer.color": "#fff",
    "range.bar.color": "#666",
    "range.subbar.color": "#d1d1d1",

    "range.disabledPointer.color": "#414141",
    "range.disabledBar.color": "#282828",
    "range.disabledSubbar.color": "#414141",

    "range.value.color": "#fff",
    "range.value.fontWeight": "lighter",
    "range.value.fontSize": "11px",
    "range.value.border": "1px solid #353535",
    "range.value.backgroundColor": "#151515",
    "range.title.color": "#fff",
    "range.title.fontWeight": "lighter",

    // colorpicker style
    "colorpicker.button.border": "1px solid #1e1e1e",
    "colorpicker.title.color": "#fff",
};

// 编辑器的实例
let imageEditor = ref();
// 编辑器的容器
const editor = ref();
// 截图的url
let imgUrl = ref("");
// 转中文
const locale_zh = {
    // override default English locale to your custom
    Crop: "裁剪",
    Load: "替换图片",
    DeleteAll: "全部删除",
    Delete: "删除",
    Undo: "撤销",
    Redo: "反撤销",
    Reset: "重置",
    Flip: "镜像",
    Rotate: "旋转",
    Draw: "画",
    Shape: "形状标注",
    Icon: "图标标注",
    Text: "文字标注",
    Mask: "遮罩",
    Filter: "滤镜",
    Bold: "加粗",
    Italic: "斜体",
    Underline: "下划线",
    Left: "左对齐",
    Center: "居中",
    Right: "右对齐",
    Color: "颜色",
    "Text size": "字体大小",
    Custom: "自定义",
    Square: "正方形",
    Apply: "应用",
    Cancel: "取消",
    "Flip X": "X 轴",
    "Flip Y": "Y 轴",
    Range: "区间",
    Stroke: "描边",
    Fill: "填充",
    Circle: "圆",
    Triangle: "三角",
    Rectangle: "矩形",
    Free: "曲线",
    Straight: "直线",
    Arrow: "箭头",
    "Arrow-2": "箭头2",
    "Arrow-3": "箭头3",
    "Star-1": "星星1",
    "Star-2": "星星2",
    Polygon: "多边形",
    Location: "定位",
    Heart: "心形",
    Bubble: "气泡",
    "Custom icon": "自定义图标",
    "Load Mask Image": "加载蒙层图片",
    Grayscale: "灰度",
    Blur: "模糊",
    Sharpen: "锐化",
    Emboss: "浮雕",
    "Remove White": "除去白色",
    Distance: "距离",
    Brightness: "亮度",
    Noise: "噪音",
    "Color Filter": "彩色滤镜",
    Sepia: "棕色",
    Sepia2: "棕色2",
    Invert: "负片",
    Pixelate: "像素化",
    Threshold: "阈值",
    Tint: "色调",
    Multiply: "正片叠底",
    Blend: "混合色",
    Double: "双击",
    Download: "预览图片",

    // etc...
};
// 弹窗显隐
let dialogVisible = ref(false);

/**
* 弹窗关闭
*/
const handleClose = () => {
    dialogVisible.value = false;
    imageEditor.value.destroy();
};

/**
* 保存图片
* 返回截图编辑之后的图片 base64格式
*/
const save = () => {
    const base64 = imageEditor.value.toDataURL();
    emit("save", { url: base64 });
};

/**
* 弹窗显示之后的回调
*/
const opened = () => {
    const options = {
        usageStatistics: false,

        includeUI: {
            loadImage: {
                path: imgUrl.value,
                name: "imgName",
            },
            //操作菜单栏
            menu: [
                "crop", // 裁切
                "flip", // 翻转
                "rotate", // 旋转
                "draw", // 添加绘画
                "shape", // 添加形状
                "text", // 添加文本
                "icon", // 图标
                // "mask", // 添加覆盖,
                // 'filter' // 滤镜
            ],
            menuBarPosition: "top", //操作栏位置
            locale: locale_zh, // 中文
            theme: customTheme, //主题样式
        },
        cssMaxWidth: props.imgWidth, // 图片宽度
        cssMaxHeight: props.imgHeight, // 图片高度
        selectionStyle: {
            cornerSize: 20,
            rotatingPointOffset: 70,
        },
    };
    // 实例化编辑器
    imageEditor.value = new ImageEditor(editor.value, options);
};

/**
* 截图
*/
const clickGeneratePicture = () => {
    html2canvas(props.imageWrapper, {
        logging: false,
        allowTaint: true,
        scale: window.devicePixelRatio,
        // width: shareContent.clientWidth,
        // height: shareContent.clientHeight,
        scrollY: 0,
        scrollX: 0,
        useCORS: true,
        backgroundColor: null,
    }).then(async function (canvas) {
        imgUrl.value = canvas.toDataURL("image/png");
        dialogVisible.value = true;
    });
};
</script>

<style scoped lang="scss">
.tui-image-editor-container {
    width: 1500px;
    height: 800px !important;
}
</style>

完结~~~
