想法
我之前封装过一个SkyBox，本想通过GUI可视化控制天空盒的显示、切换，但是我在使用过程中老是发现，远处天际线不水平的问题，一开始我总以为是代码哪里的属性没有设置对？
后来经过排查和资料查询，意识到Cesium.SkyBox自身存在这个问题。
为此，我根据Cesium.SkyBox源码重新封装一个新的天空盒SkyBoxOnGround组件。
作用
SkyBoxOnGround提供了一种通过 GUI 界面控件操作的形式，用于更新设置场景SkyBoxOnGround的天空盒图片。
它允许你传入初始化参数设置 SkyBoxOnGround 显示和图片类型。
示例

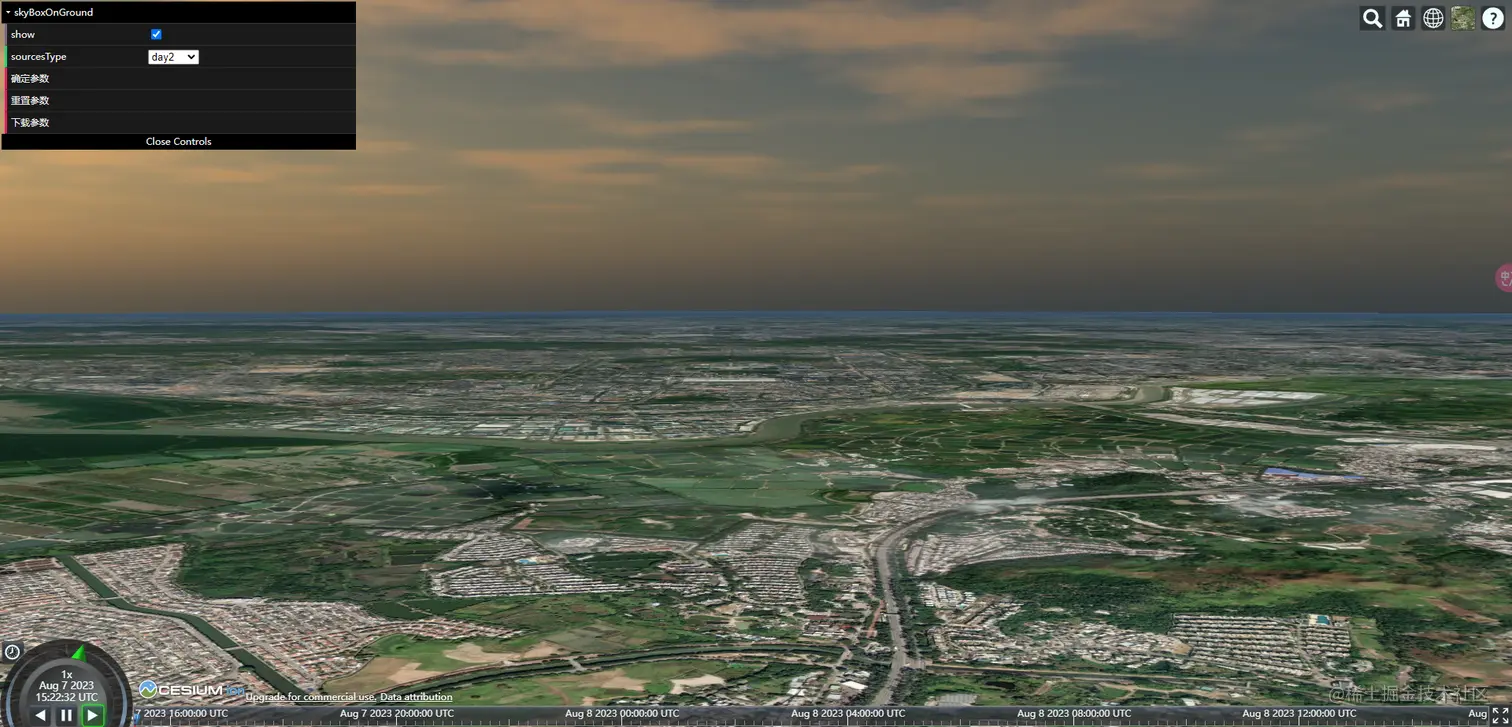

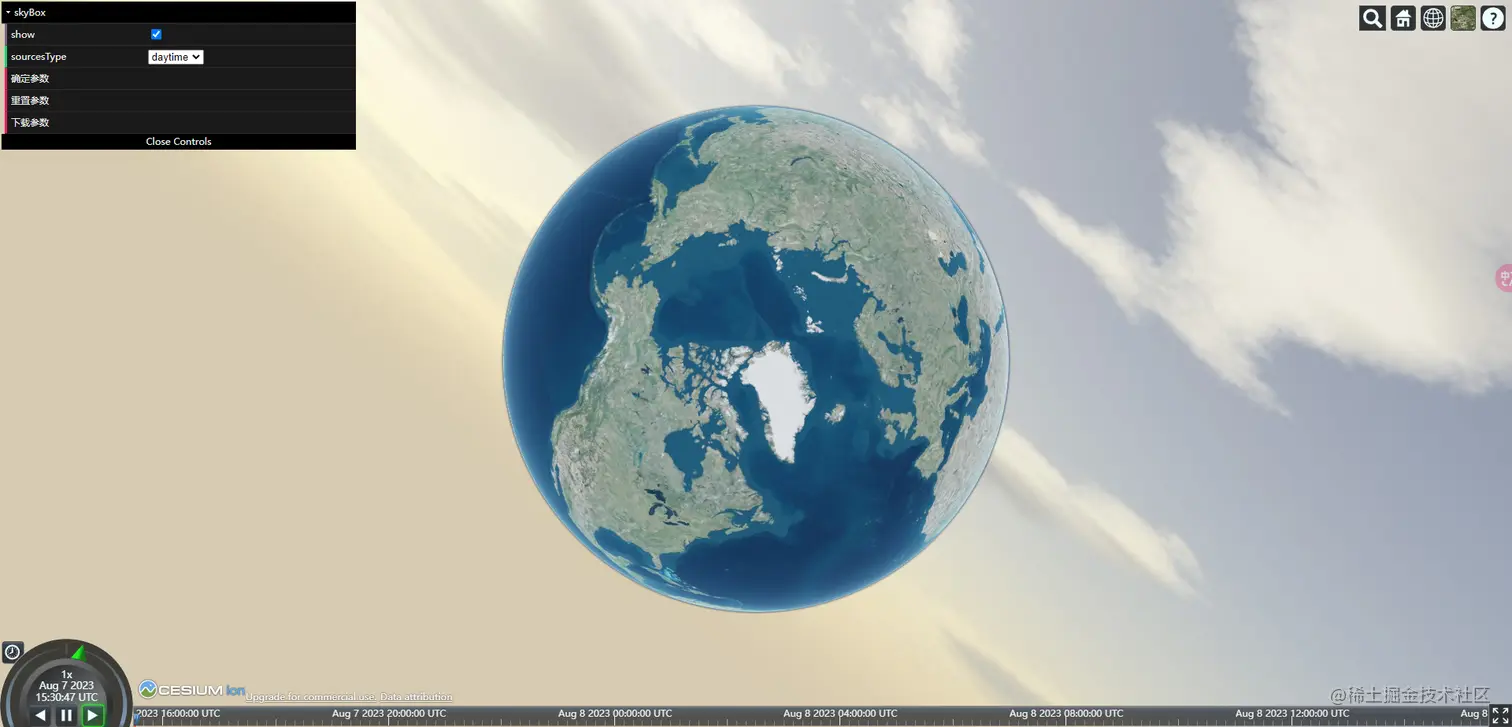

以下展示SkyBoxOnGround组件用法，使用者可以通过 GUI 界面控制操作的形式，修改参数信息，来达到场景镜头的变化。
import "./app.css";
import * as dat from "dat.gui";
import { viewer } from "./main";
import Scene from "./Scene/index";
import SkyBoxOnGround from "./SkyBoxOnGround/index";
import Camera from "./Camera/index";
const gui = new dat.GUI({
name: "Cesium GUI",
width: 450,
autoPlace: true,
closed: false,
});
gui.domElement.id = "gui";
gui.show();
viewer.scene.skyAtmosphere.show = false;
const camera = new Camera(
viewer,
gui,
{
position: {
longitude: 114.056178,
latitude: 22.463280,
height: 500,
},
headingPitchRoll: {
heading: 0.0,
pitch: -3,
roll: 0.0,
},
},
true
);
const scene = new Scene(viewer, gui);
const skyBox = new SkyBoxOnGround(
viewer,
gui,
{
show: true,
sourcesType: "default",
sourcesList: [
{
name: "star1",
sources: {
positiveX: "./static/skybox/stars/00h+00.jpg",
negativeX: "./static/skybox/stars/12h+00.jpg",
positiveY: "./static/skybox/stars/06h+00.jpg",
negativeY: "./static/skybox/stars/18h+00.jpg",
positiveZ: "./static/skybox/stars/06h+90.jpg",
negativeZ: "./static/skybox/stars/06h-90.jpg",
},
},
{
name: "star2",
sources: {
positiveX: "./static/skybox/stars/Version2_dark_px.jpg",
negativeX: "./static/skybox/stars/Version2_dark_mx.jpg",
positiveY: "./static/skybox/stars/Version2_dark_py.jpg",
negativeY: "./static/skybox/stars/Version2_dark_my.jpg",
positiveZ: "./static/skybox/stars/Version2_dark_pz.jpg",
negativeZ: "./static/skybox/stars/Version2_dark_mz.jpg",
},
},
{
name: "star3",
sources: {
positiveX: "./static/skybox/stars/tycho2t3_80_pxs.jpg",
negativeX: "./static/skybox/stars/tycho2t3_80_mxs.jpg",
positiveY: "./static/skybox/stars/tycho2t3_80_pys.jpg",
negativeY: "./static/skybox/stars/tycho2t3_80_mys.jpg",
positiveZ: "./static/skybox/stars/tycho2t3_80_pzs.jpg",
negativeZ: "./static/skybox/stars/tycho2t3_80_mzs.jpg",
},
},
{
name: "day1",
sources: {
positiveX: "./static/skybox/skys/rightav9.jpg",
negativeX: "./static/skybox/skys/leftav9.jpg",
positiveY: "./static/skybox/skys/frontav9.jpg",
negativeY: "./static/skybox/skys/backav9.jpg",
positiveZ: "./static/skybox/skys/topav9.jpg",
negativeZ: "./static/skybox/skys/bottomav9.jpg",
},
},
{
name: "day2",
sources: {
positiveX: "./static/skybox/skys/SunSetRight.png",
negativeX: "./static/skybox/skys/SunSetLeft.png",
positiveY: "./static/skybox/skys/SunSetFront.png",
negativeY: "./static/skybox/skys/SunSetBack.png",
positiveZ: "./static/skybox/skys/SunSetUp.png",
negativeZ: "./static/skybox/skys/SunSetDown.png",
},
},
{
name: "day3",
sources: {
positiveX: "./static/skybox/skys/Right.jpg",
negativeX: "./static/skybox/skys/Left.jpg",
positiveY: "./static/skybox/skys/Front.jpg",
negativeY: "./static/skybox/skys/Back.jpg",
positiveZ: "./static/skybox/skys/Up.jpg",
negativeZ: "./static/skybox/skys/Down.jpg",
},
},
],
},
false
);
API
new SkyBoxOnGround(viewer: Cesium.Viewer, gui: dat.GUI, skyBoxParams?: SkyBoxParamsInterface, hideGui?: boolean)
创建一个SkyBoxOnGround对象。
| 参数 | 类型 | 描述 |
|---|---|---|
| viewer | Cesium.Viewer | Cesium.Viewer 对象 |
| gui | dat.GUI | dat.GUI 对象 |
| skyBoxParams | SkyBoxParamsInterface | （可选）相机镜头参数接口 |
| hideGui | boolean | （可选）控制相机的 GUI 界面控件显示隐藏 |
setShow(value: boolean)
控制SkyBoxOnGround天空盒显示和隐藏。
setSources(sources: { [key: string]: string })
更新SkyBoxOnGround天空盒图片内容。
类型
SkyBoxParamsInterface
场景SkyBoxOnGround天空盒信息。
| 参数 | 类型 | 描述 |
|---|---|---|
| show | boolean | 控制天空盒显示和隐藏 |
| sourcesType | string | 设置天空盒类型 |
| sourcesList | SourcesType[] | 天空盒数据 |
SourcesType
场景SkyBoxOnGround天空盒图片。
| 参数 | 类型 | 描述 |
|---|---|---|
| name | string | 天空盒名称 |
| sources | any | 天空盒图片 |
