教程一览：Openkruise

doc ：openkruise.io/zh/docs/use…

详细设计：github.com/openkruise/…

pkg/webhook/podunavailablebudget/

pkg/controller/podunavailablebudget/

pkg/webhook/pod/validating/pod_unavailable_budget.go

Webhook-PUBValidating

这里是校验 pub 本身 spec 的合法性

只需要关注函数 Handle() =>validatingPodUnavailableBudgetFn

1. 校验本身 spec 的合法性 validatePodUnavailableBudgetSpec
2. 校验 pub 的矛盾性 validatePubConflict ：pod 不能被多个 pub 管理

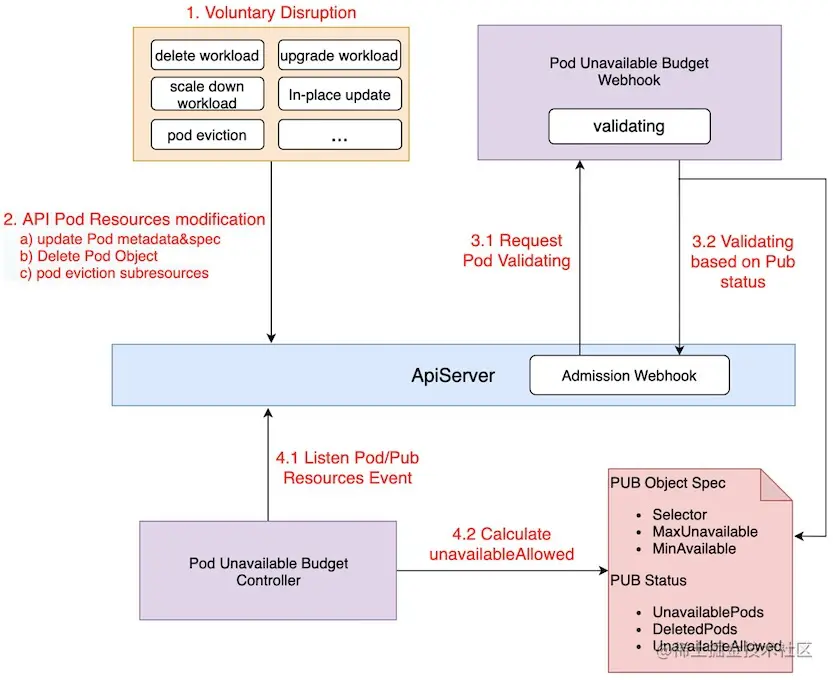

Controller

Reconcile

Reconcile 本身只是根据 pub 所对应的 pods的信息来更新 pub.status， 来保证其状态的正确性

Reconcile 只调用了函数 syncPodUnavailableBudget来操作

1. control.GetPodsForPub() 拿到 pub 所管理的 pods

2. desiredAvailable, err := r.getDesiredAvailableForPub(pub, expectedCount): 获取期望的 pod number

3. disruptedPods, unavailablePods, recheckTime = r.buildDisruptedAndUnavailablePods(pods, pubClone, currentTime)

   1. disruptedPods：已经被驱逐/删除的 pods

      • 通过判断 pod 的 disruptionTime，来进行归类

        • expectedDeletion := disruptionTime.Time.Add(DeletionTimeout)
          if expectedDeletion.Before(currentTime) {
             r.recorder.Eventf(pod, corev1.EventTypeWarning, "NotDeleted", "Pod was expected by PUB %s/%s to be deleted but it wasn't",
             pub.Namespace, pub.Name)
          } else {
            resultDisruptedPods[pod.Name] = disruptionTime
            if recheckTime == nil || expectedDeletion.Before(*recheckTime) {
            recheckTime = &expectedDeletion
            }
          }


   2. unavailablePods 不可用的 pods

4. 计算 avaliables pod： currentAvailable := countAvailablePods(pods, disruptedPods, unavailablePods, control)，逻辑是从 pods 里面找不在disruptedPods 和 unavalilablepods 里的 pod 数

5. 更新 pub.Spec.Status,

   1. unavailableAllowed := currentAvailable - desiredAvailable

Webhook-PodValidating-pub

pkg/webhook/pod/validating/pod_unavailable_budget

调用栈

|- Handle()
 |- validatingPodFn()
   |- case admissionv1.Update, admissionv1.Delete, admissionv1.Create:
      allowed, reason, err = podUnavailableBudgetValidatingPod()

podUnavailableBudgetValidatingPod

1. 根据 pod 获取 workload: workload, err := p.finders.GetScaleAndSelectorForRef(ref.APIVersion, ref.Kind, newPod.Namespace, ref.Name, ref.UID)

2. 这几种状态无需经过 pub 处理判断

   1. pod.Status.Phase == Success
   2. pod.Status.Phase == Failed
   3. pod.Status.Phase == Pending
   4. pod.Status.Phase == ""
   5. !pod.ObjectMeta.DeletionTimestamp.IsZero() (已经被标记删除)

3. 根据 pod 获取 pub : pub, err := pubcontrol.GetPodUnavailableBudgetForPod(p.Client, p.finders, newPod)

4. 通过 control.IsPodUnavailableChanged(oldPod, newPod) 判断操作是否会使得 pod unavailable condition 状态为 true； 如果返回值为 false，那么意味着 pod.spec 不变，则直接返回 true，跳过 pub 检查

   1. 其实就是看 pod spec 是否发生改变，如果发生改变则返回 true， 否则返回 false

5. 返回函数 return pubcontrol.PodUnavailableBudgetValidatePod(p.Client, newPod, control, pubcontrol.Operation(req.Operation), dryRun)

}，该函数返回一个 bool 值( allowed )表明了操作的合法性

1. Pod notReady ｜ pod in pub.Status.DisruptedPods，return true

2. Err := checkAndDecrement(pod.Name, pubClone, operation)

   1. pub.Status.UnavailableAllowed <= 0: 报错 (操作非法)
   2. pub.Status.UnavailableAllowed--, return nil (操作合法)
