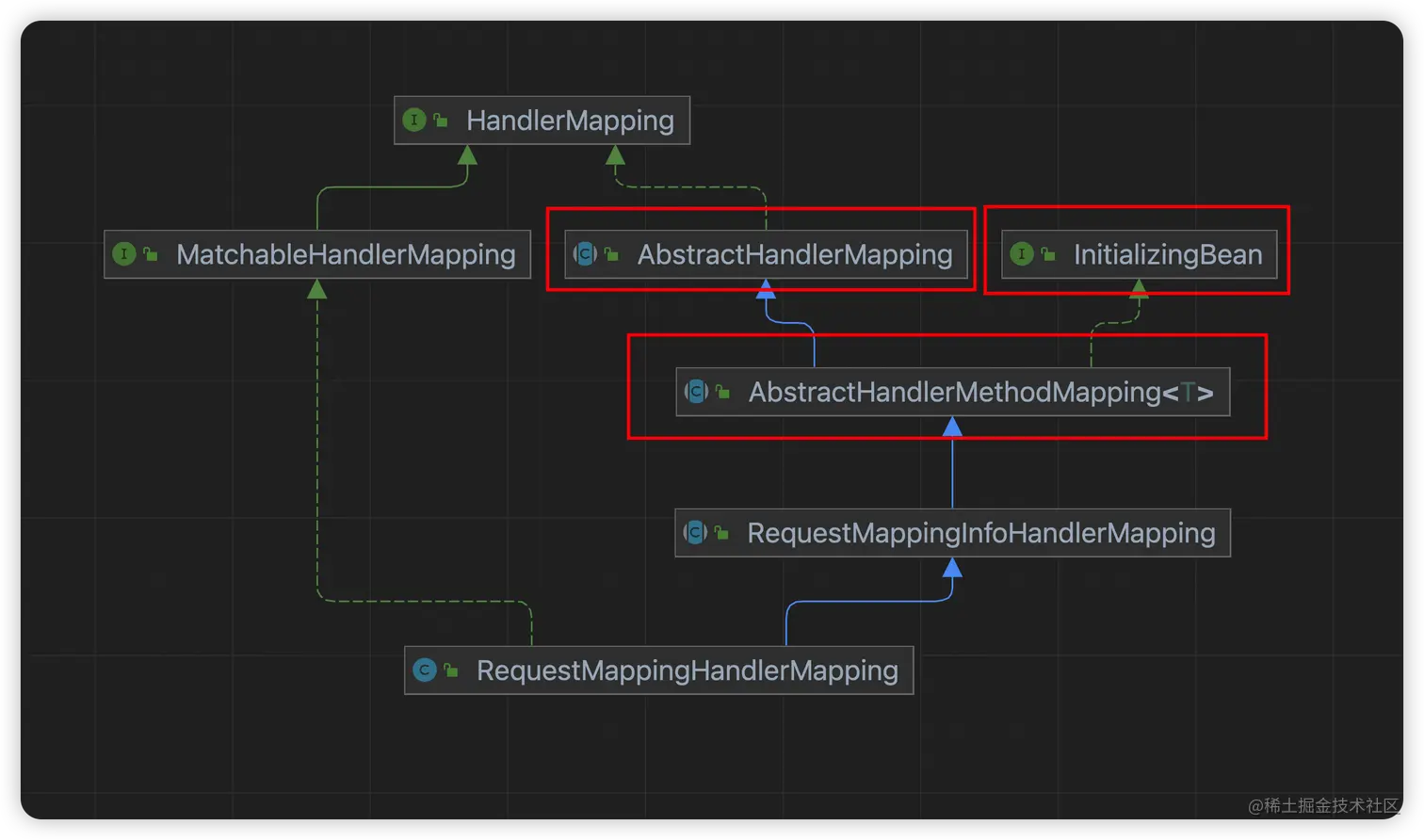

关键类图

关键类和类成员

// 本期重点核心类，关于泛型T在代码分析会有讲解
public abstract class AbstractHandlerMethodMapping<T> extends AbstractHandlerMapping implements InitializingBean {
    // 内部维护 URL 和 controller类和方法
    private final MappingRegistry mappingRegistry = new MappingRegistry();


    // 映射注册类

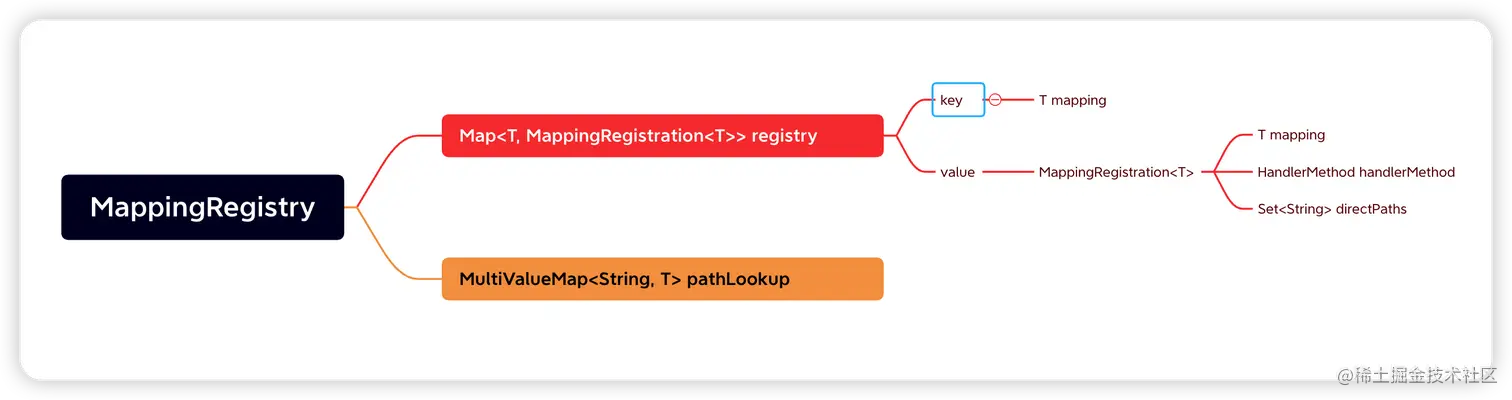

    class MappingRegistry {

        // 地址映射
        private final Map<T, MappingRegistration<T>> registry = new HashMap<>();
        // 关键，此处的pathLookup 就是通过url地址查找对应的映射属性的
        private final MultiValueMap<String, T> pathLookup = new LinkedMultiValueMap<>();
     }
     // 映射实体此处维护的是直达Controller中的方法
     static class MappingRegistration<T> {

        // 留个疑问， 此处的泛型T 下文会有解释
        private final T mapping;
        // 内部维护着controller中标注的@RequestMapping方法
        private final HandlerMethod handlerMethod;
        // url地址
        private final Set<String> directPaths;

      }

}

简单概述下类结构

RequestMappingHandlerMapping

继承关系

• 继承RequestMappingInfoHandlerMapping
• 间接继承AbstractHandlerMethodMapping<RequestMappingInfo>

解惑上文中的泛型T

• 看完继承关系后可以确定 T --> RequestMappingInfo

RequestMappingInfo

• 简单概述就是，在URL请求中要满足下方的复合条件
• 更为直观的理解是，在具体选中哪种URL映射关系的匹配条件。

/**
* Request mapping information. A composite for the following conditions:
* <ol>
* <li>{@link PathPatternsRequestCondition} with parsed {@code PathPatterns} or
* {@link PatternsRequestCondition} with String patterns via {@code PathMatcher}
* <li>{@link RequestMethodsRequestCondition}
* <li>{@link ParamsRequestCondition}
* <li>{@link HeadersRequestCondition}
* <li>{@link ConsumesRequestCondition}
* <li>{@link ProducesRequestCondition}
* <li>{@code RequestCondition} (optional, custom request condition)
* </ol>
*
* @author Arjen Poutsma
* @author Rossen Stoyanchev
* @since 3.1
*/
public final class RequestMappingInfo implements RequestCondition<RequestMappingInfo> {
    @Nullable
    private final String name;

    @Nullable
    private final PathPatternsRequestCondition pathPatternsCondition;

    @Nullable
    private final PatternsRequestCondition patternsCondition;

    private final RequestMethodsRequestCondition methodsCondition;

    private final ParamsRequestCondition paramsCondition;

    private final HeadersRequestCondition headersCondition;

    private final ConsumesRequestCondition consumesCondition;

    private final ProducesRequestCondition producesCondition;

    private final RequestConditionHolder customConditionHolder;

    private final int hashCode;

    private final BuilderConfiguration options;
}

数据结构分析

举个例子，我的controller类

@RestController
@RequestMapping("/user-manager")
public class UserController {

    @GetMapping("/user")
    public UserVO user(Long userId) {
    return new UserVO();
    }
}

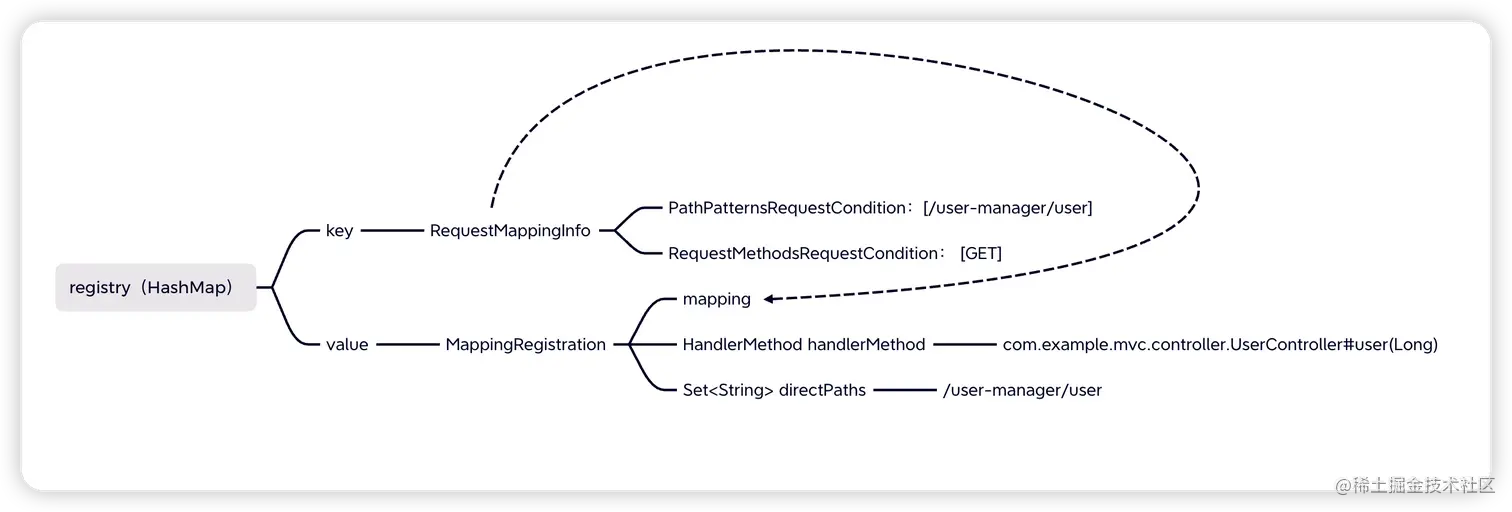

对应的关系入下

上述算是整个URL映射的一个数据结构分析，下边真正开始源码解析

初始化一

org.springframework.beans.factory.InitializingBean接口

• 解释下这个接口的能力
  • 在spring生命周期中 大体分为：实例化 -> 属性赋值 -> 初始化 -> 使用 —> bean销毁
  • 而InitializingBean接口就是在bean属性复制后，可以让我们对bean进行一个自定义的处理换句话说，也可以理解为在spirng属性复制后，我们做一个自己想要的init处理。
• 此处AbstractHandlerMethodMapping实现了这个接口，也就是借助于初始化的回调做了自定义的初始化。

public abstract class AbstractHandlerMethodMapping<T> extends AbstractHandlerMapping implements InitializingBean {
    @Override
    public void afterPropertiesSet() {
        initHandlerMethods();
    }
    // 初始化所有的handlerMethods
    protected void initHandlerMethods() {
        // 循环执行所有满足条件的beanName
        for (String beanName : getCandidateBeanNames()) {
            if (!beanName.startsWith(SCOPED_TARGET_NAME_PREFIX)) {
                // 关键方法入口
                processCandidateBean(beanName);
            }
        }
        // 算是个后置处理此处，AbstractHandlerMethodMapping一个方法，只打印了日志
        // RequestMappingHandlerMapping 也未做实现，直接跳过
        handlerMethodsInitialized(getHandlerMethods());
    }
}
    // 处理复合条件的bean
    protected void processCandidateBean(String beanName) {
        Class<?> beanType = null;
        try {
            beanType = obtainApplicationContext().getType(beanName);
        }
        catch (Throwable ex) {
                // An unresolvable bean type, probably from a lazy bean - let's ignore it.
            if (logger.isTraceEnabled()) {
            logger.trace("Could not resolve type for bean '" + beanName + "'", ex);
            }
        }
        // 重点关注下 isHandler方法
        if (beanType != null && isHandler(beanType)) {
            // 处理满足条件的bean，源码下方会解释。
            detectHandlerMethods(beanName);
        }
    }

    // RequestMappingHandlerMapping 重写了AbstractHandlerMethodMapping的方法
    // 看一眼就明白了。只要是类上标注了@Controller和@RequestMapping的注解的就返回true
    // 由于AnnotatedElementUtils.hasAnnotation()方法buff的加持
    // 例如@RestController也会被标记为返回为true的
    // 有兴趣的小伙伴可以看看@RestController注解其实也是引用了@Controller
    @Override
    protected boolean isHandler(Class<?> beanType) {
        return (AnnotatedElementUtils.hasAnnotation(beanType, Controller.class) ||
            AnnotatedElementUtils.hasAnnotation(beanType, RequestMapping.class));
    }

上述代码总结

• 借助于spring生命周期初始化的回调功能，可以知道RequestMappingHandlerMapping自定义初始化的方法入口。
• RequestMappingHandlerMapping重写了isHandler（）方法，挑选候选的bean进行，进行进一步加工。
• AnnotatedElementUtils.hasAnnotation() get到了一个新的知识点，有兴趣的小伙伴可以看看学习下。

初始化一、进一步加工

public abstract class AbstractHandlerMethodMapping<T> extends AbstractHandlerMapping implements InitializingBean {
    protected void detectHandlerMethods(Object handler) {
        // 获取bean类型
        // 如果入参是String类型则通过obtainApplicationContext获取bean的类型，通过这种方式
        // 如果该bean没有加载到spring容器中会先进行bean化，然后在获取class
        // 否则直接获取class
        Class<?> handlerType = (handler instanceof String ?
        obtainApplicationContext().getType((String) handler) : handler.getClass());

        if (handlerType != null) {
            // 会不会疑惑？
            // 明明上边已经获取了类的类型 Class<?>，为什么还要获取一遍？
            // 此处简单说下，因为上边直接调用的Object的getClass方法，如果该bean被cglib代理了
            // 那么上边获取的类的类型不是想要的类的类型，所以此处再次获取一遍
            // 有兴趣的朋友可以看看ClassUtils的方法。
            Class<?> userType = ClassUtils.getUserClass(handlerType);
            // 方法映射map集合
            // 先说下数据结构，以免刚学习的朋友蒙蔽
            // 还是举个我们项目中controller的例子
            // map中的key：就是Controller方法中标注了@RequestMapping的方法（包涵派生注解比如@GetMapping等等）
            // map中的value：就是最开始说的RequestMappingInfo
            // 下方有贴图，可以看下 ①
            Map<Method, T> methods = MethodIntrospector.selectMethods(userType,
            (MethodIntrospector.MetadataLookup<T>) method -> {
                try {
                    // 获取mapping的映射方法 下边会有代码解释 ②
                    return getMappingForMethod(method, userType);
                }
                catch (Throwable ex) {
                            throw new IllegalStateException("Invalid mapping on handler class [" +
                    userType.getName() + "]: " + method, ex);
                }
            });
            if (logger.isTraceEnabled()) {
                logger.trace(formatMappings(userType, methods));
            }
            else if (mappingsLogger.isDebugEnabled()) {
                mappingsLogger.debug(formatMappings(userType, methods));
            }
            // 将所有的methods经过处理后，进行注册
            methods.forEach((method, mapping) -> {
                // 此处简单解释下有兴趣的朋友可以看看
                // 此处是将method的私有方法，经过反射后改成public
                // 也就是说你的controller方法 标记了@getmapping，如果方法是私有的改成public。
                // 为什么这么做？埋个伏笔。
                Method invocableMethod = AopUtils.selectInvocableMethod(method, userType);
                // 注册 ④
                registerHandlerMethod(handler, invocableMethod, mapping);
            });
    }
    // ②
    @Override
    @Nullable
    protected RequestMappingInfo getMappingForMethod(Method method, Class<?> handlerType) {
        // 创建RequestMappingInfo 这个也就是上文map<Method,T>的 T
        // createRequestMappingInfo有一个关键的信息，下边会简单介绍下
        RequestMappingInfo info = createRequestMappingInfo(method);  ③
        // 下边就是组装RequestMappingInfo，不再细说了，有兴趣的朋友可以看看
        if (info != null) {

            RequestMappingInfo typeInfo = createRequestMappingInfo(handlerType);
            if (typeInfo != null) {
                info = typeInfo.combine(info);
            }
            String prefix = getPathPrefix(handlerType);
            if (prefix != null) {
                info = RequestMappingInfo.paths(prefix).options(this.config).build().combine(info);
            }
        }
            return info;
        }
    }

    // ③ 简单说下，就是只有方法上标注了@RequestMapping注解的才会创建 (派生注解也算，比如@GetMapping)
    @Nullable
    private RequestMappingInfo createRequestMappingInfo(AnnotatedElement element) {
        RequestMapping requestMapping = AnnotatedElementUtils.findMergedAnnotation(element, RequestMapping.class);
        RequestCondition<?> condition = (element instanceof Class ?
            getCustomTypeCondition((Class<?>) element) : getCustomMethodCondition((Method) element));
        return (requestMapping != null ? createRequestMappingInfo(requestMapping, condition) : null);
    }

    // AbstractHandlerMethodMapping的方法，注册 ④
    protected void registerHandlerMethod(Object handler, Method method, T mapping) {
        this.mappingRegistry.register(mapping, handler, method);
    }

    // AbstractHandlerMethodMapping.MappingRegistry#register

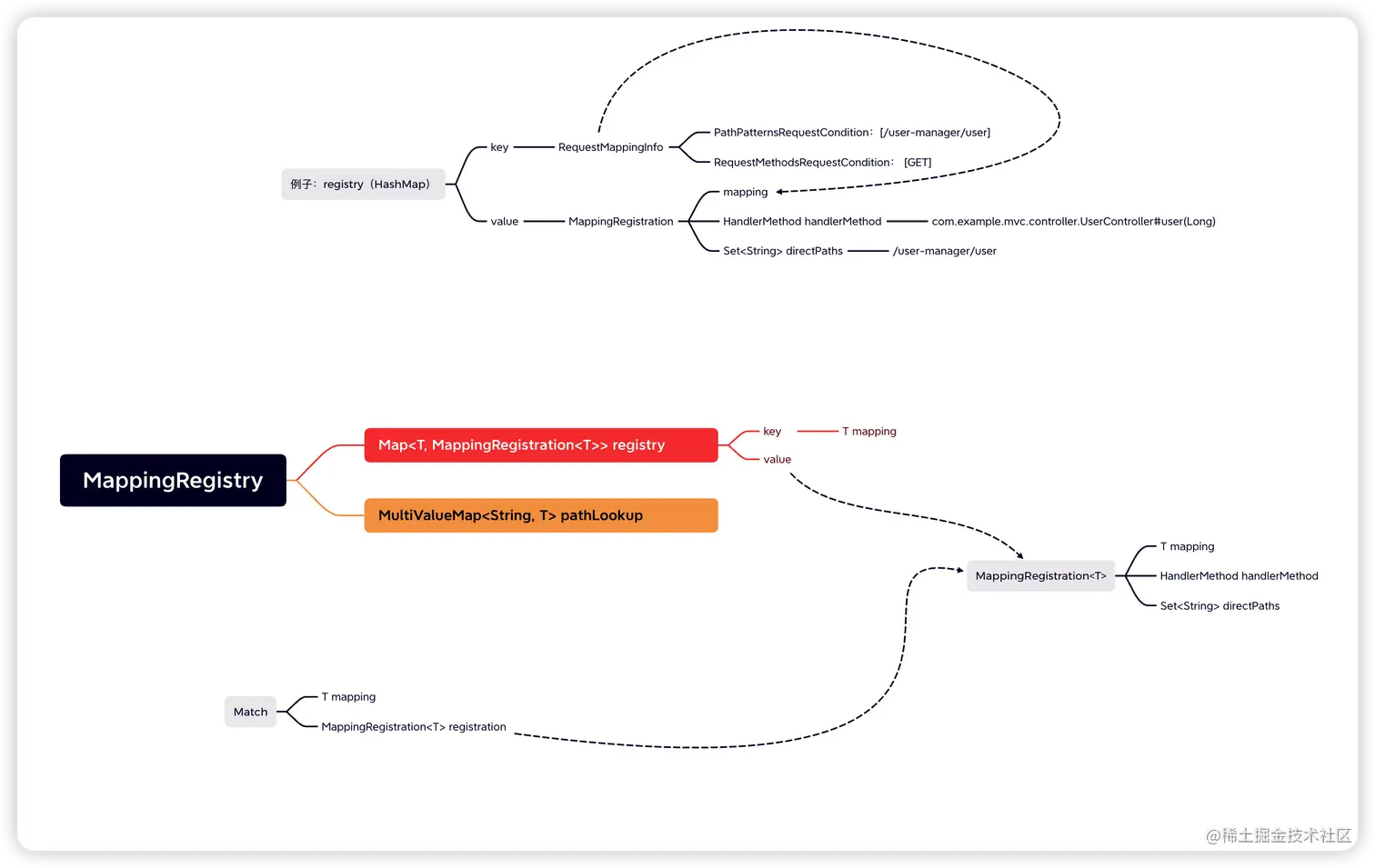

    // 嗨，终于走到最后一个方法了，该方法走完后也就呼应了上文的数据结构图。
    public void register(T mapping, Object handler, Method method) {
        this.readWriteLock.writeLock().lock();
        try {
            // 此处的Method是jdk的，现在讲Method维护到HandlerMethod中
            HandlerMethod handlerMethod = createHandlerMethod(handler, method);
            // 此处简单说下
            // 咱们在开发controller的时候 有时候一不小心写了两个一模一样的接口，
            // 此处的作用就是校验重复的接口
            validateMethodMapping(handlerMethod, mapping);

            Set<String> directPaths = AbstractHandlerMethodMapping.this.getDirectPaths(mapping);
            // 将url地址维护到pathLookup
            // 举个例子 path 就是开发中的 user/list 这种
            for (String path : directPaths) {
                this.pathLookup.add(path, mapping);
            }
            // 基于name的映射 此处略过
            String name = null;
            if (getNamingStrategy() != null) {
                name = getNamingStrategy().getName(handlerMethod, mapping);
                addMappingName(name, handlerMethod);
            }
            // cors 略过 其实就是有个注解@CrossOrigin 可以标注到类和方法上，有兴趣的可以自己看下
            CorsConfiguration corsConfig = initCorsConfiguration(handler, method, mapping);
            if (corsConfig != null) {
                corsConfig.validateAllowCredentials();
                this.corsLookup.put(handlerMethod, corsConfig);
            }
            // 放入map集合中，上边有数据结构关系图
            this.registry.put(mapping,
                new MappingRegistration<>(mapping, handlerMethod, directPaths, name, corsConfig != null));
        } finally {
            this.readWriteLock.writeLock().unlock();
        }
    }

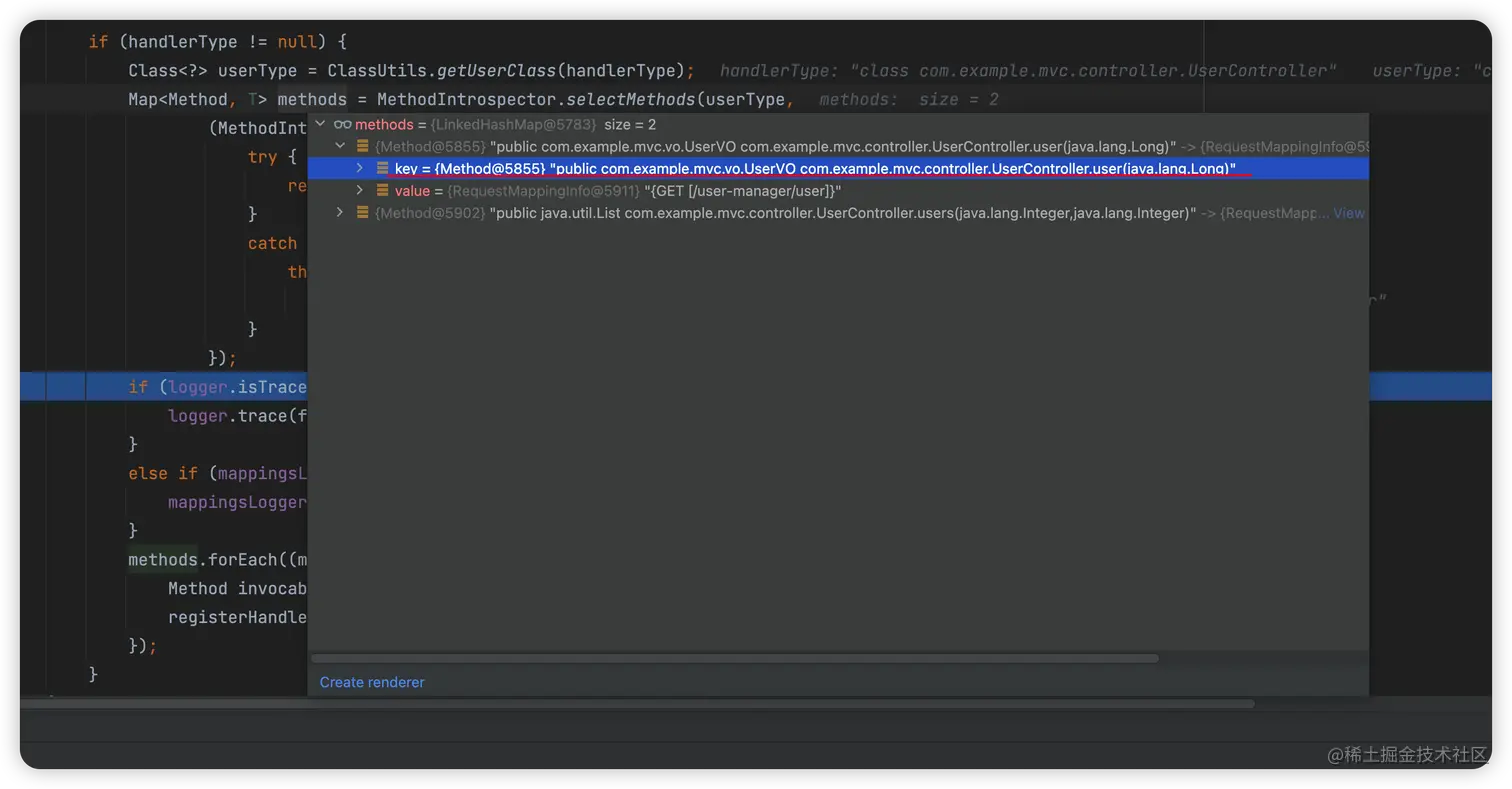

代码①

总结下

• 获取controller类和类中的所有满足条件的方法
• 将URL提取出来放入MappingRegistry.pathLookup中，pathLookup是一个LinkedMultiValueMap类型的，key：url，value就是RequestMappingInfo
• 最后将RequestMappingInfo当做key，放入MappingRegistry.registry的hashmap中，value就是MappingRegistration（RequestMappingInfo，handlerMethod，directPaths...）

初始化二-DispatcherServlet

• DispatcherServlet在第一次访问时会触发九大组件的init方法，此处不细说，仅仅说下handlerMapping初始化做了什么

// org.springframework.web.servlet.DispatcherServlet#initHandlerMappings
private void initHandlerMappings(ApplicationContext context) {
    this.handlerMappings = null;
     // 默认是true
    if (this.detectAllHandlerMappings) {
        // Find all HandlerMappings in the ApplicationContext, including ancestor contexts.
        // 找出所有实现了HandlerMapping的接口，我们此次分析的RequestMappingHandlerMapping也在其中
        Map<String, HandlerMapping> matchingBeans =
            BeanFactoryUtils.beansOfTypeIncludingAncestors(context, HandlerMapping.class, true, false);
        if (!matchingBeans.isEmpty()) {
            this.handlerMappings = new ArrayList<>(matchingBeans.values());
            // We keep HandlerMappings in sorted order.
            // 因为做了下排序
            AnnotationAwareOrderComparator.sort(this.handlerMappings);
        }
    }
    else {
    // 如果detectAllHandlerMappings是false，则进行bean加载，效果是一样的。
        try {
             HandlerMapping hm = context.getBean(HANDLER_MAPPING_BEAN_NAME, HandlerMapping.class);
            this.handlerMappings = Collections.singletonList(hm);
        }  catch (NoSuchBeanDefinitionException ex) {
            // Ignore, we'll add a default HandlerMapping later.
        }
    }

    // Ensure we have at least one HandlerMapping, by registering
    // a default HandlerMapping if no other mappings are found.
    if (this.handlerMappings == null) {
        this.handlerMappings = getDefaultStrategies(context, HandlerMapping.class);
        if (logger.isTraceEnabled()) {
            logger.trace("No HandlerMappings declared for servlet '" + getServletName() +
            "': using default strategies from DispatcherServlet.properties");
        }
    }

    for (HandlerMapping mapping : this.handlerMappings) {
        // 循环遍历mapping，只要有一个返回true就可以
        // 我们本次分析的RequestMappingHandlerMapping 此处返回的就是true
        // 至于是怎么设置的，有兴趣的朋友可以看下这个类
        // org.springframework.web.servlet.config.annotation.WebMvcConfigurationSupport#requestMappingHandlerMapping
        // 在一开始加载的时候就设置好了。
        if (mapping.usesPathPatterns()) {
            // 这个布尔值的作用，其实就是判断是否将HttpServletRequest的getRequestURI的url地址缓存起来
            this.parseRequestPath = true;
            break;
        }
    }
}

mvc请求流程之HandlerMapping

数据结构

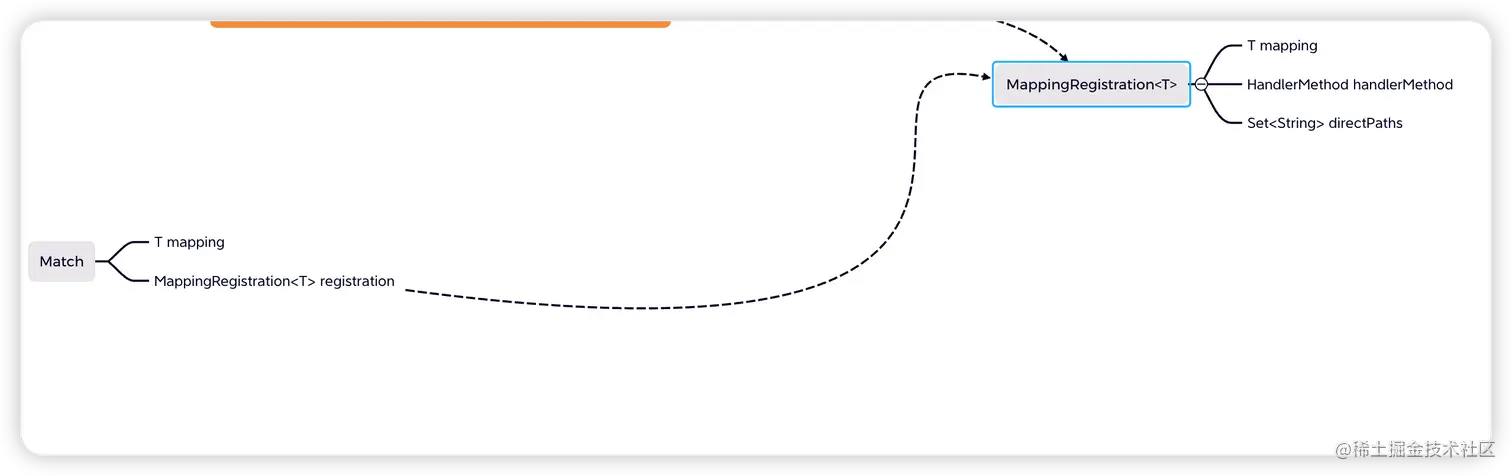

在mvc请求中匹配controller方法时起关键作用的一个类Match org.springframework.web.servlet.handler.AbstractHandlerMethodMapping.Match

doDispatch不是本期的重点，简单看下关于handlerMapping的关键方法

// DispatcherServlet#doDispatch
protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
    HttpServletRequest processedRequest = request;
    HandlerExecutionChain mappedHandler = null;
    boolean multipartRequestParsed = false;

    WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);

    try {
        ModelAndView mv = null;
        Exception dispatchException = null;

        try {
            processedRequest = checkMultipart(request);
            multipartRequestParsed = (processedRequest != request);

            // Determine handler for the current request.
            // ① 通过HttpServletRequest获取HandlerExecutionChain
            mappedHandler = getHandler(processedRequest);
            // 如果找不到，则进行noHandlerFound处理
            if (mappedHandler == null) {
                noHandlerFound(processedRequest, response);
                return;
            }

            // Determine handler adapter for the current request.
            HandlerAdapter ha = getHandlerAdapter(mappedHandler.getHandler());

            // Process last-modified header, if supported by the handler.
            String method = request.getMethod();
            boolean isGet = HttpMethod.GET.matches(method);
            if (isGet || HttpMethod.HEAD.matches(method)) {
                long lastModified = ha.getLastModified(request, mappedHandler.getHandler());
                if (new ServletWebRequest(request, response).checkNotModified(lastModified) && isGet) {
                    return;
                }
            }
            // HandlerInterceptor前置处理器
            if (!mappedHandler.applyPreHandle(processedRequest, response)) {
                return;
            }

            // Actually invoke the handler.
            mv = ha.handle(processedRequest, response, mappedHandler.getHandler());

            if (asyncManager.isConcurrentHandlingStarted()) {
                return;
            }

            applyDefaultViewName(processedRequest, mv);
            // HandlerInterceptor 后置处理器
            mappedHandler.applyPostHandle(processedRequest, response, mv);
        }  catch (Exception ex) {
            dispatchException = ex;
        }
    catch (Throwable err) {
        // As of 4.3, we're processing Errors thrown from handler methods as well,
        // making them available for @ExceptionHandler methods and other scenarios.
        dispatchException = new NestedServletException("Handler dispatch failed", err);
    }
    processDispatchResult(processedRequest, response, mappedHandler, mv, dispatchException);
    }
    catch (Exception ex) {
        // HandlerInterceptor执行after方法
        triggerAfterCompletion(processedRequest, response, mappedHandler, ex);
    }
    catch (Throwable err) {
        triggerAfterCompletion(processedRequest, response, mappedHandler,
        new NestedServletException("Handler processing failed", err));
    }
    finally {
        if (asyncManager.isConcurrentHandlingStarted()) {
            // Instead of postHandle and afterCompletion
            if (mappedHandler != null) {
                mappedHandler.applyAfterConcurrentHandlingStarted(processedRequest, response);
            }
       } else {
            // Clean up any resources used by a multipart request.
            if (multipartRequestParsed) {
                 cleanupMultipart(processedRequest);
             }
        }
    }
}




    // ① 简单来说就是遍历所有实现了HandlerMapping接口的实现类。
    @Nullable
    protected HandlerExecutionChain getHandler(HttpServletRequest request) throws Exception {
        if (this.handlerMappings != null) {
            for (HandlerMapping mapping : this.handlerMappings) {
                // 此处我们只需关心实现类为RequestMappingHandlerMapping即可
                HandlerExecutionChain handler = mapping.getHandler(request);
                if (handler != null) {
                    return handler;
                }
            }
        }
        return null;
    }




获取HandlerExecutionChain

• 通过getHandlerInternal方法获取HandlerMethod
• 然后调用getHandlerExecutionChain方法获取chain

    // org.springframework.web.servlet.handler.AbstractHandlerMapping#getHandler
    @Override
    @Nullable
    public final HandlerExecutionChain getHandler(HttpServletRequest request) throws Exception {
        // 获取handler，返回体是，HandlerMethod ②
        Object handler = getHandlerInternal(request);
        if (handler == null) {
            handler = getDefaultHandler();
        }
        if (handler == null) {
            return null;
        }
        // Bean name or resolved handler?
        if (handler instanceof String) {
            String handlerName = (String) handler;
            handler = obtainApplicationContext().getBean(handlerName);
        }

        // Ensure presence of cached lookupPath for interceptors and others
        if (!ServletRequestPathUtils.hasCachedPath(request)) {
            initLookupPath(request);
        }
        // 生成HandlerExecutionChain
        // HandlerExecutionChain属性中包涵HandlerInterceptor的实现类，包括我们自定义的
        // 前提是满足规则的，此处不细讲
        HandlerExecutionChain executionChain = getHandlerExecutionChain(handler, request);

        if (logger.isTraceEnabled()) {
            logger.trace("Mapped to " + handler);
        }
        else if (logger.isDebugEnabled() && !DispatcherType.ASYNC.equals(request.getDispatcherType())) {
            logger.debug("Mapped to " + executionChain.getHandler());
        }
        // cors不做细讲
        if (hasCorsConfigurationSource(handler) || CorsUtils.isPreFlightRequest(request)) {
            CorsConfiguration config = getCorsConfiguration(handler, request);
            if (getCorsConfigurationSource() != null) {
                CorsConfiguration globalConfig = getCorsConfigurationSource().getCorsConfiguration(request);
                config = (globalConfig != null ? globalConfig.combine(config) : config);
            }
            if (config != null) {
                config.validateAllowCredentials();
            }
            executionChain = getCorsHandlerExecutionChain(request, executionChain, config);
        }

        return executionChain;
    }

组装HandlerExecutionChain

    protected HandlerExecutionChain getHandlerExecutionChain(Object handler, HttpServletRequest request) {
        // 从上边代码可以看出handler的类型是HandlerMethod
        // 所以此处new HandlerExecutionChain(handler) 新建了一个HandlerExecutionChain
        HandlerExecutionChain chain = (handler instanceof HandlerExecutionChain ?
        (HandlerExecutionChain) handler : new HandlerExecutionChain(handler));
        // 将满足条件的HandlerInterceptor实现类加入HandlerExecutionChain中
        // HandlerInterceptor不在本次分析中略过
        // 不过此处可以看出，HandlerInterceptor是在此处加入进去的
        for (HandlerInterceptor interceptor : this.adaptedInterceptors) {
             if (interceptor instanceof MappedInterceptor) {
                 MappedInterceptor mappedInterceptor = (MappedInterceptor) interceptor;
                 if (mappedInterceptor.matches(request)) {
                        chain.addInterceptor(mappedInterceptor.getInterceptor());
                    }
                }
             else {
                 chain.addInterceptor(interceptor);
             }
        }
        return chain;
    }

获取HandlerMethod

    // org.springframework.web.servlet.handler.AbstractHandlerMethodMapping#getHandlerInternal
    // ②
    @Override
    @Nullable
    protected HandlerMethod getHandlerInternal(HttpServletRequest request) throws Exception {
        // 拿到请求的URL 比如 user/list
        String lookupPath = initLookupPath(request);
        this.mappingRegistry.acquireReadLock();
        try {
            // 通过url和request拿到HandlerMethod
            HandlerMethod handlerMethod = lookupHandlerMethod(lookupPath, request);
            return (handlerMethod != null ? handlerMethod.createWithResolvedBean() : null);
        }
        finally {
            this.mappingRegistry.releaseReadLock();
        }
    }

    @Nullable
    protected HandlerMethod lookupHandlerMethod(String lookupPath, HttpServletRequest request) throws Exception {
        // 数据结构上边有贴图，最好看下数据结构
        List<Match> matches = new ArrayList<>();
        // 此处通过lookupPath也就是url地址获取RequestMappingInfo集合
        // 源码就一行代码就是return this.pathLookup.get(urlPath);
        // 前边初始化一的时候 我们提过的pathLookup 会维护一个键值对。
        List<T> directPathMatches = this.mappingRegistry.getMappingsByDirectPath(lookupPath);
        if (directPathMatches != null) {
            // 将满足要求的RequestMappingInfo放入matches集合中
            //RequestMappingInfo前文中提到过，这个info是一些匹配的规则
            addMatchingMappings(directPathMatches, matches, request);
        }
        if (matches.isEmpty()) {
            addMatchingMappings(this.mappingRegistry.getRegistrations().keySet(), matches, request);
        }
        if (!matches.isEmpty()) {
            Match bestMatch = matches.get(0);
            // 恕小弟无能无法复现满足matches大于1的
            if (matches.size() > 1) {
                Comparator<Match> comparator = new MatchComparator(getMappingComparator(request));
                matches.sort(comparator);
                bestMatch = matches.get(0);
                if (logger.isTraceEnabled()) {
                    logger.trace(matches.size() + " matching mappings: " + matches);
                }
                if (CorsUtils.isPreFlightRequest(request)) {
                    for (Match match : matches) {
                        if (match.hasCorsConfig()) {
                            return PREFLIGHT_AMBIGUOUS_MATCH;
                        }
                    }
                }
                else {
                    Match secondBestMatch = matches.get(1);
                    if (comparator.compare(bestMatch, secondBestMatch) == 0) {
                    Method m1 = bestMatch.getHandlerMethod().getMethod();
                    Method m2 = secondBestMatch.getHandlerMethod().getMethod();
                    String uri = request.getRequestURI();
                    throw new IllegalStateException(
                    "Ambiguous handler methods mapped for '" + uri + "': {" + m1 + ", " + m2 + "}");
                    }
                }
            }
            request.setAttribute(BEST_MATCHING_HANDLER_ATTRIBUTE, bestMatch.getHandlerMethod());
            handleMatch(bestMatch.mapping, lookupPath, request);
            // 最后MappingRegistration中维护的HandlerMethod返回
            return bestMatch.getHandlerMethod();
        }
        else {
            return handleNoMatch(this.mappingRegistry.getRegistrations().keySet(), lookupPath, request);
        }
    }

关于handlerMapping分析到此结束

整体数据结构如下

如有不足支出请支出，文章将持续更改

作者的疑问点

• matches什么时候大于1
• HandlerExecutionChain为什么每一次都new，缓存起来应该可以
  • 我的理解动态植入HandlerInterceptor的缘故，比如白名单等问题
