实验测试
全局队列+自定义并行队列（非overcommit）
CPU满负载 ：CPU核数
CPU空闲：64
自定义串行队列
CPU满负载 ：512
CPU空闲：512
GCD源码解析
GCD队列
dispatch_queue_t
typedef struct dispatch_queue_s *dispatch_queue_t;
struct dispatch_queue_s {
DISPATCH_QUEUE_CLASS_HEADER(queue, void *__dq_opaque1);
/* 32bit hole on LP64 */
} DISPATCH_ATOMIC64_ALIGN;
#define DISPATCH_QUEUE_CLASS_HEADER(x, __pointer_sized_field__) \
_DISPATCH_QUEUE_CLASS_HEADER(x, __pointer_sized_field__); \
/* LP64 global queue cacheline boundary */ \
unsigned long dq_serialnum; \ //编号
const char *dq_label; \ //队列的名字
DISPATCH_UNION_LE(uint32_t volatile dq_atomic_flags, \
const uint16_t dq_width, \ //队列的并行处理任务的最大数量，串行队列为1
const uint16_t __dq_opaque2 \
); \
dispatch_priority_t dq_priority; \ //队列的优先级
union { \
struct dispatch_queue_specific_head_s *dq_specific_head; \
struct dispatch_source_refs_s *ds_refs; \
struct dispatch_timer_source_refs_s *ds_timer_refs; \
struct dispatch_mach_recv_refs_s *dm_recv_refs; \
struct dispatch_channel_callbacks_s const *dch_callbacks; \
}; \
int volatile dq_sref_cnt
#if OS_OBJECT_HAVE_OBJC1 //#if TARGET_OS_MAC && !TARGET_OS_SIMULATOR && defined(__i386__)
#define _DISPATCH_QUEUE_CLASS_HEADER(x, __pointer_sized_field__) \
DISPATCH_OBJECT_HEADER(x); \
DISPATCH_UNION_LE(uint64_t volatile dq_state, \
dispatch_lock dq_state_lock, \
uint32_t dq_state_bits \
); \
__pointer_sized_field__
#else
#define _DISPATCH_QUEUE_CLASS_HEADER(x, __pointer_sized_field__) \
DISPATCH_OBJECT_HEADER(x); \
__pointer_sized_field__; \ void *__dq_opaque1
DISPATCH_UNION_LE(uint64_t volatile dq_state, \
dispatch_lock dq_state_lock, \
uint32_t dq_state_bits \
)
#endif
#define DISPATCH_OBJECT_HEADER(x) \
struct dispatch_object_s _as_do[0]; \
_DISPATCH_OBJECT_HEADER(x)
#define _DISPATCH_OBJECT_HEADER(x) \
struct _os_object_s _as_os_obj[0]; \
OS_OBJECT_STRUCT_HEADER(dispatch_##x); \
struct dispatch_##x##_s *volatile do_next; \ //队列将要处理的下个任务
struct dispatch_queue_s *do_targetq; \ //这个队列绑定的全局root队列
void *do_ctxt; \
union { \
dispatch_function_t DISPATCH_FUNCTION_POINTER do_finalizer; \
void *do_introspection_ctxt; \
}
#define OS_OBJECT_STRUCT_HEADER(x) \
_OS_OBJECT_HEADER(\
const struct x##_vtable_s *__ptrauth_objc_isa_pointer do_vtable, \ //相关操作对应的方法指针
do_ref_cnt, \ //引用计数
do_xref_cnt) //外部引用计数
#endif
队列创建
- dispatch_queue_create
dispatch_queue_t
dispatch_queue_create(const char *label, dispatch_queue_attr_t attr)
{
return _dispatch_lane_create_with_target(label, attr,
DISPATCH_TARGET_QUEUE_DEFAULT, true);
}
DISPATCH_NOINLINE
static dispatch_queue_t
_dispatch_lane_create_with_target(const char *label, dispatch_queue_attr_t dqa,
dispatch_queue_t tq, bool legacy)
{
dispatch_queue_attr_info_t dqai = _dispatch_queue_attr_to_info(dqa);
通过_dispatch_queue_attr_to_info将创建队列的attr参数解析为对应的队列属性
dispatch_queue_attr_info_t
_dispatch_queue_attr_to_info(dispatch_queue_attr_t dqa)
{
dispatch_queue_attr_info_t dqai = { };
//#define DISPATCH_QUEUE_SERIAL NULL
if (!dqa) return dqai; //dqa就是参数attr，串行队列使用默认的队列属性
#if DISPATCH_VARIANT_STATIC //编译设置，值为1
// #define DISPATCH_QUEUE_CONCURRENT \
//DISPATCH_GLOBAL_OBJECT(dispatch_queue_attr_t, \
//_dispatch_queue_attr_concurrent)
if (dqa == &_dispatch_queue_attr_concurrent) { //设置并行队列属性
dqai.dqai_concurrent = true;
return dqai;
}
#endif
//_dispatch_queue_attrs是记录所以属性组合可选项的组合，_dispatch_queue_attr_concurrent（DISPATCH_QUEUE_CONCURRENT）是数组的第一个元素
if (dqa < _dispatch_queue_attrs ||
dqa >= &_dispatch_queue_attrs[DISPATCH_QUEUE_ATTR_COUNT]) {
#ifndef __APPLE__
if (memcmp(dqa, &_dispatch_queue_attrs[0],
sizeof(struct dispatch_queue_attr_s)) == 0) {
dqa = (dispatch_queue_attr_t)&_dispatch_queue_attrs[0];
} else
#endif // __APPLE__
DISPATCH_CLIENT_CRASH(dqa->do_vtable, "Invalid queue attribute");
}
//传入参数attr在_dispatch_queue_attrs中的index，可以计算出对了各项属性，这里类似用字节的每一位
size_t idx = (size_t)(dqa - _dispatch_queue_attrs);
dqai.dqai_inactive = (idx % DISPATCH_QUEUE_ATTR_INACTIVE_COUNT);
idx /= DISPATCH_QUEUE_ATTR_INACTIVE_COUNT;
dqai.dqai_concurrent = !(idx % DISPATCH_QUEUE_ATTR_CONCURRENCY_COUNT);
idx /= DISPATCH_QUEUE_ATTR_CONCURRENCY_COUNT;
dqai.dqai_relpri = -(int)(idx % DISPATCH_QUEUE_ATTR_PRIO_COUNT);
idx /= DISPATCH_QUEUE_ATTR_PRIO_COUNT;
dqai.dqai_qos = idx % DISPATCH_QUEUE_ATTR_QOS_COUNT;
idx /= DISPATCH_QUEUE_ATTR_QOS_COUNT;
dqai.dqai_autorelease_frequency =
idx % DISPATCH_QUEUE_ATTR_AUTORELEASE_FREQUENCY_COUNT;
idx /= DISPATCH_QUEUE_ATTR_AUTORELEASE_FREQUENCY_COUNT;
dqai.dqai_overcommit = idx % DISPATCH_QUEUE_ATTR_OVERCOMMIT_COUNT;
idx /= DISPATCH_QUEUE_ATTR_OVERCOMMIT_COUNT;
return dqai;
}
处理优先级qos以及overcommit参数
//_dispatch_lane_create_with_target
dispatch_qos_t qos = dqai.dqai_qos;//dqai.dqai_qos未被设置，0，DISPATCH_QOS_UNSPECIFIED
#if !HAVE_PTHREAD_WORKQUEUE_QOS //在iOS上HAVE_PTHREAD_WORKQUEUE_QOS应该是1
if (qos == DISPATCH_QOS_USER_INTERACTIVE) {
dqai.dqai_qos = qos = DISPATCH_QOS_USER_INITIATED;
}
if (qos == DISPATCH_QOS_MAINTENANCE) {
dqai.dqai_qos = qos = DISPATCH_QOS_BACKGROUND;
}
#endif // !HAVE_PTHREAD_WORKQUEUE_QOS
//_dispatch_queue_attr_to_info中串行队列和并行队列都没有设置dqai.dqai_overcommit
_dispatch_queue_attr_overcommit_t overcommit = dqai.dqai_overcommit;//0
//tq是个传入的参数DISPATCH_TARGET_QUEUE_DEFAULT，#define DISPATCH_TARGET_QUEUE_DEFAULT NULL
if (overcommit != _dispatch_queue_attr_overcommit_unspecified && tq) {
if (tq->do_targetq) {
DISPATCH_CLIENT_CRASH(tq, "Cannot specify both overcommit and "
"a non-global target queue");
}
}
//tq为NULL
if (tq && dx_type(tq) == DISPATCH_QUEUE_GLOBAL_ROOT_TYPE) {
// Handle discrepancies between attr and target queue, attributes win
if (overcommit == _dispatch_queue_attr_overcommit_unspecified) {
if (tq->dq_priority & DISPATCH_PRIORITY_FLAG_OVERCOMMIT) {
overcommit = _dispatch_queue_attr_overcommit_enabled;
} else {
overcommit = _dispatch_queue_attr_overcommit_disabled;
}
}
if (qos == DISPATCH_QOS_UNSPECIFIED) {
qos = _dispatch_priority_qos(tq->dq_priority);
}
tq = NULL;
} else if (tq && !tq->do_targetq) {
// target is a pthread or runloop root queue, setting QoS or overcommit
// is disallowed
if (overcommit != _dispatch_queue_attr_overcommit_unspecified) {
DISPATCH_CLIENT_CRASH(tq, "Cannot specify an overcommit attribute "
"and use this kind of target queue");
}
} else {
//执行这里的代码，overcommit此时为0，满足条件
if (overcommit == _dispatch_queue_attr_overcommit_unspecified) {
// Serial queues default to overcommit!
overcommit = dqai.dqai_concurrent ?
_dispatch_queue_attr_overcommit_disabled :
_dispatch_queue_attr_overcommit_enabled;
}
}
//tq为NULL
if (!tq) {
//dispatch_queue_create创建的queue都qos都是DISPATCH_QOS_DEFAULT
//这里通过qos和overcommit获取全局根队列
tq = _dispatch_get_root_queue(
qos == DISPATCH_QOS_UNSPECIFIED ? DISPATCH_QOS_DEFAULT : qos,
overcommit == _dispatch_queue_attr_overcommit_enabled)->_as_dq;
if (unlikely(!tq)) {
DISPATCH_CLIENT_CRASH(qos, "Invalid queue attribute");
}
}
获取全局根队列
DISPATCH_ALWAYS_INLINE DISPATCH_CONST
static inline dispatch_queue_global_t
_dispatch_get_root_queue(dispatch_qos_t qos, bool overcommit)
{
if (unlikely(qos < DISPATCH_QOS_MIN || qos > DISPATCH_QOS_MAX)) {
DISPATCH_CLIENT_CRASH(qos, "Corrupted priority");
}
//全局根队列是一个数组，数组长度是：qos类型种类*是否overcommit
return &_dispatch_root_queues[2 * (qos - 1) + overcommit];
}
设置处理队列的相关属性，为初始化做准备
//_dispatch_lane_create_with_target
// Step 2: Initialize the queue
//
//参数，true
if (legacy) {
//串行队列，并行队列，dqai_inactive和dqai_autorelease_frequency都是false
// if any of these attributes is specified, use non legacy classes
if (dqai.dqai_inactive || dqai.dqai_autorelease_frequency) {
legacy = false;
}
}
const void *vtable;//可以理解为用于执行任务的一个OC类(粗浅的这样理解2333)
//dqf是队列的标识位
dispatch_queue_flags_t dqf = legacy ? DQF_MUTABLE : 0;
if (dqai.dqai_concurrent) {
//_OBJC_CLASS_$_OS_dispatch_queue_concurrent
vtable = DISPATCH_VTABLE(queue_concurrent);
} else {
//_OBJC_CLASS_$_OS_dispatch_queue_serial
vtable = DISPATCH_VTABLE(queue_serial);
}
//dqai_autorelease_frequency为空，不会命中下列case
switch (dqai.dqai_autorelease_frequency) {
case DISPATCH_AUTORELEASE_FREQUENCY_NEVER:
dqf |= DQF_AUTORELEASE_NEVER;
break;
case DISPATCH_AUTORELEASE_FREQUENCY_WORK_ITEM:
dqf |= DQF_AUTORELEASE_ALWAYS;
break;
}
if (label) {
//判断队列名是否需要拷贝，这里使用_dyld_is_memory_immutable私有方法判断
const char *tmp = _dispatch_strdup_if_mutable(label);
if (tmp != label) {
//表示新拷贝的队列名需要释放
dqf |= DQF_LABEL_NEEDS_FREE;
label = tmp;
}
}
分配内存以及相关数据初始化
//_dispatch_lane_create_with_target
//用不同的类名创建对象，dispatch_lane_t可以理解为对dispatch_queue_t的包装（子类）
dispatch_lane_t dq = _dispatch_object_alloc(vtable,
sizeof(struct dispatch_lane_s));
//初始化，见_dispatch_queue_init
_dispatch_queue_init(dq, dqf, dqai.dqai_concurrent ?
DISPATCH_QUEUE_WIDTH_MAX : 1, DISPATCH_QUEUE_ROLE_INNER |
(dqai.dqai_inactive ? DISPATCH_QUEUE_INACTIVE : 0));
dq->dq_label = label;
//dqai_qos,dqai_relpri都为0
dq->dq_priority = _dispatch_priority_make((dispatch_qos_t)dqai.dqai_qos,
dqai.dqai_relpri);
if (overcommit == _dispatch_queue_attr_overcommit_enabled) {
dq->dq_priority |= DISPATCH_PRIORITY_FLAG_OVERCOMMIT;
}
if (!dqai.dqai_inactive) {
//用全局根队列对dq进行一些设置
_dispatch_queue_priority_inherit_from_target(dq, tq);
_dispatch_lane_inherit_wlh_from_target(dq, tq);
}
_dispatch_retain(tq);//引用计数加1
dq->do_targetq = tq;//将队列和全局根队列绑定
_dispatch_object_debug(dq, "%s", __func__);
return _dispatch_trace_queue_create(dq)._dq;//返回队列
}
static inline dispatch_queue_class_t
_dispatch_queue_init(dispatch_queue_class_t dqu, dispatch_queue_flags_t dqf,
uint16_t width, uint64_t initial_state_bits)
{
//width为同时可处理任务数量的多少，串行队列为1，并行为0x1000ull-2=4094
uint64_t dq_state = DISPATCH_QUEUE_STATE_INIT_VALUE(width);
dispatch_queue_t dq = dqu._dq;
dispatch_assert((initial_state_bits & ~(DISPATCH_QUEUE_ROLE_MASK |
DISPATCH_QUEUE_INACTIVE)) == 0);
//initial_state_bits为0
if (initial_state_bits & DISPATCH_QUEUE_INACTIVE) {
dq->do_ref_cnt += 2; // rdar://8181908 see _dispatch_lane_resume
if (dx_metatype(dq) == _DISPATCH_SOURCE_TYPE) {
dq->do_ref_cnt++; // released when DSF_DELETED is set
}
}
dq_state |= initial_state_bits;
//队列将要处理的下一个任务，DISPATCH_OBJECT_LISTLESS可以理解为null
dq->do_next = DISPATCH_OBJECT_LISTLESS;
dqf |= DQF_WIDTH(width);
os_atomic_store2o(dq, dq_atomic_flags, dqf, relaxed);
dq->dq_state = dq_state;
//设置队列的序号，ID
dq->dq_serialnum =
os_atomic_inc_orig(&_dispatch_queue_serial_numbers, relaxed);
return dqu;
}
DISPATCH_ALWAYS_INLINE
static inline dispatch_queue_class_t
_dispatch_trace_queue_create(dispatch_queue_class_t dqu)
{
_dispatch_only_if_ktrace_enabled({//我猜这里应该没用
uint64_t dq_label[4] = {0}; // So that we get the right null termination
dispatch_queue_t dq = dqu._dq;
strncpy((char *)dq_label, (char *)dq->dq_label ?: "", sizeof(dq_label));
_dispatch_ktrace2(DISPATCH_QOS_TRACE_queue_creation_start,
dq->dq_serialnum,
_dispatch_priority_to_pp_prefer_fallback(dq->dq_priority));
_dispatch_ktrace4(DISPATCH_QOS_TRACE_queue_creation_end,
dq_label[0], dq_label[1], dq_label[2], dq_label[3]);
});
//_dispatch_introspection_queue_create直接将dqu返回，没太懂introspection
return _dispatch_introspection_queue_create(dqu);
}
总结
队列创建已经完成，回到主题，GCD队列线程的上限是多少？唯一可能有关的就是队列中的width属性，但是串行队列是1，并行队列是4094，显然不太对。并且队列创建过程中没有涉及到任何线程创建相关的操作。

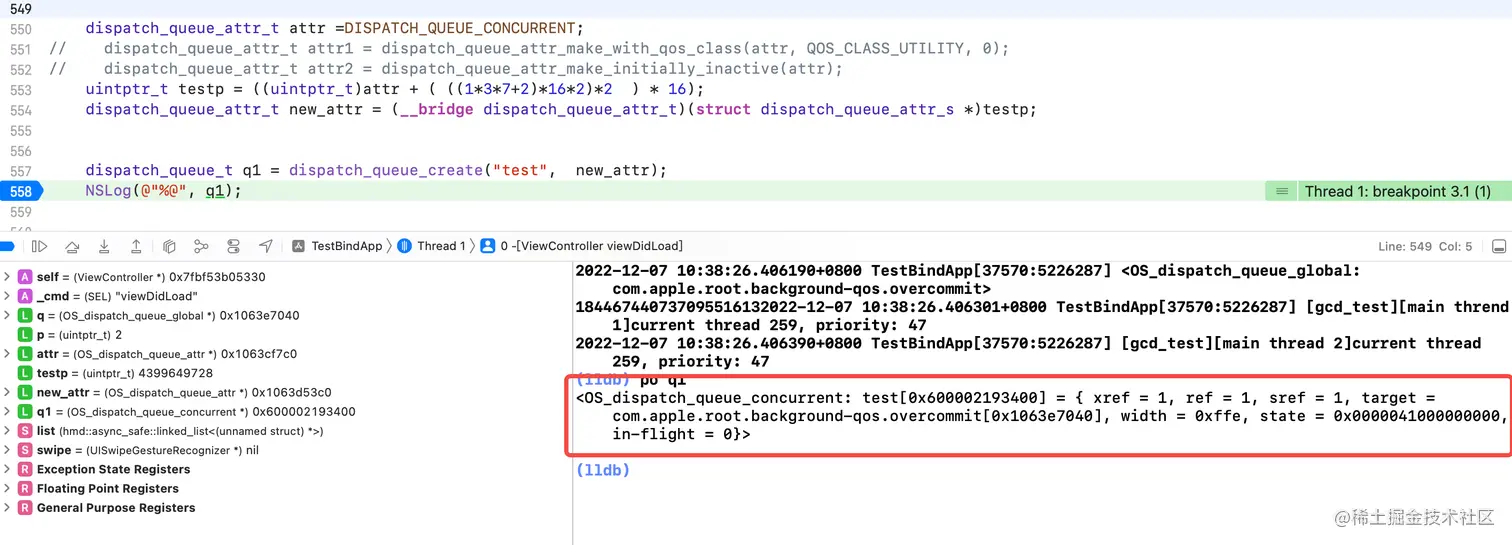

dispatch_queue_create的两个参数，label作为队列名标识队列；attr控制队列的属性，它其实是一个数组的元素地址，attr为null时，对应DISPATCH_QUEUE_SERIAL，为串行队列；attr为DISPATCH_QUEUE_CONCURRENT时，其实是数组中的第一个元素_dispatch_queue_attr_concurrent的地址；
需要注意的是attr并不存储属性，而是用地址计算attr在数组中的index。目前开放的属性类型及相关方法：
DISPATCH_QUEUE_SERIAL
DISPATCH_QUEUE_SERIAL_INACTIVE
DISPATCH_QUEUE_CONCURRENT
DISPATCH_QUEUE_CONCURRENT_INACTIVE
dispatch_queue_attr_t
dispatch_queue_attr_make_initially_inactive(
dispatch_queue_attr_t _Nullable attr);
dispatch_queue_attr_t
dispatch_queue_attr_make_with_autorelease_frequency(
dispatch_queue_attr_t _Nullable attr,
dispatch_autorelease_frequency_t frequency);
dispatch_queue_attr_t
dispatch_queue_attr_make_with_qos_class(dispatch_queue_attr_t _Nullable attr,
dispatch_qos_class_t qos_class, int relative_priority);
创建队列时，可以控制initially_inactive、autorelease_frequency、qos等属性，源码中还有dispatch_queue_attr_make_with_overcommit方法控制队列的overcommit属性，但是并没有开放。
但是基于我们dispatch_queue_attr_t attr的了解，我们可以自行计算想要的attr：
//dispatch_queue_attr_info_t的获取参考上文_dispatch_queue_attr_to_info
static dispatch_queue_attr_t
_dispatch_queue_attr_from_info(dispatch_queue_attr_info_t dqai)
{
size_t idx = 0;
idx *= DISPATCH_QUEUE_ATTR_OVERCOMMIT_COUNT;
idx += dqai.dqai_overcommit;
idx *= DISPATCH_QUEUE_ATTR_AUTORELEASE_FREQUENCY_COUNT;
idx += dqai.dqai_autorelease_frequency;
idx *= DISPATCH_QUEUE_ATTR_QOS_COUNT;
idx += dqai.dqai_qos;
idx *= DISPATCH_QUEUE_ATTR_PRIO_COUNT;
idx += (size_t)(-dqai.dqai_relpri);
idx *= DISPATCH_QUEUE_ATTR_CONCURRENCY_COUNT;
idx += !dqai.dqai_concurrent;
idx *= DISPATCH_QUEUE_ATTR_INACTIVE_COUNT;
idx += dqai.dqai_inactive;
return (dispatch_queue_attr_t)&_dispatch_queue_attrs[idx];
}
例如我们想要一个overcommit的优先级为background的自定义并发队列：
dispatch_queue_attr_t attr =DISPATCH_QUEUE_CONCURRENT;
uintptr_t testp = ((uintptr_t)attr + ( ((1*3*7+2)*16*2)*2 ) * 16);
dispatch_queue_attr_t new_attr = (__bridge dispatch_queue_attr_t)(struct dispatch_queue_attr_s *)testp;
dispatch_queue_t q1 = dispatch_queue_create("test", new_attr);
获取全局队列
dispatch_get_global_queue
dispatch_queue_global_t
dispatch_get_global_queue(intptr_t priority, uintptr_t flags)
{
//_dispatch_root_queues是存放全局根队列的数组
dispatch_assert(countof(_dispatch_root_queues) ==
DISPATCH_ROOT_QUEUE_COUNT);
//DISPATCH_QUEUE_OVERCOMMIT 0x2ull, 0xFFFFFFFD, 也就是除了倒数第二位，其他位为1的flags都将返回null
if (flags & ~(unsigned long)DISPATCH_QUEUE_OVERCOMMIT) {
return DISPATCH_BAD_INPUT;
}
dispatch_qos_t qos = _dispatch_qos_from_queue_priority(priority);
#if !HAVE_PTHREAD_WORKQUEUE_QOS
if (qos == QOS_CLASS_MAINTENANCE) {
qos = DISPATCH_QOS_BACKGROUND;
} else if (qos == QOS_CLASS_USER_INTERACTIVE) {
qos = DISPATCH_QOS_USER_INITIATED;
}
#endif
if (qos == DISPATCH_QOS_UNSPECIFIED) {
return DISPATCH_BAD_INPUT;
}
return _dispatch_get_root_queue(qos, flags & DISPATCH_QUEUE_OVERCOMMIT);
}
============= _dispatch_get_root_queue =============
static inline dispatch_queue_global_t
_dispatch_get_root_queue(dispatch_qos_t qos, bool overcommit)
{
//DISPATCH_QOS_MIN 1 DISPATCH_QOS_MAX 6
if (unlikely(qos < DISPATCH_QOS_MIN || qos > DISPATCH_QOS_MAX)) {
DISPATCH_CLIENT_CRASH(qos, "Corrupted priority");
}
//根据优先级和overcommit获取index
return &_dispatch_root_queues[2 * (qos - 1) + overcommit];
}
全局根队列_dispatch_root_queues
struct dispatch_queue_global_s { //结构就不扩展了，可以理解为dispatch_queue_t的子类吧
DISPATCH_QUEUE_ROOT_CLASS_HEADER(lane);
} DISPATCH_CACHELINE_ALIGN;
struct dispatch_queue_global_s _dispatch_root_queues[] = {
#define _DISPATCH_ROOT_QUEUE_IDX(n, flags) \
((flags & DISPATCH_PRIORITY_FLAG_OVERCOMMIT) ? \
DISPATCH_ROOT_QUEUE_IDX_##n##_QOS_OVERCOMMIT : \
DISPATCH_ROOT_QUEUE_IDX_##n##_QOS)
#define _DISPATCH_ROOT_QUEUE_ENTRY(n, flags, ...) \
[_DISPATCH_ROOT_QUEUE_IDX(n, flags)] = { \
DISPATCH_GLOBAL_OBJECT_HEADER(queue_global), \
.dq_state = DISPATCH_ROOT_QUEUE_STATE_INIT_VALUE, \
.do_ctxt = _dispatch_root_queue_ctxt(_DISPATCH_ROOT_QUEUE_IDX(n, flags)), \
.dq_atomic_flags = DQF_WIDTH(DISPATCH_QUEUE_WIDTH_POOL), \
.dq_priority = flags | ((flags & DISPATCH_PRIORITY_FLAG_FALLBACK) ? \
_dispatch_priority_make_fallback(DISPATCH_QOS_##n) : \
_dispatch_priority_make(DISPATCH_QOS_##n, 0)), \
__VA_ARGS__ \
}
_DISPATCH_ROOT_QUEUE_ENTRY(MAINTENANCE, 0,//优先级 + 是否overcommit
.dq_label = "com.apple.root.maintenance-qos",
.dq_serialnum = 4,
),
_DISPATCH_ROOT_QUEUE_ENTRY(MAINTENANCE, DISPATCH_PRIORITY_FLAG_OVERCOMMIT,
.dq_label = "com.apple.root.maintenance-qos.overcommit",
.dq_serialnum = 5,
),
_DISPATCH_ROOT_QUEUE_ENTRY(BACKGROUND, 0,
.dq_label = "com.apple.root.background-qos",
.dq_serialnum = 6,
),
_DISPATCH_ROOT_QUEUE_ENTRY(BACKGROUND, DISPATCH_PRIORITY_FLAG_OVERCOMMIT,
.dq_label = "com.apple.root.background-qos.overcommit",
.dq_serialnum = 7,
),
_DISPATCH_ROOT_QUEUE_ENTRY(UTILITY, 0,
.dq_label = "com.apple.root.utility-qos",
.dq_serialnum = 8,
),
_DISPATCH_ROOT_QUEUE_ENTRY(UTILITY, DISPATCH_PRIORITY_FLAG_OVERCOMMIT,
.dq_label = "com.apple.root.utility-qos.overcommit",
.dq_serialnum = 9,
),
_DISPATCH_ROOT_QUEUE_ENTRY(DEFAULT, DISPATCH_PRIORITY_FLAG_FALLBACK,
.dq_label = "com.apple.root.default-qos",
.dq_serialnum = 10,
),
_DISPATCH_ROOT_QUEUE_ENTRY(DEFAULT,
DISPATCH_PRIORITY_FLAG_FALLBACK | DISPATCH_PRIORITY_FLAG_OVERCOMMIT,
.dq_label = "com.apple.root.default-qos.overcommit",
.dq_serialnum = 11,
),
_DISPATCH_ROOT_QUEUE_ENTRY(USER_INITIATED, 0,
.dq_label = "com.apple.root.user-initiated-qos",
.dq_serialnum = 12,
),
_DISPATCH_ROOT_QUEUE_ENTRY(USER_INITIATED, DISPATCH_PRIORITY_FLAG_OVERCOMMIT,
.dq_label = "com.apple.root.user-initiated-qos.overcommit",
.dq_serialnum = 13,
),
_DISPATCH_ROOT_QUEUE_ENTRY(USER_INTERACTIVE, 0,
.dq_label = "com.apple.root.user-interactive-qos",
.dq_serialnum = 14,
),
_DISPATCH_ROOT_QUEUE_ENTRY(USER_INTERACTIVE, DISPATCH_PRIORITY_FLAG_OVERCOMMIT,
.dq_label = "com.apple.root.user-interactive-qos.overcommit",
.dq_serialnum = 15,
),
};
总结
在获取全局队列时，并没有线程创建相关的逻辑。通过dispatch_get_global_queue中的参数优先级qos+flags获取全局队列，flags为0时获取非overcommit队列，为2时获取overcommit队列
同步执行
DISPATCH_NOINLINE
void
dispatch_sync(dispatch_queue_t dq, dispatch_block_t work)
{
uintptr_t dc_flags = DC_FLAG_BLOCK;
//判断要执行的block中的invoke方法指针是否等于___dispatch_block_create_block_invoke的指针
if (unlikely(_dispatch_block_has_private_data(work))) {
return _dispatch_sync_block_with_privdata(dq, work, dc_flags);
}
//通常直接执行_dispatch_sync_f
_dispatch_sync_f(dq, work, _dispatch_Block_invoke(work), dc_flags);
}
DISPATCH_NOINLINE
static void
_dispatch_sync_f(dispatch_queue_t dq, void *ctxt, dispatch_function_t func,
uintptr_t dc_flags)
{
_dispatch_sync_f_inline(dq, ctxt, func, dc_flags);
}
如果是串行队列，执行_dispatch_barrier_sync_f
DISPATCH_ALWAYS_INLINE
static inline void
_dispatch_sync_f_inline(dispatch_queue_t dq, void *ctxt,
dispatch_function_t func, uintptr_t dc_flags)
{
//在dispatch_queue_create中可知，dq_width==1时，为串行队列
if (likely(dq->dq_width == 1)) {
return _dispatch_barrier_sync_f(dq, ctxt, func, dc_flags);
}
static void
_dispatch_barrier_sync_f(dispatch_queue_t dq, void *ctxt,
dispatch_function_t func, uintptr_t dc_flags)
{
_dispatch_barrier_sync_f_inline(dq, ctxt, func, dc_flags);
}
static inline void
_dispatch_barrier_sync_f_inline(dispatch_queue_t dq, void *ctxt,
dispatch_function_t func, uintptr_t dc_flags)
{
//获取当前线程id
dispatch_tid tid = _dispatch_tid_self();
//可以理解为检查dq的类名
if (unlikely(dx_metatype(dq) != _DISPATCH_LANE_TYPE)) {
DISPATCH_CLIENT_CRASH(0, "Queue type doesn't support dispatch_sync");
}
//dl和dq是相互绑定的
dispatch_lane_t dl = upcast(dq)._dl;
尝试给队列上锁
//_dispatch_barrier_sync_f_inline
// The more correct thing to do would be to merge the qos of the thread
// that just acquired the barrier lock into the queue state.
//
// However this is too expensive for the fast path, so skip doing it.
// The chosen tradeoff is that if an enqueue on a lower priority thread
// contends with this fast path, this thread may receive a useless override.
//
// Global concurrent queues and queues bound to non-dispatch threads
// always fall into the slow case, see DISPATCH_ROOT_QUEUE_STATE_INIT_VALUE
//这里尝试对队列上锁
if (unlikely(!_dispatch_queue_try_acquire_barrier_sync(dl, tid))) {
return _dispatch_sync_f_slow(dl, ctxt, func, DC_FLAG_BARRIER, dl,
DC_FLAG_BARRIER | dc_flags);
}
============= _dispatch_queue_try_acquire_barrier_sync =============
static inline bool
_dispatch_queue_try_acquire_barrier_sync(dispatch_queue_class_t dq, uint32_t tid)
{
return _dispatch_queue_try_acquire_barrier_sync_and_suspend(dq._dl, tid, 0);
}
static inline bool
_dispatch_queue_try_acquire_barrier_sync_and_suspend(dispatch_lane_t dq,
uint32_t tid, uint64_t suspend_count)
{
//创建队列时，dq_state被初始化为DISPATCH_QUEUE_STATE_INIT_VALUE(dq->dq_width)
uint64_t init = DISPATCH_QUEUE_STATE_INIT_VALUE(dq->dq_width);
//标识队列宽度被占满，正在执行BARRIER，设置执行任务的线程id
uint64_t value = DISPATCH_QUEUE_WIDTH_FULL_BIT | DISPATCH_QUEUE_IN_BARRIER |
_dispatch_lock_value_from_tid(tid) |
DISPATCH_QUEUE_UNCONTENDED_SYNC |
(suspend_count * DISPATCH_QUEUE_SUSPEND_INTERVAL);
uint64_t old_state, new_state;
return os_atomic_rmw_loop2o(dq, dq_state, old_state, new_state, acquire, {
uint64_t role = old_state & DISPATCH_QUEUE_ROLE_MASK;
//如果队列的dq_state与初始值不一致，说明队列在执行任务
if (old_state != (init | role)) {
//返回false
os_atomic_rmw_loop_give_up(break);
}
//队列空闲，设置dq_state，返回true
new_state = value | role;
});
}
上锁失败（队列中还有任务在执行）执行_dispatch_sync_f_slow
//_dispatch_barrier_sync_f_inline
static void
_dispatch_sync_f_slow(dispatch_queue_class_t top_dqu, void *ctxt,
dispatch_function_t func, uintptr_t top_dc_flags,
dispatch_queue_class_t dqu, uintptr_t dc_flags)
{
dispatch_queue_t top_dq = top_dqu._dq;
dispatch_queue_t dq = dqu._dq;
//do_targetq为绑定的全局根队列，一般不为NULL
if (unlikely(!dq->do_targetq)) {
return _dispatch_sync_function_invoke(dq, ctxt, func);
}
//类似pthrea_getspecific(dispatch_priority_key)
pthread_priority_t pp = _dispatch_get_priority();
//保存上下文
struct dispatch_sync_context_s dsc = {
.dc_flags = DC_FLAG_SYNC_WAITER | dc_flags,
.dc_func = _dispatch_async_and_wait_invoke,
.dc_ctxt = &dsc,
.dc_other = top_dq,
.dc_priority = pp | _PTHREAD_PRIORITY_ENFORCE_FLAG,
.dc_voucher = _voucher_get(),
.dsc_func = func,
.dsc_ctxt = ctxt,
.dsc_waiter = _dispatch_tid_self(),
};
_dispatch_trace_item_push(top_dq, &dsc);//iphone可以忽略
//等待队列中的任务执行完，睡眠
__DISPATCH_WAIT_FOR_QUEUE__(&dsc, dq);
//被唤醒后准备处理任务
//这里是处理dispatch_async_and_wait等，block已经在其它线程上执行的情况
if (dsc.dsc_func == NULL) {
// dsc_func being cleared means that the block ran on another thread ie.
// case (2) as listed in _dispatch_async_and_wait_f_slow.
dispatch_queue_t stop_dq = dsc.dc_other;
return _dispatch_sync_complete_recurse(top_dq, stop_dq, top_dc_flags);
}
_dispatch_introspection_sync_begin(top_dq);//{}空方法
_dispatch_trace_item_pop(top_dq, &dsc);//_dispatch_trace相关方法可以忽略
//执行任务
_dispatch_sync_invoke_and_complete_recurse(top_dq, ctxt, func,top_dc_flags
DISPATCH_TRACE_ARG(&dsc));
}
============= __DISPATCH_WAIT_FOR_QUEUE__ =============
static void
__DISPATCH_WAIT_FOR_QUEUE__(dispatch_sync_context_t dsc, dispatch_queue_t dq)
{
//获取队列的dq_state
uint64_t dq_state = _dispatch_wait_prepare(dq);
//检查死锁，在当前线程同步到当前线程执行
//((dq_state ^ dsc->dsc_waiter) & DLOCK_OWNER_MASK) == 0
if (unlikely(_dq_state_drain_locked_by(dq_state, dsc->dsc_waiter))) {
DISPATCH_CLIENT_CRASH((uintptr_t)dq_state,
"dispatch_sync called on queue "
"already owned by current thread");
}
// Blocks submitted to the main thread MUST run on the main thread, and
// dispatch_async_and_wait also executes on the remote context rather than
// the current thread.
//
// For both these cases we need to save the frame linkage for the sake of
// _dispatch_async_and_wait_invoke
//
//注释中说明：提交到主线程的任务，必须在主线程执行
//dispatch_async_and_wait提交的任务，可能不是在当前线程执行，ps：同步执行block时，如果要严格保证执行任务的队列属性，使用dispatch_async_and_wait
//换句话说，dispatch_sync提交的任务（除了提交到主线程），都是在当前线程执行
//为可能在非当前线程执行的任务，保存frame信息
_dispatch_thread_frame_save_state(&dsc->dsc_dtf);
//根据dq_state判断等待提交任务执行完成的方式，具体策略没搞清楚2333
if (_dq_state_is_suspended(dq_state) ||
_dq_state_is_base_anon(dq_state)) {
dsc->dc_data = DISPATCH_WLH_ANON;
} else if (_dq_state_is_base_wlh(dq_state)) {
dsc->dc_data = (dispatch_wlh_t)dq;
} else {
_dispatch_wait_compute_wlh(upcast(dq)._dl, dsc);
}
if (dsc->dc_data == DISPATCH_WLH_ANON) {
dsc->dsc_override_qos_floor = dsc->dsc_override_qos =
(uint8_t)_dispatch_get_basepri_override_qos_floor();
//在dsc->dsc_event->dte_sema设置了一个信号量
_dispatch_thread_event_init(&dsc->dsc_event);
}
//将当前提交任务及上下文压进队列
//(&(dq)->do_vtable->_os_obj_vtable)->dq_push(dq, dsc, _dispatch_qos_from_pp(dsc->dc_priority))
dx_push(dq, dsc, _dispatch_qos_from_pp(dsc->dc_priority));
_dispatch_trace_runtime_event(sync_wait, dq, 0);
if (dsc->dc_data == DISPATCH_WLH_ANON) {
//等待信号量
_dispatch_thread_event_wait(&dsc->dsc_event); // acquire
} else if (!dsc->dsc_wlh_self_wakeup) {
//基于dispatch_kevent
_dispatch_event_loop_wait_for_ownership(dsc);
}
if (dsc->dc_data == DISPATCH_WLH_ANON) {
//销毁信号量
_dispatch_thread_event_destroy(&dsc->dsc_event);
// If _dispatch_sync_waiter_wake() gave this thread an override,
// ensure that the root queue sees it.
if (dsc->dsc_override_qos > dsc->dsc_override_qos_floor) {
_dispatch_set_basepri_override_qos(dsc->dsc_override_qos);
}
}
}
============= _dispatch_sync_invoke_and_complete_recurse =============
static void
_dispatch_sync_invoke_and_complete_recurse(dispatch_queue_class_t dq,
void *ctxt, dispatch_function_t func, uintptr_t dc_flags
DISPATCH_TRACE_ARG(void *dc))
{
//执行任务
_dispatch_sync_function_invoke_inline(dq, ctxt, func);
_dispatch_trace_item_complete(dc);
_dispatch_sync_complete_recurse(dq._dq, NULL, dc_flags);
}
static inline void
_dispatch_sync_function_invoke_inline(dispatch_queue_class_t dq, void *ctxt,
dispatch_function_t func)
{
dispatch_thread_frame_s dtf;
_dispatch_thread_frame_push(&dtf, dq);
_dispatch_client_callout(ctxt, func);
_dispatch_perfmon_workitem_inc();
_dispatch_thread_frame_pop(&dtf);
}
void
_dispatch_client_callout(void *ctxt, dispatch_function_t f)
{
_dispatch_get_tsd_base();
void *u = _dispatch_get_unwind_tsd();
if (likely(!u)) return f(ctxt);
_dispatch_set_unwind_tsd(NULL);
f(ctxt);
_dispatch_free_unwind_tsd();
_dispatch_set_unwind_tsd(u);
}
static void
_dispatch_sync_complete_recurse(dispatch_queue_t dq, dispatch_queue_t stop_dq,
uintptr_t dc_flags)
{
//barrier为true
bool barrier = (dc_flags & DC_FLAG_BARRIER);
do {
if (dq == stop_dq) return;
if (barrier) {
//_dispatch_lane_wakeup唤醒队列，执行下一个任务，为下个任务设置上下文，唤醒等待线程
dx_wakeup(dq, 0, DISPATCH_WAKEUP_BARRIER_COMPLETE);
} else {
_dispatch_lane_non_barrier_complete(upcast(dq)._dl, 0);
}
dq = dq->do_targetq;
barrier = (dq->dq_width == 1);
} while (unlikely(dq->do_targetq));
}
上锁成功（队列中没有任务在执行）
//_dispatch_barrier_sync_f_inline
if (unlikely(dl->do_targetq->do_targetq)) {
return _dispatch_sync_recurse(dl, ctxt, func,
DC_FLAG_BARRIER | dc_flags);
}
_dispatch_introspection_sync_begin(dl);
_dispatch_lane_barrier_sync_invoke_and_complete(dl, ctxt, func
DISPATCH_TRACE_ARG(_dispatch_trace_item_sync_push_pop(
dq, ctxt, func, dc_flags | DC_FLAG_BARRIER)));
}
============= _dispatch_sync_invoke_and_complete_recurse =============
_dispatch_lane_barrier_sync_invoke_and_complete(dispatch_lane_t dq,
void *ctxt, dispatch_function_t func DISPATCH_TRACE_ARG(void *dc))
{
//执行任务
_dispatch_sync_function_invoke_inline(dq, ctxt, func);
_dispatch_trace_item_complete(dc);
//队列链表还有没有处理的任务，或者是并行队列
if (unlikely(dq->dq_items_tail || dq->dq_width > 1)) {
//唤醒队列，处理下一个任务
return _dispatch_lane_barrier_complete(dq, 0, 0);
}
// Presence of any of these bits requires more work that only
// _dispatch_*_barrier_complete() handles properly
//
// Note: testing for RECEIVED_OVERRIDE or RECEIVED_SYNC_WAIT without
// checking the role is sloppy, but is a super fast check, and neither of
// these bits should be set if the lock was never contended/discovered.
const uint64_t fail_unlock_mask = DISPATCH_QUEUE_SUSPEND_BITS_MASK |
DISPATCH_QUEUE_ENQUEUED | DISPATCH_QUEUE_DIRTY |
DISPATCH_QUEUE_RECEIVED_OVERRIDE |
DISPATCH_QUEUE_RECEIVED_SYNC_WAIT;
uint64_t old_state, new_state;
dispatch_wakeup_flags_t flags = 0;
//重置dq的dq_state，解锁操作
// similar to _dispatch_queue_drain_try_unlock
os_atomic_rmw_loop2o(dq, dq_state, old_state, new_state, release, {
new_state = old_state - DISPATCH_QUEUE_SERIAL_DRAIN_OWNED;
new_state &= ~DISPATCH_QUEUE_DRAIN_UNLOCK_MASK;
new_state &= ~DISPATCH_QUEUE_MAX_QOS_MASK;
if (unlikely(old_state & fail_unlock_mask)) {
os_atomic_rmw_loop_give_up({
return _dispatch_lane_barrier_complete(dq, 0, flags);
});
}
});
if (_dq_state_is_base_wlh(old_state)) {
_dispatch_event_loop_assert_not_owned((dispatch_wlh_t)dq);
}
}
如果是并行队列，直接在当前线程执行任务
//_dispatch_sync_f_inline
if (unlikely(dx_metatype(dq) != _DISPATCH_LANE_TYPE)) {
DISPATCH_CLIENT_CRASH(0, "Queue type doesn't support dispatch_sync");
}
dispatch_lane_t dl = upcast(dq)._dl;
// Global concurrent queues and queues bound to non-dispatch threads
// always fall into the slow case, see DISPATCH_ROOT_QUEUE_STATE_INIT_VALUE
//按照注释
if (unlikely(!_dispatch_queue_try_reserve_sync_width(dl))) {
//见上文_dispatch_sync_f_slow
return _dispatch_sync_f_slow(dl, ctxt, func, 0, dl, dc_flags);
}
if (unlikely(dq->do_targetq->do_targetq)) {
return _dispatch_sync_recurse(dl, ctxt, func, dc_flags);
}
_dispatch_introspection_sync_begin(dl);
//在当前线程执行任务，重置dq_state，参考_dispatch_sync_invoke_and_complete_recurse
_dispatch_sync_invoke_and_complete(dl, ctxt, func DISPATCH_TRACE_ARG(
_dispatch_trace_item_sync_push_pop(dq, ctxt, func, dc_flags)));
}
============= _dispatch_queue_try_reserve_sync_width =============
static inline bool
_dispatch_queue_try_reserve_sync_width(dispatch_lane_t dq)
{
uint64_t old_state, new_state;
// <rdar://problem/24738102&24743140> reserving non barrier width
// doesn't fail if only the ENQUEUED bit is set (unlike its barrier width
// equivalent), so we have to check that this thread hasn't enqueued
// anything ahead of this call or we can break ordering
//队尾存在数据时直接return false
if (unlikely(dq->dq_items_tail)) {
return false;
}
return os_atomic_rmw_loop2o(dq, dq_state, old_state, new_state, relaxed, {
//!DISPATCH_QUEUE_IN_BARRIER(在执行BARRIER) || DISPATCH_QUEUE_DIRTY（队列链表还未初始化） || DISPATCH_QUEUE_PENDING_BARRIER（并行任务数接近width）
if (unlikely(!_dq_state_is_sync_runnable(old_state)) ||
_dq_state_is_dirty(old_state) ||
_dq_state_has_pending_barrier(old_state)) {
os_atomic_rmw_loop_give_up(return false);
}
new_state = old_state + DISPATCH_QUEUE_WIDTH_INTERVAL;
});
}
总结
至此，还是没有发现与线程创建与管理的相关逻辑，大致的结论是：除了dispatch_sync到主线程的任务，一般都是在当前线程执行,并且任务是以当前线程的优先级执行的。
异步执行
dispatch_async
void
dispatch_async(dispatch_queue_t dq, dispatch_block_t work)
{
//类似pthread_getspecific(dispatch_cache_key)，没有获取到就创建一个
//dispatch_continuation_t dc可以理解为对要执行的block的包装和暂存
dispatch_continuation_t dc = _dispatch_continuation_alloc();
uintptr_t dc_flags = DC_FLAG_CONSUME;
dispatch_qos_t qos;
qos = _dispatch_continuation_init(dc, dq, work, 0, dc_flags);
_dispatch_continuation_async(dq, dc, qos, dc->dc_flags);
}
获取或创建continuation后，对continuation进行初始化
static inline dispatch_qos_t
_dispatch_continuation_init(dispatch_continuation_t dc,
dispatch_queue_class_t dqu, dispatch_block_t work,
dispatch_block_flags_t flags, uintptr_t dc_flags)
{
void *ctxt = _dispatch_Block_copy(work);
dc_flags |= DC_FLAG_BLOCK | DC_FLAG_ALLOCATED;
//判断要执行的block中的invoke方法指针是否等于___dispatch_block_create_block_invoke的指针
if (unlikely(_dispatch_block_has_private_data(work))) {
dc->dc_flags = dc_flags;
dc->dc_ctxt = ctxt;
// will initialize all fields but requires dc_flags & dc_ctxt to be set
return _dispatch_continuation_init_slow(dc, dqu, flags);
}
dispatch_function_t func = _dispatch_Block_invoke(work);
if (dc_flags & DC_FLAG_CONSUME) {
//最终调用这个方法执行block
func = _dispatch_call_block_and_release;
}
return _dispatch_continuation_init_f(dc, dqu, ctxt, func, flags, dc_flags);
}
============= _dispatch_continuation_init_f =============
tatic inline dispatch_qos_t
_dispatch_continuation_init_f(dispatch_continuation_t dc,
dispatch_queue_class_t dqu, void *ctxt, dispatch_function_t f,
dispatch_block_flags_t flags, uintptr_t dc_flags)
{
pthread_priority_t pp = 0;
dc->dc_flags = dc_flags | DC_FLAG_ALLOCATED;
dc->dc_func = f;
dc->dc_ctxt = ctxt;
// in this context DISPATCH_BLOCK_HAS_PRIORITY means that the priority
// should not be propagated, only taken from the handler if it has one
if (!(flags & DISPATCH_BLOCK_HAS_PRIORITY)) {//这里flags为0
//优先级传播，类似pthread_getspecific(dispatch_priority_key)
pp = _dispatch_priority_propagate();
}
_dispatch_continuation_voucher_set(dc, flags);//没明白
return _dispatch_continuation_priority_set(dc, dqu, pp, flags);
}
============= _dispatch_continuation_priority_set =============
static inline dispatch_qos_t
_dispatch_continuation_priority_set(dispatch_continuation_t dc,
dispatch_queue_class_t dqu,
pthread_priority_t pp, dispatch_block_flags_t flags)
{
dispatch_qos_t qos = DISPATCH_QOS_UNSPECIFIED;
#if HAVE_PTHREAD_WORKQUEUE_QOS//为1
dispatch_queue_t dq = dqu._dq;
if (likely(pp)) {
bool enforce = (flags & DISPATCH_BLOCK_ENFORCE_QOS_CLASS);
bool is_floor = (dq->dq_priority & DISPATCH_PRIORITY_FLAG_FLOOR);
bool dq_has_qos = (dq->dq_priority & DISPATCH_PRIORITY_REQUESTED_MASK);
if (enforce) {
pp |= _PTHREAD_PRIORITY_ENFORCE_FLAG;
qos = _dispatch_qos_from_pp_unsafe(pp);
} else if (!is_floor && dq_has_qos) {
pp = 0;
} else {
//自定义队列应该是执行这里
qos = _dispatch_qos_from_pp_unsafe(pp);
}
}
dc->dc_priority = pp;
#else
(void)dc; (void)dqu; (void)pp; (void)flags;
#endif
return qos;
}
将任务入队
static inline void
_dispatch_continuation_async(dispatch_queue_class_t dqu,
dispatch_continuation_t dc, dispatch_qos_t qos, uintptr_t dc_flags)
{
#if DISPATCH_INTROSPECTION
if (!(dc_flags & DC_FLAG_NO_INTROSPECTION)) {
_dispatch_trace_item_push(dqu, dc);
}
#else
(void)dc_flags;
#endif
//(&(dqu._dq)->do_vtable->_os_obj_vtable)->dq_push(dqu._dq, dc, qos)
//dx_push是一个宏，最终调用的是do_vtable下的dq_push
return dx_push(dqu._dq, dc, qos);
}
============= dq_push =============
//大概可以将dispatch_queue_class_t理解为一个基类，其中声明了各种方法（例如这里的dq_push）
//在dispatch_queue_class_t的子类中对声明的方法做不同的实现，（这样说只是为了理解，真实的实现比较复杂）
//在init.c中可以找到相关的实现
DISPATCH_VTABLE_SUBCLASS_INSTANCE(queue_serial, lane,
.do_type = DISPATCH_QUEUE_SERIAL_TYPE,
.do_dispose = _dispatch_lane_dispose,
.do_debug = _dispatch_queue_debug,
.do_invoke = _dispatch_lane_invoke,
.dq_activate = _dispatch_lane_activate,
.dq_wakeup = _dispatch_lane_wakeup,
.dq_push = _dispatch_lane_push,
);
DISPATCH_VTABLE_SUBCLASS_INSTANCE(queue_concurrent, lane,
.do_type = DISPATCH_QUEUE_CONCURRENT_TYPE,
.do_dispose = _dispatch_lane_dispose,
.do_debug = _dispatch_queue_debug,
.do_invoke = _dispatch_lane_invoke,
.dq_activate = _dispatch_lane_activate,
.dq_wakeup = _dispatch_lane_wakeup,
.dq_push = _dispatch_lane_concurrent_push,
);
DISPATCH_VTABLE_SUBCLASS_INSTANCE(queue_global, lane,
.do_type = DISPATCH_QUEUE_GLOBAL_ROOT_TYPE,
.do_dispose = _dispatch_object_no_dispose,
.do_debug = _dispatch_queue_debug,
.do_invoke = _dispatch_object_no_invoke,
.dq_activate = _dispatch_queue_no_activate,
.dq_wakeup = _dispatch_root_queue_wakeup,
.dq_push = _dispatch_root_queue_push,
);
DISPATCH_VTABLE_SUBCLASS_INSTANCE(queue_main, lane,
.do_type = DISPATCH_QUEUE_MAIN_TYPE,
.do_dispose = _dispatch_lane_dispose,
.do_debug = _dispatch_queue_debug,
.do_invoke = _dispatch_lane_invoke,
.dq_activate = _dispatch_queue_no_activate,
.dq_wakeup = _dispatch_main_queue_wakeup,
.dq_push = _dispatch_main_queue_push,
);
根据不同的队列类型，执行不同的入队方法
串行队列
队列中有任务在执行时，只将任务加入链表
//串行队列
void
_dispatch_lane_push(dispatch_lane_t dq, dispatch_object_t dou,
dispatch_qos_t qos)
{
dispatch_wakeup_flags_t flags = 0;
struct dispatch_object_s *prev;
//(dou._dc->dc_flags & (DC_FLAG_SYNC_WAITER | DC_FLAG_ASYNC_AND_WAIT))
//一般同步到串行队列，队列有任务正在执行时，执行这里
if (unlikely(_dispatch_object_is_waiter(dou))) {
return _dispatch_lane_push_waiter(dq, dou._dsc, qos);//实在太多了233
}
dispatch_assert(!_dispatch_object_is_global(dq));
qos = _dispatch_queue_push_qos(dq, qos);
// If we are going to call dx_wakeup(), the queue must be retained before
// the item we're pushing can be dequeued, which means:
// - before we exchange the tail if we have to override
// - before we set the head if we made the queue non empty.
// Otherwise, if preempted between one of these and the call to dx_wakeup()
// the blocks submitted to the queue may release the last reference to the
// queue when invoked by _dispatch_lane_drain. <rdar://problem/6932776>
//设置队尾，队列为空时返回true
prev = os_mpsc_push_update_tail(os_mpsc(dq, dq_items), dou._do, do_next);
if (unlikely(os_mpsc_push_was_empty(prev))) {
_dispatch_retain_2_unsafe(dq);
flags = DISPATCH_WAKEUP_CONSUME_2 | DISPATCH_WAKEUP_MAKE_DIRTY;
} else if (unlikely(_dispatch_queue_need_override(dq, qos))) {
// There's a race here, _dispatch_queue_need_override may read a stale
// dq_state value.
//
// If it's a stale load from the same drain streak, given that
// the max qos is monotonic, too old a read can only cause an
// unnecessary attempt at overriding which is harmless.
//
// We'll assume here that a stale load from an a previous drain streak
// never happens in practice.
_dispatch_retain_2_unsafe(dq);
flags = DISPATCH_WAKEUP_CONSUME_2;
}
//入队
os_mpsc_push_update_prev(os_mpsc(dq, dq_items), prev, dou._do, do_next);
if (flags) {
//队列空闲和_dispatch_queue_need_override(dq, qos)时，需要唤醒队列
//(&(dq)->do_vtable->_os_obj_vtable)->dq_wakeup(dq, qos, flags)
return dx_wakeup(dq, qos, flags);
}
}
队列中没有任务在执行时，唤醒队列执行任务
//_dispatch_lane_wakeup
void
_dispatch_lane_wakeup(dispatch_lane_class_t dqu, dispatch_qos_t qos,
dispatch_wakeup_flags_t flags)
{
dispatch_queue_wakeup_target_t target = DISPATCH_QUEUE_WAKEUP_NONE;
//同步执行时唤醒
if (unlikely(flags & DISPATCH_WAKEUP_BARRIER_COMPLETE)) {
//这里会通过信号量或者kevent等形式唤醒等待的线程
return _dispatch_lane_barrier_complete(dqu, qos, flags);
}
//检测队列是否为非空
if (_dispatch_queue_class_probe(dqu)) {
target = DISPATCH_QUEUE_WAKEUP_TARGET;
}
return _dispatch_queue_wakeup(dqu, qos, flags, target);
}
============= _dispatch_queue_wakeup =============
void
_dispatch_queue_wakeup(dispatch_queue_class_t dqu, dispatch_qos_t qos,
dispatch_wakeup_flags_t flags, dispatch_queue_wakeup_target_t target)
{
dispatch_queue_t dq = dqu._dq;
uint64_t old_state, new_state, enqueue = DISPATCH_QUEUE_ENQUEUED;
dispatch_assert(target != DISPATCH_QUEUE_WAKEUP_WAIT_FOR_EVENT);
//{...}省略很多更新队列状态的代码
if (likely((old_state ^ new_state) & enqueue)) {
dispatch_queue_t tq;
if (target == DISPATCH_QUEUE_WAKEUP_TARGET) {
// the rmw_loop above has no acquire barrier, as the last block
// of a queue asyncing to that queue is not an uncommon pattern
// and in that case the acquire would be completely useless
//
// so instead use depdendency ordering to read
// the targetq pointer.
os_atomic_thread_fence(dependency);
//这里获取自定义串行队列绑定的全局根队列
tq = os_atomic_load_with_dependency_on2o(dq, do_targetq,
(long)new_state);
} else {
tq = target;
}
dispatch_assert(_dq_state_is_enqueued(new_state));
//将任务提交到全局队列
return _dispatch_queue_push_queue(tq, dq, new_state);
}
}
============= _dispatch_queue_push_queue =============
static inline void
_dispatch_queue_push_queue(dispatch_queue_t tq, dispatch_queue_class_t dq,
uint64_t dq_state)
{
#if DISPATCH_USE_KEVENT_WORKLOOP
if (likely(_dq_state_is_base_wlh(dq_state))) {
_dispatch_trace_runtime_event(worker_request, dq._dq, 1);
return _dispatch_event_loop_poke((dispatch_wlh_t)dq._dq, dq_state,
DISPATCH_EVENT_LOOP_CONSUME_2);
}
#endif // DISPATCH_USE_KEVENT_WORKLOOP
_dispatch_trace_item_push(tq, dq);
return dx_push(tq, dq, _dq_state_max_qos(dq_state));
}
并行队列
//并行队列
void
_dispatch_lane_concurrent_push(dispatch_lane_t dq, dispatch_object_t dou,
dispatch_qos_t qos)
{
// <rdar://problem/24738102&24743140> reserving non barrier width
// doesn't fail if only the ENQUEUED bit is set (unlike its barrier
// width equivalent), so we have to check that this thread hasn't
// enqueued anything ahead of this call or we can break ordering
//自定义队列、全局队列为空时，执行_dispatch_continuation_redirect_push
if (dq->dq_items_tail == NULL &&
!_dispatch_object_is_waiter(dou) &&
!_dispatch_object_is_barrier(dou) &&
_dispatch_queue_try_acquire_async(dq)) {
return _dispatch_continuation_redirect_push(dq, dou, qos);
}
//同步执行的特殊情况、barrier、队列阻塞、全局队列等情况
_dispatch_lane_push(dq, dou, qos);
}
============= _dispatch_continuation_redirect_push =============
static void
_dispatch_continuation_redirect_push(dispatch_lane_t dl,
dispatch_object_t dou, dispatch_qos_t qos)
{
if (likely(!_dispatch_object_is_redirection(dou))) {
//设置任务的上下文信息
dou._dc = _dispatch_async_redirect_wrap(dl, dou);
} else if (!dou._dc->dc_ctxt) {
// find first queue in descending target queue order that has
// an autorelease frequency set, and use that as the frequency for
// this continuation.
dou._dc->dc_ctxt = (void *)
(uintptr_t)_dispatch_queue_autorelease_frequency(dl);
}
dispatch_queue_t dq = dl->do_targetq;
if (!qos) qos = _dispatch_priority_qos(dq->dq_priority);
//将任务添加到do_targetq队列，一般情况下就是绑定的全局根队列，见_dispatch_root_queue_push
dx_push(dq, dou, qos);
}
全局队列
//全局根队列
void
_dispatch_root_queue_push(dispatch_queue_global_t rq, dispatch_object_t dou,
dispatch_qos_t qos)
{
#if DISPATCH_USE_KEVENT_WORKQUEUE //1
dispatch_deferred_items_t ddi = _dispatch_deferred_items_get();
if (unlikely(ddi && ddi->ddi_can_stash)) {//不是太明白，unlikely的话应该不用太关心
dispatch_object_t old_dou = ddi->ddi_stashed_dou;
dispatch_priority_t rq_overcommit;
rq_overcommit = rq->dq_priority & DISPATCH_PRIORITY_FLAG_OVERCOMMIT;
if (likely(!old_dou._do || rq_overcommit)) {
dispatch_queue_global_t old_rq = ddi->ddi_stashed_rq;
dispatch_qos_t old_qos = ddi->ddi_stashed_qos;
ddi->ddi_stashed_rq = rq;
ddi->ddi_stashed_dou = dou;
ddi->ddi_stashed_qos = qos;
_dispatch_debug("deferring item %p, rq %p, qos %d",
dou._do, rq, qos);
if (rq_overcommit) {
ddi->ddi_can_stash = false;
}
if (likely(!old_dou._do)) {
return;
}
// push the previously stashed item
qos = old_qos;
rq = old_rq;
dou = old_dou;
}
}
#endif
#if HAVE_PTHREAD_WORKQUEUE_QOS //1
//如果qos与rq的qos不一致，将会重新获取根队里然后继续push操作
if (_dispatch_root_queue_push_needs_override(rq, qos)) {
return _dispatch_root_queue_push_override(rq, dou, qos);
}
#else
(void)qos;
#endif
_dispatch_root_queue_push_inline(rq, dou, dou, 1);
}
============= _dispatch_root_queue_push_override =============
static void
_dispatch_root_queue_push_override(dispatch_queue_global_t orig_rq,
dispatch_object_t dou, dispatch_qos_t qos)
{
bool overcommit = orig_rq->dq_priority & DISPATCH_PRIORITY_FLAG_OVERCOMMIT;
dispatch_queue_global_t rq = _dispatch_get_root_queue(qos, overcommit);
dispatch_continuation_t dc = dou._dc;
//上文中_dispatch_async_redirect_wrap方法设置dc
if (_dispatch_object_is_redirection(dc)) {
// no double-wrap is needed, _dispatch_async_redirect_invoke will do
// the right thing
//自定义队列
dc->dc_func = (void *)orig_rq;
} else {
//全局队列
dc = _dispatch_continuation_alloc();
dc->do_vtable = DC_VTABLE(OVERRIDE_OWNING);
dc->dc_ctxt = dc;
dc->dc_other = orig_rq;
dc->dc_data = dou._do;
dc->dc_priority = DISPATCH_NO_PRIORITY;
dc->dc_voucher = DISPATCH_NO_VOUCHER;
}
_dispatch_root_queue_push_inline(rq, dc, dc, 1);
}
============= _dispatch_root_queue_push_inline =============
static inline void
_dispatch_root_queue_push_inline(dispatch_queue_global_t dq,
dispatch_object_t _head, dispatch_object_t _tail, int n)
{
struct dispatch_object_s *hd = _head._do, *tl = _tail._do;
//os_mpsc_push_list队列为空时返回true
if (unlikely(os_mpsc_push_list(os_mpsc(dq, dq_items), hd, tl, do_next))) {
return _dispatch_root_queue_poke(dq, n, 0);
}
}
============= _dispatch_root_queue_poke =============
void
_dispatch_root_queue_poke(dispatch_queue_global_t dq, int n, int floor)
{
//检查队列是否为空
if (!_dispatch_queue_class_probe(dq)) {
return;
}
#if !DISPATCH_USE_INTERNAL_WORKQUEUE
#if DISPATCH_USE_PTHREAD_POOL //1
if (likely(dx_type(dq) == DISPATCH_QUEUE_GLOBAL_ROOT_TYPE))
#endif
{
if (unlikely(!os_atomic_cmpxchg2o(dq, dgq_pending, 0, n, relaxed))) {
_dispatch_root_queue_debug("worker thread request still pending "
"for global queue: %p", dq);
return;
}
}
#endif // !DISPATCH_USE_INTERNAL_WORKQUEUE
return _dispatch_root_queue_poke_slow(dq, n, floor);
}
============= _dispatch_root_queue_poke_slow =============
static void
_dispatch_root_queue_poke_slow(dispatch_queue_global_t dq, int n, int floor)
{
int remaining = n;
#if !defined(_WIN32)
int r = ENOSYS;
#endif
//这里初始化全局队列，会对_pthread_workqueue初始化
_dispatch_root_queues_init();
_dispatch_debug_root_queue(dq, __func__);
_dispatch_trace_runtime_event(worker_request, dq, (uint64_t)n);
#if !DISPATCH_USE_INTERNAL_WORKQUEUE //!0
#if DISPATCH_USE_PTHREAD_ROOT_QUEUES //1
if (dx_type(dq) == DISPATCH_QUEUE_GLOBAL_ROOT_TYPE)
#endif
{
_dispatch_root_queue_debug("requesting new worker thread for global "
"queue: %p", dq);
//这里会创建线程，remaining为1
//_dispatch_priority_to_pp_prefer_fallback将队列优先级dispatch_priority_t转换为pthread_priority_t
r = _pthread_workqueue_addthreads(remaining,
_dispatch_priority_to_pp_prefer_fallback(dq->dq_priority));
(void)dispatch_assume_zero(r);
return;
}
#endif // !DISPATCH_USE_INTERNAL_WORKQUEUE
//还有些完全看不明白的代码，但是在全局队列添加任务时，不会执行到
}
在向全局队列push任务时，终于看到线程创建相关的逻辑了
确保全局队列已初始化_dispatch_root_queues_init
static inline void
_dispatch_root_queues_init(void)
{
dispatch_once_f(&_dispatch_root_queues_pred, NULL,
_dispatch_root_queues_init_once);
}
============= _dispatch_root_queues_init_once =============
static void
_dispatch_root_queues_init_once(void *context DISPATCH_UNUSED)
{
_dispatch_fork_becomes_unsafe();
#if DISPATCH_USE_INTERNAL_WORKQUEUE
size_t i;
for (i = 0; i < DISPATCH_ROOT_QUEUE_COUNT; i++) {
_dispatch_root_queue_init_pthread_pool(&_dispatch_root_queues[i], 0,
_dispatch_root_queues[i].dq_priority);
}
#else
int wq_supported = _pthread_workqueue_supported();
int r = ENOTSUP;
if (!(wq_supported & WORKQ_FEATURE_MAINTENANCE)) {
DISPATCH_INTERNAL_CRASH(wq_supported,
"QoS Maintenance support required");
}
#if DISPATCH_USE_KEVENT_SETUP
struct pthread_workqueue_config cfg = {
.version = PTHREAD_WORKQUEUE_CONFIG_VERSION,//2
.flags = 0,
.workq_cb = 0,
.kevent_cb = 0,
.workloop_cb = 0,
.queue_serialno_offs = dispatch_queue_offsets.dqo_serialnum, //队列序号位于队列中的偏移量
#if PTHREAD_WORKQUEUE_CONFIG_VERSION >= 2
.queue_label_offs = dispatch_queue_offsets.dqo_label, //队列名位于队列中的偏移量
#endif
};
#endif
#pragma clang diagnostic push
#pragma clang diagnostic ignored "-Wunreachable-code"
if (unlikely(!_dispatch_kevent_workqueue_enabled)) {
#if DISPATCH_USE_KEVENT_SETUP
cfg.workq_cb = _dispatch_worker_thread2;//指定创建线程后执行的方法_dispatch_worker_thread2
//调用pthread库的pthread_workqueue_setup方法
r = pthread_workqueue_setup(&cfg, sizeof(cfg));
#else
r = _pthread_workqueue_init(_dispatch_worker_thread2,
offsetof(struct dispatch_queue_s, dq_serialnum), 0);
#endif // DISPATCH_USE_KEVENT_SETUP
//... ...
if (r != 0) {
DISPATCH_INTERNAL_CRASH((r << 16) | wq_supported,
"Root queue initialization failed");
}
#endif // DISPATCH_USE_INTERNAL_WORKQUEUE
}
初始化时，调用libpthread中的pthread_workqueue_setup方法启动workqueue
int
pthread_workqueue_setup(struct pthread_workqueue_config *cfg, size_t cfg_size)
{
int rv = EBUSY;
struct workq_dispatch_config wdc_cfg;
size_t min_size = 0;
if (cfg_size < sizeof(uint32_t)) {
return EINVAL;
}
switch (cfg->version) {
case 1:
min_size = offsetof(struct pthread_workqueue_config, queue_label_offs);
break;
case 2:
min_size = sizeof(struct pthread_workqueue_config);
break;
default:
return EINVAL;
}
if (!cfg || cfg_size < min_size) {
return EINVAL;
}
if (cfg->flags & ~PTHREAD_WORKQUEUE_CONFIG_SUPPORTED_FLAGS ||
cfg->version < PTHREAD_WORKQUEUE_CONFIG_MIN_SUPPORTED_VERSION) {
return ENOTSUP;
}
if (__libdispatch_workerfunction == NULL) {
__workq_newapi = true;
wdc_cfg.wdc_version = WORKQ_DISPATCH_CONFIG_VERSION;
wdc_cfg.wdc_flags = 0;
wdc_cfg.wdc_queue_serialno_offs = cfg->queue_serialno_offs;
#if WORKQ_DISPATCH_CONFIG_VERSION >= 2
wdc_cfg.wdc_queue_label_offs = cfg->queue_label_offs;
#endif
// Tell the kernel about dispatch internals
//调用内核方法，将相关配置传递到内核
rv = (int) __workq_kernreturn(WQOPS_SETUP_DISPATCH, &wdc_cfg, sizeof(wdc_cfg), 0);
if (rv == -1) {
return errno;
} else {
__libdispatch_keventfunction = cfg->kevent_cb;
__libdispatch_workloopfunction = cfg->workloop_cb;
__libdispatch_workerfunction = cfg->workq_cb; //_dispatch_worker_thread2方法保存到这
// Prepare the kernel for workq action
(void)__workq_open();
if (__is_threaded == 0) {
__is_threaded = 1;
}
return 0;
}
}
return rv;
}
调用内核libkernre方法__workq_kernreturn将workqueue的相关配置保存到内核
/**
* Multiplexed call to interact with the workqueue mechanism
*/
int
workq_kernreturn(struct proc *p, struct workq_kernreturn_args *uap, int32_t *retval)
{
int options = uap->options;
int arg2 = uap->affinity;
int arg3 = uap->prio;
struct workqueue *wq = proc_get_wqptr(p);
int error = 0;
if ((p->p_lflag & P_LREGISTER) == 0) {
return EINVAL;
}
switch (options) {
//{... ...}
//执行这里
case WQOPS_SETUP_DISPATCH: {
/*
* item = pointer to workq_dispatch_config structure
* arg2 = sizeof(item)
*/
struct workq_dispatch_config cfg;
bzero(&cfg, sizeof(cfg));
//应该是将用户空间下的配置信息拷贝到内核区
error = copyin(uap->item, &cfg, MIN(sizeof(cfg), (unsigned long) arg2));
if (error) {
break;
}
if (cfg.wdc_flags & ~WORKQ_DISPATCH_SUPPORTED_FLAGS ||
cfg.wdc_version < WORKQ_DISPATCH_MIN_SUPPORTED_VERSION) {
error = ENOTSUP;
break;
}
/* Load fields from version 1 */
//将配置中的信息同步到进程属性中
p->p_dispatchqueue_serialno_offset = cfg.wdc_queue_serialno_offs;
/* Load fields from version 2 */
if (cfg.wdc_version >= 2) {
p->p_dispatchqueue_label_offset = cfg.wdc_queue_label_offs;
}
break;
}
default:
error = EINVAL;
break;
}
return error;
}
完成初始化后，调用_pthread_workqueue_addthreads向workqueue中添加线程
int
_pthread_workqueue_addthreads(int numthreads, pthread_priority_t priority)
{
int res = 0;
if (__libdispatch_workerfunction == NULL) {
return EPERM;
}
#if TARGET_OS_OSX
// <rdar://problem/37687655> Legacy simulators fail to boot
//
// Older sims set the deprecated _PTHREAD_PRIORITY_ROOTQUEUE_FLAG wrongly,
// which is aliased to _PTHREAD_PRIORITY_SCHED_PRI_FLAG and that XNU
// validates and rejects.
//
// As a workaround, forcefully unset this bit that cannot be set here
// anyway.
priority &= ~_PTHREAD_PRIORITY_SCHED_PRI_FLAG;
#endif
//调用内核方法创建线程
res = __workq_kernreturn(WQOPS_QUEUE_REQTHREADS, NULL, numthreads, (int)priority);
if (res == -1) {
res = errno;
}
return res;
}
调用内核libkernre方法__workq_kernreturn执行线程创建相关方法
/**
* Multiplexed call to interact with the workqueue mechanism
*/
int
workq_kernreturn(struct proc *p, struct workq_kernreturn_args *uap, int32_t *retval)
{
int options = uap->options;
int arg2 = uap->affinity;
int arg3 = uap->prio;
struct workqueue *wq = proc_get_wqptr(p);
int error = 0;
if ((p->p_lflag & P_LREGISTER) == 0) {
return EINVAL;
}
switch (options) {
case WQOPS_QUEUE_REQTHREADS: {
/*
* arg2 = number of threads to start
* arg3 = priority
*/
error = workq_reqthreads(p, arg2, arg3);
break;
}
//{... ...}
default:
error = EINVAL;
break;
}
return error;
}
============= workq_reqthreads =============
/**
* Entry point for libdispatch to ask for threads
*/
//线程创建和管理的关键方法
static int
workq_reqthreads(struct proc *p, uint32_t reqcount, pthread_priority_t pp)
{
thread_qos_t qos = _pthread_priority_thread_qos(pp);
struct workqueue *wq = proc_get_wqptr(p);
uint32_t unpaced, upcall_flags = WQ_FLAG_THREAD_NEWSPI;
if (wq == NULL || reqcount <= 0 || reqcount > UINT16_MAX ||
qos == THREAD_QOS_UNSPECIFIED) {
return EINVAL;
}
WQ_TRACE_WQ(TRACE_wq_wqops_reqthreads | DBG_FUNC_NONE,
wq, reqcount, pp, 0, 0);
workq_threadreq_t req = zalloc(workq_zone_threadreq);
priority_queue_entry_init(&req->tr_entry);
req->tr_state = WORKQ_TR_STATE_NEW;
req->tr_flags = 0;
req->tr_qos = qos;
if (pp & _PTHREAD_PRIORITY_OVERCOMMIT_FLAG) {
req->tr_flags |= WORKQ_TR_FLAG_OVERCOMMIT;
upcall_flags |= WQ_FLAG_THREAD_OVERCOMMIT;
}
WQ_TRACE_WQ(TRACE_wq_thread_request_initiate | DBG_FUNC_NONE,
wq, workq_trace_req_id(req), req->tr_qos, reqcount, 0);
workq_lock_spin(wq);
do {
if (_wq_exiting(wq)) {
goto exiting;
}
/*
* When userspace is asking for parallelism, wakeup up to (reqcount - 1)
* threads without pacing, to inform the scheduler of that workload.
*
* The last requests, or the ones that failed the admission checks are
* enqueued and go through the regular creator codepath.
*
* If there aren't enough threads, add one, but re-evaluate everything
* as conditions may now have changed.
*/
//reqcount为1
if (reqcount > 1 && (req->tr_flags & WORKQ_TR_FLAG_OVERCOMMIT) == 0) {
//非overcommit的队列执行workq_constrained_allowance
unpaced = workq_constrained_allowance(wq, qos, NULL, false);
if (unpaced >= reqcount - 1) {
unpaced = reqcount - 1;
}
} else {
//unpaced=0
unpaced = reqcount - 1;
}
/*
* This path does not currently handle custom workloop parameters
* when creating threads for parallelism.
*/
assert(!(req->tr_flags & WORKQ_TR_FLAG_WL_PARAMS));
//创建多个线程时执行下面的循环一个一个创建
/*
* This is a trimmed down version of workq_threadreq_bind_and_unlock()
*/
while (unpaced > 0 && wq->wq_thidlecount) {
struct uthread *uth;
bool needs_wakeup;
uint8_t uu_flags = UT_WORKQ_EARLY_BOUND;
if (req->tr_flags & WORKQ_TR_FLAG_OVERCOMMIT) {
uu_flags |= UT_WORKQ_OVERCOMMIT;
}
uth = workq_pop_idle_thread(wq, uu_flags, &needs_wakeup);
_wq_thactive_inc(wq, qos);
wq->wq_thscheduled_count[_wq_bucket(qos)]++;
workq_thread_reset_pri(wq, uth, req, /*unpark*/ true);
wq->wq_fulfilled++;
uth->uu_save.uus_workq_park_data.upcall_flags = upcall_flags;
uth->uu_save.uus_workq_park_data.thread_request = req;
if (needs_wakeup) {
workq_thread_wakeup(uth);
}
unpaced--;
reqcount--;
}
//static uint32_t wq_max_threads = WORKQUEUE_MAXTHREADS;512
//static uint32_t wq_max_constrained_threads = WORKQUEUE_MAXTHREADS / 8;
//wq_max_threads为wq中线程数量的最大值 wq_max_threads=512
} while (unpaced && wq->wq_nthreads < wq_max_threads &&
workq_add_new_idle_thread(p, wq));
if (_wq_exiting(wq)) {
goto exiting;
}
req->tr_count = (uint16_t)reqcount;
//将req添加到wq的对应属性
//wq_event_manager_threadreq(管理线程)，wq_overcommit_queue(overcommit队列)，wq_constrained_queue（非overcommit队列）
if (workq_threadreq_enqueue(wq, req)) {
/* This can drop the workqueue lock, and take it again */
workq_schedule_creator(p, wq, WORKQ_THREADREQ_CAN_CREATE_THREADS);
}
workq_unlock(wq);
return 0;
exiting:
workq_unlock(wq);
zfree(workq_zone_threadreq, req);
return ECANCELED;
}
============= workq_constrained_allowance =============
static uint32_t
workq_constrained_allowance(struct workqueue *wq, thread_qos_t at_qos,
struct uthread *uth, bool may_start_timer)
{
assert(at_qos != WORKQ_THREAD_QOS_MANAGER);
uint32_t count = 0;
uint32_t max_count = wq->wq_constrained_threads_scheduled;
if (uth && (uth->uu_workq_flags & UT_WORKQ_OVERCOMMIT) == 0) {
/*
* don't count the current thread as scheduled
*/
assert(max_count > 0);
max_count--;
}
//static uint32_t wq_max_threads = WORKQUEUE_MAXTHREADS;
//static uint32_t wq_max_constrained_threads = WORKQUEUE_MAXTHREADS / 8;
//创建非overcommit的队列线程的最大值wq_max_constrained_threads = 64
if (max_count >= wq_max_constrained_threads) {
WQ_TRACE_WQ(TRACE_wq_constrained_admission | DBG_FUNC_NONE, wq, 1,
wq->wq_constrained_threads_scheduled,
wq_max_constrained_threads, 0);
/*
* we need 1 or more constrained threads to return to the kernel before
* we can dispatch additional work
*/
return 0;
}
max_count -= wq_max_constrained_threads;
/*
* Compute a metric for many how many threads are active. We find the
* highest priority request outstanding and then add up the number of active
* threads in that and all higher-priority buckets. We'll also add any
* "busy" threads which are not currently active but blocked recently enough
* that we can't be sure that they won't be unblocked soon and start
* being active again.
*
* We'll then compare this metric to our max concurrency to decide whether
* to add a new thread.
*/
uint32_t busycount, thactive_count;
thactive_count = _wq_thactive_aggregate_downto_qos(wq, _wq_thactive(wq),
at_qos, &busycount, NULL);
if (uth && uth->uu_workq_pri.qos_bucket != WORKQ_THREAD_QOS_MANAGER &&
at_qos <= uth->uu_workq_pri.qos_bucket) {
/*
* Don't count this thread as currently active, but only if it's not
* a manager thread, as _wq_thactive_aggregate_downto_qos ignores active
* managers.
*/
assert(thactive_count > 0);
thactive_count--;
}
//返回CPU（logical_cpu）数量，详见sched_qos_max_parallelism
count = wq_max_parallelism[_wq_bucket(at_qos)];
if (count > thactive_count + busycount) {
count -= thactive_count + busycount;
WQ_TRACE_WQ(TRACE_wq_constrained_admission | DBG_FUNC_NONE, wq, 2,
thactive_count, busycount, 0);
return MIN(count, max_count);
} else {
WQ_TRACE_WQ(TRACE_wq_constrained_admission | DBG_FUNC_NONE, wq, 3,
thactive_count, busycount, 0);
}
if (may_start_timer) {
/*
* If this is called from the add timer, we won't have another timer
* fire when the thread exits the "busy" state, so rearm the timer.
*/
workq_schedule_delayed_thread_creation(wq, 0);
}
return 0;
}
============= sched_qos_max_parallelism =============
uint32_t
sched_qos_max_parallelism(__unused int qos, uint64_t options)
{
host_basic_info_data_t hinfo;
mach_msg_type_number_t count = HOST_BASIC_INFO_COUNT;
/* Query the machine layer for core information */
__assert_only kern_return_t kret = host_info(host_self(), HOST_BASIC_INFO,
(host_info_t)&hinfo, &count);
assert(kret == KERN_SUCCESS);
if (options & QOS_PARALLELISM_COUNT_LOGICAL) {
return hinfo.logical_cpu;
} else {
return hinfo.physical_cpu;
}
}
调用workq_schedule_creator创建线程
static void
workq_schedule_creator(proc_t p, struct workqueue *wq,
workq_kern_threadreq_flags_t flags)
{
workq_threadreq_t req;
struct uthread *uth;
bool needs_wakeup;
workq_lock_held(wq);
assert(p || (flags & WORKQ_THREADREQ_CAN_CREATE_THREADS) == 0);
again:
uth = wq->wq_creator; //wq_creator中保存创建的线程
if (!wq->wq_reqcount) {
/*
* There is no thread request left.
*
* If there is a creator, leave everything in place, so that it cleans
* up itself in workq_push_idle_thread().
*
* Else, make sure the turnstile state is reset to no inheritor.
*/
if (uth == NULL) {
workq_turnstile_update_inheritor(wq, TURNSTILE_INHERITOR_NULL, 0);
}
return;
}
req = workq_threadreq_select_for_creator(wq);
if (req == NULL) {
/*
* There isn't a thread request that passes the admission check.
*
* If there is a creator, do not touch anything, the creator will sort
* it out when it runs.
*
* Else, set the inheritor to "WORKQ" so that the turnstile propagation
* code calls us if anything changes.
*/
if (uth == NULL) {
workq_turnstile_update_inheritor(wq, wq, TURNSTILE_INHERITOR_WORKQ);
}
return;
}
if (uth) {
/*
* We need to maybe override the creator we already have
*/
//重新设置已经创建好的线程优先级
if (workq_thread_needs_priority_change(req, uth)) {
WQ_TRACE_WQ(TRACE_wq_creator_select | DBG_FUNC_NONE,
wq, 1, thread_tid(uth->uu_thread), req->tr_qos, 0);
workq_thread_reset_pri(wq, uth, req, /*unpark*/ true);
}
assert(wq->wq_inheritor == uth->uu_thread);
} else if (wq->wq_thidlecount) {
/*
* We need to unpark a creator thread
*/
//wq中有空闲线程时，唤醒一个，重置优先级
wq->wq_creator = uth = workq_pop_idle_thread(wq, UT_WORKQ_OVERCOMMIT,
&needs_wakeup);
/* Always reset the priorities on the newly chosen creator */
workq_thread_reset_pri(wq, uth, req, /*unpark*/ true);
workq_turnstile_update_inheritor(wq, uth->uu_thread,
TURNSTILE_INHERITOR_THREAD);
WQ_TRACE_WQ(TRACE_wq_creator_select | DBG_FUNC_NONE,
wq, 2, thread_tid(uth->uu_thread), req->tr_qos, 0);
uth->uu_save.uus_workq_park_data.fulfilled_snapshot = wq->wq_fulfilled;
uth->uu_save.uus_workq_park_data.yields = 0;
if (needs_wakeup) {
workq_thread_wakeup(uth);
}
} else {
/*
* We need to allocate a thread...
*/
if (__improbable(wq->wq_nthreads >= wq_max_threads)) {
/* out of threads, just go away */
//wq中的线程数量达到了上限，直接返回
flags = WORKQ_THREADREQ_NONE;
} else if (flags & WORKQ_THREADREQ_SET_AST_ON_FAILURE) {
act_set_astkevent(current_thread(), AST_KEVENT_REDRIVE_THREADREQ);
} else if (!(flags & WORKQ_THREADREQ_CAN_CREATE_THREADS)) {
/* This can drop the workqueue lock, and take it again */
workq_schedule_immediate_thread_creation(wq);
} else if (workq_add_new_idle_thread(p, wq)) {//workq_add_new_idle_thread创建线程
//分配栈内存，将线程加入wq
goto again;
} else {
workq_schedule_delayed_thread_creation(wq, 0);
}
/*
* If the current thread is the inheritor:
*
* If we set the AST, then the thread will stay the inheritor until
* either the AST calls workq_kern_threadreq_redrive(), or it parks
* and calls workq_push_idle_thread().
*
* Else, the responsibility of the thread creation is with a thread-call
* and we need to clear the inheritor.
*/
if ((flags & WORKQ_THREADREQ_SET_AST_ON_FAILURE) == 0 &&
wq->wq_inheritor == current_thread()) {
workq_turnstile_update_inheritor(wq, TURNSTILE_INHERITOR_NULL, 0);
}
}
}
在线程池中的线程执行任务
上文提到在_dispatch_root_queues_init时，会指定线程池中的线程执行的方法：_dispatch_worker_thread2
调用链为: start_wqthread->_pthread_wqthread->__libdispatch_workerfunction(_dispatch_worker_thread2)
static void
_dispatch_worker_thread2(pthread_priority_t pp)
{
bool overcommit = pp & _PTHREAD_PRIORITY_OVERCOMMIT_FLAG;
dispatch_queue_global_t dq;
pp &= _PTHREAD_PRIORITY_OVERCOMMIT_FLAG | ~_PTHREAD_PRIORITY_FLAGS_MASK;
//设置dispatch_priority_key
_dispatch_thread_setspecific(dispatch_priority_key, (void *)(uintptr_t)pp);
//通过优先级和overcommit获取全局队列
dq = _dispatch_get_root_queue(_dispatch_qos_from_pp(pp), overcommit);
_dispatch_introspection_thread_add();//将线程信息加入一个链表
_dispatch_trace_runtime_event(worker_unpark, dq, 0);
int pending = os_atomic_dec2o(dq, dgq_pending, relaxed);
dispatch_assert(pending >= 0);
//获取任务，准备执行
_dispatch_root_queue_drain(dq, dq->dq_priority,
DISPATCH_INVOKE_WORKER_DRAIN | DISPATCH_INVOKE_REDIRECTING_DRAIN);
_dispatch_voucher_debug("root queue clear", NULL);
_dispatch_reset_voucher(NULL, DISPATCH_THREAD_PARK);
_dispatch_trace_runtime_event(worker_park, NULL, 0);
}
============= _dispatch_root_queue_drain =============
static void
_dispatch_root_queue_drain(dispatch_queue_global_t dq,
dispatch_priority_t pri, dispatch_invoke_flags_t flags)
{
#if DISPATCH_DEBUG
dispatch_queue_t cq;
if (unlikely(cq = _dispatch_queue_get_current())) {
DISPATCH_INTERNAL_CRASH(cq, "Premature thread recycling");
}
#endif
_dispatch_queue_set_current(dq);
_dispatch_init_basepri(pri);
_dispatch_adopt_wlh_anon();
struct dispatch_object_s *item;
bool reset = false;
dispatch_invoke_context_s dic = { };
#if DISPATCH_COCOA_COMPAT
_dispatch_last_resort_autorelease_pool_push(&dic);
#endif // DISPATCH_COCOA_COMPAT
_dispatch_queue_drain_init_narrowing_check_deadline(&dic, pri);
_dispatch_perfmon_start();
//从队列任务链表中取任务
while (likely(item = _dispatch_root_queue_drain_one(dq))) {
if (reset) _dispatch_wqthread_override_reset();
//执行任务
_dispatch_continuation_pop_inline(item, &dic, flags, dq);
reset = _dispatch_reset_basepri_override();
if (unlikely(_dispatch_queue_drain_should_narrow(&dic))) {
break;
}
}
// overcommit or not. worker thread
if (pri & DISPATCH_PRIORITY_FLAG_OVERCOMMIT) {
_dispatch_perfmon_end(perfmon_thread_worker_oc);
} else {
_dispatch_perfmon_end(perfmon_thread_worker_non_oc);
}
#if DISPATCH_COCOA_COMPAT
_dispatch_last_resort_autorelease_pool_pop(&dic);
#endif // DISPATCH_COCOA_COMPAT
_dispatch_reset_wlh();
_dispatch_clear_basepri();
_dispatch_queue_set_current(NULL);
}
============= _dispatch_continuation_pop_inline =============
static inline void
_dispatch_continuation_pop_inline(dispatch_object_t dou,
dispatch_invoke_context_t dic, dispatch_invoke_flags_t flags,
dispatch_queue_class_t dqu)
{
dispatch_pthread_root_queue_observer_hooks_t observer_hooks =
_dispatch_get_pthread_root_queue_observer_hooks();
if (observer_hooks) observer_hooks->queue_will_execute(dqu._dq);
flags &= _DISPATCH_INVOKE_PROPAGATE_MASK;
//任务dou的类型是dispatch_continuation_t，没有设置vtable
if (_dispatch_object_has_vtable(dou)) {
dx_invoke(dou._dq, dic, flags);
} else {
//这里调用_dispatch_client_callout执行任务
_dispatch_continuation_invoke_inline(dou, flags, dqu);
}
if (observer_hooks) observer_hooks->queue_did_execute(dqu._dq);
}
总结
后面的源码已经看得我神志不清了，如有错误，还请校正
GCD队列的线程一般是由内核方法__workq_kernreturn创建的，最大线程数量是512，非overcommit的队列的最大线程数量是64（全局队列+自定义并行队列一共最多创建64个线程）。
//WORKQUEUE_MAXTHREADS 512
static uint32_t wq_max_threads = WORKQUEUE_MAXTHREADS;
static uint32_t wq_max_constrained_threads = WORKQUEUE_MAXTHREADS / 8;
