1.安装echarts-for-react

npm i echarts echarts-for-react

2.导入ReactEcharts

import ReactEcharts from "echarts-for-react"

3.创建数据

const getOption = () => {
    let option = {
      // color: colors[props.obj.zhutis],
      legend: {//头部
        data: ['Java', 'C', 'C++', 'Python', 'Visual Basic .NET', 'C#', 'JavaScript', 'PHP', 'SQL', 'Objective-C'],
        textStyle: {
          // color: colors[props.obj.zhutis][0],  //坐标的字体颜色
        },
      },
      xAxis: {//x轴
        nameLocation: 'start',
        inverse: true,
        data: ['2019', '2014', '2009', '2004', '1999', '1994', '1989'],
        axisLabel: {
          textStyle: {
            // color: colors[props.obj.zhutis][0],  //坐标的字体颜色
          },
        },
      },
      yAxis: {//Y轴
        name: '排名',
        nameLocation: 'start',
        min: 1,
        inverse: true,
        axisLabel: {
          textStyle: {
            // color: colors[props.obj.zhutis][0], //坐标的字体颜色
          },
        },
      },
      series: [
        { "name": "Java", data: [1, 2, 1, 1, 12, '-', 0], type: 'line' },
        { "name": "C", data: [2, 1, 2, 2, 1, 1, 1], type: 'line' },
        { "name": "C++", data: [3, 4, 3, 3, 2, 2, 3], type: 'line' },
        { "name": "Python", data: [4, 7, 5, 9, 27, 21, 0], type: 'line' },
        { "name": "Visual Basic .NET", data: [5, 10, '-', '-', '-', '-', 0], type: 'line' },
        { "name": "C#", data: [6, 5, 6, 7, 23, '-', 0], type: 'line' },
        { "name": "JavaScript", data: [7, 8, 8, 8, 17, '-', 0], type: 'line' },
        { "name": "PHP", data: [8, 6, 4, 5, '-', '-', 0], type: 'line' },
        { "name": "SQL", data: [9, '-', '-', 6, '-', '-', 0], type: 'line' },
        { "name": "Objective-C", data: [10, 3, 36, 44, '-', '-', 0], type: 'line' },
        // {"name": "COBOL", data: [25, 20, 16, 11, 3, 9, 12]},
        // {"name": "Lisp", data: [29, 13, 19, 14, 14, 5, 2]},
        // {"name": "Pascal", data: [207, 14, 14, 96, 6, 3, 17]}
      ]
    };
    return option
  }

4.组件库

<div id="two" style={{width:"324px",height:"300px"}}>
      <ReactEcharts option={getOption()} style={{width:"100%",height:"100%"}} />
</div>

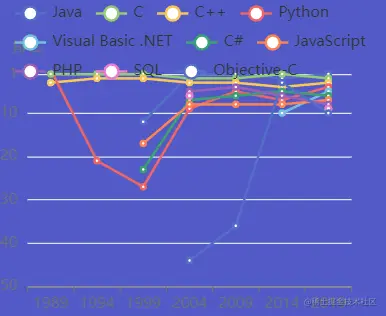

5.效果
