NLog同时输出到文件、控制台、RichTextBox

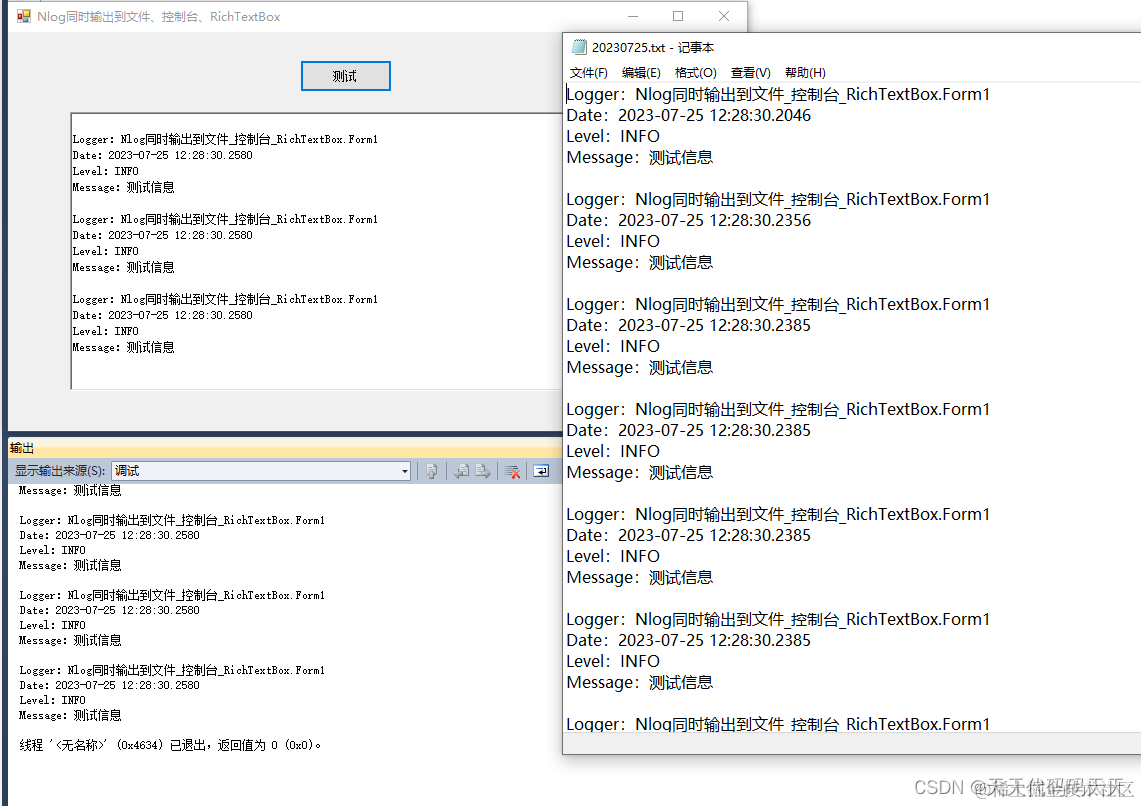

效果

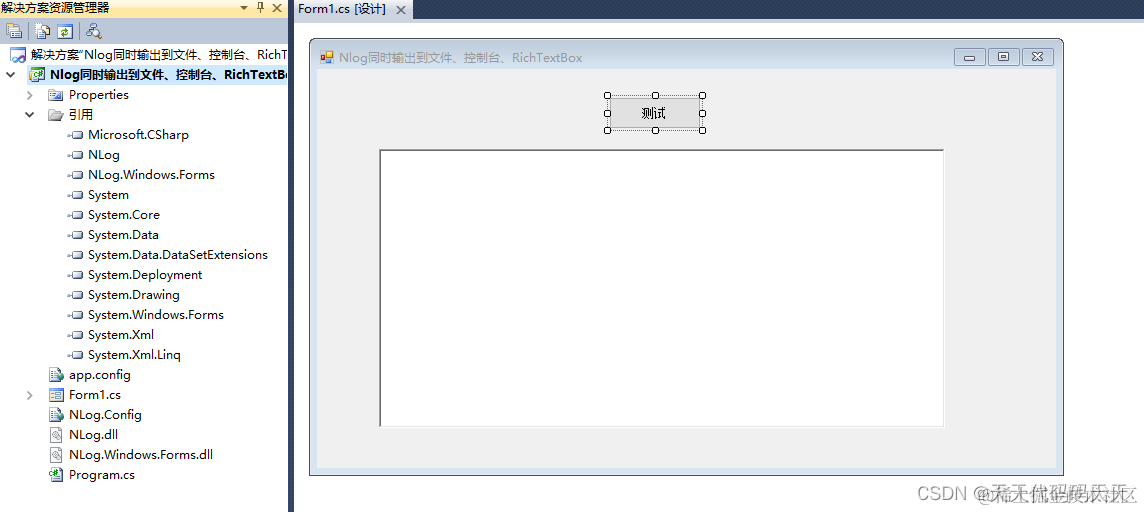

项目

VS2010+.net4.0+NLog+NLog.Windows.Forms

代码

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using NLog;

namespace Nlog同时输出到文件_控制台_RichTextBox
{
    public partial class Form1 : Form
    {
        public Form1()
        {
            InitializeComponent();
            NLog.Windows.Forms.RichTextBoxTarget.ReInitializeAllTextboxes(this);
        }

        private static Logger _log = NLog.LogManager.GetCurrentClassLogger();

        private void button1_Click(object sender, EventArgs e)
        {
            for (int i = 0; i < 10; i++)
            {
                _log.Info("测试信息");
            }
        }
    }
}

配置文件 NLog.Config

<?xml version="1.0" encoding="utf-8" ?>
<nlog xmlns="http://www.nlog-project.org/schemas/NLog.xsd"
      xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
      autoReload="true"
      throwExceptions="false"
      internalLogLevel="Off"
      internalLogFile="d:\nlog\nlog-internal.log">

  <!-- optional, add some variables
  https://github.com/nlog/NLog/wiki/Configuration-file#variables
  -->
  <!--<variable name="myvar" value="myvalue"/>-->

  <variable name="logDir" value="${basedir}/nlog"/>
  <variable name="logFileName" value="${date:format=yyyyMMdd}.txt"/>
  <variable name="logArchiveFileName" value="${date:format=yyyyMMdd}_{#}.txt"/>
  <variable name="logLayout" value="Logger：${logger}${newline}Date：${longdate}${newline}Level：${uppercase:${level}}${newline}Message：${message} ${newline}${onexception:Exception：${exception:format=toString}${newline}}" />
  <!--
  See https://github.com/nlog/nlog/wiki/Configuration-file
  for information on customizing logging rules and outputs.
   -->

  <targets>

    <!--
    add your targets here
    See https://github.com/nlog/NLog/wiki/Targets for possible targets.
    See https://github.com/nlog/NLog/wiki/Layout-Renderers for the possible layout renderers.
    -->

    <!--
    Write events to a file with the date in the filename.
    <target xsi:type="File" name="f" fileName="${basedir}/logs/${shortdate}.log"
            layout="${longdate} ${uppercase:${level}} ${message}" />
    -->

    <target xsi:type="File" name="info"
            layout="${logLayout}"
            fileName="${logDir}/info/${logFileName}"
            archiveFileName="${logDir}/info/${logArchiveFileName}"
            archiveAboveSize="10485760"
            archiveNumbering="Sequence"
            maxArchiveFiles="100"
            concurrentWrites="true"
            keepFileOpen="true"
            openFileCacheTimeout="30"
            encoding="UTF-8" />

    <target xsi:type="File" name="debug"
            layout="${logLayout}"
            fileName="${logDir}/debug/${logFileName}"
            archiveFileName="${logDir}/debug/${logArchiveFileName}"
            archiveAboveSize="10485760"
            archiveNumbering="Sequence"
            maxArchiveFiles="100"
            concurrentWrites="true"
            keepFileOpen="true"
            openFileCacheTimeout="30"
            encoding="UTF-8" />

    <target xsi:type="File" name="error"
            layout="${logLayout}"
            fileName="${logDir}/error/${logFileName}"
            archiveFileName="${logDir}/error/${logArchiveFileName}"
            archiveAboveSize="10485760"
            archiveNumbering="Sequence"
            maxArchiveFiles="100"
            concurrentWrites="true"
            keepFileOpen="true"
            openFileCacheTimeout="30"
            encoding="UTF-8" />

	 <target xsi:type="RichTextBox"
			     name="logrichtextbox"
			     layout="${logLayout}"
			     controlName="rtInfo"
			     formName="Form1"
           maxLines="100"
           autoScroll="true"
           allowAccessoryFormCreation="false"
           />

	 <target name="logconsole"
			     xsi:type="Console"
           layout="${logLayout}"   />


  </targets>

  <rules>
    <!-- add your logging rules here -->

    <!--
    Write all events with minimal level of Debug (So Debug, Info, Warn, Error and Fatal, but not Trace)  to "f"
    <logger name="*" minlevel="Debug" writeTo="f" />
    -->

    <logger name="*" minlevel="Info" maxlevel="Info" writeTo="info,logrichtextbox,logconsole" />

    <logger name="*" minlevel="Debug" maxlevel="Debug" writeTo="debug" />

    <logger name="*" minlevel="Error" maxlevel="Error" writeTo="error,logrichtextbox,logconsole" />

  </rules>
</nlog>

Demo下载
