1.@ConditionalOnBean顺序问题演示

1.1 正常情况演示

@Configuration
public class Demo {

@Bean
public AAA aaa(){
    return new AAA();
}
@Bean
@ConditionalOnBean(value = {AAA.class})
public BBB bbb(){
    return new BBB();
}
}
class AAA {
    public AAA() {
        System.out.println("aaa constructor");
    }
}

class BBB {
    public BBB() {
        System.out.println("bbb constructor");
    }
}

正常输出：
aaa constructor
bbb constructor

1.2 顺序问题演示

@Bean
@ConditionalOnBean(value = {AAA.class})
public BBB bbb(){
    return new BBB();
}

@Bean
public AAA aaa(){
    return new AAA();
}

将2个bean 方法顺序调换后输出：
aaa constructor

1.3 问题小结

从使用的角度来看，aaa对象既然已经创建了那么就应该加载bbb对象但是由于顺序问题，并没有按照预期的执行

2.原因排查

2.1 @ConditionalOnBean 入口

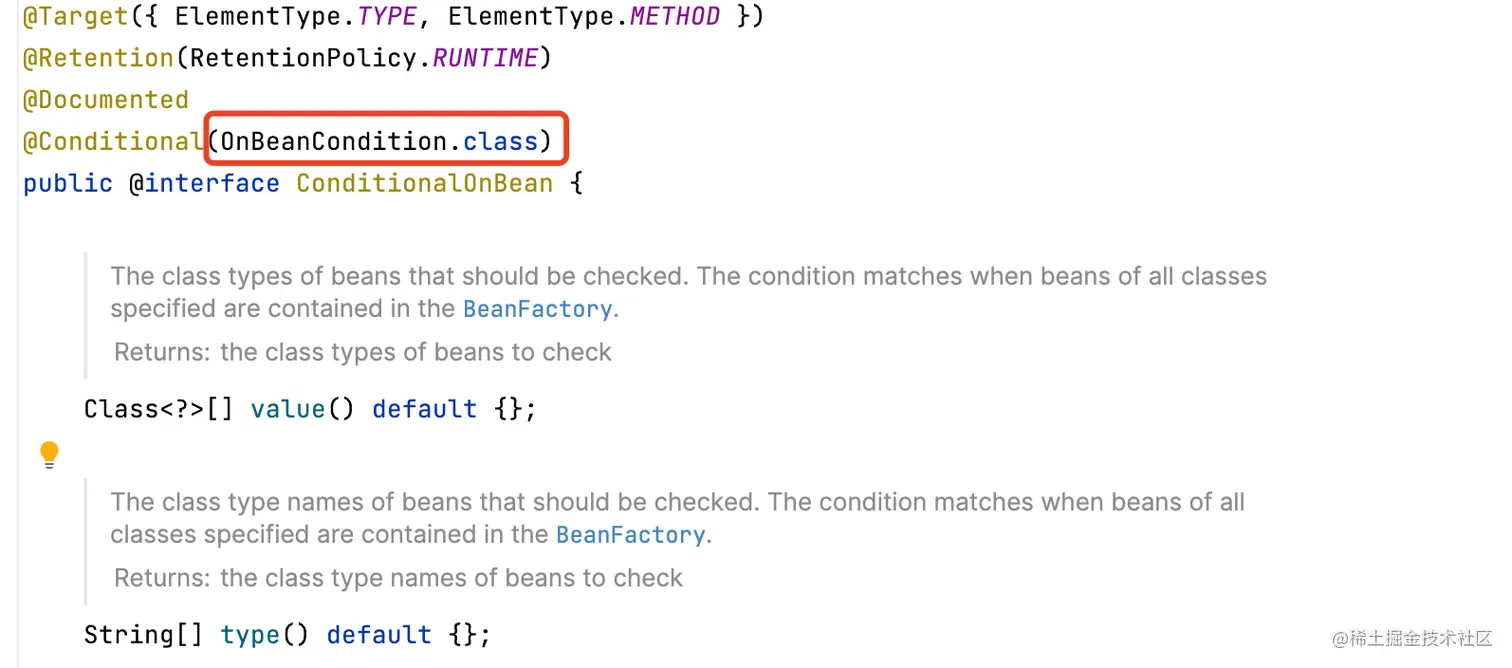

2.2 @ConditionalOnBean层级关系

2.3 核心关注点

org.springframework.boot.autoconfigure.condition.OnBeanCondition#collectBeanNamesForType

private Set<String> collectBeanNamesForType(ListableBeanFactory beanFactory, boolean considerHierarchy,
Class<?> type, Set<Class<?>> parameterizedContainers, Set<String> result) {
    //TODO type 就是 conditionalOnBean 的属性
    //TODO 这边通过beanFactory 查找相关的对象 来判断依赖的对象存不存在
    result = addAll(result, beanFactory.getBeanNamesForType(type, true, false));
    for (Class<?> container : parameterizedContainers) {
        ResolvableType generic = ResolvableType.forClassWithGenerics(container, type);
        result = addAll(result, beanFactory.getBeanNamesForType(generic, true, false));
    }
    if (considerHierarchy && beanFactory instanceof HierarchicalBeanFactory) {
        BeanFactory parent = ((HierarchicalBeanFactory) beanFactory).getParentBeanFactory();
        if (parent instanceof ListableBeanFactory) {
            result = collectBeanNamesForType((ListableBeanFactory) parent, considerHierarchy, type,parameterizedContainers, result);
        }
    }
    return result;
}

2.3.1 看下 beanFactory.getBeanNamesForType 的查找逻辑

org.springframework.beans.factory.support.DefaultListableBeanFactory#doGetBeanNamesForType

private String[] doGetBeanNamesForType(ResolvableType type, boolean includeNonSingletons, boolean allowEagerInit) {
    for (String beanName : this.beanDefinitionNames){
    ......
    }
}

这边主要就是遍历 beanDefinitionNames （存储了所有spring加载的对象）

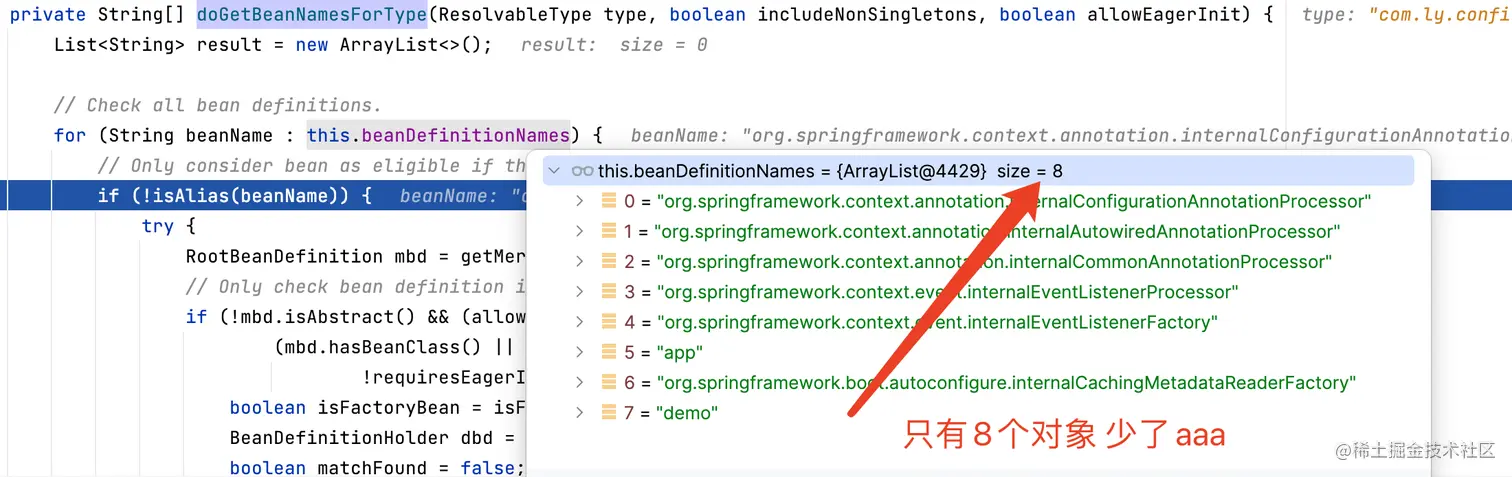

2.3.2 针对这块代码打个端点比较下 2种情况

2.3.2.1 正常顺序

2.3.2.2 不正常顺序

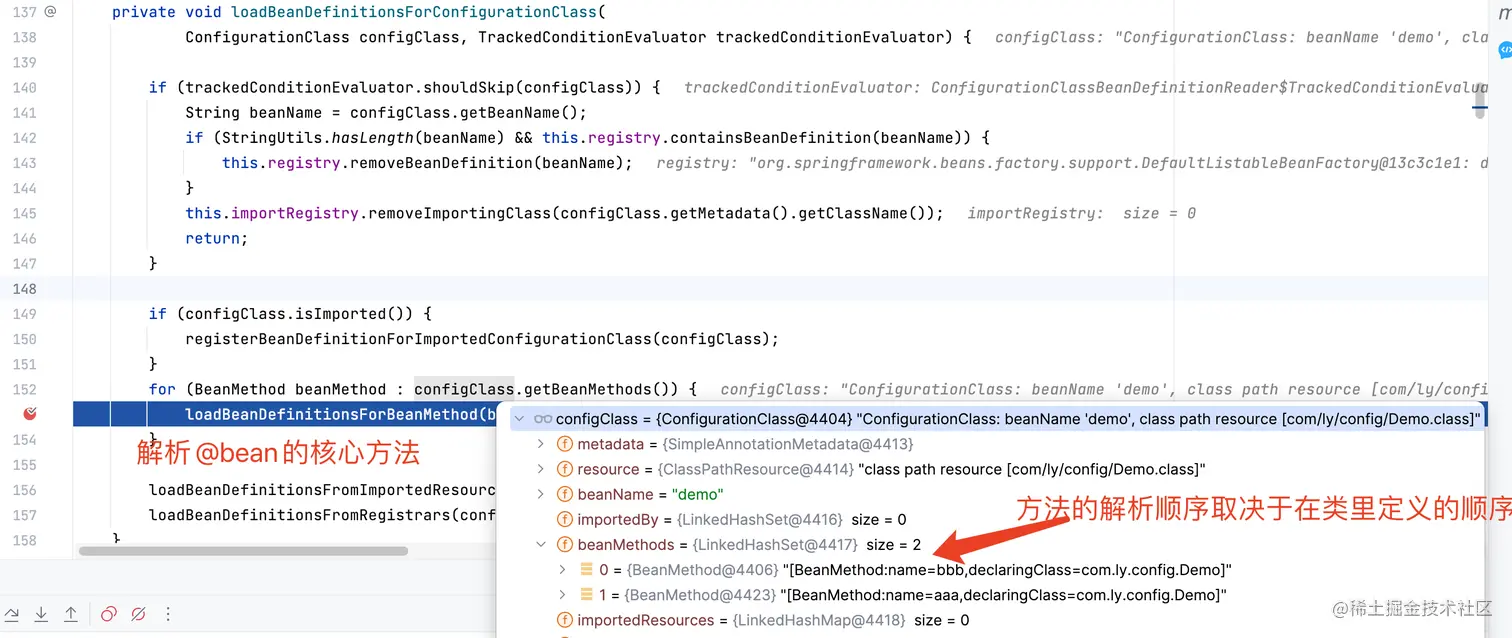

2.3.3 看下 @bean 对象是什么时候注册到 beanDefinitionNames里的

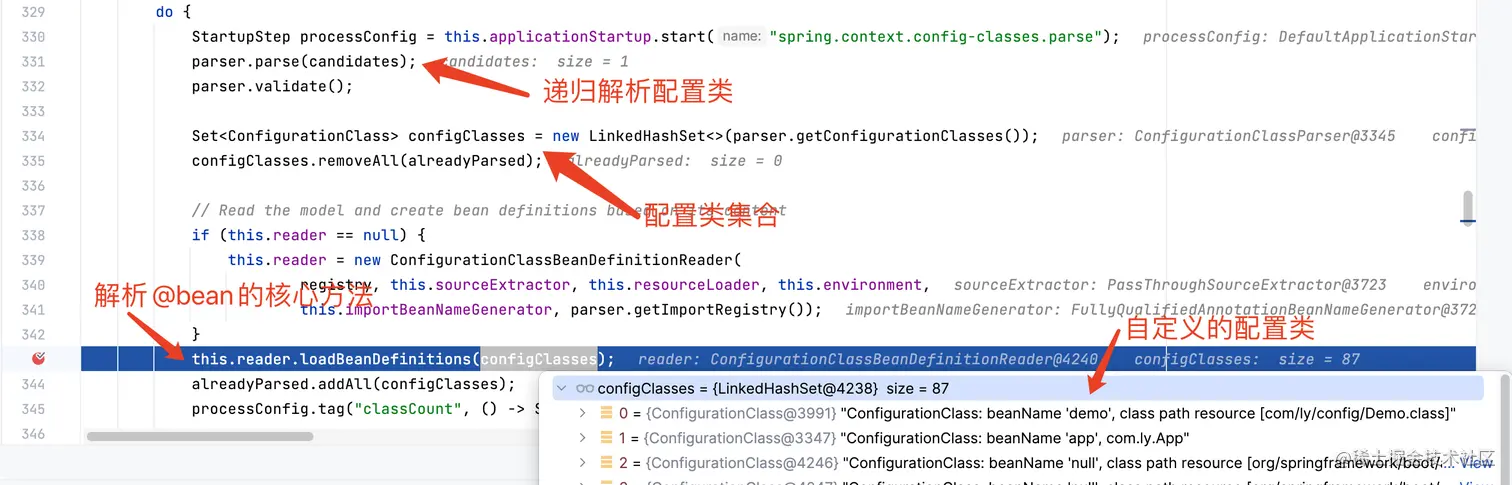

核心类：ConfigurationClassPostProcessor org.springframework.context.annotation.ConfigurationClassPostProcessor#processConfigBeanDefinitions

public void loadBeanDefinitions(Set<ConfigurationClass> configurationModel) {
    TrackedConditionEvaluator trackedConditionEvaluator = new TrackedConditionEvaluator();
    for (ConfigurationClass configClass : configurationModel) {
        //TODO 循环处理配置类
        loadBeanDefinitionsForConfigurationClass(configClass, trackedConditionEvaluator);
    }
}

private void loadBeanDefinitionsForBeanMethod(BeanMethod beanMethod) {
    ConfigurationClass configClass = beanMethod.getConfigurationClass();
    MethodMetadata metadata = beanMethod.getMetadata();
    String methodName = metadata.getMethodName();

    // Do we need to mark the bean as skipped by its condition?
    //TODO 这里就是 @ConditionalOnBean 调用入口
    if (this.conditionEvaluator.shouldSkip(metadata, ConfigurationPhase.REGISTER_BEAN)) {
        configClass.skippedBeanMethods.add(methodName);
        return;
    }
    ......此处省略100行
    //TODO 这边就是往 beanDefinitionNames add 值的
    this.registry.registerBeanDefinition(beanName, beanDefToRegister);
  }

2.4 小结

产生这个问题的原因主要是因为 @ConditionalOnBean 注解是基于是否创建beanDefinition对象来判断的，但是他的调用入口是在创建 beanDefinition的过程中所以对顺序上会有依赖

3.自定义注解思路

先把所有的beanDefinition全部加载完，然后再删除那些不需要加载的加载beanDefinition的核心类是ConfigurationClassPostProcessor 其核心接口是 BeanDefinitionRegistryPostProcessor
那么我们通过下一个扩展接口 BeanFactoryPostProcessor 去实现这个功能（2个接口的顺序问题看 org.springframework.context.support.PostProcessorRegistrationDelegate#invokeBeanFactoryPostProcessors）

4.@XrConditionalOnBean 开造

4.1 类定义

@Target({ ElementType.TYPE, ElementType.METHOD })
@Retention(RetentionPolicy.RUNTIME)
@Documented
public @interface XrConditionalOnBean {
    String[] name();
}

@Component
public class ConditionalBeanFactoryPostProcessor implements BeanFactoryPostProcessor {

@Override
public void postProcessBeanFactory(ConfigurableListableBeanFactory beanFactory) throws BeansException {
    //TODO 获取所有 XrConditionalOnBean修饰的bean
    String[] beanNamesForAnnotation = beanFactory.getBeanNamesForAnnotation(XrConditionalOnBean.class);
    if (!(beanFactory instanceof BeanDefinitionRegistry))
        return;
    BeanDefinitionRegistry registry = (BeanDefinitionRegistry) beanFactory;
    for (int i = 0; i < beanNamesForAnnotation.length; i++) {
         //TODO 获取BeanDefinition
        BeanDefinition beanDefinition = registry.getBeanDefinition(beanNamesForAnnotation[i]);
        Set<String> set = new HashSet<>();
        if (!(beanDefinition instanceof AnnotatedBeanDefinition))
            continue;
        AnnotatedBeanDefinition annotatedBeanDefinition = (AnnotatedBeanDefinition) beanDefinition;
        //TODO 获取类注解参数
        Map<String, Object> annotationAttributes = annotatedBeanDefinition.getMetadata().getAnnotationAttributes(XrConditionalOnBean.class.getName(), false);
        if (annotationAttributes != null) {
            set.addAll(Stream.of((String[]) annotationAttributes.get("name")).collect(Collectors.toSet()));
        }
        if (annotatedBeanDefinition.getFactoryMethodMetadata() != null) {
            //TODO 获取方法上的注解参数
            Map<String, Object> methodAnnotation = annotatedBeanDefinition.getFactoryMethodMetadata().getAnnotationAttributes(XrConditionalOnBean.class.getName(), false);
            if (methodAnnotation != null) {
                set.addAll(Stream.of((String[]) methodAnnotation.get("name")).collect(Collectors.toSet()));
             }
        }
        if (set.isEmpty())
            continue;
        for (String beanName : set) {
            //TODO 校验如果不存在指定bean 则删除该对象
            if (!registry.containsBeanDefinition(beanName)) {
                registry.removeBeanDefinition(beanNamesForAnnotation[i]);
            }
          }
       }
    }
}

4.2 运行

@Bean
@XrConditionalOnBean(name = {"aaa"})
public BBB bbb(){
return new BBB();
}

@Bean
public AAA aaa(){
return new AAA();
}

正确输出：
bbb constructor
aaa constructor

@Bean
@XrConditionalOnBean(name = {"aaa"})
public BBB bbb(){
return new BBB();
}

正确输出：
空

写一个没有顺序问题的 @ConditionalOnBean
