【JAVA】Springboot整合Swagger2,Swagger3

Swagger是一个规范和完整的框架，用于生成、描述、调用和可视化 RESTful 风格的 Web 服务。

1. Swagger2.x

1.1 Dependency

<dependencies>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>

    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-test</artifactId>
        <scope>test</scope>
    </dependency>
    <dependency>
        <groupId>org.projectlombok</groupId>
        <artifactId>lombok</artifactId>
        <optional>true</optional>
    </dependency>

    <dependency>
        <groupId>io.springfox</groupId>
        <artifactId>springfox-swagger2</artifactId>
        <version>2.9.2</version>
    </dependency>
    <dependency>
        <groupId>io.springfox</groupId>
        <artifactId>springfox-swagger-ui</artifactId>
        <version>2.9.2</version>
    </dependency>
</dependencies>

1.2 配置類,指向Controller

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.ResourceHandlerRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

@Configuration
@EnableSwagger2
public class DemoSwagger implements WebMvcConfigurer {

    //如果没有前后端分离，需要加载静态资源
    @Override
    public void addResourceHandlers(ResourceHandlerRegistry registry) {
        registry.addResourceHandler("/")
                .addResourceLocations("classpath:/static/");
        registry.addResourceHandler("swagger-ui.html")
                .addResourceLocations("classpath:/META-INF/resources/");

        registry.addResourceHandler("/webjars/**")
                .addResourceLocations("classpath:/META-INF/resources/webjars/");
    }

    @Bean
    public Docket createRestApi() {
        return new Docket(DocumentationType.SWAGGER_2)
                .apiInfo(apiInfo())
                .select()
                //查看自己項目的目錄結構
                .apis(RequestHandlerSelectors.basePackage("com.example.controller"))
                .paths(PathSelectors.any())
                .build();
    }

    private ApiInfo apiInfo() {
        return new ApiInfoBuilder()
                .title("Restful APIs")
                .description("Swagger Website：https://swagger.io/")
                .license("xxxxxx.")
                .licenseUrl("https://www.baidu.com")
                .version("1.0")
                .build();
    }
}

1.3 Controller

@Api(tags = "測試使用")
@RestController
@RequestMapping(value = "/check")
public class HelloController {

    @RequestMapping(value = "/hello", method = RequestMethod.GET)
    @ApiOperation(value = "獲取Hello")
    public Hello createHello(){
        Hello hello = new Hello();
        hello.setHello("xxxx");
        return hello;
    }

    @RequestMapping(value = "/json", method = RequestMethod.GET)
    @ApiOperation(value = "獲取JSON")
    public String getJson(){
        return "{\"hello\":\"abc\"}";
    }
}

1.4 訪問路徑

http://localhost:8080/swagger-ui.html

2. Swagger3.x

2.1 Dependency

    <!-- Springboot 2.3.7.RELEASE -->
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.3.7.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>

    <!-- https://mvnrepository.com/artifact/io.springfox/springfox-boot-starter -->
    <dependency>
        <groupId>io.springfox</groupId>
        <artifactId>springfox-boot-starter</artifactId>
        <version>3.0.0</version>
    </dependency>
    <dependency>
        <groupId>org.projectlombok</groupId>
        <artifactId>lombok</artifactId>
    </dependency>

2.2 配置類

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.bind.annotation.RestController;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.oas.annotations.EnableOpenApi;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Contact;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;

@EnableOpenApi
@Configuration
public class DemoSwaggerConfig {

    /**
     * 配置基本信息
     * @return
     */
    @Bean
    public ApiInfo apiInfo() {
        return new ApiInfoBuilder()
                .title("Swagger Test App Restful API")
                .description("swagger test app restful api")
                .termsOfServiceUrl("https://github.com/geekxingyun")
                .contact(new Contact("技术宅星云","https://xingyun.blog.csdn.net","fairy_xingyun@hotmail.com"))
                .version("1.0")
                .build();
    }

    /**
     * 配置文档生成最佳实践
     * @param apiInfo
     * @return
     */
    @Bean
    public Docket createRestApi(ApiInfo apiInfo) {
        return new Docket(DocumentationType.OAS_30)
                .apiInfo(apiInfo)
                .groupName("SwaggerGroupOneAPI")
                .select()
                .apis(RequestHandlerSelectors.basePackage("com.example.controller"))
                .paths(PathSelectors.any())
                .build();
    }
}

2.3 訪問路徑

controller配置同上。

http://localhost:8080/swagger-ui/#/

3. Error

3.1 Failed to start bean 'documentationPluginsBootstrapper'

基本上就是Springboot和Swagger版本不兼容

SpringBoot Version	Swagger Version
2.5.6	2.9.2

---

SpringBoot Version	Swagger Version
2.3.7.RELEASE	3.0.0

3.2 Lombok Requires Enable Annotation Processing

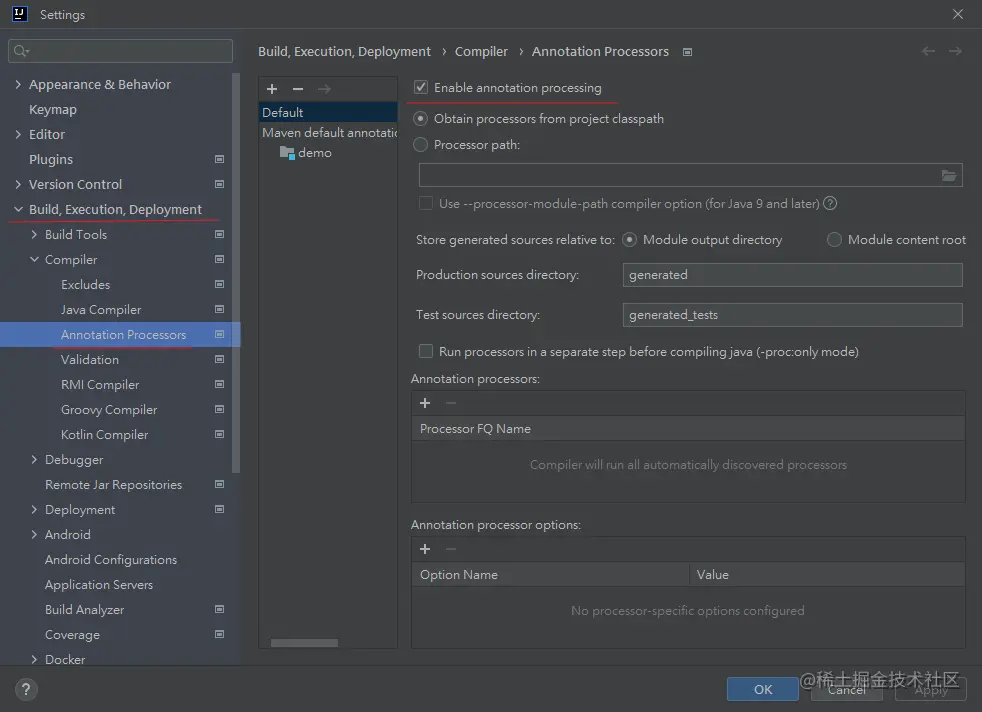

第一种:勾選註解有效

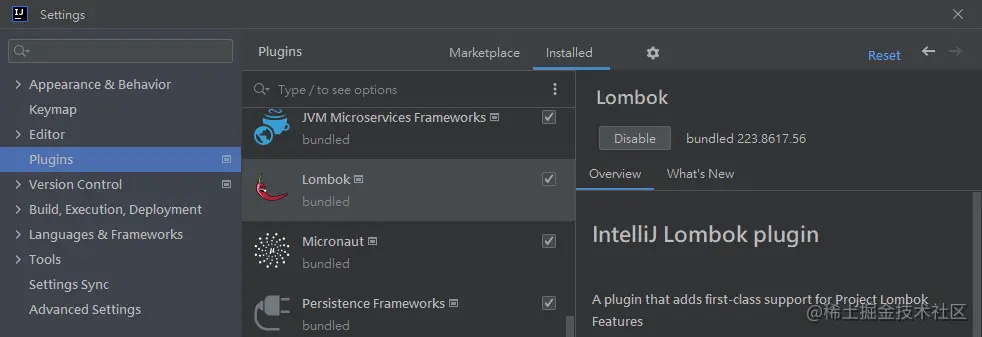

第二种：升級Lombok
