前言
第一次做博客，既当作学习过程的记录，也希望这种开源精神能一直激励自己持续学习吧。其中一些代码完全是自己手搓的，还有一些是在github上面找大佬的代码，根据自己理解和修改为适合自己使用的，本文代码的重点就是即插即用，没有繁琐的使用过程。如代码中有错误的地方，欢迎大家的批评指正。
参照的Github网址： DataAugmentationForObjectDetection/data_aug at master · Paperspace/DataAugmentationForObjectDetection · GitHub
工具库导入
import random
import numpy as np
import cv2
import matplotlib.pyplot as plt
import xml.etree.ElementTree as ET
import xml.dom.minidom as minidom

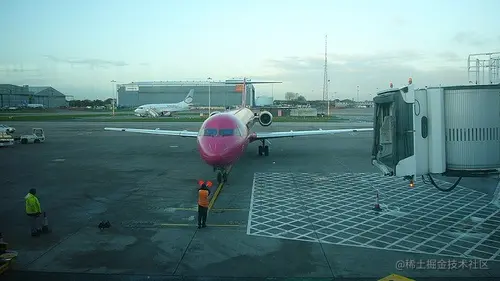

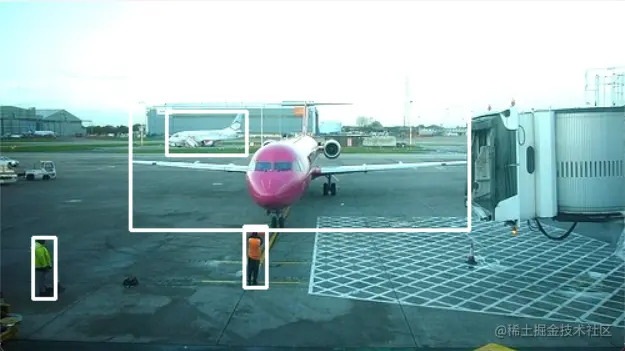

原图
1.旋转
其实就是图片按照90、180、270的角度进行旋转 需要注意的是旋转后图片的shape可能会发生改变
def rotate_img(img_path, new_img_path, angle):
img = cv2.imread(img_path)
# angle 取值为 1 2 3 表示顺时针旋转 90 180 270
if angle == 1:
rotate = cv2.rotate(img, rotateCode=cv2.ROTATE_90_CLOCKWISE)
elif angle == 2:
rotate = cv2.rotate(img, rotateCode=cv2.ROTATE_180)
elif angle == 3:
rotate = cv2.rotate(img, rotateCode=cv2.ROTATE_90_COUNTERCLOCKWISE)
else:
return
# 图片直接写入到本地
cv2.imwrite(new_img_path, rotate)

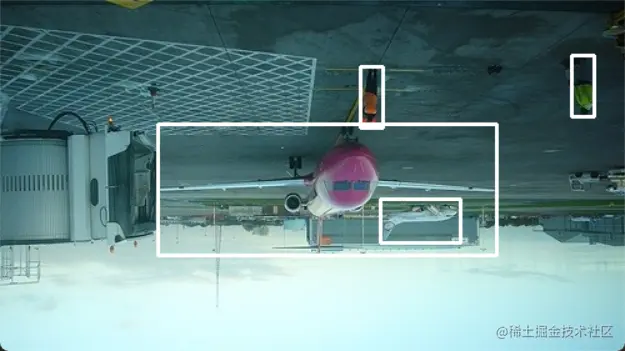

旋转180度

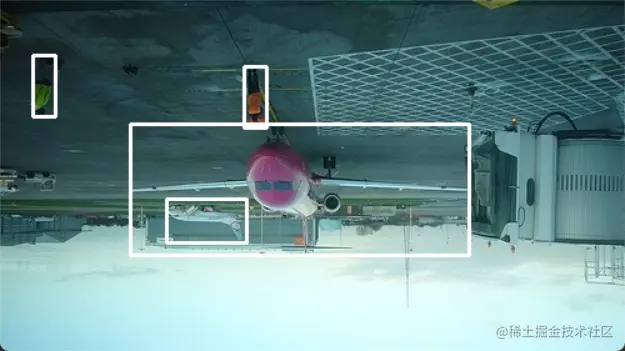

2.水平垂直翻转
def a_MirrorImg(img_path, img_write_path, xml_path=None, new_xml_path=None):
img = cv2.imread(img_path)
mirror_img = cv2.flip(img, -1)
cv2.imwrite(img_write_path, mirror_img)
if xml_path:
tree = ET.parse(xml_path)
root = tree.getroot()
size = root.find('size')
w = int(size.find('width').text)
h = int(size.find('height').text)
objects = root.findall("object")
for obj in objects:
bbox = obj.find('bndbox')
x1 = float(bbox.find('xmin').text)
y1 = float(bbox.find('ymin').text)
x2 = float(bbox.find('xmax').text)
y2 = float(bbox.find('ymax').text)
x1 = w - x1 + 1
x2 = w - x2 + 1
y1 = h - y1 + 1
y2 = h - y2 + 1
assert x1 > 0
assert x2 > 0
assert y1 > 0
assert y2 > 0
bbox.find('xmin').text = str(int(x2))
bbox.find('xmax').text = str(int(x1))
bbox.find('ymin').text = str(int(y2))
bbox.find('ymax').text = str(int(y1))
tree.write(new_xml_path) # 保存修改后的XML文件

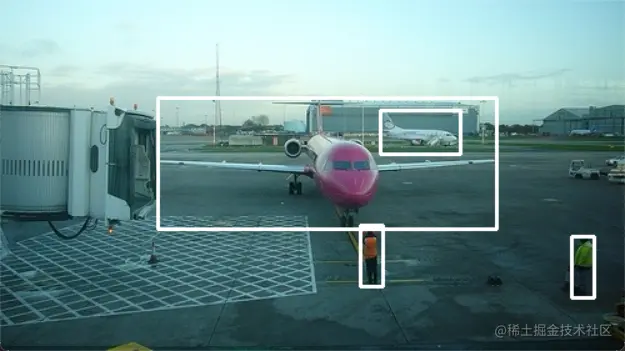

3.垂直翻转
def v_MirrorImg(img_path, img_write_path, xml_path = None, new_xml_path=None):
img = cv2.imread(img_path)
mirror_img = cv2.flip(img, 0)
cv2.imwrite(img_write_path, mirror_img)
if xml_path:
tree = ET.parse(xml_path)
root = tree.getroot()
size = root.find('size')
h = int(size.find('height').text)
objects = root.findall("object")
for obj in objects:
bbox = obj.find('bndbox')
y1 = float(bbox.find('ymin').text)
y2 = float(bbox.find('ymax').text)
y1 = h - y1 + 1
y2 = h - y2 + 1
assert y1 > 0
assert y2 > 0
bbox.find('ymin').text = str(int(y2))
bbox.find('ymax').text = str(int(y1))
tree.write(new_xml_path) # 保存修改后的XML文件
4.水平镜像翻转
# 水平镜像翻转
def h_MirrorImg(img_path, img_write_path, xml_path = None, new_xml_path = None):
img = cv2.imread(img_path)
mirror_img = cv2.flip(img, 1)
cv2.imwrite(img_write_path, mirror_img)
if xml_path:
tree = ET.parse(xml_path)
root = tree.getroot()
size = root.find('size')
w = int(size.find('width').text)
objects = root.findall("object")
for obj in objects:
bbox = obj.find('bndbox')
x1 = float(bbox.find('xmin').text)
x2 = float(bbox.find('xmax').text)
x1 = w - x1 + 1
x2 = w - x2 + 1
assert x1 > 0
assert x2 > 0
bbox.find('xmin').text = str(int(x2))
bbox.find('xmax').text = str(int(x1))
tree.write(new_xml_path) # 保存修改后的XML文件
5.亮度——伽马值调整
# 亮度调整
# alpha大于1那么就变亮 小于1就变暗 保留一位小数即可
def getColorImg(img_path, new_img_path, alpha=1.4, beta=0, xml_path=None, new_xml_path=None):
img = cv2.imread(img_path)
colored_img = np.uint8(np.clip((alpha * img + beta), 0, 255))
cv2.imwrite(new_img_path, colored_img)
if xml_path:
tree = ET.parse(xml_path)
tree.write(new_xml_path)

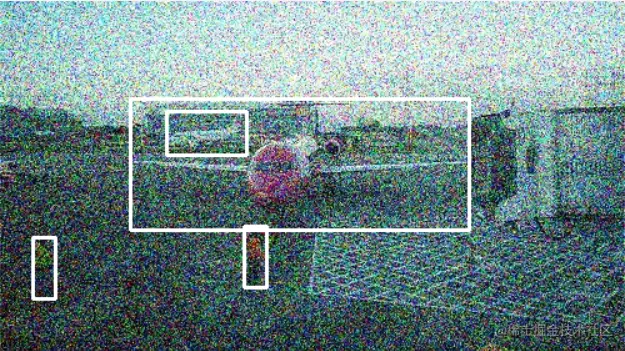

6.高斯噪点
def gaussian_noise(img_path, new_img_path, mean=0, sigma=0.1, xml_path=None, new_xml_path=None):
img = cv2.imread(img_path)
'''
此函数用将产生的高斯噪声加到图片上
均值为0，是保证图像的亮度不会有变化，而方差大小则决定了高斯噪声的强度。
方差/标准差越大，噪声越强。
传入参数:
img : 原图
mean : 均值
sigma : 标准差
返回值:
gaussian_out : 噪声处理后的图片
'''
# 将图片灰度标准化
img = img / 255
# 产生高斯 noise
noise = np.random.normal(mean, sigma, img.shape)
# 将噪声和图片叠加
gaussian_out = img + noise
# 将超过 1 的置 1，低于 0 的设置为 0
gaussian_out = np.clip(gaussian_out, 0, 1)
# 将图片灰度范围的恢复为 0-255
gaussian_out = np.uint8(gaussian_out * 255)
# 将噪声范围搞为 0-255
# noise = np.uint8(noise*255)
cv2.imwrite(new_img_path, gaussian_out)
if xml_path:
tree = ET.parse(xml_path)
tree.write(new_xml_path)

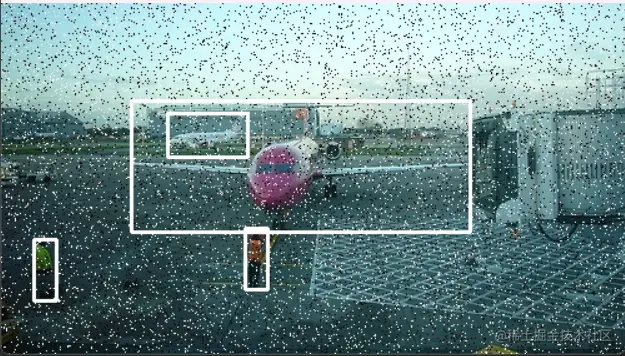

7.椒盐噪点
def sp_noise(img_path, new_img_path, prob, xml_path=None, new_xml_path=None):
'''
添加椒盐噪声
prob:噪声比例
'''
image = cv2.imread(img_path)
output = np.zeros(image.shape, np.uint8) # 创建空矩阵 数值范围为0-255整型
thres = 1 - prob
for i in range(image.shape[0]): # 横向
for j in range(image.shape[1]): # 纵向 j表示每一个像素位置
rdn = random.random() # 从0-1中随机挑选一个浮点型数字
if rdn < prob: # 如果我的随机数字小于我的阈值4 该点像素为椒点 如果prob设为1则图片全黑
output[i][j] = 0 # 椒点
elif rdn > thres:
output[i][j] = 255 # 盐点
else: # rdn在 [prob,thres]时 不修改
output[i][j] = image[i][j] # 不进行修改
cv2.imwrite(new_img_path, output)
if xml_path:
tree = ET.parse(xml_path)
tree.write(new_xml_path)

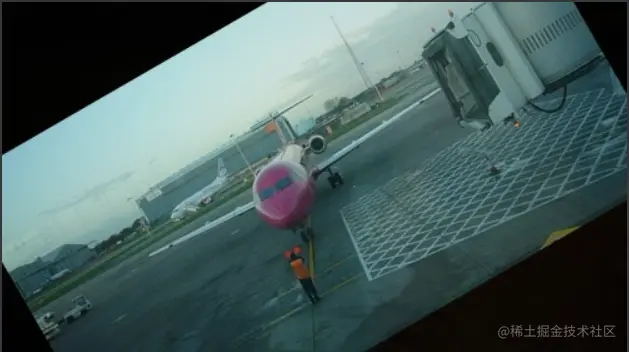

8.任意角度旋转
使用仿射矩阵可以实现按照图片任意点进行任意角度旋转 一般该数据增强只用于图像分类模型中，不太适合那种不是旋转标注框的数据增强
ef all_angle_rotate_img(img_path, new_img_path, angle=30):
'''
img --image
angle --rotation angle
return--rotated img
'''
img = cv2.imread(img_path)
h, w = img.shape[:2]
rotate_center = (w / 2, h / 2) # 也可以自己设置 这里设置的是绕中心点进行旋转
# 获取旋转矩阵
# 参数1为旋转中心点;
# 参数2为旋转角度,正值-逆时针旋转;负值-顺时针旋转
# 参数3为各向同性的比例因子,1.0原图，2.0变成原来的2倍，0.5变成原来的0.5倍
M = cv2.getRotationMatrix2D(rotate_center, angle, 1.0)
# 计算图像新边界
# new_w = int(h * np.abs(M[0, 1]) + w * np.abs(M[0, 0]))
# new_h = int(h * np.abs(M[0, 0]) + w * np.abs(M[0, 1]))
# 调整旋转矩阵以考虑平移
# M[0, 2] += (new_w - w) / 2
# M[1, 2] += (new_h - h) / 2
# 仿射变换
rotated_img = cv2.warpAffine(img, M, (w, h))
cv2.imwrite(new_img_path, rotated_img)
计算工具
1.get_boxes
输入xml文件的地址，返回文件内所有object标注的坐标信息以及在该图片中所有物体的类别的集合。
def get_boxes(xml_path):
tree = ET.parse(xml_path)
root = tree.getroot()
size = root.find('size')
h = int(size.find('height').text)
objects = root.findall("object")
boxes = []
categories = []
# 获取到所有的种类，并且去重创建一个种类字典
for obj in objects:
category_elem = obj.find('name')
category = category_elem.text
categories.append(category)
key = list(set(categories))
values = [value for value in range(len(key))]
# 创建字典
category_dict = dict(zip(key, values)) # {'aeroplane': 0, 'person': 1}
for obj in objects:
# num表示其所属类别
bbox = obj.find('bndbox')
x1 = float(bbox.find('xmin').text)
y1 = float(bbox.find('ymin').text)
x2 = float(bbox.find('xmax').text)
y2 = float(bbox.find('ymax').text)
category_elem = obj.find('name')
category = category_elem.text
boxes.append([x1, y1, x2, y2, category_dict[category]])
# 返回标注框的信息以及所有物体的类别
return np.array(boxes), key
2.draw_rect
输入图片路径、get_boxes获取到的标注框信息、以及框的颜色信息，默认标注框为白色。
def draw_rect(img_path, cords, color=None):
"""Draw the rectangle on the image
Parameters
----------
im : numpy.ndarray
numpy image 这里的图片是进行色彩空间转换后的
cords: numpy.ndarray
Numpy array containing bounding boxes of shape `N X 4` where N is the
number of bounding boxes and the bounding boxes are represented in the
format `x1 y1 x2 y2`
Returns
-------
numpy.ndarray
numpy image with bounding boxes drawn on it
"""
im = cv2.imread(img_path)
im = im.copy()
cords = cords[:, :4]
cords = cords.reshape(-1, 4)
if not color:
color = [255, 255, 255]
for cord in cords:
pt1, pt2 = (cord[0], cord[1]), (cord[2], cord[3])
pt1 = int(pt1[0]), int(pt1[1])
pt2 = int(pt2[0]), int(pt2[1])
im = cv2.rectangle(im.copy(), pt1, pt2, color, int(max(im.shape[:2]) / 200))
# 返回绘制好的im
return im
3.bbox_area
返回标注框面积
def bbox_area(bbox):
return (bbox[:, 2] - bbox[:, 0]) * (bbox[:, 3] - bbox[:, 1])
4.clip_box
输入图片未发生转换前标注框的信息、图片转换后标注框也对应转换后的信息、如果转换后的框的面积大于原本框的面积*alpha那么就保留，否则就舍去。alpha越大，框被舍去的可能性就越高。
返回裁剪后的标注框的信息，裁剪后标注框其所属类别的索引。
def clip_box(bbox, clip_box, alpha):
"""Clip the bounding boxes to the borders of an image
Parameters
----------
bbox: numpy.ndarray
Numpy array containing bounding boxes of shape `N X 5` where N is the
number of bounding boxes and the bounding boxes are represented in the
format `x1 y1 x2 y2 class`
clip_box: numpy.ndarray
An array of shape (4,) specifying the diagonal co-ordinates of the image
The coordinates are represented in the format `x1 y1 x2 y2`
alpha: float
If the fraction of a bounding box left in the image after being clipped is
less than `alpha` the bounding box is dropped.
Returns
-------
numpy.ndarray
Numpy array containing **clipped** bounding boxes of shape `N X 5` where N is the
number of bounding boxes left after being clipped and the bounding boxes are represented in the
format `x1 y1 x2 y2 class` 最后一列为所属类别index
"""
ar_ = (bbox_area(bbox))
x_min = np.maximum(bbox[:, 0], clip_box[0]).reshape(-1, 1)
y_min = np.maximum(bbox[:, 1], clip_box[1]).reshape(-1, 1)
x_max = np.minimum(bbox[:, 2], clip_box[2]).reshape(-1, 1)
y_max = np.minimum(bbox[:, 3], clip_box[3]).reshape(-1, 1)
bbox = np.hstack((x_min, y_min, x_max, y_max, bbox[:, 4:]))
# 丢失掉的面积
delta_area = ((ar_ - bbox_area(bbox)) / ar_)
mask = (delta_area < (1 - alpha)).astype(int)
bbox = bbox[mask == 1, :]
num = bbox[:, -1]
bb = bbox[:, :-1]
# 返回裁剪后的标注框和其所属类别的index
return bb, num
5.save_xml_as_path
输入新的xml文件保存路径、图片路径、标注框坐标、裁剪之后剩下的目标物体其所属的种类
def save_xml_as_path(new_xml_path, img_path, bboxes, categories):
root = ET.Element("annotation")
img = cv2.imread(img_path)
h, w, c = img.shape
img_path.split()
# 创建子元素
folder = ET.SubElement(root, "folder")
filename = ET.SubElement(root, "filename")
path = ET.SubElement(root, "path")
source = ET.SubElement(root, "source")
size = ET.SubElement(root, "size")
segmented = ET.SubElement(root, "segmented")
segmented.text = '0'
database = ET.SubElement(source, "database")
database.text = "Unknown"
# 图片大小这里暂且设置为0
width = ET.SubElement(size, "width")
width.text = str(w)
height = ET.SubElement(size, "height")
height.text = str(h)
depth = ET.SubElement(size, "depth")
depth.text = str(c)
for index, category in enumerate(categories):
# object需要根据bboxes和categories进行循环添加
object = ET.SubElement(root, "object")
name = ET.SubElement(object, "name")
name.text = category
pose = ET.SubElement(object, "pose")
pose.text = 'Unspecified'
truncated = ET.SubElement(object, "truncated")
truncated.text = '0'
difficult = ET.SubElement(object, "difficult")
difficult.text = '0'
bndbox = ET.SubElement(object, "bndbox")
# bndbox结构
xmin = ET.SubElement(bndbox, "xmin")
xmin.text = str(bboxes[index][0])
ymin = ET.SubElement(bndbox, "ymin")
ymin.text = str(bboxes[index][1])
xmax = ET.SubElement(bndbox, "xmax")
xmax.text = str(bboxes[index][2])
ymax = ET.SubElement(bndbox, "ymax")
ymax.text = str(bboxes[index][3])
# 创建XML树
tree = ET.ElementTree(root)
# 将XML树转换为字符串
xml_str = ET.tostring(root)
# 格式化XML字符串
dom = minidom.parseString(xml_str)
formatted_xml = dom.toprettyxml(indent=" ")
print(formatted_xml)
# 将格式化后的XML保存为XML文件
with open(new_xml_path, "w") as file:
file.write(formatted_xml)

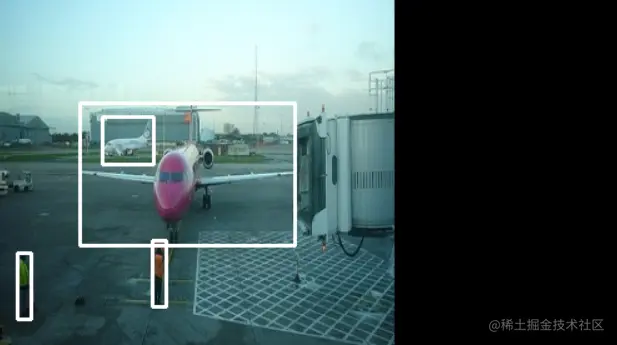

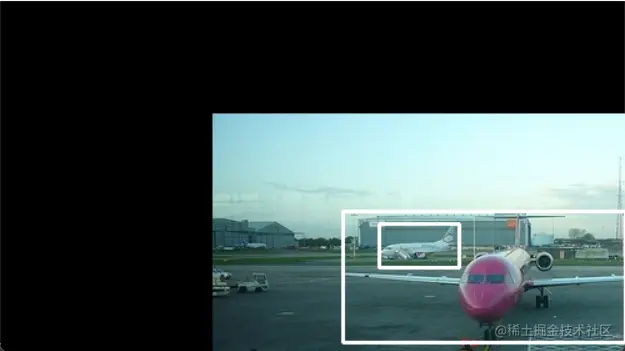

9.随机平移
class RandomTranslate(object):
"""Randomly Translates the image
Bounding boxes which have an area of less than 25% in the remaining in the
transformed image is dropped. The resolution is maintained, and the remaining
area if any is filled by black color.
Parameters
----------
translate: float or tuple(float)
if **float**, the image is translated by a factor drawn
randomly from a range (1 - `translate` , 1 + `translate`). If **tuple**,
`translate` is drawn randomly from values specified by the
tuple
Returns
-------
numpy.ndaaray
Translated image in the numpy format of shape `HxWxC`
numpy.ndarray
Tranformed bounding box co-ordinates of the format `n x 4` where n is
number of bounding boxes and 4 represents `x1,y1,x2,y2` of the box
"""
def __init__(self, translate=0.2, diff=False):
# diff=False默认宽高移动一致
self.translate = translate
if type(self.translate) == tuple:
assert len(self.translate) == 2, "Invalid range"
assert self.translate[0] > 0 & self.translate[0] < 1
assert self.translate[1] > 0 & self.translate[1] < 1
else:
assert self.translate > 0 and self.translate < 1
self.translate = (-self.translate, self.translate)
self.diff = diff
def __call__(self, img_path, new_img_path, xml_path=None, new_xml_path=None):
# Chose a random digit to scale by
img = cv2.imread(img_path)
img_shape = img.shape
# translate the image
# percentage of the dimension of the image to translate
translate_factor_x = random.uniform(*self.translate)
translate_factor_y = random.uniform(*self.translate)
if not self.diff:
translate_factor_y = translate_factor_x
canvas = np.zeros(img_shape).astype(np.uint8)
corner_x = int(translate_factor_x * img.shape[1])
corner_y = int(translate_factor_y * img.shape[0])
# change the origin to the top-left corner of the translated box
orig_box_cords = [max(0, corner_y), max(corner_x, 0), min(img_shape[0], corner_y + img.shape[0]),
min(img_shape[1], corner_x + img.shape[1])]
mask = img[max(-corner_y, 0):min(img.shape[0], -corner_y + img_shape[0]),
max(-corner_x, 0):min(img.shape[1], -corner_x + img_shape[1]), :]
canvas[orig_box_cords[0]:orig_box_cords[2], orig_box_cords[1]:orig_box_cords[3], :] = mask
img = canvas
# 保存图片
cv2.imwrite(new_img_path, img)
if xml_path:
# 如果xml不为空
bboxes, categories = get_boxes(xml_path)
print("所有的种类", categories)
# 只对前四列进行操作 不修改类别信息
bboxes[:, :4] += [corner_x, corner_y, corner_x, corner_y]
bboxes, index = clip_box(bboxes, [0, 0, img_shape[1], img_shape[0]], 0.25)
classes_num = list(map(int, index))
print("裁剪后的种类的index", classes_num)
class_names = [categories[idx] for idx in classes_num]
print("裁剪后的种类", class_names)
# 进行裁剪之后 object也会发生改变
print("转换后：", bboxes)
# 将bboxes转为xml保存
save_xml_as_path(new_xml_path, img_path, bboxes, class_names)
print("xml文件保存完成")
# 返回转换后的标注框信息 可以用于验证转换是否正确
# return bboxes
使用示范
if __name__ == '__main__':
img_path = "2007_000032.jpg"
xml_path = "2007_000032.xml"
new_img_path = '1.jpg'
new_xml_path = '1.xml'
trans = RandomTranslate(translate=0.4, diff=True)
# 输入参数调用call魔法方法
trans(img_path, new_img_path, xml_path, new_xml_path)
# 测试，根据新的xml获取bbox进行画图 如果不进行xml转换则不用下面两步
bb, key = get_boxes(new_xml_path)
plot_img = draw_rect(new_img_path, bb)
cv2.imshow("img", plot_img)
cv2.waitKey(0)
cv2.destroyAllWindows()
10.随机缩放
进行随机缩放后，其实只是对原图片进行了画面的进行了缩放，但是其图片的大小还是不变的
RandomScale的使用方法以及clip_box、get_boxes等函数皆与前面一致。
class RandomScale(object):
"""Randomly scales an image
Bounding boxes which have an area of less than 25% in the remaining in the
transformed image is dropped. The resolution is maintained, and the remaining
area if any is filled by black color.
Parameters
----------
scale: float or tuple(float)
if **float**, the image is scaled by a factor drawn
randomly from a range (1 - `scale` , 1 + `scale`). If **tuple**,
the `scale` is drawn randomly from values specified by the
tuple
Returns
-------
numpy.ndaaray
Scaled image in the numpy format of shape `HxWxC`
numpy.ndarray
Tranformed bounding box co-ordinates of the format `n x 4` where n is
number of bounding boxes and 4 represents `x1,y1,x2,y2` of the box
"""
def __init__(self, scale=0.2, diff=False):
self.scale = scale
if type(self.scale) == tuple:
assert len(self.scale) == 2, "Invalid range"
assert self.scale[0] > -1, "Scale factor can't be less than -1"
assert self.scale[1] > -1, "Scale factor can't be less than -1"
else:
assert self.scale > 0, "Please input a positive float"
self.scale = (max(-1, -self.scale), self.scale)
self.diff = diff
def __call__(self, img_path, new_img_path, xml_path=None, new_xml_path=None):
img = cv2.imread(img_path)
# Chose a random digit to scale by
img_shape = img.shape
print("原始图像大小", img_shape)
if self.diff:
scale_x = random.uniform(*self.scale)
scale_y = random.uniform(*self.scale)
else:
scale_x = random.uniform(*self.scale)
scale_y = scale_x
resize_scale_x = 1 + scale_x
resize_scale_y = 1 + scale_y
img = cv2.resize(img, None, fx=resize_scale_x, fy=resize_scale_y)
canvas = np.zeros(img_shape, dtype=np.uint8)
y_lim = int(min(resize_scale_y, 1) * img_shape[0])
x_lim = int(min(resize_scale_x, 1) * img_shape[1])
canvas[:y_lim, :x_lim, :] = img[:y_lim, :x_lim, :]
img = canvas
print("进行随机缩放后图片的大小", img.shape)
# 图片保存
cv2.imwrite(new_img_path, img)
if xml_path:
bboxes, categories = get_boxes(xml_path)
print("所有的种类", categories)
bboxes[:, :4] *= [resize_scale_x, resize_scale_y, resize_scale_x, resize_scale_y]
bboxes, index = clip_box(bboxes, [0, 0, 1 + img_shape[1], img_shape[0]], 0.25)
classes_num = list(map(int, index))
print("裁剪后的种类的index", classes_num)
class_names = [categories[idx] for idx in classes_num]
print("裁剪后的种类", class_names)
# 进行裁剪之后 object也会发生改变
print("转换后：", bboxes)
# 将bboxes转为xml保存
save_xml_as_path(new_xml_path, img_path, bboxes, class_names)
print("xml文件保存完成")
# return img, bboxes
