SwiftUI入门 - Google AdMob 广告的接入

寻桃
958 阅读3分钟

置顶

菜鸟入门，各位大佬轻喷，如有谬误之处欢迎讨论建议，也欢迎各位道友与我同行

“不积跬步，无以至千里；不积小流，无以成江海”

平台

以下列出了市面上常见的广告平台：

穿山甲 www.csjplatform.com/

优量汇 e.qq.com/dev/index.h…

快手联盟 u.kuaishou.com/

百青藤 union.baidu.com/bqt/#/

admob developers.google.cn/admob?hl=zh…

sigmob www.sigmob.com

在对各平台进行初步了解后得知，国内大多数平台都需要企业资质，个人用户与个体户均不支持接入，随选择支持个人用户的谷歌广告平台 Google AdMob。当然国内也存在着一些第三方的服务商，他们会收取一定比例的抽成，这里则不多做赘述。

实现

  1. 首先打开项目根目录中的Podfile文件，添加依赖包 Google-Mobile-Ads-SDK， 在 target 与 end 之间添加 pod 'Google-Mobile-Ads-SDK'

image.png 3. 保存后执行安装命令

pod install
  1. 当安装完成后通过 Countdown.xcworkspace 进入项目（本项目名称为 Countdown），切操作时换为你自己的项目名称
open Countdown.xcworkspace
  1. 更新Info.plist 文件，添加如下代码段：

如果您的xcode版本在13之前，则可以直接在项目目录中找到 Info.plist 文件，直接添加如下代码即可。其中 ca-app-pub-3940256099942544~1458002511 为测试应用ID，我们先就用它，跑通流程

<key>GADApplicationIdentifier</key>
<string>ca-app-pub-3940256099942544~1458002511</string>
<key>SKAdNetworkItems</key>
<array>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>cstr6suwn9.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>4fzdc2evr5.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>4pfyvq9l8r.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>2fnua5tdw4.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>ydx93a7ass.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>5a6flpkh64.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>p78axxw29g.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>v72qych5uu.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>ludvb6z3bs.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>cp8zw746q7.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>c6k4g5qg8m.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>s39g8k73mm.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>3qy4746246.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>3sh42y64q3.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>f38h382jlk.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>hs6bdukanm.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>prcb7njmu6.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>v4nxqhlyqp.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>wzmmz9fp6w.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>yclnxrl5pm.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>t38b2kh725.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>7ug5zh24hu.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>9rd848q2bz.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>y5ghdn5j9k.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>n6fk4nfna4.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>v9wttpbfk9.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>n38lu8286q.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>47vhws6wlr.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>kbd757ywx3.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>9t245vhmpl.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>a2p9lx4jpn.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>22mmun2rn5.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>4468km3ulz.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>2u9pt9hc89.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>8s468mfl3y.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>av6w8kgt66.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>klf5c3l5u5.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>ppxm28t8ap.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>424m5254lk.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>ecpz2srf59.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>uw77j35x4d.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>mlmmfzh3r3.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>578prtvx9j.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>4dzt52r2t5.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>gta9lk7p23.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>e5fvkxwrpn.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>8c4e2ghe7u.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>zq492l623r.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>3rd42ekr43.skadnetwork</string>
  </dict>
  <dict>
    <key>SKAdNetworkIdentifier</key>
    <string>3qcr597p9d.skadnetwork</string>
  </dict>
</array>

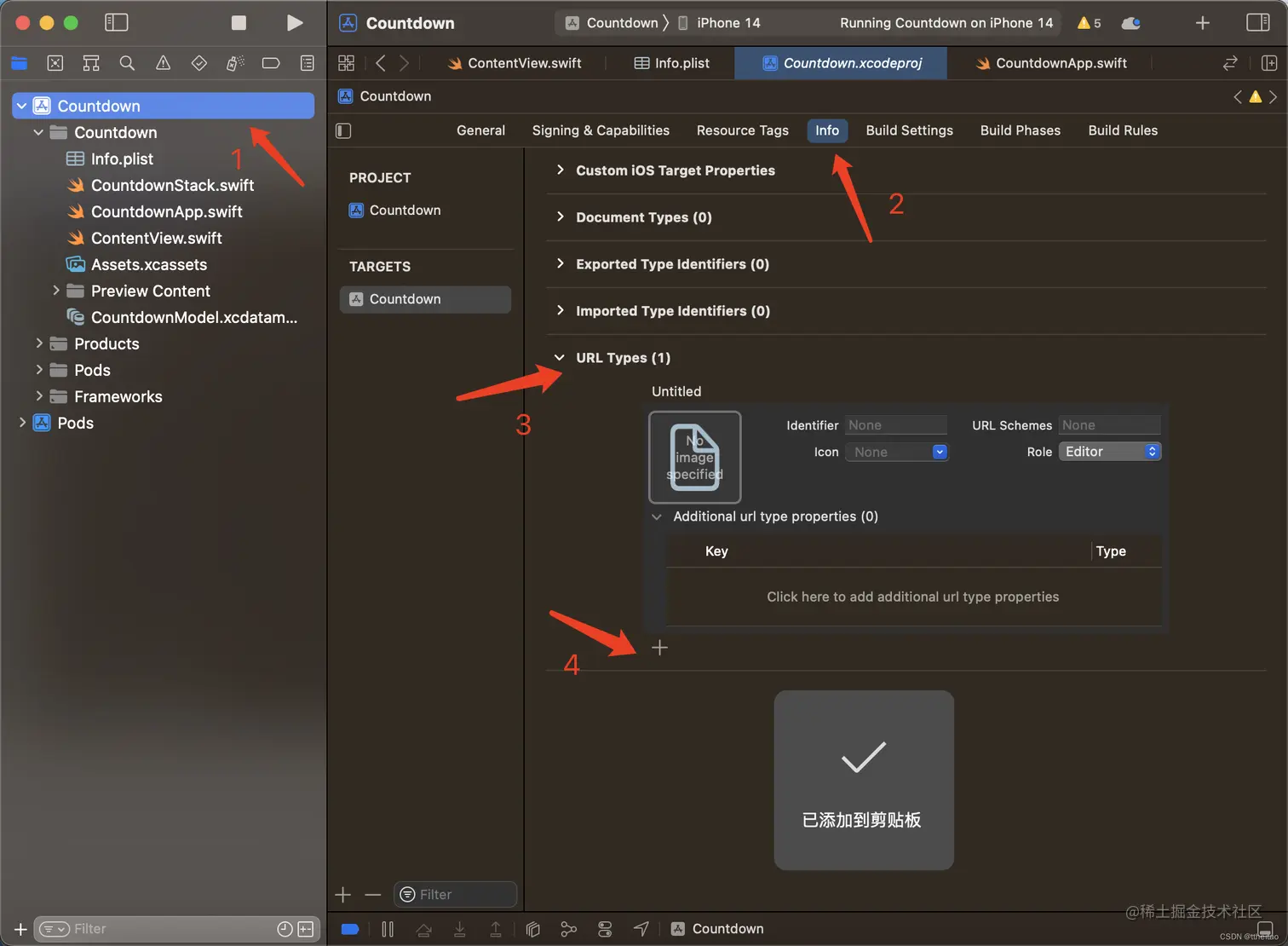

如果你的xcode版本>=13，则需要手动创建Info.plist文件

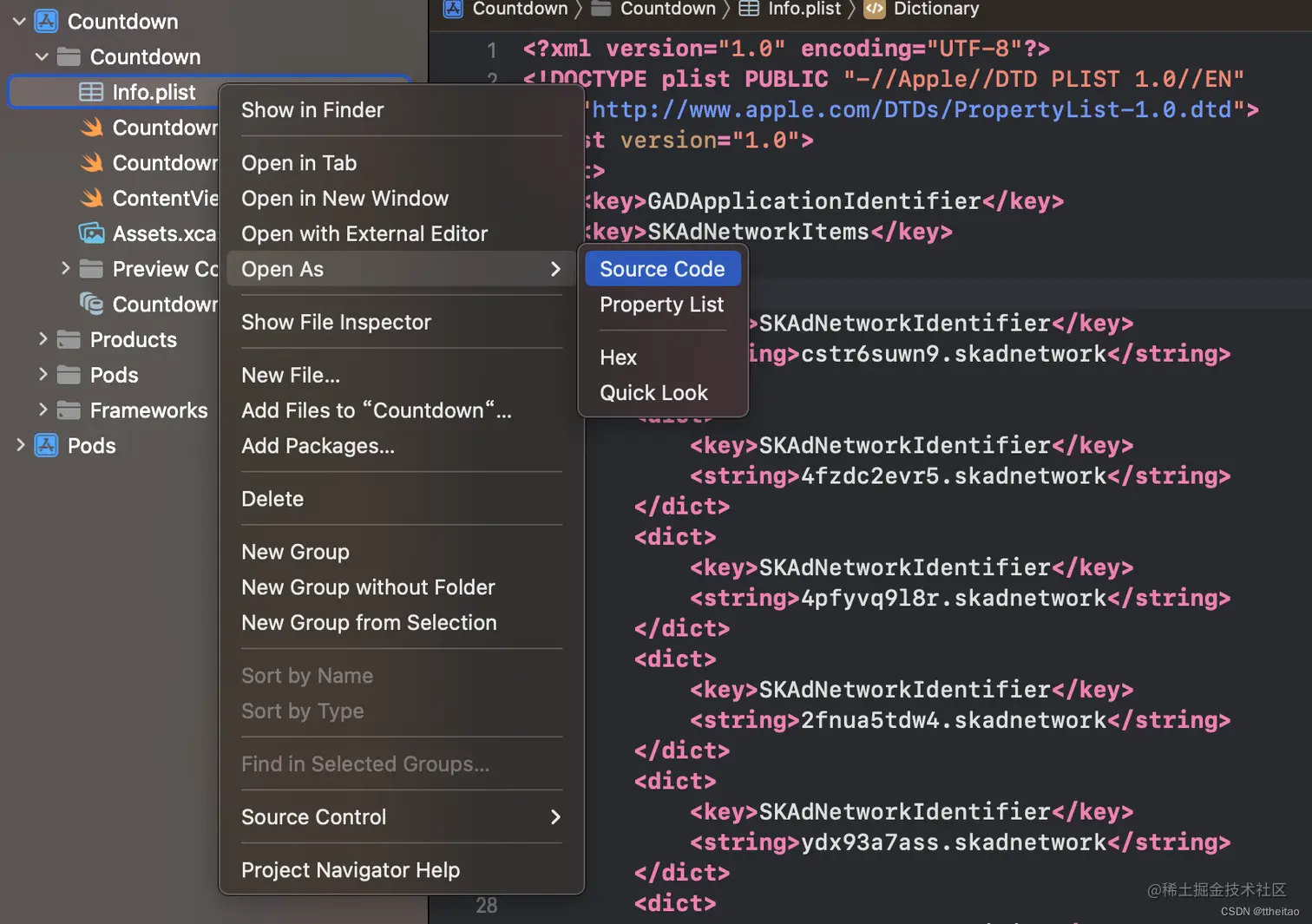

image.png 点击添加后在你的左侧目录树中会出现 Info.plist文件，右击文件进行如下操作，粘贴上述的代码段，并保存 file

  1. 新建一个UI文件 TestGoogleAdView.swift
import SwiftUI
import Foundation
import GoogleMobileAds
import AdSupport

struct TestGoogleAdView: View {
    var body: some View {
    	// 此ID为应用中的横幅广告测试ID
        TestAdBannerView(adUnitID:"ca-app-pub-3940256099942544/2934735716").frame(height: 100)
    }
}

struct TestAdBannerView: UIViewRepresentable {
    let adUnitID: String
    func makeUIView(context: Context) -> GADBannerView {
        let bannerView = GADBannerView(adSize:GADAdSizeFromCGSize(CGSize(width: 320, height: 100)))
        // Set yourdesired banner ad size
        bannerView.adUnitID = adUnitID
        bannerView.rootViewController = UIApplication.shared.windows.first?.rootViewController
        bannerView.load(GADRequest())
        return bannerView
    }

    func updateUIView(_ uiView: GADBannerView, context: Context) {}
}
  1. 在入口文件处调用此视图，如果找不到入口文件，请全局搜索 @main
import SwiftUI

@main
struct CountdownApp: App {
    var body: some Scene {
        WindowGroup {
            TestGoogleAdView()
        }
    }
}

至此接入完成 file

总结

  1. 我们从各大广告平台分析出了支持的用户群体，综合考虑先上谷歌
  2. 从CocoaPods中安装了谷歌广告的SDK
  3. 新增并向 Info.plist 中添加了接入广告必备的代码段，其中包括对应的谷歌广告应用ID和应用中横幅广告单元ID
  4. 最终我们成功接入了测试广告，在下一篇文章中，我们将使用真机进行测试，创建自己的正式账号、应用、广告单元（开屏广告、横幅广告、插页广告等）。
