学习过我的开源项目mall的朋友应该知道,我有一个使用Docsify 搭建的项目文档网站。使用Docsify搭建文档网站虽然简单,但是缺少分类、标签、SEO这类功能,随着文档越来越多,查找起来有点不方便!今天给大家推荐一个炫酷的文档主题vuepress-theme-hope,用来搭建项目文档网站正合适!

vuepress-theme-hope 简介

vuepress-theme-hope是一个具有强大功能的VuePress主题,为Markdown添加了更多增强语法,可用于搭建项目文档和博客网站。支持分类和标签功能,可以让你的文档更加结构化!内置多种插件,功能强大,值得一试!

演示效果

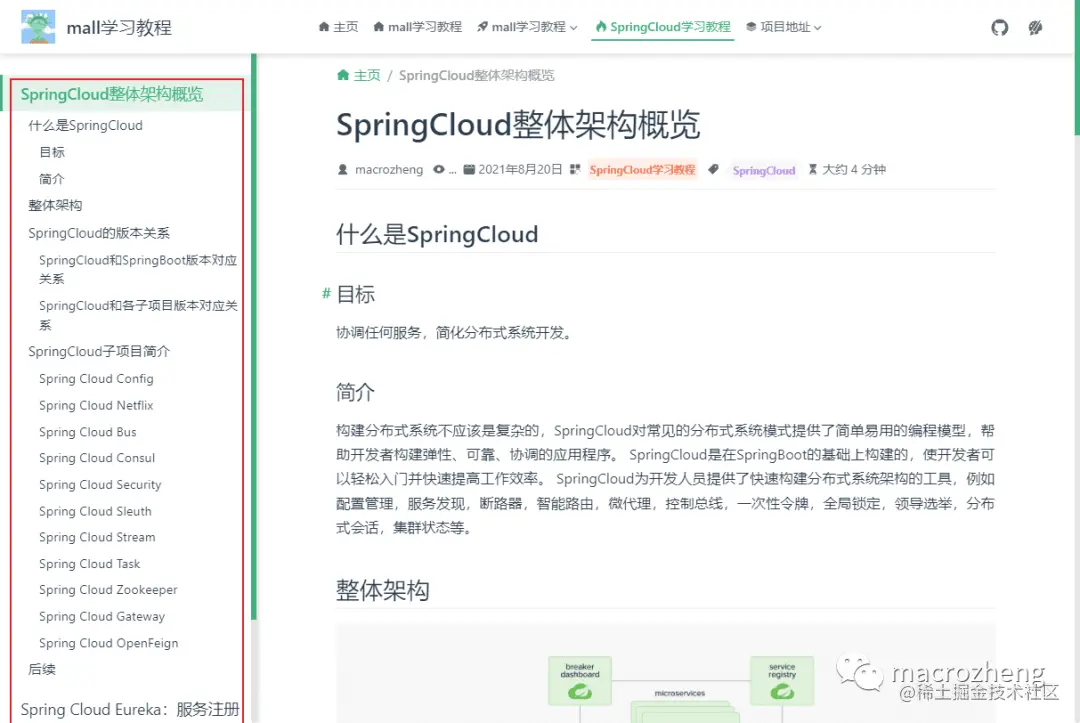

我们先来看下使用vuepress-theme-hope搭建的网站演示效果,还是挺炫酷的!

安装

使用vuepress-theme-hope搭建文档网站非常简单,基本就是开箱即用,我们先来安装它。

  • 首先在安装目录下创建docs目录,然后使用如下命令初始化项目;

    npm init vuepress-theme-hope@next docs

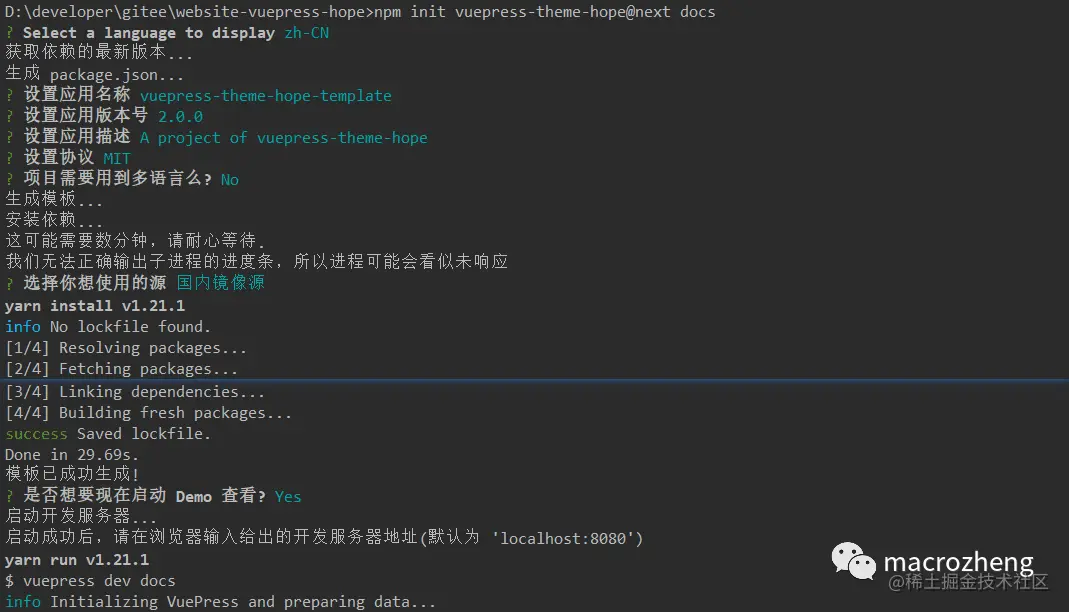

  • 初始化过程中会安装所有依赖,还需要对项目进行一些设置,具体参考下图;

  • 安装完成后可以选择立刻启动,也可以使用如下命令启动;

    npm run docs:dev

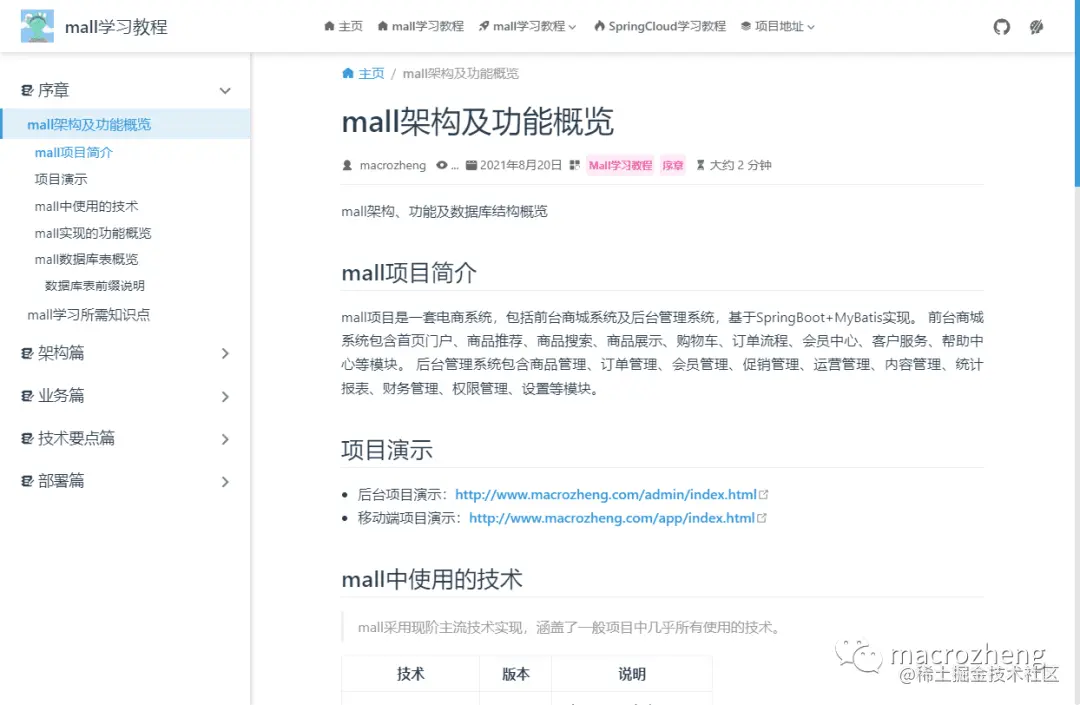

  • 启动成功后即可访问,下面是我已经配置完成的效果图,访问地址:http://localhost:8080/

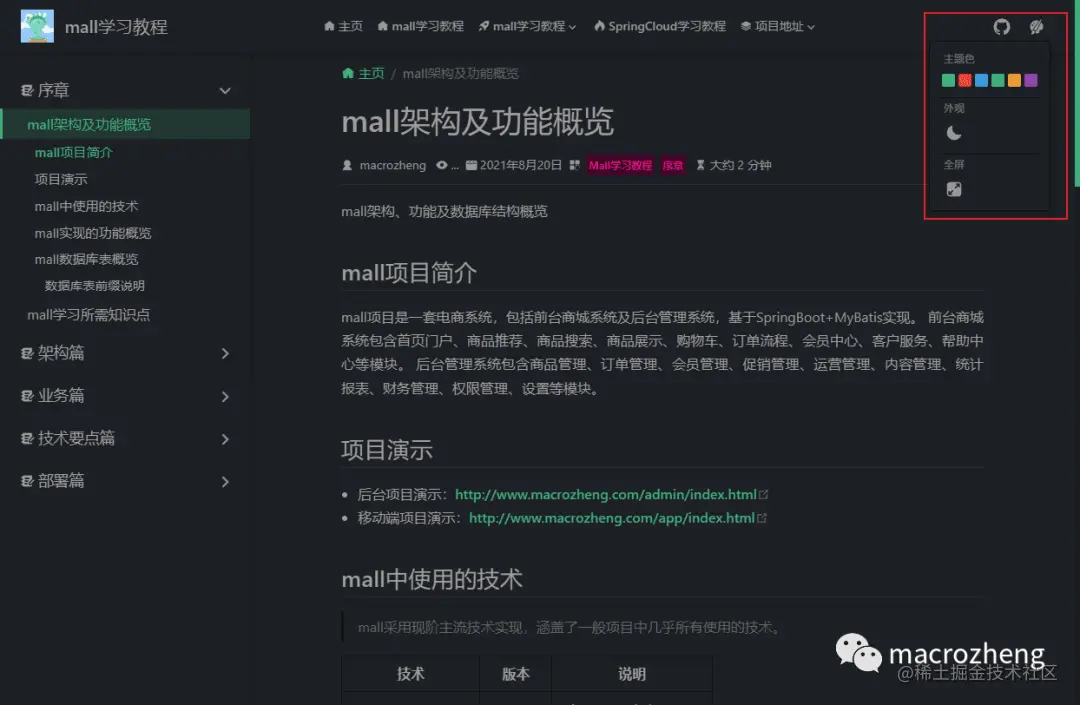

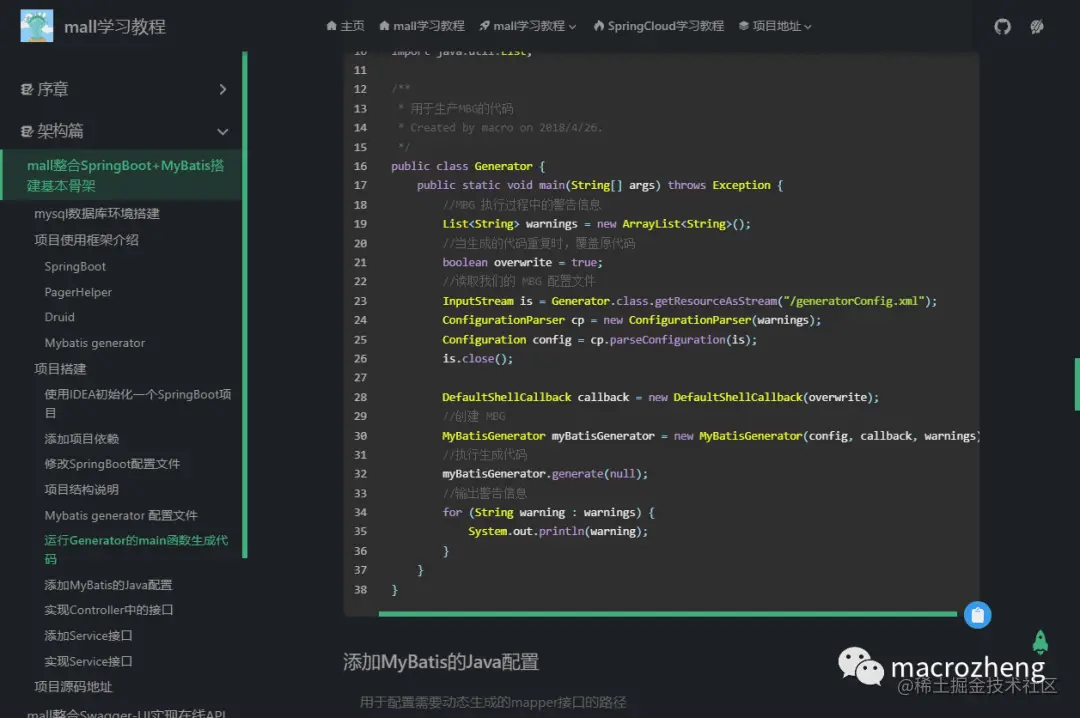

  • 我们可以发现该主题不仅支持多种颜色的切换,还支持深色模式和浅色模式,还是挺炫酷的!

使用

接下来介绍下vuepress-theme-hope主题的使用,主要是一些界面组件的使用和自定义配置。

目录结构

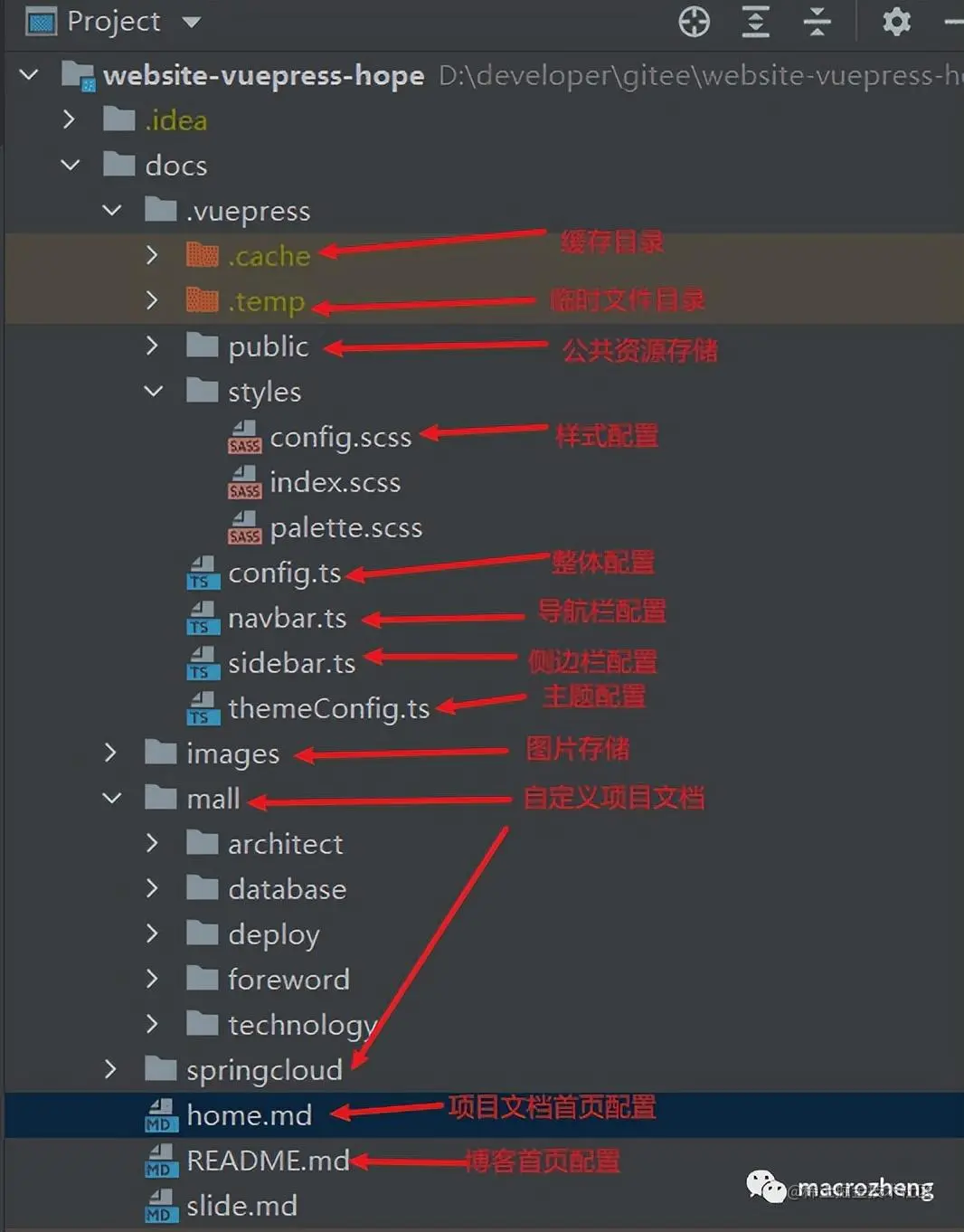

首先我们来了解下项目的整体目录结构,这对我们之后使用该主题会有很大的帮助。

这里需要注意的是,如果运行过程中出现错误,可以尝试删除.cache和.temp两个临时文件夹。

导航栏

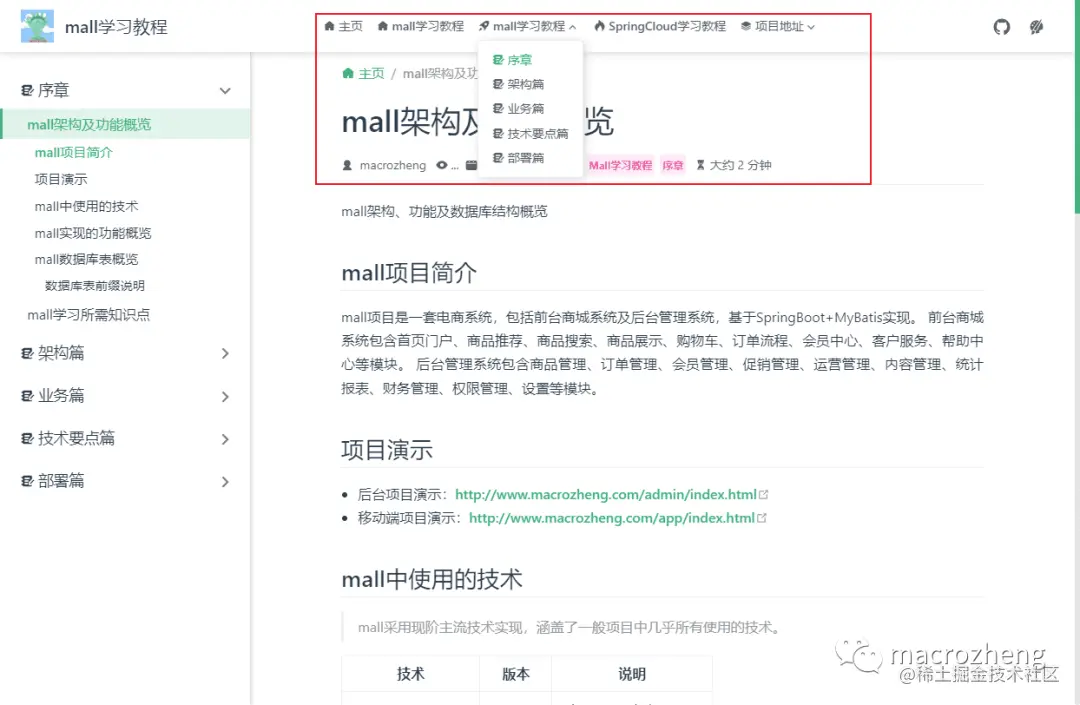

  • 一般来说我们都有修改顶部导航栏的需求,例如我们想要按照如下样式定制下导航栏;

  • 可以修改navbar.ts文件,修改内容如下,修改后的导航栏可支持子级目录,既可以导航到本站,也可以导航到外部链接。

    export default defineNavbarConfig([ "/", "/home", { text: "mall学习教程", icon: "launch", prefix: "/mall/", children: [ { text: "序章", icon: "note", link: "foreword/mall_foreword_01", }, { text: "架构篇", icon: "note", link: "architect/mall_arch_01", }, { text: "业务篇", icon: "note", link: "database/mall_database_overview", }, { text: "技术要点篇", icon: "note", link: "technology/mybatis_mapper", }, { text: "部署篇", icon: "note", link: "deploy/mall_deploy_windows", } ], }, { text: "SpringCloud学习教程", icon: "hot", link: "/springcloud/springcloud", }, { text: "项目地址", icon: "stack", children: [ { text: "后台项目", link: "github.com/macrozheng/…", }, { text: "前端项目", link: "github.com/macrozheng/…", }, { text: "学习教程", link: "github.com/macrozheng/…", }, { text: "项目骨架", link: "github.com/macrozheng/…", } ], }, ]);

侧边栏

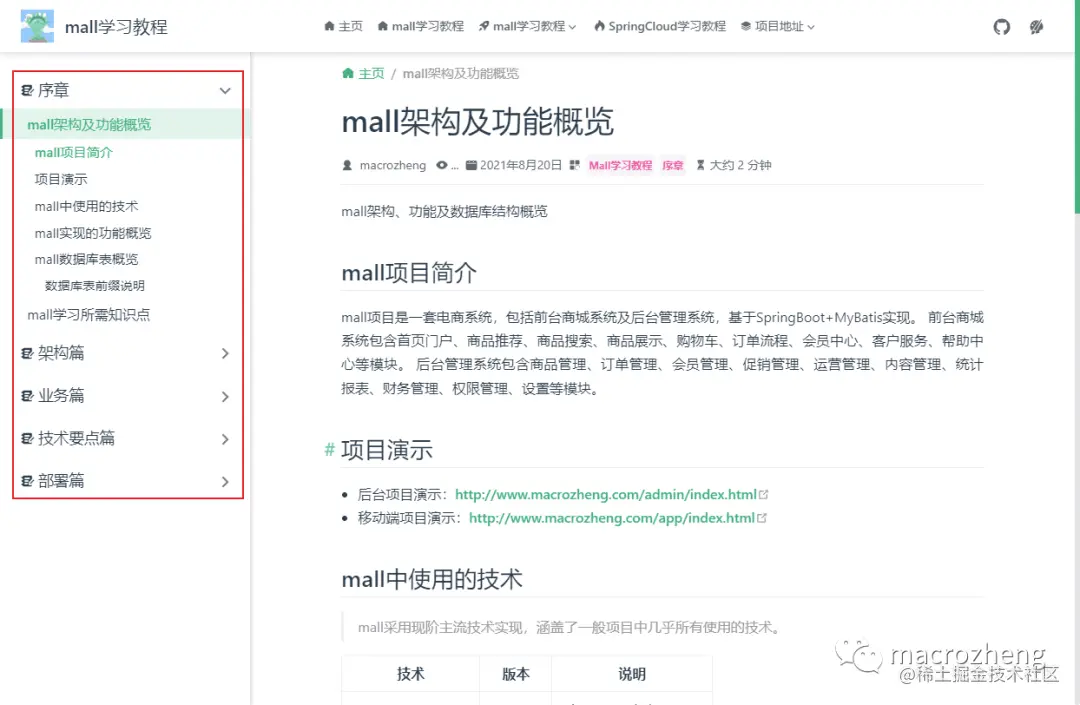

  • 修改侧边栏也是个常见需求,例如给项目文档配置下目录,方便查看,比如我的mall学习教程的侧边栏;

  • 实现上面的效果需要修改sidebar.ts文件,值得一提的是vuepress-theme-hope支持针对不同路径实现不同的侧边栏,这样就不用把所有文档侧边栏糅合在一起了;

    export default defineSidebarConfig({ "/mall/":[ { text: "序章", icon: "note", collapsable: true, prefix: "foreword/", children: ["mall_foreword_01", "mall_foreword_02"], }, { text: "架构篇", icon: "note", collapsable: true, prefix: "architect/", children: ["mall_arch_01", "mall_arch_02","mall_arch_03"], }, { text: "业务篇", icon: "note", collapsable: true, prefix: "database/", children: ["mall_database_overview", "mall_pms_01","mall_pms_02"], }, { text: "技术要点篇", icon: "note", collapsable: true, prefix: "technology/", children: ["mybatis_mapper", "aop_log"], }, { text: "部署篇", icon: "note", collapsable: true, prefix: "deploy/", children: ["mall_deploy_windows", "mall_deploy_docker"], } ], "/springcloud":["springcloud", "eureka", "ribbon"] });

  • 看下配置好的SpringCloud学习教程的侧边栏,和mall学习教程的是分开的,结构更加清晰的了,这是使用Docsify无法做到的。

图标

  • vuepress-theme-hope主题默认支持使用iconfont上的图标,我们可以在项目文档中直接使用,以下是一些精选图标;

  • 由于在themeConfig.ts中配置了图标前缀,在使用时需要去除icon-前缀。

    export default defineThemeConfig({ iconPrefix: "iconfont icon-", })

信息定制

在使用vuepress-theme-hope搭建自己的项目文档网站时,需要定制一些自己的信息,比如作者名称、文档链接、logo等信息,可以在themeConfig.ts中修改。

export default defineThemeConfig({
  hostname: "http://www.macrozheng.com",

  author: {
    name: "macrozheng",
    url: "http://www.macrozheng.com",
  },

  iconPrefix: "iconfont icon-",

  logo: "/logo.png",

  repo: "https://github.com/macrozheng",

  docsDir: "demo/src",

  // navbar
  navbar: navbar,

  // sidebar
  sidebar: sidebar,

  footer: "默认页脚",

  displayFooter: true,

  blog: {
    description: "SpringBoot实战电商项目mall(50K+Star)的作者",
    intro: "https://github.com/macrozheng",
    medias: {
      Gitee: "https://gitee.com/macrozheng",
      GitHub: "https://github.com/macrozheng",
      Wechat: "https://example.com",
      Juejin: "https://juejin.cn/user/958429871749192",
      Zhihu: "https://www.zhihu.com/people/macrozheng",
    },
  },
});

文档首页

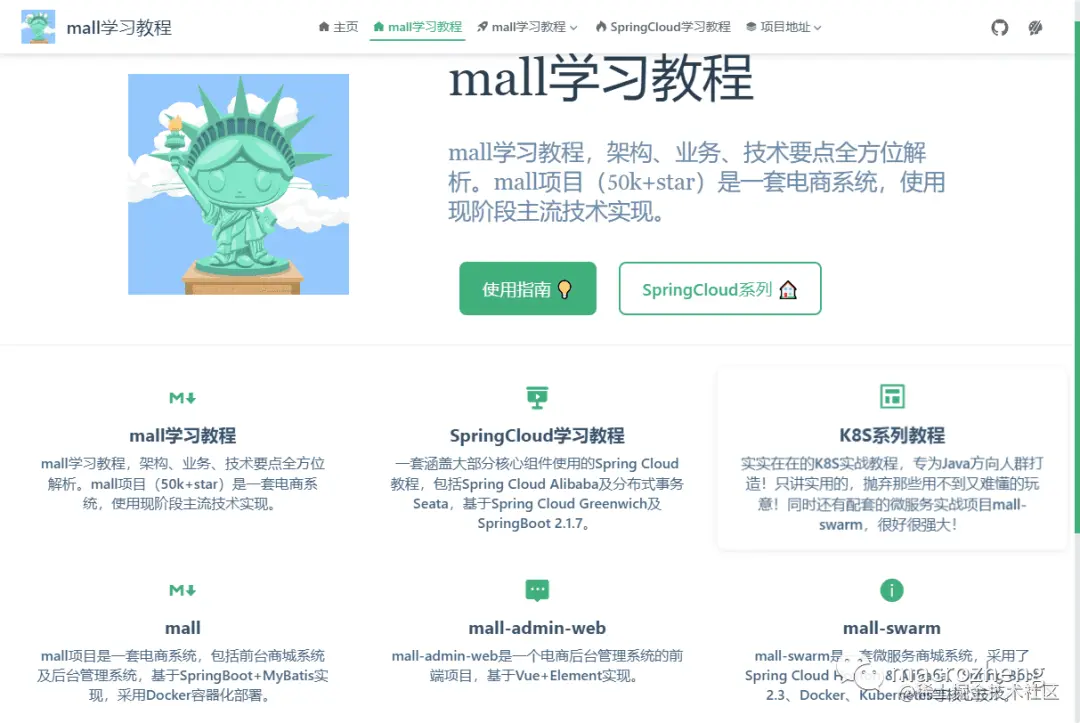

  • 首页信息可以在home.md中进行修改,比如下面样式的项目文档首页:

  • 修改内容如下,支持在首页上添加多个自定义模块。


    home: true icon: home title: mall学习教程 heroImage: /logo.png heroText: mall学习教程 tagline: mall学习教程,架构、业务、技术要点全方位解析。mall项目(50k+star)是一套电商系统,使用现阶段主流技术实现。 actions:

    • text: 使用指南 link: /mall/foreword/mall_foreword_01

    • text: SpringCloud系列 link: /springcloud/springcloud type: secondary

    features:

    • title: mall学习教程 icon: markdown details: mall学习教程,架构、业务、技术要点全方位解析。mall项目(50k+star)是一套电商系统,使用现阶段主流技术实现。 link: /mall/foreword/mall_foreword_01

    • title: SpringCloud学习教程 icon: slides details: 一套涵盖大部分核心组件使用的Spring Cloud教程,包括Spring Cloud Alibaba及分布式事务Seata,基于Spring Cloud Greenwich及SpringBoot 2.1.7。 link: /springcloud/springcloud

    • title: K8S系列教程 icon: layout details: 实实在在的K8S实战教程,专为Java方向人群打造!只讲实用的,抛弃那些用不到又难懂的玩意!同时还有配套的微服务实战项目mall-swarm,很好很强大! link: juejin.cn/column/6962…

    • title: mall icon: markdown details: mall项目是一套电商系统,包括前台商城系统及后台管理系统,基于SpringBoot+MyBatis实现,采用Docker容器化部署。 link: github.com/macrozheng/…

    • title: mall-admin-web icon: comment details: mall-admin-web是一个电商后台管理系统的前端项目,基于Vue+Element实现。 link: github.com/macrozheng/…

    • title: mall-swarm icon: info details: mall-swarm是一套微服务商城系统,采用了 Spring Cloud Hoxton & Alibaba、Spring Boot 2.3、Docker、Kubernetes等核心技术。 link: github.com/macrozheng/…

    • title: mall-tiny icon: blog details: mall-tiny是一款基于SpringBoot+MyBatis-Plus的快速开发脚手架,拥有完整的权限管理功能,可对接Vue前端,开箱即用。 link: github.com/macrozheng/…

    copyright: false footer: MIT Licensed | Copyright © 2019-present macrozheng

博客首页

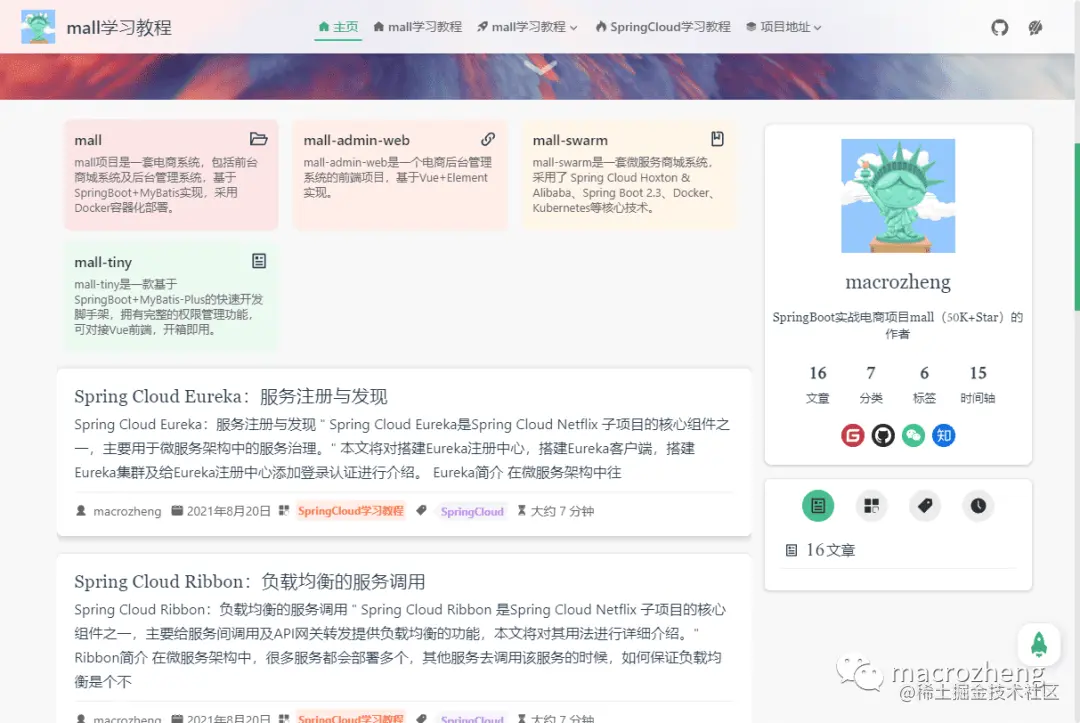

  • vuepress-theme-hope主题不仅可以做项目文档网站,也可以做博客网站,我们先来看下它生成的博客首页样式;

分类及标签

---
home: true
layout: Blog
icon: home
title: 主页
heroImage: /logo.png
heroText: macrozheng的个人博客
heroFullScreen: true
tagline: 这家伙很懒,什么都没写...
projects:
  - icon: project
    name: mall
    desc: mall项目是一套电商系统,包括前台商城系统及后台管理系统,基于SpringBoot+MyBatis实现,采用Docker容器化部署。
    link: https://github.com/macrozheng/mall

  - icon: link
    name: mall-admin-web
    desc: mall-admin-web是一个电商后台管理系统的前端项目,基于Vue+Element实现。
    link: https://github.com/macrozheng/mall-admin-web

  - icon: book
    name: mall-swarm
    desc: mall-swarm是一套微服务商城系统,采用了 Spring Cloud Hoxton & Alibaba、Spring Boot 2.3、Docker、Kubernetes等核心技术。
    link: https://github.com/macrozheng/mall-swarm

  - icon: article
    name: mall-tiny
    desc: mall-tiny是一款基于SpringBoot+MyBatis-Plus的快速开发脚手架,拥有完整的权限管理功能,可对接Vue前端,开箱即用。
    link: https://github.com/macrozheng/mall-tiny

footer: 自定义你的页脚文字
---

代码样式

  • 当然如果你觉得vuepress-theme-hope默认的代码主题不够炫酷,也可以自定义一下,默认是one-light和one-dark主题,还有多达十几种深浅色主题可供选择;

  • 需要修改下config.scss文件,这里改为了material系列的主题;

    codeLightTheme:materiallight;codeLightTheme: material-light; codeDarkTheme: material-dark;

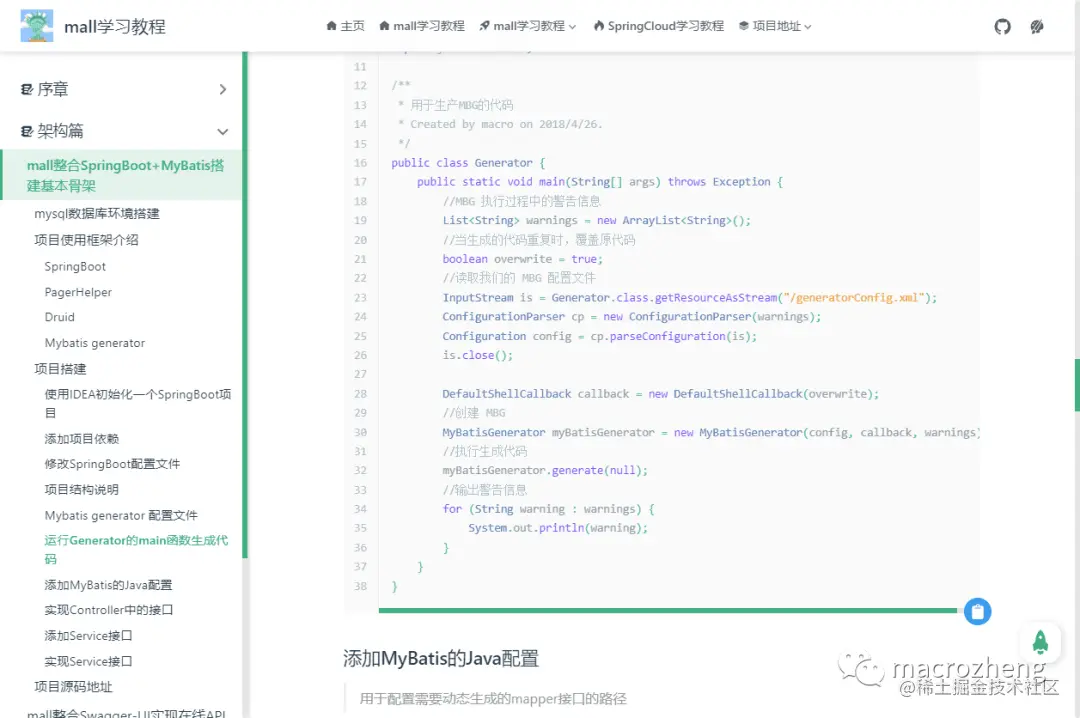

  • 浅色模式下代码样式如下;

  • 深色模式下代码样式如下,还是挺炫酷的!

分类及标签

  • vuepress-theme-hope内置了分类和标签功能,可以让我们的项目文档更加结构化,查看内容也更方便,直接在文章顶部添加category和tag即可实现;


    title: mall整合SpringBoot+MyBatis搭建基本骨架 date: 2021-08-19 16:30:11 category:

    • mall学习教程
    • 架构篇 tag:
    • SpringBoot
    • MyBatis

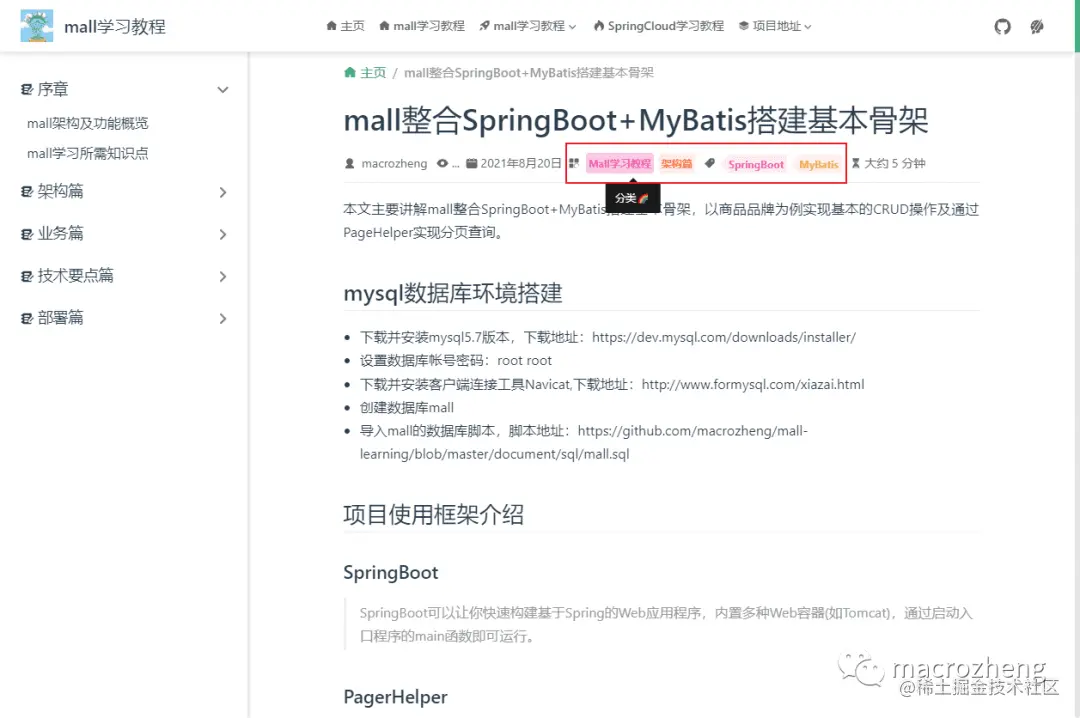

  • 添加成功后我们的文章标题下方会出现分类和标签;

  • 点击分类可以查看该分类下所有文章;

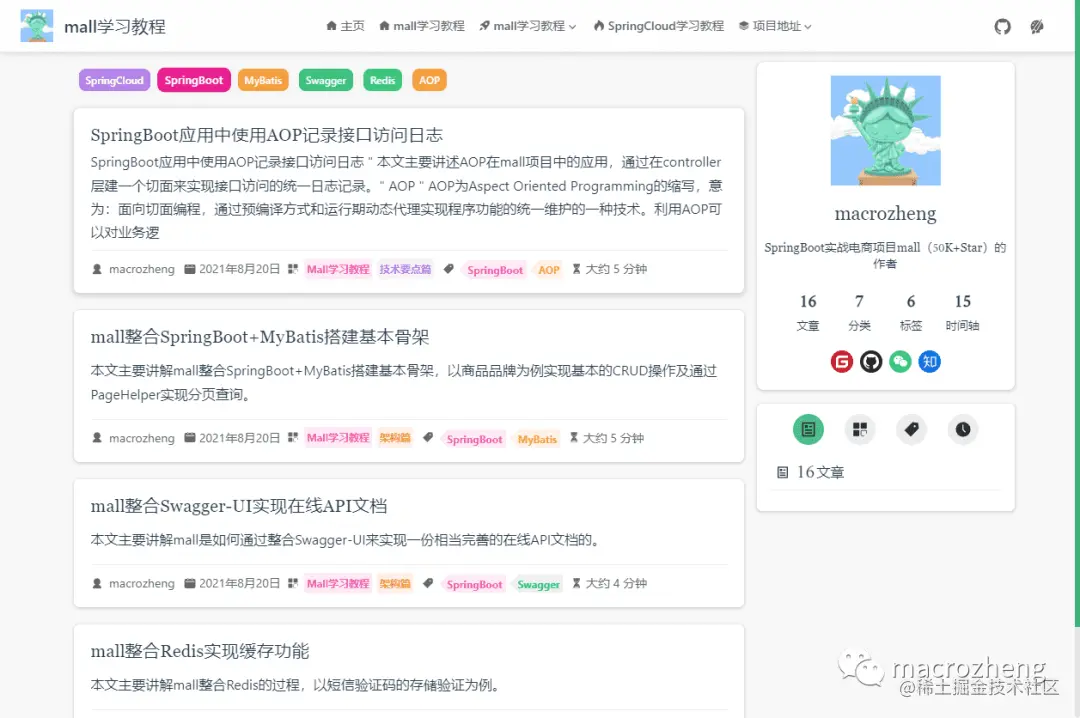

  • 点击标签可以查看所有相关文章,比起Docsify查找文章效率大大提高了!

总结

vuepress-theme-hope确实是一款好用的工具,用来搭建项目文档网站和博客网站正合适!尤其是它的分类、标签功能,让我们的文档能够更加结构化,查找也更加方便!

项目地址

github.com/vuepress-th…
