1.png 配置地址与静态路由




AR1：
<Huawei>sys
[Huawei]interface GigabitEthernet 0/0/1
[Huawei-GigabitEthernet0/0/1]ip address 192.168.1.254 24
[Huawei-GigabitEthernet0/0/1]q
[Huawei]int g0/0/0
[Huawei-GigabitEthernet0/0/0]ip address 192.168.2.1 24
[Huawei-GigabitEthernet0/0/0]q
[Huawei]ip route-static 192.168.3.0 24 192.168.2.2
[Huawei]ip route-static 192.168.5.0 24 192.168.2.2

AR2:
<Huawei>sys
[Huawei]int g0/0/0
[Huawei-GigabitEthernet0/0/0]ip address 192.168.2.2 24
[Huawei-GigabitEthernet0/0/0]q
[Huawei]int g0/0/1
[Huawei-GigabitEthernet0/0/1]ip address 192.168.3.254 24
[Huawei-GigabitEthernet0/0/1]q
[Huawei]int g0/0/2
[Huawei-GigabitEthernet0/0/2]ip address 192.168.4.1 24
[Huawei-GigabitEthernet0/0/2]q
[Huawei]ip route-static 192.168.1.0 24 192.168.2.1
[Huawei]ip route-static 192.168.5.0 24 192.168.4.2

AR3:
<Huawei>sys
[Huawei]int g0/0/2
[Huawei-GigabitEthernet0/0/2]ip add 192.168.4.2 24
[Huawei-GigabitEthernet0/0/2]q
[Huawei]int g0/0/1
[Huawei-GigabitEthernet0/0/1]ip add 192.168.5.254 24
[Huawei-GigabitEthernet0/0/1]q
[Huawei]ip route-static 192.168.1.0 24 192.168.4.1
[Huawei]ip route-static 192.168.3.0 24 192.168.4.1

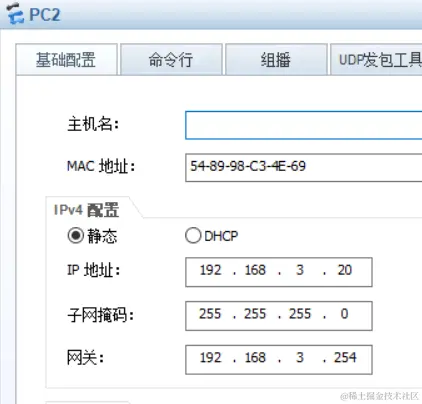

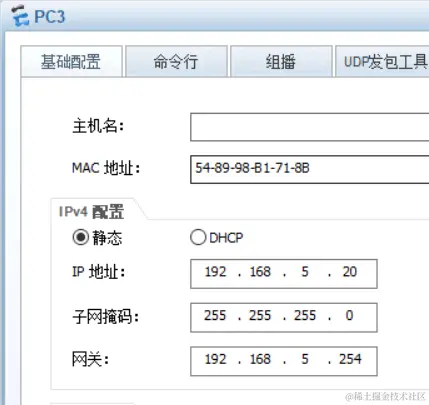

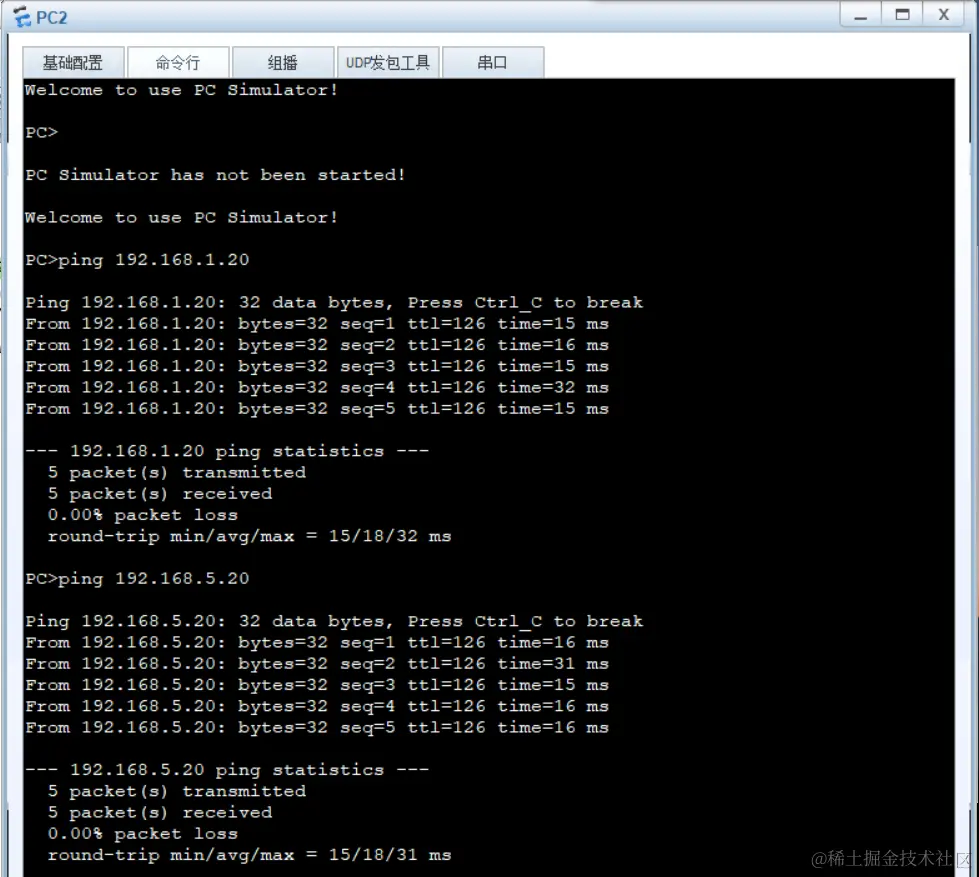

再测试一下pc与pc之间是否连通
