1、引入依赖
<dependency>
<groupId>com.github.docker-java</groupId>
<artifactId>docker-java</artifactId>
<version>3.2.14</version>
</dependency>
2、进入docker服务器，修改配置文件
vi /lib/systemd/system/docker.service
找到ExecStart 开头的配置，注释原配置 进行备份
插入以下内容
ExecStart=/usr/bin/dockerd -H tcp://0.0.0.0:2375 -H unix://var/run/docker.sock
保存退出
systemctl daemon-reload
systemctl restart docker
3、创建连接
public DockerClient connectDocker(){
DockerClient dockerClient = DockerClientBuilder.getInstance("tcp://ip:2375").build();
Info info = dockerClient.infoCmd().exec();
String infoStr = JSONObject.toJSONString(info);
System.out.println("docker的环境信息如下：=================");
System.out.println(info);
return dockerClient;
}
如果控制台打印了信息，则代表你已经通过java 连接上了docker
4、丢弃普通连接，实现安全连接
- 编写生成证书的脚本，这是在网上找的，可以自动生成脚本并且完成拷贝
vim auto_gen_docker.sh
#!/bin/bash
#
# -------------------------------------------------------------
# 自动创建 Docker TLS 证书
# -------------------------------------------------------------
# 以下是配置信息
# --[BEGIN]------------------------------
CODE="docker"
IP="192.168.1.1"
PASSWORD="123456"
COUNTRY="CN"
STATE="HUNAN"
CITY="CHANGSHA"
ORGANIZATION="thyc"
ORGANIZATIONAL_UNIT="Dev"
COMMON_NAME="$IP"
EMAIL="an23gn@163.com"
# --[END]--
# Generate CA key
openssl genrsa -aes256 -passout "pass:$PASSWORD" -out "ca-key-$CODE.pem" 4096
# Generate CA
openssl req -new -x509 -days 365 -key "ca-key-$CODE.pem" -sha256 -out "ca-$CODE.pem" -passin "pass:$PASSWORD" -subj "/C=$COUNTRY/ST=$STATE/L=$CITY/O=$ORGANIZATION/OU=$ORGANIZATIONAL_UNIT/CN=$COMMON_NAME/emailAddress=$EMAIL"
# Generate Server key
openssl genrsa -out "server-key-$CODE.pem" 4096
# Generate Server Certs.
openssl req -subj "/CN=$COMMON_NAME" -sha256 -new -key "server-key-$CODE.pem" -out server.csr
echo "subjectAltName = IP:$IP,IP:127.0.0.1" >> extfile.cnf
echo "extendedKeyUsage = serverAuth" >> extfile.cnf
openssl x509 -req -days 365 -sha256 -in server.csr -passin "pass:$PASSWORD" -CA "ca-$CODE.pem" -CAkey "ca-key-$CODE.pem" -CAcreateserial -out "server-cert-$CODE.pem" -extfile extfile.cnf
# Generate Client Certs.
rm -f extfile.cnf
openssl genrsa -out "key-$CODE.pem" 4096
openssl req -subj '/CN=client' -new -key "key-$CODE.pem" -out client.csr
echo extendedKeyUsage = clientAuth >> extfile.cnf
openssl x509 -req -days 365 -sha256 -in client.csr -passin "pass:$PASSWORD" -CA "ca-$CODE.pem" -CAkey "ca-key-$CODE.pem" -CAcreateserial -out "cert-$CODE.pem" -extfile extfile.cnf
rm -vf client.csr server.csr
chmod -v 0400 "ca-key-$CODE.pem" "key-$CODE.pem" "server-key-$CODE.pem"
chmod -v 0444 "ca-$CODE.pem" "server-cert-$CODE.pem" "cert-$CODE.pem"
# 打包客户端证书
mkdir -p "tls-client-certs-$CODE"
cp -f "ca-$CODE.pem" "cert-$CODE.pem" "key-$CODE.pem" "tls-client-certs-$CODE/"
cd "tls-client-certs-$CODE"
tar zcf "tls-client-certs-$CODE.tar.gz" *
mv "tls-client-certs-$CODE.tar.gz" ../
cd ..
rm -rf "tls-client-certs-$CODE"
# 拷贝服务端证书
mkdir -p /etc/docker/certs.d
cp "ca-$CODE.pem" "server-cert-$CODE.pem" "server-key-$CODE.pem" /etc/docker/certs.d/
- 执行脚本
chmod a+x auto_gen_docker.sh
./auto_gen.sh
- 拷贝当前目录下的tls-client-certs-docker.tar 文件到项目的resource下，并解压，如图所示：
- 编写建立安全连接的方法
public static DockerClient getDockerClient() {
// 进行安全认证
DockerClientConfig config = DefaultDockerClientConfig.createDefaultConfigBuilder()
// 服务器ip
.withDockerHost("tcp://IP:PORT")
.withDockerTlsVerify(true)
// 压缩包解压的路径
.withDockerCertPath("D:\\code\\my_code\\test-skill\\src\\main\\resources\\tls-client-certs-docker")
// API版本 可通过在服务器 docker version 命令查看
.withApiVersion("1.37")
// 默认
.withRegistryUrl("https://index.docker.io/v1/")
// 默认
.withRegistryUsername("docker")
// 默认
.withRegistryPassword("123456")
// 默认
.withRegistryEmail("an23gn@163.com")
.build();
// docker命令执行工厂
DockerCmdExecFactory dockerCmdExecFactory = new JerseyDockerCmdExecFactory()
.withReadTimeout(60000)
.withConnectTimeout(60000)
.withMaxTotalConnections(100)
.withMaxPerRouteConnections(10);
dockerClient = DockerClientBuilder.getInstance(config).withDockerCmdExecFactory(dockerCmdExecFactory).build();
return dockerClient;
}
使用这个docker-client代替上面普通连接生成的docker-client
public DockerClient connectDocker(){
DockerClient dockerClient = getDockerClient();
Info info = dockerClient.infoCmd().exec();
String infoStr = JSONObject.toJSONString(info);
System.out.println("docker的环境信息如下：=================");
System.out.println(info);
return dockerClient;
}

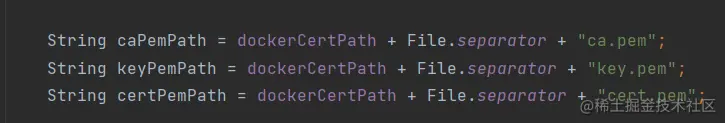

执行后，应该会报如下这个错误 Client sent an HTTP request to an HTTPS server 这是我踩的其中一个坑，后面我通过跟踪源码，找到问题所在：源码中需要验证认证文件是否存在：

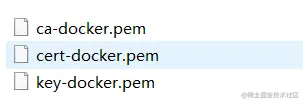

但是我们压缩包里面的认证文件是这样的：
所导致没有识别到认证文件，从而导致docker以为我们没有采用https协议，默认就是用http；但是我们服务端是开启了https的，所以会出现上面那个错误。
如何解决呢？源码是修改不了的，我们只需要把我们生成的认证文件修改成他需要的名称格式就可以了，相信有不少网友也遇到过这样的坑吧！
按要求修改后
5、创建容器
public CreateContainerResponse createContainers(DockerClient client,String containerName,String imageName){
//映射端口8088—>80
ExposedPort tcp80 = ExposedPort.tcp(80);
Ports portBindings = new Ports();
portBindings.bind(tcp80, Ports.Binding.bindPort(8088));
CreateContainerResponse container = client.createContainerCmd(imageName)
.withName(containerName)
.withHostConfig(newHostConfig().withPortBindings(portBindings))
.withExposedPorts(tcp80).exec();
return container;
}
6、加载镜像
public LoadImageCmd loadImage(DockerClient client, String filePath){
LoadImageCmd loadImageCmd = null;
try {
loadImageCmd = client.loadImageCmd(new FileInputStream(filePath));
} catch (FileNotFoundException e) {
e.printStackTrace();
}
return loadImageCmd;
}
7、拉取镜像
/**
* repository 镜像名称:tag名称
**/
public PullImageCmd pullImage(DockerClient client,String repository){
PullImageCmd pullImageCmd = client.pullImageCmd(repository);
return pullImageCmd;
}
8、删除镜像
public void removeImage(DockerClient client,String imageId){
client.removeImageCmd(imageId).exec();
}
9、移除容器
public void removeContainer(DockerClient client,String containerId){
client.removeContainerCmd(containerId).exec();
}
10、启动容器
public void startContainer(DockerClient client,String containerId){
client.startContainerCmd(containerId).exec();
}
11、停止容器
public void stopContainer(DockerClient client,String containerId){
client.stopContainerCmd(containerId).exec();
}
12、路径挂载
public CreateContainerResponse createContainers(DockerClient client,String containerName,String imageName){
HostConfig hostConfig = newHostConfig();
Bind bind = new Bind("服务器路径",new Volume("容器路径"));
hostConfig.setBinds(bind);
CreateContainerResponse container = client.createContainerCmd(imageName)
.withName(containerName)
.withHostConfig(hostConfig)
.exec();
return container;
}
13、执行命令
public CreateContainerResponse createContainers(DockerClient client,String containerName,String imageName){
HostConfig hostConfig = newHostConfig();
CreateContainerResponse container = client.createContainerCmd(imageName)
.withName(containerName)
.withHostConfig(hostConfig)
.withCmd("python","/root/scripts/test.py")
.exec();
return container;
}
14、利用docker 执行脚本命令 传递参数
public CreateContainerResponse createContainers(DockerClient client,String containerName,String imageName){
HostConfig hostConfig = newHostConfig();
CreateContainerResponse container = client.createContainerCmd(imageName)
.withName(containerName)
.withHostConfig(hostConfig)
// 注意命令和参数不能进行组合，必须都用逗号隔开,也就是空格全部换成这里的,分割
.withCmd("python","/root/scripts/test.py","-t","999")
.exec();
return container;
}
