SSM+Shiro安全框架

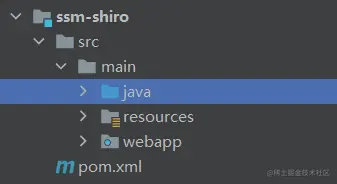

搭建SSM

（1）引入相关依赖

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <groupId>org.example</groupId>
  <artifactId>ssm-shiro</artifactId>
  <version>1.0-SNAPSHOT</version>
  <packaging>war</packaging>

  <dependencies>
<!--    mysql驱动-->
    <dependency>
      <groupId>mysql</groupId>
      <artifactId>mysql-connector-java</artifactId>
      <version>8.0.31</version>
    </dependency>
<!--spring的相关依赖-->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-webmvc</artifactId>
      <version>5.2.15.RELEASE</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-jdbc</artifactId>
      <version>5.2.15.RELEASE</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-tx</artifactId>
      <version>5.2.15.RELEASE</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-aspects</artifactId>
      <version>5.2.15.RELEASE</version>
    </dependency>
<!--      mybatis依赖-->
      <dependency>
          <groupId>org.mybatis</groupId>
          <artifactId>mybatis</artifactId>
          <version>3.5.11</version>
      </dependency>
      <dependency>
          <groupId>org.mybatis</groupId>
          <artifactId>mybatis-spring</artifactId>
          <version>2.0.7</version>
      </dependency>

<!--    lombok-->
    <dependency>
      <groupId>org.projectlombok</groupId>
      <artifactId>lombok</artifactId>
      <version>1.18.28</version>
    </dependency>
<!--    jackson-->
    <dependency>
      <groupId>com.fasterxml.jackson.core</groupId>
      <artifactId>jackson-databind</artifactId>
      <version>2.14.2</version>
    </dependency>
<!--    jsp servlet-->
    <dependency>
      <groupId>javax.servlet</groupId>
      <artifactId>javax.servlet-api</artifactId>
      <version>3.1.0</version>
    </dependency>
<!--    druid-->
    <dependency>
      <groupId>com.alibaba</groupId>
      <artifactId>druid</artifactId>
      <version>1.2.8</version>
    </dependency>


  </dependencies>
</project>

（2）spring配置文件

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc" xmlns:tx="http://www.springframework.org/schema/tx"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context.xsd http://www.springframework.org/schema/mvc https://www.springframework.org/schema/mvc/spring-mvc.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd">
    <!--包扫描-->
     <context:component-scan base-package="com.cjj"/>
    <!--2.注解驱动-->
    <mvc:annotation-driven/>
    <!--3.静态资源放行-->
    <mvc:default-servlet-handler/>
    <!--4.视图解析器-->
    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
     <property name="prefix" value="/WEB-INF/views/"/>
     <property name="suffix" value=".jsp"/>
     </bean>
     <!--数据源-->
     <bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource">
     <property name="username" value="root"/>
     <property name="password" value="123456"/>
     <property name="driverClassName" value="com.mysql.cj.jdbc.Driver"/>
     <property name="url" value="jdbc:mysql://localhost:3306/shiro?serverTimezone=Asia/Shanghai"/>
     </bean>

     <!--SqlSessionFactory 加载mybatis的配置-->
     <bean id="sessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
     <property name="dataSource" ref="dataSource"/>
     <!--映射文件所在的路径-->
     <property name="mapperLocations" value="classpath:mapper/*.xml"/>
     </bean>

     <!--7.设置dao接口的代理实现类-->
     <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
     <property name="sqlSessionFactoryBeanName" value="sessionFactory"/>
     <!--dao接口所在的包-->
     <property name="basePackage" value="com.cjj.dao"/>
     </bean>
 <!--事务管理-->
     <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
     <property name="dataSource" ref="dataSource"/>
     </bean>
     <!--开启事务的注解驱动-->
     <tx:annotation-driven/>



</beans>

（3）web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
         version="4.0">
  <!--配置前端控制器-->
  <servlet>
    <servlet-name>springmvc</servlet-name>
    <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
    <init-param>
      <param-name>contextConfigLocation</param-name>
      <param-value>classpath:spring.xml</param-value>
    </init-param>
    <!--tomcat启动时加载该类-->
    <load-on-startup>1</load-on-startup>
  </servlet>
  <servlet-mapping>
    <servlet-name>springmvc</servlet-name>
    <url-pattern>/</url-pattern>
  </servlet-mapping>
</web-app>

SSM整合Shiro---认证功能

（1）创建数据库

/*
 Navicat Premium Data Transfer

 Source Server         : 实训
 Source Server Type    : MySQL
 Source Server Version : 80032
 Source Host           : localhost:3306
 Source Schema         : shiro

 Target Server Type    : MySQL
 Target Server Version : 80032
 File Encoding         : 65001

 Date: 06/07/2023 11:16:35
*/

SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;

-- ----------------------------
-- Table structure for permission
-- ----------------------------
DROP TABLE IF EXISTS `permission`;
CREATE TABLE `permission`  (
                               `perid` int(0) NOT NULL AUTO_INCREMENT,
                               `pername` varchar(255) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci NULL DEFAULT NULL,
                               `percode` varchar(255) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci NULL DEFAULT NULL,
                               PRIMARY KEY (`perid`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 9 CHARACTER SET = utf8mb3 COLLATE = utf8mb3_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of permission
-- ----------------------------
INSERT INTO `permission` VALUES (1, '查询用户信息', 'user:query');
INSERT INTO `permission` VALUES (2, '修改用户', 'user:update');
INSERT INTO `permission` VALUES (3, '删除用户', 'user:delete');
INSERT INTO `permission` VALUES (4, '添加用户', 'user:insert');
INSERT INTO `permission` VALUES (5, '导出用户', 'user:export');

-- ----------------------------
-- Table structure for role
-- ----------------------------
DROP TABLE IF EXISTS `role`;
CREATE TABLE `role`  (
                         `roleid` int(0) NOT NULL AUTO_INCREMENT,
                         `rolename` varchar(255) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci NULL DEFAULT NULL,
                         PRIMARY KEY (`roleid`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 3 CHARACTER SET = utf8mb3 COLLATE = utf8mb3_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of role
-- ----------------------------
INSERT INTO `role` VALUES (1, '仓管管理员');
INSERT INTO `role` VALUES (2, 'CEO');
INSERT INTO `role` VALUES (3, '保安');

-- ----------------------------
-- Table structure for role_permission
-- ----------------------------
DROP TABLE IF EXISTS `role_permission`;
CREATE TABLE `role_permission`  (
                                    `perid` int(0) NOT NULL,
                                    `roleid` int(0) NOT NULL,
                                    PRIMARY KEY (`perid`, `roleid`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8mb3 COLLATE = utf8mb3_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of role_permission
-- ----------------------------
INSERT INTO `role_permission` VALUES (1, 1);
INSERT INTO `role_permission` VALUES (1, 2);
INSERT INTO `role_permission` VALUES (1, 3);
INSERT INTO `role_permission` VALUES (2, 1);
INSERT INTO `role_permission` VALUES (2, 2);
INSERT INTO `role_permission` VALUES (3, 1);
INSERT INTO `role_permission` VALUES (3, 2);
INSERT INTO `role_permission` VALUES (4, 1);
INSERT INTO `role_permission` VALUES (5, 3);

-- ----------------------------
-- Table structure for user
-- ----------------------------
DROP TABLE IF EXISTS `user`;
CREATE TABLE `user`  (
                         `userid` int(0) NOT NULL AUTO_INCREMENT,
                         `username` varchar(255) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci NULL DEFAULT NULL,
                         `userpwd` varchar(255) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci NULL DEFAULT NULL,
                         `sex` varchar(255) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci NULL DEFAULT NULL,
                         `address` varchar(255) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci NULL DEFAULT NULL,
                         `salt` varchar(255) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci NULL DEFAULT NULL,
                         PRIMARY KEY (`userid`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 4 CHARACTER SET = utf8mb3 COLLATE = utf8mb3_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of user
-- ----------------------------
INSERT INTO `user` VALUES (1, 'zhangsan', '4b05a8716a430f71c6911d2e9149092f', '男', '武汉', '07f63bbf285e4719bfee1cc2bb81db33');
INSERT INTO `user` VALUES (2, 'lisi', '99cc11855b41ff3e5f7c0af3c5090a8c', '女', '北京', '2d7e37f019144764ac02aa7220929f93');
INSERT INTO `user` VALUES (3, 'wangwu', '6d70c027801af4dc892ab340d4bf73b6', '女', '成都', '99f6bf1b540145699e6e5c90480105b0');

-- ----------------------------
-- Table structure for user_role
-- ----------------------------
DROP TABLE IF EXISTS `user_role`;
CREATE TABLE `user_role`  (
                              `userid` int(0) NOT NULL,
                              `roleid` int(0) NOT NULL,
                              PRIMARY KEY (`userid`, `roleid`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8mb3 COLLATE = utf8mb3_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of user_role
-- ----------------------------
INSERT INTO `user_role` VALUES (1, 1);
INSERT INTO `user_role` VALUES (2, 2);
INSERT INTO `user_role` VALUES (3, 3);

SET FOREIGN_KEY_CHECKS = 1;

（2）引入shiro-spring依赖

<dependency>
    <groupId>org.apache.shiro</groupId>
    <artifactId>shiro-spring</artifactId>
    <version>1.7.0</version>
</dependency>

（3）修改/增加spring配置文件

<!-- shiro和spring整合的配置-->
   <bean id="securityManager" class="org.apache.shiro.web.mgt.DefaultWebSecurityManager">
    <property name="realm" ref="myRealm"/>
   </bean>
   <bean id="myRealm" class="com.cjj.realm.MyRealm">
        <property name="credentialsMatcher" ref="credentialsMatcher"/>
   </bean>
<!--密码加密器-->
    <bean id="credentialsMatcher" class="org.apache.shiro.authc.credential.HashedCredentialsMatcher">
        <property name="hashAlgorithmName" value="MD5"/><!--使用MD5加密器-->
        <property name="hashIterations" value="1024"/><!--加密次数-->
    </bean>

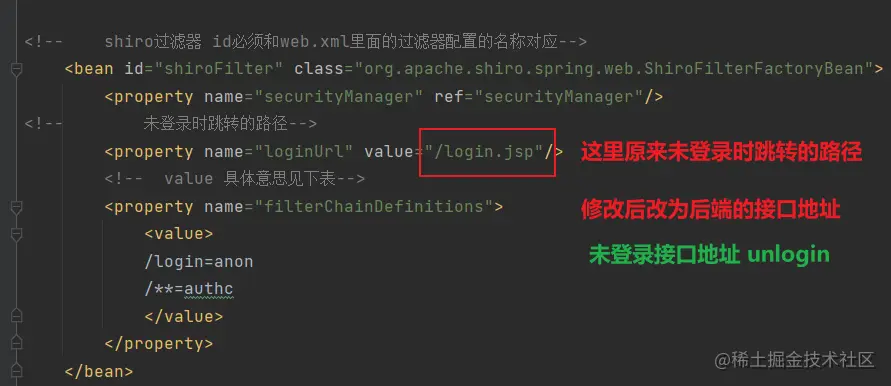

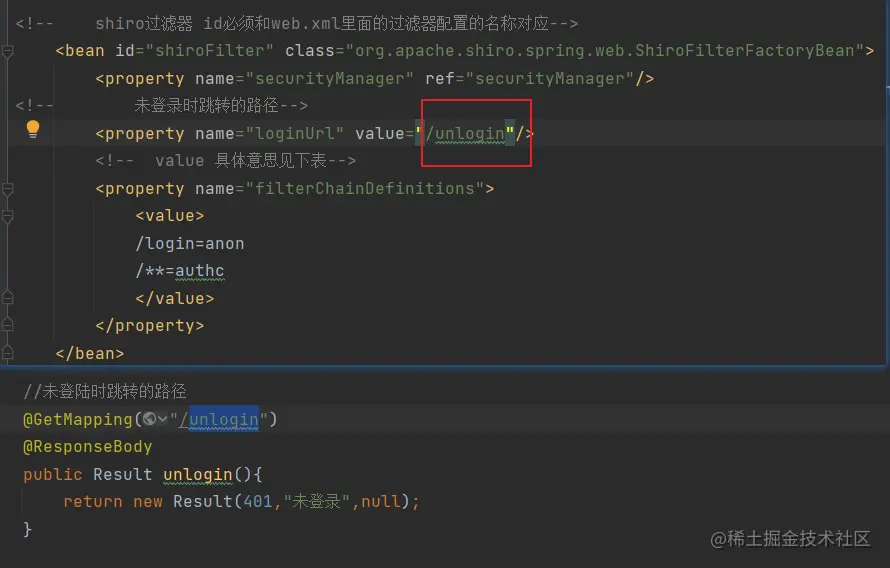

<!--    shiro过滤器 id必须和web.xml里面的过滤器配置的名称对应-->
    <bean id="shiroFilter" class="org.apache.shiro.spring.web.ShiroFilterFactoryBean">
        <property name="securityManager" ref="securityManager"/>
<!--        未登录时跳转的路径-->
        <property name="loginUrl" value="/index.jsp"/>

        <property name="filterChainDefinitions">
            <value>

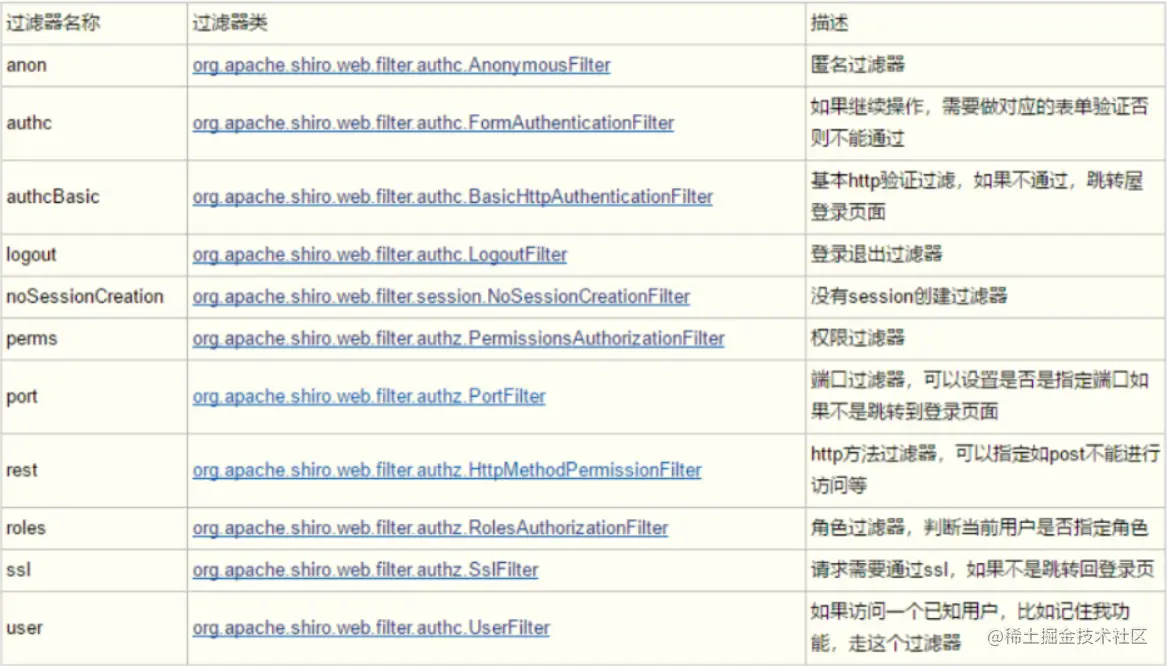

<!--                具体意思见下表-->
            /login=anon
            /**=authc
            </value>
        </property>
    </bean>

（4）web.xml文件

<!--  shiro的过滤器:必须和ShiroFilterFactoryBean的一致-->
  <filter>
    <filter-name>shiroFilter</filter-name>
    <filter-class>org.springframework.web.filter.DelegatingFilterProxy</filter-class>
  </filter>
  <filter-mapping>
    <filter-name>shiroFilter</filter-name>
    <url-pattern>/*</url-pattern>
  </filter-mapping>

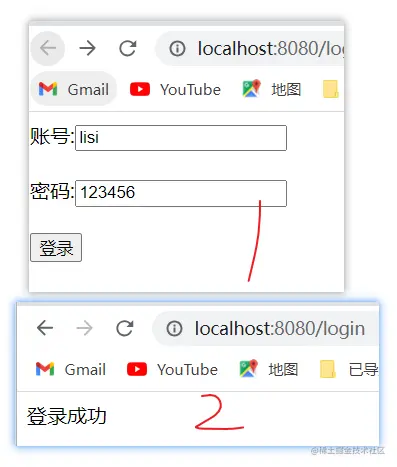

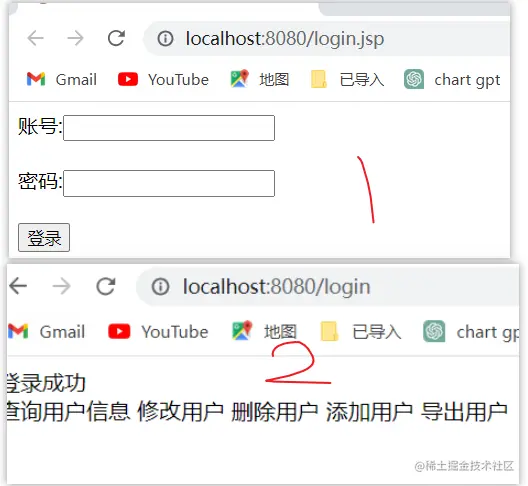

（5）修改login.jsp

<body>
<form action="/login" method="post">
    账号:<input type="text" name="username"/><br><br>
    密码:<input type="text" name="password"/><br><br>
    <input type="submit" value="登录"/>
</form>
</body>

（6）controller

@Controller
public class LoginController {

    @PostMapping("/login")
    public String login(LoginVo loginVo){
        final Subject subject = SecurityUtils.getSubject();
        UsernamePasswordToken token = new UsernamePasswordToken(loginVo.getUsername(),loginVo.getPassword());
        try{
            subject.login(token);
            return "success";  //经过视图解析器，最终的访问路径为  /WEB-INF/views/success.jsp
        }catch (Exception e){
            e.printStackTrace();
            return "redirect:/login.jsp";  //重定向到login.jsp
        }

    }

}

(7)MyRealm

public class MyRealm extends AuthorizingRealm {

    @Autowired
    protected UserService userService;

    protected AuthorizationInfo doGetAuthorizationInfo(PrincipalCollection principalCollection) {
        return null;
    }

    protected AuthenticationInfo doGetAuthenticationInfo(AuthenticationToken authenticationToken) throws AuthenticationException {
       //获取登录账号
        final String username = authenticationToken.getPrincipal().toString();
        User user =  userService.findUserByUsername(username);
        if(user!=null){
            final ByteSource salt = ByteSource.Util.bytes(user.getSalt());
            SimpleAuthenticationInfo info= new SimpleAuthenticationInfo(user,user.getUserpwd(),salt,this.getName());
            return info;

        }
        return null;
    }
}

（8）UserService

@Service
public class UserServiceImpl implements UserService {

    @Autowired
    private UserDao userDao;

    public User findUserByUsername(String username) {
       User user =  userDao.findUserByUsername(username);

        return user;
    }
}

（9）dao方法和映射代码

public interface UserDao {

     User findUserByUsername(@Param("username") String username);
}

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<!--namesapce的内容必须和对应的接口路径映射-->
<mapper namespace="com.cjj.dao.UserDao">


    <select id="findUserByUsername" resultType="com.cjj.entity.User">
        select *from user where  username=#{username}
    </select>
</mapper>

（10）测试

SSM整合shiro--授权【权限管理】

（1）修改MyRealm

@Autowired
protected UserService userService;
    //授权
protected AuthorizationInfo doGetAuthorizationInfo(PrincipalCollection principalCollection) {
    //获取当前登录者的账号|对象
    User user = (User) principalCollection.getPrimaryPrincipal();
    //调用userSerice中的方法--根据id
    List<String> permission = userService.findPermissionByUserId(user.getUserid());
    if(permission.size()!=0){
        SimpleAuthorizationInfo info =new SimpleAuthorizationInfo();
        info.addStringPermissions(permission);
        return info;
    }
    return null;
}

（2）Controller

@RestController
@RequestMapping("user")
public class UserController {

    @GetMapping("query")
    public String query(){
        return "user:query";
    }

    @GetMapping("update")
    public String update(){
        return "user:update";
    }

    @GetMapping("delete")
    public String delete(){
        return "user:delete";
    }

    @GetMapping("insert")
    public String insert(){
        return "user:insert";
    }

    @GetMapping("export")
    public String export(){
        return "user:export";
    }
}

（3）UserService

@Service
public class UserServiceImpl implements UserService {

    @Autowired
    private UserDao userDao;

    public User findUserByUsername(String username) {
       User user =  userDao.findUserByUsername(username);

        return user;
    }

    public List<String> findPermissionByUserId(Integer userid) {
        List<Permission> permission = userDao.findPermissionByUserId(userid);
        final List<String> collect = permission.stream().map(item -> item.getPercode()).collect(Collectors.toList());
        return collect;
    }
}

（4）userDao和映射

//根据用户id查询权限
List<Permission> findPermissionByUserId(@Param("userid") Integer userid);

<select id="findPermissionByUserId" resultType="com.cjj.entity.Permission">
    select p.* from user_role ur join role_permission rp on ur.roleid = rp.roleid
                                 join permission p on rp.perid = p.perid where userid=#{userid}
</select>

（5）测试

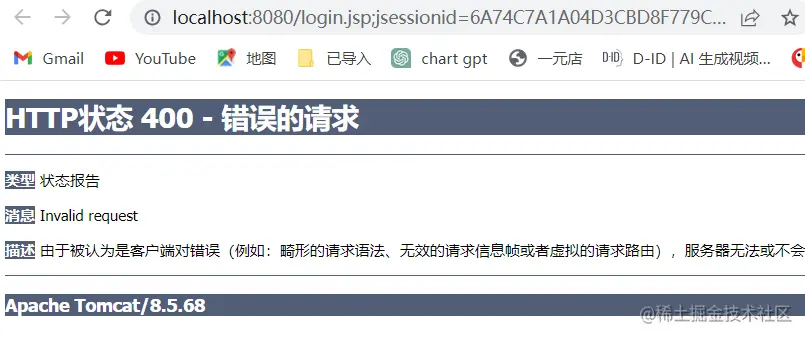

报错畸形语法请求，发现标头有jsessionid的信息，删掉就能正常访问

（6）解决畸形语法请求

在web.xml文件中加上

<!--   移除shiro首次加载时路径中的 jsessionid-->
  <session-config>
    <!-- Disables URL-based sessions (no more 'jsessionid' in the URL using Tomcat) -->
    <tracking-mode>COOKIE</tracking-mode>
  </session-config>

（7）再次测试、

这个时候发现所有的权限都在显示---我们的需求是登录人只能看到自己所拥有的权限按钮

解决方案:在jsp中使用shiro标签库

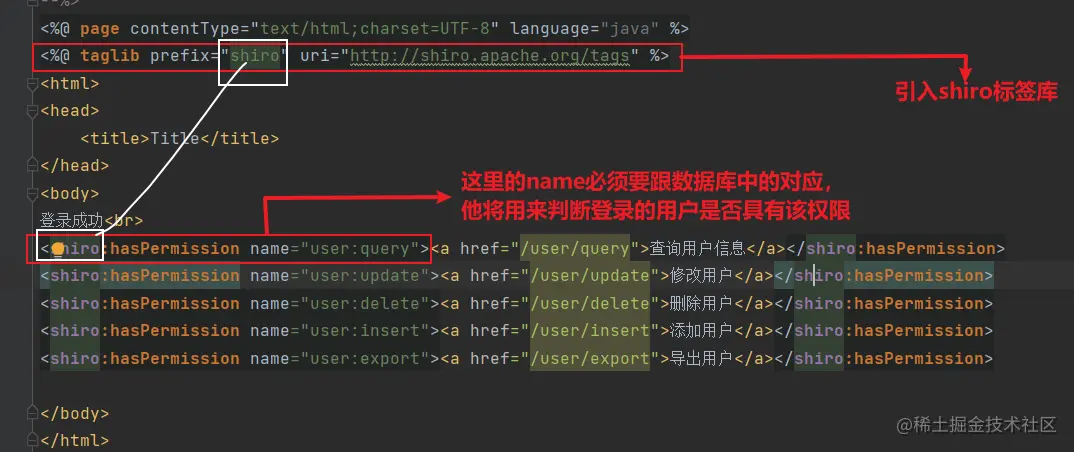

（8）在jsp中使用shiro标签库

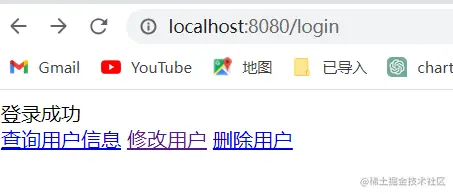

（9）测试

这个时候已经会根据自身拥有的权限显示相应的权限按钮，但是只要登录成功，就算没显示按钮，也是可以访问后台的其他接口

解决方法：shiro提供了注解，可以判断登录用户是否具有该注解的权限--如果有，才会执行该方法

（10）controller

@RequiresPermissions(value = "user:query") 此注解会判断该用户是否具有value中的权限 有就可以访问，没有就不行

@RestController
@RequestMapping("user")
public class UserController {

    @GetMapping("query")
    @RequiresPermissions(value = "user:query")
    public String query(){
        return "user:query";
    }

    @GetMapping("update")
    @RequiresPermissions(value = "user:update")
    public String update(){
        return "user:update";
    }

    @GetMapping("delete")
    @RequiresPermissions(value = "user:delete")
    public String delete(){
        return "user:delete";
    }

    @GetMapping("insert")
    @RequiresPermissions(value = "user:insert")
    public String insert(){
        return "user:insert";
    }

    @GetMapping("export")
    @RequiresPermissions(value = "user:export")
    public String export(){
        return "user:export";
    }
}

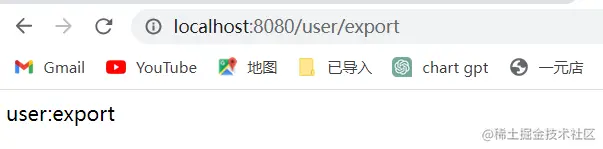

（11）测试

没有权限，依旧可以访问

（12）解决shiro注解不生效

发面注解不生效-----spring没有开启该注解的驱动---spring配置文件加入如下内容

<!-- 启动Shrio的注解 shiro加在controller应该属于springmvc的配置 -->
<bean id="lifecycleBeanPostProcessor"
      class="org.apache.shiro.spring.LifecycleBeanPostProcessor" />
<bean
        class="org.springframework.aop.framework.autoproxy.DefaultAdvisorAutoProxyCreator"
        depends-on="lifecycleBeanPostProcessor" />
<bean
        class="org.apache.shiro.spring.security.interceptor.AuthorizationAttributeSourceAdvisor">
    <property name="securityManager" ref="securityManager" />
</bean>

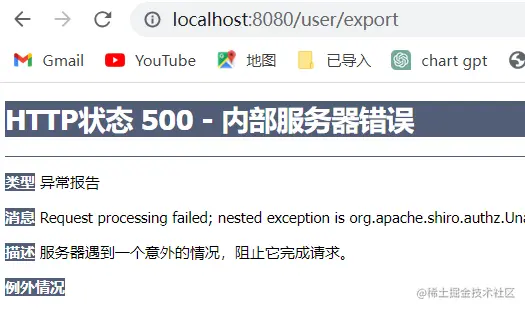

(13)测试

拦截成功

（14）处理权限不足的异常

定义一个异常处理类

@ExceptionHandler（异常信息类）

@ControllerAdvice【用来捕获controller层的一异常】

@ControllerAdvice
public class MyHandle {

    @ExceptionHandler(value = UnauthorizedException.class)
    public String unauthorizedException(UnauthorizedException e){
            e.printStackTrace();
            return "403";
    }
}

将返回的数据改为json数据，完成前后端分离的效果

（1）定义一个统一的json类

@Data
@NoArgsConstructor
@AllArgsConstructor
public class Result {
    Integer code;
    String msg;
    Object data;

}

（2）修改controller代码

@Controller
//将后端返回的数据转为json格式
@ResponseBody
public class LoginController {

    @PostMapping("/login")
    public Result login(LoginVo loginVo){
        final Subject subject = SecurityUtils.getSubject();
        UsernamePasswordToken token = new UsernamePasswordToken(loginVo.getUsername(),loginVo.getPassword());
        try{
            subject.login(token);
            //登录成功返回200
            return new Result(200,"登录成功",null);
        }catch (Exception e){
            e.printStackTrace();
            return new Result(500,"账号或密码错误",null);
        }

    }

}

（3）修改权限不足时的异常处理类

@ControllerAdvice//捕获异常类
public class MyHandle {

    @ExceptionHandler(value = UnauthorizedException.class)
    //将后端返回的数据转为json格式
    @ResponseBody
    public Result unauthorizedException(UnauthorizedException e){
            e.printStackTrace();
            return new Result(403,"权限不足",null);
    }
}

（4）修改未登录时跳转的路径

1.第一种方式，未登录跳转到一个接口路径

修改前

修改后

//未登陆时跳转的路径
@GetMapping("/unlogin")
@ResponseBody
public Result unlogin(){
    return new Result(401,"未登录",null);
}

2.第二种方式，定义过滤器

<!--    将对象转换为json字符串的依赖-->
    <dependency>
      <groupId>com.alibaba</groupId>
      <artifactId>fastjson</artifactId>
      <version>1.2.62</version>
    </dependency>

public class LoginFilter extends FormAuthenticationFilter {

    //未登录访问资源时，会触发该方法。 ---默认内容是重定向到登录页面--重写改为返回json数据
    @Override
    protected boolean onAccessDenied(ServletRequest request, ServletResponse response) throws Exception {
        //解决响应数据的中文乱码问题
        response.setContentType("application/json;charset=utf-8");
        //获取用于向客户端发送文本数据的对象
        final PrintWriter writer = response.getWriter();
        final Result result = new Result(401,"未登录",null);
        //把java对象转为json字符串
        final String string = JSON.toJSONString(result);
        writer.write(string);
        //刷新流
        writer.flush();
        //关流
        writer.close();
        return false;
    }
}

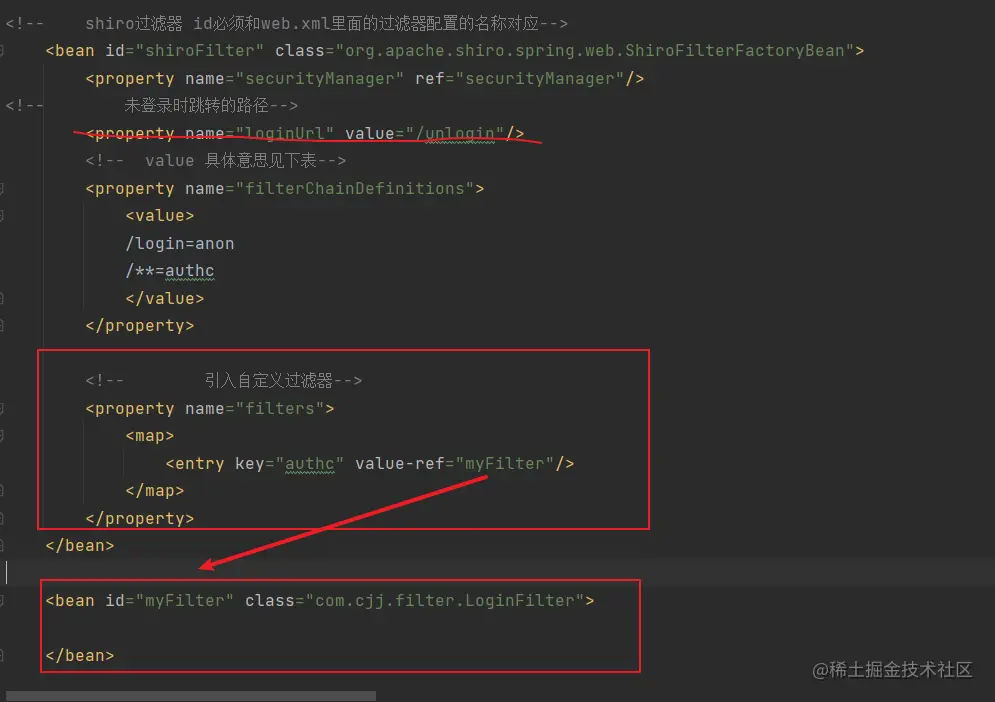

修改spring配置文件

（5）将shiro权限对象缓存到redis中

避免频繁的查询数据库

1.引入shiro和redis整合的依赖

<!--shiro和redis整合的依赖-->
      <dependency>
          <groupId>org.crazycake</groupId>
          <artifactId>shiro-redis</artifactId>
          <version>2.4.6</version>
      </dependency>

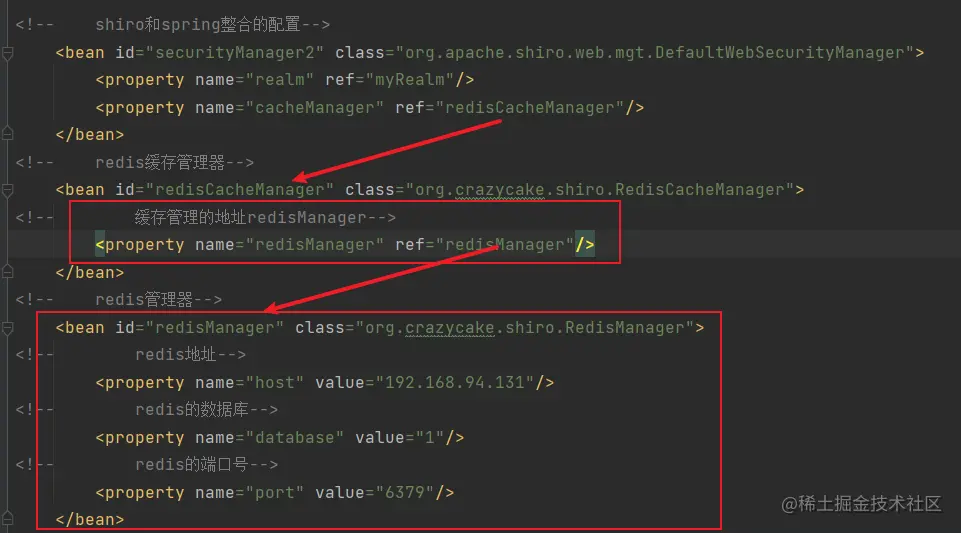

2.修改spring配置文件
